TypeS Shiatsu Plus SC530012 Guide

SHIATSU PLUS AIR
MASSAGE CUSHION
CARE & USE INSTRUCTIONS
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
WP ITM. SC530012

2
1. Important Safety Instructions ............................................ 3
2. Package Includes .............................................................. 5
3. Product Specifications ...................................................... 5
4. Product Overview .............................................................. 6
5. Installation .......................................................................... 7
6. Operating Instructions ....................................................... 8
7. Care & Maintenance Instructions .................................... 10
8. General Information ......................................................... 10
Index

3
(1) Persons with a pacemaker or another in-vivo
electronic medical device tending to suer
electronic jamming
(2) Patients with malignant tumors
(3) Patients with heart disease
(4) Persons proved to be unable to identify
temperatures
(5) Osteoporosis patients, spinal fracture patients,
or persons with acute painful diseases such as
sprains or muscle strains
(6) Persons who are unwell
1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions for Model SC530012.
2. Before using the massage cushion, read all instructions and cautionary markings on the product.
3. Do not expose charger to rain or moisture of any kind.
4. Use of an attachment not recommended or sold by the manufacturer may result in a risk of re, electric shock, or injury to the user.
5. To reduce risk of damage to the cigarette lighter connector and cord, pull the cigarette lighter connector rather than the
cord when disconnecting the charger.
6. Make sure the cord is carefully positioned so that it will not be stepped on, tripped over, or otherwise subjected to damage
or stress.
7. Do not operate the massage cushion with a damaged cord or cigarette lighter connector – replace the damaged part immediately.
8. Do not operate the massage cushion if it has received a sharp blow, been dropped, or otherwise damaged in any way;
contact our customer support team for repair or replacement information.
9. Do not disassemble the massage cushion. Incorrect reassembly may result in a risk of electric shock or re.
10. To reduce risk of electric shock, unplug charger before attempting any maintenance or cleaning. Turning o controls will
not reduce this risk.
(7) Pregnant persons or women who have just
had childbirth
(8) Persons with injuries in the massaged parts
(9) Persons with a body temperature above 38°C
(with a fever) (For example, persons with intense
acute inammation symptoms such as
listlessness, cold shivers and blood pressure
change or persons in poor health)
(10) Persons with an abnormal or bent vertebra
(11) Persons with protrusion of intervertebral disc
Before using the product, persons who are being treated or have any of the following
conditions should consult a physician.
If you feel physically ill while using this product, stop immediately and consult a
physician.
Do not massage for more than 15 minutes at a time.
In the case of any malfunction during use, stop use immediately and unplug the
power cord.
Actions tending to cause serious injuries or death
Actions that must be absolutely forbidden
Must be
followed
Actions that must be done
Pay attention to the symbols before safety instructions (an example is given below).
THESE SAFETY INSTRUCTIONS MUST BE STRICTLY FOLLOWED IN USE TO AVOID PERSONAL INJURIES AND
PROPERTY DAMAGE ARE AS FOLLOWS:
Actions tending to cause minor Injuries or property damage
1. Important Safety Instructions

4
Do not insert or pull out the power plug with wet hands.
Before using the product, make sure the fabric cover is not damaged and there is no
foreign matter that might interfere with the operation of the product.
Do not use the product with any other massage or heating device.
Do not fall asleep while using the product. Do not use the product after drinking.
Do not pull out the power plug or turn OFF the power switch suddenly during use.
Never leave this product unattended when it is plugged in. Always unplug the product
when not in use.
Before cleaning or maintaining the product, unplug the product first.
Do not use where aerosol spray products, oxygen, or flammable fumes are present.
Turn off and unplug product if there is a power outage or lightening storm.
When unplugging the product, do not pull the power cord but pull the 12V adapter plug.
Do not sprinkle substances such as water on the product or its controller.
Do not refit, disassemble or repair the product.
Must be
followed
Product
wetting
forbidden
Disassembly
forbidden
Forbidden
Pull out
power plug
Caution
A damaged power cord or plug may result in electric shock, short circuit or re.
Do not put hands, arms or feet into the backrest’s fabrics or traveling sections of
the massage wheels.
Children should not use the product. Keep them from playing on the product or
climbing onto the backrest.
Do not climb onto the backrest. Do not lean or sit on the backrest.
Persons unable to express themselves clearly or unable to operate the product
should not use the product.
Do not damage the power line or the power plug.
(Do not damage, machine, forcedly bend, twist or extend the power cord or the
power plug, or place the power cord or the power plug close to a heater. Do not tie
or bind any heavy objects with the power cord or plug.)
Forbidden

5

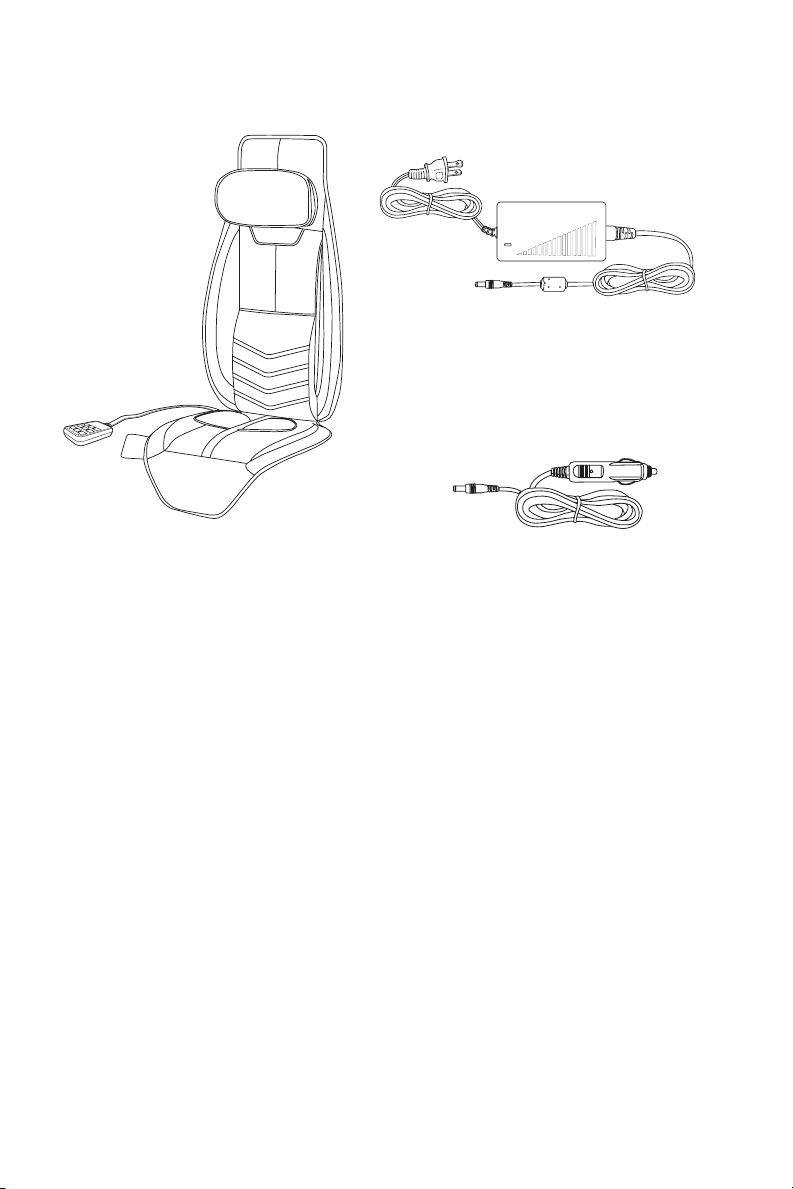

2. Package Includes
3. Product Specifications
1. Input rating: 12V ⎓4A
2. Power: 48W Max.
3. Auto timer: 15 minutes
4. USB output: 5V 1A
5. 12V Car Adapter with 10A fuse
6. UL listed AC Adapter
7. Product weight: 12.5lbs / 5.674kg
8. Product dimensions:
19.7” / 50cm (W) x 55.5” / 141cm (H) x 5.9” / 15cm (L)
9. Controller dimensions:
1.97” / 5cm (W) x 2.76” / 7cm (H) x 0.63” / 1.6cm (L)
10. Controller cord length: 37.4” / 95cm
11. 12V Car Adapter cord length: 118.11” / 300cm
12. AC/DC Adapter cord length: 118.11” / 300cm
Shiatsu Plus Air
Massage Cushion
1 x 12V
Car Adapter
1 x AC
Adapter

6
4. Product Overview
Massage Cushion
Controller
Top row
• Neck massage pad raise
• Neck massage on / heat / o
• Neck massage pad lower
Button description (left to right)
Middle row
• Seat massage on / o
• Back massage on / spot / o
• Seat fan on / o
Bottom row
• Lumbar support air chamber inate
• Lumbar support air chamber deate
• Power on / o
5V 1A USB
power output
Seat Massage Air Chambers
Backrest
massage pad
Neck
massage pad
19.7” / 50cm
32.5” /
82.6cm
23” / 58.4cm
Controller pouch
Controller
Lumbar support air chamber
Neck
Massage
Heat
Seat
Massage
Neck
Massage
Neck
Massage
Lumbar
Support
Lumbar
Support
Full Back
Spot Seat Fan

7
5. Installation
1. Fasten the buckle strap
behind the headrest posts.
2. Pull the front flap down until
the metal J-Clip can be secured
underneath the seat.
USE CAUTION as elastic can snap back.
Never stretch elastic at eye level when
installing.
3. Tuck adjustable stopper disc
into seat gap.
4a. Plug the 12V Car Adapter into your vehicle’s 12V DC outlet and
plug the receptacle end into the input jack, located along the side of
the massage cushion; OR...
4b. Plug the AC / DC Adapter into a wall outlet and plug the receptacle
end into the input jack, located along the side of the massage cushion.
NOTE: make sure the input
jacks are securely connected
together for proper function.
1.
2.
4a
4b
3.

Neck
Massage
Neck
Massage
Neck
Massage
Heat
Neck
Massage
Heat
Neck
Massage
Heat
8
6. Operating Instructions
1. ON/OFF
- Press the button on the controller to turn on the massage cushion.
The red indicator light will be on. A 15-minute cycle of full back Shiatsu
massage will start automatically. When the time is up, the back massage
nodes will move to retracting positions, and the massage cushion will turn
off automatically.
- Pressing the button during a massage cycle will immediately turn
off the massage cushion. The back massage nodes will move to retracting
positions, and the red indicator light will flash until the back massage nodes
move to retracting positions and then turn off.
2. Full Back / Spot Massage
- Spot massage allows you to focus the massage on a specific area of the back.
- Once the back massage nodes reach your desired position, press the
button once during a full back massage to activate the spot
massage function.
- Press the button once during spot massage to stop the massage.
The back massage nodes will move to retracting positions, and the red
indicator light will flash until the back massage nodes move to retracting
positions and then stop.
- Press the button twice during spot massage to resume full back
massage.
3. Neck Massage
- Press the button once to turn on the neck massage function, and
the neck massage nodes will begin to rotate. The soothing heat function will
be activated at the same time as the massage nodes glow red. Please allow
some time for the heating action to warm up. You may flip over the neck pad
for more direct heat.
- Press the button again to deactivate the soothing heat function.
The red indicator light will flash.
- Press the button one more time to turn off neck massage.
- Press and hold the or button to adjust the position of the
neck massage nodes.
NOTE: the unit has an auto-reverse feature that will change the direction of
the massage nodes intermittently throughout your massage.
Full Back
Spot
Full Back
Spot
Full Back
Spot

Lumbar
Support
Lumbar
Support
Seat Fan
Seat
Massage
9
4. Seat Massage
- Press the button to turn on the seat massage function. Two seat
massage air chambers will inflate/deflate through a cycle of alternating and
paired massages resulting in a gentle tension relieving effect. Press the button
again to turn off the seat massage function.
5. Lumbar Support
- Press and hold the or button to inflate / deflate the lumbar air
support. Release the button when you’ve reached your desired firmness.
6. Seat Fan
- Press the button to turn on / off the seat fan. The seat fan will blow
refreshing air on your back and provide cooling comfort and relief.
NOTE:
- The neck massage pad can be moved up and down even when the neck
massage function is not turned on.
- The lumbar air support can only be inflated and deflated when the back and
seat massage functions are off.

10
8. General Information:
7. Care & Maintenance Instructions
Shiatsu Plus Air Massage Cushion
SC530012
Responsible Party:
Horizon Brands
2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA
Tel: [phone]
Customer Support:
[email protected]
1-866-294-9244
FCC / IC Compliance Statement:
This device complies with Part 15 of the FCC rules and Industry Canada.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
WARNING: Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s authority
to operate the equipment.
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications or change to this equipment.
Such modifications or change could void the user’s authority to operate
the equipment.
- Make sure product is turned off, and unplugged before cleaning.
- Wipe product with a damp cloth - do not use strong detergent or solvents to
clean (Hand wash only, DO NOT machine wash) and allow to air dry.
- Do not submerge product in water or any kind of liquid.
- Keep the unit away from all liquids and moisture.
- Store massage cushion in a cool dry place and avoid wrapping cord around
product when storing to prevent cord damage.

11
NOTE: This equipment has been tested and found to comply with
the limits for Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING: This product can expose you to chemicals including
DEHP and DINP, which are known to the State of California to cause
cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.

ML-530012_V1
2975 Red Hill Ave., Ste. 100,
Costa Mesa, CA 92626
1.866.294.9244 | [email protected]
©2020 Type S. All rights reserved.
www.typesauto.com
A Horizon Brands Company
