Tyromont TT2022 User manual

All rights reserved 2022 © TYROMONT Alpin Technik GmbH and Girsberger Elektronik AG
Instruction manual
Technical Specifications
Training Transmitter TT2022®
P/N 93930
457 kHz transmitter for training the basic knowledge of
Avalanche transceivers
Read this manual
carefully and retain it
for future references
.

TYROMONT Alpin Technik GmbH, Bert-Köllensperger-Str. 6, 6065 Thaur, Austria I TEL +43 5223 23723-0 I FAX +43 5223 23723-10 I MAIL [email protected] I www.tyromont.com
DOC TYR_Operating_Instruction_LVS_Trainings_Tool_v22_10 .docx I ISSUE 160823 ER I LM 14.11.2022 LO I PRINT 14.11.2022
PAGE 2 to 8
T y r o m o n t A l p i n T e c h n i k G m b H | B e r t - K ö l l e n s p e r g e r - S t r a s s e 6 | A T - 6 0 6 5 T h a u r | w w w . t y r o m o n t . c o m
F O N + 4 3 5 2 2 3 2 3 7 2 3 - 0 | F A X + 4 3 5 2 2 3 2 3 7 2 3 - 10 | e - m a i l i n f o @ t y r o m o n t . c o m
Inhalt
1. Introduction ........................................................................................................................ 4
2. Description.......................................................................................................................... 4
3. Main Features..................................................................................................................... 4
4. Avalanche Transceiver Operating Modes ....................................................................... 4
4.1 Senden / Send.................................................................................................................. 4
4.2 Empfangen / Search......................................................................................................... 5
5. Avalanche Transceiver Range, Coupling Position......................................................... 5
6. Training - Procedure, Instructions ................................................................................... 5
6.1 Choice of Location, Interferences..................................................................................... 5
6.2 Coupling Layer Template ................................................................................................. 5
6.3 Preparation....................................................................................................................... 7
6.4 Instructions «Good Coupling» .......................................................................................... 7
6.5 Instructions «Bad Coupling»............................................................................................. 7
6.6 Instructions «Worst Coupling».......................................................................................... 7
7. Compatibility....................................................................................................................... 7
8. Technical Specifications ................................................................................................... 8
8.1 TT2022 ............................................................................................................................. 8
8.2 Coupling Layer Template ................................................................................................. 8
9. Warranty.............................................................................................................................. 8
10. Information...................................................................................................................... 8
Document - Versions
00.00
October 21, 2022
first draft, unofficially prerelease
01.00
#####
Rework, official release
02.00
#####
rework
03.00
#####
rework,
04.00
05.00
Before commissioning, read the following general warnings:
The TT2022 may only be used for indoor training
Read and follow all instructions and information described in this manual
Use only the specified battery technology
Do not make any modifications to this unit
If the unit is damaged, return it to the manufacturer for repair
Do not open the unit, opening the housing will void the warranty
A full functional check must be carried out by the manufacturer

TYROMONT Alpin Technik GmbH, Bert-Köllensperger-Str. 6, 6065 Thaur, Austria I TEL +43 5223 23723-0 I FAX +43 5223 23723-10 I MAIL [email protected] I www.tyromont.com
DOC TYR_Operating_Instruction_LVS_Trainings_Tool_v22_10 .docx I ISSUE 160823 ER I LM 14.11.2022 LO I PRINT 14.11.2022
PAGE 3 to 8
T y r o m o n t A l p i n T e c h n i k G m b H | B e r t - K ö l l e n s p e r g e r - S t r a s s e 6 | A T - 6 0 6 5 T h a u r | w w w . t y r o m o n t . c o m
F O N + 4 3 5 2 2 3 2 3 7 2 3 - 0 | F A X + 4 3 5 2 2 3 2 3 7 2 3 - 10 | e - m a i l i n f o @ t y r o m o n t . c o m

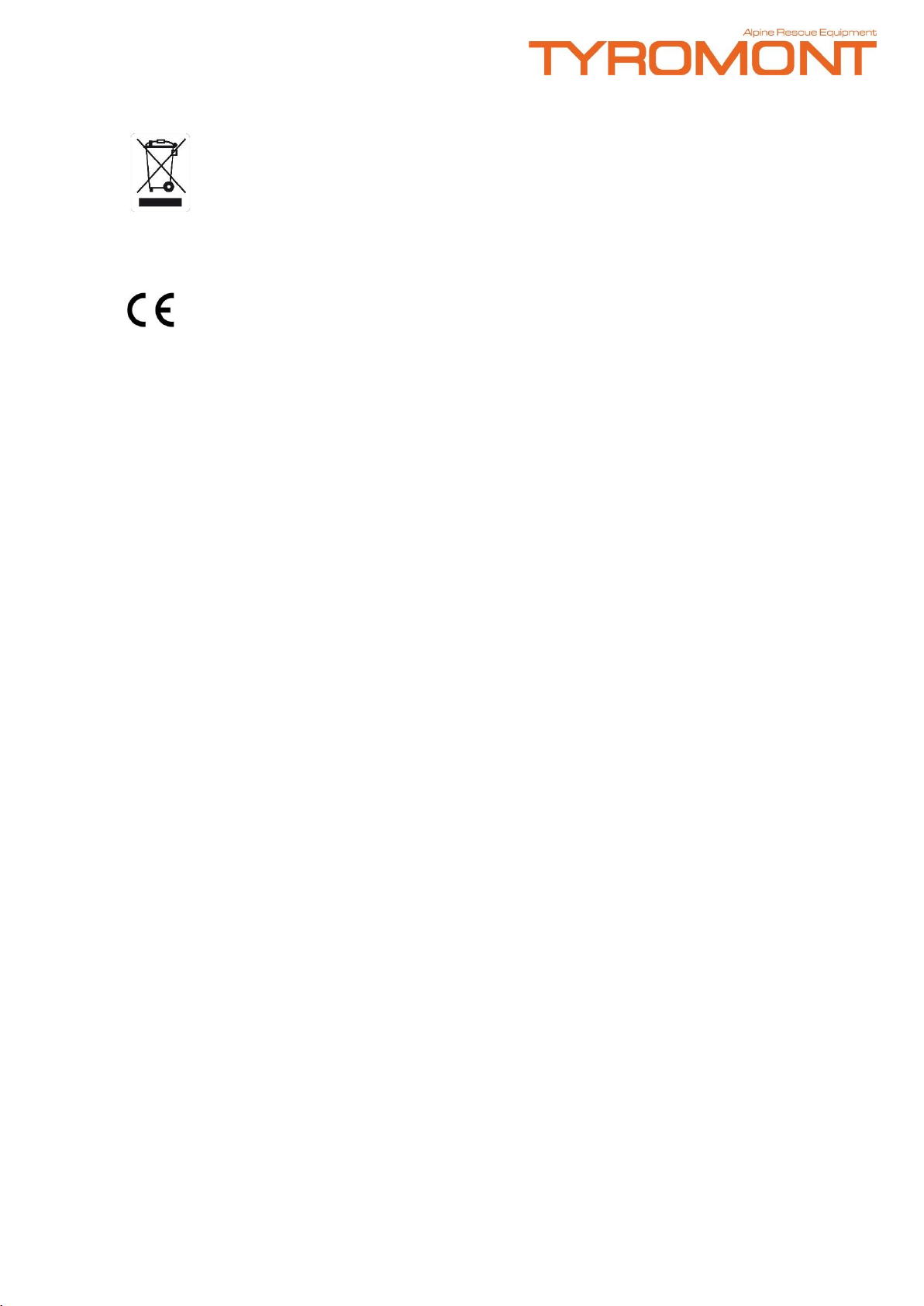

Note for Recycling
The electrical appliances must not be disposed of with household waste. It is your responsibility to dispose of
your old appliances to a designated electrical appliance recycling centre.
Author : Marcel Würgler
Version : 1.00
Created : August 19, 2022 10:00 AM
Modified : September 11, 2022 09:00 AM
File Name : TYR_Operating_Instruction_LVS_Trainings_Tool_v22_10 .docx
Copyright© 2022, Girsberger Elektronik AG. All rights reseved. This is a proprietary document of
Girsberger Elektronik AG. Its contents must not be disclosed, forwarded or made known in any other
way to third parties.

TYROMONT Alpin Technik GmbH, Bert-Köllensperger-Str. 6, 6065 Thaur, Austria I TEL +43 5223 23723-0 I FAX +43 5223 23723-10 I MAIL [email protected] I www.tyromont.com
DOC TYR_Operating_Instruction_LVS_Trainings_Tool_v22_10 .docx I ISSUE 160823 ER I LM 14.11.2022 LO I PRINT 14.11.2022
PAGE 4 to 8
T y r o m o n t A l p i n T e c h n i k G m b H | B e r t - K ö l l e n s p e r g e r - S t r a s s e 6 | A T - 6 0 6 5 T h a u r | w w w . t y r o m o n t . c o m
F O N + 4 3 5 2 2 3 2 3 7 2 3 - 0 | F A X + 4 3 5 2 2 3 2 3 7 2 3 - 10 | e - m a i l i n f o @ t y r o m o n t . c o m
1. Introduction
This document describes the 457 kHz transmitter TT2022 as well as the coupling layer template of the
company Girsberger.
2. Description
The 457 kHz transmitter TT2022 in combination with the coupling layer template made of technical
fabric is the perfect equipment for training the basic knowledge of three-antenna avalanche
transceivers, especially the basic knowledge on the subject of range. The range depends on the two
factors of reception characteristics and antenna orientation (coupling position) between transmitter
and receiver.
The transmitting power of the TT2022 is reduced by a factor of 10, which makes it possible to illustrate
at a short distance of 120 cm how the range in the search phases signal search and coarse search
depends on the coupling position and how this also affects the directional display in the receiving mode
(search).
3. Main Features
Ideal set for avalanche training on the subject of range and its dependence on the coupling position
Set consisting of a transmitter and a technical fabric with representations of three possible coupling
layer graphics as a template
Transmitter works on the international standard frequency of 457 kHz and is therefore compatible
with all avalanche transceivers
Transmitting field strength reduced by a factor of 10 compared to standard ETS 300718
Simple operation, immediately ready for use
Battery powered
Very long battery life
Small dimensions and weight
Electronics and design Design of the coupling layer templates Graphics developed and
manufactured in Switzerland (Girsberger Elektronik AG)
Housing developed and manufactured in Austria (Tyromont GmbH)
4. Avalanche Transceiver Operating Modes
4.1 Send / Senden
The Send / Senden mode is activated after switching on, and the avalanche transceiver is attached to
the body during the tour by means of a carrying system.
All avalanche transceiver a pulse in the form of electromagnetic waves (field lines) on the X antenna on
the internationally standardised frequency 457 kHz approx. once per second (pulse duration approx. 70
to 140 ms).
Note: Manufacturer-specific position-dependent switching from X to Y antenna possible!
However, these waves (field lines) are not directly visible and are difficult to visualise. On the coupling
layer template, the field lines and their course are therefore shown in simplified form as white lines
starting from the X antenna of the transmitter.
The closer the individual field lines are to each other (closer to the transmitter), the stronger the signal.

TYROMONT Alpin Technik GmbH, Bert-Köllensperger-Str. 6, 6065 Thaur, Austria I TEL +43 5223 23723-0 I FAX +43 5223 23723-10 I MAIL [email protected] I www.tyromont.com
DOC TYR_Operating_Instruction_LVS_Trainings_Tool_v22_10 .docx I ISSUE 160823 ER I LM 14.11.2022 LO I PRINT 14.11.2022
PAGE 5 to 8
T y r o m o n t A l p i n T e c h n i k G m b H | B e r t - K ö l l e n s p e r g e r - S t r a s s e 6 | A T - 6 0 6 5 T h a u r | w w w . t y r o m o n t . c o m
F O N + 4 3 5 2 2 3 2 3 7 2 3 - 0 | F A X + 4 3 5 2 2 3 2 3 7 2 3 - 10 | e - m a i l i n f o @ t y r o m o n t . c o m
4.2 Search / Empfangen
The operating mode Search / Empfangen is activated after an avalanche for locating buried people, or
the unit is switched from transmitting to receiving (search). In this mode, the signal is received in the far
range (signal search, coarse search) with the X, Y and in the near range (fine search) with all three
antennas, processed and visually shown on the display as information for the searcher (distance and
direction indication).
5. Avalanche Transceiver Range, Coupling Position
The range of an avalanche transceiver depends on the coupling position (orientation) of a buried
avalanche transceiver to a searching avalanche transceiver. The information on the display (distance
and direction) of the searching transceiver depends on the intensity and direction of the magnetic field
lines at the location of the searching transceiver.
The transmitting and receiving characteristics of a transceiver are elliptical. Put simply, a transmitting
transceiver does not have the same transmitting power in all directions and a receiving transceiver does
not have the same receiving power from all directions, also due to the different and design-related sizes
of the X, Y and Z antenna.
6. Training - Procedure, Instructions
6.1 Choice of Location, Interferences
The location must be as free as possible from disturbances so that during the demonstration / training
the receiving operation of the avalanche transceiver to be used is not influenced.
All transceiver within a radius of 100 m must be switched off.
When using the coupling layer template on a table, make sure that there are no metal parts under the
tabletop. Preferably use a wooden table.
When using the coupling layer template on the floor, make sure that there are no metal parts or electrical
cables underneath.
6.2 Coupling Layer Template
Three possible and decisive coupling positions are shown on the coupling position template (see following
figure). It serves as a template and to position the TT2022 transmitter and an avalanche transceiver in
reception mode in alignment with each other, precisely and at a distance of distance of 120 cm.
First, the "good coupling position" is instructed, which is also used as a reference measurement.
Due to the reduced transmission power of the TT2022 (factor 10), a distance of 12 m is displayed on the
transceiver. Then the two other coupling positions are instructed.

TYROMONT Alpin Technik GmbH, Bert-Köllensperger-Str. 6, 6065 Thaur, Austria I TEL +43 5223 23723-0 I FAX +43 5223 23723-10 I MAIL [email protected] I www.tyromont.com
DOC TYR_Operating_Instruction_LVS_Trainings_Tool_v22_10 .docx I ISSUE 160823 ER I LM 14.11.2022 LO I PRINT 14.11.2022
PAGE 6 to 8
T y r o m o n t A l p i n T e c h n i k G m b H | B e r t - K ö l l e n s p e r g e r - S t r a s s e 6 | A T - 6 0 6 5 T h a u r | w w w . t y r o m o n t . c o m
F O N + 4 3 5 2 2 3 2 3 7 2 3 - 0 | F A X + 4 3 5 2 2 3 2 3 7 2 3 - 10 | e - m a i l i n f o @ t y r o m o n t . c o m

TYROMONT Alpin Technik GmbH, Bert-Köllensperger-Str. 6, 6065 Thaur, Austria I TEL +43 5223 23723-0 I FAX +43 5223 23723-10 I MAIL [email protected] I www.tyromont.com
DOC TYR_Operating_Instruction_LVS_Trainings_Tool_v22_10 .docx I ISSUE 160823 ER I LM 14.11.2022 LO I PRINT 14.11.2022
PAGE 7 to 8
T y r o m o n t A l p i n T e c h n i k G m b H | B e r t - K ö l l e n s p e r g e r - S t r a s s e 6 | A T - 6 0 6 5 T h a u r | w w w . t y r o m o n t . c o m
F O N + 4 3 5 2 2 3 2 3 7 2 3 - 0 | F A X + 4 3 5 2 2 3 2 3 7 2 3 - 10 | e - m a i l i n f o @ t y r o m o n t . c o m
6.3 Preparation
1. Lay out the coupling layer template on a table or on the floor
2. switch on TT2022 (insert battery)
3. switch on any transceiver and switch to search mode (only use three-antenna devices)
6.4 Instructions «Good Coupling»
Place the TT2022 and the avalanche transceiver on the coupling layer template as shown on the left
and align them
The transmitting and receiving antennas are positioned axially or coaxially to each other
In this "good coupling position" the maximum range is achieved
The direction indicator must point straight ahead
6.5 Instructions «Bad Coupling»
Place and align the TT2022 and the avalanche beacon according to the middle illustration on the
coupling layer template
The transmitting antenna is at right angles to the receiving antenna
In this "bad coupling position" a reduced range is achieved, thus a higher distance of several
metres is displayed on the transceiver
The direction indicator becomes unstable when aligned exactly 90° and will alternate between left
and right, but becomes stable on both sides when turned out slightly
6.6 Instructions «Worst Coupling»
Place the TT2022 and the avalanche transceiver vertically according to the illustration on the right
on the coupling layer template and align them
The transmitting antenna is vertical to the receiving antenna
In this "worst coupling position" an even shorter range is achieved, thus an even greater distance of
several metres is displayed on the transceiver
The direction indicator must point straight ahead
7. Compatibility
The TT2022 is compatible with all avalanche transceivers that comply with the EN300718 standard and
therefore operate on the 457 kHz frequency.

TYROMONT Alpin Technik GmbH, Bert-Köllensperger-Str. 6, 6065 Thaur, Austria I TEL +43 5223 23723-0 I FAX +43 5223 23723-10 I MAIL [email protected] I www.tyromont.com
DOC TYR_Operating_Instruction_LVS_Trainings_Tool_v22_10 .docx I ISSUE 160823 ER I LM 14.11.2022 LO I PRINT 14.11.2022
PAGE 8 to 8
T y r o m o n t A l p i n T e c h n i k G m b H | B e r t - K ö l l e n s p e r g e r - S t r a s s e 6 | A T - 6 0 6 5 T h a u r | w w w . t y r o m o n t . c o m
F O N + 4 3 5 2 2 3 2 3 7 2 3 - 0 | F A X + 4 3 5 2 2 3 2 3 7 2 3 - 10 | e - m a i l i n f o @ t y r o m o n t . c o m
8. Technical Specifications
8.1 TT2022
Transmitting frequency: 457.0 kHz +/- 25 Hz
Transmitting field strength: 0.2 mA/m at 1 m distance
(factor 10 lower than in standard EN300718)
Transmit pulse / period duration: 100 / 1000 ms
Power supply: 1 x alkaline battery 1.5 V type IEC LR6 (AA)
Battery life: 720 hours
Operating indicator: LED green approx. 20...100 %, LED red approx. 20 %
Operating temperature range: - 20° C to + 40° C
Housing material: plastic
Dimensions: 77 x 60 x 23 mm
Weight: 100 g (incl. battery)
Protection class: No protection
8.2 Coupling Layer Template
Material / design: Textile fabric, waterproof
Dimensions: 1000 x 2000 mm
Weight: 230 g
C
9. Warranty
Limited two-year warranty
Girsberger grants a warranty period of 2 years for the TT2022. Calculated from the date of sale
according to the sales receipt.
Warranty conditions
The transmitter must be operated in accordance with the instructions in this manual.
In the event of a warranty claim, all parts which are proven to have material or manufacturing defects
will be replaced free of charge.
Damage caused by improper handling and normal wear and tear is excluded.
The warranty claim expires for devices that have been opened by the purchaser or unauthorised third
parties as well as for devices that have not been used with original spare parts and accessories or those
recommended by the manufacturer.
10. Information
This document is protected by copyright and may not be published or reprinted without the permission
of Girsberger.
The design and the graphics on the coupling layer template are protected by copyright and may not be
copied and used without the permission of Girsberger Elektronik AG.
The basic idea of the training tool, the electronics development and production as well as the design of
the coupling layer template originate from Girsberger Elektronik AG.
Technical data may change at any time and without prior notice.
This manual suits for next models
1
Table of contents
Popular Transmitter manuals by other brands

DELTA DORE
DELTA DORE TYDOM 2.0 installation guide

Vaisala
Vaisala INTERCAP HMW82 quick guide

Williams Sound
Williams Sound Transmitter T36 Instructions for use and care

SenseAir
SenseAir aSENSE RL user manual

LEYBOLD
LEYBOLD PENNINGVAC PTR 90 N Short form manual

TQ-Systems
TQ-Systems MODUL NO.1 Operating instruction
