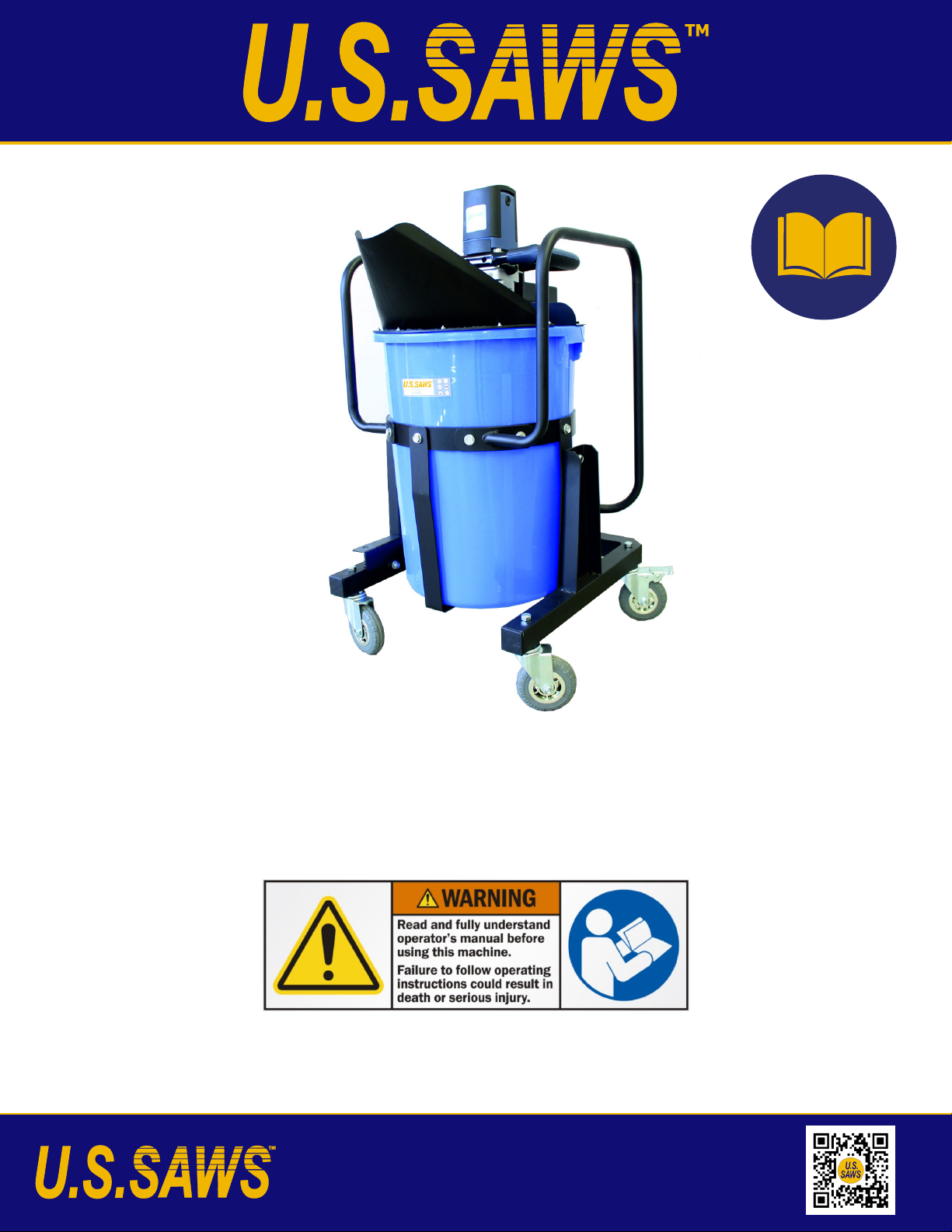

This manual outlines the maintenance and operation of the M-22 3 Bag
Mixing Station. This is a professional tool and is intended for use by trained
and experienced operators. To get maximum benet from your tool and to
ensure maximum safety, be sure to read this manual thoroughly. You should
also periodically review safety instructions. Keep all manuals provided with
your equipment in a safe place at all times.
The information and specications included in this publication were
in effect at the time of approval for printing. U.S.SAWS reserves the right,
however, to discontinue or change specications or design at any time with-
out notice and without incurring any obligation.
The M-22 3 Bag Mixing Station is a compact, robust mixing station with
good balance when pouring the self levelling compound, even with larger
mixing volumes. The mixer unit is built with a 2-speed gearbox and variable
speed setting allowing for quality control and mixing power. The M-22 is
compactible with cement self-levelling and materials with good liquidity.
The unit comes complete with H27 mixer, 22 gallon bucket and transport
dolly.
Disclosure
By purchasing/renting/borrowing/using the M-22 3 Bag Mixing Station,
you agree to release U.S.SAWS of any and all liability. Under no circum-
stances will U.S.SAWS be held liable for incidental or consequential
damages resulting from the use of this product and/or defective parts
or products associated with this product.
• It is the responsibility of the owner/user to verify correct mixing
ratio and proper cure before each use including after stoppage as
explained in the operating instructions and in accordance to the
material manufacturers guidelines and specications.
• It is the responsibility of the owner/user to ensure that the operat-
ing instructions have been read and understood by the operator
before the operation of the equipment begins.
• It is the responsibility of the owner/user to understand and per-
form the maintenance and storage procedures as explained in the
operating instructions.
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111
INTRODUCTION & SPECIFICATIONS
Model M-22 3 Bag Mixing Station
Part Number SX20700
Power Supply 120V/60Hz
Motor power 1800W
Variable Speed 150-300 rpm
300-650 rpm
Empty weight 90 lbs
Container size 22 gallons
Mixed quantity 286 lbs
INTENDED USE:
The device is suitable for mixing of low-viscosity, self-leveling oor coatings,
cement- based leveling and leveling compounds up to a quantity of approx. 70
liters.
