HIGH-FREQUENCY
INDUCTION HEATER
USS-HFIH00001-110V
USS-HFIH00001-220V
Version 2.0 ©2022 U.S. SOLID LLC. All rights reserved.
This manual shall be made available to all users of this high-frequency induction
heater. To ensure the best results and maximum durability of this U.S. SOLID LLC
(hereafter U.S. SOLID or The Company) product, read and follow all instructions
carefully. Failure to do so may lead to serious bodily injury and catastrophic
damage to the heater, supplies, or surrounding area. All safety suggestions must
be followed closely and precautions must be taken to guarantee this heater is
only used by qualified personnel who have understood this guide.

For questions or concerns, email: [email protected]

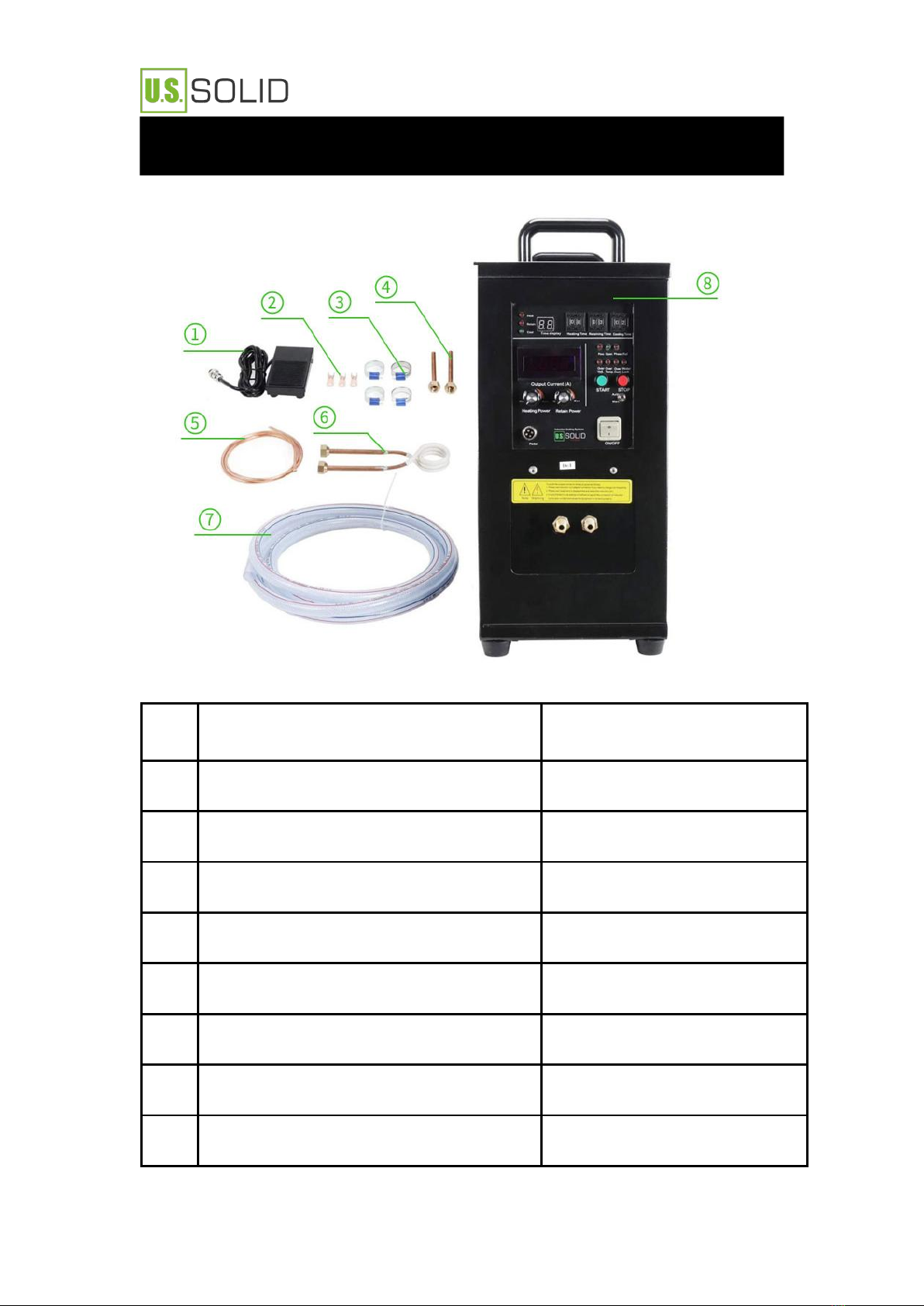

No.
Part
Quantity
①
Foot pedal
1x
②
Fuse
3x
③
Clamps (stainless steel)
4x
④
Tubing (copper) to connect your own coil
2x (each ∼0.5 ft long)
⑤
Tubing (copper) to create your own coil
1x (∼5 ft long)
⑥
Coil (copper)
1x (∼3.3 ft long)
⑦
Hose (rubber)
1x (∼32 ft long, 3/4” diameter)
⑧
High-frequency induction heater
1x
Parts

For questions or concerns, email: [email protected]
I. Operating Principles..............................................................................1
II. Getting Started.................................................................................... 2
III. Safety Instructions.............................................................................. 3
IV. Setting Up........................................................................................... 4
V. Back of the Heater............................................................................... 5
VI. Front Panel in Auto Mode...................................................................6
VII. Operating the Heater in Auto Mode................................................ 10
VIII. Front Panel in Manual Mode.......................................................... 11
IX. Operating the Heater in Manual Mode.............................................13
X. Other Factors.....................................................................................13
XI. Potential Applications.......................................................................14
XII. Troubleshooting...............................................................................15
XIII. Specifications..................................................................................17
Contents

For questions or concerns, email:l servic[email protected]
1
Induction heating is a contact-free heating process which uses high-frequency
electricity to generate heat. When an alternating current (AC) flows through the coil
while a workpiece is positioned inside, an electromagnetic field is generated. Once
the current alternates (i.e., changes) direction, the direction of the electromagnetic
field also changes. Because this new electromagnetic field contradicts the initial
magnetic field, this process produces an eddy current (sometimes referred to as
Foucault’s current). Based on Joule’s first law,1Joule heating is then generated. As
time passes, the density of the workpiece increases, leading to growing resistance,2
which in turn generates more Joule heating, causing the workpiece to get
incrementally hotter.
1Joule's first law:
RTIQ 2 
Q: Joule heating
I: Eddy current
R: resistance
T: time
2Resistance:
S
L
Rρ
R: resistance
ρ: resistivity of the metal
L: length
S: cross-section
I. Operating Principles

For questions or concerns, email: [email protected]
2
Thank you for purchasing the U.S. SOLID high-frequency induction heater. To ensure
smooth and safe operations, please review this full manual and refer to our website
for an explainer video on how to operate this premium product:
www.ussolid.com/induction-heater.html
Changes in technology happen often and rapidly, which is why our team at U.S. SOLID
reserves the right to modify the specifications and procedures for this high-frequency
induction heater immediately and without notice. The Company will not assume
responsibility for equipment damage or malfunction due to improper operation,
incorrect repairs, or use of unauthorized parts.
This induction heater has passed rigorous testing and extensive research and
development. Like all of our products, it is made with quality materials at a
reasonable price. This induction heater is suitable for heating a variety of metals in
different sizes.
You have 30 days from the date of delivery to return this product. If the returned
item has been opened, a 15% restocking fee will be applied. We provide a 12-month
warranty from the date of the sale. Within the warranty window, we are responsible
for any replacement parts needed caused by quality issues. If you want to return a
defective item, please contact our customer service team to receive a free prepaid
shipping label for your return. To expedite the warranty process, please describe the
issue and include the following information: purchase date, order number, name of
the original purchasing entity, delivery address, and serial number. After the
12-month warranty period, we offer to replace parts at current retail cost, but
complete product returns will not be accepted.
The warranty will only be in effect if all instructions in the manual are followed. The
warranty does not cover damage caused by force majeure (e.g., natural disasters
such as hurricanes, floods, or earthquakes).
This manual includes basic safety precautions and instructions for installation,
operation, and maintenance.
II. Getting Started

For questions or concerns, email: [email protected]
3
This machine should only be operated by adults who have read and fully
understood this manual.
Always make sure the machine is grounded.
Keep the area around the machine clean and free of debris.
Place the heater on a stable and level surface.
Only use original parts from the manufacturer to ensure your safety and the best
product performance.
Do not touch any of the electrical connections while the machine is plugged in or
turned on to avoid risk of electrocution.
The heater is designed to be used in an industrial environment with an ambient
temperature of 1-45°C (34-113°F).
Make sure that the coil is properly fitted with an insulation sleeve to limit sparks
and the risk of fire.
Turn off and unplug the machine when making any adjustments, repairs, or
when storing the machine.
Remove all metal from your hands and arms when operating this machine,
including rings and watches. Metal may heat up if exposed to the coil and could
lead to serious bodily injury.
Place heated materials in a safe place after heating to avoid fire or injury.
Since the induction heater generates a magnetic field, anyone with a pacemaker
or other medical device should not work or be in the immediate vicinity of the
device. Other sensitive equipment, such as wrist watches, magnetic carriers, or
electronic circuits, might also be affected. A safe minimum distance of 0.5
meters (20”) is recommended.
Circulating cooling water: High-quality circulating cooling water can expand the
life of the high-frequency induction heater. Poor water quality may cause rust,
scrap, and blockage inside the equipment, which will damage the machine. The
following water is recommended (in order of priority): distilled water, softened
water, pure water, filtered water.
III. Safety Instructions

For questions or concerns, email: [email protected]
4
When first receiving the induction heating machine, be careful when removing the
machine from its box. This product is a heavy piece of equipment. The machine
comes with one assembled coil, and one piece of copper tubing to create your own
coil.
Start by connecting the assembled coil to the machine. It is important that it is
screwed in tightly, as water will be running through the coil. Use a wrench to tighten
the connecting bolts.
Once the coil is connected, water input and output can start being routed. One hose
is provided, but it is possible more hoses will be needed (found at any hardware
store). A water circulator pump or a water chiller may be used as a cooling device.
You can also connect the heater to a tap water outlet. In this case, it is important that
the tap water is clean and has enough water pressure. Dirty water will lead to the
machine breaking down. Please make sure the flow rate of the cooling water is at
least 7.5 L/min, the water pressure is more than 0.3 MPa, and the head should be
more than 30 m (98 ft).
Next, set up the wires. Make sure the wiring used is at least 9 gauge wire. Connect
the ground wire and the two live wires to their designated spot on the back of the
machine. Check that no wire is exposed from the connections, as this could present a
potential fire or electrocution hazard.
It is important that the machine is set up in a place free of debris and clutter. Make
sure hoses and wires for the machine are secured to avoid tripping hazards.
IV. Setting Up

For questions or concerns, email: [email protected]
5

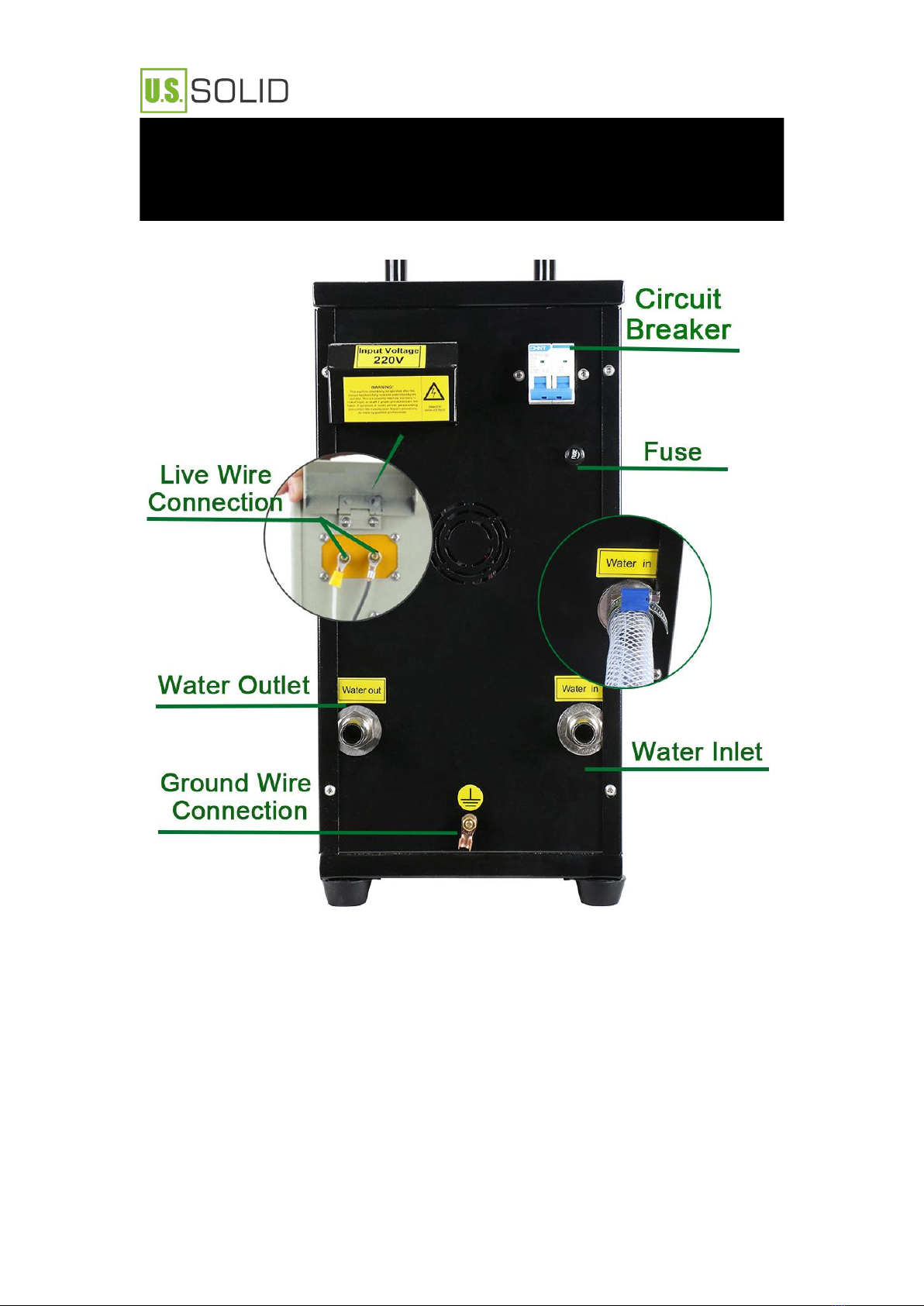

Notice where the water inlet and water outlet in this photo of your heater are
located. Also, note the ground wire screw, which is towards the bottom of your
machine. In this image, the housing is flipped up to show where to connect the two
current-carrying wires.
V. Back of the Heater

For questions or concerns, email: [email protected]
6

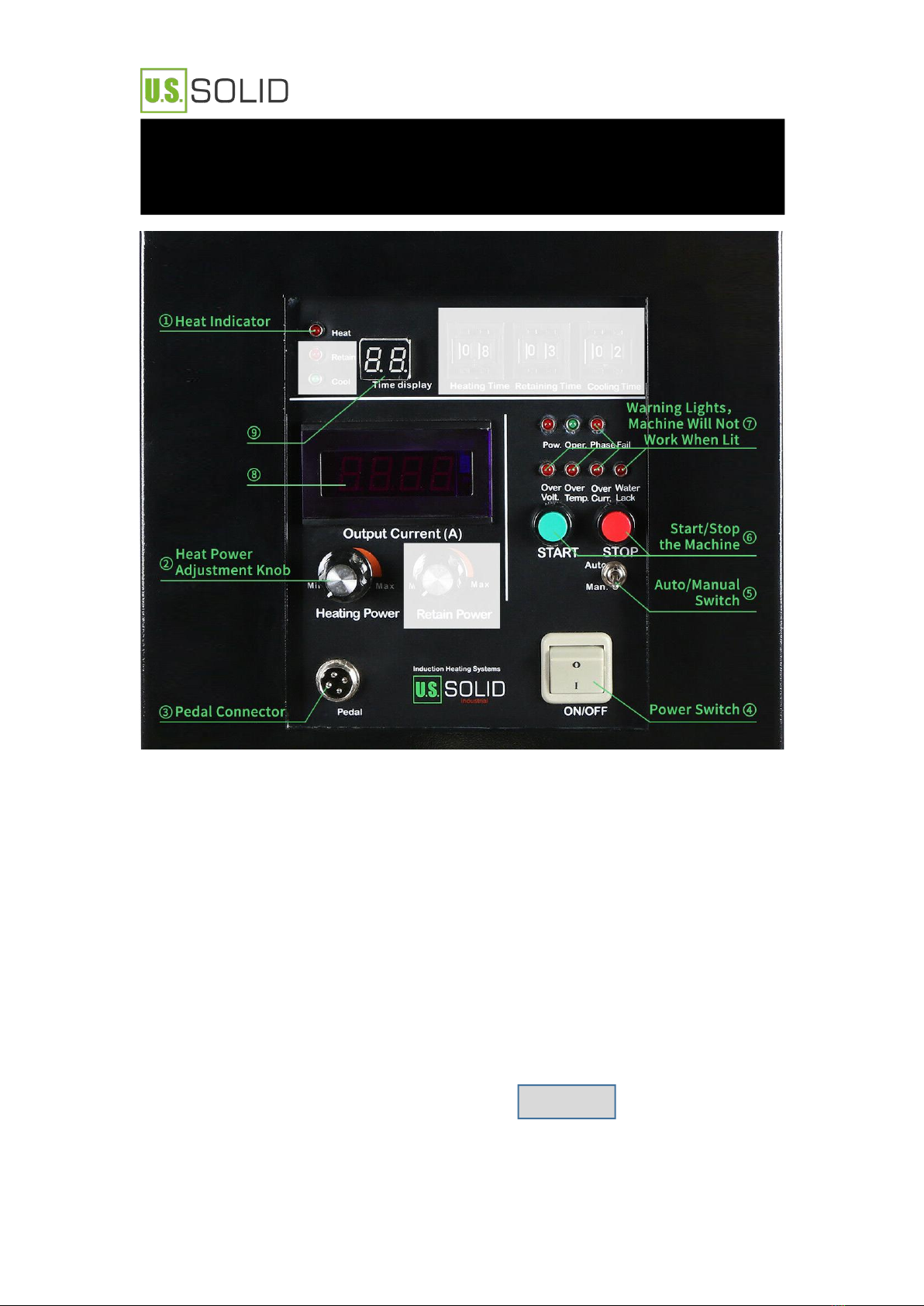

① Heat Indicator: When lit, the machine is heating the workpiece.
② Retaining Indicator: When lit, heat is retained using the current set by the Retain
Power Adjustment Knob.
③ Cooling Indicator: When lit, current is no longer running through the coil,
allowing for the workpiece to cool down.
④ Heat Power Adjustment Knob: Controls the current going through the coil in
manual mode, and during the heating portion in automatic mode. It is recommended
to start at a low current when first turning the machine on, and then slowly increase
the current by rotating the knob as the machine warms up. The more this knob is
turned clockwise, the higher the temperature of the workpiece will get.
VI. Front Panel in Auto Mode

For questions or concerns, email: [email protected]
7
⑤ Retaining Power Adjustment Knob: Controls the current when in heat retention
mode. This is only applicable when the machine is in automatic mode.
⑥ Pedal Connector: If the foot pedal is connected to the machine, the machine can
be controlled using the pedal instead of the Start/Stop Buttons on the machine.
⑦ Power Switch: Turns the machine on or off.
⑧ Auto/Manual Switch: Switches the working mode between automatic and
manual.
⑨ Start/Stop Buttons: Starts or stops the working process when the pedal is not
connected.
VI. Front Panel in Auto Mode

For questions or concerns, email: [email protected]
8
⑩ Warning Lights (Over Volt, Over Temp, Over Current, Water Lack, and Phase Fail):
When one of these light up, the machine will cease operating. Different lights
indicate different issues: Either too much voltage or current is running, the machine
is overheating, the water pressure to the machine is not high enough, or the phase
power is failing.
⑪ Time for Heating, Retaining, and Cooling:
Heating Time: Time (in seconds) for heating the workpiece according to the level
selected using the Heat Power Adjustment Knob.
Retaining Time: Time (in seconds) for heat retention of the workpiece, according
to the level selected using the Retain Power Adjustment Knob.
Cool Time: Time (in seconds) for cooling. No selection possible.
VI. Front Panel in Auto Mode

For questions or concerns, email: [email protected]
9
⑪ Time (in seconds) given between zero and 99 seconds. Can be increased using
the button below the numbers and decreased using the button above the numbers.
Note: 99 and 00 both represent 99 seconds.
⑫ Time Display: Displays the time of the current phase when in automatic mode.
When the Heat Indicator lights up, it shows the heating time. When the Retaining
Indicator lights up, it shows the retaining time. When the Cooling Indicator lights up,
it shows the cooling time.
⑬ Output Current: When twisting the Heating Power Knob, this shows the heating
power. When twisting the Retain Power Knob, it shows the retain power. When the
machine is operating, it shows the induced current on the coil.
VI. Front Panel in Auto Mode

For questions or concerns, email: [email protected]
10
When the machine is in automatic mode, heating of the workpiece will be controlled
by setting the Heating Time, Retaining Time, and Cooling Time. These numbers can
be between zero and 99 seconds. Once your desired times are set, simply press the
Start Button and insert the workpiece. The coil will be energized at the level selected
using the Heat Power Adjustment Knob and will stay at this level for the duration of
the selected Heating Time. The Heat Light will be on during this period.
After that time has elapsed, the program enters Retaining Mode. The coil will still be
energized, but at the level selected using the Retaining Power Adjustment Knob for
the duration of the selected Retaining Time. During this period, the Retain Light will
be on.
Finally, the machine enters Cooling Mode. The coil will not be energized for the
duration of the selected Cooling Time. Once the program is finished, to run it again,
simply press the Start Button again. Automatic mode can be very useful for repeating
the same action on different workpieces. Similarly, when soldering, brazing, or
otherwise needing two different working temperatures, automatic mode can provide
that as well.
Step 1: Flip the On/Off Switch to turn on the machine.
Step 2: Press the - or + button to set the Heating Time, Retaining Time, and Cooling
Time.
Step 3: Twist the Heating Power Adjustment Knob to set the heating power.
Step 4: Twist the Retain Power Adjustment Knob to set the retaining power.
Step 5: Press the Start Button (or press the foot pedal) to start the heating process.
Step 6: Turn off the machine and unplug the heater when not in use.
Notes:
If the pedal is connected to the machine, you can only start the machine by
pressing foot pedal.
The light of Oper. flashes and the machine beeps when the machine is in use.
VII. Operating the Heater in Auto Mode

For questions or concerns, email: [email protected]
11
① Heat Indicator: When on, it indicates that heating is taking place.
② Retaining Indicator: When lit, heat is retained using the current set by the Retain
Power Adjustment Knob.
③ Pedal Connection: If the foot pedal is connected to the machine, the machine can
only be controlled using the pedal instead of the Start/Stop Buttons on the machine.
④ Power Switch: Turn the machine on or off.
⑤ Auto/Manual Switch: Toggles between working modes.
⑥ Start/Stop Buttons: Start or stop the working process when the pedal is not
connected.
VIII. Front Panel in Manual Mode

For questions or concerns, email: [email protected]
12
⑦ Warning Lights (Over Volt, Over Temp, Over Current, Water Lack, and Phase Fail):
When one of these lights turns on, the machine will cease operating. Different lights
indicate different issues. Either too much voltage or current is running, the machine
is overheating, the water pressure to the machine is not high enough, or the phase
power is failing.
⑧ Time Display: Shows the working time (in seconds). This increases as time passes.
⑨ Output Current: When turning the Heating Power Knob, this displays the heating
power. When the heater is working, it shows the induced current on the coil.
Note: Indicators and knobs covered by a gray box in the picture means
they do not affect the heater when in manual mode.
VIII. Front Panel in Manual Mode

For questions or concerns, email: [email protected]
13
Adjust the Heat Power Adjustment Knob to the desired level, then press the pedal to
energize the coil. Insert your workpiece into the coil to begin heating. The further the
Heat Power Adjustment Knob is turned clockwise, the hotter your workpiece will get.
Step 1: Flip the On/Off Switch to turn on the heater.
Step 2: Twist the Heating Power Adjustment Knob to select the heating power.
Step 3: Press the Start Button or press the foot pedal to start heating.
Step 4: Turn off and unplug the heater when not in use.
Note: If the pedal is connected to the machine, you can only start the machine by
pressing foot pedal.
In actual use, many factors will determine the speed and temperature of the heating
process. While the adjustment knobs do control current, the heating power also
depends on the material of the workpiece, the thickness of the workpiece, the shape
of the coil, the number of turns in the coil, and the area of the turns within the coil.
When using your own coil, it is recommended to try different heat settings to ensure
the heater is correctly calibrated for your exact use case.
IX. Operating the Heater in Manual Mode
X. Other Factors

For questions or concerns, email: [email protected]
14
Application Type
Notes
Brazing
Hybrid welding of different materials. Clean the surfaces to be
used. Dimension of the workpiece should be less than 1.2 x 1.2
x 1.2 ".
Diathermy
The diameter of the workpiece should be less than 5 mm
(3/16").
Sealing
This can be used to seal and cap different machines. Be aware
of the metal type used in the seal.
Hardening
Many metals can be heat-treated to induce hardening. Most
often, this process requires quenching right after heating, so
have a quenching station available.
Annealing
Some heat-treated metals will end up softer. Be aware of the
type of metal you are heat-treating; results can differ.
Soldering
Much like brazing, clean the surfaces to be used. Be aware that
solder can melt very quickly.
Smelting
Many metals can be smelt, e.g., copper, silver, and gold. Please
note the total metal weight should be less than 1 kg (2.2 lbs).
XI. Potential Applications

For questions or concerns, email: [email protected]
15
Problem: Over Temperature Light comes on.
Causes:
• Machine overheated.
• Water is too hot.
Solutions:
• Allow the machine time to cool off, then restart.
• Ensure the water temperature is less than 40°C (104°F) before it enters the
machine. Remember to always use cool, clean water.
Problem: Over Voltage Light comes on.
Cause:
• The machine is not hooked up to the proper voltage.
Solution:
• Make sure the machine is hooked up to the appropriate voltage, based on the
model.
Problem: Over Current Light comes on.
Causes:
• Internal issue.
• Coil design issue.
Solutions:
• Contact us for help.
• Ensure the coil does not have too many turns, covers too much space, or other
issues.
XII. Troubleshooting

For questions or concerns, email: [email protected]
16
Problem: The machine will not power on.
Causes:
• The circuit breaker is tripped.
• The fuse is blown.
• The connections between the power supply and the machine are loose.
• The outlet does not have power.
Solutions:
• Reset the circuit breaker.
• Replace the fuse.
• Unplug the machine and tighten all connections.
• Check that electricity is reaching the machine.
Problem: Machine beeps when attempting to start the machine.
Causes:
• Coil not properly connected. • Improper coil design.
Solutions:
• Check the connection between the coil and the machine.
• Ensure the coil does not have too many turns or covers too much area
enclosed within it.
Problem: Water Lack Light comes on.
Causes:
• Lack of water pressure. • Leak in hoses.
Solutions:
• Ensure the water source is pressurized.
• Fix any leaks in the water hoses.
XII. Troubleshooting

For questions or concerns, email: [email protected]
17
Model
USS-HFIH00001-110V
USS-HFIH00001-220V
Max. Inductive Power
15 KW
Max. Input Power
7 KW
Input Voltage
110 V, Single Phase
220 V, Single Phase
Fluctuating Frequency
30-80 KHz
Output Current
200-600 A
Max. Heating Temperature
1200°C (2192°F)
Time Settings
01 to 99 seconds
Product Dimensions
22 x 9 x 19"
Weight
25 kg (55 lbs)
Water Temperature
Protection Point
40°C (104°F)
Flow Rate of Cooling Water
≥7.5 L/min
Min. Water Pressure
0.3 MPa
Head of Cooling Water
≥ 30 m (98 ft)
Min. Wire Gauge
9 gauge
XIII. Specifications
