Uaccess Eternity EDC700 Series User manual

SPECIFICATIONS
Power Supply: 12V, 3A
Main Relay: 12V, 5A
Operating Temp: -18C to +70C (0F to +158F)
Power Consumption: 15 mA unloaded, 1.5A Maximum
Revision 10/3/2018
Enclosure: Steel enclosure (12124) with supplied hinged lid, lock, and keys.
Typical Components:
Steel Enclosure
Controller Board
Power Supply w/integrated battery charger
Backup Battery (12 volt, lead/gel type)
Keypad with integrated lower iButton reader
Installation fasteners and keypad installation tool
Customer selected electric or magnetic locking device
Optional exit switch (REX) and 2nd iButton only reader
Controller Diagram: (PCB = 84mm wide x 70mm high x 19mm thick)
PCB Jumper J2 = Same as REX on barrier strip pg. 1
Eternity-EDC700 Series Door Controller
Optional DCIBRD reader
2nd iButton reader –Green
2nd iButton reader –Orange
2nd iButton reader –Yellow + Blue
Customer supplied exit device
Exit Switch (REX)
To 12 Volt PSU
To Controlled Door Lock
Brown
Orange
Green
Red
Main
Reader/Keypad
Color Codes
Normally Closed (NC)
Normally Open (NO)

INFORMATION AND WIRING INSTRUCTIONS
There are many ways to connect the exit device to the controller. Here are some of the more common methods:
Dry Relay Contact:
Install the jumper J10 (refer to diagram for location, this is the shipping default)
Connect to COM and NO for Normal Open contact.
Connect to COM and NC for Normal Close contact.
Wet Relay Contact:
Remove jumper from J10, install the jumper J11 (refer to diagram for location) Connect the Normal
Close (NC) or Normal Open (NO) to the positive side of the exit device, Ground (GND) to negative
side of the exit device.
iButton/Keypad Reader:
The main Keypad / Reader uses the RS-485 communications method, allowing up to 1000ft between the
controller PCB and the main iButton / Keypad reader without any additional devices. The secondary
iButton reader accessory, if equipped, is normally limited to 30 feet from the controller PCB. If a small
value ceramic capacitor (.01 mfd 50WVDC) is connected across the TMI and GND lines at the reader
itself, this distance can be extended to 300 feet or more, depending on the cable type and quality.
Reset / Setup button:
The Reset / Setup button is used as part of new controller setup process when using personal computer
Software. It will reset the EDC700 to manufacture default settings and delete current user keys and pass
codes if pressed for 10 seconds. If pressed quickly and released, the EDC700 enters programming
mode. Use that for new lock setup.

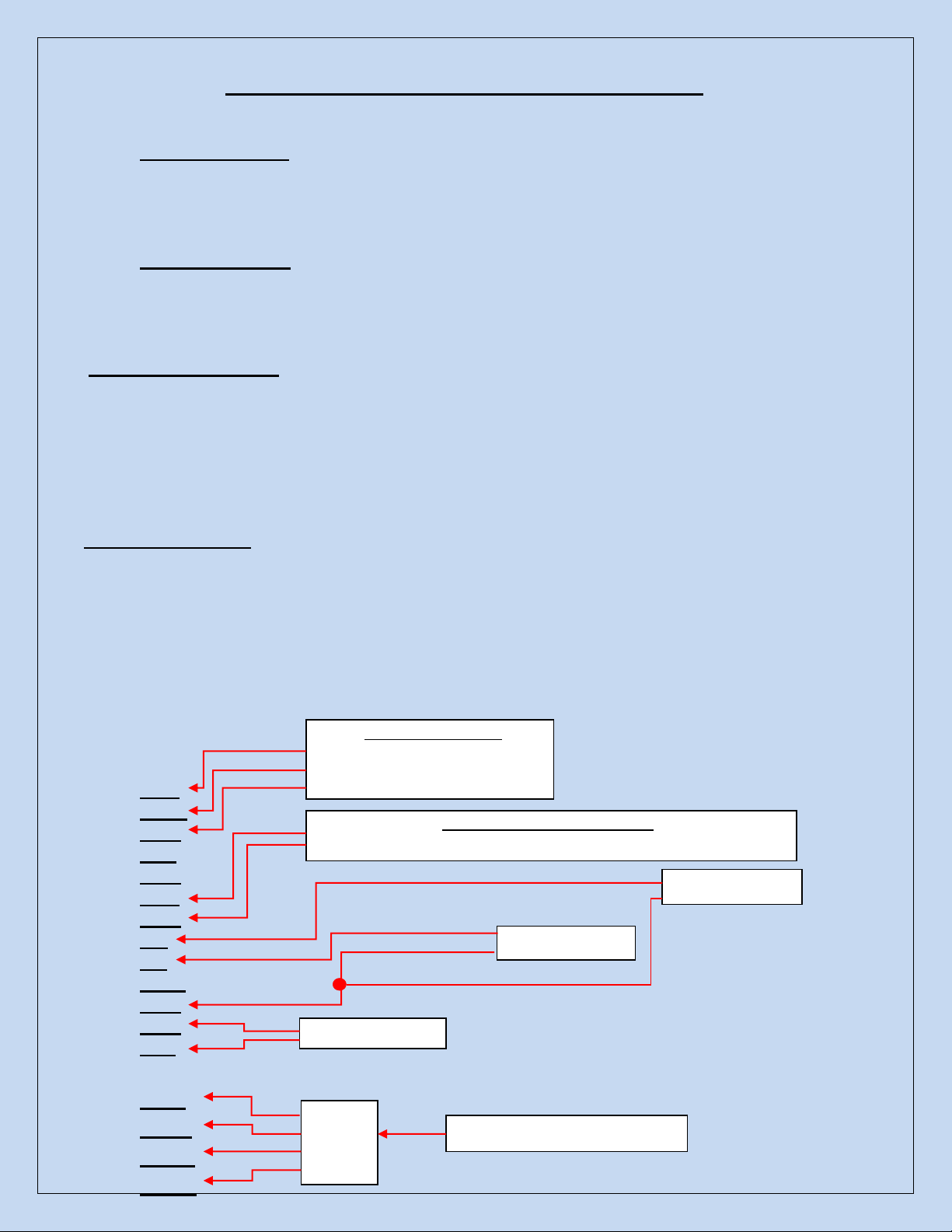

Typical Connections: (Assumes system PCB jumper J11 installed, jumper J10 open)
TM1
LED1
GND
SPK
GND +
REX -
GND +
NO
NC -
COM
GND
GND -
+Vs +
485-
485+
GND
+12V pg. 2
Main Reader, Up to 1000ft
12 volt DC PSU
Electric Strike
Customer supplied exit switch or device
To 'Request to Exit' button or device (normally open contacts)
Magnetic Lock
Brown
Orange
Green
Red
Optional DCIBRD reader
2nd iButton reader –Green
2nd iButton reader –Orange
2nd iButton reader –Yellow + Blue

Ordering Information:
Door Controller System
PART Number DESCRIPTION PART Number DESCRIPTION
BTY12V5A Door Controller Backup Battery (12V/5AH) EDC700MB Eternity Door Controller Main Board for EDC710
DCCASE Door Access Controller System Case EDC710RD Eternity Door Controller TM-Keypad Reader
DCTLPS Door Controller Power Supply 12V/3.5A FTUK Eternity First Time User Kit
DCIBRD Optional Secondary iButton Reader ----------- For interior use only, w/o mounting)
DCIWPRO Optional Secondary iButton Reader ----------- Weather resistant exterior use w/ mounting)
Optional Magnetic Latch Accessories
PART Number DESCRIPTION Specifications
EBOLTLOCK Electric Bolt Lock-SL-100A Door sensor (SL-100A:N.C/ SL-100B:N.C&N .0)
Power Supply requirements: DC 12V.
Current consumption: 900mA, Holding current: 330mA
Fail- safe type (Power to lock).
Operation delay time: 0sec., 2.5sec., 5sec., 9sec.
Built-in delayed egress control point.
Weight: 860g
EMAGLOCK Electromagnetic Lock-SL-200/220 Power supply requirements: DC 12V or DC 24V (Optional).
Current consumption: 500mA@12V or 250mA@24V
Holding Force: 600LBS.
Fail-safe type (Power to lock).
SL-200 Built-in lock status LED's indication. (SL-200S No lock status LED's indication)
SL-200T Built-in delayed egress control point.(SL-200D Double lock )
Weight:2000g
MLBRKT01 L&Z Bracket for magnetic lock Used with SL-200magnetic lock.
Suitable for in-swing door.
Dimensions: small L bracket: 220x63.5x63.5(mm)
Dimensions: F bracket: 220x61x89.5 (mm)
Dimensions: Large L bracket:265x38x76 (mm)
Weight:1200g
MLBRKT02 Armature plate housing Specifically for the use with the SL-200 armature.
Suitable for 90º out-swing door.
Sturdy construction for durability.
Simple and easy installation, With screw position adjustable function.
Dimensions: 193 x 45 x 12.7 (mm)
Weight:153g
(Dimensions: 195x72x19 (mm)
Weight: 260g)
BLBRKT01 Surface Mount Bracket for Dead Bolt Lock Specifically for use with SL-100 Dead Bolt Lock.
Suitable for all types of 90º or 180º door.
Sturdy construction for durability.
Simple installation without knocking any holes out.
Can be integrated with UB-100 glass holder.
Dimensions: 230 x 45 x 46 (mm).
Weight: 590g.
Optional of BR-100C Bracket available.
ESTRIKE Electric Strike Lock Power supply requirements: DC 12V.
Current consumption:360mA
SL-320F:Fail-safe type (Power to lock).
Suitable for wooden, aluminum and hollow metal doors.
(To be used with existing auxiliary lock.)
pg. 3

Warranty Registration Form
Customer Information:
Date Purchased: Purchase From (company name):
Model: Serial Number:
First Name: Last Name:
Daytime Phone: E-mail:
Shipping Address:
City: State: Zip Code:
--------------------------------------------------------------------------------------------
Mail Registration Form to:
Uaccess LLC
Attn: Registration Dept
1904 University Business Drive, Ste. 304
McKinney, TX 75071
____________ Warranty and RMA Guidelines
Receiving Your Order
1. Upon receipt of your new merchandise, please inspect carefully as to the contents and condition. All claims for damaged or missing items MUST be
reported to Uaccess LLC within five (5) business days upon receipt of merchandise. In the event your package arrives damaged, it is the responsibility of the
customer to contact the carrier to inspect the package to assure full refund/replacement. All packaging MUST be retained until the problem has been resolved.
2. Carefully unpack and inspect all merchandise. Please DO NOT damage the manufacturer's packaging. DO NOT throw away any material included with the
package until you are absolutely certain the product has not been damaged. We cannot accept merchandise for return incomplete or damaged, or missing packing
material.
3. Retain your Invoice. Read all instruction manuals BEFORE testing your equipment.
4. Uaccess accepts neither responsibility nor liability for any consequential or incidental damages resulting from the installation or operation of any merchandise
purchased from us.
Return/Exchange Policy
NO RETURNS WILL BE ACCEPTED WITHOUT R.M.A# (Return Merchandise Authorization Number)
You can return or exchange, excluding any shipping and handling charge, within a period of thirty (30) days for lock merchandise and fourteen (14) days for
accessories, if you are not satisfied with the products. If defective, items may be exchanged for the same model only. Special Order items are not returnable. We
will not accept any returns or exchanges on Batteries, Memory Chips, User Keys or any other consumable products.
Uaccess LLC basically does not take or make ADVANCE SHIP or CROSS SHIP arrangements unless otherwise preapproved by authorization within 1 year of
purchase.
Prior to returning any item, YOU MUST call Customer Service for pre-approval RMA number. All merchandise purchased from Uaccess LLC is sold in its
original factory packaging with all contents as supplied by us. Items can be returned only if in original packaging, same new condition as sold with
literature/instructions. Place the manufacturer's box into a shipping box. Please do not put any stickers or labels on the original manufacturer's packaging.
Please ship the items back to us with freight prepaid. We are not responsible for lost or damaged packages returning to us.
Attach a copy of original invoice with freight pre-paid for Warranty / RMA service.
If any of the above conditions are not met, Uaccess LLC reserves the right to either refuse the return or to charge a restocking fee for not less than 15%.
Warranties
Most items sold by us are covered by a manufacturer's one-year parts / labor warranty from the purchase date.
Technical Assistance Hotline: [phone]
As part of our continuing commitment to all our customers, Uaccess LLC 's sales and technical support associates can guide you in determining what products
best solve your situations. With their combined experience, we're confident that our support staff have the background and talent to help you narrow your choices
to the precise items that best suit your particular requirement.
WARRANTY DOES NOT INCLUDE TRAVEL CHARGES, OR ANY OTHER COSTS INCURRED FOR FIELD ACTIONS SUCH AS REPAIR,
REMOVAL, INSTALLATION, SERVICING, DIAGNOSING OR HANDLING OF EITHER DEFECTIVE PARTS OR REPLACEMENT PARTS. THE
MANUFACTURER'S WARRANTY APPLIES ONLY TO LOCKS RETURNED TO US FOR REPAIR.
pg. 4
