Ubiquiti airMAX AM-5G19-120 User manual

5 GHz 2x2 MIMO
BaseStation
Sector Antenna
Model: AM-5G19-120

1
Introduction
Introduction
Thank you for purchasing the Ubiquiti Networks airMAX™5 GHz
2x2 MIMO BaseStation Sector Antenna, model AM-5G19-120. This
Quick Start Guide is designed to walk you through the installation
of the antenna.
Package Contents
Carrier Class
5 GHz 2x2 MIMO
BaseStation
Sector Antenna
Model: AM-5G19-120
Antenna Protective Shroud Quick Start Guide U Brackets
(Qty. 2)
Pole Brackets
(Qty. 2)
Pole Clamps
(Qty. 2)
M8x135 Carriage Bolts
(Qty. 4)
M8x20 Serrated
Flange Bolts
(Qty. 4)
M8 Serrated
Flange Nuts
(Qty. 8)
RF Cables
(Qty. 2)
* Products may be different from pictures and are subject to change without notice.

2
airMAX™AM-5G19-120 Quick Start Guide
Installation Requirements
• RocketM5 or RocketM5 GPS (sold separately)
• 12 mm and 13 mm wrenches
• Shielded Category 5 (or above) cabling should be used for all
wired Ethernet connections and should be grounded through
the AC ground of the PoE.
We recommend that you protect your networks from the
most brutal environments and devastating ESD attacks
with industrial-grade shielded Ethernet cable from Ubiquiti
Networks™. For more details, visit www.ubnt.com/toughcable
Hardware Overview
Back View Assembled Side View
Before Pole-Mounting
Bubble Level
RF Connectors
Rocket Mount
Bracket
Rocket/Shroud
Lock Release
Lever
Protective
Shroud
Mounting Lugs
Mounting Lugs
Slotted
U Bracket
U Bracket

3
Hardware Installation
Hardware Installation
1. Attach the RF Cables to the connectors labeled Chain 0 and
Chain 1 on the RocketM.
2. Attach the RocketM to the Rocket Mount Bracket.
a. Align the mounting tabs on the back of the RocketM with
the four mounting slots on the bracket.
b. Slide the RocketM down until it locks into place.

4
airMAX™AM-5G19-120 Quick Start Guide
3. Connect the other ends of the RF Cables to the RF Connectors
on the antenna.
4. Slide the Protective Shroud down over the RocketM until it locks
onto the Rocket Mount Bracket.
Note: If you have trouble locking the shroud into place,
try adjusting the placement of the RF Cables.

5
Hardware Installation
5. Attach the Slotted U Bracket to the upper Mounting Lugs of the
antenna, and secure it with two M8 Serrated Flange Nuts.
6. Attach the other U Bracket to the lower Mounting Lugs of the
antenna, and secure it with two M8 Serrated Flange Nuts.

6
airMAX™AM-5G19-120 Quick Start Guide
7. Insert two M8x135 Carriage Bolts into each Pole Bracket.
8. Attach each Pole Bracket to each U Bracket using two M8x20
Serrated Flange Bolts. Hand-tighten only.

7
Hardware Installation
9. To mount the antenna to the pole, attach the Pole Clamps to
the lower and upper Pole Brackets in the following steps:
Note: The mounting assembly can accommodate a
Ø 1.5" - 3.0" pole.
a. Slide the Pole Clamp over the two M8x135 Carriage Bolts
of the lower Pole Bracket. Secure it with two M8 Serrated
FlangeNuts.
Lower Bracket Connection Overview
M8x135
Carriage Bolts
M8 Serrated
Flange Nut
Pole
Clamp
Pole
Bracket
M8x20 Serrated Flange Bolt
M8x20 Serrated Flange Bolt
M8 Serrated
Flange Nut

8
airMAX™AM-5G19-120 Quick Start Guide
b. Slide the Pole Clamp over the two M8x135 Carriage Bolts
of the upper Pole Bracket. Secure it with two M8 Serrated
FlangeNuts.
Upper Bracket Connection Overview
M8x135
Carriage Bolts
Pole
Clamp
Pole
Bracket
M8x20 Serrated Flange Bolt
M8x20 Serrated Flange Bolt
M8 Serrated
Flange Nut
M8 Serrated
Flange Nut

9
Hardware Installation

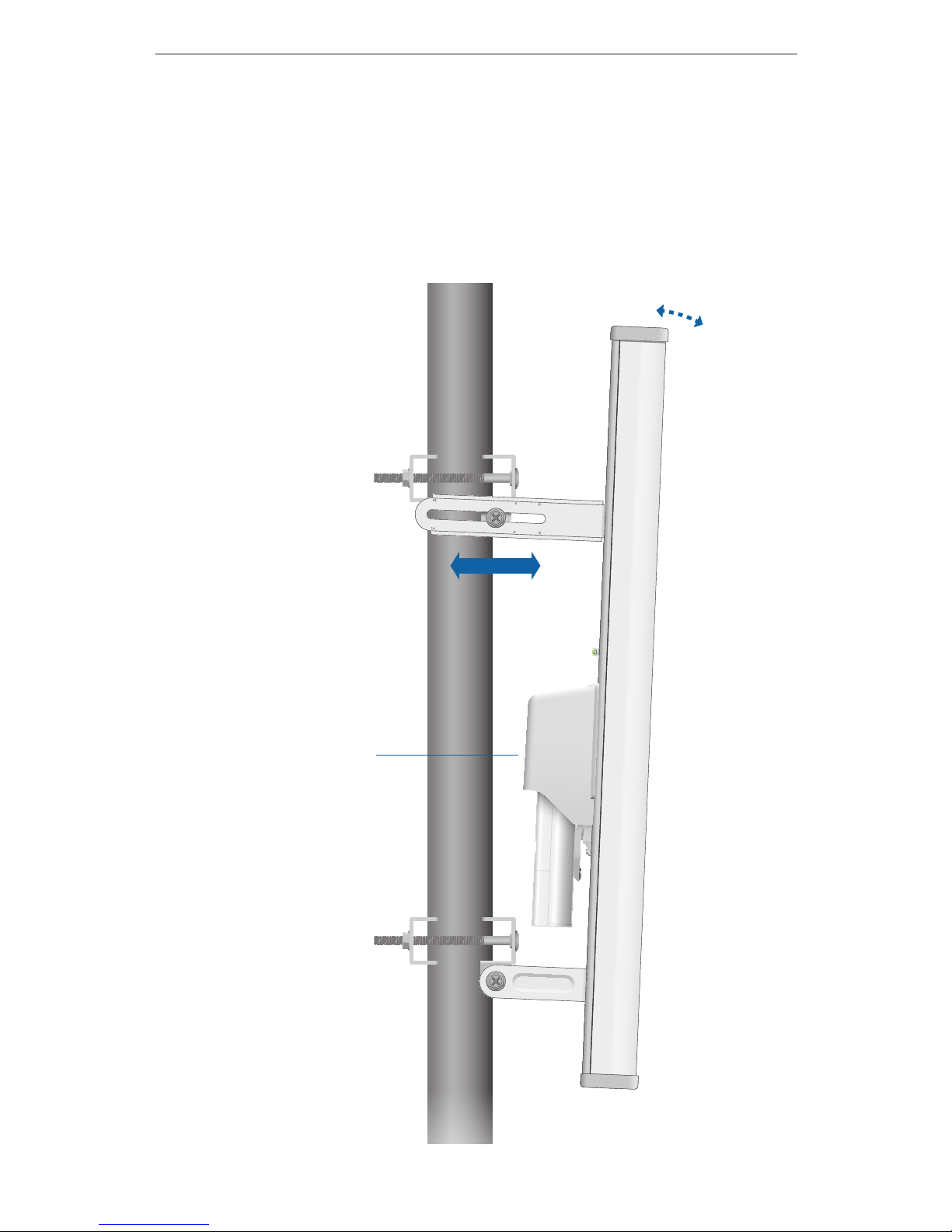

10. Theantennahasanelectricaldowntiltof2˚.Tofurtheradjust
the elevation angle, loosen the two M8x20 Serrated Flange
Bolts on the Slotted U Bracket. Slide the antenna to the desired
tilt. (The upper bracket may slide along the pole, depending
on the angle of the elevation tilt.) Tighten all bolts and nuts
toapproximately14N-m(10lb-ft)orlesstoavoiddeforming
thepole.
M8x20 Serrated
Flange Bolt

10
airMAX™AM-5G19-120 Quick Start Guide
Specifications
AM-5G19-120
Dimensions 700 x 135 x 73 mm
Weight 5.9 kg (Mount Included)
Frequency 5.15 - 5.85 GHz
Gain 18.6 - 19.1 dBi
HPOL Beamwidth 123° (6 dB)
VPOL Beamwidth 123° (6 dB)
Elevation Beamwidth 4°
Electrical Downtilt 2°
Max. VSWR 1.5:1
Polarization Dual Linear
Cross-Pol Isolation 28 dB Min.
ETSISpecication EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket,
and Weatherproof RF Jumpers Included
Wind Loading 20 lbf @ 100 mph

11
