UGEE Q6 User manual

Q6 Drawing Tablet
User Manual

Catalogue
01 Product
Overview------------------------------------------------------01
1.1 Product
Introduction---------------------------------------------------01
1.2 Product
Overview------------------------------------------------------01
1.3 How to Connect Your Phone for Use-------------------------------02
1.4 How to Connect to a Computer for Use---------------------------04
02 Driver
Introduction---------------------------------------------------05
2.1 Driver
Download-------------------------------------------------------05
2.2 Drive
Installation------------------------------------------------------06
2.3 Driver
Usage------------------------------------------------------------09
2.4 Drive
Uninstallation---------------------------------------------------20
03 Specification Parameters-----------------------------------------21
04
FAQs-------------------------------------------------------------------------
--22

1
01 Product Overview
1.1 Introduction
Thank you for choosing ugee Q6 drawing tablet. In order to help you better understand
and use this product, please read this manual carefully. This manual only shows how
to use it on Windows systems, but unless otherwise specified, the relevant
introduction is also applicable to Apple system users.
In addition, our goal is to continuously improve product quality and user experience.
We apologize for any changes in product specifications without prior notice.
1.2 Product Overview
①Mode switch knob: supports switch between 4 modes
------- Suitable for full-screen phones （20：9）
----- Suitable for non full-screen phones （16 ：9）
---- Suitable for tablets（16：10）
--- Other special devices with landscape displays （9：16）
Attention:
1）This knob switches up and down, please do not rotate left or right!
2）The device types corresponding to the four gears are recommended, and you can
choose the corresponding gear based on the ratio of your phone/tablet screen.
② Handwriting indicator light
③ Shortcut Keys
④ Work Area
⑤ USB-C Port
⑥ Pen Sleeve
⑦ USB-C to C Cable
⑧ Stylus
1.3 How to use it on phone/tablet

2
Step 1: Enter <Settings> on the phone/tablet，and turn on the "OTG" switch.
Attention:
Each terminal’s（phone/tablet）setting is different, and some terminal’s OTG
function is enabled by default, so you need to confirm it by yourself.
Step 2: Turn off the "screen automatic rotation function" of the phone/tablet.
Step 3: Connect to phone/tablet.
Take out the USB cable on the back of the drawing tablet, connect one end to the
drawing tablet (the USB-C port is on the top of the drawing tablet), and connect
another end to the phone/tablet. The phone/tablet and the drawing tablet should be
placed vertically.
Step 4: Mode switching
Swipe the mode switch knob up and down to switch to a mode suitable for your
phone/tablet.
Step 5: Open the painting software on phone/tablet and start painting!
Attention：
1) If the phone/tablet uses a Micro USB interface, it is necessary to first insert
the Micro USB OTG adapter into the phone/tablet before connecting it;
2) Only supports Android 6.0 and above systems, and harmony OS 1.0 and above systems.
If the version is too low, please upgrade your phone/tablet system first;
3) Please drawing when your phone/tablet with sufficient battery (>20%).
4）If your usage habit is to draw with your left hand, you can switch between left
and right hand modes by long pressing the K1 shortcut key for 5 seconds.
1.4 How to use it on computer

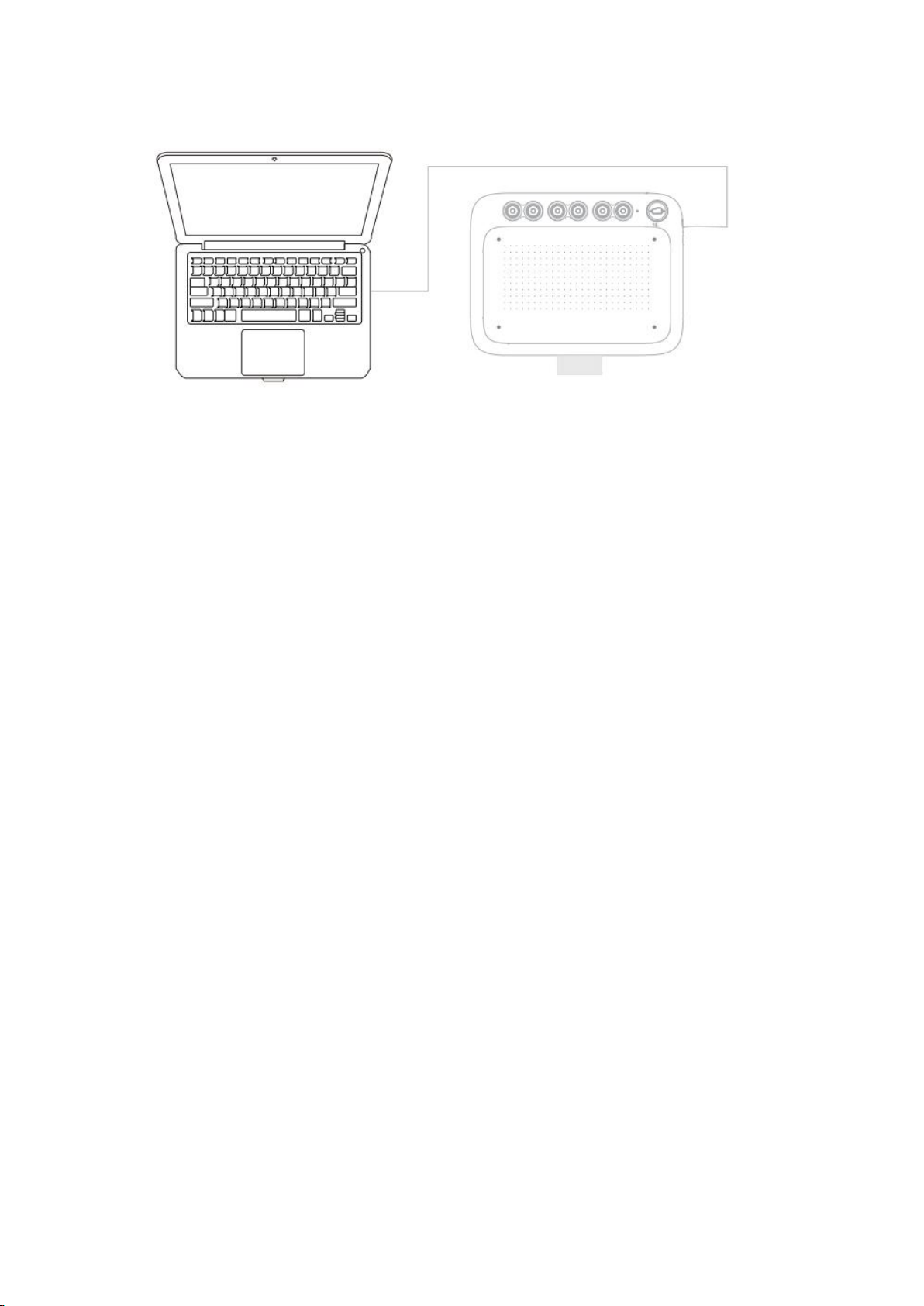

Step 1: Connect the drawing tablet to the computer using a USB cable.

3
Attention:
1) If the computer does not have a fully functional USB-C interface, a USB-A to C
cable needs to be prepared by yourself.
2) If a longer USB cable is required, it needs to be prepared by yourself.
Step 2: Download and Install Drivers.
Step 3: Check if there is pressure on the drawing tablet. （Open drawing software
such as Photoshop or Sai to test line pressure.）
Step 4: Start your creative journey!

4
02 Driver Introduction
2.1 Driver Download
Go to the ugee website (www.ugee.com) and download the driver for the appropriate
operating system based on the product model you purchased.
Notes:
Before installing the driver, turn off all antivirus and graphics software.
Uninstall drivers (if any) of other brands’ digital drawing tablets/monitors before
installation.
For optimal experience, restart your computer after installation is completed.
For the best performance for your device, we recommend you install the latest driver.

5
2.2 Drive Installation
2.2.1 Windows
Note: This driver is compatible with Windows 7 and above. After decompression, run
the 'exe' file as administrator and follow the prompts to complete the installation.
Windows driver installation interface Windows driver installation process
Windows driver installation complete
2.2.2 Mac OS
Note: This driver is compatible with Mac OS X 10.12 and above. After decompressing
and downloading the installation package, run the ". dmg" file in Mac OS and complete
the installation according to the following diagrams.

6
Step 1: Continue Step 2: Continue
Step 3: Accept Step 4: Install
Step 5: Enter password Step 6: Install driver
Step 7: Installation complete

7

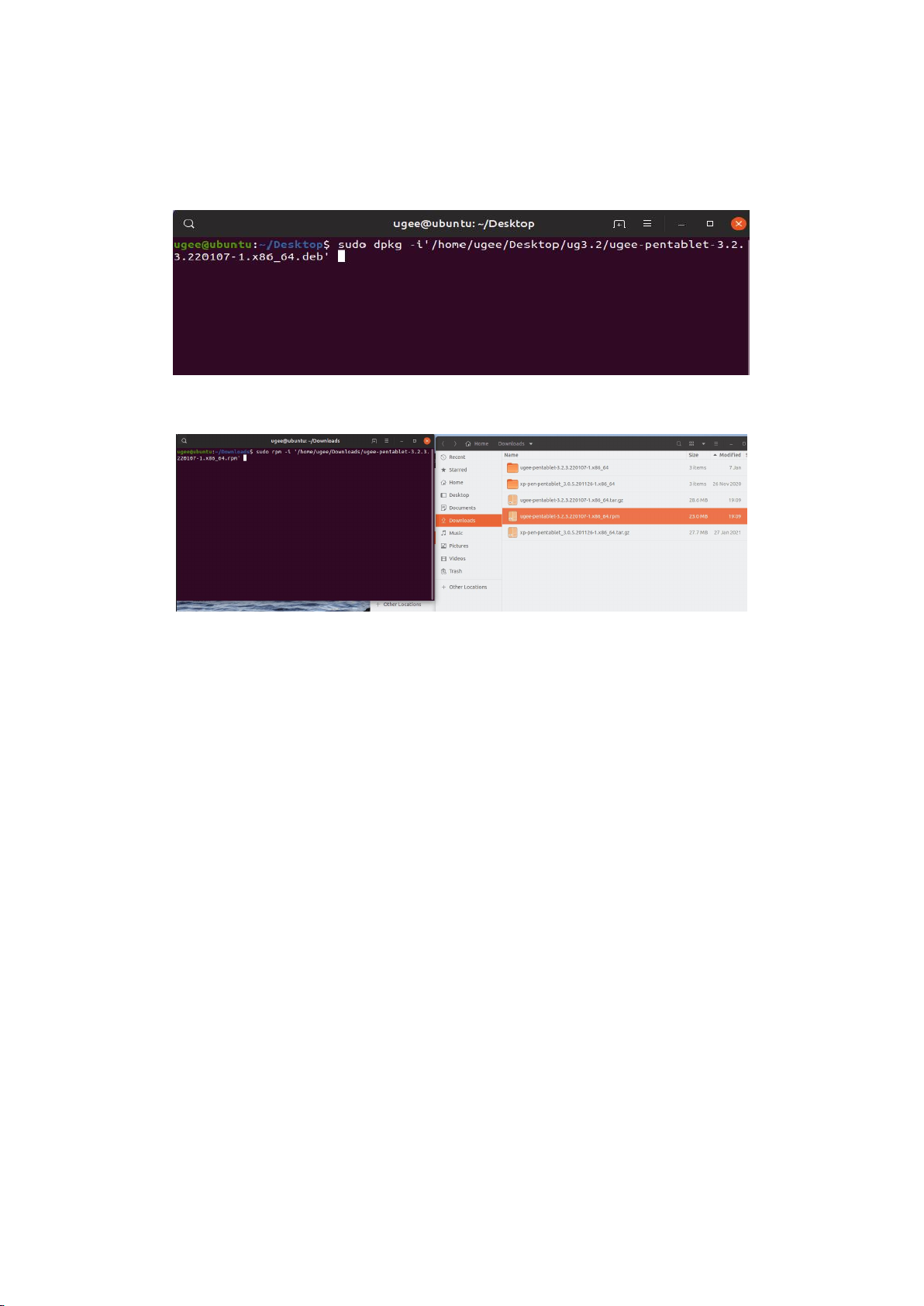

2.2.3 Linux
Deb: Enter the command “sudo dpkg -i”. Drag the installation file into the window
and execute the command.
Rpm: Enter the command “sudo rpm -i”. Drag the installation file into the window
and execute the command.
Tag.gz: Unzip file. Enter command “sudo”. Drag “install.sh” into the window and
execute the command.

8
2.3 Driver Usage
Tips: Android phones/tablets, and Chromebooks are all in drive free mode.
2.3.1 Connect to Device
The driver will run automatically after being installed. If it does not run
automatically, go to the driver folder to run it manually.
Windows program path: Start→ugeeTablet
Mac program path: Application→UgeePenTablet→ugeeTablet
If the device is not connected or the connection fails, you will see the following
prompt. In this case, restart your computer or the driver to connect it again or
contact our service staff for support.
If the device is connected successfully, its product model will be displayed in the
lower right corner of the display, for example, Q6 as shown in the image.
You can connect up to three devices via the driver at the same time. Click the
drop-down menu to select device to activate. Customize the device's settings after
switching to that device. All changes made apply only to that device.

9
2.3.2 Pen Settings

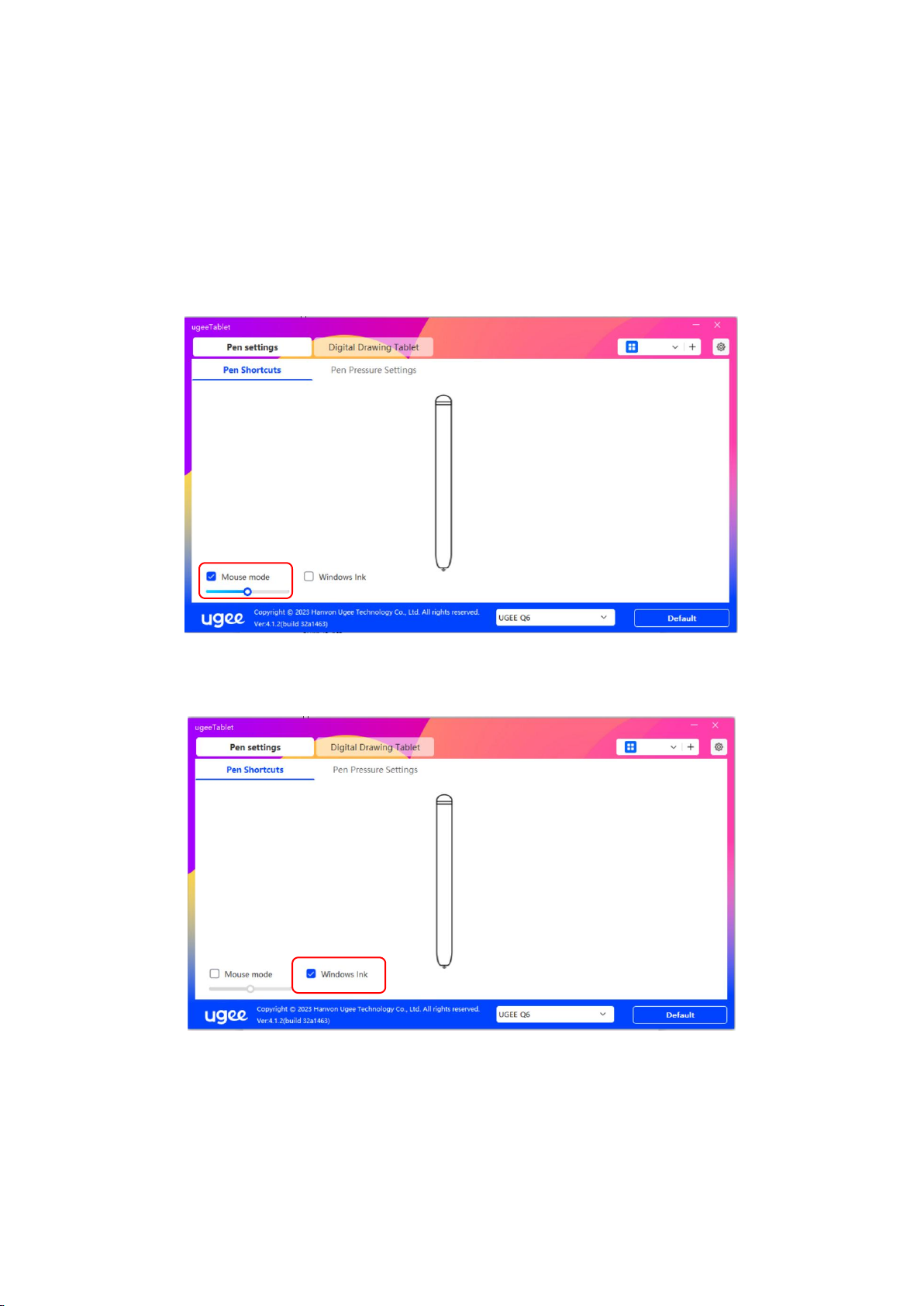

2.3.2.1 Pen Shortcut Key
Mouse mode:
When you remove your pen, the cursor will stay where you left, which is like operating
a mouse. Select the mode and you can adjust the speed of the cursor on your device.
If you do not select the mode, the pen mode applies by default.
Windows Ink (for Windows only):
Windows supports handwriting function. If you need to use this function in Microsoft
Office/Whiteboard or other software, please do not turn it off.

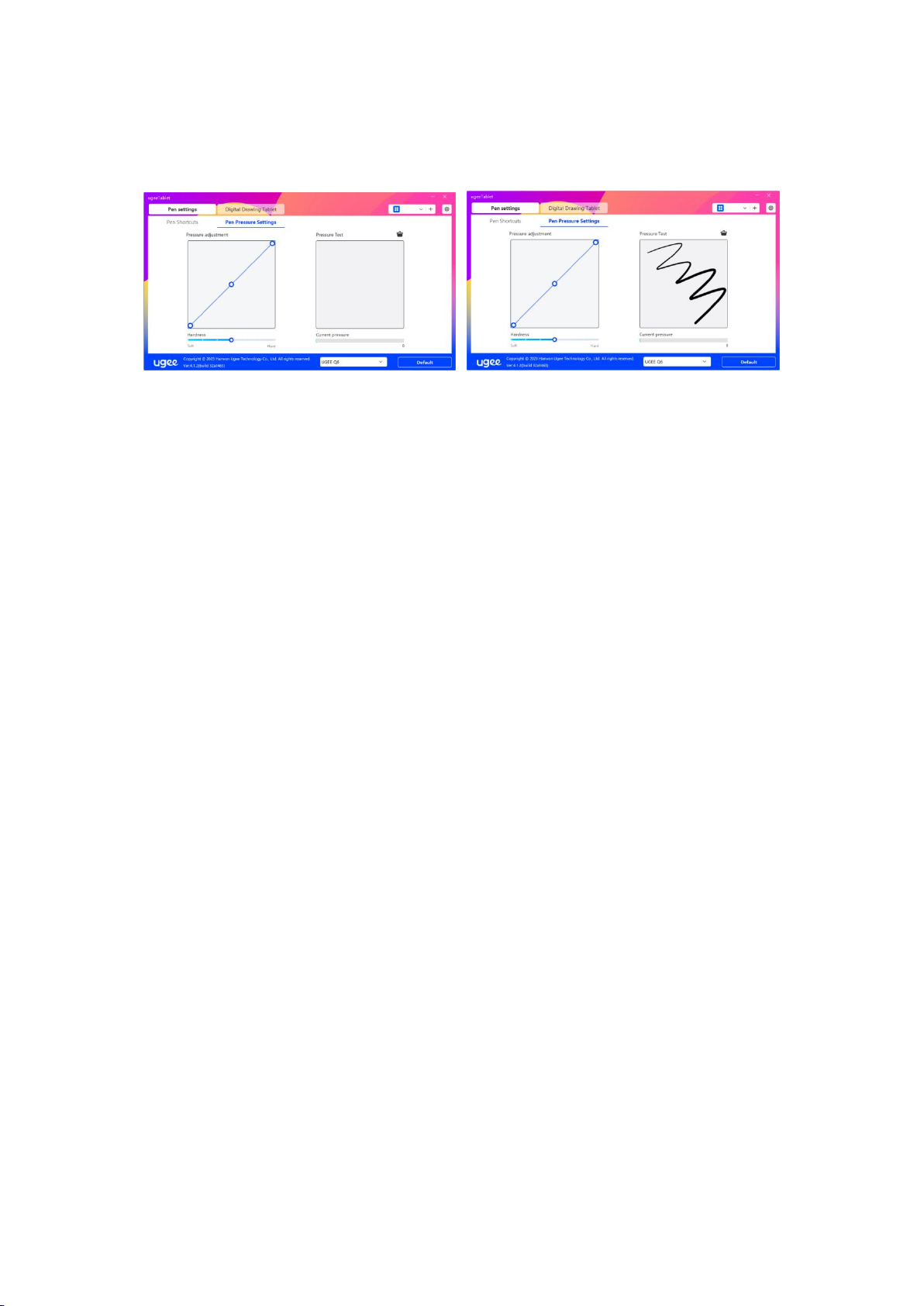

2.3.2.2 Pen Pressure Settings
The sensitivity of the pressure sensor can be adjusted by manually adjusting the
curve or moving the Progress bar, and the synchronization can be experienced in the
pressure sensor test area on the right to adjust to the appropriate pressure sensor

10
output.
Set the pressure sensing area, as shown in Figure 1.
Test the pressure sensing area, as shown in Figure 2.
Figure 1 Figure 2

11
2.3.3 Digital Drawing Tablet Setting
2.3.3.1 Work Area Settings
2.3.2.1.1 Setting up Multiple Monitors
Select the work area to set the correspondence between the movement of the stylus
on the drawing tablet and the movement of the cursor on the monitor screen.
When using a single monitor：the entire work area of the drawing tablet is mapped
to the full screen of the monitor by default.
When using two or more monitors：the drawing tablet is mapped to each monitor screen
in duplicate mode. In extended mode, you need to select the monitor screen in the
driver to which you wish to map the tablet.

12

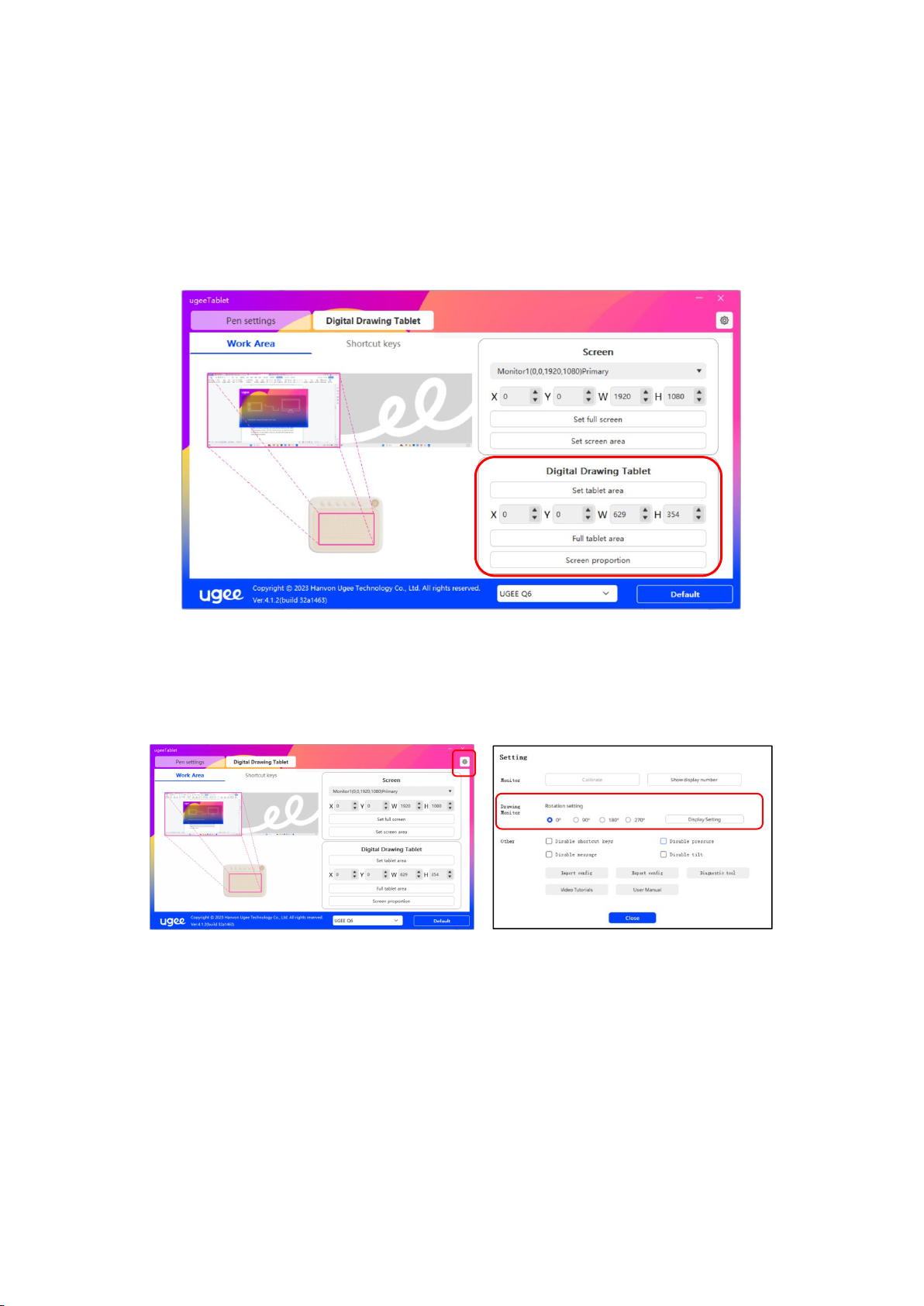

2.3.3.1.2 Setting up the work area
In the driver settings, you can change the workspace of the stylus by selecting full
tablet screen, scaling it to match the screen, or entering a specific input value.
a. The device is set to be the maximum workspace by default.
b. We recommend you select the "Screen Proportion" in the settings when connecting
the device to a computer.
2.3.3.1.3 Rotating the work area
By clicking the settings button in the upper right corner, you can freely change
the placement of the drawing tablet, this is not limited to just left or right. The
work area can be rotated in four directions: up, down, left, or right.

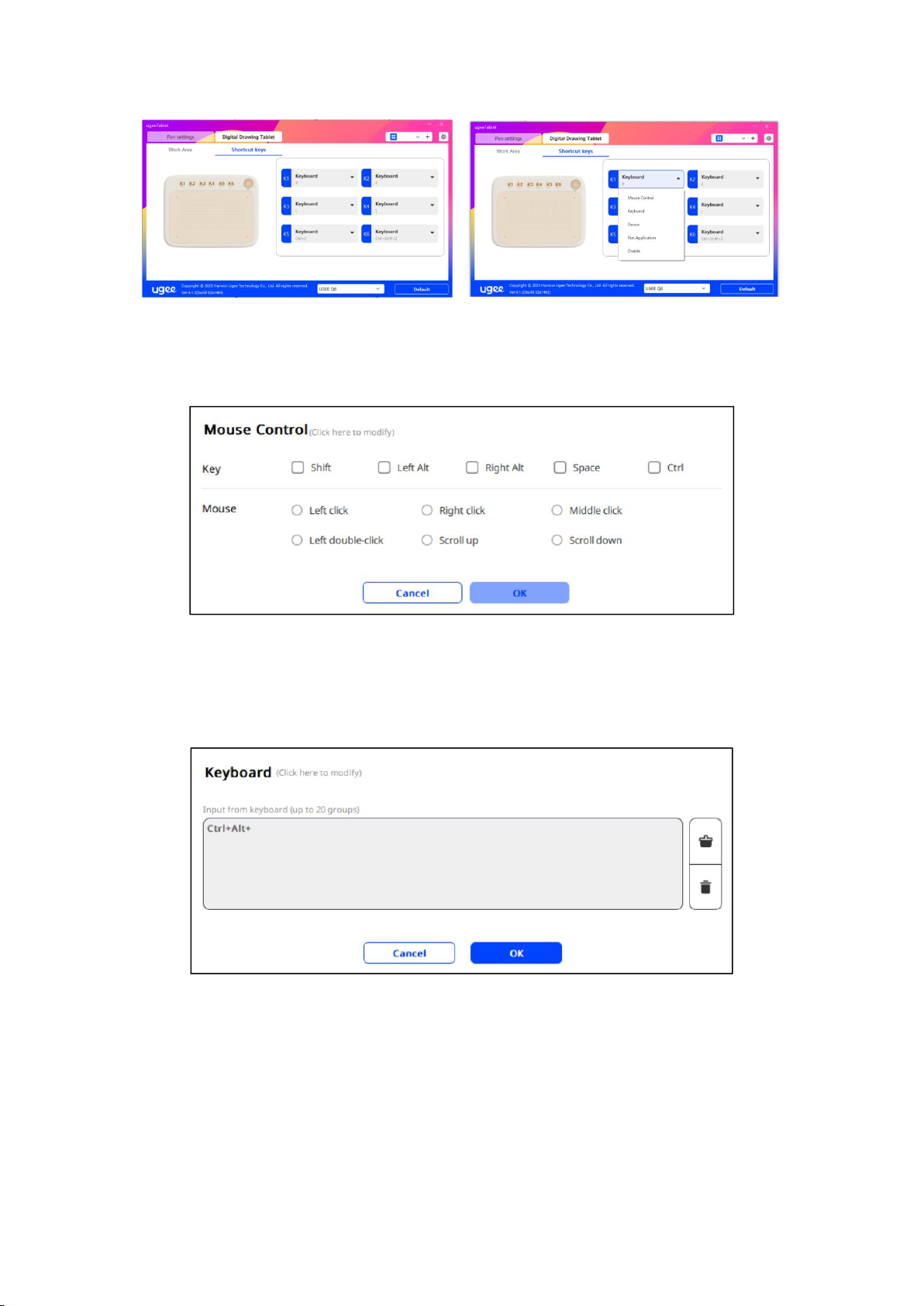

2.3.3.1 Shortcut Keys of Digital drawing tablet
The position and number of keys will differ due to product model. Q6 is used here
for illustrative purposes.
Select a key, click the drop-down menu and customize key function. You can select
five types of shortcut keys: Mouse Control, Keyboard, Device, Run Application, and
Disable.

13
Mouse Control:
Set mouse and keyboard combination key. For example, if you select Shift and Left
Click, you can execute the assigned shortcut command if the software supports this
combination key.
Keyboard:
Set keyboard shortcut, for example, set it as Alt+A in 3D MAX, so the alignment tool
can be used.
Clear: Clear all combination keys in the input box
Delete: Delete the last combination key
Device:
Execute selected function.
Precision mode: It limits the Work Area to a small area. This function allows you
to draw more precisely in the area.

14
Run Application:
Run the selected application.
Disable:
Key is disabled.
2.3.4 Driver Settings
Entrance: Click the settings icon in the upper right corner to enter
Show monitor number:
Identify all connected monitors. The monitor number will be displayed in the lower
left corner of each monitor.

15
Rotation settings:
You can set the device to 0°, 90°, 180° or 270°. Rotate the device to the
corresponding direction after setting rotation.
Other functions:
Disable shortcut keys: Disable all shortcut keys.
Disable pen pressure: You will not feel the pressure of the stylus during use.
Disable message: Disable message is shown at the bottom of the screen while using
the device and shortcut keys.
Disable tilt: Disable the stylus's tilt effect.
Import config:
You can import configured shortcut keys and other functions.
Export config:
Export saved settings in a configuration file. A pop-up window will appear to notify
you when the configuration file is exported successfully.
Diagnostic tool:
If you encounter any problems while using the driver, please use the diagnostic tool
to check hardware/environmental data for troubleshooting. Should you approach our
customer/technical support, this data will also be helpful to our staff helping you.

16
2.3.5 Applications Settings
2.3.5.1 Add Applications
Click the "+" icon on the upper right corner to add application.
Select the application from the list of installed applications or click "Browse"
and select the application path.

17
Next, click “OK” to add selected application.
2.3.5.2 Delete Application
Click the drop-down menu and select the application. Then click the "x" in the upper
right corner to delete the application.

18
2.3.5.３ Others
Restore default settings: Click the “Default” button to restore all settings to
default settings.
