Ultra plus F-9000hd pvr User manual

High Definition Digital Satellite PVR

User's Manual

F-9000HD PVR

INDEX

INDEX...................................................................................................................................3

Precautions .........................................................................................................................5

1. Important Safety Instructions......................................................................................................5

2. Notice .........................................................................................................................................5

3. Copyright....................................................................................................................................6

4. Disclaimer...................................................................................................................................6

5. Trademarks ................................................................................................................................6

Before You Begin................................................................................................................7

1. Main Features ............................................................................................................................7

2. Accessories................................................................................................................................8

Hardware Description.........................................................................................................9

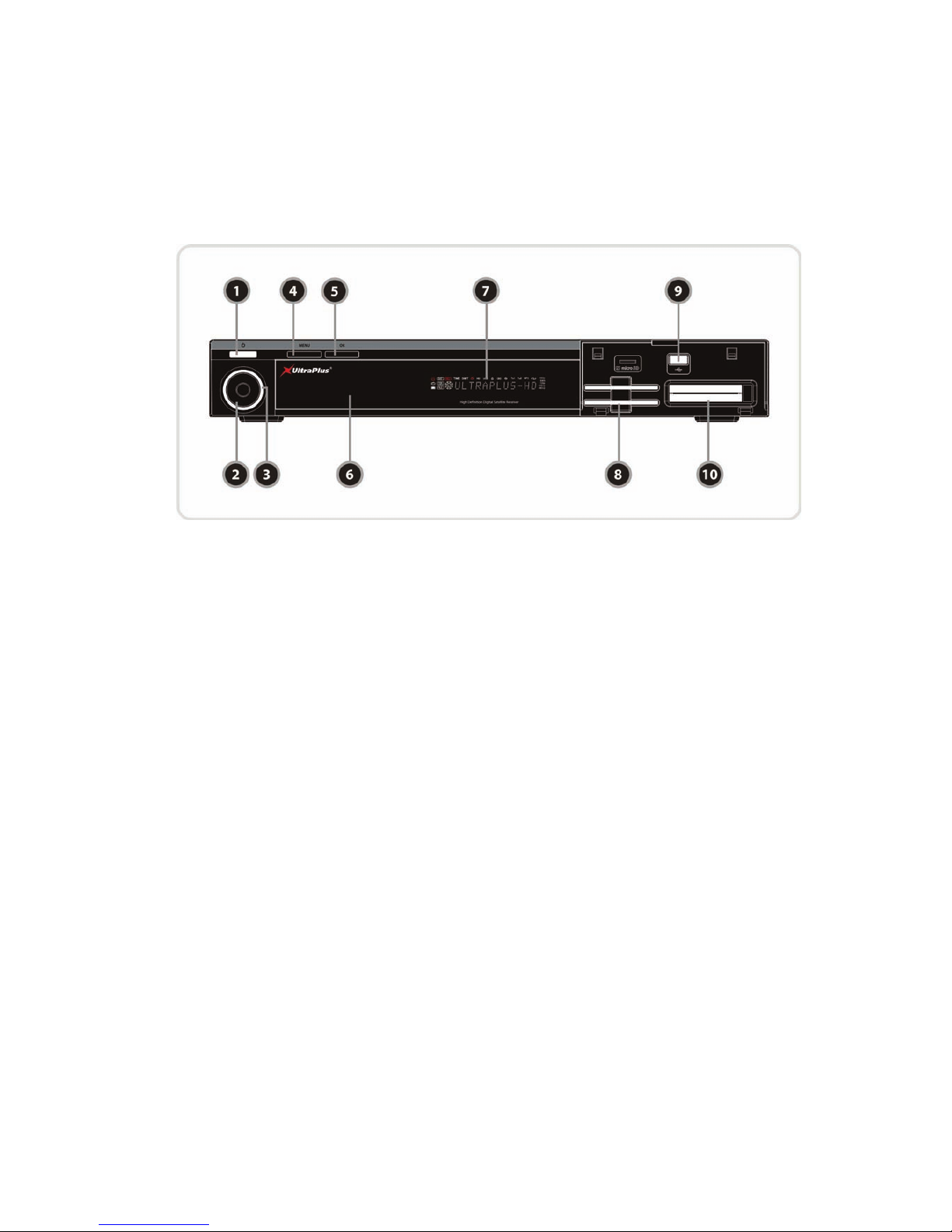

1. Front Panel Configuration ..........................................................................................................9

2. VFD(Vacuum Fluorescent Display)..........................................................................................10

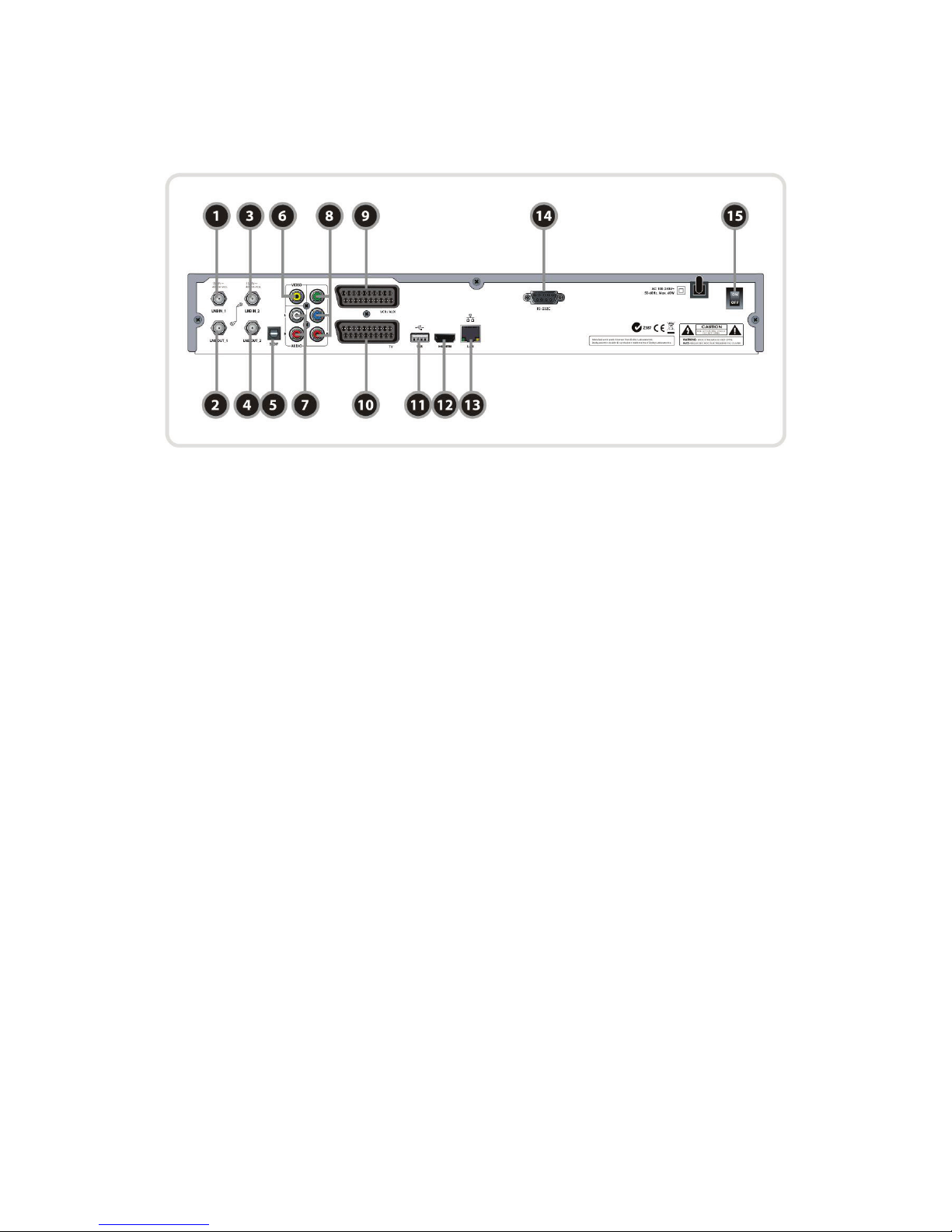

3. Rear Panel Configuration.........................................................................................................11

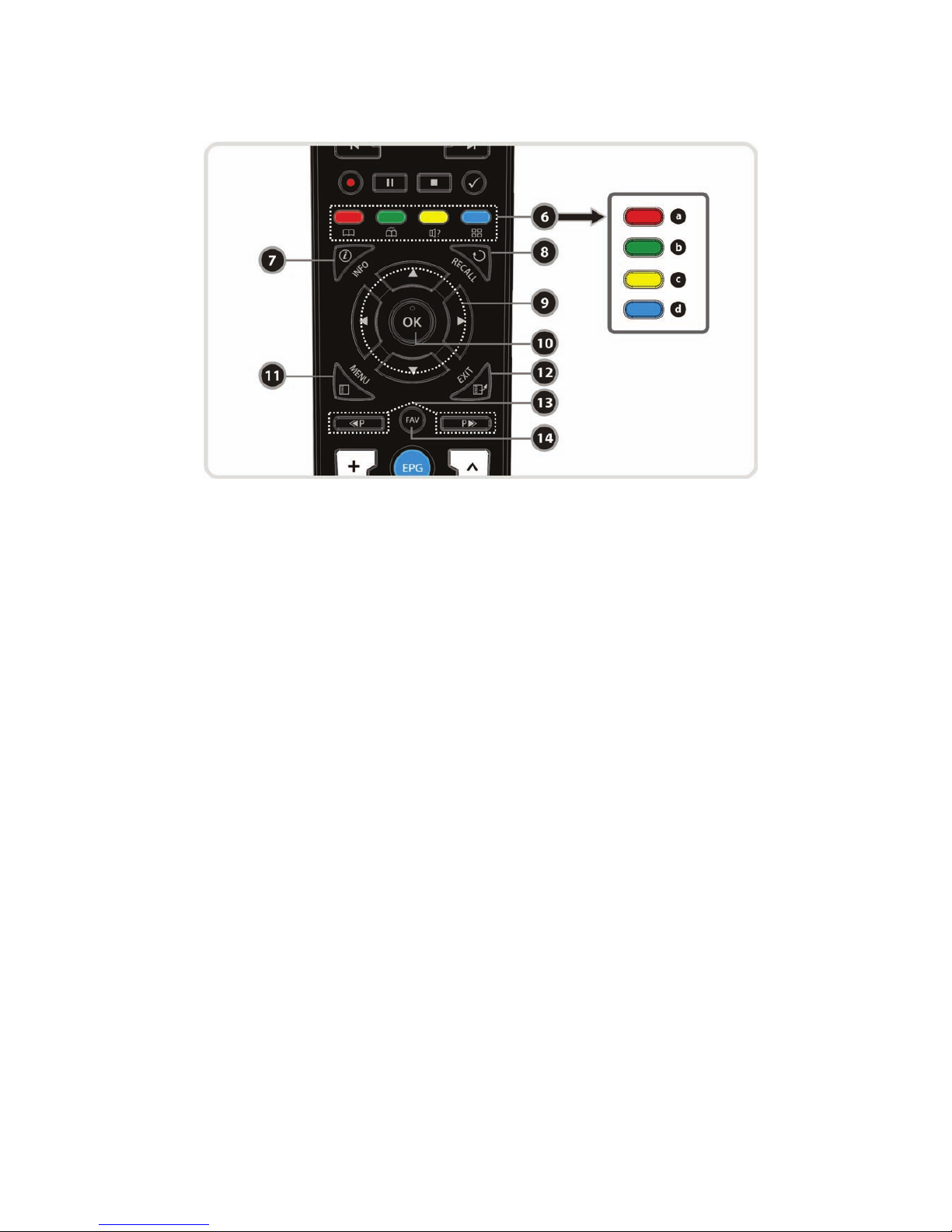

4. Remote Control Unit.................................................................................................................12

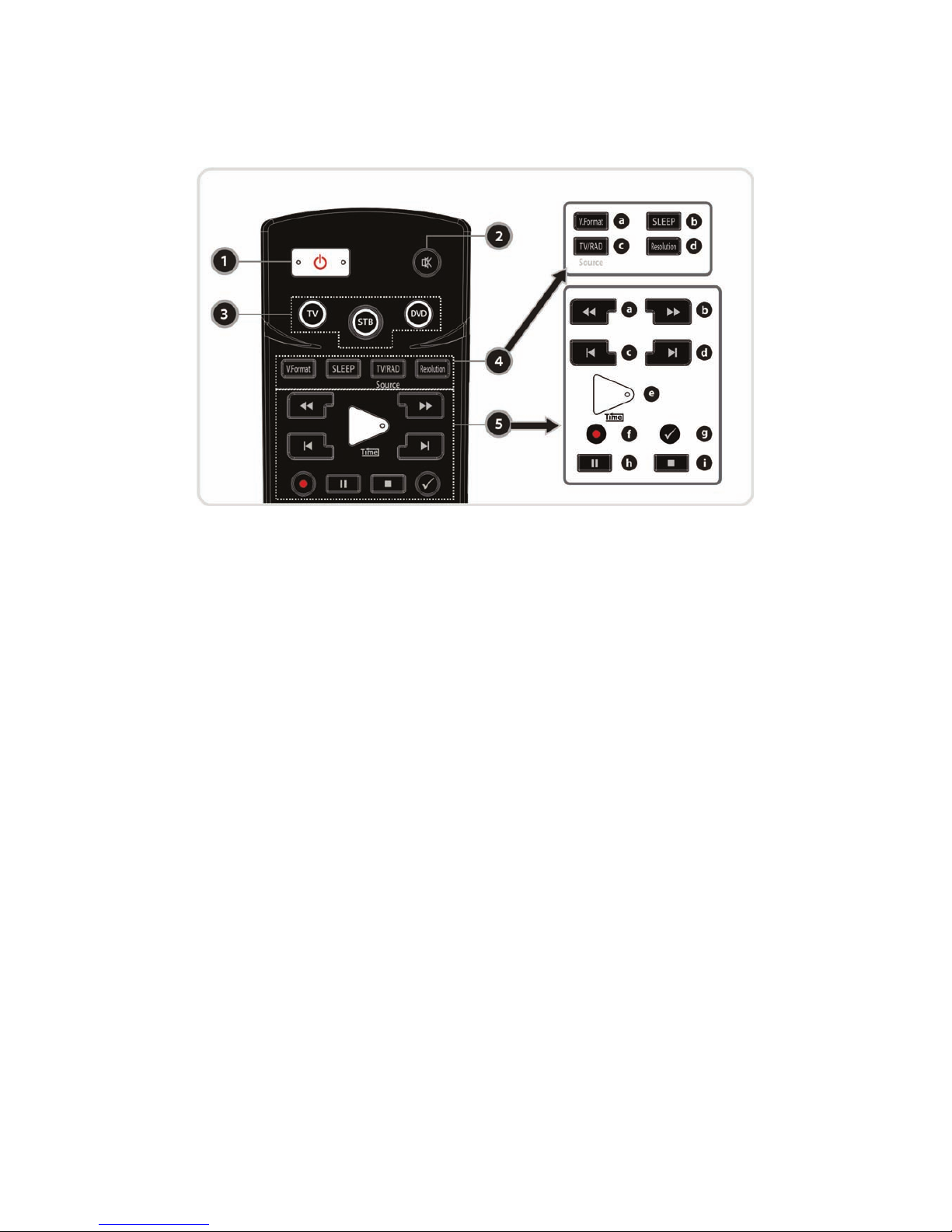

5. Multi-Brand IR Remote Controller Setting................................................................................15

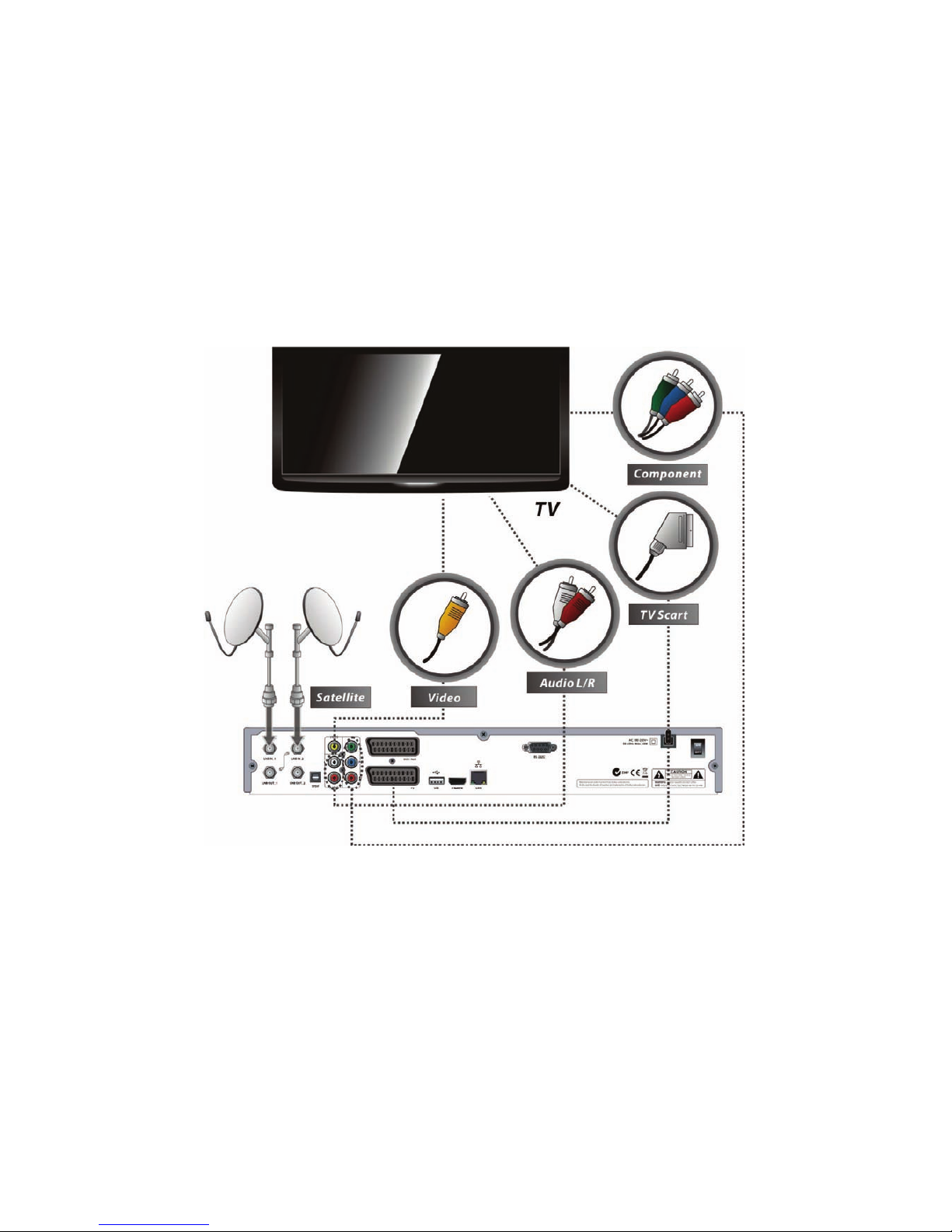

Connections Diagram.......................................................................................................16

1. Receiver to TV with Digital A/V Output.....................................................................................16

2. Receiver to TV With Analog A/V Output...................................................................................17

3. Receiver to TV and VCR..........................................................................................................18

4. Connecting to Dish...................................................................................................................18

4.1 Connecting by Loop through...............................................................................................18

4.2 Connecting each Dish to each Tuner..................................................................................19

4.3 Connecting Antenna cable to each Tuner using a DiSEqC Switch (Recommend).............19

Guide of Functions ...........................................................................................................20

1. Selecting a Service...................................................................................................................20

1.1 Using CH UP/DOWN buttons..............................................................................................20

1.2 Using Service List ...............................................................................................................20

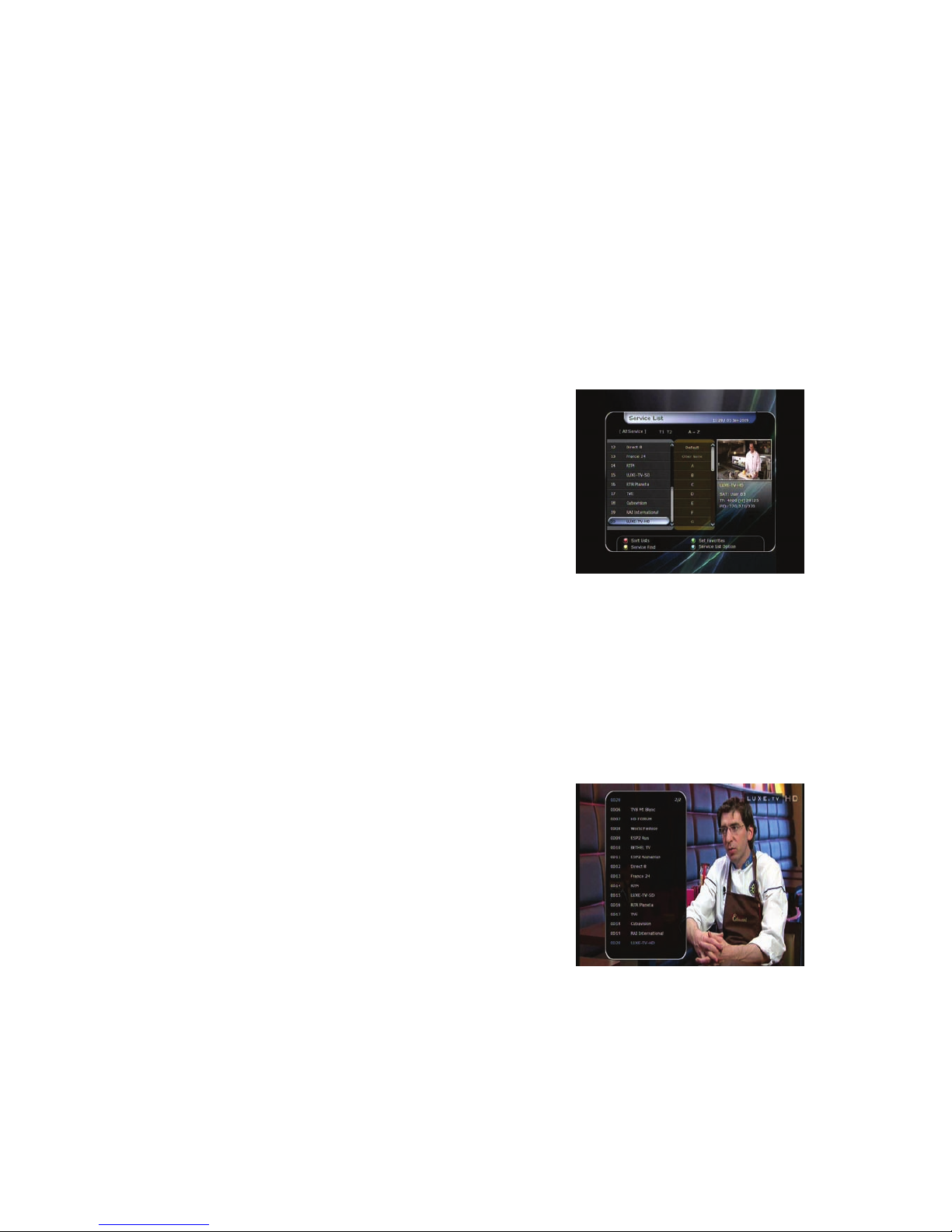

1.3 Using Instant Service List....................................................................................................20

1.4 Using Recent Service List...................................................................................................21

2. Information Window..................................................................................................................21

3. Multi-Picture Display. (*)...........................................................................................................21

4. Electronic Program Guide (EPG).............................................................................................21

5. Favorite Group .........................................................................................................................22

6. Volume Control.........................................................................................................................22

7. Pause .......................................................................................................................................22

8. Subtitle......................................................................................................................................22

9. Audio Track ..............................................................................................................................23

10.Teletext

.....................................................................................................................................23

11. PIP (Picture in Picture).............................................................................................................23

PVR (Personal Video Recorder) Function.......................................................................25

1. Recording.................................................................................................................................25

1.1 Recording methods.............................................................................................................25

1.2 Recording Edit.....................................................................................................................27

1.3 Long Time recording ...........................................................................................................27

1.4 Pause during recording.......................................................................................................27

2. Time Shifting.............................................................................................................................29

3. Playback (Play List)..................................................................................................................30

3.1 Recorded Files....................................................................................................................30

3.2 Imported Files .....................................................................................................................31

3.3 Music...................................................................................................................................31

3.4 Photo...................................................................................................................................31

4. Bookmark .................................................................................................................................31

5. Trick mode................................................................................................................................32

Menu Map..........................................................................................................................33

Main Menu of Guide..........................................................................................................34

1. System Tools............................................................................................................................34

1.1 Storage Manager.................................................................................................................34

1.2 Timer Settings .....................................................................................................................34

1.3 Service List Manager ..........................................................................................................35

1.4 Data Transfer.......................................................................................................................36

2. Configuration............................................................................................................................37

2.1 Recording Option ................................................................................................................37

2.2 Parental Control ..................................................................................................................37

2.3 Display Setting ....................................................................................................................38

2.4 Time Setting........................................................................................................................38

2.5 Language Setting................................................................................................................38

2.6A/V Output Setting ..............................................................................................................39

3. Installation ................................................................................................................................40

3.1 Dish Setting.........................................................................................................................40

3.2 Positioner Setting................................................................................................................41

3.3 Service Search....................................................................................................................41

3.4 Network Setting...................................................................................................................43

3.5 System Recovery................................................................................................................43

3.6 System Information.............................................................................................................43

4. Utilities......................................................................................................................................44

4.1 Calculator............................................................................................................................44

4.2 Calendar..............................................................................................................................44

4.3 CAS (Conditional Access System)......................................................................................44

Troubleshooting................................................................................................................45

Specifications....................................................................................................................46

Code Table for Universal Remote Control Unit...............................................................48

1. Key Table..................................................................................................................................48

2. TV Brands ................................................................................................................................50

3. VCR Brands .............................................................................................................................57

4. DVD Brands .............................................................................................................................62

Precautions

1. Important Safety Instructions

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with a dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, stoves, or other apparatus (including amplifiers)

that produce heat.

Do not alter the mains plug in any way. If the provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs and the point where

they exit from the apparatus.

Only use attachments/accessories specified by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid

injury in case of tip-over.

Unplug this apparatus during lightning storms or when unused for long periods of time.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as the power-supply cord or plug being damaged, liquid being spilt on the

apparatus or objects having fallen into the apparatus. Also if the apparatus has been exposed to rain

or moisture, does not operate normally, or has been dropped servicing is required.

WARNING : To Prevent fire or shock hazard do not expose the set to rain or moisture.

2. Notice

These servicing instructions are for use by qualified service personnel only. To reduce the risk of

electric shock, do not perform any servicing other than that contained in the operating instructions

unless you are qualified to do so.

The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as

vases, shall be placed on the apparatus.

The mains plug is used as the disconnect device. The disconnect device shall remain readily operable.

To reduce the risk of electric shock, do not remove

the cover (or back).

No user serviceable parts are inside.

Refer servicing to qualified service personnel.

The Lightning Flash with arrowhead symbol

within an equilateral triangle, is intended to

alert the user to the presence of un-insulated

"dangerous voltage" within the product

enclosure that may be of sufficient magnitude

to constitute a risk of shock to persons

The exclamation point within an

equilateral triangle is intended to alert

the user to the presence of important

operating and maintenance

(servicing) instructions in the

literature accompanying the product

3. Copyright

This manual is protected by copyright laws.

Copying and/or reproduction of this manual in part or whole without Ultraplus's prior written

approval is prohibited.

4. Disclaimer

The manufacturers, distributors and agents are not liable to any kind of damage caused by the

use of the information contained in this manual.

The instruction and descriptions which this manual contains are based on the time of this

manual's production.

The manufacturer constantly updates it with new functions and technology.

All the specifications are subject to change without prior notice.

5. Trademarks

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Before You Begin

1. Main Features

Twin Tuner HDTV PVR Receiver ( H.264/ MPEG4 HD )

Supports MPEG4 /MPEG2 - HD/SD, DVB-S2 /DVB-S

Embedded Linux OS & Ethernet port

Time Shifting, Recording & Playback with Internal HDD (SATA) / External HDD (USB 2.0)

Simultaneously Records 2 Channels and allows Watching of 2 others (PIP)

True Blind Scan & Multi-Satellite Search

Dual USB 2.0 Ports Front/Rear

MP3 and JPEG player over USB port

Premium Grade Universal remote control unit

HDMI Output (576i, 576p, 720p, 1080i)

PIP (Picture-in-Picture) & Multi Picture Display(*)

Premium Grade VFD Display (12 Digit Alphanumeric)

Multi-LNB support via DiSEqC 1.0, 1.1, 1.2 and USALS

Powerful Extended EPG supports 8-Day and Event Recording

Supports DiVX file Playback

Powerful Service Control with Favorites, Lock, Skip, Move and Delete Functions

User Friendly & Multi-language Supported (OSD & Menu)

Teletext / Subtitle Supported

Maximum 10,000 Services Programmable

High Definition On-Screen Display in True Color

Supports YPbPr Output in HD

RGB, CVBS, Y/C Video & Audio Output via SCART

Digital Optical AC3 Output (SPDIF)

Up - Scalar for SD/HD Channels up to 1080i

2 Smart Card Reader and 2 Common Interface Slots

1W Stand-by Power Consumption

NOTE : (*) This feature(Multi-picture Display) may not be available until a new firmware version

is installed. Please refer to your local dealer / distributor for clarification.

2. Accessories

User's Manual

AAA size Batteries X2

Loop through Cable (Option)

Remote Control

HDMI Cable (Option)

Hardware Description

1. Front Panel Configuration

1. POWER BUTTON & LED : Press to switch between STANDBY and POWER ON modes.

2. Navigation Button :

Up/Down button(CH Up/Down) :Press to change services in normal mode, or to move highlighted-

bar in menu mode.

Left/Right button (Vol Up/Down) :Press to change audio volume in normal mode or to navigate

menu in menu mode.

3. LED indication LED(White) : The LED lights on in running mode.

4. MENU Button : Press to display the main menu or to move to the previous menu.

5. OK Button : Press to display the service list in non-menu mode and to select an item or confirm a

selection in menu mode.

6. Remote Sensor : Receives signal from the remote control.

7. VFD Display : The Vacuum Florescent Display can display 12-digits of alphanumeric display and

various icons. These letters and icons display the current status of receiver such as service name,

service information and so on.

8. SMART CARD READER : Insert smart card for encrypted service access.

9. USB(Front): Use it when connecting to external USB storage device.

10. CI Slot: To receive pay-tv service you need a CA-Module and a smart card from the service provider.

2. VFD(Vacuum Fluorescent Display)

1. Remote Indication LED : The LED lights when a key on the Remote Controller is pressed.

2. Radio icon : The icon lights when the radio service is changed.

3. TV icon : The icon lights when the TV service is changed.

4. SAT : Satellite mode.

5. TER(Option) : Terrestrial mode.

6. FILE : The icon lights when the file list is displayed for the SATA HDD or USB Storage Device.

7. REC : Turned on during recording.

8. PLAY Mode : The icon lights when you play a file from the file list.

9. TIME SHIFT : Turned on during Time-shift.

10. Information : Display information including service name and other information.

11. TIMER : Turned on when a timer is set.

12. HD : Turned on when viewing HD services.

13. USB : Turned on while a USB device is working.

14. LOCK : Turned on during lock service.

15. Dolby : Turned on while watching services with Dolby Digital audio.

16. Tu1 : Turned on if Tuner 1 is being used.

17. Tu2 : Turned on if Tuner 2 is being used.

18. MP3 : Turned on while listening to MP3s.

19. Repetition(*) : Turned on to indicate recording repetition.

20. Resolution : Turned on while setting the resolution.

NOTE : (*) Repetition may not be available until a new firmware version is installed. Please refer

to your local dealer / distributor for clarification..

3. Rear Panel Configuration

1. LNB IN_1

Satellite signal input socket for the first tuner. Connects to a satellite antenna cable.

2. LNB OUT_1

Satellite signal output socket through the first tuner. Connects to the LNB IN_2 for loop-through.

3. LNB IN_2 :

Satellite signal input socket for the second tuner. Connects to the LNB OUT_1 for loop-through.

4. LNB OUT_2 :

Satellite signal output socket through the second tuner. Connects to another STB (optional).

5. SPDIF : Connects to the audio system using a S/PDIF cable. (digital audio)

6. VIDEO : Connects to the TV or VCR using a RCA cable. (Composite video output / Yellow)

7. AUDIO L/R : Connects to the TV or VCR using a RCA cable. (Stereo audio output / White, Red)

8. Component : Connects to the TV or VCR using a component cable. ( YPbPr)

9. VCR SCART : Connects to the VCR or DVD using a SCART cable.

10. TV SCART : Connects to the TV using a SCART cable.

11. USB : Used to connect an external USB storage device.

12. HDMI : Connects to the TV using an HDMI cable, use this connection to obtain the best quality picture

and audio possible.

13. Ethernet : Local area network port.

14. RS-232C : Serial port for firmware update and data transfer.

15. A/C Switch : Power switch

4. Remote Control Unit

1. POWER : Turns the STB On/Off.

2. MUTE : Turns the sound On/Off.

3. Universal Buttons

a. Universal TV : Change the mode of the remote to allow it to control the T V.

b. STB : Change the mode of the remote to allow it to control the Ultraplus F-9000HD.

c. Universal DVD: Change the mode of the remote to allow it to control the DVD player.

4. MODE

a. V.Format : You can switch the Display Format (4:3 / 16:9)

b. Sleep : To adjust sleep timer.

c. TV/RADIO : Switches between TV and Radio.

d. Resolution : To select the resolution. Each time you press the Resolution button, the resolution

changes in the following sequence: 576i > 576p > 720p > 1080i

5. Playback Control Buttons

a. Rewind : Rewinds at high speed. Each time you press this button the rewind speed is increased.

b. Fast Forward : Fasts forward at high speed. Each time you press this button the fast forward speed

is increased.

c. Previous File : To play the previous MP3 file in MP3 play mode. This button is also used to jump

back to beginning of the recording during playback.

d. Next File : To play the next file. This button is also used to jump to end of recording during

playback.

e. Play / Time shift : Displays the progress bar during playback, when no progress bar is displayed it

starts playback at normal speed. It also returns to normal speed from trick mode.

f. Recording : To start Recording.

g. Repetition (*):This key is used to play back a recording repeatedly.

h. Pause : This key is used to pause the video. Press once more to resume the video.

i. STOP :To stop time shifting, playback or recording.

NOTE : (*) Repetition may not be available until a new firmware version is installed. Please refer

to your local dealer / distributor for clarification.

6. Color Buttons

a. RED : Used for special functions in the menu. The RED key is used to sort lists in the service list or

go to previous day search in EPG or make/delete the current position as a bookmark.

b. GREEN : Used for special functions in the menu. The Green key is used to set the favorites setting in

the service list or go to the next bookmark position.

c. YELLOW : Used for special functions in the menu. The Yellow key is used to find a service in the

service list or change the audio track.

d. BLUE : Used for special functions in the menu. The Blue key is used to set service list options in the

service list or display Multi-Picture.(*)

7. Information : Shows information about the current program. If you press it twice the detailed

information box will be shown.

8. Recall : Moves to the previous service.

9. ARROW Buttons

a. Up & Down Key : To change the value of a selected item with preprogrammed values in the menu.

b. Left & Right Buttons : To move the cursor left and right in the menu.

10. OK or Service List : Show the service list in non-menu mode and select an item or confirm in menu

mode.

11. Menu : To enter the main menu or to move to the previous menu.

12. EXIT : Exit from the menu or pop-up window.

13. Page Up& Down : Move to the next or previous page if more than one page is available. This button

also changes the location of the sub picture in PIP.

14. Favorite : To display the satellite group and the favorite groups.

NOTE : (*) This Feature(Multi-Picture) may not be available until a new firmware version is

installed. Please refer to your local dealer / distributor for clarification.

15. Volume Up & Down : To change the Volume.

16. Channel Up & Down: To change the channel.

17. EPG(Electronic Program Guide) : Show the TV/Radio program guide.

18. Play List : To show the file list for the SATA HDD or USB Storage Device.

19. PIP Buttons

a. PIP(Picture in Picture) : To activate the PIP window.

b. PIP Swap : Switches between main-picture and sub-picture

c. PIP(Picture in Picture) Service List : To show the sub-picture service list.

20. Numeric : Allows numerical data entry and changing of services directly.

21. Subtitle : To show subtitles.

22. Teletext : To show digital teletext.

5. Multi-Brand IR Remote Controller Setting

NOTE : If there is no input during the first 10 seconds of set mode, set mode is

canceled.

1. Direct Code Entry

Step 1 : Turn on the DEVICE what you want to set up(TV / DVD / VCR)

Step 2 : Press DEVICE and OK buttons for about 2 seconds simultaneously.
