Ultra Power UP6 User manual

UP6
2x200W
2x10A
2x10A
2x200W
www.ultrapower.hk

Thank you for your purchasing of Ultra Power ’s UP6 Dual Channel AC
/DC Smart Balance Charger.This product is a rapid charger with a
high performance microprocessor and specialized operating software.
Please read this entire instruction manual completely and attentively
before using this product, as it covers a wide range of information on
operation and safety.
For more details, please visit: www.ultrapower.hk
INTRODUCTION

Warnings and Safety Notes ------------------------------------
Product Parameters and Characteristics -----------------------
Standard Battery Parameters ----------------------------------
Confirming Charge Current ------------------------------------
Task Settings --------------------------------------------------
Working Parameters Display -----------------------------------
System Settings Menu -----------------------------------------
External Discharge Function -----------------------------------
Wireless Charging Function------------------------------------
Warnings and Error Messages----------------------------------
Conformity Declaration ----------------------------------------
02
04
06
07
08
10
12
14
15
16
17
CONTENTS
1

The following warnings and safety notes are for your protection,
please refer to all aspects of this instruction manual to ensure
proper operation. FAILURE TO FOLLOW THESE SAFETY
PRECAUTIONS MAY CAUSE FIRE, PROPERTY DAMAGE AND/OR
PERSONAL INJURY!
WARNINGS AND SAFETY NOTES
2
PLEASE READ ALL INSTRUCTIONS CAREFULLY
BEFORE USING THE PRODUCT!
WARNING - to reduce the risk of fire, electrical shock or injury
to persons or property:
For indoor use.
Disconnect the supply before making or breaking the connections
to the battery.
Provide adequate ventilation during charging.
WARNING: Against recharging of non-rechargeable batteries.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision
-The charger intend to charge the following battery types:
LiPo,LiHV,LiIon, LiFe,NiMh,NiCd,Pb battery only.
Number of batteries: Two Pack
MAX Battery rated capacity: 50000mAh

WARNINGS AND SAFETY NOTES
3
ALWAYS fully read all warnings and instructions on both charger
and battery prior to use. Be aware of battery safety warnings. Make
sure that all charging parameters are correctly setup prior to
charging any battery. INCORRECT SETTINGS MAY CAUSE FIRE,
PROPERTY DAMAGE AND/OR PERSONAL INJURY!
ALWAYS press the roller wheel to terminate charge completely
when battery is fully charged, and return to the standby screen on
the LCD display.
NEVER leave the battery or charger unattended while in use. In
case of any malfunction, immediately discontinue use and refer to
this manual for troubleshooting ideas.
ALWAYS keep your charger away from dust, dirt, moisture, rain, and
high temperature. Avoid leaving your charger or battery in direct
sunlight or exposing them to intense vibration or shock.
ALWAYS make certain to observe proper input and output polarity.
The UP6 operates safely with input voltage between AC 100-240V
DC 9-32V.
ALWAYS place the charger on a heat-resistant, non-flammable
surface when in use. Keep flammable materials away from charger
when in use.
NEVER use the charger while placed on automobile seats,
carpeting, or other flammable materials.
ALWAYS make sure that the vent holes on the bottom of the charger
are unobstructed and the cooling fan in operation.

PRODUCT PARAMETERS AND CHARACTERISTICS
4

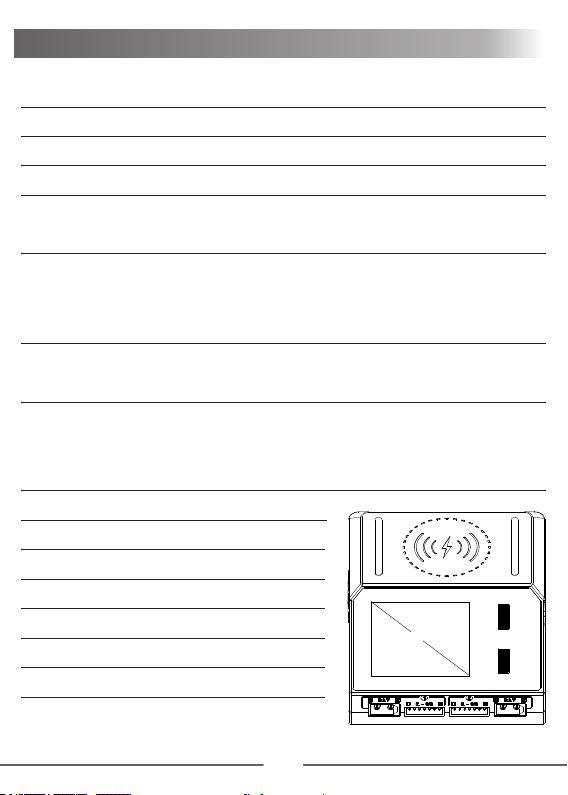

Channel 1 Roller Wheel
Short press: Enter Channel 1 task settings/confirm current settings
Long press: Enter System setting/terminate current task
Scroll up and down: Select the corresponding menu
Channel 2 Roller Wheel
Short press: Enter Channel 2 task settings/confirm current settings
Scroll up and down: Select the corresponding menu
Roller Wheel
2.4 inch
IPS screen
Balance
Socket
Battery
Sockets
Balance
Socket
Battery
Sockets
Ext.Discharge Port
Temp.Sensor
Wireless charging
AC Input 100-240V
DC Input 9-32V
PC Link
Temp.Sensor
Non-slip mat

Specification：
Input Voltage: AC 100-240V, DC 9.0-32.0V
Output Voltage: 0.1-30V
Charge Current: 0.1-10.0A x 2
Discharge Current: CH1: 0.1-2.0A/0.1-15.0A(External discharge mode)
Charge Power: DC Input: 2x200W
AC Input: Max.160W (CH1+CH2=160W)
Support power distribution
Discharge Power: CH1: 6W/200W(External discharge mode)
Support Battery Types: LiPo/LiHV/LiFe/Lilon(1-6S)
NiMH/NiCd(1-16S)
Lead Acid 2V-24V(1-12S)
Wireless Charge power: Max.10W
Balance Current: Max.1000mA/cell
LCD Screen Type: 2.4" 320×240 LCDIPS
Use Temperature: 0-40℃
Storage Temperature: -20-60℃
Weight: 460g
Dimensions: 100x99x64mm
PRODUCT PARAMETERS AND CHARACTERISTICS
5
CH2: 0.1-2.0A
CH2: 6W
2.4“320x240 LCDIPS

STANDARD BATTERY PARAMETERS
6
Rated Voltage
Full Charge Voltage
Storage Voltage
Discharge Voltage
Pre-charge Voltage
Balance Charge
Unbalanced Charge
Support Cells
Max Charge Current
Be EXTREMELY careful to choose the correct voltage settings based
on the cells and chemistry of the battery being charged. Failure to do
so may result in battery damage, explosion, or fire!
LiHV
3.80V
4.35V
3.90V
3.10-3.40V
3.20V
supported
10.0A
supported
1-6S
LiFe
3.20V
3.60V
3.30V
2.60-2.90V
2.90V
supported
10.0A
supported
1-6S
Pb
2.00V
2.40V
Not supported
1.80-2.00V
2.00V
Not supported
10.0A
supported
1-12S
NiCd/NiMH
1.20V
1.40V
Not supported
0.5-1.10V
/
Not supported
10.0A
supported
1-16S
LiIon
3.60V
4.10V
3.70V
2.90-3.20V
3.10V
supported
10.0A
supported
1-6S
LiPo
3.70V
4.20V
3.80V
3.00-3.30V
3.20V
supported
10.0A
supported
1-6S

CONFIRMING CHARGE CURRENT
08
It is critically important to understand the maximum charging current
for the battery pack to be charged. Excessive charge current can
significantly reduce the life of a battery, or in severe cases a fire or
explosion.
7
The charge and discharge current of a lithium battery is determined
by its “C” rating. Most batteries indicate the C rating of the pack on the
main label. Multiply the C rating of the battery pack by the capacity to
determine the safe and proper charge current. For example, a 5000mAh
battery with a 1C rating means that the maximum charge rate should be
5000 (capacity in milliamps) X 5 (C rating) = 5,000mAh. Therefore, the
maximum charge rate for a 5000mAh 1C lithium battery should be 5A
(5,000mAh).
If it is not possible to determine the C rating, please assume that the
pack is 1C and use that value to calculate a safe charge rate. Keep in
mind that batteries vary, and therefore charging times will vary.

TASK SETTINGS
Power on the charger and connect a battery, the charger will enter
into the standby page, then short press the roller wheel to activate
the program setting menu. The items in the menu are as follows:
8
The default mode of the UP6 is series charging, therefore you must
connect the output wires to the battery pack that you wish to charge.
For lithium packs, it is highly recommended to ALWAYS connect the
balance leads and utilize balance charging. Although the UP6 will
charge without the balance function, a warning tone will sound to
alert you that the balance connector is not in use.
Current
Select desired charge current (0.1-10.0A) , discharge current (0.1-2.0A)/Ext.discharge(0.1-15.0A)
Mode Work mode: Charge / Discharge / Storage / Ext.DISC
Battery Select battery chemistry
Back Return to previous screen or function
TVC Terminal voltage control
Start Begin process
Cells Select number of battery pack cells
When selecting the storage function, the UP6 will automatically
begin charging if the battery pack voltage is below the ideal storage
voltage. Likewise, the UP6 will automatically enter the discharge
mode if the battery pack voltage is higher than the ideal storage
voltage.
Storage

TASK SETTINGS
If the UP6 detects internal cell voltages that are too low to safely
begin the charging process, it will automatically default to a 0.5A
charge rate until the voltage has risen to a level that allows it to
safely accept a fast charge rate.
The UP6 features the ability to monitor the internal resistance of
each cell in a lithium battery pack. This feature is only operational
when in the balance charging mode. Internal resistance can be use
ful to determine the overall “health” and performance of a lithium
battery, the closer the IR values are between the cells in the battery
pack, the better that the battery will deliver its energy.
NOTE: The process of charging a lithium battery is dynamic,
therefore you will notice fluctuations in both charge current and IR
during the charging process.
Due to the difference measurement methods of the battery
resistance, it is impossible to achieve the absolute data similar to
the professional resistance measurement instruments. Therefore,
the internal resistance value is only suitable for reference with
horizontal comparison, such as judging the consistency of the
performance with the battery or the performance comparison
between different batteries. The charging current has some
influence on the accuracy of the internal resistance measurement.
A large-capacity and low internal resistance battery requires a large
charging current to accurately measure the internal resistance.
Restoring an excessively discharged lithium battery pack
Measuring Internal Resistance
9

1
LiPo - 6S Charging....98%
2
LiPo - 6S Charging....98%
25.00V
8.0A
2.8mΩ
12.8mΩ
3
2.8mΩ
5
2.8mΩ
2
2.8mΩ
42.8mΩ
6
25.00V
8.0A
4.17V
14.17V
3
4.16V
5
4.16V
2
4.17V
44.17V
6
1
LiPo - 6S Charging....98%
2
LiPo - 6S Charging....98%
25.00V
8.0A
25.00V
8.0A
5000mAh
0:38:00 50 C20.0V
4.16V-4.17V
5000mAh
0:38:00 50 C20.8V
4.16V-4.17V
WORKING PARAMETERS DISPLAY
11
Rotating the roller wheel up or down during charging will switch the
information displayed on the lower half of the LCD screen between
cell voltage, cell IR and working parameters. Cell voltage and IR can
only be displayed during the balance charging process.
Charge/Discharge
Current
Battery Cell Count
Battery Type Battery Percentage
Working Mode
Battery Voltage
Cell Voltage Range
10
Battery Capacity
Input voltage
Charge/Discharge
Time
Temperature
1
LiPo - 6S Charging....98%
2
LiPo - 6S Charging....98%
25.00V
8.0A
25.00V
8.0A
5000mAh
0:38:00 50 C20.0V
4.16V-4.17V
5000mAh
0:38:00 50 C20.8V
4.16V-4.17V
Scroll the roller wheel

WORKING PARAMETERS DISPLAY
5.2A
5.1A
4.9A
Curr ent :
VT
TVC :
Start
Mode :
5.0A
1
LiPo - 6S Charging....98%
25.00V
8.0A
5000mAh
0:38:00 50 C20.8V
4.16V-4.17V
Program
2
1
LiPo - 6S Ext.DISC....Complete
19.20V
16000mAh
2:09:00 50 C
3.20V-3.20V
1
LiPo - 6S Ext.DISC....88%
24.00V
-8.0A
3000mAh
0:25:00 50 C20.8V
4.00V-4.00V
2
LiPo - 6S Charging....98%
25.00V
8.0A
5000mAh
0:38:00 50 C20.8V
4.16V-4.17V
2
LiPo - 6S Charge....Complete
25.20V
0.1A
6000mAh
0:45:00 50 C20.8V
4.20V-4.20V
Two independent output channels,
independent setting and working,
do not affect each other. When you
charge on channel 1, you can
charge or discharge on channel 2,
all the setting can be adjusted by
the user requirement, the main
charging data of the two channels
can be shown on the display at the
same time, no need to switch.
External discharging on channel 1
Charging on channel 2
External discharging completion on channel 1
Charging completion on channel 2
11
2.4'' IPS Display, clearly show two channels working status in real-me.

SYSTEM SETTINGS MENU
Language
MAX Input Power
MIN Input Voltage
Power Distribution
Capacity Cut
Time Cut
Temperature Cut
Backlight
Volume
About
Factory Reset
Back
Adjustable from 50W-450W (if use DCorBattery input source)
English, French, German, Japanese, Simplified Chinese, Traditional Chinese
Adjustable from 9V-24V (if use DC orBatteryinput source)
Support power distribution（default50%-50%）
Terminates charge process when reach this value
Maximum capacity can be adjusted by user
Terminates charge process when exceeding time set by user
Battery temperature protection (external temperature cable is required)
Returns all settings to factory default values
Three options-High, Medium, Low
Four options- High, Medium, Low and Off
Software version and information
Return to last program or menu
Long press the CH1 roller wheel to activate the system setting menu.
Max Input Power: When the input power can not reach the charger'
s maximum working power requirement(450W), to ensure stable and
safe operation of the UP6, this value should be adjusted according
to the input power source used for the charger. For example, when
using a 20V/10A DC power supply, this value should be set to 200W
(P=U X I).The recommended DC power supply is 500W/20V or higher.
12

SYSTEM SETTINGS MENU
Min Input Voltage: When the user take a battery as a input power
source, this setting can protect the battery not over-discharged. When
the charger detect the input voltage lower than the setting value, then
the charger will stop the current task and remind the user with showing”
DC IN TOO LOW”. For example, when using a 6S LiPo as a power
source, we can set this value at 21.0V to protect the battery not over-
discharged.
Volume: When setting the buzzer volume to OFF, the operation sound
will be shielded, but the error sound will not be shielded.
Power Distribution: The total AC input power is 160W, the default
power for each channel is 80W. The user can adjust the power for
CH1 and CH2, the total power CH1+CH2=160W.
13

EXTERNAL DISCHARGE FUNCTION
UP6 increases the function of external discharge to meet the users'
demand for high-power discharge of batteries, UP6 connect a
external discharger UP-D200 can achieve 200W discharge power,
greatly improving the battery discharge speed and saving time.
Meanwhile, compared with the traditional discharger, the UP6 has
a balancing discharge function, which can effectively avoid single
cell over discharge, which will be more safely and reliable.
14

WIRELESS CHARGING FUNCTION
15
Non-slip Mat
Wireless charging power 10W
Support to charge iPhone X,
iPhone XS, iPhone 11, iPhone 11 Pro,
Samsung Galaxy S10,Galaxy Note10+,
Huawei Mate 30, Huawei Mate 30 Pro,
Xiaomi 9, Xiaomi 9 Pro, etc..

16
WARNINGS AND ERROR MESSAGES
Error Message for Abnormal Battery Connection
Unplug and re-connect all plugs to ensure proper connection and
polarity. Check to make sure that all connectors are free of dirt,
grease, or oxidation.
Error Message for Unstable Input Voltage
Make certain that the battery socket is free from dirt or oxidation.
Make sure that the Max Input Voltage is set correctly in the System
menu

CONFORMITY DECLARATION
17
The UP6 satisfy all relevant and mandatory CE directives and
FCC Part 15 Subpart B: 2017.
Information on the disposal for Waste Electrical &
Electronic Equipment(WEEE) This symbol on the products
and accompanying documents means that used electrical
and electronic products should not be mixed with general
household waste. For proper disposal for treatment,
recovery and recycling, please take these products to
designated collection points where they will be accepted
on a free of charge basis. In some countries you may be
able to return your products to your local retailer upon the
purchase of a new product. Disposing of this product
correctly will help you save valuable resources and prevent
any possible effects on human health and the environment,
which could otherwise arise from inappropriate waste
handling. Please contact your local authority for further
details of your nearest collection point for WEEE.
For EC directive:
The product has been tested to meet the following technical
standards:
Testing standards
EN 55014-1: 2006+A1:2009+A2:2011
EN 55014-2: 2015
Result
YES
YES
