Ultra J800 User manual

Phone: [phone]
Fax: [phone]
www.ultraseat.com
*Product in photo(s) may be different then purchased product,
For additional photos and information please visit
www.ultraseat.com
UPDATED: 03/09/19
J800
15002205
INSTALLATION GUIDE
FOR EXCAVATORS
WITH SUSPENSION
GROUP NUMBERS:
124-3926
164-0503
164-0478
188-0886
229-9077
240-5063
To ensure correct fit for your machine.
Confirm your CAT Suspension
Group Number and correct
Mounting Centers.
INSTALLATION GUIDE
J800 SEAT UPPERS
ON
CAT EXCAVATORS

Please visit www.ultraseat.com for more information regarding this product.

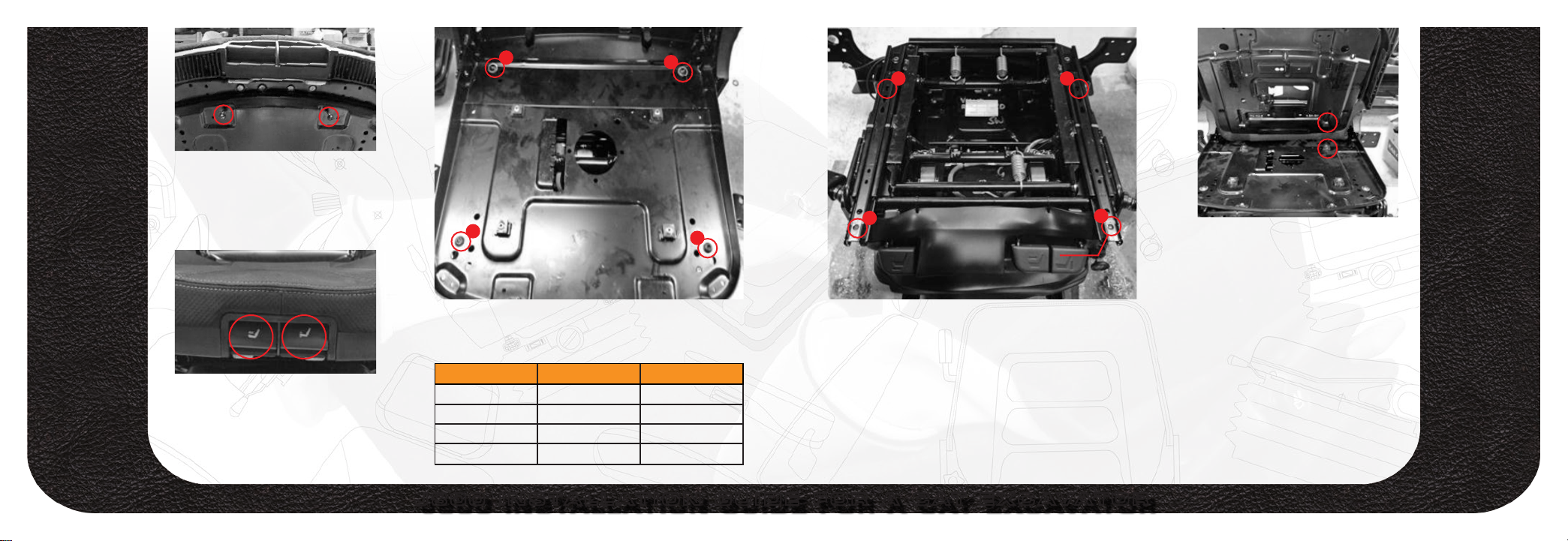

J800 INSTALLATION GUIDE FOR A CAT EXCAVATOR
STEP 1
Remove the 2 screws indicated in
the picture below to remove the seat
cushion.
STEP 5
Once the seat frame is mounted to the
slide rails then slide the seat cushion
back onto the frame making sure you
lift on both seat tilt and height levers.
To slide the seat cushion back onto the
frame you must line up the plastic guides
to the slots in the bottom of the seat
cushion (all 4 locations).
NOTE: After the seat cushion is
installed on the frame the 2 screws
removed under the seat frame at the
beginning (step 1) must be reinstalled.
Make sure the seat/slide rails are
moved all the way back.
STEP 3
Find the correct mounting holes that match your suspension/
rails. (Holes 1, 2, 3 & 4 are EXAMPLES ONLY)
STEP 4
Attach the seat frame to the top of your suspension.
STEP 2
Once the 2 screws are out, lift up on
both the seat tilt and height levers and
slide the seat cushion away from the
frame (towards you) and lift off seat
cushion..
1
2
3
4
4
3 2
1
First Hole
Group Number Side to Side Front to Back
124 3926 14-3/8” (365mm) 11” (280mm)
164 0503 14-3/8” (365mm) 11” (280mm)
229 9077 14-3/4” (375mm) 11” (280mm)
240 5063 14-3/4” (375mm) 11” (280mm)
