ULTRASUN E6 User manual

2
•Read the instructions before using this product or consult the attendant for
further information.
•The power supply must be fused with a time-lag fuse.
•The supply voltage (V) and frequency (Hz) must agree with the information given on the
machine type plate. A copy is on the backside of this manual.
•Before servicing this equipment or changing lamps, remove the power supply cord or
isolate from main supply.
•This equipment must have an earth connection.
•Never use this machine when the timer is faulty.
•Do not use this machine when the airhose is not connected.
•This device is intended to be used by one person at a time!
•Make sure there is at least 10 cm / 5 inches space between the machine and the
walls/ceilings to ensure proper ventilation.
•Never use this device, if one or all of the acrylics are broken or removed. Check this for each
tanning session.
•This machine may not be operated if the temperature inside the tanning cabin is 30oC /
86 o F or higher.
•Always use the protective sunglasses provided!
•In order to keep your Ultrasun machine in compliance with the standard, you have to make
sure to change lamps, components and accessories with original lamps, components and
accessories only. Otherwise guarantee will be taken off as well as any responsibility and
any liability.
•Water and electricity are a dangerous combination. Do not place your Ultrasun in a humid
room or near water facilities like a shower or swimming pool.
•This machine is equipped with an automatic security system against overheating. In case
there is insufficient ventilation (because the ventilating shafts of the machine are covered
or the ventilation in the room does not function optimally) the appliance will automatically
switch itself off. When the machine has cooled down, the machine will automatically
switch itself on again. However, you should always examine what the cause was that the
machine switched off!
•The appliance is not to be used by children or people with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction.
•Children should be supervised to ensure that they do not play with the appliance.
•Read also the tanning rules on page 17 and 18!
WARNING : PLEASE READ THIS CAREFULLY

3
WARNING..........................................................................................................................................
CONTENT...........................................................................................................................................
EXPLAINING THE ICONS……………………………………………………………………………………………………….……….….
PART OF THE E6……………………………………………………………………………………………….………………….……..……
ASSEMBLING THE E6……………..………………………………………….……………………………………………………..………
ADDITIONAL ASSEMBLY INSTRUCTIONS E6……………………………...…………………………….……………..…………
INSTALLING THE MP3/IPOD/TABLET HOLDER (OPTION)…………………………………………….…………….………
AUDIOCONNECTIONS (OPTION)……………………………………………………………………….………………………………
ADDITIONAL COOLING FAN……………………………………………………………………………….…………………..…………
CONNECTING THE STRAP ON THE TOPCOOLER (OPTION)……………………………………………………….…………
CONNECTING THE REMOTE CONTROL…………….………………………………………………………………………………..
TROUBLESHOOTING AND MAINTENANCE…………………………………………………………………………………………
RGB CONTROLLER WITH DISTANCE CONTROLLER…………………………………………………………………………….
CHANGING LAMPS AND STARTERS……………………………………………………………………………………………..……
EXPOSURE SCHEDULE AND INSTRUCTIONS…………………………………………..………………………………………….
REMOVING THE ACRYLICS…………….……………………………………………………………………………………….…………
SERVICE PARTS……………………………………………………………………………………………………………………….……….
TECHNICAL INFORMATION AND LAMP CONFIGURATION…………………………………………………………………
DIMENSIONS E6……………………………………………………………………………………………………………………………….
DECLARATION OF CONFORMITY……………………………………………………………………………………………………….
CONTACT AND IDENTIFICATION…………………………………………………………………………….…………………………
You have just chosen for a product from the Ultrasun Professional range. You have made an excellent
choice. By this purchase you have chosen for a product which has been carefully manufactured from
high quality parts which have been tested completely and have been checked fully after
manufacturing. We advise you to carefully read through this user manual so you can use the sunbed
safely and with many years of pleasure.
During the development of our professional sunbeds, the specific desires of our customers have been
taken into account. If you still have questions about or suggestions for our sunbeds, please do not
hesitate to contact us.
Please check if the serial number plate at the back side of this user manual resembles the serial
number plate at the back of the sunbed. Ultrasun spends a lot of time and attention on the
development and improvement of the delivered products. Ultrasun holds the right to make changes
without informing you previously. We hope you enjoy your purchased sunbed.
The Ultrasun team.
Content
2
3
4
5
6
8
10
11
12
13
14
15
16
17
17
19
20
20
22
23
24

4
This user manual consists of all het possible options which you can have on your Ultrasun E6. If these
options are not relevant to your sunbed, then you can skip the chapters indicated as “option”. The
user manual of your Ultrasun E6 consists of this user manual and a separate user manual for the IQ
Touch Control. The electrical schedule of this sunbed is supplied separately.
Always choose the user manual that has the grey sunbed identification sticker on the backside. And
always keep this user manual close to the sunbed.
•Check if the packaging is in the original state and report possible damages directly to your
transporter. Especially look for possible dents, cracks or water damage on the outside of the
packaging.
•Get all separate parts out of the packaging. Check directly if all parts are present and
undamaged.
•May one of these control checks not suffice these requirements, report this as soon as
possible to your Ultrasun distributor.
Explaining The Icons
Remove the plug from the wall socket when working on the sunbed.
Make sure that all power supplies are removed.
Attention: dangerous electrical voltage.
Parts in this manual marked with this sign must be handled by technical
personnel. Technicians who have to work on this device must be electrotechnical
educated and must observe all the safety rules.
At the end of the expected service life of this device, all parts can be recycled and
must not be processed as general waste. Responsible disposal of waste products or
associated parts will not cause any risk or damage.
Attention:
Ultraviolet radiation: always wear eye protection when exposed to UV light
and read the corresponding warning texts.
Attention:
Warning for dangerous situations, hazards or injury.
Follow instructions, read manual or ask competent person for information..

5

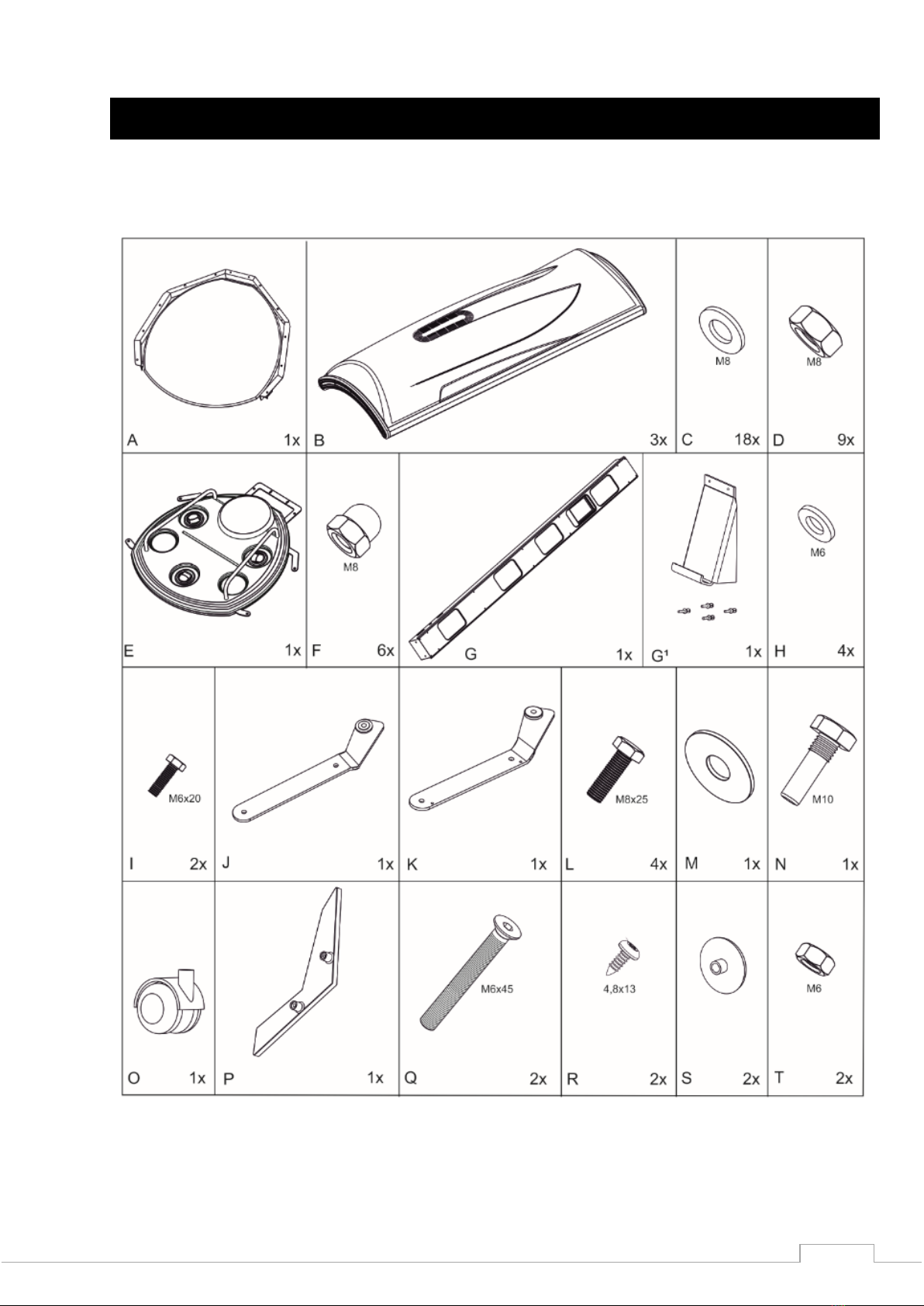

To guarantee safe and easy transportation, the sunbed is packed in several separate parts as shown
in the drawing below. These parts can be assembled easily by two people at the place where you
want to locate the sunbed.
1optional
Parts Of The E6

6
On the next pages the assembling of the E6 is explained. The chapter “Additional assembling
instructions E6” gives several extra instructions.
Note:Always disconnect the power supply before disassembling and during assembling.
Step 2
Assembling The E6

7
Attention:The parts do not stand up straight by themselves. Make sure that
you get help for assembling.

8

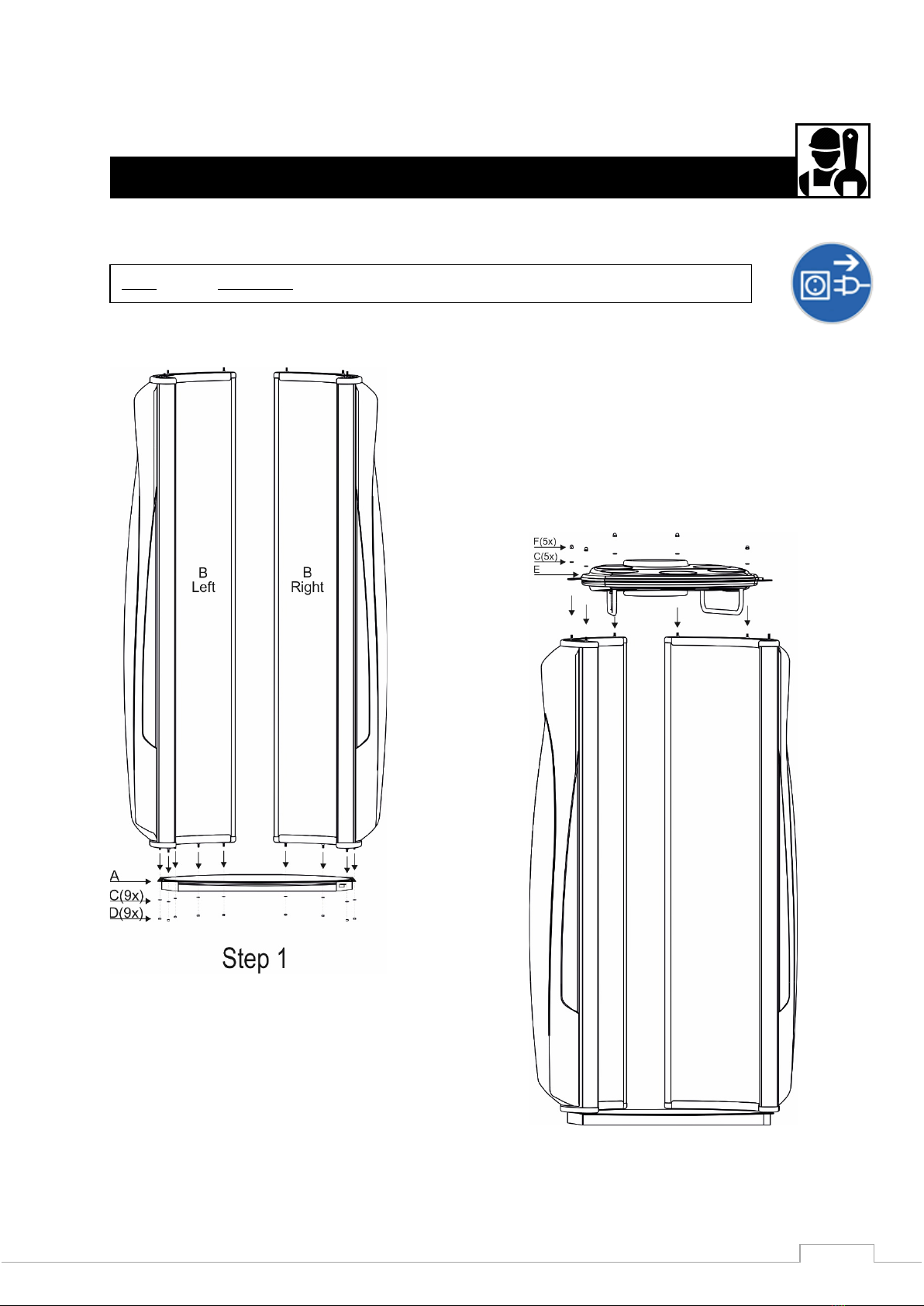

Please put all the parts together as is shown in the previous drawings. At first assemble the base
plate like in the drawing, may this already be pre-assembled you can skip this step. Slightly fasten all
nuts and bolts by hand. After all parts are assembled you can fasten them properly. Follow the
following steps:
STEP 1: Place the panels (B) on the bottom frame (A) by dropping the wire tacks in the similar
holes. Fix the nuts (D) with the washers (C) on top of the wire tacks.
Single Phase 220V + PE
DC: See page 12 for details
Additional Assembling Instructions E6

9
STEP 2: Assemble the topcooler (E) with the cap nuts (F) and the washers (C).
STEP 3: Place the pillar (G) between the brackets of the topcooler (E) and the bottom frame (A). The
wire tacks on the bottom side fall in the similar holes and on the top side the bolts (I) and the
washers (H) are fixed. Fasten the nuts (T) and the washers (H) on the bottom side of the pillar.
STEP 4: Assemble the brackets (J and K) at the upper and bottom side (with the bolts (L) and the
washers (C)) of the door panel (B door) and fasten the wheel (O) to the pin, which is already
preassembled to the door panel. Now hang the door part in the pin at the topcooler (E) and fasten
the upper side with the cap nut (F) and washer (M), and at the bottom with the special bolt (N).
Fasten the handle (P) with the bolts M6x45 (Q) and press the caps (S) on it.

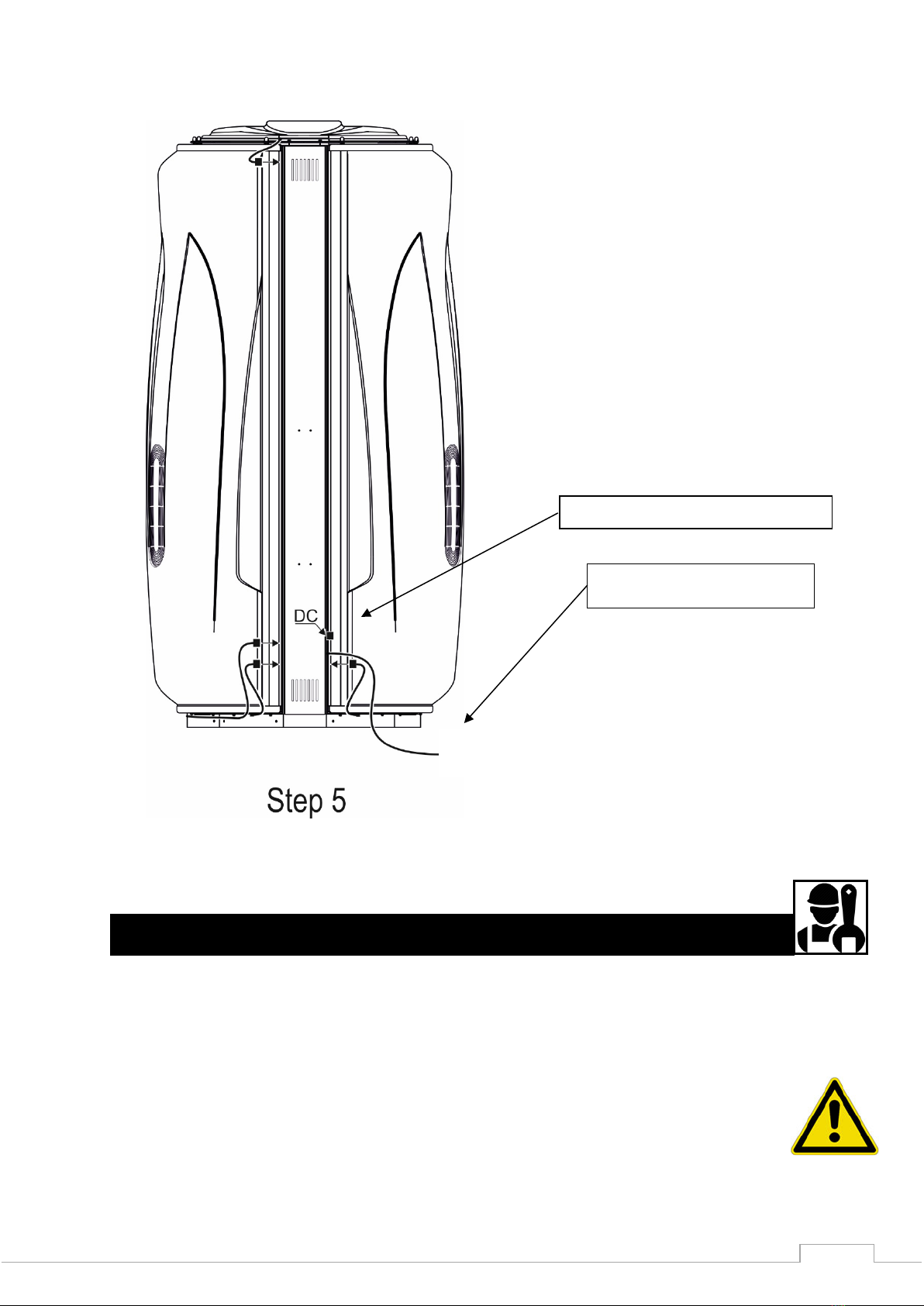

STEP 5: Connect all plugs of the panels to the sockets in the pillar. The plugs can be connected
randomly. Always make sure that enough fresh air comes into the room.
Tighten all nuts and screws! After all actions mentioned above have been finished, the power supply
can be (re)connected. Now the sunbed is ready for use. Read the user manual of the timer for
operation. If the sunbed is not used for a longer period of time, then we recommend that you
remove the power supply.
In order to get access to the pillar (Fig.6) the screws in
the front plate can easily be removed. (see detail).
There are no parts that need maintenance situated in
the pillar, therefore open the pillar only in case of
possible technical failure.
Fig.6

10

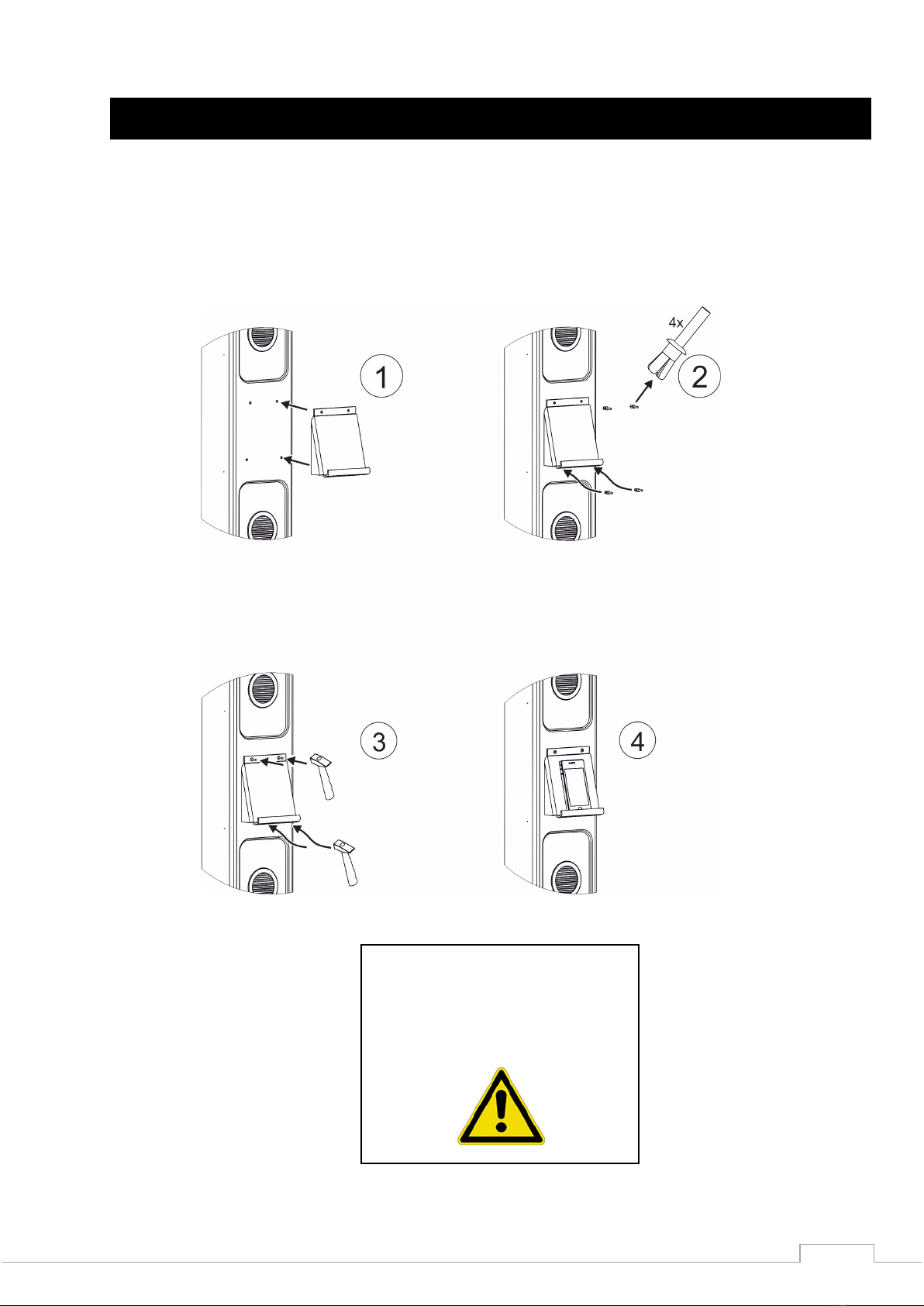

The holder for your MP3 player, iPod or tablet should be installed as shown on the drawings: position
the holder 35 mm (1) under the edge of the box where the audio jack comes out and make sure the
holes and that the holder of the faceplate match (2). Press the rivets in the holes and put the pin in
(3). Your MP3/iPod holder is now ready for use (4).
Installing The MP3/iPod/Tablet Holder* (Option)
Use the MP3/iPod/tablet holder
only for what it is intended.
Do not charge it with anything
heavier than 750 grams.
Fig.7

11
When your E6 is equipped with the “music ” option, an extra bass box is provided which can be
attached to the backside of the cooling pillar. The cooling pillar is now equipped with an MP3 or IPod
connection and holder (See previous chapter).

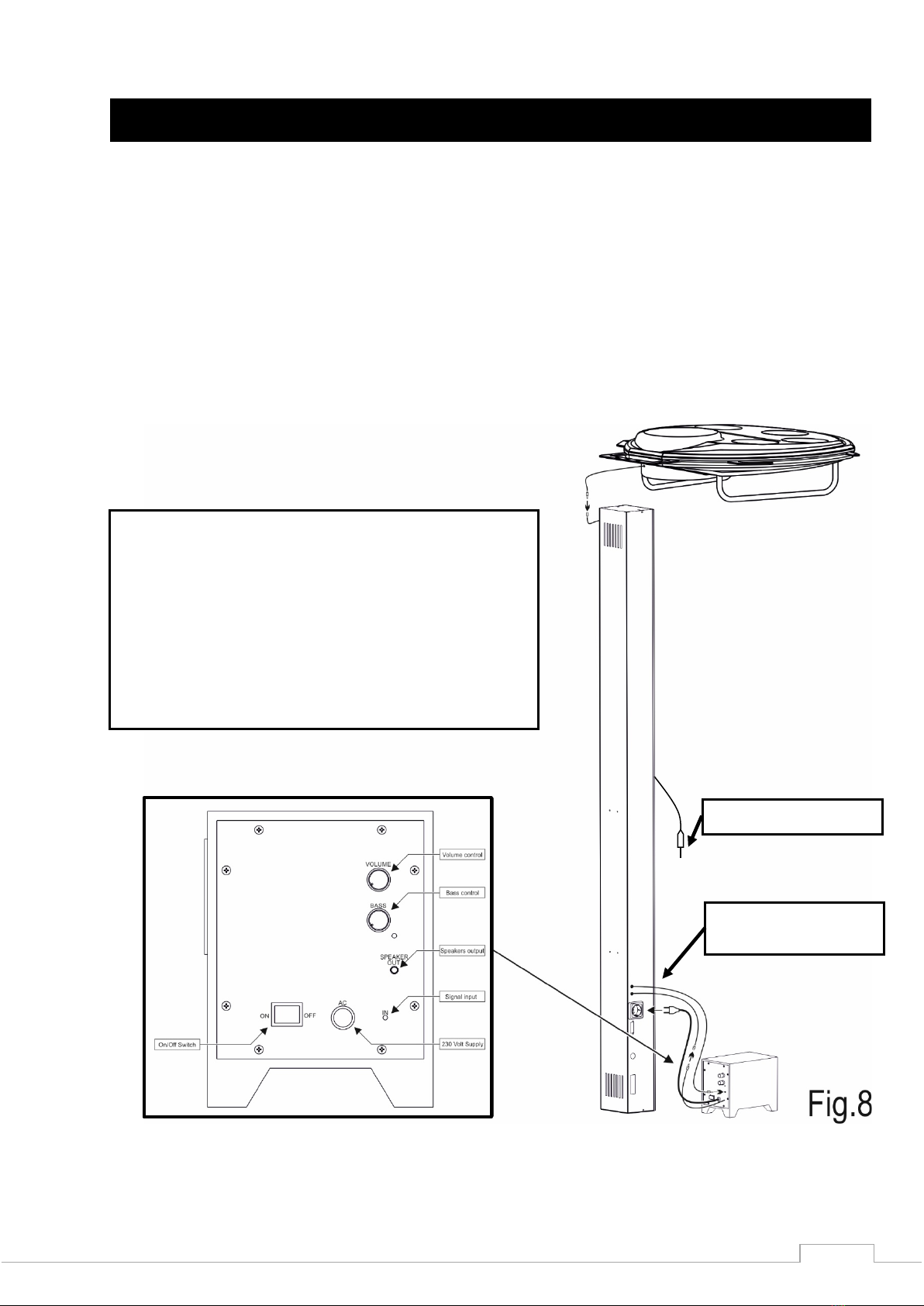

All connections are connected in the cooling pillar like in Fig.8. A piece of spiral hose is supplied to
bundle the cables that are visible on the outside of the cooling pillar.
At the side of the pillar compartment the connections for the audio system are located (External
audio input). The drawing below shows the connections and operating elements of the bass speaker.
Audio Connections* (Option)
MP3/iPod plug
230 V AC ONLY
FOR AUDIO !
NOTE
It is advisable to adjust the Volume and the Bass control
to halfway. Please note that if you adjust the Volume and
the Bass control to a higher level there is a possibility that
the sound will be distorted, in longer terms this can
damage your loudspeakers.
ATTENTION
Loud music can result in hearing problems!

12
- Before you place the pillar between the parts, attach the
housing of the fan (I) to the pillar with the screws (R) and
connect the plugs from both sides.
- Now it is possible to attach the pillar as described in the
above assembling description.
- Attach the backplate to the pillar.
- Connect the air-hose (U) with the clamps (V) to the
housing of the fan and on the other side to a free air output.
Additional Cooling Fan

13

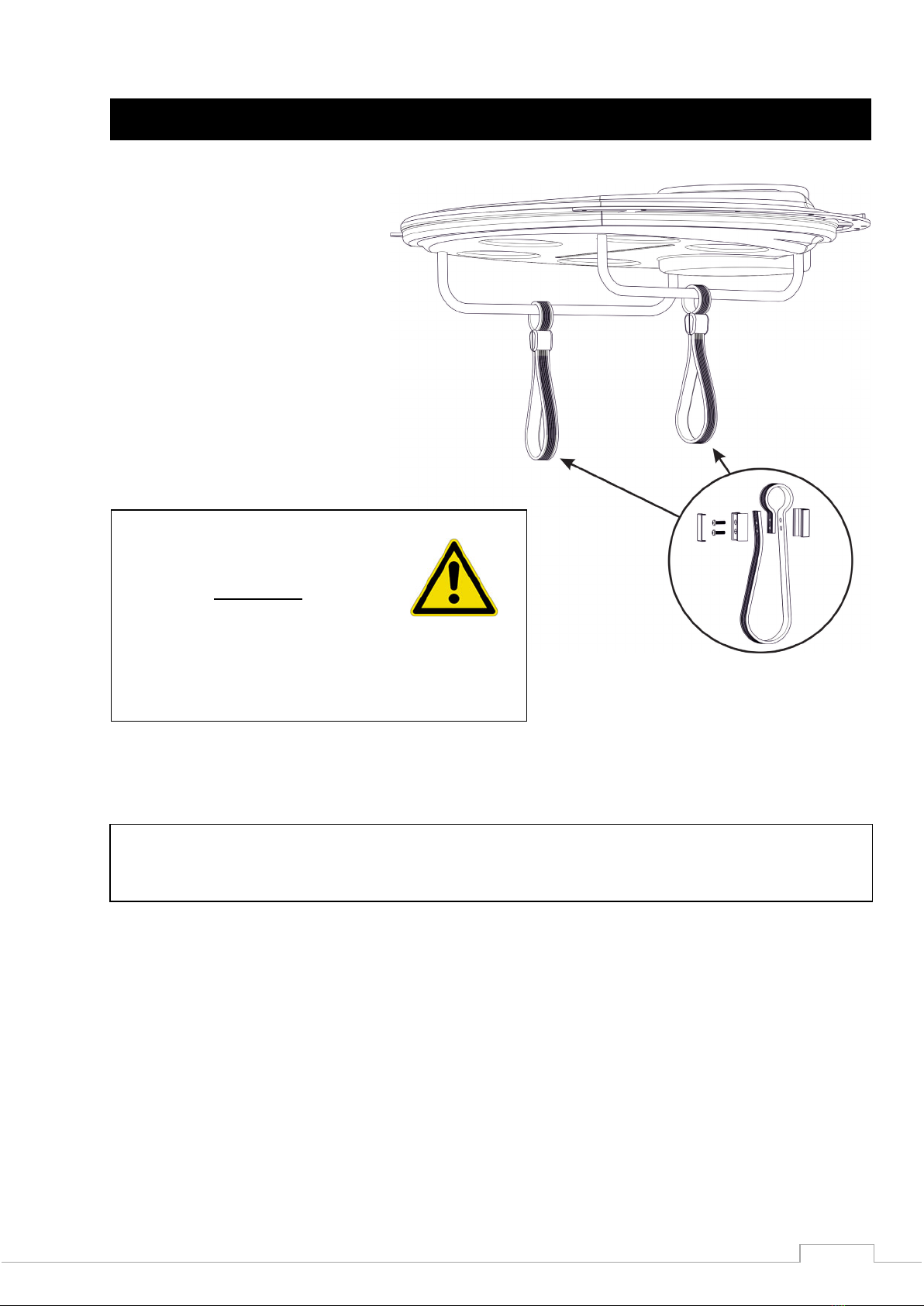

A strap can be optional offered and
connected to the topcooler. Smaller
people whom normally cannot reach
the metal handle, now can hold on to
this strap to get a better tan.
The strap can be mounted or
replaced by taking the screw out of
the strap holder.
Connecting The Strap On The Topcooler* (Option)
Use the strap for which it
is intended, do not charge it
heavier than 25 kilograms.
TIP:
If the strap is not being used, it can be folded between
the plastic cap and the metal handle. This in order to
prevent longer people walking against it.
Fig.9
Use this machine only by standing-up in the middle of the sun plateau.
Do not overload the suspended weight of the suspension handles on the topcooler of this machine.
The overload capacity is 30 Kg.

14
At the backside of the sunbed, the connector for the remote control is located. The connections
resemble the figure above.
Note: The only purpose of this connection is for controlling the sunbed by means of a coinbox or a
remote control with a potential free switch or contact.
The counterproductive plug can be connected to your control box, timer or coin box.
An incorrect connection of the connector can lead to damage to the parts of the sunbed.
In case you would like to make use of a potential free switch or contact, the parameter P021 of the
SolarControl timer needs to be changed to P021:01 or P021:02 depending upon the application. For
this, please read the user manual of the particular remote control you want to use. The 220-230V
connection is only intended as an exit for connecting the electronics in a remote control (for example
a Paytronic coin box) with a maximal current consumption of 1,0 ampere.
The exit L* delivers 230V in case the machine is turned on. This connection can be used by
applications like feedback signal or occupied signal. Always note that during assembly the plug is
connected in accordance to the manufacturing method (the smooth and ribbed side must be in
accordance with each other).
In case larger distances must be bridged or in case disturbances in the pipes arise, the possibility
exists to place an Opto-box (Ultrasun article number 3T0480) between the remote control pipes.
Only for potential free remote control connections
Fig.10
Connecting The Remote Control

15
•When your sunbed or a part of it does not function, please check:
- the fuses/differential switch of your main supply;
- the connection to the main power supply and fuse;
- the thermal switches (temperature safety);
- the (possible) plug connections between different parts (for example in the pillar; see
STEP 5)
•If one of the lamps does not function anymore, change it with the lamp next to it. If it still
does not work, change the starter;
•Switch off the power supply to the machine in case of:
- working inside the sunbed;
- fans are out of order;
- any doubt of the nature of the failure;
•Please contact your technical servicer in case the problem cannot be solved with the above
mentioned possibilities.
After 50 hours or at least after one month and then every 500 hours or 6 months:
•Visual inspection of all parts inside the E6 PowerTower;
•Remove dust and fluffs inside;
•Check the working of the whole machine;
•Check screws and nuts (if loose tighten);
Always:
•Pay attention to strange noises in the sunbed;
•Clean the acrylics after every tanning session;
•Consult an authorised service agent in the event your Ultrasun machine has a failure;
Maintenance
Many parts can be recycled, so keep them separate and do
not dispose of them.
Troubleshooting

16
Your tanning device is equipped with a RGB led controller and a remote control with which you can
control the colour settings of the Rainbow-led strip. With the led controller (Fig.P:A) you can set the
colour changing, colour jumping, etc. and the colour can be set to static at any time.
This system is applicable for 12V DC. The maximum current per color may not exceed 4 Amp. The
electrical scheme for the led controller can be found in Fig.Q.
The remote control has 24 buttons, each having its own function:
The 16 “static” buttons give the opportunity for an immediate color selection, the other buttons have
the following functions:
-Brightness up/speed up and Brightness down / speed down : if a static color is
selected, the brightness can be changed to more or less bright. If another button is
selected, the speed can be changed up or down .
-On and Off button : switches your RGB led controller on or off.
-7 color jump (FLASH): gives the opportunity to jump from color to color.
-White fade in/out (STROBE) : gives a strobe effect in white color.
-7 color change (FADE): gives the opportunity to run automatically through the color
spectrum.
-3 color jump (SMOOTH): jumps through the three basic colors red, blue and green.
RGB Led Controller With IR Distance Control
Fig. P
Fig. Q
Be aware that the infrared transmitter should be directed to the receiver

17
When the effective life of your lamps is over, or when there is an obvious decrease in the tanning
results, it is necessary to change the lamps and/or the starters.
Remove the acrylic sheet by loosening the plastic strips on both sides of the acrylic. Carefully lift the
acrylic and take out the endcap at the bottom, and then drop it and disassemble on the top side.
Then the acrylic can be cleaned and the lamps can be replaced. Re-assemble in reverse order. Read
the next Chapter for detailed information
In order to keep your Ultrasun machine in compliance with the standard, you have to make
sure to change lamps, components and accessories with original lamps, components and
accessories only. Otherwise guarantee will be taken off as well as any responsibility and any
liability.
E6 For UV4 :
RECOMMENDED EXPOSURE SCHEDULE
MAXIMUM EXPOSURE TIMES (IN
MINUTES)
CLASS
SKIN TYPES
week 1
week 2
week 3
week 4
I
Sensitive skin
Tanning not advised
Burns easily and severely, and does
not tan
II
Light skin
4
6
8
9
Burns easily and severely, and tans
minimally
III
Normal skin
4
7
10
12
Burns moderately, and tans
moderately
IV
Dark skin
4
8
12
15
Burns minimally, and tans well or
above average.
Allow at least 48 hours between all exposures, tan maintenance: 1-2 times weekly
MAXIMUM EXPOSURE TIME: 15 minutes
Changing Lamps And Starters
Attention: when changing lamps, first remove the power supply, then remove
the acrylic.
Attention: Make sure that the new lamps and starters are of the same type
as the previous ones.
Exposure Schedule And Instructions E6

18
Notice the following tanning rules for proper and safe use of your tanning device :
•The exposure time for first session must not be shorter than 1 minute.
•Follow the recommendations concerning exposure duration and exposure intervals
•Protect your eyes from visible and infrared radiation, take adequate precautions ! Always
use the provided sunglasses!
•Do not sunbath and use the machine on the same day.
•This device is intended to be used by one person at a time!
•Lie on the sunlamp bed and lower the top section to its internally regulated stop point to
attain this position. Any other position may result in overexposure.
•Always use the protective sunglasses provided.
•Remove cosmetics well in advance of exposure and do not apply any sunscreens.
•Do not undergo exposure when taking medicines or using cosmetics, which increase
sensitivity to ultraviolet radiation. If in doubt, take medical advice.
•Follow the recommendations concerning exposure duration and exposure intervals.
•Seek medical advice if persistent lumps, sores or pigmented moles develop on the skin.
•Ultraviolet radiation from the sun or UV-machines can cause injury to skin or eyes. These
biological effects depend upon the quality and the quantity of the radiation as well as the
skin sensitivity of the individual.
•The skin may develop sunburn after an excessive exposure. Excessively repeated exposure to
ultraviolet radiation from the sun or the machine may lead to premature ageing of the skin
as well as increased risk of development of skin tumours.
•The unprotected eye may develop surface inflammation, and in some cases, damage may
occur to the retina after excessive exposure. Cataracts may develop after many repeated
exposures. Therefore: always use the protective sunglasses provided.
•This machine is not to be used by people burning without tanning when exposed to the sun,
by people suffering from sunburn, by people suffering from or previously suffering from skin
cancer or predisposed to skin cancer.
•Read this carefully: if unexpected side effects, such as itching, occur within 48 hours of the
first session of using a UV appliance, medical advice should be sought prior to further UV
exposure.
•This appliance is not to be used by people burning without tanning when exposed to the sun,
by people suffering from sunburn, by people under the age of 18, or by people suffering from
(or previously suffering from) skin cancer or predisposed to skin cancer.
•Do not undergo exposure when taking medicines or using cosmetics, which increase
sensitivity to ultraviolet radiation. If in doubt, take medical advice.
•This appliance shall not be used by persons under medical care for diseases that involve
photosensitivity or persons receiving photosensitising medications.
•Seek medical advice if persistent lumps, sores or pigmented moles develop on the skin.
•Ultraviolet radiation from the sun or UV-machines can cause injury to skin or eyes. These
biological effects depend upon the quality and the quantity of the radiation as well as the skin
sensitivity of the individual.
•The unprotected eye may develop surface inflammation, and in some cases, damage may
occur to the retina after excessive exposure. Cataracts may develop after many repeated
exposures.
•Read this carefully: if unexpected side effects, such as itching, occur within 48 hours of the
first session of using a UV appliance, medical advice should be sought prior to further UV
exposure.

19
•The skin may develop sunburn after an excessive exposure. Excessively repeated exposure to
ultraviolet radiation from the sun or the machine may lead to premature ageing of the skin as
well as increased risk of development of skin tumours.
•Remove cosmetics well in advance of exposure and do not apply any sunscreens.
•According to basic standards your Ultrasun tanning equipment needs to be equipped with
original parts and lamps. In every other case the guarantee is taken off as well as any
responsibility and any liability.
Removing The Acrylics
1- Remove the side strips.
2- Push the acrylic upwards.
3- When there is a free space below the acrylic, you can pull the acrylic towards you
4- Let the acrylic slide slowly downwards and take it out of the frame.
Always clean acrylic sheets when you take them out.

20
Besides that this Ultrasun E6 is equipped with high quality parts, there is a possibility that parts get
exposed to mechanical erosion. When this happens these parts need to be replaced. In the table
“Technical product information” specific article numbers of the lamps are mentioned. In the
separately enclosed electrical scheme the article numbers of the electrical parts are mentioned in the
inscription. Below other parts are listed that can be ordered with their related article number.
Ultrasun E6:
Art. Number
Article
2Z0100
UV eye protection sunglasses with elastic
5A0512
Acrylic handle – Model : E6 , i7, i8, i9 – 120,2 mm
5A7030
Acrylic plate 3mm
5R0076
Synthetic profile silver 2070 mm
2P0057
Paytronic payment system
SUNBED TYPE Ultrasun E6
UV-Type (conform EN 60335-2-27) 4
Lamps
42 x Sunfit XXL 200W E-Tronic
Equivalency code
200-R-92/5,5
Article number
2L3185
Fuse*:
50 A
Power Supply:
Single phase 220 V + PE / 60Hz
Power circa:
8.800 Watt
Weight circa:
205 Kg
Service Parts
Technical Information And Lamp Configuration
