ULTRASUN TSU EDITION Q10 MAGNUM POWER User manual

2
•Read the instructions before using this product or consult the attendant for further
information.
•The power supply must be fused with a time-lag fuse.
•The supply voltage (V) and frequency (Hz) must agree with the information given on the machine
type plate. A copy is on the backside of this manual.
•Before servicing this equipment or changing lamps, remove the power supply cord or
isolate from main supply.
•This equipment must have an earth connection.
•Never use this machine when the timer is faulty.
•Do not use this machine when the airhose is not connected.
•Never use this machine when one of the filters of the facial(s) is broken or removed. You must check
this before use. When during use one of the filter(s) breaks, stop this machine immediately. A
bluefilter is broken when some white light appears through the ‘blue’ light. It is possible this is weak
white light, but it can also be clear white light.
•This device is intended to be used by one person at a time!
•Make sure there is at least 10 cm / 5 inches space between the machine and the walls/ceilings to
ensure proper ventilation.
•Never use this device, if one or all of the acrylics are broken or removed. Check this for each tanning
session.
•This machine may not be operated if the temperature inside the tanning cabin is 30oC / 86 o F or
higher.
•Always use the protective sunglasses provided!
•In order to keep your Ultrasun machine in compliance with the standard, you have to make sure to
change lamps, components and accessories with original lamps, components and accessories only.
Otherwise guarantee will be taken off as well as any responsibility and any liability.
•Water and electricity are a dangerous combination. Do not place your Ultrasun in a humid room or
near water facilities like a shower or swimming pool.
•This machine is equipped with an automatic security system against overheating. In case
there is insufficient ventilation (because the ventilating shafts of the machine are covered
or the ventilation in the room does not function optimally) the appliance will
automatically switch itself off. When the machine has cooled down, the machine will
automatically switch itself on again. However, you should always examine what the cause was that
the machine switched off!
•The appliance is not to be used by children or people with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction.
•Children should be supervised to ensure that they do not play with the appliance.
•Read also the tanning rules on page 12 and 13.
WARNING : PLEASE READ THIS CAREFULLY

3
WARNING………………………………………………………………………………………………….……………………..............
CONTENT…………………………………………………………………………………………………………………..............….....
EXPLAINING THE ICONS…………...........................................................................…………………..…......
(DIS)ASSEMBLY OF THE Q10……………………………………………………………………………………………….....……..
CONNECTING THE REMOTE CONTROL...……………………………………………………….………………......……..……
AUDIOCONNECTIONS (OPTION) ……………………………………………………………………………………....……..……
VOICE GUIDE (OPTION) ..............……………………………………..……………………………………………....……..……
EXPOSURE SCHEDULE AND INSTRUCTIONS………………………………………………………………………..……………
CHANGING LAMPS AND FACIAL BULBS..……………………………….………………………………………...................
TROUBLESHOOTING…………………………………………………………………………………………………………………………
MAINTENANCE……………………………………………………………………………....…………………………………..………..…
TECHNICAL PRODUCTINFORMATION AND LAMPCONFIGURATION………………………….....……………..…..
SERVICE PARTS AND REGISTRATION…...……………………………………………….................................………....
DIMENSIONS Q10…………………………………………………………………………….……………………………………………...
DECLARATION OF CONFORMITY…………………………………………………………………..………………………………....
CONTACT INFORMATION AND IDENTIFICATION………………………………………………....…………………………...
You have just chosen for a product from the Ultrasun range. You have made an excellent choice.
By this purchase you have chosen for a product which has been carefully manufactured from high
quality parts which have been tested completely and have been checked fully after manufacturing.
We advise you to carefully read through this user manual so you can use the
sunbed safely and with many years of pleasure.
During the development of our professional sunbeds, the specific desires of our customers have been
taken into account. If you still have questions about or suggestions for our sunbeds, please do not
hesitate to contact us.
Please check if the serial number plate at the back side of this user manual resembles the serial
number plate at the back of the sunbed.
Ultrasun spends a lot of time and attention on the development and improvement of the delivered
products. Ultrasun holds the right to make changes without informing you previously.
We hope you enjoy your purchased sunbed.
The Ultrasun team.
Content
2
3
4
5
9
10
11
12
14
15
15
16
16
18
19
20

4
Remove the plug from the wall socket when working on the sunbed.
Attention: Dangerous electrical voltage.
Have a specialized fitter fix, repair or work on the sunbed.
Many parts can be recycled, so keep them separate and do not
dispose of them.
Attention: Danger, read the instructions carefully and follow the
directions.
Attention: Ultraviolet radiation: always wear eye protection when
exposed to UV light and read the corresponding warning texts.
This user manual contains all instructions of your Ultrasun Q10 and contains information about all
the possible options which you can have on your Q10. If these options are not relevant to your
sunbed, then you can skip the chapters indicated as “option”. The options are indicated with an “ * “
in the texts.
The user manual of your Q10 consists of this user manual and a separate user manual for the IQ
Touch Control timer part. The electrical scheme of this sunbed is delivered separately.
Always choose the user manual that has the grey sunbed identification sticker on the backside.
Always keep this user manual close to the sunbed.
•Check if the packaging is in the original state and report possible damages directly to your
transporter. Especially look for possible dents, cracks or water damage on the outside of the
packaging.
•Get all separate parts out of the packaging. Check directly if all parts are present and
undamaged.
•May one of these control checks not suffice these requirements, report this as soon as
possible to your Ultrasun distributor.
Explaining The Icons

This sunbed is, once delivered, partially pre-build (Fig. A). For completion of the assembly of the
sunbed, the shouldertanner (Fig. F:ST) and the front cover of the bed (Fig. H:11 with 10) need to be
assembled. Also the two pipes, which connect the top with the bed, needs to be fixed with the two
provided Allen bolts (Fig. E:S).
For easier transportation to its final location, the top part and the ballast trays can be disassembled
in the following way:
Note: Always disconnect the power supply before disassembling and during
assembling
Take all loose parts out of the packaging. Remove the 7 screws (Fig. A:1) and pull the metal covering
plate (Fig. A:2) slightly forward on its handles so the space with the technical parts becomes visible
(Fig. B).
Fig.A
Fig.B
(Dis)assembly Of The Q10

6
Disconnect the power supply cable from the power supply block (PS and Fig. G:X11). Disconnect the
plugs (Fig. B: X1, X2) and the network cable from the ballast tray. Unscrew the transit screw on the
left side of the ballast tray (Fig. B:4). Now the ballast tray can be removed by pulling it to the front.
Remove the 4 screws (Fig. C:5) and take out the roof cable with the connector (Fig.B:X1) through the
square hole at the back of the base (Fig. C:6).
Open the roof (Fig. D:7) to its maximum position. You can now lift off the roof with four people (one
at each corner). Only lift up the roof, gripping the large aluminium profile parts. Do not lift up the
roof by the plastic side parts. They can get damaged. Place the backside of the roof with the two
pipes (Fig. D:8) carefully on the floor and the front side on the Styropor plastic log (Fig. D:9), which
was situated between the top and the bed in the original packaging.
Now place the base of the sunbed to its required location. The machine is to be assembled in the
reversed way. Lift up the front side of the top with 4 people, so that the 2 pipes of the top slide into
Fig.C
Fig.D

7
the 2 pipes of the bed (Fig. D:8). Make sure that the pipes of the top do not slide out of the bed
pipes.
Attention: You must secure the pipes of the roof/bed with the 2 Allen bolts
provided.At the backside of the base, right below each pipe, a little
hole is situated where you can secure the Allen bolts in the pipes
(Fig. D:S) with the use of a Hex key (not provided) Fig. E.
Disassemble the backside of the shouldertanner by
unscrewing the four screws. Attach the shouldertanner to
the right side of the sunbed (Fig. F:SB) with the already
assembled bolts (you need to take these out first).
Connect the plug of the shouldertanner to the build-in
female plug, which is situated in the right side of the bed.
Connect the audioconnections* and assemble the
backside to the shouldertanner.
Fig. E
SB
Fig. F

8
Move the ballast trays back into the base of the bed, secure them with 2 screws. Reconnect the plugs
X1 and X2 (Fig.B) and the networkcable and reconnect the power supply cable (Fig. G).
Connect the supplied, flexible hoses for the air exhaust of the bed and top (Ø 150 mm en Ø 200 mm).
Note that this exhaust hose is not to be obstructed and that sufficient fresh air can get in. Your
sunbed is now ready for use.
The position of the top, open or closed, is preinstalled at a certain height. In case you would like to
change this height, the locking bolts at the rubber caps (Fig. B: R1 and R2) need to be adjusted.
The pressure that is needed to open or close the top can be adjusted by tighten or loosen the Allen
bolts (Fig. B:R1 and R2).
Colour
Function
G
Yellow/green
Earth
L1
Brown
Phase
L2
Black
Phase
L3
Grey
Phase
N
Blue
Neutral
Fig. G
Fig. H

9
At the backside of the solarium, the connector for the remote control is located. The connections
resemble the figure above (Fig. J.)
Note: The only purpose of this connection is for controlling the solarium by means of a coinbox or a
remote control with a potential free switch or contact.
The female plug can be connected to your control box, timer or coin box.
An incorrect connection of the connector can lead to damage to the parts of the sunbed.
In case you would like to make use of a potential free switch or contact, the parameter P021 of the
IQ Touch Control needs to be changed to P021:01 or P021:02 depending upon the application. For
this, please read the user manual of the particular remote control you want to use. The 220-230V
connection is only intended as an exit for connecting the electronics in a remote control (for example
a Paytronic coin box) with a maximal current consumption of 1,0 ampere.
The exit L* delivers 230V in case the machine is turned on. This connection can be used by
applications like feedback signal or occupied signal. Always note that during assembly the plug is
connected in accordance to the manufacturing method (the smooth and ribbed side must be in
accordance with each other).
In case larger distances must be bridged or in case disturbances in the pipes arise, the possibility
exists to place an Opto-box (Ultrasun article number 3T0480) between the remote control pipes.
Connecting the Remote Control
Attention: Never use this remote control connection for other purposes than
indicated above, it can damage your IQ Touch Control beyond repair.
Only for potential free control connections
Fig. J

10
At the side panel in the bed compartment the
connections for the audiosystem are located.
The image on the right displays these
connections (Fig. K). During disassembly, all
these connections need to be uncoupled. The
bass speaker is located on backside of your Q10.
In case you want your Q10 to have external
audiosignal, connect this to the audio RCA
“tulip” connection at this audioprint. The input
sensitivity can be arranged with the
potentiometer which is located next to this
connection. Read the manual of the IQ Touch
Control for more information.
Connect the audioconnections* according to Fig. K. The connection Speaker right and Speaker left
come from the shouldertanner (Fig. L) and are connected to the speakers (Fig. L:T). Your MP3 or IPod
can be connected to the 3,5 mm plug (Fig. L).
The drawing on the next page show the connections and operating elements of the bass speaker.
Audioconnections* (Option)
Fig.K
3,5 mm MP3/IPod input
USB connection
Speakers
Fig.L

11
In case your Ultrasun Q10 is equipped with the Music Pro audio option, the possibility exists to
extend this option and include Voice Guide, Wellness Sound or Bluetooth. In case this option is
installed, this is automatically recognized by the IQ Touch Control timer and visible in the control
display. Read the user manual of the IQ Touch Control timer for more information.
Voice Guide, Wellness Sound And Bluetooth* (Option)
Fig.M
230 V AC ONLY
FOR AUDIO !
NOTE
It is advisable to adjust the Volume and
the Bass control to halfway.
Please note that if you adjust the
Volume and the Bass control to a higher
level there is a possibility that the sound
will be distorted, in longer terms this can
damage your loudspeakers.
ATTENTION
Loud music can result in hearing
problems!

12

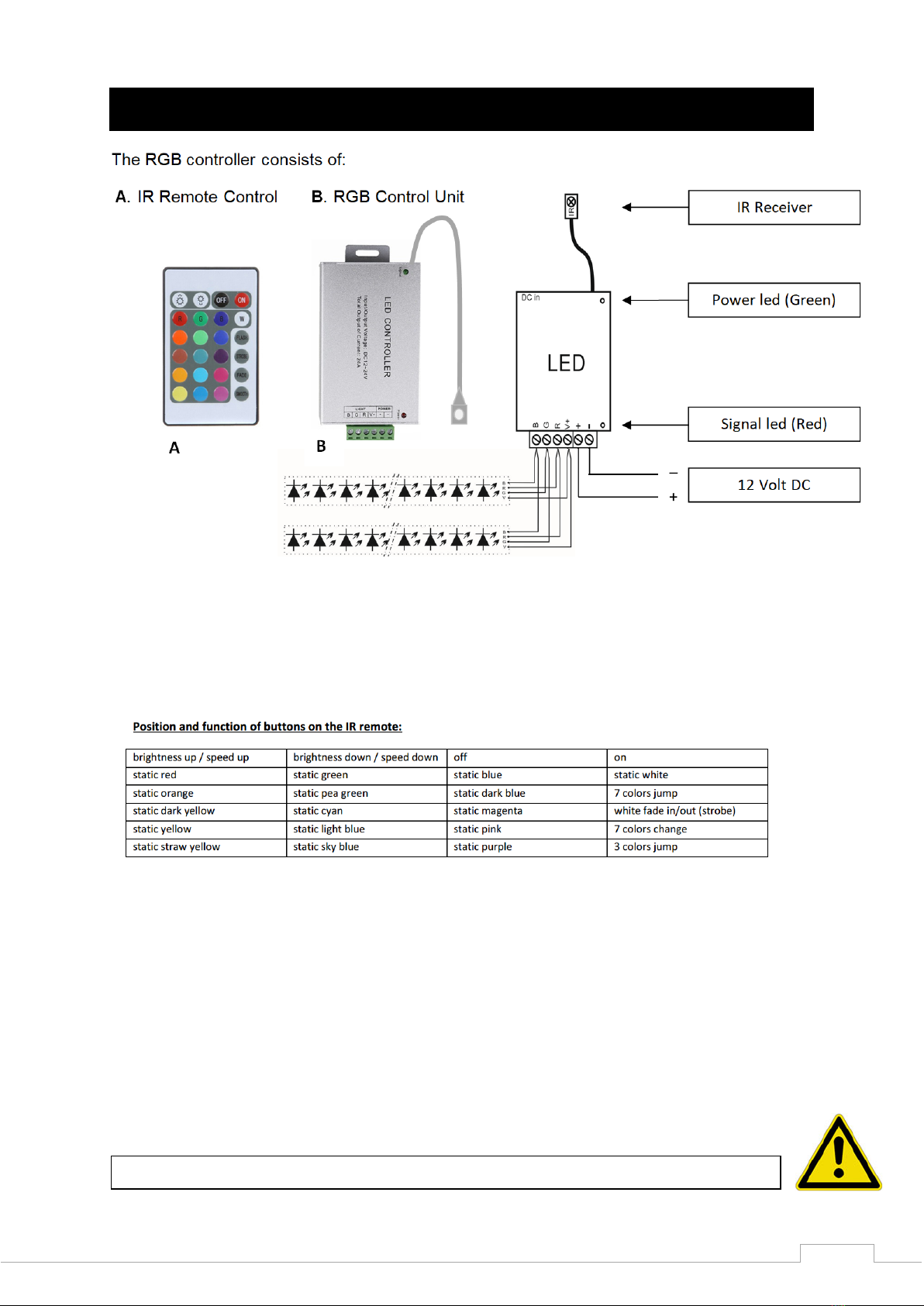

Your tanning device is equipped with a RGB led controller and a remote control with which you can
control the colour settings of the Rainbow-led strip. With the led controller (Fig.1:A) you can set the
colour changing, colour jumping, etc. and the colour can be set to static at any time.
This system is applicable for 12V DC. The maximum current per color may not exceed 4 Amp. The
electrical scheme for the led controller can be found in Fig.2
The remote control has 24 buttons, each having its own function:
The 16 “static” buttons give the opportunity for an immediate color selection, the other buttons have
the following functions:
-Brightness up/speed up and Brightness down / speed down : if a static color is
selected, the brightness can be changed to more or less bright. If another button is
selected, the speed can be changed up or down .
-On and Off button : switches your RGB led controller on or off.
-7 color jump (FLASH): gives the opportunity to jump from color to color.
-White fade in/out (STROBE) : gives a strobe effect in white color.
-7 color change (FADE): gives the opportunity to run automatically through the color spectrum.
-3 color jump (SMOOTH): jumps through the three basic colors red, blue and green.
RGB Led Controller With IR Distance Control*
Be aware that the infrared transmitter should be directed to the receiver
Fig.14

13
Q10 : UV4
RECOMMENDED EXPOSURE SCHEDULE
MAXIMUM EXPOSURE TIMES (IN
MINUTES)
CLASS
SKIN TYPES
week 1
week 2
week 3
week 4
I
Sensitive skin
Tanning not advised
Burns easily and severely, and does
not tan.
II
Light skin
4
6
8
9
Burns easily and severely, and tans
minimally.
III
Normal skin
4
7
10
12
Burns moderately, and tans
moderately.
IV
Dark skin
4
8
12
15
Burns minimally, and tans well or
above average.
Allow at least 48 hours between all exposures, tan maintenance: 1-2 times weekly
MAXIMUM EXPOSURE TIME: 15 minutes
Notice the following tanning rules for proper and safe use of your tanning device:
•The exposure time for first session must not be shorter than 1 minute.
•Follow the recommendations concerning exposure duration and exposure intervals
•Protect your eyes from visible and infrared radiation, take adequate precautions ! Always
use the provided sunglasses!
•Do not sunbath and use the machine on the same day.
•This device is intended to be used by one person at a time!
•Lie on the sunlamp bed and lower the top section to its internally regulated stop point to
attain this position. Any other position may result in overexposure.
•Always use the protective sunglasses provided.
•Remove cosmetics well in advance of exposure and do not apply any sunscreens.
•Do not undergo exposure when taking medicines or using cosmetics, which increase
sensitivity to ultraviolet radiation. If in doubt, take medical advice.
•Follow the recommendations concerning exposure duration and exposure intervals.
•Seek medical advice if persistent lumps, sores or pigmented moles develop on the skin.
•Ultraviolet radiation from the sun or UV-machines can cause injury to skin or eyes. These
biological effects depend upon the quality and the quantity of the radiation as well as the
skin sensitivity of the individual.
•The skin may develop sunburn after an excessive exposure. Excessively repeated exposure to
ultraviolet radiation from the sun or the machine may lead to premature ageing of the skin
as well as increased risk of development of skin tumours.
•The unprotected eye may develop surface inflammation, and in some cases, damage may
occur to the retina after excessive exposure. Cataracts may develop after many repeated
exposures. Therefore: always use the protective sunglasses provided.
Exposure Schedule And Instructions

14
•This machine is not to be used by people burning without tanning when exposed to the sun,
by people suffering from sunburn, by people suffering from or previously suffering from skin
cancer or predisposed to skin cancer.
•Read this carefully: if unexpected side effects, such as itching, occur within 48 hours of the
first session of using a UV appliance, medical advice should be sought prior to further UV
exposure.
•This appliance is not to be used by people burning without tanning when exposed to the sun,
by people suffering from sunburn, by people under the age of 18, or by people suffering from
(or previously suffering from) skin cancer or predisposed to skin cancer.
•Do not undergo exposure when taking medicines or using cosmetics, which increase
sensitivity to ultraviolet radiation. If in doubt, take medical advice.
•This appliance shall not be used by persons under medical care for diseases that involve
photosensitivity or persons receiving photosensitizing medications.
•Seek medical advice if persistent lumps, sores or pigmented moles develop on the skin.
•Ultraviolet radiation from the sun or UV-machines can cause injury to skin or eyes. These
biological effects depend upon the quality and the quantity of the radiation as well as the skin
sensitivity of the individual.
•The unprotected eye may develop surface inflammation, and in some cases, damage may
occur to the retina after excessive exposure. Cataracts may develop after many repeated
exposures.
•Read this carefully: if unexpected side effects, such as itching, occur within 48 hours of the
first session of using a UV appliance, medical advice should be sought prior to further UV
exposure.
•The skin may develop sunburn after an excessive exposure. Excessively repeated exposure to
ultraviolet radiation from the sun or the machine may lead to premature ageing of the skin as
well as increased risk of development of skin tumours.
•Remove cosmetics well in advance of exposure and do not apply any sunscreens.
•According to basic standards your Ultrasun tanning equipment needs to be equipped with
original parts and lamps. In every other case the guarantee is taken off as well as any
responsibility and any liability.

15
When the effective life of your lamps and facial bulbs is over, or when there is an obvious decrease in
the tanning results, it is necessary to change the lamps and facial bulbs.
The top:
Remove the acrylic by taking out the synthetic strip from the front side. Lower the front side of the
acrylic, preferably with two people, and then lift the back out of the profile of the top. You can now
clean the acrylic and change the lamps. Turn the lamps by turning them in the lamp holder: let them
“click” before you remove them. When changing lamps, also remove the dust from the machine
(particularly around the fans) and clean the acrylics from the inside. Read the chapter about the
(dis)assembly of the Q10 for more details.
The bed:
Lift up the strip from the acrylic on the front side and carefully loosen it over the full length. Once the
strip is removed, the acrylic can simply be lifted and removed, preferably by two people. Turn the
lamps by turning them 90 degrees in the lamp holders: let them “click” before you remove them.
When changing the lamps, also remove the dust from the machine (particularly around the fans) and
clean the acrylics from the inside. Read the chapter about the (dis)assembly of the Q10 for more
details.
The facials:
When changing bulbs, the right side of the top on the outside must be disassembled. By removing
the synthetic strip on the front and backside and the screws on the backside, the cover can be
removed from the frame. The reflector with the facial bulb inside can be completely removed by
turning the two screws (on both sides) out of the reflector.
At the same time the two wires of the facial bulb must be disconnected. The facial bulb can be
removed out of the pinch-spring and replaced by a new one. Do not touch the glass of the facial
bulb with your fingers. Remove the dust and clean the white and blue filter with a glass cleaning
fluid.
In order to keep your Ultrasun Q10 machine in compliance with the standard, you have to make sure
to change lamps, components and accessories with original lamps, components and accessories only.
Otherwise guarantee will be taken off as well as any responsibility and any liability.
Changing Lamps And Facial Bulbs
ATTENTION: When changing lamps, first remove the power supply, then remove
the acrylic.
ATTENTION: Make sure that the new lamps and facial bulbs are of the same
type as the previous ones.
Many parts can be recycled, so keep them separate and do not dispose of them.

16
•When your sunbed or part of it (top, bed or facial) does not function, please check
- the fuses/differential switch of your main supply;
- the connection to the main supply and fuse (Fig. 6);
- the (possible) plug connection between the different parts (for example the bed
and top) (Fig. 2, 3 and 4);
- the thermal switches (temperature safety) or the broken-glass sensors for the facials
which are all checked by the IQ Touch Control and become visible on the display in
case failures occur;
•If one of the lamps does not function anymore, change it with the lamp next to it. In case two
lamps next to each other do not function, the possibility exists that there is a defect in the
starter;
•If your facial tanner is out of function, please check the facial switch on the IQ Touch Control first.
Hereafter check the switch of the facials on the bed;
•If the top does not stay in the required positions or it moves up and down by itself, the spring
coils need to be adjusted in the compartments R1 and R2 (Fig. B);
•Switch off the power supply in case of:
- working inside the sunbed;
- fans are out of order;
- any doubt of the nature of the failure;
•Please contact your technical service in case the problem cannot be solved with the above
mentioned possibilities;
After 50 hours or at least after one month and then every 500 hours or 6 months:
•Visual inspection of all parts inside the sunbed;
•Remove dust and fluffs inside;
•Check the working of the whole machine;
•Control screws and nuts (if loose tighten);
•Clean the filters of the facials;
Always:
•Pay attention to strange noises in the sunbed;
•Clean the acrylics after every tanning session;
•Consult an authorised service agent in the event your Ultrasun machine has a failure;
Troubleshooting
Maintenance

17
SUNBED TYPE
Ultrasun Q10 Magnum
UV-Type (conform EN 60335-2-27) 4
Facial Lamps
3 x Sunfit WL 500W
Article number
2H6500
Shouldertanner Lamps
5 x Sunfit S 25W
Article number
2L0023
Equivalency code
25-O-12/4,0
Top Lamps
22 x Sunfit VRX E-Tronic 160W
Article number
2L3260S
Equivalency code
160-R-123/9,1
Base Lamps
16 x Sunfit XL E-Tronic 120W
Equivalency code
120-O-58/9,3
Article number
2L3120
Fuse*
3 x 25 A (slow)
Power Supply
3 x 220V + PE 60Hz
Power circa
7.500 Watt
Weight circa
225 Kg
Besides that this Ultrasun Q10 is equipped with high quality parts, there is a possibility that parts get
exposed to mechanical erosion. When this happens these parts need to be replaced. In the table
“Technical product information” specific article numbers of the lamps and facial burners are
mentioned. In the separately enclosed scheme the article numbers of the electrical parts are
mentioned in the inscription. Below other parts are listed that can be ordered with their related
article numbers.
Art. number
Article
2B6205 Bluefilter for facial : MUG6+– 205x270x3 mm
2W0031 Whitefilter for facial UV 4: SunFlex 4 – 205x270x4 mm
2W0020 Whitefilter for facial UV 3: 320 – 205x270x4 mm
2Z0100
UV eye protection sunglasses with elastic for the IQ Touch Control
5A0451
Acrylic plate for bed: Model Q10 – 4 mm
5A0460
Acrylic plate for top: Model Q10 – 3 mm
5M0012
Acrylic cushion transparent
5R0039
Synthetic profile – colour silver – length 2039 mm
5R0059
Synthetic profile – colour silver – length 2059 mm
5R0064
Synthetic profile – colour silver – length 2064 mm
2P0050
Paytronic payment system
Technical information And Lampconfiguration
Service Parts And Registration

18
In order to keep a good overview of failures and ensuing repairs, we suggest you to register all
notifications in the table on this page. Do not register messages that appear on the IQ Touch Control,
these are stored in the timer memory and can be read out in parameter 180.
Enter all information as completely as possible in the table on the next page, so that you keep a good
overview of the history of your Ultrasun Q10.
Date
Failure Replaced parts Repaired by Date
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--

19

20
