Ulvac UFO-003 User manual

NO.91900-2-03-21
SMALL SIZE OIL FILTRATION SYSTEM
MODEL UFO-003
INSTRUCTION MANUAL
ULVAC KIKO, Inc.
Important
Before Operating the UFO-003, small size oil filtration be sure to
read this instruction manual thoroughly to ensure efficient and safe
operation.
Size or Specifications of the model described in this manual are
subject to change without notice for

Special Notes
This pump has been used by many of our customers, but while it is rare for this to happen, this
circulating pump inadvertently stops and as a result requires repair.
The reason for this is described below.
To help prevent this circulating pump from stopping inadvertently and use it with peace of mind,
we recommend that you consider the following items.
(1) Rust forms on the circulating pump from the residual water, which
results from the pump being stopped for a long time.
(2) Foreign objects have built up in the circulator pump from
circulating extremely contaminated oil.
(1) Rust tends to form while the circulating pump is stopped. Therefore, even
after the work task is finished, continue to start up the pump only and
circulate oil.
If the pump must be stopped for a long time, separate the water sufficiently
after the vacuum pump has stopped, and drain it.
Thereafter, replace the vacuum pump oil with new oil, circulate the new oil
(without water) in the pump and then stop the pump.
(2) When the oil becomes extremely contaminated, replace it with new oil right
away.

Safety 1
PREFACE
0-1.Before Use
We, ULVAC KIKO, Inc., thank you for purchasing our product, UFO-003.
When receiving the product, please confirm it is the same model as you ordered. And check if there are
any damages on it during the transit.
For the name of each component part for oil filtration system in this manual, please refer to the Outside
View on page #4.
To ensure a long life for this product, read this manual carefully prior to
installation, operation, inspection or maintenance. Also, pay attention to
ascertain the details of safety, specification, operational precautions of this
product.
All rights as well as copyright are reserved by ULVAC KIKO, Inc.
All materials in this manual shall not be copied without permission by ULVAC
KIKO, Inc. Printed in Japan.
0-2.Marks & Symbols for Safety
For your complete understanding of items to be observed in this instruction manual
and the warning labels on this product, marks/symbols are categorized as follows:
DANGER
“DANGER” indicates major hazardous situations, which present an immediate
threat of death or serious injury.
WARNING
“WARNING” indicates hazardous situations, which may present a potential to
death or serious injury.
CAUTION
“CAUTION” indicates hazardous situations, where a potential hazard or
unsafe practice could cause personal injury or equipment damage.
NOTE
“NOTE” indicates undesirable situations, where a potential hazard could cause
equipment damage or abnormal operation.
0-3.Safety Precautions
DANGER
After the pump is operated to evacuate toxic gases, not only the pump and the
filter, but also the pump oil gets contaminated. Please pay attention in the
time of maintenance.
DANGER
For the elements/component parts, using the oil filtration system,
please use specified ones for replacement.
The use of any other products than the specified ones will cause oil leakage,
malfunction of filtration, or explosion.
CAUTION
NOTE

Safety 2
DANGER
Do not overhaul or repair or remodel this product. It will cause an accident,
abnormal action, or malfunction. Only authorized repairers or engineers should
do it.
WARNING Detach the oil filtration system from power source as checking.
DANGER If there is any abnormal noise, stop the pump immediately and get it inspected
and repaired.
WARNING Do not use this product in an explosive or flammable atmosphere. It will cause
personal injuries or fires.
WARNING Do not bring this product close to fire or put into fire. It will cause an explosion
or a fire.
WARNING Do not touch the pump while operational.
DANGER Do not install or remove anything during the operation (It will cause oil-leakage
or explosion).
WARNING Do not cut an element fiber、nor process adhesives, etc.(It will loose a fiber
shape、and will not function as the element)
WARNING
If the fiber element got in your eyes、do not rub; it might cause some damages in
the eyes. After washing the eyes well with clean water, please receive a
treatment with a doctor immediately.
CAUTION
In case of damages with the oil filtration system, turn off the switch immediately
and unplug the power line. For safety, please contact the place you purchased the
pump or the address listed in this manual.
DANGER
The power source for this unit is set for 100V.
Do not use other than this.
DANGER Be sure to connect an earth wire.
0-4.Acceptance of Oil Filtration and Storage
(1) Acceptance of Oil Filtration
We deliver the product with utmost care. However, after unpacking, please check up and confirm
items shown below just in case.

Safety 3
(1) The product is what you ordered.
(2) Accessories are accompanied.
Pump connection hose
Instruction Manual
Hose nipple for connecting pump
Hose Band
O.D.φ15×I.D.φ9×1.5m
O.D.φ10.5(PT3/8screws)
2 pcs.
1 copy
2 pcs.
4 pcs.
(3) Any damage during transportation.
(4) Any loose or lost component parts.
If you find any problems or inferior conditions on the product, please contact your local agency or
ULVAC KIKO, Inc.
DANGER
Please confirm that flanges are tightly shut.（A loose flanges might cause
oil-leaking or pump damages）.
（２）Storage and Installation of Product, and Required Conditions for Operation
Please observe the following conditions for storage, installation, and operation.
① Ambient temperature and humidity during operation: 7～40°C
②Temperature on the surface during operation: NEVER above 80°C
③Others（during both operation and storage）：
ａ．No perishable atmosphere and flammable gas.
ｂ．No areas with condensation.
ｃ．No areas with dust.
ｄ．Do not lay the pump sideways.
ｅ．Keep away from a heat
ｆ．No dry ambient atmosphere（store a pump in the humidity above１０％RH）
DANGER Do not operate a pump outside.
WARNING Do not use a pump under explosive/inflammable atmosphere. (it might cause
injury or fire).
WARNING Do not give any shock、drop、or throw a pump.(it might cause a failure｡)
WARNING Do not wet the element. (It will loose a fiber shape、and does not function as
the element

Safety 4
WARNING Please put a pump in a hard casing such as a cardboard box and store it under
the dry atmosphere.
0-5.Safety Precautions for an Element Replacement
DANGER
After the pump is operated to evacuate toxic gases, not only the pump and
the filter, but also the pump oil gets contaminated.
Please pay attention in the time of maintenance.
DANGER
For the elements/component parts, using the oil filtration system,
Please use specified ones for replacement.
The use of any other products than the specified one will cause oil leakage,
malfunction of filtration, or explosion.
DANGER
Do not take apart or remodel a pump.
DANGER
No installing or removing while operational.（It might cause an oil-leaking or
damages on the pump）
DANGER
Do not give any outer pressure, or not handle the element roughly.
(It will cause deform due to a fiber-shaping product).
DANGER
Install the element on the main body tightly. (Loose installation will cause a
leaking).
DANGER
Do not process the element fiber, such as cutting or adhering.
(It will loose a fiber shape、and does not function as the element
WARNING
If the fiber element got in your eyes、do not rub; it might cause some
damages in the eyes. After Washing the eyes well with clean water, please
receive a treatment with a doctor immediately.
WARNING
When replacing the element、put on some protective equipments, such as
rubber gloves and protective glasses. In case of getting vacuum pump oil
onto your hands, wash well with water and soap. If the oil got into your eye、
rinse the eye with pure water for 15minutes. Then please receive an
appropriate treatment with a doctor.

1
Contents
０．Preface······································································ Safety 1～4
Contents ··················································································· P1
１．General Description of Oil Filtration ··········································· P2
２．Specifications ·········································································· P2
３．Outside View··········································································· P4
４．Circuit Diagram(Oil inflow system diagram)································· P5
５．Installation··············································································P6
６．Preparation for Operation and Supplement ···································P6
７．Operation ················································································P7
８．Shutdown················································································P7
９．Maintenance & Check······························································· P7
１０．Replacement of Element ····························································P8
１１．Oil Replacement of Vacuum Pump ···············································P9
１２．Troubleshooting & Remedy·························································P10
１３．Anti Chemicals········································································ P11
１４．Disposal······························································································ P12
１５．Warranty················································································ P12
１６．Finally ··················································································· P12
UFO/UFW Check sheet of the current situation (For maintenance/repair)

2
1.General Description of Oil Filtration
Thank you very much for taking your choice on our UFO-003 small sized oil filtration system.
This unit is especially made for oil rotary vacuum pump, which is used for various types of vacuum
units. Element of oil filtration unit is very unique, which is capable of removing moisture, acid,
and particles. It also features laminated adsorption, being able to process in large amounts with
high accuracy. By this unit, it will make possible to decrease the frequency of oil change and failure
of a vacuum pump.
Another model, UFW-003, as specifications for oil-water separation which is capable of continually
separating a large amount of water, is available.
2.Specifications
Model UFO-003
Element Standard Element
Filtration Circulating Filtration type
Capacity of Filtration 0.6/0.7 L/min. (50/60Hz)
Maximum capacity of water
removal 300cc
Water disposal precision below 100ppm
Maximum acid neutralization
ability 0.4mol/1 element
Particle removal ability 0.1µm
Relief Pressure 0.35 to 0.4MPa
Power Source Single-phase 100V 25W (50/60Hz)
Full Load Current 0.6A/0.6A (50/60Hz)
Range of circulation oil
temperature 10 to 80°C
Weight Approx. 8.4Kg(Net Weight)
Dimensions 246W×245L×418H
Necessary Oil Approx.1L (prepare separately)
（Necessary oil for a vacuum pump is also needed separately）
Water replace when oil pressure rises
Particles replace when oil pressure rises
Guideline for
Replacement of
Element
Acid Oil analysis or regular replacement
Attachment
Pump connection hose (O.D.φ15×I.D.φ9 1.5m 2 pcs.)
Hose nipple for pump connection (PT3/8×φ10.5 2 pcs.)
Hose band（4pcs）
Instruction manual (1 copy)
Optional Parts Pressure switch or Warning buzzer
Drain oil valve（2 ways valve）

3
＜Description of 3-ways valve＞
Inlet side 3-way valve
direction
Refill port side Closed position Inlet port side
Outlet side 3-way valve
direction
Upper side（oil drain
side）Closed position Drain port side

4
3.Outside view
Item No. Name
①Filter case
② Element
③ Housing head
④ Pressure gauge
⑤ Power switch
⑥ Stage
⑦ Inlet 3-ways valve
⑧ Inlet
⑨ Inlet port
⑩ Outlet side 3-way
valve
⑪ Outlet
⑫ Drain port plug

5
②
inlet
Outlet side
3-ways valve
Outlet③
drainport
①
Pressure valve
Oil supply port

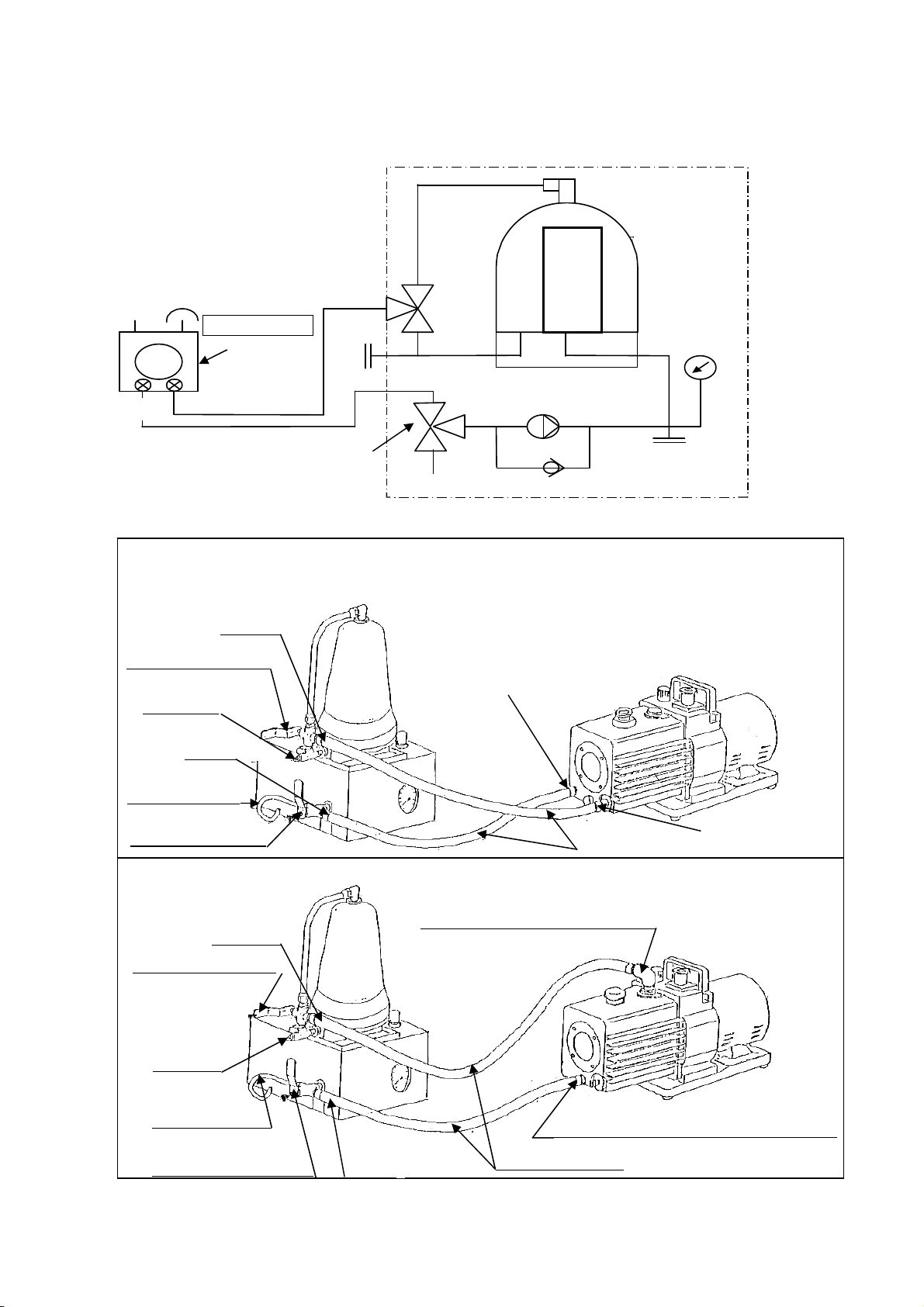

4.Circuit Diagram(Oil inflow system diagram)
Filter case
Vacuum Pump
Filter case
エ
エ
レ
レ
メ
メ
ン
ン
ト
ト
Relief valve
排油口
Outlet Inlet por
element
Option port
Outlet port Inlet port
Oil drain port Oil supply port
Inlet side
3-way valve
drain port
oil su
pp
l
y
p
ort ②
inlet side 3-ways valve
outlet side 3-ways valve
outlet③
inlet①
Drain port (optional special adapter is required)
UFO-003
Type Oil filtration system
（ How to connect with GLD series
p
um
p
）
attachment hose
（How to connect with GCD series pump）
drain
p
ort
oil su
pp
l
y
p
ort ②
inlet side 3-wa
y
s valve
A
ttachment hose
GLD series vacuum
p
um
p
inlet①
outlet side 3-wa
y
s valve
outlet③
（ o
p
tional s
p
ecial ada
p
ter is re
q
uired ）
drain
p
ort
oil inlet
drain
p
ort
UFO-003
Type Oil filtration system
GCD series vacuum
p
um
p
Circulating pump

6
5.Installation
5-1.Location of installation
Place it horizontally nearby a vacuum pump
Also、avoid these inadequate places for installation.
1) Places that occur rough vibrations.
2) Places that generate inflammable vapors or special gases
3) Places in high-temperature and humidity, or that suffer heat/water disasters.
5-2.Connection to vacuum pump
The model, which can be connected to our oil-sealed rotary pump, is the GCD series only.
In case of connecting to other models, an optional adaptor and additional set-up work is
necessary; please consult us for further details.
Please connect it to the vacuum pump by following the procedures described on previous
page and Section 6 below.
6.Preparation for Operation and Supplement
6-1.Place this vacuum pump the same level as oil level or lower (within 1m).
（If the unit is placed higher than the pump, the oil might flow back to the pump side）.
6-2. Connect the unit to the oil rotary pump by following the procedure on Section 4.
1) Install the attached hose nipple tubes into both the oil inlet and oil drain port of the
GCD series.
2) Connect the inlet①to the oil drain port of the vacuum pump by using the attached tube,
and fix it firmly with the hose band.
3) Connect the outlet③to the oil inlet of the vacuum pump by using the attached tube, and fix
it firmly with hose band.
6-3.For oil supplement, install the tube into the oil refill port of the Inlet side 3-way
valve.
6-4.Prepare oil as supplement: 1 litter for the UFO‐003 and necessary amount of oil for the
vacuum pump.
6-5.Turn the Inlet side 3-way valve to the oil supply port②side, and insert the tip of the
container of the supplement oil. Place the Outlet side 3-way valve face upward.
For a pressurized pump, if the connecting hose of “IN”side is too long、or vertical interval to the
vacuum pump is too wide, it will cause a failure on inlet or damages on the circulating pump.
Length of connecting hose within1.5m
Vertical interval to the pump same level or within a range of lower level of 1m

7
6-6.Plug into an outlet for single-phase 100V, and switch on. It starts operating the circulating
pump, and then the oil flows into the vacuum pump; proper amount of oil should be flown
into the pump depending on the oil level on the gauge.
After a certain amount of oil reaches at a specified level, turn the Inlet side 3-way
valve to the inlet①side from the oil supply port②
6-7.Check the oil level and any oil leakage. If the amount of oil is insufficient, turn the 3-way
valve back to the side of the oil supply port and supply oil.
7.Operation
7-1.Turn the Inlet side 3-way valve to the inlet side. Put the Outlet side 3-way valve face
upward.
7-2.Be sure that power source plug is connected to the outlet for single-phase 100V.
Turn on the main switch; it starts operating.
8.Shutdown
8-1.Turn off the main switch.
8-2.Close both the Inlet side 3-way valve and Outlet side 3-way valve (neutral position).
※The Inlet side 3-way valve faces upward; the Outlet side 3-way valve places
sideways.
Caution）The 3-way valve（both Inlet and Outlet）are never to be operational with
“closed position!” It is extremely dangerous. However, they must be closed
during its shut-down. (the oil would back up).
9.Maintenance & Check
The frequency of maintenance for the unit varies considerably, depending on how it has
been used or circumstances on the system.
Regarding the following check items, please set up plans and implement regularly
according to the circumstances.
9-1.Maintenance
Please check up the following items at least once a day while its operation.
（１） If any oil leakage from the connecting part on the vacuum pump.
（２） If any oil leakage from the connecting hose, pipes, or the main unit.
（３） If any abnormal noise from the pump.
If any trouble, follow the instructions written on the “Trouble-check List.”

8
ハウジングヘ
透明ハウジ
エレメン
エレメント
（
輪
Rubber
band
element
Element holder
Housing head
Filter case
9-2.Regular Check-up
Check-up Item Content of checking
①Element Increase in pressure・contamination of oil
②Oil pressure pump Condition of inlet and outlet
③Housing Damages・Cracks・Flaws・Corrosion・Deterioration
of O-rings
④Connecting hose・
Joints/Fittings State of deterioration/adhesion of dirt or taint
⑤Piping Cracks・Loose・Damages・Adhesion of dirt or taint
⑥Pressure gauge Incorrectness of gauge pointer
In order to use the unit over the long time, implementing an overhaul once every 2 years
is recommended.
Due to its highly sophisticated assembly, please contact ULVAC KIKO or our dealers for
the overhaul.
9-3.List of consumable supplies
Name qty.
Element １
Pump connection hose ２
O-ring (AS-238) １
O-ring (G-100) １
10. Replacement of Element
10-1.Replace the element when: the outlet pressure of the
circulating pump is above 0.3MPa, or absorption of
the element deteriorates.
10-2.Prepare the container for oil drain beforehand.
10-3.Place the container under the drain port.
10-4.Turn off the power of the UFO-003.
10-5.Remove the drain port with a wrench.（Beware of oil
leaks).
10-6.Turn the Outlet side 3-way valve to “closed position”
(neutral position).
Turn the Inlet side 3-way valve to the refill port side.
(oil comes out).
※The O-rings are used between
filter case and housing head.

9

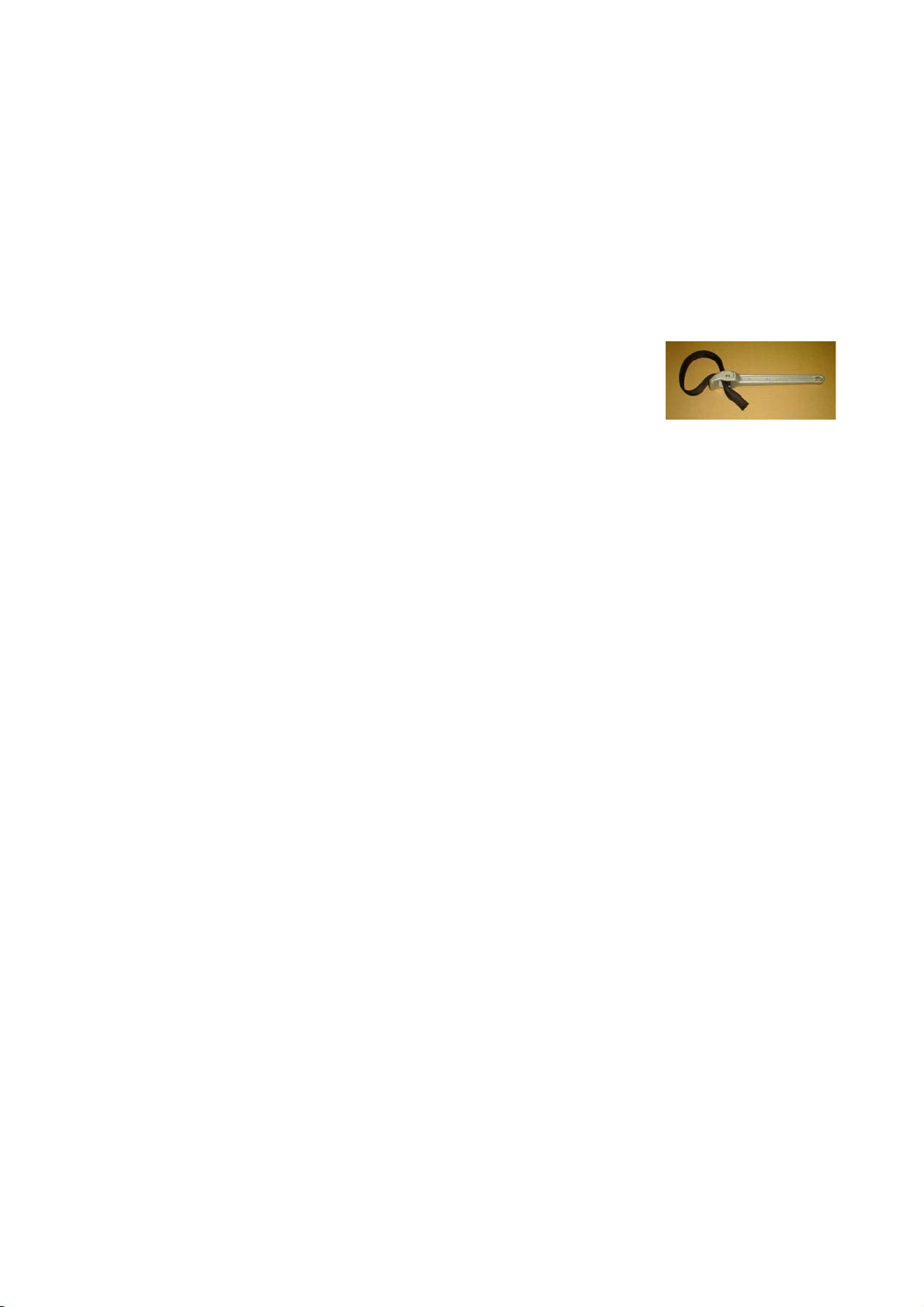

Belt wrench B
W
-2
（by Supertool Inc.）
10-7.Turn on the power source of the UFO-003, and operate for
a few minutes. Drain all the oil inside.
10-8.Stop operating after making sure that draining stops
from the drain port.
10-9.Loosen the upper joint of the filter case and remove
the hose.
10-10.Remove the filter case by turning it anti-clockwise.
（If it is stiff, put rubber bands three places
around the case and turn it. It is also easy to turn it
by using a belt wrench. Should not use any other
tools for removing; it might cause damages).
10-11.Remove the element from the housing head.
10-12.After cleaning the inside and outside of the housing
area, place a new element.
10-13.Install the filter case and the hose.
10-14.Install a plug to the drain port.(Be sure to fix with the seal tape around screw area).
10-15.Supply some oil by following the directions on Section 6-2～6-7.
Caution） If the oil is badly degraded, and frequent replacement
of the element is needed, a drain valve (optional) is
very useful.
11.Oil Replacement of Vacuum Pump
11-1. For oil draining of the vacuum pump、follow the directions on Section
10-2 to 10-8. The Inlet side 3-way valve should face to the
inlet side.（The Outlet side 3-way valve is at closed position）
11-2. For supplying oil into the vacuum pump, follow the directions on
Section 6-2 to 6-7

10
12.Troubleshooting & Remedy
Problem
Cause
Does not operate Defect in absorption of the oil Oil leakage Defect in cleaning the oil
Pressure switch buzzer goes
Remedy
Power source is off ○
Confirm if the power is on
Defect in voltage system ○
Rated voltage±１０％
Power
Defect in wiring ○
Inspect and repair wiring
Clog in piping ○○Clean the pipe
Piping
Defect in piping ○ ○
Check the pipe and repair
Pump・lock ○
Check the pump and repair
Defect in rotor ○
Repair the pump
Defect in oil seal ○
Repair the pump
Circulating pump
Defect in relief valve ○
Repair the pump
Clog in element ○○Replace the element
Defect in element ○Replace the element
Element
Shortage of filtration
hours ○Longer the filtration time
Caution１）Pressure switch and buzzer are optional
Caution２）If any questions or inconvenience, consult your local sales
representativeforfurtherassistance.

11
13.Anti Chemicals
13-1. Quality for the component parts（Main part only）
① Element
② Filter case
③ Housing head
④ Piping/Joint
⑤ Circulating pump
⑥ Valve
⑦ Hose
Special quality of material
AS resin
PE resin
SUS（stainless steel）
PE（polyethylene）
BS（brass）
FC-250 (steel casing)
BS
PVC
13-2.Anti solvent/Anti chemicals (summary)
〇･･･No problem △･･･Caution
・Acetone
・Benzene
・Diethyl ether
・Ethyl acetate
・Ethyl alcohol
・Trichloroethylene
・Acetate
・Chlorine gas
・Ammonia gas
・Hydrogen sulfide
・Freon
・Water
△
△
△
△
○
△
△
△
○
○
△
○

12
14.Disposal
Dispose of the element of the oil filtration system in accordance with the laws or
regulations/ordinance specified by the local government.
When disposing of the unit connected with a vacuum pump, which exhausts toxic
gas to human body, consign disposal to a specialized processor.
Pump oil is hazardous as well as vacuum pumps, main bodies, and elements.
15.Warranty
（１） The warranty period for this unit is valid for one year from the day of purchase;
however, consumable parts are excluded.
（２） If failure occurs within the period of warranty in condition of normal pump operation,
repair of the pump with no charge should be guaranteed.
① Ambient temperature for operation: 7 to 40℃
② Type of exhaust gas of vacuum pump and temperature: Dry air 7 to 40℃
③ Used and operated in accordance with the instructions manual.
（３） These cases listed below should be repaired at your expense even within the
period of warranty.
① resulted from natural disasters, earthquakes, or fires。
②resulted from special ambient environment, such as brine damages,
public nuisance
③ resulted from condition of use which is contrary to the terms for use written on the
instruction manual (ex., specifications, maintenance, or check-up).
④ When our technical staff judged that it resulted from the use which is contrary to
the terms of use for the unit.
16.Finally
This instructions manual is limited to general description for the unit;
If there is any question or trouble, please feel free to contact and consult us for
further assistance.

Usage Situation Check Sheet
（for overhaul repair）
For safety of repairers, please fill out the form and attach it to the product.
Date of entry: / / / (D/M/Y)
Your Name:
Person in Charge:
Ｔel － － Extension
Purchase Place
Person in Charge
Ｔel － － Extension
ModelName Serial No.
1．Why do you request an overhaul? (Select among the items below)
□Breakdown
Situation: □Abnormal Sound □Wrong Pressure □Malfunction
□Others
□Periodical Inspection, Periodical Repair
□Others
2．What kind of gas the pump sucked?
（１）Is the gas toxic? Yes No
（２）The kind and name of the gas
3．How long has the pump operated?
About Ｈｒ □24Ｈr Continuous Running □Intermittent Running
4．Others
5．Contents of Request □Estimate in advance
□ Immediate repair if the estimate is within（¥ ）
□ Others
Please copy this sheet and use repeatedly.
If this sheet is not attached,
it is possible that we cannot undertake the overhaul, repair, or inspection.
