Umbrosa INFINA User manual

INFINA & INFINA UX

2UMBROSA /
ENG Congratulations with your purchase! Please completely read and follow all the instructions.
NL Proficiat met uw aankoop! Gelieve alle instructies te lezen en op te volgen.
FR Félicitations avec votre achat. Lisez svp les instructions complètes.
DE Herzlichen Glückwunsch zu Ihrem Kauf! Bitte vollständig lesen und befolgen Sie alle Anweisungen.
ES Felicidades con su compra! Por favor lea y siga todas las instrucciones.
IT Congratulazioni con il Vs. acquisto! Vi preghiamo di leggere bene le istruzioni e di seguirne scrupolosamente le indicazioni.
IMPORTANT:
Please read this entire manual before installing or operating your umbrella, to reduce risk of personal injury in which a person is injured or harmed,
and/or damage to personal property. Prior to assembly it is important to decide on the location of the umbrella and to respect the following instructions:
- Choose a location that is level and sturdy.
- Avoid any sloping of soft ground.
- Consider a location that will maximize the umbrella’s 360° rotating function (if available)
- Two-person team is recommended for assembly
UMBROSA.COM

UMBROSA / 3
BEFORE YOU START
?
UMBROSA
DEALER

4UMBROSA /
- Product is suitable for light wind and/or light rain only.
- Position product in direction of wind as recommended in user manual.
- Do not use product in inclement weather, such as strong wind, thunderstorms, heavy rain or snow, and make sure that the umbrella is closed and
stored in advance.
- Never allow the umbrella to ap in the wind. This could cause personal injury, damage to personal property, damage to umbrella and/or umbrella
canopy.
- Close product and secure strap when not in use.
- Do not use product without its base or unless attached to building structure, and keep umbrella secured to umbrella base or mount at all times.
- Do not use product over or near harsh chemicals or open ames.
- Place product on stable and level surface.
- Do not allow children to assemble or operate product.
- Do not leave product unattended.
- Store product indoors during winter and extreme weather conditions.
- When adjusting or assembling the umbrella or umbrella base, make sure ngers, toes or any other parts of the body are clear from moving parts.
Failing to do so may result in serious injury.
- Only use Umbrosa replacement parts.
- Read owner’s manual.
- Any modications to the product or failure to follow recommended care will void the warranty.
- Wind damage is not covered under our limited warranty.
DISCLAIMER:
All mounting kits and supports for inground tting and installation on hard surfaces should only be installed by a licensed contractor duly qualied to
perform the installation. Umbrosa assumes no liabilities and expressly disclaims any responsibilities for injuries or damages arising from or related to the
failure of buyer to have any kit or tting installed by a licensed professional contractor.
SAFETY STATEMENTS & WARNINGS

UMBROSA / 5
WARRANTY AND
SPARE PARTS
TIPS AND MAINTENANCE
USER INSTRUCTIONS
INDEX
INFINA
INSTALLATION OPTIONS
1
HITUBG0000 MAFIXCROTG000000 MAPLAI0320
> 60 cm*
1’ 11.6” > 40 cm*
1’ 3.7”
> 60 cm*
1’ 11.6”
NOT INCLUDED: OPTIONAL
BARS FOR HIGH LOADS
(E.G. INGENUA, MULTI
SPECTRA, ...)
CONCRETE ANCHOR INSTALLATION
UMFIXCROTG000000
13
ENG
NL
FR
DE
ES
IT
Dimensions are indicative. Final responsibility always lies with the installer.
Maten zijn informatief. Eindverantwoordelijkheid ligt bij installateur.
Les dimensions indiquées sont seulement à titre informatif. La responsabilité nale incombe à l’installateur.
Die Maße sind nur informativ. Der Installateur trägt die Verantwortung für die Ausführung.
Los tamaños son sólamente informativos. El instalador es responsable del acabado nal.
Dimensioni sono indicative. La responsabilità nale spetta sempre all’installatore.
p16
p18
p21
p6 p9 p13 p15

6UMBROSA /
UMBASEWHEELH2020
OPTIONS
FIBASEEXTRA00000

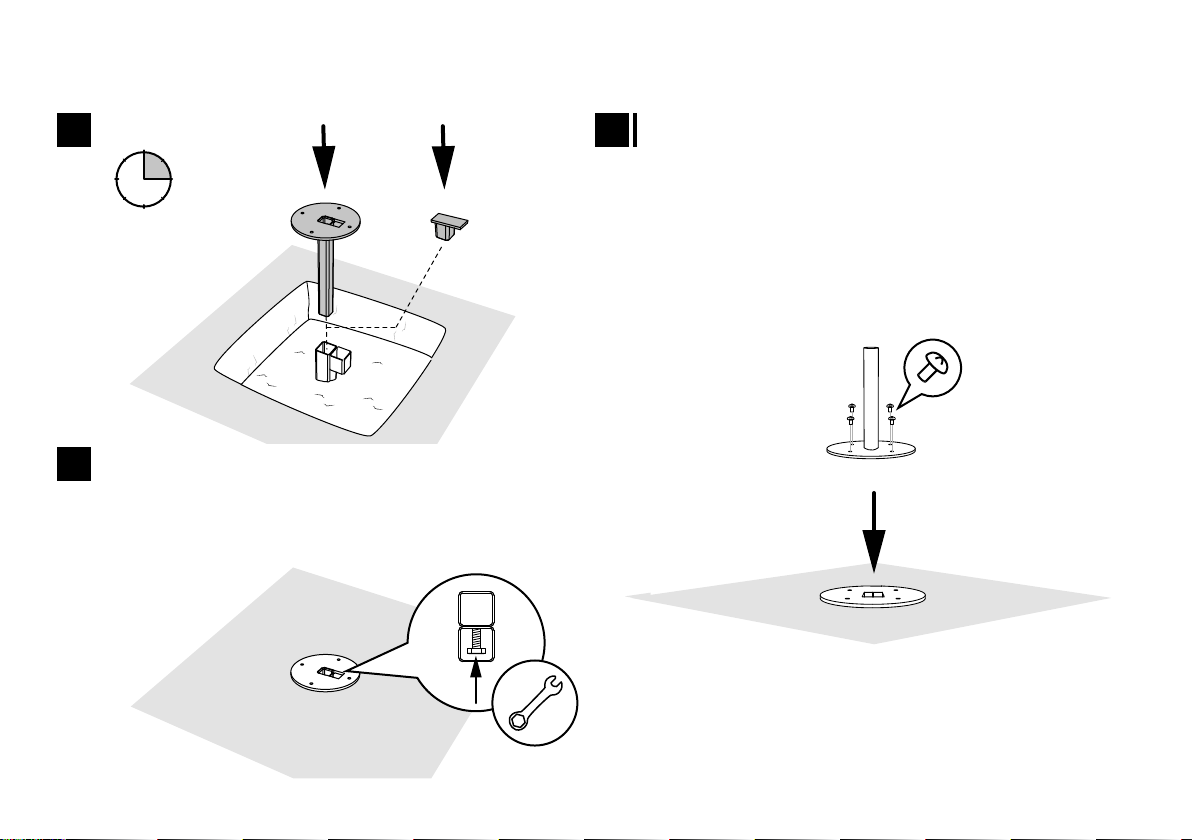

INFINA BASE INSTALLATION
FIBASE0002021000
S5
HFTUBE0000
HFBASE07352021
+
HFBASETOP7352021

UMBROSA / 7
12
INFINA BASE INSTALLATION
OPTION : FIBASEEXTRA00000
1
OR
2
!
FRAGILE
SURFACE

8UMBROSA /
3
OPTION : UMBASEWHEELH2020
16x 4x
INFINA BASE INSTALLATION
4
!
FRAGILE
SURFACE
“CLICK”

UMBROSA / 9
1
HITUBG0000 MAFIXCROTG000000 MAPLAI0320
> 60 cm*
1’ 11.6” > 40 cm*
1’ 3.7”
> 60 cm*
1’ 11.6”
NOT INCLUDED: OPTIONAL
BARS FOR HIGH LOADS
(E.G. INGENUA, MULTI
SPECTRA, ...)
CONCRETE ANCHOR INSTALLATION
UMFIXCROTG000000
13
ENG
NL
FR
DE
ES
IT
Dimensions are indicative. Final responsibility always lies with the installer.
Maten zijn informatief. Eindverantwoordelijkheid ligt bij installateur.
Les dimensions indiquées sont seulement à titre informatif. La responsabilité nale incombe à l’installateur.
Die Maße sind nur informativ. Der Installateur trägt die Verantwortung für die Ausführung.
Los tamaños son sólamente informativos. El instalador es responsable del acabado nal.
Dimensioni sono indicative. La responsabilità nale spetta sempre all’installatore.

10UMBROSA /
2 3
!
!
!
SHADE
SHADE
!

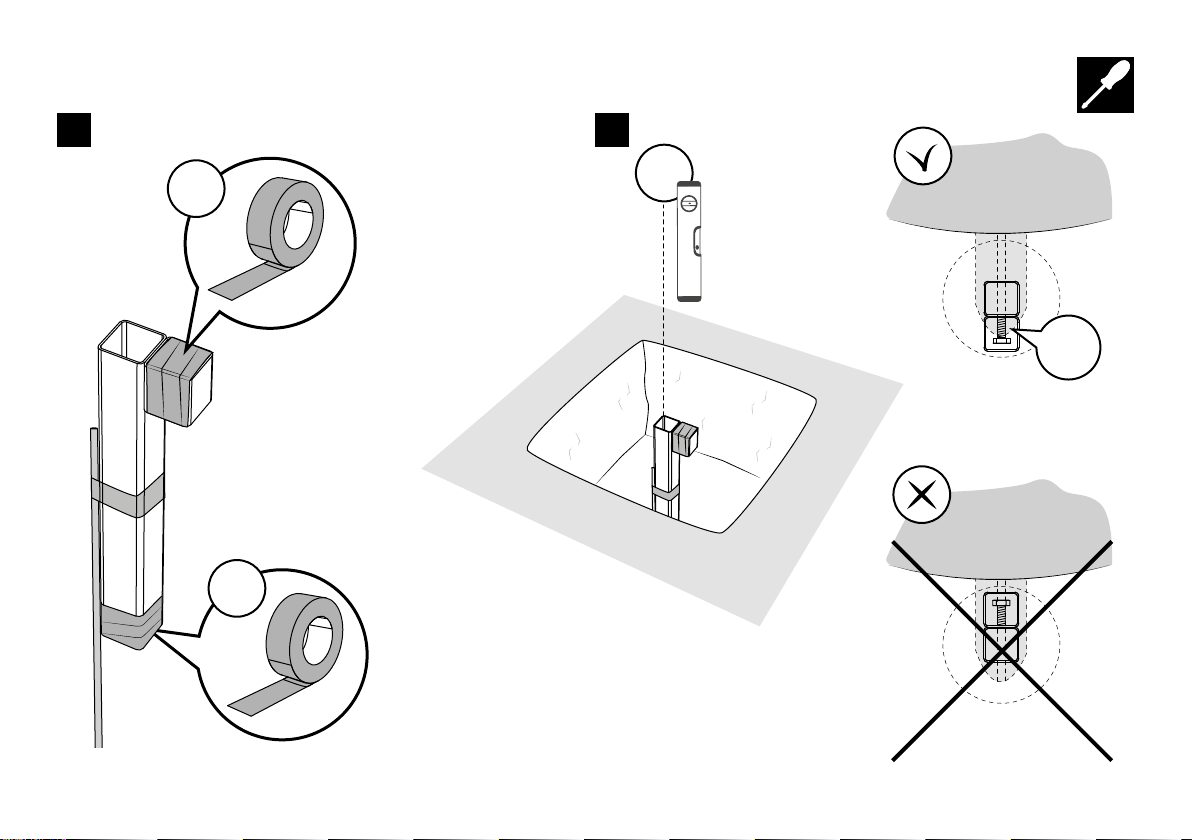

CONCRETE ANCHOR INSTALLATION

UMBROSA / 11
4 5
X*
X* 10 cm
3.9”
4 cm
1.6”
= H
GRASS GRAVEL TILES
H
!
!
CONCRETE ANCHOR INSTALLATION

12UMBROSA /
OR
OR
6
7
8
13
CONCRETE ANCHOR INSTALLATION

UMBROSA / 13

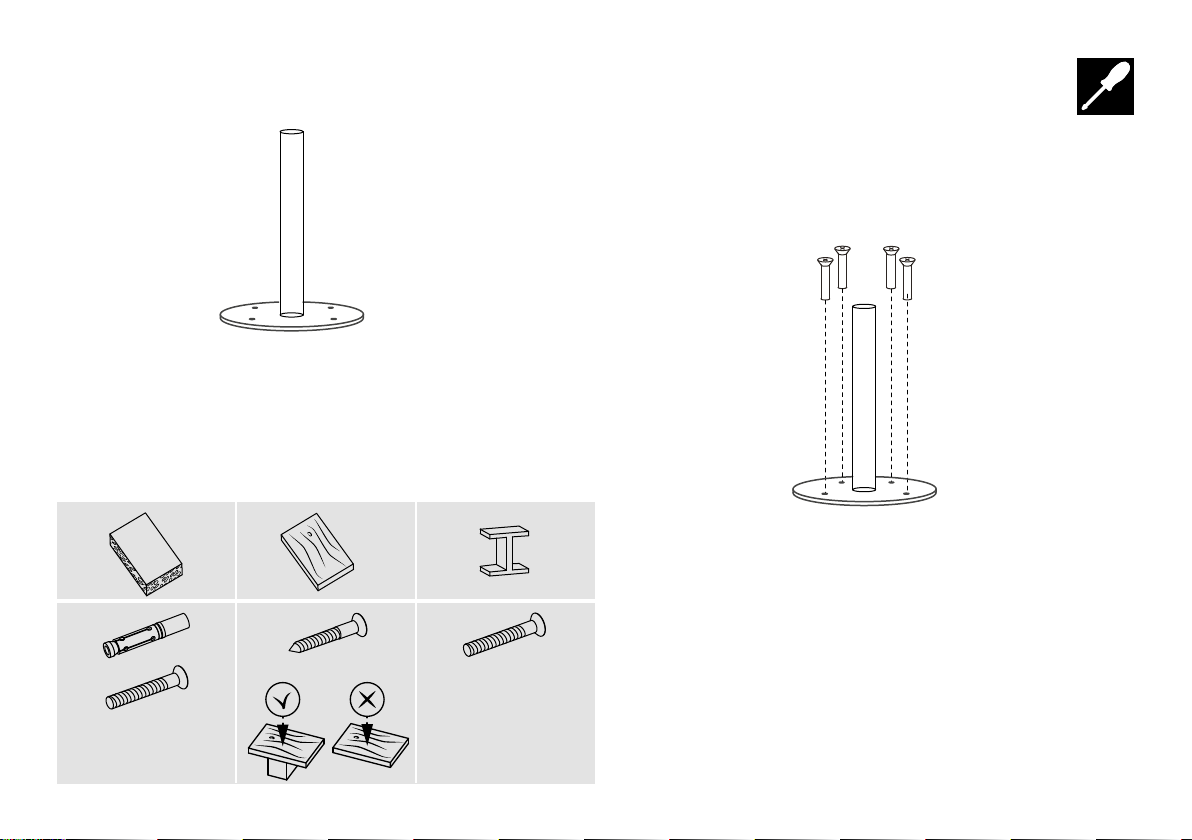

FIXED FLOOR INSTALLATION
INF-ROUNDSUPPORT
Not included - Niet inbegrepen - Pas inclus
Nicht inbegrien - No incluido - Non incluso
DIN 7991 M10
Ø8 mm DIN 7991 M10

14UMBROSA /
250: FICOV0259D****SQ
300: FICOV0309D****RO
300: FICOV0309D****SQ
250: FICOVX259S****SQ
UMSTRAP000000090

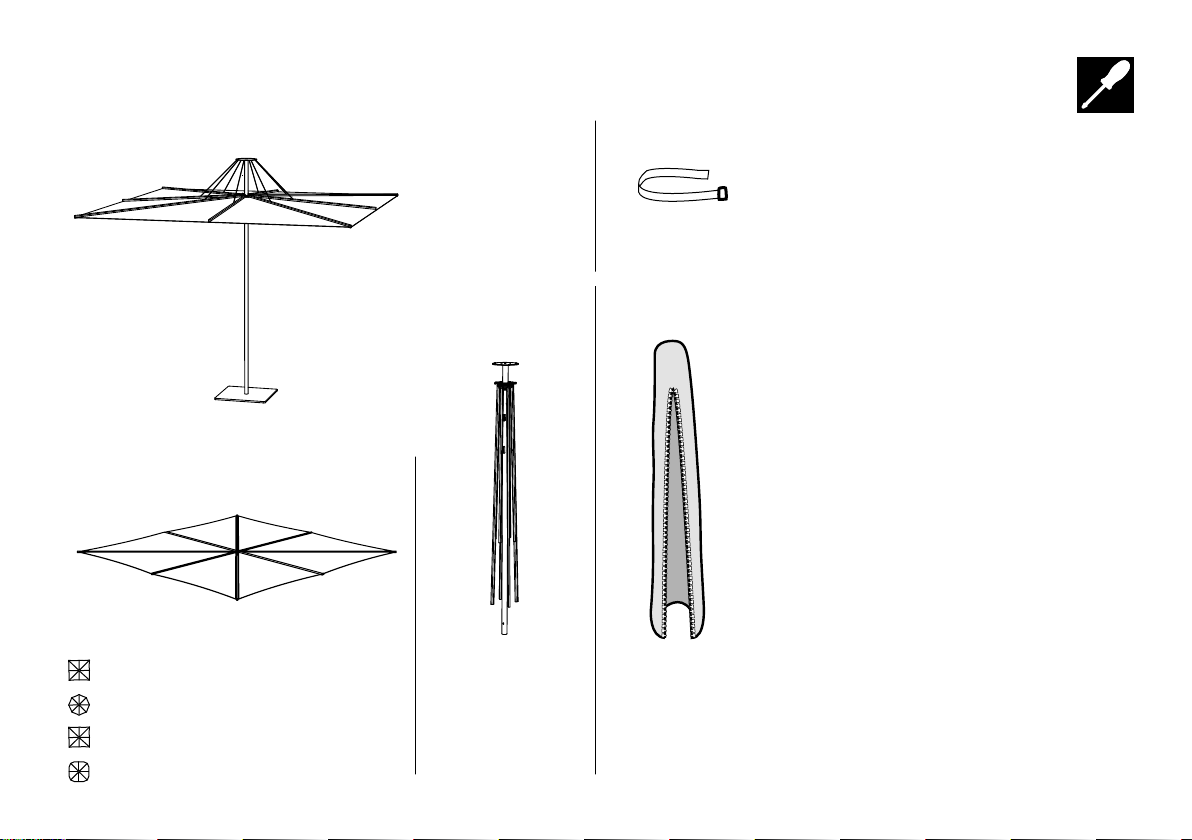

INFINA INSTALLATION
FIPRO0000CGREY19
FIPRO0000CGREY19
FIPRO0000CGREY19
MAPROSPOSUXCULTFI
FIFRAS25900000SQ
FIFRAS30900000RO
FIFRAS30900000SQ
FIFRAX25900000SQ

UMBROSA / 15
1
2
3
Hmax = 95 mm / 3’1.4”
Hmin = 20 mm / 7.8”
INFINA UX TABLE
FIFRAX00000TABLE (only for Inna UX)
S4
S4
“CLICK”

16UMBROSA /
1 2
INFINA USER INSTRUCTIONS
4 5
INFINA USER INSTRUCTIONS
3

UMBROSA / 17
4 5
INFINA USER INSTRUCTIONS
3

18UMBROSA /
min 30°
TIPS
> 30 KM/H
> 5 BEAUFORT

UMBROSA / 19
MAINTENANCE
40°
UMBROSA
WATER REPELLENT SPRAY
UMBROSA
MAINTENANCE KIT
Maintenance instructions on website
Onderhoudsinstructies op webpagina
Nettoyage et guide d’entretien sur le site web
Pegehinweise auf der Webseite
Instrucciones de mantenimiento en el sitio web
Istruzioni di mantenimento sul sito
ENG
NL
FR
DE
ES
IT

20UMBROSA /
ENG
NL
FR
DE
ES
IT
In order to prevent stainless steel from rusting, it is necessary to treat it frequently and preventatively. Umbrosa recommends cleaning and protecting the
surface regularly. Cleaning can easily be done using standard dishwashing detergents. Afterwards, a protection layer can be applied onto the dry surface with a
silicon spray. In an aggressive environment (maritime climate, chlorine, acid rain, aggressive industrial or urban environment) we recommend to clean the
surface more frequently. Rust can be removed using a a cloth and polishing paste. These kinds of products can be bought in do-it-yourself shops, but also in car
specialty stores that sell several “stainless steel polishers”.
Roestvast staal blijft enkel vrij van corrosie, wanneer deze goed en preventief wordt behandeld. Umbrosa raadt bijgevolg aan om regelmatig het oppervlak
te reinigen en beschermen. Reinigen kan eenvoudig met warm water met afwasmiddel zoals “Dreft”. Nadien brengt u op het droge oppervlakte een
beschermlaag aan met bijvoorbeeld Silicone spray. In een agressieve omgeving (maritiem klimaat, chloor, zure regen, agressieve industriële of stedelijke
omgeving), dient men de frequentie van dit preventief onderhoud op te drijven. Wanneer lichte roest zichtbaar is, dient deze te worden verwijderd met doek
en speciale polierpasta. Dergelijke producten zijn te koop in Doe-het-Zelf zaken, alsook in autospeciaalzaken waar men verschillende “stainless steel polishers”
verkoopt.
Pour éviter que L’acier inoxydable corrode, c’est nécessaire de traiter la surface régulièrement. Umbrosa conseille de nettoyer et protéger régulièrement la
surface en utilisant l’eau chaude et un peu de détergent. Après, sur la surface sèche, vous pouvez appliquer une couche de protection avec, par exemple, un
spray de Silicone. Surtout dans un environnement agressif (climat maritime, chlore, pluie acide, environnement industriel ou urbaine agressif ) nous recomman-
dons de nettoyer fréquemment la surface. Vous pouvez éliminer des éventuelles taches de rouille avec un chion et du cirage. Vous pouvez trouver ce type de
produits dans des magasins bricolage, mais aussi dans des magasins spécialisés, ou on vend plusieurs “stainless steel polishers”.
Edelstahl bleibt nur frei von Korrosion, wenn dieser gut und Präventiv behandelt wird. Umbrosa empehlt regelmäßig die Oberäche zu reinigen und zu
schützen. Reinigung kann problemlos mit warmem Wasser mit Seife. Danach bearbeiten Sie die trockene Oberäche mit einer Schutzschicht z.B. Silikonspray. In
einem aggressiven Umfeld (Seeklima, Chlor, saurer Regen, aggressive Industrie- oder städtischen Umwelt) sollte mann diese Behandlung häug machen.
Sichtbaren Rost sollte mit Tuch und spezielle Polierwerkzeuge Paste entfernt werden. Solche Produkte ndet man in Baumärkten sowie in Auto Läden wo man
verschiedene "Edelstahl Polierer verkauft".
Acero inoxidable sólo permanece libre de corrosión, cuando esta bien y se trata como una medida preventiva. Umbrosa recomienda de limpiar regular-
mente la supercie para y proteger. Limpieza puede fácilmente con agua tibia con jabón del plato. Luego, lleva sobre la supercie seca con una capa protectora
para por ejemplo spray de silicona. En ambientes agresivos (clima marítimo, cloro, lluvia ácida, agresivo ambiente urbano o industrial), la frecuencia de este
mantenimiento preventivo para arriba. Cuando el moho visible, se debe retirar con paño y pasta de pulir especial. Estos productos se venden en ferreterías, así
como en tiendas de coches donde uno diferentes vende ’’pulidores de acero inoxidable".
Per prevenire l’arruginirsi dell’acciao inox, è necessario curarlo frequentemente e preventivamente. Umbrosa consiglia di pulire e proteggere frequente-
mente la supercie. E’ possibile pulire l’acciaio inox con aqua calda e detergente. Dopo aver pulito la supercie, la potete proteggere applicando sulla supercie
asciutta uno strato protettivo con, per esempio, lo spray al silicone. In un ambiente aggressivo (clima marittimo, cloro, pioggia acida, ambiente aggressivo
industriale o urbano) consigliamo di pulire la supercie più spesso. E’ possibile rimuovere possibili macchie di ruggine con uno straccio e un po’ di lucidante.
Questi prodotti sono disponibili in negozi fai da te, ma anche in negozi specializzati (come quelli che vendono i prodotti per pulire le macchine) che vendono
vari “stainless steel polishers”.
MAINTENANCE
