UNCHAINED WARRIOR™M-ALTA UWTRK-010 QUICK
START USER GUIDE 1.0
M-ALTA Smart
Bracelet
Volume
1

© Briar & Gash Limited 2017
U N C H A I N E D W A R R I O R L I M I T E D
User Guide for M-ALTA Smart Bracelet 1.0
Briar & Gash Limited 2017
15 Healey Close • Rectory Farm, NN3 5JU
Email: [e-mail] • Call: 0800.6891.706 (Option 1).
Copyright Notice: This document is a property of Briar & Gash Limited registered in England & Wales. All
unauthorized duplication in part or full is prohibited without written permission from the copyright owners; Briar & Gash
Limited, United Kingdom.

© Briar & Gash Limited 2017
Table of Contents
Introduction...........................................................................................................................................4
Technical Specification of your Bracelet.........................................................................................5
Unboxing and App Download ........................................................................................................6
Pairing Your Bracelet with your Device..........................................................................................8
Device Settings................................................................................................................................... 11
Activity Tracking: Steps, Calories, Time, Distance and Heart Rate ....................................... 13
Frequently Asked Questions and Support Contact Details..................................................... 17

I N T R O D U C T I O N
Unchained Warrior™ M-ALTA Activity
Tracker Bracelets
“What’s measured improves” – Peter F. Drucker
“"That which is measured improves. That which is measured and reported improves
exponentially." - Karl Pearson.
irst, I want to thank you very much for purchasing the Unchained Warrior M-ALTA Fitness Tracker
Bracelet. I hope you will receive your item in the best condition.
There comes a time in our lives when we make the decision to take action and improve areas of our
lives that needs improvement. We hope this device will help you to achieve this goal in your health.
As in the quotes above, if you want anything to improve, measuring it is very critical but to achieve the best
results it needs to be reported, that is where this tracker comes in handy.
Few years ago, I decided to go into high performance coaching but the one question I was asked most; how can
you equip us to take active steps to achieve high performance? This is the reason we took the decision to
manufacture these fitness tracker bracelets; to do our bit in supporting as many people as possible to achieve
high performance.
Remember to leave us a feedback, to help us continue to improve our products and customer service. It will
mean the world to us. Please see the support details on the last page for the details of how you can get in touch
to resolve any issue with your purchase.
This is a quick and short guide to getting the best out of your fitness tracker.
Thank you again for your custom, you have helped us stay open for business and I deeply appreciate it.
Chiedozie Hez
Managing Director, Briar & Gash Limited, UK
04
1
F

T E C H N I C A L S P E C I F I C A T I O N O F Y O U R B R A C E L E T
Technical Specification of your
Bracelet
Here is the technical specification of your Smart Bracelet.
**Please pay attention to allergies to any of the materials used for making this fitness tracker bracelet:
05
2
Brand Model
Unchained Warrior M-ALTA Smart Bracelet
Strap Technology
TPE material
Bluetooth Version
4.0 BLE ( Bluetooth Chip: DA14580(The same Bluetooth chip as Xiaomi band))
Screen
Screen display band （0.86 inn OLED）
Battery
Polymer rechargeable lithium battery, 35-40mAh
Standby Time/Working Time
10-15 days/5 days (excess notifications and alarms may affect this.
Motor
Built in vibrating alert
Working Temperature
-10 - 45 centigrade
Sensor
Gravitational acceleration sensor
Package details
1 * Unchained Warrior M-ALTA Smart Band
1 * User Manual
1* Extra Blue Strap
Please note: This tracker does not require an external USB charger.
Functions
RTC, Calorie, Distance, Step pedometer, Heart rate monitor, Sleep monitor (time and
quality), Sedentary alert, Call alert (Caller name & caller ID), Alarm alert, low battery remind,
SMS alert (SMS text display), goal progress, health data share, palming screen display, camera
remote control, find phone, music control, etc.

U N B O X I N G A N D A P P D O W N L O A D –H A P P Y S P O R T A P P
Unboxing and App Download – Smart
Bracelet App
You will have received the following as part of your order:
1. 1 x Unchained Warrior M-ALTA Tracker
2. 1 x USB charger
Before we proceed, please check that your device meets these conditions:
a. Your device is equipped with Bluetooth 4.0
b. IOS: IOS 7.1 & above. Tracker is NOT compatible with WINDOWS phones.
c. Android: Android 4.4 & above
d. Screen size must be above 4.5cm
Please check that you have received all the above items. If for any reason, you have not received all these items,
please write [e-mail] or contact us via the platform where you purchased the tracker.
Support information can be found in page 21.
First you need to charge the bracelet for about 90 minutes. To charge the tracker, you will need to remove the
fitness tracker.
And then plug it in to a powered USB port on your computer or laptop or USB charger.
06
3

Downloading the Happysport
The smart band needs to pair with the smart phone through the app. Before downloading, please check the
Bluetooth support and operating system is Android 4.4 & above and iOS 7.1 & above. This tracker is NOT
compatible with Windows phones.
Howtodownload:
Option1: Searching theQR Code and scan and download app.
Please use the QR code scanning tool on your phone to scan the following QR code and open the link and
download app. In case there is any problem to open the link, please try to copy the link and open it through the
browser.
Option2: Searchfor the app inthe app stores and download.
Please search and download the “Happysport”from App Store or Google play store.
2. Device Activation & Charging
Make sure power is working normally before initial use. In case device is under low battery, connect the
device to the charger. Device will automatically boot up (please connect the USB in normal DC port (5V-
500mA) for charging as below. The host should be separated from the strap when charging).
07

Pairing/Syncing Bracelet with your
Device
The next step is to pair the tracker with a mobile device to enable the you view the reports on heart rate, steps,
sleep tracking, calories burnt on the different activities and distance covered for each day, week or month.
Launch the “Happysport”App downloaded to your device, the “Welcome page”of the app will be displayed.
Special Notes:
1. To pair your tracker, first ensure that the Bluetooth function on your device is switched on, that the device (phone or tablet is at
least within 10 meters range of the tracker.
2. Finally, Smart phone operating system must be Android 4.4 & above and iOS 7.1 & above.
Once the Happysport app is launched, it will display the “Add Device” page.
08
4

On this page above, tap on the “Pair” button and the app should find your tracker and display it with the device
as below:
Tap on the tracker name displayed as circled above and the tracker will start connecting as shown below:
09

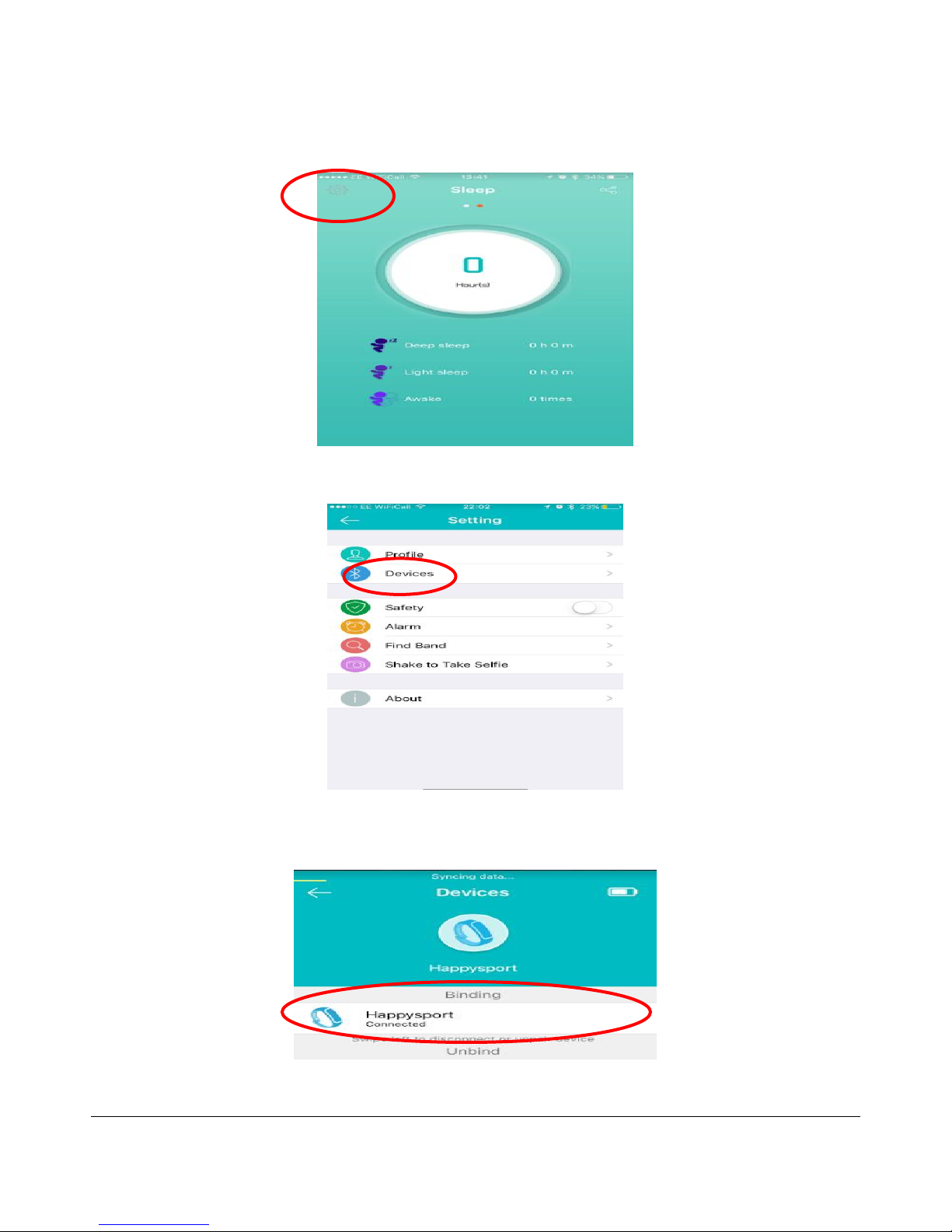

You can also launch the Happysport app and tap on the Setting button circled below:
This page will be displayed.
Then go to Device and sync your tracker by tapping on the tracker listed in the circled area and it will sync to
you phone.
10

Device Settings
Next you will need to adjust the setting to your preferences by switching “On” or “Off” the different.
Here are brief descriptions of what these functions do:
Profile: Where you input your personal details and set goals for activities.
Devices: Displays connected trackers and allows you to sync trackers.
Safety: Stops the user from moving out of range of their phone to avoid loosing it.
Sedentary Reminder: If set, vibrates to alert use to move around after sitting for a while.
Alarm: Vibrates tracker at the set time, it will make no sound so only user is aware of the alarm
Shake to take Selfie: Enables the user to take pictures remotely by shaking your wrist.
11
5

Find Phone: This helps to find the device it is connected to/paired with.
Find Band: This helps to find the tracker when missing using the app.
Call/SMS Alert: Displays the heading of a new SMS or caller name on the screen of the tracker.
More App Reminders: This will display notifications from all other apps on your phone.
Firmware: From here, the device firmware can be updated.
12

Activity Tracking: Heart Rate, Steps,
Distance, Calories and Sleep.
Once the tracker is successfully paired with the mobile device, it is ready for activity tracking. The device can
track steps, Calories burnt, activity time, sleep and distance covered in a day.
Steps, Distance and Calories
Activity data can be viewed on the tracker itself by launching the Happysport app to display the Main Page.
Steps, Distance travelled and Calories burnt can be viewed below.
13
6

Sleep

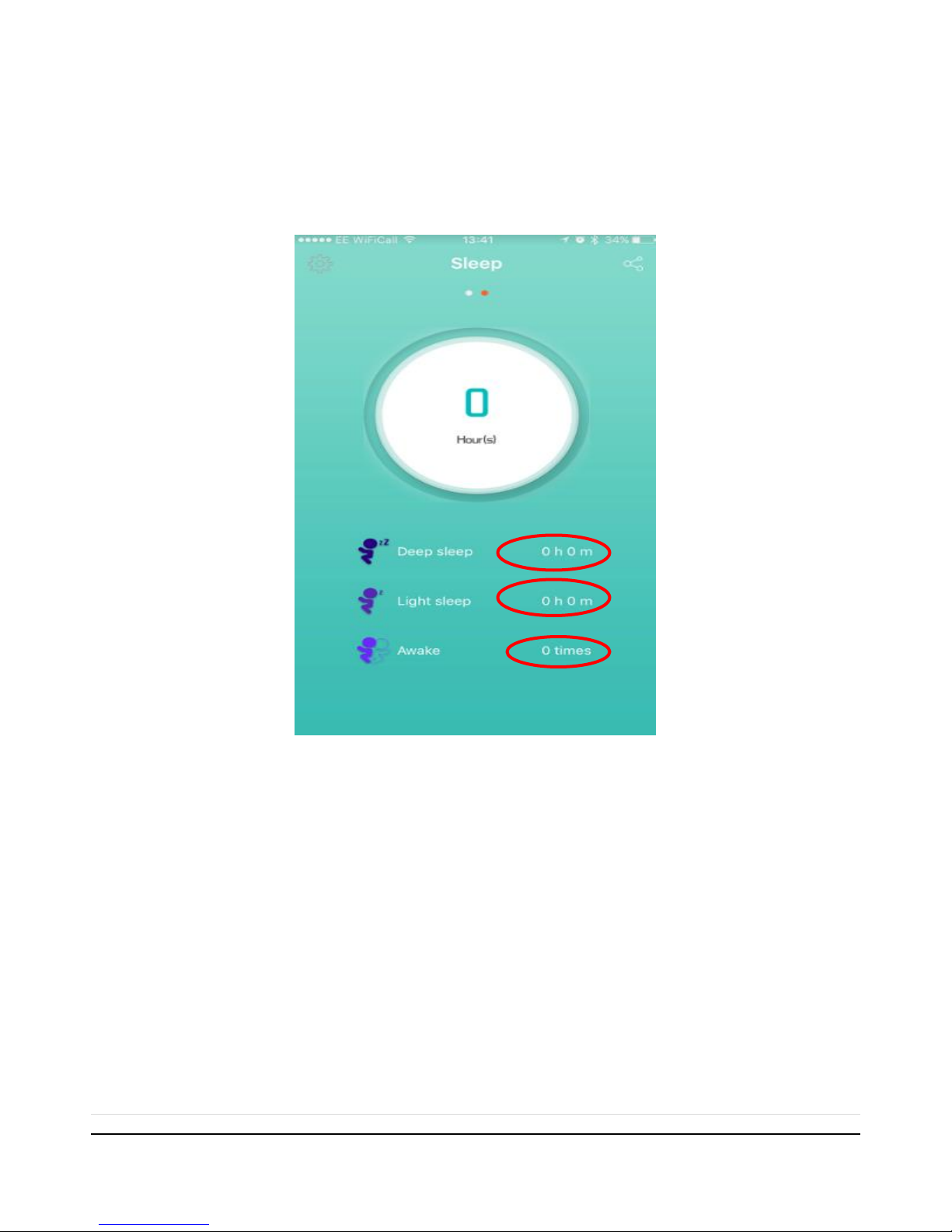

Swipe to your left to display your sleeping reports as below:
. The sleep record shows Start Time and End Time of sleep for the previous night and breaks down each
night’s sleep into:
Deep sleep
Light Sleep and
Awake Sleep
14

Historical Activity Data
The Happysport app stores historical activity data (for the DAY, WEEK and MONTH) which can be viewed
on the app. To view these reports, launch the app to display the homepage and touch the spot circled in red
below:
This page will be displayed, in this case for sleep records which can be viewed for the past day, week or month.
This can be viewed by touching the respective periods highlighted below.
15

Heart Rate Monitoring:
Device monitors your heart rate status and help user make suitable exercise plan.
Device Data Storage:
The activity data will be cleared every 0:00am as a cycle, but the device itself could restore 7 days’data, after 7
days, the data will be cleared. We suggest user to sync data with app at least one time within 7 days during use.
Please note: This product is made with professional Bluetooth RF signal and self-developed algorithm, the accuracy of step
pedometer could be up to 90%.
16

Frequently Asked Question and
Support Contact Details
FAQ:
1.Can’tfinddevicewhenpairingdevice?
Please make sure the smart phone Bluetooth is ON and smart phone OS Android 4.4 & above and iOS 7.1
& above.
Please make sure the device is near the smart phone when pairing (normal 0.5m) and among the normal
Bluetooth communication distance range (within 5m).
Please make sure the device is not under low battery. If there is still problem after full charge, please contact
us.
2.Can’tconnectthedevicewithapp?
Some smart phone Bluetooth service will be abnormal when reboot. Please reboot the Bluetooth or reboot
smart phone for pairing device.
3.HowtoRestoreFactoryDefaults
Make sure the device is connected with app, go in the app, enter “Mine-System Setting”and choose
“Reboot Device”.
4.Howtoupdatethedevice
Make sure the device is connected with app, go in the app “Device”-“Device update”, and please wait some
minutes before update done.
17
7

S U P P O R T C O N T A C T D E T A I L S
We hope that these instructions will help you make the best use of your tracker. If you have any need of
support for this tracker, please contact us via Amazon or by using the following information:
Briar & Gash Limited
Email: [e-mail] • Call: 0800.6891.706 (Option 1).
We have manufactured all our products according to our specification, so please talk to us first before
looking for solution elsewhere to avoid unnecessary frustration and time wasting. If you have any issue with
your order, please contact us first before leaving feedback as we are here for you and have made available
may ways through which we can be contacted.
If any reason, you decide to return this item, please send to this address by Royal Mail 2nd Class Recorded
Delivery to save on postage charges:
Briar & Gash Limited
15 Healey Close, Rectory Farm
Northampton, NN3 5JU
United Kingdom
Thank you again for choosing us from the thousands of all other sellers, your patronage is deeply
appreciated.
