CORE SERIES WELDING HELMET
OPERATING MANUAL
Contents
1. Safety 3
2. Features 4
3. Specifications 5
4. Parts Breakdown 6
5. Operating Instructions 7
6. Harness Operating Instructions 12
7. Troubleshooting 14
8. Warranty 14
9. Shade Guide 15

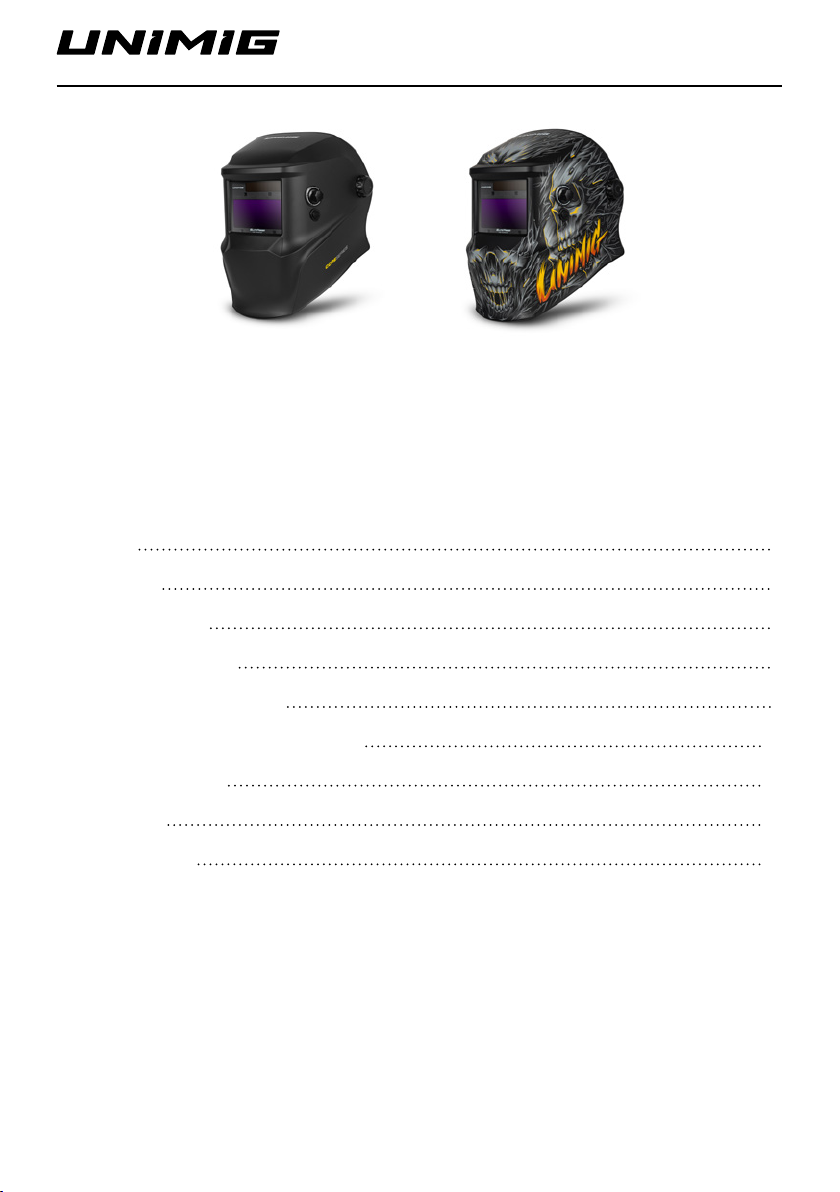

Core Series
Welding Helmet - Black
U21031
Core Series
Welding Helmet - Revenant
U21032

3
CORE SERIES WELDING HELMET
OPERATING MANUAL
1. Safety
Please read and understand all instructions before using.
• Be sure that the dark shade of the lens in the welding helmet is on the correct shade
number for your application.
• The helmet and lenses are not suitable for “overhead” welding application, laser welding,
or laser cutting applications.
• Welding helmets are designed to protect the eyes and face from sparks, spatter, and
harmful radiation under normal welding conditions.
• This helmet will not protect against explosive devices or corrosive liquids. Machine guards
or eye splash protection must be used when these hazards are present.
• Impact resistant, primary eye protection, spectacles or goggles that meet current ANSI
specifications, must be worn at all times when using this welding helmet.
• Avoid work positions that could expose unprotected areas of the body to sparks, spatter,
direct and/or reflected radiation. Use appropriate protection if exposure cannot be avoided.
• Before each use, check that the protection plates are clean and that no dirt is covering the
sensors on the front of the lens.
• Inspect all operating parts before each use for signs of wear or damage. Any scratched,
cracked, or pitted parts should be replaced immediately.
• Do not make any modifications to either the welding lens or helmet, other than those
specified in this manual. Do not use any replacement parts other than those specified in this
manual. Unauthorised modifications and replacement parts will void the warranty and expose
the user to the risk of personal injury.
• If this lens does not darken when striking arc, stop welding immediately and check the
helmet is in Weld Mode and not Grind Mode. If the issue persists, contact your local
UNIMIG Service Department.
• Do not immerse this lens in water.
• Do not use any solvents on any lens or helmet components.
• The recommended operating temperature range for this welding lens is -5°C to 55°C. Do
not use this device beyond these temperature limits.
• Failure to follow these warnings and/or failure to follow all of the operating instructions
could result in severe personal injury.
WARNING: Contains button battery, hazardous if swallowed. Keep out of reach
from children (whether the battery is new or used). Battery can cause severe or fatal
injuries in 2 hours or less if it is swallowed or placed inside any part of the body.
Medical attention should be sought immediately if it is suspected the battery has been
swallowed or placed inside any part of the body.

4
CORE SERIES WELDING HELMET
OPERATING MANUAL
2. Features
98x48mm View Size
Get clear visibility in every situation. The 98x48mm viewing area lets you see every weld
with complete clarity.
External Grind Button
Seamlessly switch to grind mode with the click of a button. When the helmet is in grind
mode a small LED will illuminate, so you don’t need to take the helmet o to check.
9-13 Shade Control
Keep your eyes protected no matter the weld type. With a 9 to 13 shade range, you’ll be
covered while MIG, TIG or STICK welding, even when running as high as 500A.
4 Arc Sensors
Detect every arc instantly. The four optimally positioned arc sensors trigger the lens,
darkening it and keeping your eyes shielded from the start, even when you’re out of position.
Backup Battery
A CR2450 backup battery improves the performance and reliability of the auto-darkening filter.
4 Point Harness
Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you,
and have the weight spread more evenly, minimising neck strain.
EliteVision Lens Technology
See your weld clearly in true colour. EliteVision technology allows more colours from the
spectrum to pass through the view, giving you better optical clarity and reducing eye fatigue.

5
CORE SERIES WELDING HELMET
OPERATING MANUAL
3. Specifications
3.1 Technical Data
Parameter Values
Filter Dimensions 110x90x10mm
View Size 98x48mm
Arc Sensors 4
Classification 1/1/1/2
Light State 4
Dark State 9-13
UV/IR Protection DIN15
Time from Light to Dark 0.1ms
Time from Dark to Light 0.1-0.8s
Sensitivity Delay Adjustable
Power Supply Solar Cells & CR2450 Replaceable Battery
Warranty 3 Years
Operating Temperature -5˚C to 55˚C
Storage Temperature -20˚C to 55˚C
Shade Control Ye s
Grind Mode Yes (External)
Minimum TIG Amperage 10A
Standards AS/NZS 1337.1 B (High Impact)
AS/NZS 1338.1 (Auto-Darkening)
3.2 Replaceable Parts
Part SKU
Core Series Welding Helmet Lens Kit U21037
4 Point Harness U21035
4 Point Harness Sweatband & Back Pad U21036
Magnification Lens
U21010 - 1.5x Magnification Lens
U21011 - 2.0x Magnification Lens
U21012 - 2.5x Magnification Lens

6
CORE SERIES WELDING HELMET
OPERATING MANUAL
4. Parts Breakdown
1. Helmet Shell
2. Adjustment Knob
3. Outer Lens Cover (U21037)
4. ADF Frame
5. Auto-Darkening Filter (ADF)
6. Inner Lens Cover (U21037)
7. 4 Point Harness Sweatband (U21036)
8. 4 Point Harness (U21035)
9. 4 Point Harness Back Pad (U21036)
1
2
3
4
5
6
7
8
9

7
CORE SERIES WELDING HELMET
OPERATING MANUAL
5. Operating Instructions
1. Low Battery Indicator
2. Grind Mode Indicator
3. Sensitivity Dial (Low to High)
4. Delay Dial (Fast to Slow)
5. Shade Selector Knob
6. Grind Mode Button
Manual Shade Control
Choose your preferred shade by twisting the Shade Selector Knob (5) to the matching
shade number (9-13).
Note:
Choose an optimum shade number for the required welding process or application.
If this lens does not darken when striking an arc, stop welding immediately and check the
helmet is in Weld Mode and not Grind Mode. If the issue persists, contact your local UNIMIG
Service Department.
13
2
4
5
6

8
CORE SERIES WELDING HELMET
OPERATING MANUAL
Sensitivity Control
The responsiveness to dierent light levels in various welding processes can be adjusted in
the range from low to high.
Set the Sensitivity Dial (3) to your preferred level. Turn the dial counter-clockwise to
decrease sensitivity, and rotate it clockwise to increase sensitivity.
Low Sensitivity
• Suitable for high amperage welding and welding in bright light conditions (lamp light
or sunlight).
High Sensitivity
• Suitable for low amperage welding and use in poor light conditions.
• Suitable for use with steady arc process such as TIG welding.
• Under normal use, a higher sensitivity setting is recommended.
Delay Control
The length of time delay for the ADF to return to the light state after welding can be
adjusted in the range from fast to slow (0.1-0.9s). The time delay is for the protection of the
welder’s eyes from strong residual rays after welding.
Set the Delay Dial (4) to your preferred level. Turn the dial counter-clockwise to
decrease delay time, and rotate it clockwise to increase delay time.
Low Delay
• The time the ADF takes to lighten after welding becomes shorter. The shortest time is
about 0.1s depending on the welding point temperature and shade setting. This setting is
ideal for tack welding or production welding with short welds.
High Delay
• The time the ADF takes to lighten after welding becomes longer. The longest time is
about 0.8s depending on the welding point temperature and shade setting. This setting is
ideal for welding at high amperage where there is an afterglow from the weld.
Grind Mode
Press the Grind Mode Button (6) to initiate grind mode. Upon activation, the Grind Mode
Indicator (2) light will begin to blink. To deactivate grind mode and revert back to weld
mode, simply press the Grind Mode Button (6) again.
Note: Do not weld in the grind mode, the ADF will not darken.
Low Battery Indicator
When the backup battery is low, the Low Battery Indicator (1) will begin to blink. Replace
the battery when it is low, otherwise the ADF switching time will become slower, and shade
accuracy will be compromised.

9
CORE SERIES WELDING HELMET
OPERATING MANUAL
Removing The ADF From The Helmet Shell
1. Switch both ADF frame locks to the
up position to unlock it from the helmet
shell.
2. Lift the bottom of the ADF up then slide
the unit down to remove it from the
helmet shell.
Power Supply & Replacing The Battery
The power of the auto-darkening helmet is provided by solar cells and a CR2450
lithium battery. To change the battery, remove the ADF from the ADF frame. The battery
compartment is on the top of the ADF, open the compartment to replace the battery.

10
CORE SERIES WELDING HELMET
OPERATING MANUAL
Changing The Inner Lens Cover
Changing The Outer Lens Cover

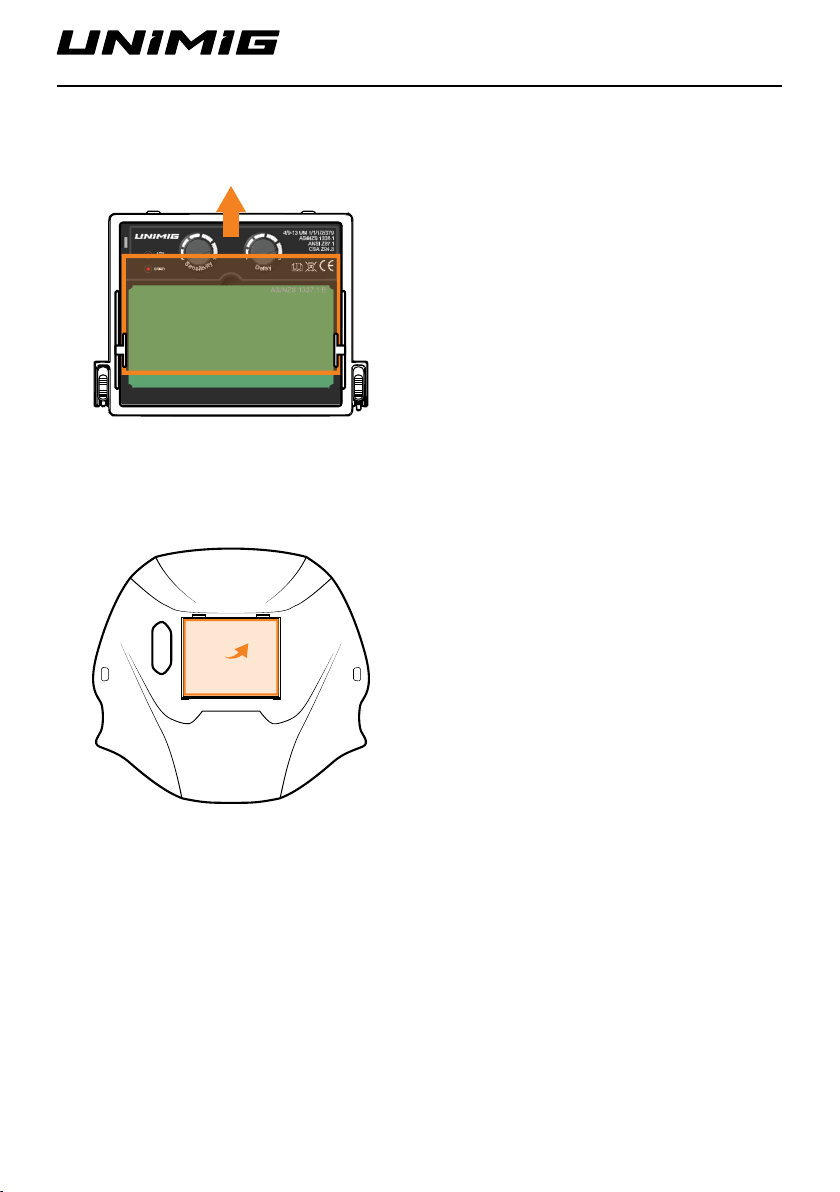

Pry the inner lens cover up from the finger
groove at the top of the ADF. The inner lens
cover can then slide up and out of the ADF.
Replace with new inner lens cover.
With the ADF frame removed, simply lift out
the existing outer lens cover. Replace with
new outer lens cover.

11
CORE SERIES WELDING HELMET
OPERATING MANUAL
Installing A Magnification Lens
Slide the magnificaion lens down through
the magnification lens holder.
Additional Instructions
• Be sure that the helmet is used in the correct condition and according to the
safety requirements.
• There is a liquid crystal-valve in the filter, although it has inner and outer protection
covers, it is important to avoid heavy knocks to the helmet.
• The outer protective shell of the helmet should be periodically inspected and cleaned. In
the case of a break, crack, pitting or other damage, the helmet shell must be replaced.
• To operate more eciently and safely, please select the correct dark shade number.
• The arc light must be visible completely by all arc sensors. If not, the ADF may struggle to
detect an arc and may not activate the selected shade.
• Please use the automatic filter at a temperature between -5°C-55°C.
• Do not disassemble the filter. If any problems arise, please contact your local UNIMIG
service department.

12
CORE SERIES WELDING HELMET
OPERATING MANUAL
6. Harness Operating Instructions
6.1 Neck Band Adjustment

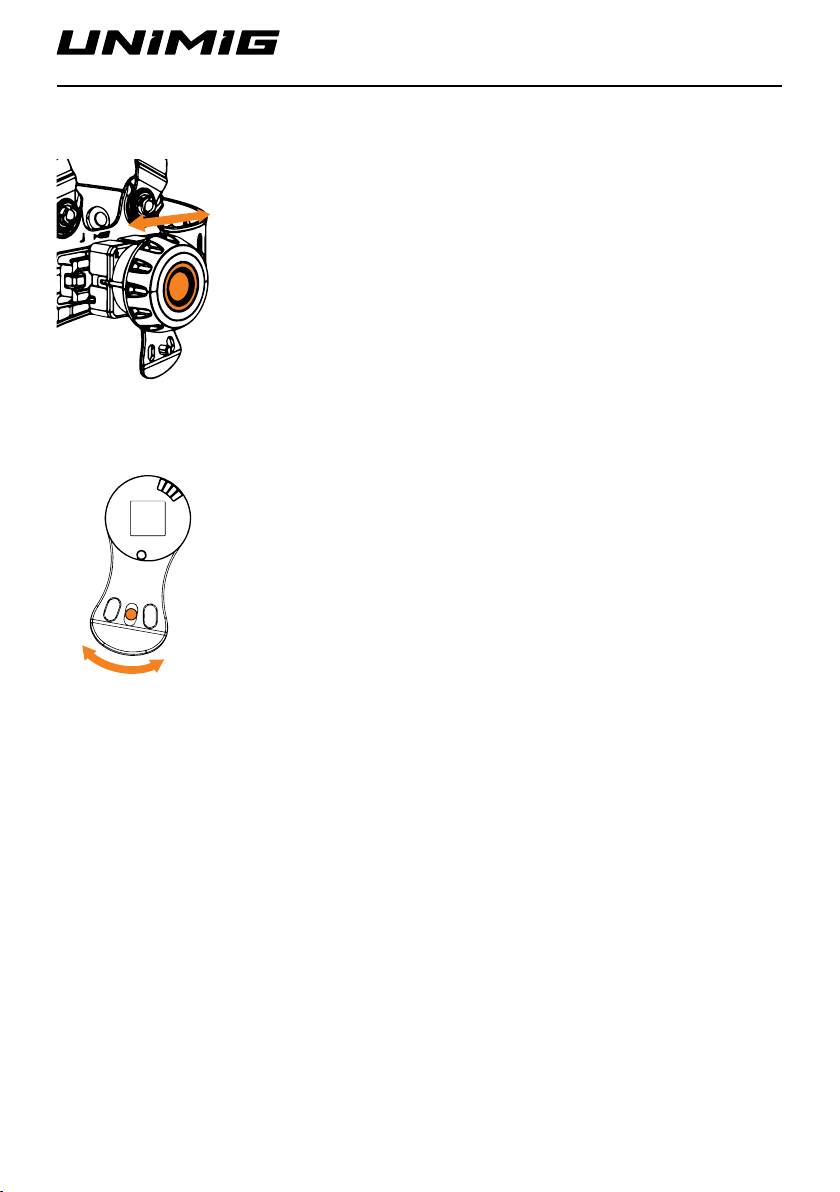

To tighten the neck band, turn the neck band adjustment dial clockwise .
To loosen the neck band, turn the neck band adjustment dial anti-clockwise.
6.2 Head Strap Adjustment
To adjust the head straps, first push the
head strap lock out of the current position.
Then adjust the strap to the desired length,
and push the head strap lock into the
corresponding position.
1
2
3
4

13
CORE SERIES WELDING HELMET
OPERATING MANUAL
6.3 Distance Adjustment
6.4 Angle Adjustment
To adjust the distance between your face and the lens, push the
distance adjuster buttons. The helmet shell can now move towards or
away from your face. Release the buttons to lock the shell into position.
Ensure that both sides are equally positioned for proper vision.
There are 3 positions available to set the angle of the helmet. To adjust,
lift and reposition the locking tab into the desired angle position.

14
CORE SERIES WELDING HELMET
OPERATING MANUAL
7. Troubleshooting
1. The ADF does not darken when welding
• Stop welding or cutting immediately.
• Make sure the sensors are facing the arc and there are no obstructions.
• Check the mode is on WELD, not GRIND.
• Review sensitivity recommendations and adjust sensitivity if possible.
• Replace the battery if necessary.
2. The ADF stays dark after welding or there is no arc present
• Adjust the sensitivity to a lower level.
• If the worksite is too bright, it is recommended to reduce the surrounding light level.
3. The ADF switches during welding
• Increase the sensitivity if possible.
• Make sure the sensors are facing the arc and there are no obstructions.
• Increasing Delay 0.1−0.3 seconds may also reduce switching.
8. Warranty
UNIMIG auto-darkening welding helmets are covered for warranty for up to three years
from the date of purchase from authorised UNIMIG dealers. The duration of use depends
on various factors such as use, cleaning storage and maintenance. Frequent inspections
are recommended.

15
CORE SERIES WELDING HELMET
OPERATING MANUAL
9. Shade Guide
MMA/STICK
Current Shade
<40A 9
40-60A 10
60-175A 11
175-300A 12
300-500A 13
>500A 14
MIG
Current Shade
<100A 10
100-175A 11
175-300A 12
300-500A 13
>500A 14
MAG
Current Shade
<60A 10
60-125A 11
125-175A 12
175-300A 13
300-500A 14
>500A 15
TIG
Current Shade
<20A 9
20-40A 10
40-100A 11
100-175A 12
175-250A 13
>250A 14
Arc Gouging
Current Shade
<175A 10
175-225A 11
225-275A 12
275-350A 13
350-450A 14
>450A 15
Plasma Cutting
Current Shade
<150A 11
150-250A 12
>250A 13

HEAD OFFICE:
112 Christina Rd,
Villawood NSW 2163
PH: [phone]
FAX: [phone]
E: [email protected]
QLD OFFICE:
19 Commerce Cct,
Yatala QLD 4207
PH: [phone]
FAX: [phone]
E: [email protected]
VIC OFFICE:
91 Yellowbox Drive,
Craigieburn VIC 3064
PH: [phone]
FAX: [phone]
E: [email protected]
WA OFFICE:
26 Sustainable Ave,
Bibra Lake WA 6163
PH: [phone]
FAX: [phone]
E: [email protected]
