UNIARCH NVR-108E2-P8-3TB User manual

Waterproof Requirements
Please waterproof cables in accordance with the following instructions. User shall
assume all responsibility for device damage caused by water due to improper
waterproof measures.
NOTE!

Before you start,
connect all the needed cables and cut off the copper wires for
the cables that you don't use.

Please use self-adhesive waterproof tape (supplied with some
products) to
protect the cables.

Use waterproof components to protect the network cable.
Waterproof the
power cable separately if you don’t use it. The video cable does not need
waterproof treatment.

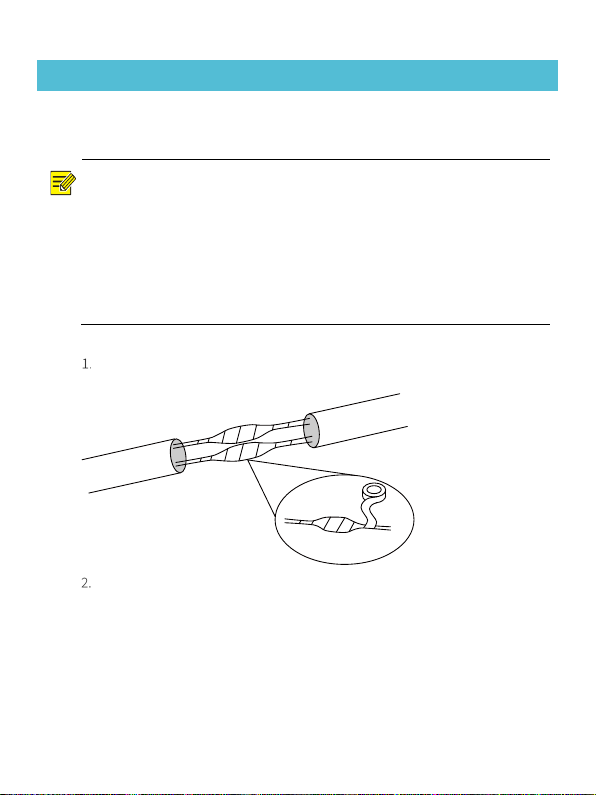

Use insulation tape (not included in the package) to insulate the connection part
of each cable.
Waterproof the cables with self-adhesive waterproof tape.
(1) Fully stretch the waterproof tape at both ends.
(2) Wrap the connection part and the cable ends tightly with waterproof tape.
Make sure the tape is fully stretched during the process.
(3) Tighten the tape at both ends to prevent water leakage.
Connection part
Insulation tape
2

Install the supplied waterproof components to the network cable in sequence.
CAUTION!
You need to mount the rubber ring onto the network cable interface first
.
If your camera has a DC cable and you will not use it, insert the plug into the
interface.
(Optional) After the waterproof treatment is completed, put the cables into a
waterproof junction box (purchased separately).
CAUTION!

The cable connector must not be exposed and must be kept away from water.

Restore and fasten the device after dismounting.

Place the power adapter in a power distribution box.
TightenTighten
Wrapthe unused cables
together into a bundle
Wrapthe used cables separately Waterproof tape
TightenTighten
DC interface
Plug
3

1

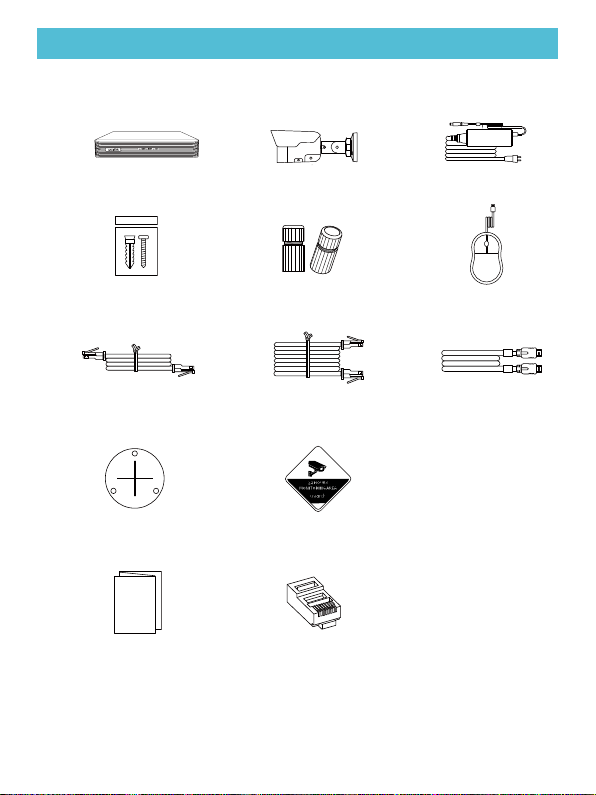

Packing list
The package contents may vary with device model.
Camera × 4 or 8
Drill template
× 5 or 9
Screw components × 5 or
9
Waterproof components × 4 or 8
User manual ×
1
Network cable (1m) × 1
Network cable (18m) × 4 or 8
Mouse × 1
HDMI
cable (2m) × 1
NVR power adapter ×
1
NVR × 1
W
arning sticker × 4 or 8
RJ45 connector
× 4 or 8
4

2

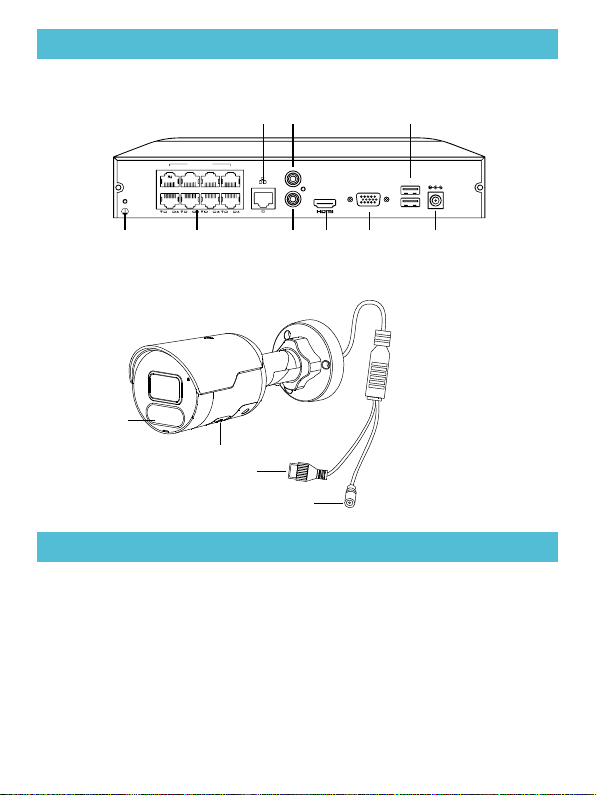

Ports and Interfaces
2.1 NVR
2.2 IP Camera
3
Install the Device
The illustrations are for reference only. The actual device may vary.
3.1 (Optional) Replace Hard Disk
The hard disk is pre-installed. To replace the hard disk, please follow the steps.
1. Loosen the screws on the panel
and remove the upper cover.
2. Loosen the four screws at the
bottom plate, disconnect the
power and data cables, and then
remove the disk.
1 3 5 7
2 4 6 8
PoE PORTS
HAXN
AUDIO OUT
AUDIO IN
4K
VGA
USB3.0
USB2.0
PoE port Audio in VGA Power input
USBLAN Audio out
HDMI
Grounding terminal
LED light
Micro SD card slot
Network interface
Power interface
5

6
The screw positions are for reference only.
3. Put the new hard disk in place and
then connect the power and data
cables.
4. Attach two screws to the disk
(position 1 and 2) and tighten
halfway. Slide the disk into place
from A to B, tighten the two
screws.
5. Fasten other two screws at position
3 and 4 to secure the hard disk.
6. Put the cover back in place and
tighten all the screws.
NOTE!
Videos are also provided for reference. Please visit https://www.uniarch.cn/web/
video.html and search How to replace HDD for NVR.
3.2 (Optional) Insert Micro SD Card
Some cameras support Micro SD card. You need to insert a Micro SD card by openning
the bottom cover if you want to use the edge storage function. Do not hot plug the
Micro SD card, otherwise the camera or the SD card may be damaged.
HDDSCREW
HDDSCREW
13
24
SATA
AB

NOTE!
For details about recommended SD card specifications, please visit
https://www.uniarch.cn/web/faq.html and search Uniarch compatible SDcard list.
3.3 Install the Camera
Take wall mount as an example. Make sure the wall is strong enough to hold the
camera. Please prepare hardware accessories in advance.
1. Paste a drill template on the wall
and drill 30mm-depth guide holes
using a φ6-6.5mm drill bit.
2. Knock the plastic rivets into the
guide holes and ensure that they
are tightened up.
3. Unscrew the locknut to loosen the
universal joint, and then mount the
camera onto the wall.
4. Tighten the locknut, and adjust
the monitoring direction.
Micro SD card slot
7

4
Connect the System
The following part shows an example. The actual device may vary.
1. Connect the NVR to a monitor with a HDMI or VGA cable.
NOTE!
T
he VGA cable is not shipped with device.
2. Connect a router to the NVR’s LAN port with a network cable. Plug a mouse into
the USB port on the NVR.
3. Connect the camera to the NVR’s PoE port with a network cable.

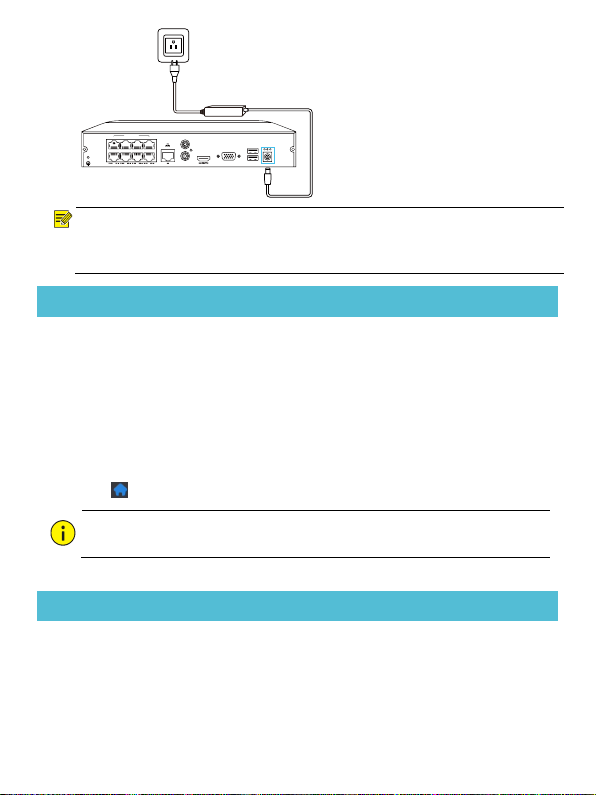

4. Connect the NVR to power.
1 3 5 7
2 4 6 8
PoE PORTS
HAXN
AUDIO OUT
AUDIO IN
4K
VGA
USB3.0
USB2.0
1 3 5 7
2 4 6 8
PoEPO RTS
HAXN
AUDIO OUT
AUDIO IN
4K
VGA
USB3.0
USB2.0
1 3 5 7
2 4 6 8
PoE PORTS
HAXN
AUDIO OUT
AUDIO IN
4K
VGA
USB3.0
USB2.0
8

NOTE!
For more information, visit https://www.uniarch.cn/web/video.html and search
How to install Uniarch PoE Security System.
5
System Startup
Make sure the cables are connected correctly and the NVR is grounded properly. Use
a power supply that meets requirements.
5.1 Startup
Connect the NVR to power to start up.
5.2 Shutdown
Click >
Shutdown
on the screen toolbar in live view page.
CAUTION!
Do not disconnect power when the NVR is operating or shutting down.
6
NVR Web Access
You can use a Web browser to access the NVR’s Web interface from a PC.
1. Open your Web browser, enter the NVR’s IP address in the address bar, and then
press Enter. The default address is 192.168.1.30.
2. Enter the default username and password (admin/123456), then click Login.
1 3 5 7
2 4 6 8
PoE PORTS
HAXN
AUDIO OUT
AUDIO IN
4K
VGA
USB3.0
USB2.0
9

NOTE!
For security, you are strongly recommended to set a strong password of at least nine
characters including all three elements: digits, letters and special characters.
For more information, please visit https://www.uniarch.cn/web/video.html and
search PoE security system instruction.
7
Uniarch App
Download the Uniarch app and follow the instructions to access the NVR.
Download Uniarch on the App Store (iOS) or on Google Play (Android).
Scan QR code to download the app.
NOTE!
For more information, please visit https://www.uniarch.cn/web/video.html and
search Uniarch APP instruction.
8
Contact Us
If you have any problems when using the product, please do not hesitate to contact
us or visit Uniarch website.
Email: [email protected]
Skype: [email protected]
Uniarch website: https://www.uniarch.cn
FAQ: https://www.uniarch.cn/web/faq.html
iOS
Android
10

Disclaimer and Safety Warnings
Copyright Statement
No part of this manual may be copied, reproduced, translated or distributed in any form or by
any means without prior consent in writing from our company (referred to as us hereafter).
The product described in this manual may contain proprietary software owned by our company
and its possible licensors. Unless permitted, no one is allowed to copy, distribute, modify,
abstract, decompile, disassemble, decrypt, reverse engineer, rent, transfer, or sublicense the
software in any form or by any means.
Export Compliance Statement
Our company complies with applicable export control laws and regulations worldwide, including
that of the People's Republic of China and the United States, and abides by relevant regulations
relating to the export, re-export and transfer of hardware, software and technology. Regarding
the product described in this manual, our company asks you to fully understand and strictly
abide by the applicable export laws and regulations worldwide.
Privacy Protection Reminder
Our company complies with appropriate privacy protection laws and is committed to protecting
user privacy. You may want to read our full privacy policy at our website and get to know the ways
we process your personal information. Please be aware, using the product described in this
manual may involve the collection of personal information such as face, fingerprint, license plate
number, email, phone number, GPS. Please abide by your local laws and regulations while using
the product.
About This Manual
This manual is intended for multiple product models, and the photos, illustrations,
descriptions, etc, in this manual may be different from the actual appearances, functions,
features, etc, of the product.
This manual is intended for multiple software versions, and the illustrations and descriptions
in this manual may be different from the actual GUI and functions of the software.
Despite our best efforts, technical or typographical errors may exist in this manual. Our
company cannot be held responsible for any such errors and reserves the right to change the
manual without prior notice.
Users are fully responsible for the damages and losses that arise due to improper operation.
Our company reserves the right to change any information in this manual without any prior
notice or indication. Due to such reasons as product version upgrade or regulatory
requirement of relevant regions, this manual will be periodically updated.
Disclaimer of Liability
To the extent allowed by applicable law, in no event will our company be liable for any special,
incidental, indirect, consequential damages, nor for any loss of profits, data, and documents.
11

The product described in this manual is provided on an "as is" basis. Unless required by
applicable law, this manual is only for informational purpose, and all statements, information,
and recommendations in this manual are presented without warranty of any kind, expressed
or implied, including, but not limited to, merchantability, satisfaction with quality, fitness for
a particular purpose, and noninfringement.
Users must assume total responsibility and all risks for connecting the product to the Internet,
including, but not limited to, network attack, hacking, and virus. We strongly recommend that
users take all necessary measures to enhance the protection of network, device, data and
personal information. Our company disclaims any liability related thereto but will readily
provide necessary security related support.
To the extent not prohibited by applicable law, in no event will our company and its
employees, licensors, subsidiary, affiliates be liable for results arising out of using or inability
to use the product or service, including, not limited to, loss of profits and any other
commercial damages or losses, loss of data, procurement of substitute goods or services;
property damage, personal injury, business interruption, loss of business information, or any
special, direct, indirect, incidental, consequential, pecuniary, coverage, exemplary, subsidiary
losses, however caused and on any theory of liability, whether in contract, strict liability or
tort (including negligence or otherwise) in any way out of the use of the product, even if our
company has been advised of the possibility of such damages (other than as may be required
by applicable law in cases involving personal injury, incidental or subsidiary damage).
To the extent allowed by applicable law, in no event shall our total liability to you for all
damages for the product described in this manual (other than as may be required by
applicable law in cases involving personal injury) exceed the amount of money that you have
paid for the product.
Network Security
Please take all necessary measures to enhance network security for your device.
The following are necessary measures for the network security of your device:

Change default password and set strong password
: You are strongly recommended to change
the default password after your first login and set a strong password of at least nine characters
including all three elements: digits, letters and special characters.

Keep firmware up to date
: It is recommended that your device is always upgraded to the
latest version for the latest functions and better security. Visit our official website or contact
your local dealer for the latest firmware.
The following are recommendations for enhancing network security of your device:

Change password regularly
: Change your device password on a regular basis and keep the
password safe. Make sure only the authorized user can log in to the device.

Enable HTTPS/SSL
: Use SSL certificate to encrypt HTTP communications and ensure data
security.

Enable IP address filtering
: Allow access only from the specified IP addresses.

Minimum port mapping
: Configure your router or firewall to open a minimum set of ports to
the WAN and keep only the necessary port mappings. Never set the device as the DMZ host
or configure a full cone NAT.
12


Disable the automatic login and save password features
: If multiple users have access to your
computer, it is recommended that you disable these features to prevent unauthorized access.

Choose username and password discretely
: Avoid using the username and password of your
social media, bank, email account, etc, as the username and password of your device, in case
your social media, bank and email account information is leaked.

Restrict user permissions
: If more than one user needs access to your system, make sure each
user is granted only the necessary permissions.

Disable UPnP
: When UPnP is enabled, the router will automatically map internal ports, and
the system will automatically forward port data, which results in the risks of data leakage.
Therefore, it is recommended to disable UPnP if HTTP and TCP port mapping have been
enabled manually on your router.

SNMP
: Disable SNMP if you do not use it. If you do use it, then SNMPv3 is recommended.

Multicast
: Multicast is intended to transmit video to multiple devices. If you do not use this
function, it is recommended you disable multicast on your network.

Check logs
: Check your device logs regularly to detect unauthorized access or abnormal
operations.

Physical protection
: Keep the device in a locked room or cabinet to prevent unauthorized
physical access.

Isolate video surveillance network
: Isolating your video surveillance network with other
service networks helps prevent unauthorized access to devices in your security system from
other service networks.
Safety Warnings
The device must be installed, serviced and maintained by a trained professional with necessary
safety knowledge and skills. Before you start using the device, please read through this guide
carefully and make sure all applicable requirements are met to avoid danger and loss of property.
Storage, Transportation, and Use
Store or use the device in a proper environment that meets environmental requirements,
including and not limited to, temperature, humidity, dust, corrosive gases, electromagnetic
radiation, etc.
Make sure the device is securely installed or placed on a flat surface to prevent falling.
Unless otherwise specified, do not stack devices.
Ensure good ventilation in the operating environment. Do not cover the vents on the device.
Allow adequate space for ventilation.
Protect the device from liquid of any kind.
Make sure the power supply provides a stable voltage that meets the power requirements of
the device. Make sure the power supply's output power exceeds the total maximum power of
all the connected devices.
Verify that the device is properly installed before connecting it to power.
Do not remove the seal from the device body without consulting our company first. Do not
attempt to service the product yourself. Contact a trained professional for maintenance.
Always disconnect the device from power before attempting to move the device.
Take proper waterproof measures in accordance with requirements before using the device
outdoors.
13

Power Requirements
Installation and use of the device must be in strict accordance with your local electrical safety
regulations.
Use a UL certified power supply that meets LPS requirements if an adapter is used.
Use the recommended cordset (power cord) in accordance with the specified ratings.
Only use the power adapter supplied with your device.
Use a mains socket outlet with a protective earthing (grounding) connection.
Ground your device properly if the device is intended to be grounded.
Battery Use Caution
When battery is used, avoid:
High or low extreme temperatures during use, storage and transportation;
Extremely low air pressure, or low air pressure at high altitude.
Battery replacement.
Use the battery properly. Improper use of the battery such as the following may cause risks of
fire, explosion or leakage of flammable liquid or gas.
Replace battery with an incorrect type;
Dispose of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery;
Dispose the used battery according to your local regulations or the battery manufacturer's
instructions.
Avertissement de l’utilisation de la batterie
Lorsque utiliser la batterie, évitez:
Températures extrêmement élevées ou basses pendant l’utilisation, le stockage et le
transport;
Pression d’air extrêmement basse, ou pression d’air basse à haute altitude;
Remplacement de la batterie.
Utilisez la batterie correctement. Mauvaise utilisation de la batterie comme celles
mentionnées ici, peut entraîner des risques d’incendie, d’explosion ou de fuite liquide de gaz
inflammables.
Remplacer la batterie par un type incorrect;
Disposer d’une batterie dans le feu ou un four chaud, écraser mécaniquement ou couper
la batterie;
Disposer la batterie utilisée conformément à vos règlements locaux ou aux instructions du
fabricant de la batterie.
Regulatory Compliance
FCC Statements
This device complies with Part 15ofthe FCC Rules. Operation is subject tothe following two
conditions: (1) this device maynot cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Caution:The user iscautioned that changes or modificationsnot expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 ofthe FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial 14

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own
expense.
LVD/EMC Directive
This product complies with the European Low Voltage Directive 2014/35/EU
and EMC Directive 2014/30/EU.
WEEE Directive–2012/19/EU
The product this manual refers to is covered by the Waste Electrical & Electronic
Equipment (WEEE) Directive and must be disposed of in a responsible manner.
Battery Directive-2013/56/EC
Battery in the product complies with the European Battery Directive
2013/56/EC. For proper recycling, return the battery to your supplier or to a
designated collection point.
15

www.uniarch.cn
PoE Security System
GUIDE
If you need any technical help, please contact our technical
support team before returning the products.
For more Q&A information, please visit our official website, www.uniarch.cn
Disclaimer: All rights reserved, including final interpretation and content amendment.
Technical Support
