Contents
WELCOME/FEATURES 3
QUICK REFERENCE GUIDE 5
CONTROLS AND FUNCTIONS 6
GETTING STARTED 8
Read This First 8
Checking the Package Contents 9
Setting up the Phone 10
Terminology 14
Setting Caller ID Options 15
Selecting a Language 17
BASICS 18
Making and Receiving Calls 18
Redialing a Call 19
Ringer Volume Setup 20
Ringer Tone Setting 20
Distinctive Ringer Setup 21
Adjusting the Earpiece Volume 21
Mute Microphone 22
Tone Dialing Switch-over 22
Traveling Out-of-Range 22
Selecting a Different Channel 23
Find Handset 23
3-way Conferencing 23
Transferring a Call 24
Flash and Call Waiting 25
New Message LED 25
PHONEBOOK 26
Storing Phone Numbers, Names,
Distinctive Rings, and Speed Dial 26
Steps for Entering Names and Special Characters 27
Viewing the Phonebook 29
Making Calls Using the Phonebook 30
Speed Dialing 30
Editing or Erasing a Stored Name, Phone Number
Distinctive Ring, and Speed Dial 31
RocketDial (One Touch Dialing) 32
Chain Dialing 33
Memory Dialing (base only) 34
CALLER ID 35
Viewing the Caller ID List 36
Deleting Information from the Caller ID List 37
Using the Caller ID Message List 38
Call Waiting Deluxe Features 39
THE INTEGRATED ANSWERING DEVICE 40
Turning the Answering System On/Off 40
Setting up your Answering System 41
Using your Answering System 47
Remote Operation 50
EXPANDING YOUR PHONE 53
How to Distinguish the Original Handset
and the Second Handset 53
Registering the Second Handset 53
Call Transfer Feature 54
Second Handset Operation 55
ADDITIONAL INFORMATION 57
Changing the Digital Security Code 57
Installing the Beltclip 58
Headset Installation 58
Note on Power Sources 59
Maintenance 59
General Information 60
TROUBLESHOOTING 61
PRECAUTIONS & WARRANTY 63
I.C. NOTICE 65
INDEX 66
REMOTE OPERATION CARD 67
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 2

Welcome
Features
Congratulations on your purchase of the Uniden cordless telephone. This phone is designed and
engineered to exacting standards for reliability, long life and outstanding performance. To enjoy
the best performance from this phone’s features, please read this manual carefully and save it for
future reference.
Note: Some illustrations in this manual may differ from the actual unit for
explanation purposes.
As an Energy Star®Partner, Uniden has determined that this product or product
models meets the Energy Star®guidelines for energy efficiency.
Energy Star®is a U.S. registered mark.
•2.4 GHz Spread Spectrum Technology
•Integrated Answering Device
(Trilingual Announcement Option)
•Two Handset Expandability
•Caller ID and Call Waiting Caller ID
•Dynamic Memory Location for Caller ID
Messages and Phonebook Locations
(up to 100 numbers in total)
•Trilingual Language Option
•6 Hour Talk Time
•10 Day Standby Battery Life
•3-Line, 16 Character Backlit Handset Display
•One Touch Dialing
•Call Transfer
[ 3 ]WELCOME/FEATURES
•32 Digit Redial / 3 Last Number Redial Locations
(handset only)
•10 Distinctive Ring Options
(6 ringers and 4 melodies)
•Flash and Pause
•Find Handset
•Hearing Aid Compatible
•Tone/Pulse Dialing
•Handset Earpiece and Ringer Volume Control
•10 Number Memory on the Base
•Base Speakerphone with Keypad
•Base Speaker Volume
•3-way Conference Operation
•Handset Remote Operation
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 3

[ 4 ] WELCOME/FEATURES[ 4 ]
The TRU4485 series features include AutoTalk™ and AutoStandby™. AutoTalk allows you to answer a
call by just removing the handset from the base so you don’t have to waste time pushing buttons.
AutoStandby allows you to hang up by simply returning the handset to the base.
To protect you against mis-billed calls, which might result from your phone being activated by other
equipment, the TRU4485 series has Random Code™digital security, which automatically selects one
of over 65,000 digital security codes for the handset and base. Also, AutoSecure™electronically locks
your phone when the handset is in the base.
RocketDial™is a one touch speed dial key that automatically dials your most important or frequently
called number. The number dialed, is a preset number stored by the user.
Digital Spread Spectrum Technology utilizes a “wider frequency band”vs. a “single narrow band”used
in standard digital transmissions. The result is a more secure conversation with the clarity of digital
sound, extended range, and minimal interference from other cordless phones.
Be sure to visit our web site: www.uniden.com
Uniden®is a registered trademark of Uniden America Corporation.
AutoTalk, AutoStandby, Random Code, AutoSecure, and RocketDial are trademarks of Uniden America Corporation.
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 4

QUICK REFERENCE GUIDE
INSTALL THE HANDSET BATTERY
Remove the cover.
Connect the battery
pack connector with
the correct polarity.
Replace the cover.

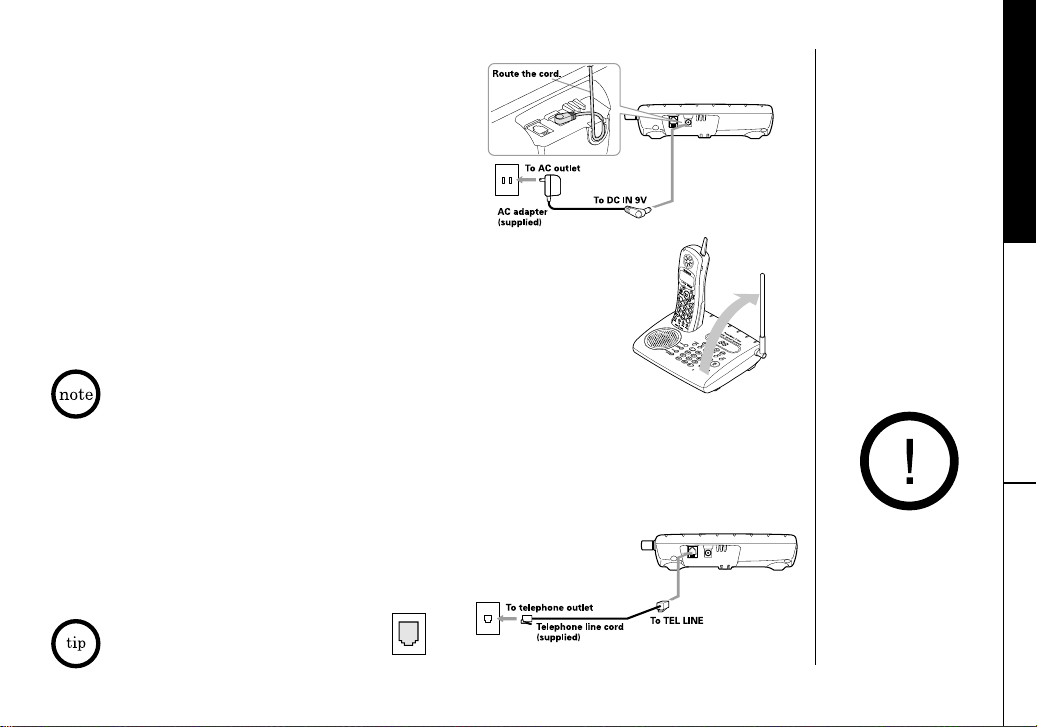

PLUG INTO AC POWER
Plug the AC adapter cord into the base
unit and then to a 120V AC outlet.
Place the handset in the base .
CONNECT TO A PHONE LINE
When the handset battery pack is fully charged,
plug the telephone cord into the base unit and
then into a telephone wall jack.
Your phone is set for tone dialing. If your local
network requires pulse dialing, please see
“Setting up the phone, Choose the dialing mode”
in your owner’s manual.
TO SELECT CALLER ID OPTIONS
Press menu/mute.
Press +or -to move the pointer to
“Caller ID Setup”, then
press select/ch.
Press +or -to move the pointer to an
option, then press select/ch.
Press +or -to change the
option setting.
Press select/ch and return the
handset to the base.
TO CHOOSE THE LANGUAGE
Press menu/mute.
Press +or -to move the pointer
to “Language”, then
press select/ch.
Press +or -to change the
option setting.
Press select/ch and return the handset
to the base.
TO TURN THE ANSWERING
SYSTEM ON/OFF
Press ans on/off to turn On the system. To turn
Off the system, press ans on/off again.
TO SET GREETING MESSAGE
Press and hold greeting.
Start recording your message. Position
yourself as near to the base as possible.
When finished, press greeting
or .
Note:
You must charge the battery pack
continuous
for 15-20 hours
before using the phone.
Note: Three Caller ID options
are available: Auto Talk, Caller
ID on Call Waiting (CIDCW) and
Area Code.
Step 1 Charging the Battery Step 4 Setting Up
Answering System
Step 2 Connecting
Step 3 Setting up the Caller
ID Options/Language
QUICK REFERENCE GUIDE [ 5 ]
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 5

[ 6 ] CONTROLS AND FUNCTIONS[ 6 ]
Controls and Functions
1
4
5
2
36
7
8
11
12
9
10
13
14
15
17
18
19
20
21
22
23
24
16
1. Handset Antenna
2. Headset Jack Cover
3. Beltclip Hole
4. Handset Battery Compartment
5. New Message LED
6. Handset Earpiece
7. LCD Display
8. CID (Caller ID)/> (right cursor) Key
9. (Phonebook)/RocketDial/< (left cursor) Key
10. Talk/flash Key
11. (repeat)/1 Key
12. (delete) (for remote operation)/4 Key
13. */tone Key
14. (redial)/p (pause) Key
15. (mute)/menu Key
16. Handset Microphone
17. +(up) Key
18. -(down)/remote Key
19. End Key
20. (skip)/3 Key
21. #Key
22. Xfer (transfer)/ del (delete) Key
23. Ch (channel)/select Key
24. Handset Charging Contacts
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 6

25
28 29 3027
26
47
43
44
45
41
40
39
42
46
4948 50 51
35
36
37
38
31
34
33
32
25. DC Power Input
26. Telephone Line Jack
27. (delete) Key
28. Status LED
29. (repeat) Key
30. Message Counter Display
31. Base Charging Contacts
32. Ans on/off Key
33. Menu Key
34. Set/ringer Key
35. Memory Key
36. Redial/pause Key
37. Flash Key
38. Find handset/transfer Key
39. (skip) Key
40. (play/stop) Key
41. Greeting Key
42. Memo Key
43. Mute Key
44. (talk) Key/speaker LED
45. (up) Key
46. (down) Key
47. Base Antenna
48. Base Speaker
49. *tone Key
50. # Key
51. Microphone
52. Charging Contacts (TRU4485-2 only)
53. Charge LED (TRU4485-2 only)
54. DC Power Input (TRU4485-2 only)
CONTROLS AND FUNCTIONS [ 7 ]
53
52
(TRU4485-2 only)
54
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 7

GETTING STARTED[ 8 ]
Read this First
This cordless telephone must be set up before use. Follow these steps:
About the digital security code
This cordless telephone uses a digital
security code to prevent unauthorized
access to your base unit. This security
code prevents other cordless handsets
from making calls through your base
unit. If you want to reset the security
code, see page 57.
Step 1 (page 9)
Unpack the telephone and accessories.
Step 2 (page 10)
Next, choose the best location to set up the
base unit.
Step 3 (page 11 to 14)
Then, insert the battery pack into the handset.
Connect the base unit. You must charge the battery
pack for 15-20 hours before plugging into the
phone line and using the phone.
Step 4 (page 15 to 17)
Finally, set the Caller ID options, and store your area
code in the memory to use the Caller ID service.
Choose the language of your display.
Note: Skip the area code setting if your calling area
requires 10-digit dialing.
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 8

GETTING STARTED [ 9 ]
GETTING STARTED
Checking the Package Contents
Uniden Parts Department
[phone]
Hours: M-F 7:00 a.m. to 5:00 p.m. CST.
We can also be reached on the web at www.uniden.com.
Make sure you have received the following items in the package. If any of these items
are missing or damaged, contact the Uniden Parts Department.
•Base unit (1)
•Handset [TRU4485 (1) / TRU4485-2 (2)*]
•AC adapter [TRU4485 (1) / TRU4485-2 (2)]
•Rechargeable battery [TRU4485 (1) / TRU4485-2 (2)]
•Telephone cord (1)
•Beltclip [TRU4485 (1) / TRU4485-2 (2)]
•Charger (1) [TRU4485-2 only]
Also included:
•This Owner’s Manual
•Other Printed Material
* For operations and restrictions on the second handset, read “Expanding Your Phone”
on page 53.
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 9

GETTING STARTED[ 10 ]
Do the following steps:
A. Choose the best location C. Connect the base unit
B. Install the battery pack D. Choose the dialing mode

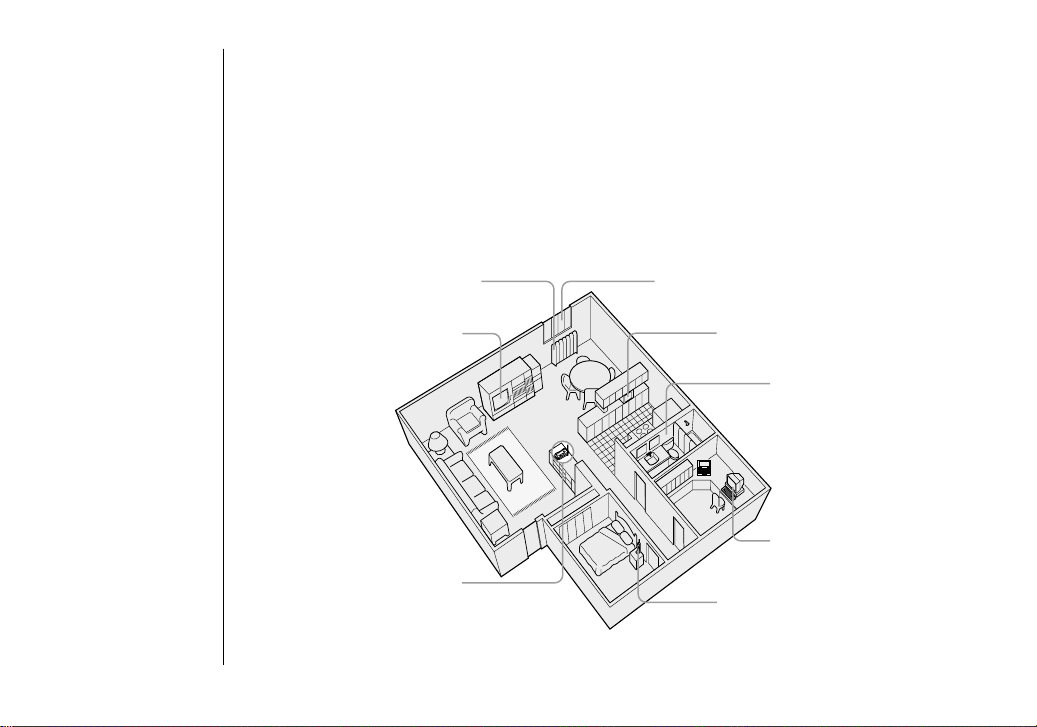

A. Choose the best location
Before choosing a location for your new phone, read “Installation Considerations”on
page 64. Here are some important guidelines you should consider:
Avoid excessive moisture,
extremely low temperatures,
dust, mechanical vibration,
or shock
Setting up the Phone
Avoid heat sources, such as
radiators, air ducts, and sunlight
Avoid television sets and
other electronic equipment
Avoid noise sources such as a window by a
street with heavy traffic
Avoid microwave ovens
Avoid personal computers
Avoid other cordless telephones
Choose a central location
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 10

GETTING STARTED [ 11 ]
GETTING STARTED
B. Install the battery pack
Charge the battery pack for at least 15-20 hours before
plugging the phone line into your base unit.
1) Press down on the battery cover release and slide the cover
down until it comes off.
2) Connect the battery pack connector observing the correct
polarity (black and red wires) to the jack inside the
battery compartment.
Do not exert any force on this connection. It could cause
damage to the battery or to the handset. The plastic
connectors will fit together in only one way. Once you are
certain that you have made a good connection, then insert
the battery pack into the battery compartment. Do not
pinch the wires.
3) Securely close the battery compartment cover by sliding it
up until it snaps into place.
4) Place the handset in the charging cradle with the keypad
facing forward.
•Use only the Uniden
battery (BT-446)
supplied with your
phone. Replacement
batteries are also
available through the
Uniden Parts
Department.
(See page 9.)
•Recharge your phone
on a regular basis by
returning the handset
to the base after each
phone call.
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 11

GETTING STARTED[ 12 ]
Battery use time (per charge)
Fully charged
•6 hours continuous use
•10 days when the handset is in the standby mode
Cleaning the battery charging contacts
To maintain a good charge, it is important to clean the
battery contacts on the handset and base unit with a
dry cloth or a pencil eraser about once a month.
Do not use any liquids or solvents.
contacts
The last number dialed in the redial memory is retained for up to
2 minutes while you replace the battery pack.

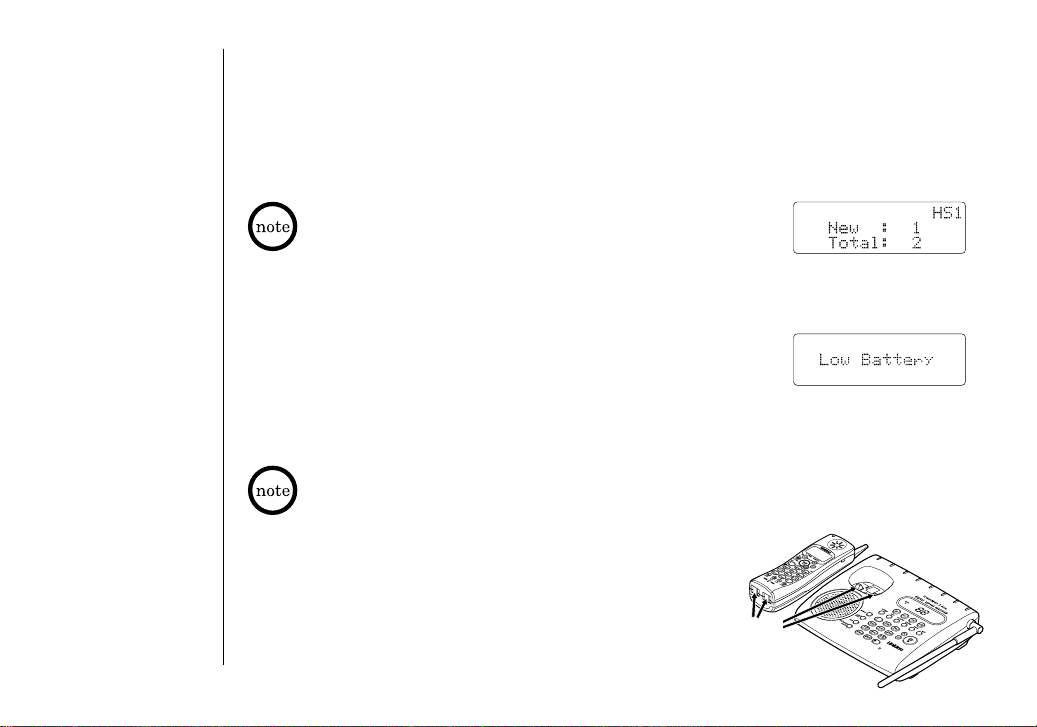

When you charge the handset, Caller ID summary screen and the name
of the handset, HS1 appears. For TRU4485-2, if HS2 appears, you are
charging the handset No.2.
Low battery alert
When the battery pack is very low and needs to be charged, the
phone is programmed to eliminate functions in order to save power.
If the phone is in the standby mode, ”Low Battery”appears on
the LCD and none of the keys will operate. If the phone is in use,
”Low Battery”appears and the handset beeps. Complete your
conversation as quickly as possible and return the handset to the
base unit for charging.
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 12

GETTING STARTED [ 13 ]
INSTALLING AND
ADJUSTING
GETTING STARTED
C. Connect the base unit
1) Connect the AC adapter to the DC IN 9V jack and
to a standard 120V AC wall outlet.
2) Set the base and charger (for TRU4485-2 only) on
a desk or tabletop, and place the handset in the
base unit as shown.
3) Raise the antenna to a vertical position.
4) Make sure the status LED illuminates. If the LED does not
illuminate, check to see that the AC adapter is plugged in and that
the handset makes good contact with the base charging contacts.
Place the power cord so
that it does not create
a trip hazard or where
it could become chafed
and create a fire or
electrical hazard.
•Use only the supplied AD-312 AC adapter.
Do not use any other AC adapter.
•Connect the AC adapter to a continuous power supply.
•Place the base unit close to the AC outlet so that you can unplug the AC
adapter easily.
•After installing the battery pack in the handset, charge your handset at least 15-20
hours before plugging into the phone line. Once the handset battery pack is fully
charged, connect the telephone line cord to the base and telephone wall outlet.
5) Connect the telephone line cord to the TEL LINE
jack and to a telephone outlet once the handset is
fully charged.
If your telephone outlet isn't
modular type, contact your telephone
company for assistance. Modular
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 13

[ 14 ] GETTING STARTED
D. Choose the dialing mode
Most phone systems use tone dialing, which sends DTMF tones through the phone lines.
However some phone systems still use pulse dialing such as in rural areas. The default
setting is tone dialing. Depending on your dialing system, set the mode as follows:
1) When the phone is in the standby mode, press menu/mute.
2) Press -to move the pointer to “Dial Mode”.
3) Press select/ch and the display will show the current setting.
(The initial setting is Tone.)
4) Press +or -to change the selection.
5) Press select/ch and a confirmation tone will sound.
6) Press end to exit.
Throughout this manual, terms such as Standby and Talk Mode are used. Below is the
terminology explanation.
Standby Mode - The handset is not in use, is off the base, and talk/flash has not been
pressed. A dial tone is not present and the display is blank.
Talk Mode - The handset is not on the base and talk/flash has been pressed enabling a dial
tone. “Talk”appears on the display.
Terminology
•If you are not sure of
your dialing system,
set the unit to tone
dialing. Make a trial
call. If the call
connects, leave the
setting as is,
otherwise set the unit
to pulse dialing.
•If your phone system
requires pulse dialing
and you need to send
DTMF tones in certain
situations during a
call, you may
“switch-over”to tone
dialing. (Refer to
“Tone Dialing Switch-
over”on page 22.)
UC777BH(TRU4485) OM 4/9/02 1:45 PM Page 14

To change your Caller ID options:
1) When the phone is in the standby mode, press menu/mute.
2) Press +or -to move the pointer to “Caller ID Setup”,
then press select/ch.
3) Press +or -to choose “Auto Talk”or “CIDCW”, then
press select/ch.
4) Press +or -to change the selection.
AutoTalk: “Auto Talk On”or “Auto Talk Off”
CIDCW: “CIDCW On”, “CW Deluxe On”or “CIDCW Off”
5) Press select/ch and a confirmation tone will sound. To complete
the setting, make sure to return the handset to the base.
[ 15 ]GETTING STARTED
Setting Caller ID Options
GETTING STARTED
There are three Caller ID setup options available: AutoTalk, CIDCW (Caller ID on Call
Waiting), and Area Code. See page 16 for Area Code setup instructions.
AutoTalk allows you to answer the phone without pressing talk/flash. If the phone rings
when AutoTalk is On, simply remove the handset from the base and the phone
automatically answers the call. Or if the handset is not on the base, press any number key,
*tone, or #to answer the call. If you set AutoTalk to Off, you must press talk/flash to
answer the call.
Caller ID on Call Waiting (CIDCW) performs the same as regular Caller ID on a call
waiting number. CW Deluxe allows you to handle call waiting calls in seven different ways.
(See page 39.)
You must subscribe to CIDCW from your phone company in order to use this feature.
The CW Deluxe is a separate service available through your phone company.
UC777BH(TRU4485) OM 4/9/02 1:46 PM Page 15

GETTING STARTED[ 16 ]
Entering your Area Code
If you enter a 3-digit area code number in the “Area Code”option, your local area
code does not appear in Caller ID messages. For calls received from outside your local
area code, you will see a full 10-digit number.
1) When the phone is in the standby mode, press menu/mute.
2) Press +or -to move the pointer to “Caller ID Setup”,
then press select/ch.
3) Press +or -to move the pointer to “Area Code”,
then press select/ch.
4) Use the number keypad (0to 9) to enter a 3-digit area code.
5) Press select/ch, and a confirmation tone will sound.
•If your calling area
requires 10-digit
dialing, do not
program this option.
•When the area code
has already been
stored in memory,
the stored area code
will be displayed. To
change it, press
xfer/del and the
number keypad to
enter the new
area code.
•To complete the
setting, press
select/ch, then
return the handset
to the base.
UC777BH(TRU4485) OM 4/9/02 1:46 PM Page 16

[ 17 ]
GETTING STARTED
Language option can be used to choose the language of your display. You can select
English, French, or Spanish.
1) When the phone is in the standby mode, press menu/mute.
2) Press -to move the pointer to “Language“,
then press select/ch.
3) Press +or -to choose English, French (Français), or
Spanish (Español).
4) Press select/ch, and a confirmation tone will sound.
GETTING STARTED
Selecting a Language
UC777BH(TRU4485) OM 4/9/02 1:46 PM Page 17

BASICS[ 18 ]
Making and Receiving Calls
•Refer to page 15
“Setting Caller ID
Options”to turn the
AutoTalk feature On if
desired. Any key
answer can be used
only when AutoTalk is
set to On.
•The base microphone
is located under the
base. Position
yourself as near to
the base as possible
and speak clearly.
From the Handset From the Base
To answer a call Handset On the Base Press (talk).
Pick up the handset (AutoTalk)
or pick up the handset and
press talk/flash.
Handset Off the Base
Press any number key, *tone,
or #(Any Key Answer), or
press talk/flash.
To make a call 1) Pick up the handset. 1) Press (talk).
2) Press talk/flash. 2) Listen for the dial tone.
3) Listen for the dial tone. 3) Dial the number.
4) Dial the number.
OR
1) Pick up the handset.
2) Dial the number, then
press talk/flash.
To hang up Press end, or return the Press (talk).
handset to the base
(AutoStandby).
To enter a pause When you dial the number, When you dial the number,
within the press redial/p before pressing press redial/pause.
dialing sequence talk/flash. “P”appears in the
display which represents a pause.
UC777BH(TRU4485) OM 4/9/02 1:46 PM Page 18
