Welcome
Congratulations on your purchase of the Uniden DWX207
waterproof accessory handset. You can place this fully featured
cordless handset anywhere your home has AC power-- even
outside by the pool!
What Exactly does “Waterproof Handset” Mean?
Your handset complies with the JIS7 water submersion
specications. This means the handset can remain submerged
under 3 feet of water for up to 30 minutes without damage or
loss of functionality.
The handset will still receive calls even if it is under water, but
you probably won’t be able to hear the ringer. To avoid any
accidents, do not try to use the handset while it is still under
water.
After your handset is submerged in water, you might notice
that the sound is distorted. This is because there is still water
remaining in and around the speaker and microphone. Just
shake the handset to clear excess water, and the sound should
return to normal.
Is the Charging Cradle Waterproof?
The charging cradle is not waterproof: it is water resistant.
The cradle uses a special method called magnetic inductive
charging, so it can charge your handset without exposing any
electronic components. (You may notice that the charging
contacts are enclosed in plastic and there is no metal showing.)
This charging method makes the cradle safe to use near water
or in highly humid environments, but is it not designed to be
submerged in water.
If the charging cradle falls into water, unplug it before
attempting to remove it from the water. Allow the cradle to dry
completely before reconnecting the power.

2
Accessibility
Uniden provides a customer service hotline for accessibility
questions. If you have a disability and need customer service
assistance or if you have any questions about how Uniden's
products can accommodate persons with disabilities, please call
the accessibility voice/TTY line: 1-800-874-9314.
Our customer care hours as well as accessibility information
can be found on our website, www.uniden.com, under the
"Accessibility" link. If your call is received outside of our business
hours, you can leave us a message and we will call you back.
Important!
The DWX207 accessory handset will not operate until it is
registered to a Uniden base. This manual describes how to set
up your new handset; for more detailed instructions on operating
your new handset, please refer to the manual supplied with your
base. The DWX207 waterproof accessory handset operates just
like a regular DECT2000 series handset.
Terminology Used in this Manual
Accessory
Handset A handset that works with an expandable phone base. Accessory handsets must be registered to a base.
Base The main part of the phone that connects to your phone
line, and lets you make and receive calls.
Charging
cradle A cradle that charges an accessory handset. It connects to power but not to a phone line.
Standby The handset is not in use. No line has been activated. (It doesn’t matter whether the handset is in the cradle.)
No dial tone is present.
Station Any registered handset or the base.
Talk A dial tone has been enabled, so you can dial and carry on
a conversation with an outside party.
Note: Illustrations in this manual are used for explanation purposes.
Some illustrations may differ from the actual unit.
Uniden®is a registered trademark of Uniden America Corporation.

3
Compatible Bases
This handset is compatible with Uniden's 1.9 GHz DECT6.0
Expandable phone system: the DECT1500, DECT2000 and
DECT3000 series. Please visit our website at www.uniden.com
for the most up-to-date list of compatible bases.
Installing the Accessory Handset
Checking the Package Contents
Make sure your package contains the following items. If any
items are missing or damaged, contact our Customer Service
Hotline. See the back cover page for contact information.
• Cordless Handset • Belt Clip
• Charging cradle • Printed Material
• AC Adapter (model # PS-0011: Input 120V AC, 60 Hz; Output
19V DC, 100 mA)
• Rechargeable NiMH Battery Pack (model # BT-1008: Capacity
650 mAh, 2.4V)
Activate the Handset
The handset is powered by a rechargeable battery pack already
installed in the handset’s battery compartment.
Note: Use only the Uniden BT-1008 rechargeable battery pack
supplied with your cordless telephone.
Before charging
the battery for the
first time, push

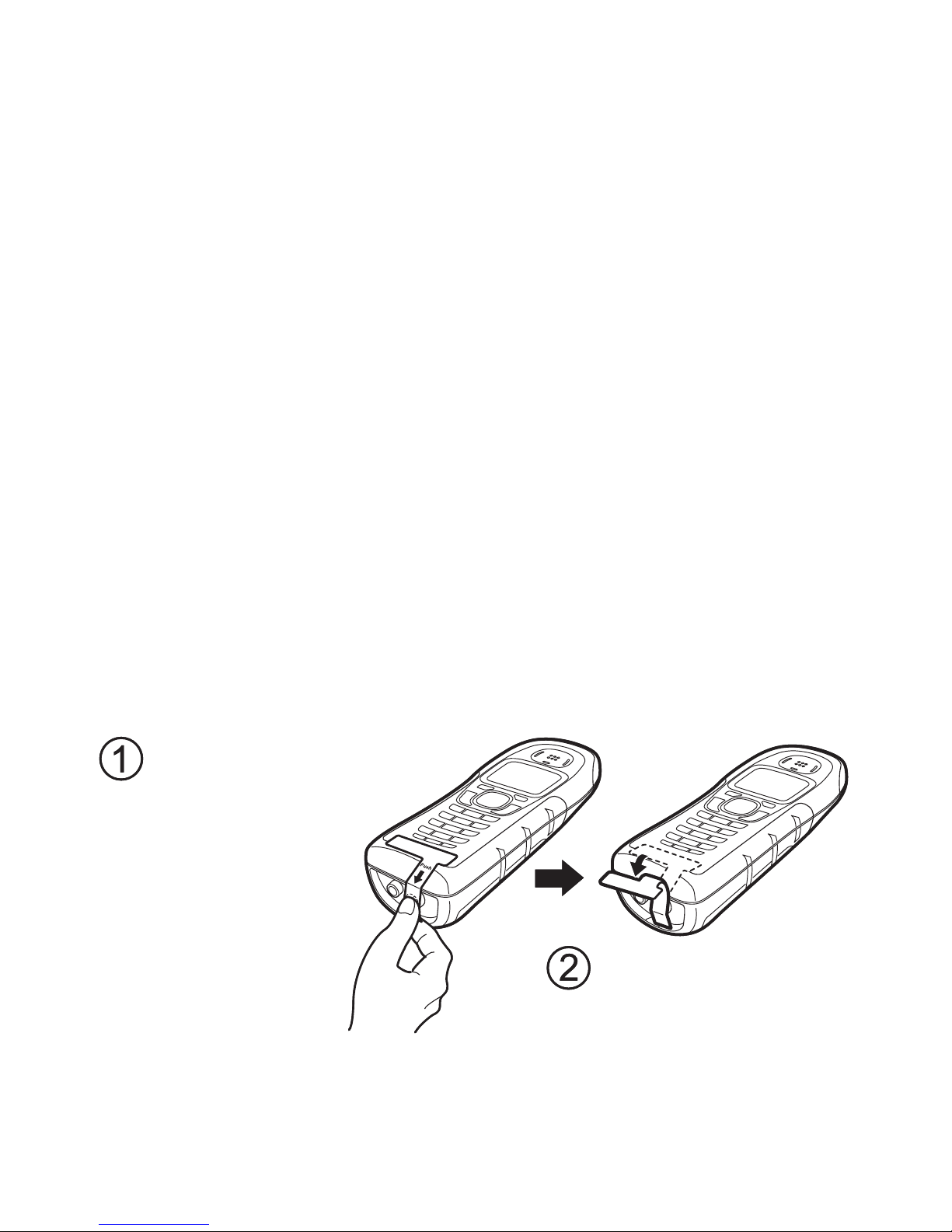

the activation
pin, located on
the bottom of
the handset
(see label with
instructions). Once you activate
the handset, remove
the label.
Before charging
the battery for the
first time, push
the activation
pin, located on
the bottom of
the handset
(see label with
instructions). Once you activate
the handset, remove
the label.

4
Charging the Accessory Handset
Use only the Uniden PS-0011 AC adapter with the charging
cradle.
What if the charge LED
doesn’t light up?
Check the AC adapter connection.
Make sure you are not using an outlet
that’s controlled by a wall switch.
Make sure that the
charge LED
illuminates when the
handset is seated.

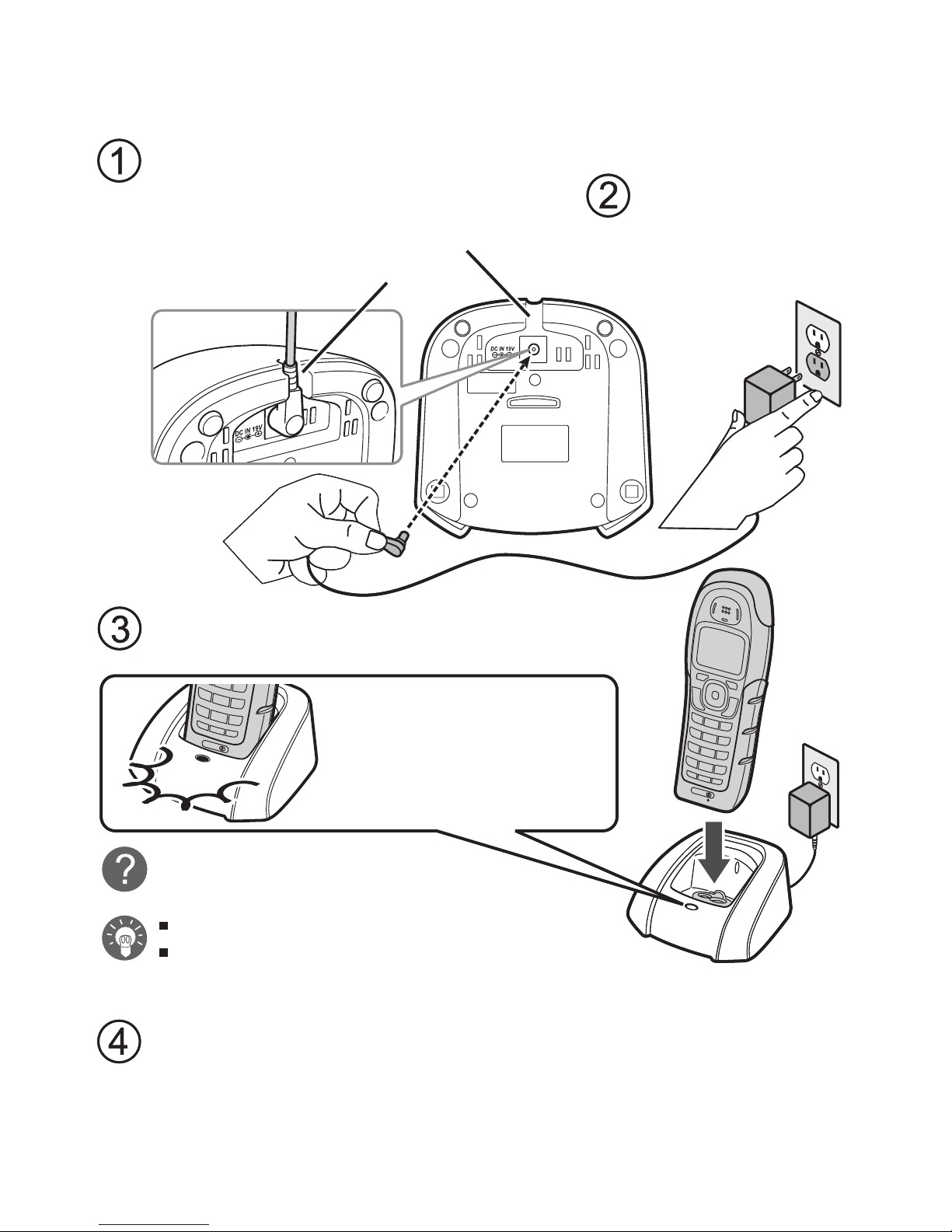

Connect the AC
adapter to a
standard 120V
AC wall outlet.
Connect the AC adapter to the
DC IN 19V jack on the bottom
of the charging cradle, and
place the cord through the
molded wiring channel.
Place the handset in the charging
cradle with the display facing forward.
Charge your handset at least 25 hours before
using your new handset for the first time.
What if the charge LED
doesn’t light up?
Check the AC adapter connection.
Make sure you are not using an outlet
that’s controlled by a wall switch.
Make sure that the
charge LED
illuminates when the
handset is seated.
Connect the AC
adapter to a
standard 120V
AC wall outlet.
Connect the AC adapter to the
DC IN 19V jack on the bottom
of the charging cradle, and
place the cord through the
molded wiring channel.
Place the handset in the charging
cradle with the display facing forward.
Charge your handset at least 25 hours before
using your new handset for the first time.

5
Notes: • For best results, wipe off dirt or shake water from handset
before placing in the charging cradle.
• Due to the magnetic inductive charging used with this model
the bottom of the handset might be warmer than room
temperature when you rst remove it from the charging cradle.
However, the warmth should not be excessive or
uncomfortable to touch.
• Do not place the power cord where it creates a trip hazard or
where it could become chafed and create a re or electrical hazard.
Caution:
Keep magnetic items away from the handset.
Don’t place the handset where it will be subjected to direct
sunlight for long periods of time.
Registering the Handset
If you have purchased this accessory handset separately, it must
be registered to the base before you can use it.
Notes: • The handset must be fully charged before attempting to register.
• Only one handset can be registered at a time.
Handsets that have not been registered display:
If the other base has an LCD display:
• With the phone in standby, press [Menu/Select] on
the base. Press [ ] to move the cursor to REGISTER
HANDSET and then press [Menu/Select]. HANDSET
REGISTERING appears.
If the other base does not have an LCD display:
• Disconnect the base AC adapter. Then press and hold
[nd hs] or [nd] while you reconnect the adapter. Keep
pressing [nd hs] or [nd] until the charge/in use LED
starts to blink.
On the handset, press and hold [#] until the handset beeps
and displays HANDSET REGISTERING.
When the handset nishes registering, it shows
REGISTRATION COMPLETE in the display.
-
-
1)
2)
3)

6
Resetting the Handset
If you want to register the handset to a different base or replace
a handset with another one, you must rst clear the registration
information from the base and the handset.
Press and hold [ ] and [#] for at least ve seconds, until the
SYSTEM RESET menu appears.
Select the DEREGISTER HS
submenu by pressing [Menu/
Select]. WHICH HANDSET?
appears in the display.
Use [ ] or [ ] to select the handset ID to be de-
registered from the list, and then press [Menu/Select].
DEREGISTER HS appears.
Press [ ] to move the cursor to YES, and then press
[Menu/Select]. You will hear a conrmation tone.
Resetting the Handset Without the Base
If the original base this handset was registered to is not
available for some reason (for example, it is lost or somehow
incapacitated), you can still reset the handset and use it with
another base.
Press and hold [ ] and [#] for at least ve seconds, until the
SYSTEM RESET menu appears.
Press [ ] to move the cursor to BASE UNAVAILABLE and
then press [Menu/Select]. WHICH BASE? appears.
Press [ ] to move the cursor to the base which you want
to de-register from, and then press [Menu/Select]. BASE
UNAVAILABLE appears.
Press [ ] to move the cursor to YES, and then press
[Menu/Select]. You hear a conrmation tone, and the
handset deletes its own link to the base without trying to
contact the base.
Note: If the handset is still registered to another base, it searches for
the other base and then returns to standby.
Now you are ready to register the handset to the new base.
1)
2)
3)
4)
1)
2)
3)
4)
9JKEJ*CPFUGV!
*CPFUGV
*CPFUGV
9JKEJ*CPFUGV!
*CPFUGV
*CPFUGV
What if the display shows REGISTRATION FAILED?
Repeat the process starting with step 1.

7
Replace the Rechargeable Handset Battery Pack
Remove the four screws
holding the battery
compartment with a
screwdriver and take off
the battery cover. Remove
the old battery pack from
the battery compartment.
Line up the red and black
wires with the polarity label
in the battery compartment
(the connector only ts one
way). Push the connector
in rmly; you should hear
the connector click into
place.
Tug on the battery wires
slightly to make sure you
have a good connection.
Before placing the battery
cover back on the handset,
check the rubber seal
located on the under side
of the cover: make sure
that the seal is in good
condition and that there
is no foreign matter under
the seal.
Note: If the rubber seal
appears warn, nicked, or dried
out, replacement seals are
available through the Uniden
Parts Department. See the
back cover page for contact
information.
1)
2)
3)
4)

8
Insert the bottom end of
the cover into the grooves
on the handset and lay
the cover over the battery
compartment. Tighten the
four screws securely.
Notes: • If there is any foreign
matter on the rubber seal
located on the under side
of the battery cover, the
handset may not be
water tight.
• The rubber seal should
be replaced every two
years, even if it does not
look worn.
5)
Installing the Belt Clip
Insert the tabs on the sides of the belt clip
into the holes on either side of the handset.
Press the belt clip down until it clicks into
place. (Tug on the clip to make sure it’s
secure.)
To remove the belt clip, gently pull the tabs
out of the holes, then slide the belt clip off
of the handset.

9

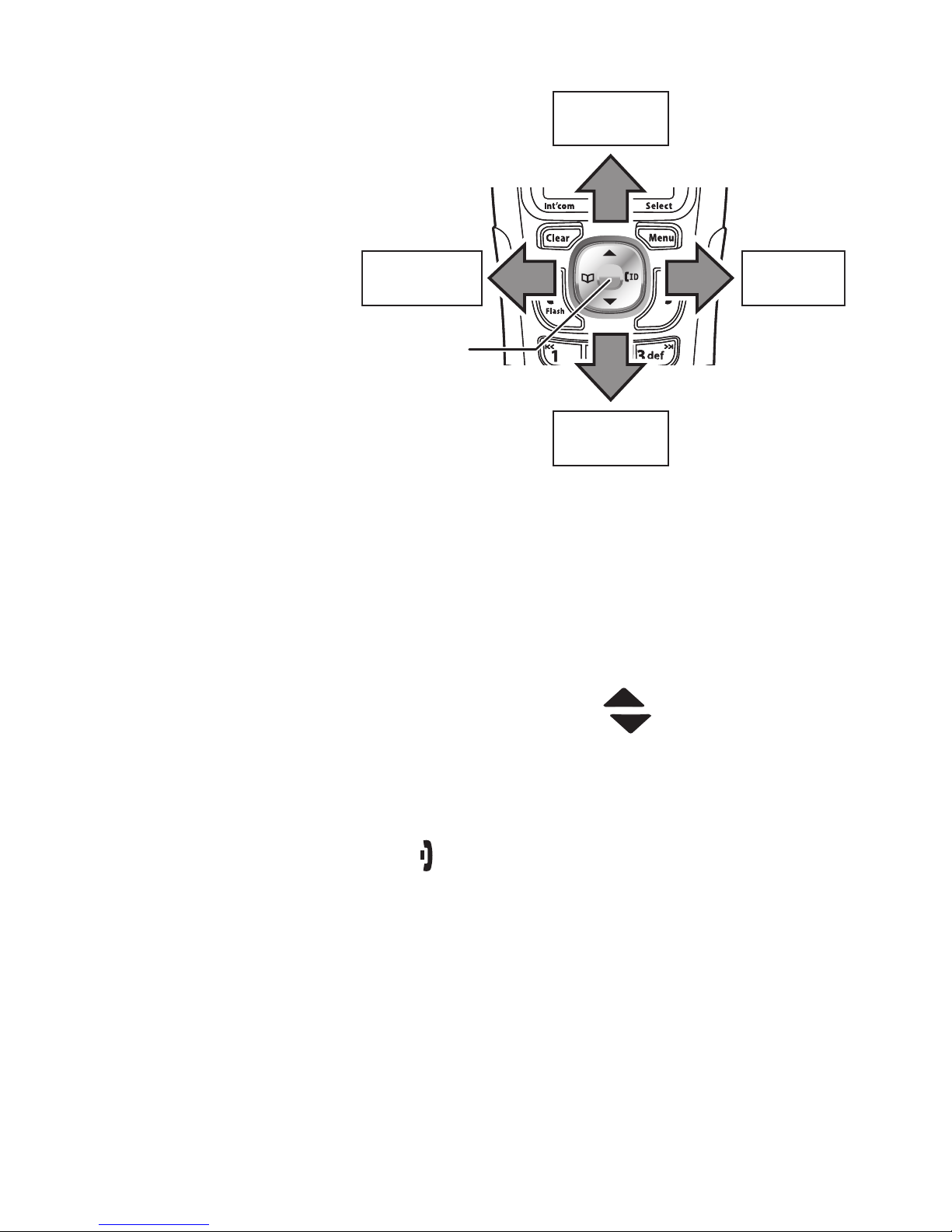

Using the Interface
Parts of the Handset
[ ] key (down)
[ ] key (caller ID/right)
[Menu/Select] key
[ ] key (end call)
[#] key
[ ] key (speaker)
Microphone
[ ] key (up)
new message LED
Earpiece
Display (LCD)
[Clear/Int’com] key
(clear/intercom)
[ ] key (phonebook/left)
[ /Flash] key (talk/flash)
Belt clip hole
Speakerphone
speaker and ringer
Battery compartment
Twelve-key dial pad
[ /Mute] key
(messages/mute)
[ /tone] key
[Redial/Pause] key
[ ] key (down)
[ ] key (caller ID/right)
[Menu/Select] key
[ ] key (end call)
[#] key
[ ] key (speaker)
Microphone
[ ] key (up)
new message LED
Earpiece
Display (LCD)
[Clear/Int’com] key
(clear/intercom)
[ ] key (phonebook/left)
[ /Flash] key (talk/flash)
Belt clip hole
Speakerphone
speaker and ringer
Battery compartment
Twelve-key dial pad
[ /Mute] key
(messages/mute)
[ /tone] key
[Redial/Pause] key

10

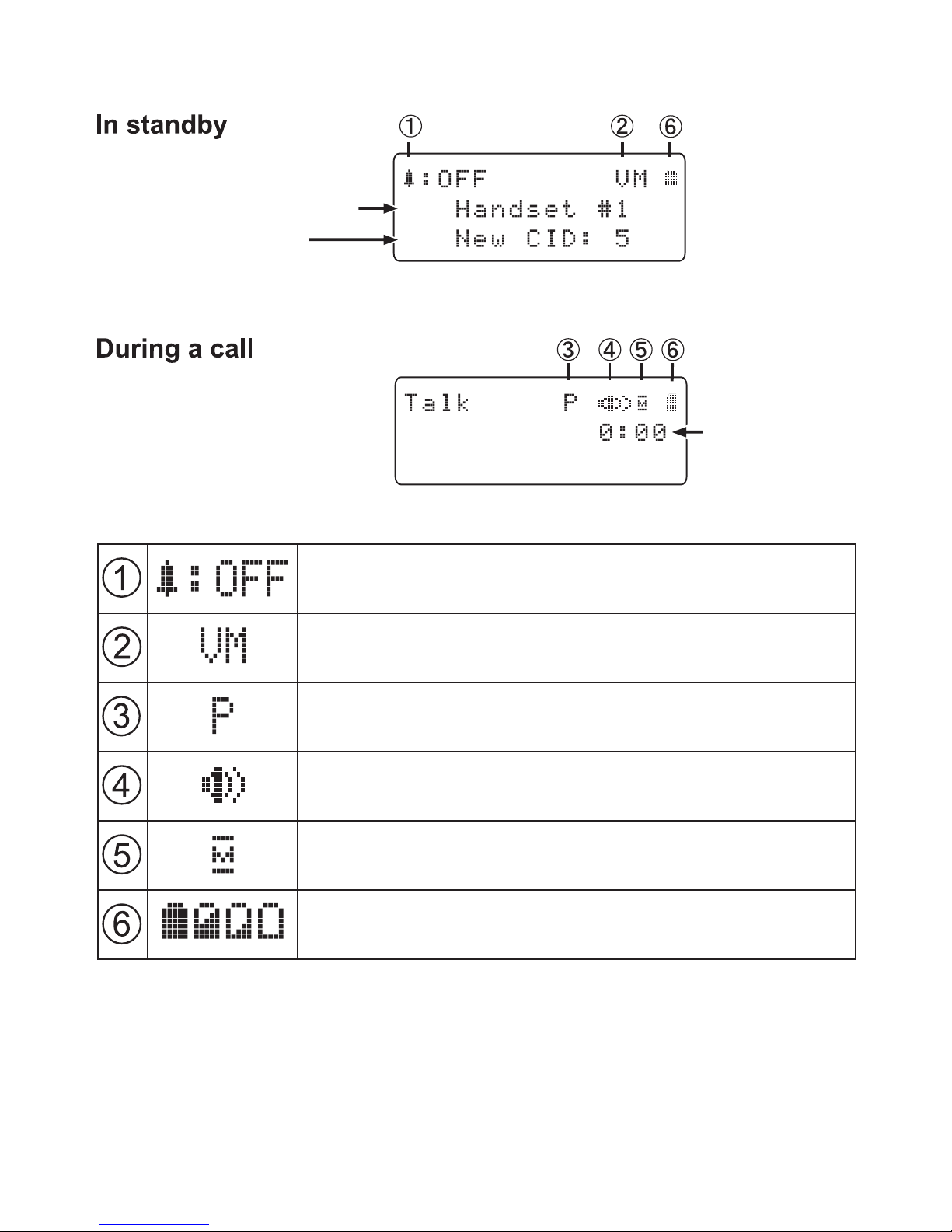

Reading the Display
Call duration
Handset ID and banner
Number of new
Caller ID calls received
The ringer off icon indicates that the ringer is
turned off.
The voice mail icon appears when you have
messages waiting in your voice mailbox.
The privacy icon appears when the Privacy
Mode is turned on.
The speaker icon appears when the speaker
phone is in use.
The mute icon appears while the microphone
is muted.
The battery icon indicates the handset
battery status: full, medium, low, and empty.

11
Using the Four-way Function Key
Your handset has
a four-way function
key that allows you
to move the cursor
or pointer on the
display and access
the most commonly
used features at the
touch of a button. By
moving this key to
the left, you open the
phonebook. Move
the key to the right
to access Caller ID
information.
To use this four-way key, place your thumb over the key on the
handset and move to the four positions to get the feel of how it
moves and operates.
Using the Handset Menus
To open the menu, press the [Menu/Select] key.
The arrow pointer on the left side of the line shows which
menu item is currently highlighted. Use [ ] on the four-way
function key to move the pointer up and [ ] to move the
pointer down.
To select the highlighted option, press [Menu/Select].
To go back to the previous screen, press [left] on the four-
way function key.
To exit the menu, press [ ].
If you don’t press any keys for thirty seconds, the phone will
time out and exit the menu.
Entering Text from Your Handset
You can use the number keypad on your handset to enter text
by referring to the letters printed on each number key. When you
press the number key in a text entry eld, the phone displays
the rst letter printed on the number key. Press the number key
twice to display the second letter and three times to display the
third. Capital letters are displayed rst, then lower case letters,
and then the number on the key.
•
•
•
•
•
•
View the
phonebook
Four-way
Function Key
Up
View the
Caller ID
Down
View the
phonebook
Four-way
Function Key
Up
View the
Caller ID
Down

12
If two letters in a row use the same number key, enter the rst
letter, then use [right] on the four-way function key to move the
cursor to the next position to enter the second letter.
For example, to enter the word "Movies":
Press [6] once to enter M.
Use [right] on the four-way function key to move the cursor
to the right.
Press [6] six times to enter o.
Press [8] six times to enter v.
Press [4] six times to enter i.
Press [3] ve times to enter e.
Press [7] eight times to enter s.
Press [Menu/Select] to end your text entry.
If you make a mistake while entering a name, use [right] or [left]
on the four-way function key to move the cursor to the incorrect
character. Press [Clear/Int’com] to erase the wrong character,
and then enter the correct character. To delete all characters,
press and hold [Clear/Int’com].
1)
2)
3)
4)
5)
6)
7)
8)

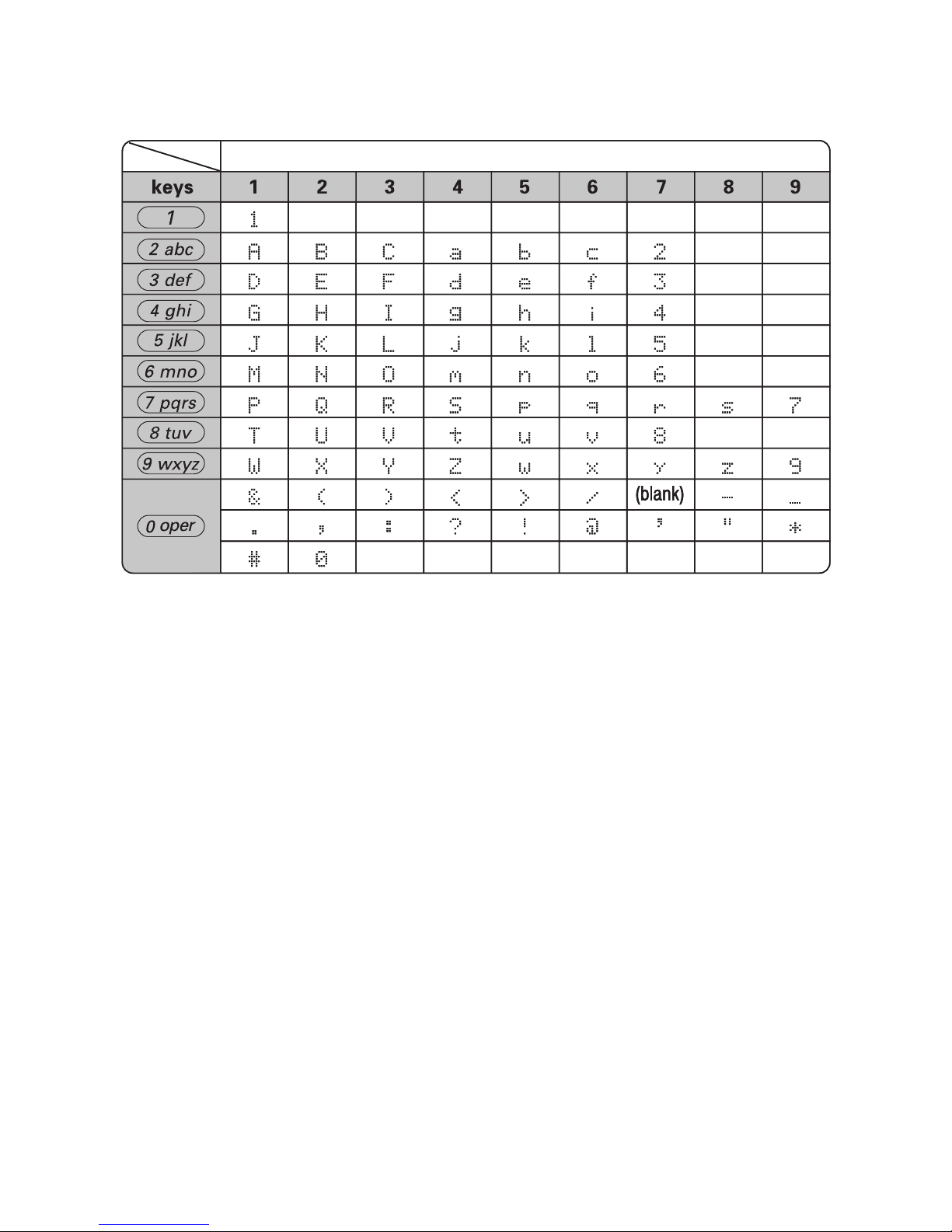

Number of times key is pressedNumber of times key is pressed

13
Using Your Accessory Handset
Making and Receiving Calls
With the earpiece With the speaker phone
Make a
call
Pick up the handset from the
cradle.
Dial the number.
Press [ /Flash].
1)
2)
3)
Pick up the handset
from the cradle.
Dial the number.
Press [ ].
1)
2)
3)
Answer
a call
Pick up the handset.
(If AutoTalk is on, the phone
answers when you pick up the
handset from the cradle.)
Press [ /Flash].
(If Any Key Answer is on, you
can press any key on the dial
pad.)
1)
2) Pick up the handset. Press [ ].
1)
2)
Hang up Press [ ] or return the handset to the cradle.
Adjusting the Volume
Ringer
Volume
Choose from four ringer volume settings (off, low, medium,
and high). With the phone in standby, press [ ] or [ ].
The display shows the current volume level and the handset
sounds the ringer at that level. Use [ ] to make the ringer
volume louder or [ ] to make it softer or turn it completely
off.
Earpiece
Volume Choose from six volume levels for the earpiece. While on a
call, press [ ] to make the earpiece volume louder or
[ ] to make it softer.
Speaker
Volume
Choose from six volume levels for the handset
speakerphone. While on a speakerphone call, press
[ ] to make the speaker volume louder or [ ] to make
it softer.
Notes: • If you set the ringer volume to OFF, the handset won’t ring.
Other stations will ring according to their individual settings.
• The handset earpiece and the handset speaker have separate
volume settings.

14
Using Caller ID and Call Waiting
If you subscribe to Caller ID, you can store up to thirty Caller
ID numbers in each handset. Caller ID records are stored from
newest to oldest. Once your Caller ID list is full and you receive
an incoming call, the oldest record will be automatically deleted
to make room for the new record.
To open the Caller ID list, press [ ]. The phone will show the
number of new Caller ID records (that is, records you have not
reviewed yet) and the total number of stored records. From the
screen, you have the following options:
Scroll through the
records
Press [ ] to scroll through CID records.
CID records are stored chronologically from
newest to oldest. (New records have an
asterisk next to the received time.)
Store a record in the
phonebook
Find the record you want to store and
press [Menu/Select].
Move the cursor to STORE INTO PB, and
press [Menu/Select].
1)
2)
Dial a record Find the entry you want to dial and press
[ /Flash] or [ ].
Delete a record Find the entry you want to delete and press
[Menu/Select].
Move the cursor to DELETE ENTRY, and
press [Menu/Select].
1)
2)
Delete all records Press [Menu/Select].
Exit the Caller ID list Press [ ],or press [ ] (the left key on the
four-way function key) if you are on a call.
Using Call Waiting
If you subscribe to call waiting, a tone sounds if a call comes in
when you are on the phone. If you subscribe to Caller ID on call
waiting, the Caller ID information of the waiting call appears on
the display. Press [ /Flash] on the handset to accept the waiting
call. After a short pause, you will hear the new caller. To return to
the original caller, press [ /Flash] on the handset again.

15
Using the Phonebook
Your handset can store up to seventy names and numbers in
your phonebook. When all the phonebook entries are full, you
will hear a beep and MEMORY FULL appears. You cannot store
any additional names and numbers unless you delete some of
the existing ones.
Press [ ] to enter the phonebook. Once in the phonebook, you
have the following options:
Scroll through
the entries Press [ ] to scroll through the phonebook
alphabetically.
Jump to
entries that
start with a
certain letter
Press the number key corresponding to the letter you
want to jump to.
Store a new
entry
Press [Menu/Select].
Move the cursor to CREATE NEW, and then press
[Menu/Select].
1)
2)
Copy one
entry to
another
station
Find the entry you want to copy, and press
[Menu/Select].
Move the cursor to COPY, and press [Menu/Select].
Move the cursor to select the station you want to
copy the entry to, and press [Menu/Select].
1)
2)
3)
Copy all
entries to
another
station at
once
Press [Menu/Select], and then select COPY ALL.
Move the cursor to select the station you want to
copy the entries to, and press [Menu/Select].
Move the cursor to YES, and press [Menu/Select].
1)
2)
3)
Dial an entry Find the entry you want to dial.
Press [ /Flash] or [ ].
1)
2)
Delete an
entry
Find the entry you want to delete, and press
[Menu/Select].
Move the cursor to DELETE, and press [Menu/Select].
1)
2)
Delete all
entries
Press [Menu/Select].
Move the cursor to DELETE ALL, and press
[Menu/Select].
1)
2)
Close the
phonebook Press [ ], or press [ ] again if you are on a call.

16
Redialing a Number
To redial one of the last ve numbers dialed on this handset,
press [Redial/Pause]. This opens the redial list. Use [ ] and
[ ] to nd the number you want to dial, and press [ /Flash] or
[ ] in standby, or press [Menu/Select] during a call.
Muting the Ringer (One Call Only)
While the handset is ringing, press [ /Mute] or [ ] to mute the
ringer for this call. The phone will ring again on the next call. (The
handset must be off the cradle to mute the ringer.)
Muting the Microphone
To mute the microphone so the caller can't hear you, press
[ /Mute] during a call. MUTE ON and appear in the display.
Press [ /Mute] again to cancel muting.
Privacy Mode
To prevent other stations from interrupting a call, press
[Menu/Select]. Move the cursor to CALL PRIVACY, and then
press [Menu/Select]. PRIVACY MODE ON and P appear in the
display. Repeat the procedure to turn off privacy mode.
Adjusting the Audio Tone
If you aren't satised with your phone's audio quality, you can
adjust the Audio Tone of the earpiece. While on a call, press
[Menu/Select]. Move the cursor to select AUDIO TONE, and
then press [Menu/Select]. Move the cursor to select desired
audio tone options: HIGH TONE, NATURAL TONE, or LOW
TONE. (The default setting, Natural Tone, is recommended for
hearing aid users.) Press [Menu/Select] to conrm. After two
seconds, the displayed audio tone is set, and the display returns
to normal. Audio tone adjustments only apply to the earpiece,
not the speakerphone.

17
Using Hold, Conference, Transfer and Intercom
Put a call on hold
Press [Clear/Int’com]. If you leave a caller on
hold for more than ve minutes, the call will be
disconnected. To return to the party on hold, press
[ /Flash] or [ ].
Join a call already
in progress
To join a call already in progress, press [ /Flash]
or [ ]. You can hang up normally; the other
station remains connected to the call.
Transfer a call
Press [Clear/Int’com]; the call is placed on hold.
Use [ ] or [ ] to select the station you want
to transfer the call to, and press [Menu/Select]. (To
page all stations at once, select ALL.) When the
other station answers, you can talk to the station;
the outside call remains on hold. If the other
station accepts the call, you will be disconnected.
Cancel a transfer To cancel the transfer and return to the call,
press [ /Flash] or [ ].
Accept a
transferred call
To answer the transfer page and speak to the
transferring station, press [ /Flash] or [Clear/
Int’com]. To accept the call and speak to the
caller, press [ /Flash] again.
Make an intercom
page
With the phone in standby, press [Clear/Int’com].
Use [ ] or [ ] to select the station you want
to talk with, and then press [Menu/Select]. (If you
select ALL, all other stations will be paged.)
Cancel a page To cancel the intercom page, press [ ].
Answer an
intercom page Press [ /Flash] or [Clear/Int’com].
Note: When answering a transferred call or an intercom page, if
AutoTalk is on, the handset will automatically answer the page
when you pick up the handset from the cradle. If Any Key
Answer is on, you can also press any key on the handset’s dial
pad.

18
Accessing Your Answering System
If your base has an answering system, you can use your handset
to get your messages and change your answering system setup.
The answering system plays your new messages (that you
have not listened to yet) rst. If you have no new messages, the
system plays your old messages.
You have the following options:
Playing
new
messages
Press [ /Mute]. The system announces the number of
new and old messages, then plays the rst new message
followed by the day and time it was received. Then the
system plays the new messages in the order they were
received.
Repeating
a message
Press [1/ ]once to go to the beginning of the current
message.
Press [1/ ]repeatedly to go back to a previous message.
Skipping a
message Press [3/ ]to go to the beginning of the next message.
Deleting a
message While a message is playing, press [4/ ]. The message is permanently deleted.
Playing old
messages After you listen to your new messages, press [ /Mute] again to play your old messages.
Exiting the
message
review
Press [5/ ]to stop the message playback.
Press [ ] to exit the system and return to standby,
or press [2/ ]to restart the message playback.
Screening Calls
If your base has an answering system, you can listen to callers
as they leave a message. Press [ /Mute] when the system is
answering to listen to the caller without answering the phone.

19
Accessing Voicemail
If your base doesn't have an answering system and you
subscribe to a voice mail service, you can program your handset
to automatically dial the access number.
Press [Menu/Select].
Move the cursor to HANDSET SETUP and press
[Menu/Select].
Move the cursor to EDIT VOICE MAIL and press
[Menu/Select].
Enter your access number (up to twenty digits). If you need
the phone to wait before sending the next digits, press
[Redial/Pause] to insert a two-second pause. For a longer
pause, press [Redial/Pause] multiple times. Each pause
counts as one digit.
Press [Menu/Select] when you are nished.
Once you program your access number, press [ /Mute] to dial
your voice mail service.
Maintenance
Battery Life
With average use, your battery talk time will be approximately ten
hours and standby time will be approximately seven days. For
optimum performance, be sure to return the handset to the cradle
after each call. The actual talk time duration will be reduced in
proportion to the amount of time the handset is off the cradle.
Low Battery Alert
When the battery pack is very low, the display shows LOW
BATTERY - CHARGE HANDSET and the empty battery icon. If
the phone is in standby, none of the keys will operate. If you are
on a call, complete your conversation as quickly as possible, and
return the handset to the cradle.
Battery Replacement and Handling
With normal use, the battery lasts about one year. If the talk
time becomes short even after the battery is recharged, please
replace the battery. To purchase a replacement battery, contact
Uniden’s Parts department (see back cover).
1)
2)
3)
4)
5)
