Uniden DXI 7284-2 Series User manual

[1]
www.uniden.com
Contents
Welcome/Features 2
Controls and Functions 3
Terms Used in this Manual 4
Getting Started 5
Installing the Phone 5
A. Choose the Best Location 5
B. Install the Rechargeable Battery Packs into the
Handsets 6
C. Connect the Main Base and Charging Cradle, and Charge
the Handsets 7
D. Mount the Main Base on a Wall 8
Installing the Beltclip 9
Headset Installation 10
Register Handsets to the Main Base before Using! 11
When to Re-register Handsets 12
Call Transfer Feature 12
Basic Setup 13

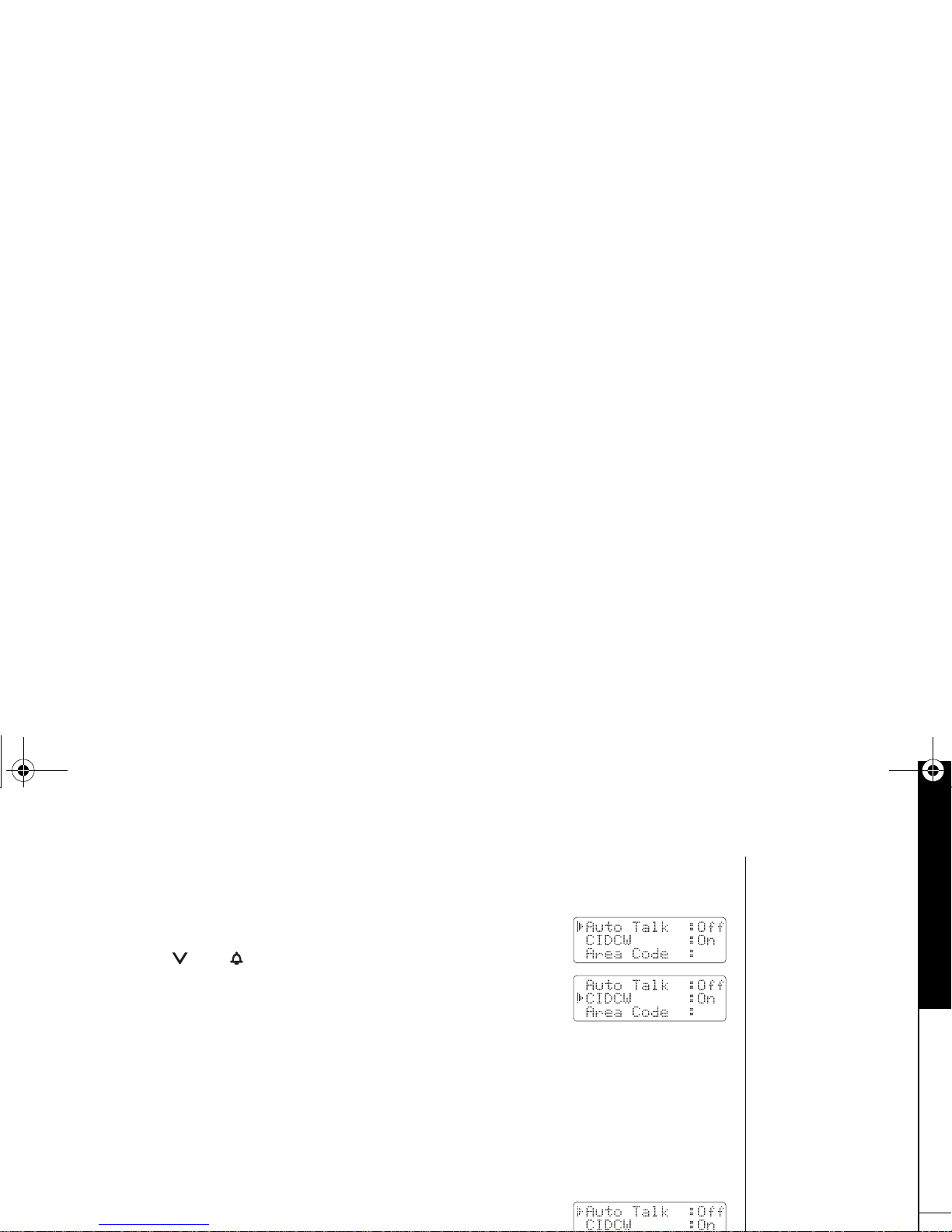

Activating AutoTalk 13
Activating Caller ID on Call Waiting 13

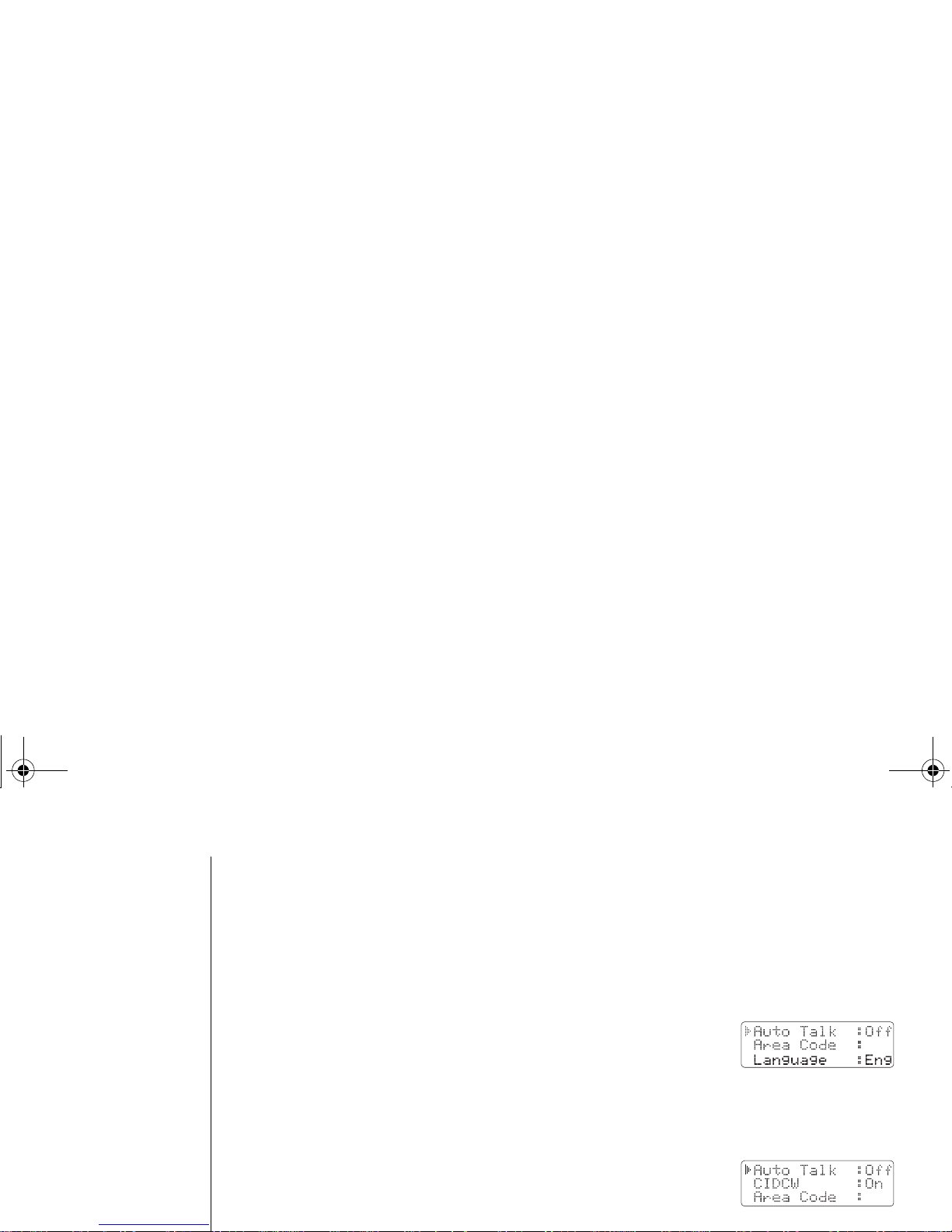

Entering Your Area Code 14
Choosing the Dialing Mode 15
Setting the Language 16
Selecting the Ring Tone and Volume 16
Basics 17
Using Your Phone 17
Making and Receiving Calls 17
Adjusting the Earpiece Volume 18
Tone Dialing Switch-over 19
Traveling Out-of-Range 19
Selecting a Different Channel 19
Find Handset 20
Using Call Waiting 20
Voice Mail Waiting Indicator 21
RocketDial 22
RocketDial 22
Storing the RocketDial 22
Using the Speed Dial Memory 23
Using the Speed Dial Memory 23
Storing Names and Numbers in Speed Dial Memory 23
Storing Caller ID Messages in Speed Memory Locations 26
Making Calls from Speed Dial Memory 27
Caller ID Features 28
Caller ID and CIDCW (Caller ID on Call Waiting) 28
When the Telephone Rings 28
Viewing the Caller ID Message List 29
Deleting Information from the Caller ID List 30
Making a Call from the Caller ID List 31
Additional Information 32
Changing the Digital Security Code 32
Note on Power Sources 33
General Information 35
Troubleshooting 36
Liquid Damage 39
Precautions & Warranty 40
I.C. Notice 42
Index 43
Memory List 45
U037.book 1 ページ ２００４年２月２５日 水曜日 午後６時１０分

[2]
www.uniden.com
Welcome
Features • 2.4GHz Extended Range Technology
• Dual Handset System
(Extra Handset & Charger Included)
• Call Transfer from Handset to Handset
• 3 Line Backlit Displays
• Caller ID and Caller ID on Call Waiting
• 10 Speed Dial Memory
•OnetouchRocketDial®
• Last Number Redial
• Voice Mail Waiting Indicator
• English, French, or Spanish Support
• Pulse/Tone Dialing
•FindHandset
• Earpiece Volume Control
•RingerVolumeControl
• Hearing Aid Compatible
• 20 Channel Autoscan
Be sure to visit our web site: www.uniden.com
Uniden® and RocketDial® are registered trademarks of Uniden America Corporation.
AutoTalk, AutoStandby, UltraClear Plus, Random Code, and AutoSecure are trademarks of
Uniden America Corporation.
Congratulations on your purchase of the Uniden dual handset cordless telephone. This phone is
designed and engineered to exacting standards for reliability, long life, and outstanding
performance.
Note:Illustrations in this manual are used for explanation purposes. Some
illustrations in this manual may differ from the actual unit. The color of your
cordless phone may vary.
U037.book 2 ページ ２００４年２月２５日 水曜日 午後６時１０分

[3] CONTROLS & FUNCTIONS
www.uniden.com

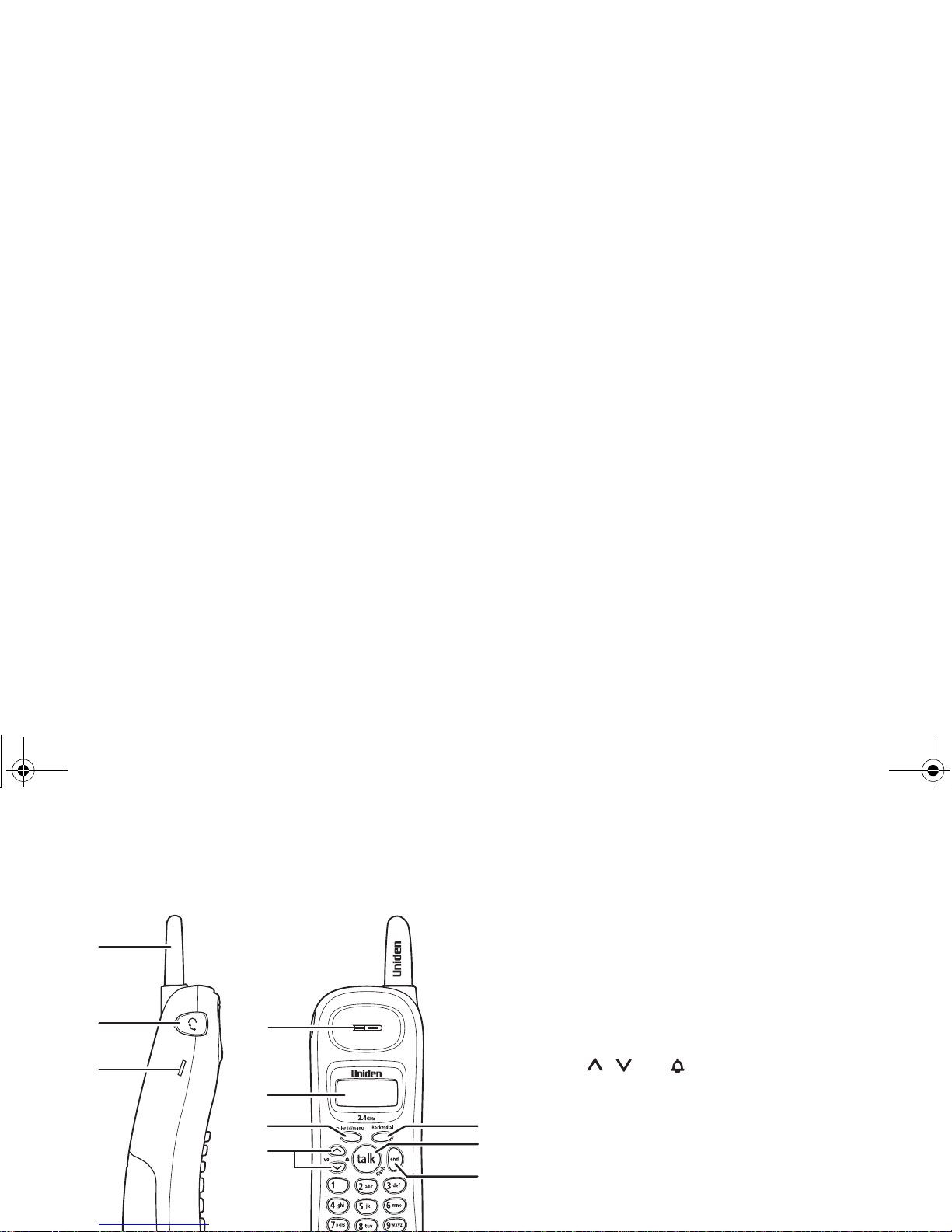

Controls and Functions
Handsets
6
5
7
8
9
10
11
18
15
16
17
19
12
13
14
4
1
2
3
CONTROLS & FUNCTIONS
1. Handset antenna
2. Jack for optional headset
3. Beltclip hole
4. Handset battery compartment
5. Handset earpiece
6. LCD display
7. caller id/menu key (pages 13 and 28)
8. / /vol/ (earpiece volume, ringer
volume and scroll) key (pages 13, 16 and
23)
9. */tone/←key (left cursor) key
(pages 19 and 23)
10. redial/pause key (pages 18 and 25)
11. select/channel key (pages 13, 19 and 23)
12. Rocketdial key (page 22)
13. talk/flash key (pages 17 and 20)
14. end key (pages 17 and 18)
15. #/→(right cursor) key (page 23)
16. memory key (page 23)
17. delete/transfer key (pages 12 and 30)
18. Handset microphone and ringer speaker
19. Handset charging contacts
U037.book 3 ページ ２００４年２月２５日 水曜日 午後６時１０分

CONTROLS & FUNCTIONS [4]
www.uniden.com

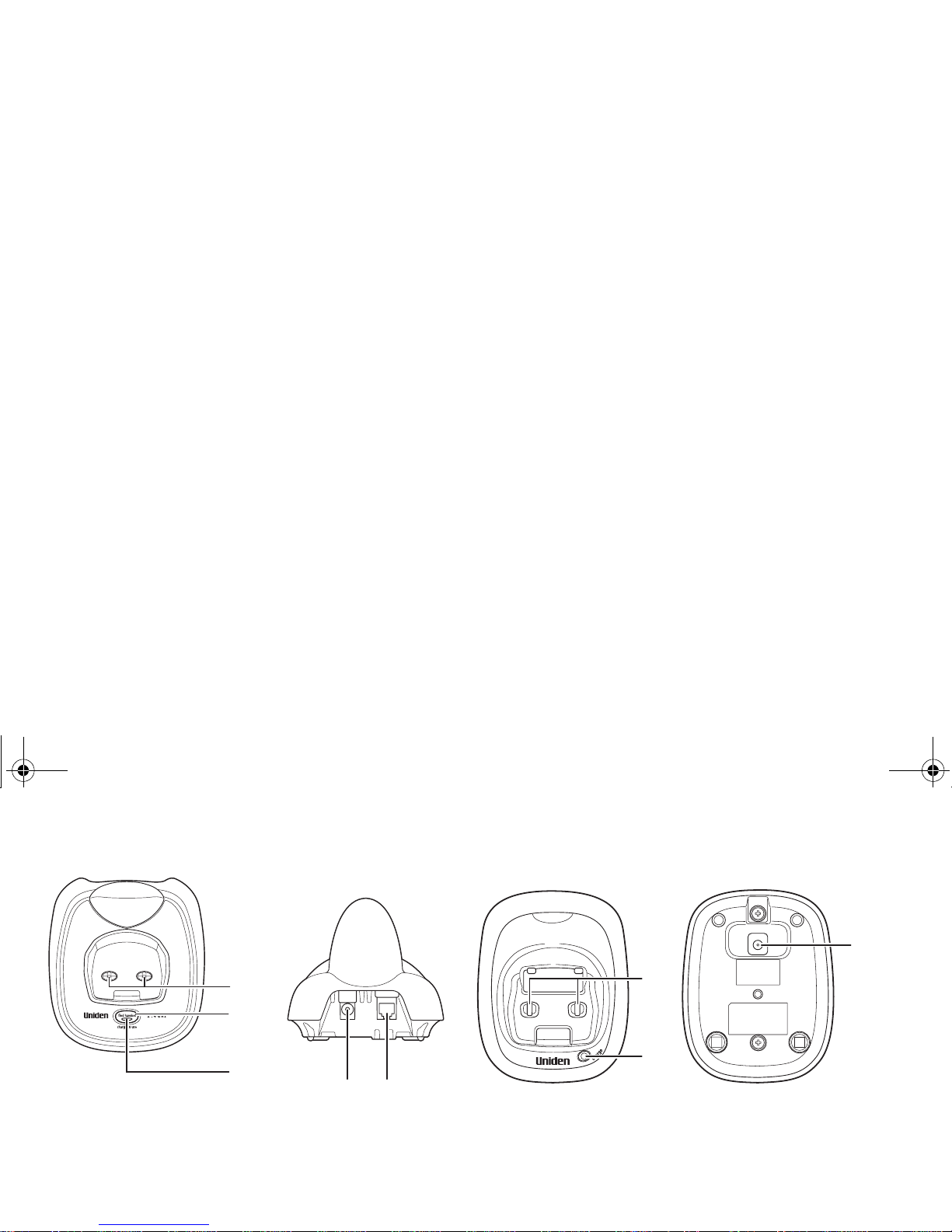

Main Base Extra Charging Cradle for Second Handset
CONTROLS & FUNCTIONS
20. Main base charging contacts
21. find handset key
(pages 20 and 32)
22. charge/in use and VMWI
(Voice Mail Waiting Indicator) LED
Terms Used in this Manual
• Standby Mode - The handset may be sitting in or off the cradle, but is NOT in use. The talk/flash key has
not been pressed and there is no dial tone.
• Talk Mode - The handset is off the cradle and the talk/flash key has been pressed, enabling a dial tone.
• CID - Caller ID
• CIDCW - Caller ID on Call Waiting
• RocketDial - One touch speed dial
25. Charging contacts
26. Charge LED
27. DC IN 9V jack
23. DC IN 9V jack
24. Telephone line jack
25
26
27
23 24
21
22
20
U037.book 4 ページ ２００４年２月２５日 水曜日 午後６時１０分

[5] GETTING STARTED www.uniden.com
Installing the Phone
Do the following steps:
A. Choose the Best Location
B. Install the Rechargeable Battery Packs into the Handsets
C. Connect the Main Base and Charging Cradle, and Charge the Handsets
D. Mount the Main Base on a Wall
A. Choose the Best Location
When choosing a location for your new phone, here are some important guidelines you should
consider:
• The location should be close to both a phone jack and a continuous power outlet (one
which is not connected to a switch).
• The main base and each handset should be kept away from sources of electrical noise such
as motors, microwave ovens, and fluorescent lighting.
• The cradle can be placed on a desk, tabletop, or mounted on a standard wall plate.
• There should be enough space to fully extend the antenna.
Avo
id
h
eat sources, suc
h
as ra
di
ators,
air ducts, and sunlight
Avoid television sets and other
electronic equipment
Choose a central location
Avo
id
no
i
se sources suc
h
as a w
i
n
d
ow
b
y
a street with heavy traffic
Avoid microwave ovens
Avoid excessive moisture,
extremely low temperatures, dust,
mechanical vibration, or shock
Avoid personal computers
Avoid other cordless telephones
If your home has
specially wired alarm
equipment connected to
the telephone line, be
sure that installing the
system does not disable
your alarm equipment.
If you have questions
about what will disable
your alarm equipment,
contact your telephone
company or a qualified
installer.
note
GETTING STARTED
U037.book 5 ページ ２００４年２月２５日 水曜日 午後６時１０分

GETTING STARTED [6] www.uniden.com
B. Install the Rechargeable Battery Packs into the Handsets
Both handsets are powered by rechargeable battery packs.
The battery recharges automatically when the handset is
placed in the main base unit or charging cradle.
1) Press down on the handset battery case cover (use the
finger indention for a better grip) and slide the cover
downward to remove.
2) Plug the battery pack connector (red & black wires) into the
jack inside the battery compartment.
(The connector notches fit into the grooves of the jack only
one way.) Match the wire colors to the polarity label in the
battery compartment, connect the battery and listen for a
click to insure connection.
3) Make sure you have a good connection by slightly pulling on
the battery wires. If the connection is secure, the battery
jack will remain in place.
4) Place the battery case cover back in the handset by sliding
it upwards until it clicks into place.
•Use only the Uniden
(BT-905)
rechargeable battery
pack supplied with
your cordless
telephone.
•Replacement batteries
are also available
through the Uniden
Parts Department at
[phone],
Monday through Friday
from 8:00 a.m. to 5:00
p.m. or online at
www.uniden.com
!
GETTING STARTED
U037.book 6 ページ ２００４年２月２５日 水曜日 午後６時１０分

[7] GETTING STARTED www.uniden.com

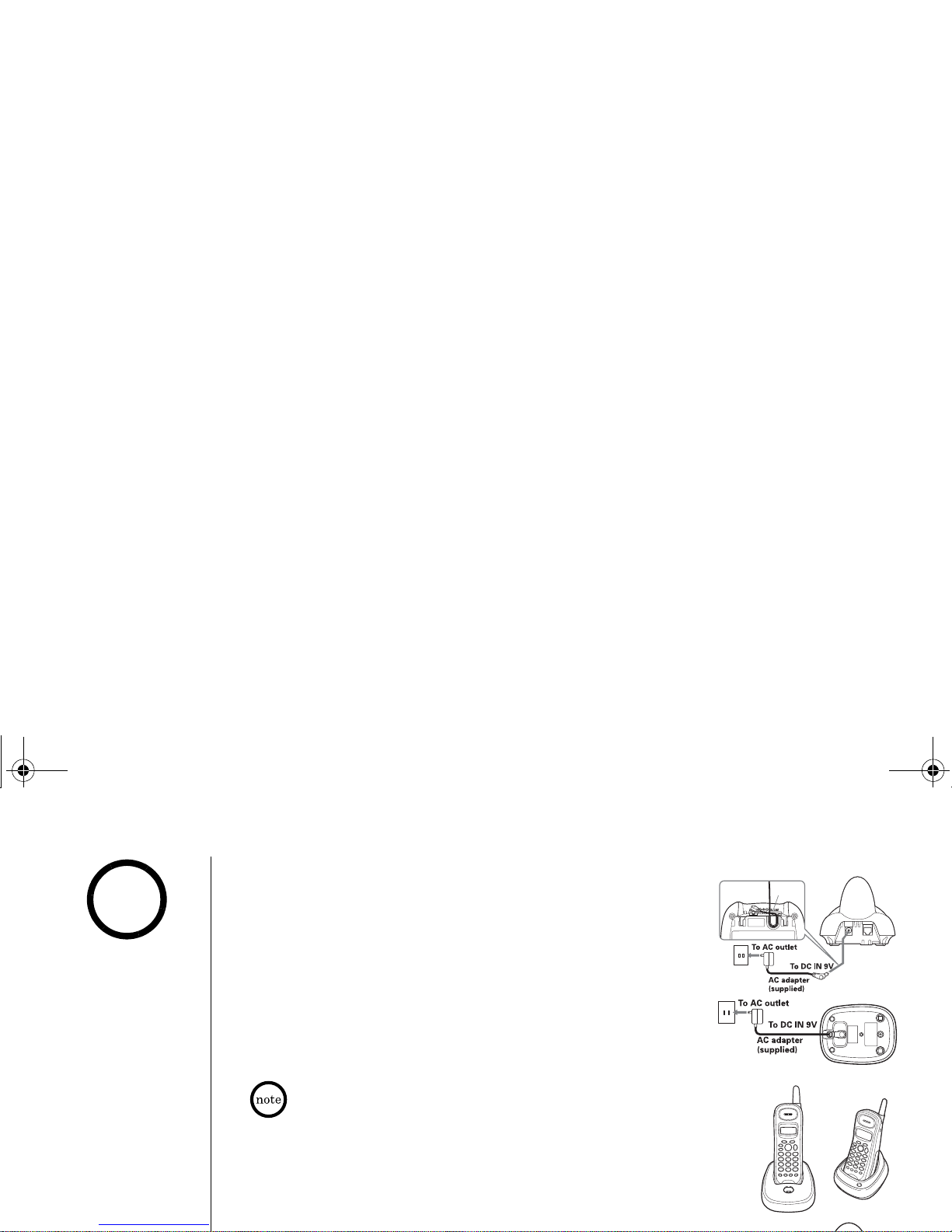

C. Connect the Main Base and Charging Cradle,
and Charge the Handsets
1) Connect each AC adapter to the DC IN 9V jack and to each
standard 120V AC wall outlet.
2) Place one handset in the main base unit and the other in the
charging cradle with the keypad facing forward.
3) Make sure the charge/in use LED and charge LED illuminate.
If the LED does not illuminate, check to see that the AC adapter is
plugged in and the handset makes good contact with the cradle's
charging contacts.
• Connect each AC adapter to a continuous power supply.
• Place each cradle close to the AC outlet so that you can unplug
the AC adapter easily.
4) Charge your handsets at least 15-20 hours before plugging into the
phone line.
5) Once the handset battery packs are fully charged, connect the
telephone line cord to the TEL LINE jack and a telephone
outlet.
If your telephone outlet isn't modular, contact your
telephone company for assistance.
Route the cord.
Route the cord.
Route the cord.
Modular
•Use only the supplied
AD-0001 AC adapter.
Do not use any other
AC adapter.
•Do not place the power
cord where it creates a
trip hazard or where it
could become chafed
and create a fire or
electrical hazard.
!
GETTING STARTED
U037.book 7 ページ ２００４年２月２５日 水曜日 午後６時１０分

GETTING STARTED [8] www.uniden.com

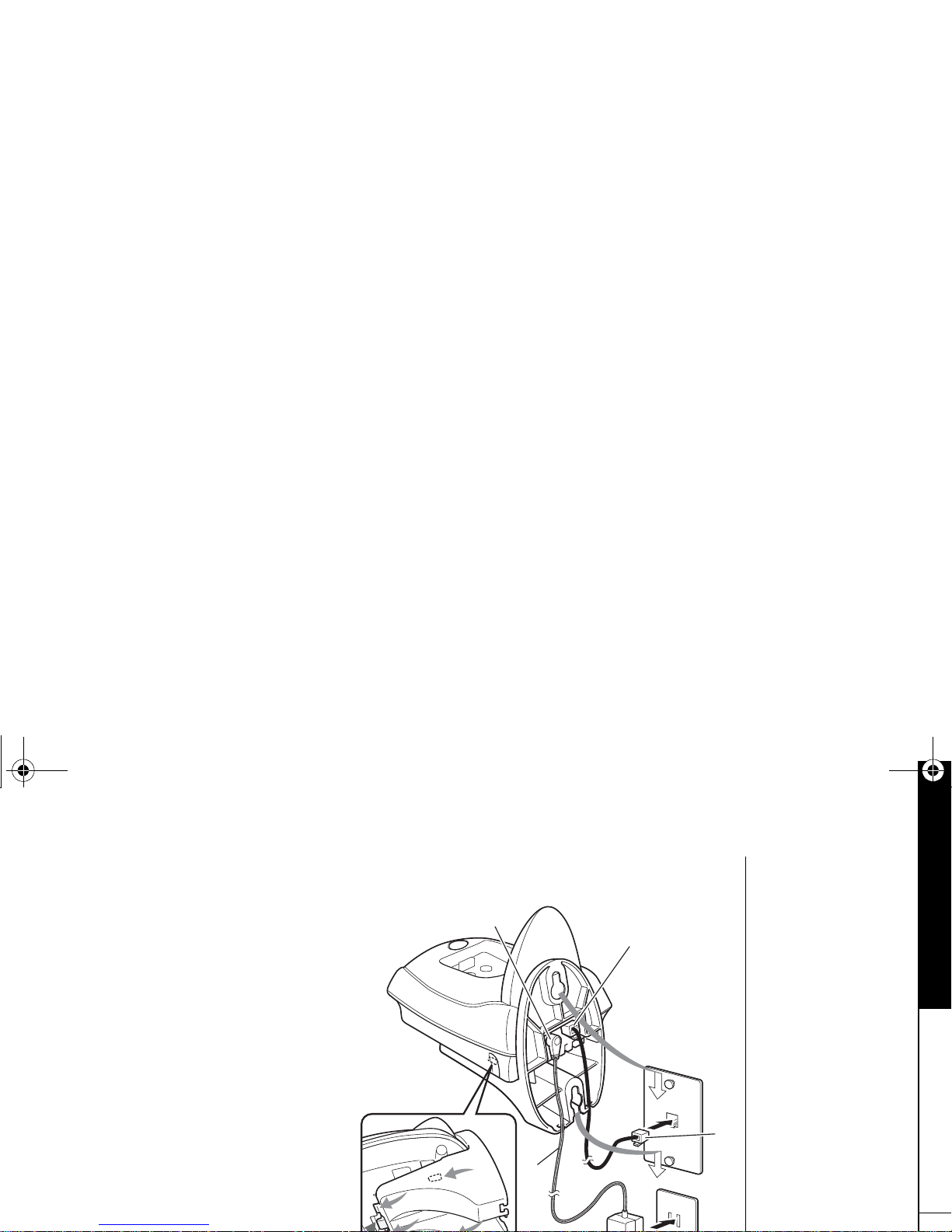

D. Mount the Main Base on a Wall
Standard wall plate mounting
This phone can be mounted on any
standard wall plate.
1) Locate the main base unit on the
wall mount adapter as shown and
slide the wall mount adapter into
the notches on the main base
bottom with the tab pressed.
2) Plug the AC adapter to the DC IN
9V jack.
3) Route the AC adapter cord through
the molded wiring channel as
shown.
4) Plug the AC adapter into a standard
120V AC wall outlet.
5) Plug the telephone line cord into
the TEL LINE jack. Route the cord
through the molded wiring channel
as shown.
6) Plug the telephone line cord into
the telephone outlet.
7) Align the mounting slots on the
main base with the mounting posts
on the wall. Then push in and down
until the phone is firmly seated.
1
2
3
4
5
6
7
7
GETTING STARTED
U037.book 8 ページ ２００４年２月２５日 水曜日 午後６時１０分

[9] GETTING STARTED www.uniden.com
Direct wall mounting
If you don't have a standard wall plate, you can mount your phone
directly to the wall. Before doing this, consider the following:
• Avoid electrical cables, pipes, or other items behind the mounting
location that could cause a hazard when inserting screws into the
wall.
• Try to mount your phone within 5 feet of a working phone jack to
avoid excessive cord lengths.
• Make sure the wall material is capable of supporting the weight of
the main base and handset.
• Use #10 screws (minimum length of 1-3/8 inches) with anchoring
devices suitable for the wall material where the main base will be
placed.
1) Insert two mounting screws into the wall, (with their appropriate anchoring device), 3-
15/16 inches apart. Allow about 1/8 of an inch between the wall and screw heads for
mounting the phone.
2) Refer to steps 1 through 7 on page 8 to mount the telephone.
Installing the Beltclip
To attach the beltclip
Insert the beltclip into the holes on each side of the handset. Press down until it clicks.
To remove the beltclip
Pull both sides of the beltclip to release the tabs from the holes.
GETTING STARTED
