Uniden TRU 8885 Series User manual

TRU 8885
SERIES
OWNER'S
MANUAL

[1]
www.uniden.com
Contents
WELCOME/FEATURES 2
TERMINOLOGY 3
CONTROLS & FUNCTIONS 4
DISPLAY AND ICONS 6
SOFT KEY FUNCTION 8
GETTING STARTED 9
Setting up the Phone 9

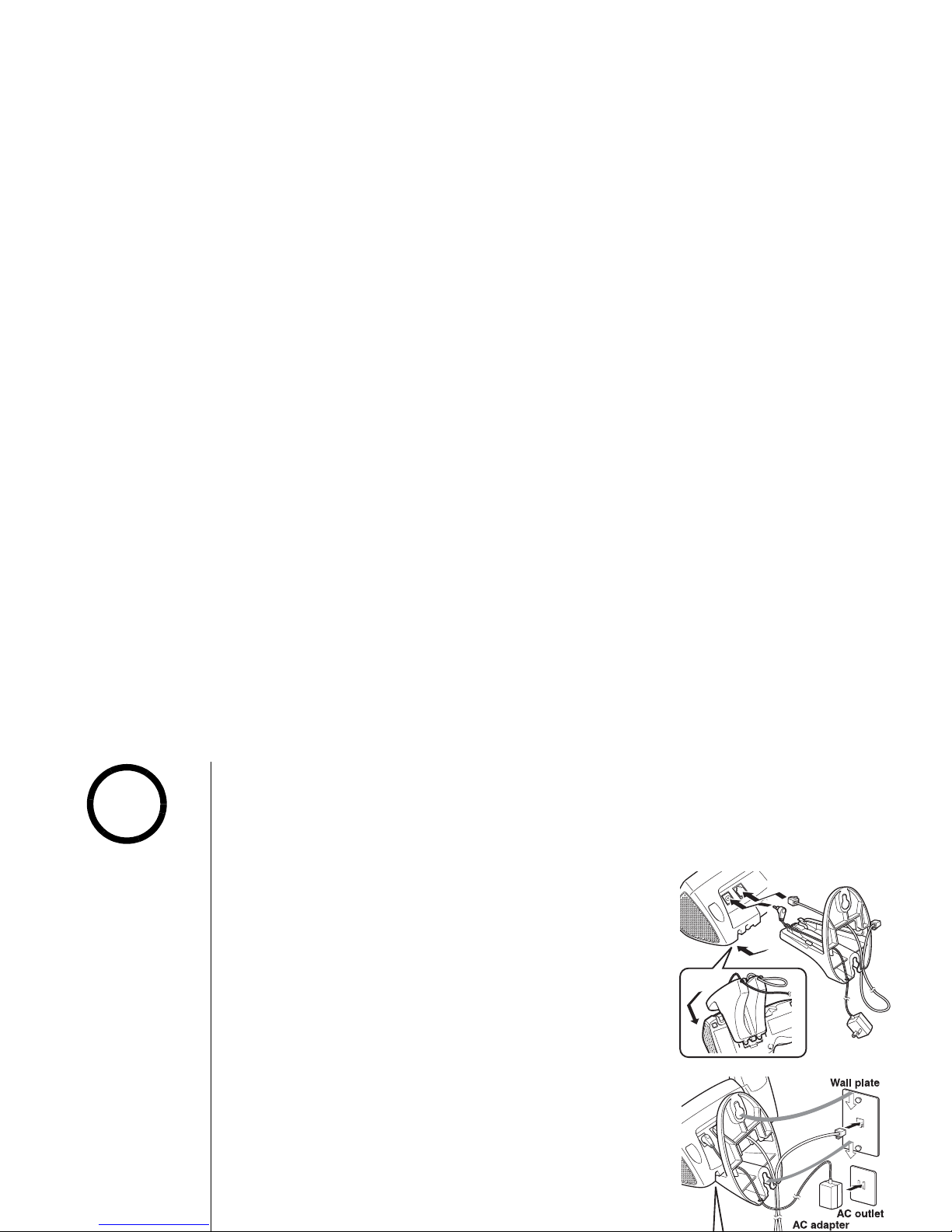

Mounting the Base Unit on a Wall 13
Main Menu Options 15
Setting Menu Options 16
BASICS 33
Making and Receiving Calls 33
Flash and Call Waiting 34
Placing a Call on Hold 34
Redialing a Call 35
Adjusting the Earpiece and Speaker Volume 37
Do Not Disturb (DND) 37
Mute Microphone 38
Tone Dialing Switch-over 39
Traveling Out of Range 39
Privacy Mode 40
3 or 4-Way Conferencing 40
PHONEBOOK 42
Phonebook (Storing Phone Numbers, Names,
Distinctive Rings and Speed Dial) 42
Chain Dialing 43
Steps for Entering Names and Special Characters 44
Viewing the Phonebook 46
Making Calls Using the Phonebook 47
Speed Dialing 47
Editing or Erasing a Phonebook Entry 48
Copying Phonebook Entries 49
CALLER ID 50
Caller ID and CIDCW (Caller ID on Call Waiting) 50
Viewing the Caller ID List 51
Deleting a Caller ID Message 52
Using the Caller ID Message List 53
Call Waiting Deluxe Features 55
THE INTEGRATED ANSWERING DEVICE 56
The Integrated Telephone Answering Device 56
Turning the Answering System On/Off 57
Setting your outgoing message (Greeting) 57
Using the Answering Setup Menu 58
New Message LED 58
Using your Answering System 59
Remote Operation 63
EXPANDING YOUR PHONE 67
Expanding Your Phone 67
Connecting the Charger 68
Register the Handset 68
Using DirectLink Mode 70
Intercom/Call Transfer Feature 71
ADDITIONAL INFORMATION 74
Changing the Digital Security Code 74
Find Handset 74
Installing the Beltclip 75
Headset Installation 75
Note on Power Sources 76
Maintenance 76
General Information 77
TROUBLESHOOTING 78
Troubleshooting 78
Liquid Damage 81
PRECAUTIONS & WARRANTY 82
I.C. NOTICE 84
MEMORY LIST 85
INDEX 86
REMOTE OPERATION CARD 88
MAIN MENU FLOW CHART 90

WELCOME/FEATURES [2]
www.uniden.com
Congratulations on your purchase of the Uniden Multi-Handset Cordless System
telephone. This unit is different from conventional cordless telephones. When the base
unit is connected to AC power and a telephone line, it can support up to 10 handsets.
You can now place a fully-featured cordless handset anywhere in your home or office
where AC power is available to connect the handset chargers. Extra handsets also allow
you to establish a 4-way conference call among 2 handsets, the base speakerphone, and
an outside line.
Note: Some illustrations in this manual may differ from the actual unit for explanation
purposes.
As an Energy Star®Partner, Uniden has determined that this product or product
models meets the Energy Star®guidelines for energy efficiency.
Energy Star®is a U.S. registered mark.
• 5.8GHz Digital Expandable
• Integrated Answering Device
• Dual Keypad with LCD Screen at Base
• 10 Multi-Handset Expandability
• Hands-Free Speakerphone in the Handset and Base
• Caller ID/Caller ID on Call Waiting (subscribe through local telephone company)
• Call Waiting Deluxe (subscribe through local telephone company)
• 100 Programmable Memory Locations
• Trilingual Display Options and Voice Prompts (English, French and Spanish)
• Intercom/Call Transfer Between Handsets
• 20 Distinctive Ring Options (10 ringer tones and 10 melody ringers)
• Mute and Hold Features
• Do Not Disturb (DND) Feature
• DirectLink™Mode
• Room/Baby Monitoring
• Battery Level Indicator
• Clock Display
•AnimationDisplays
WELCOME/FEATURES
Welcome
Features

[3] TERMINOLOGY
www.uniden.com
This series features AutoTalk™and AutoStandby™. AutoTalk allows you to answer a call by just removing
the handset from the cradle so you don't have to waste time pushing buttons. AutoStandby allows you to
hang up by simply returning the handset to the cradle.
To protect you against mis-billed calls that might result from your phone being activated by other
equipment, this series has Random Code™digital security, which automatically selects one of over
approx. 65,000 digital security codes for the handset and base.
Digital Spread Spectrum Technology uses a wider frequency band than standard digital transmissions. The
result is a more secure conversation with the clarity of digital sound, extended range, and minimal
interference from other cordless phones.
IntegriSound™Built in sound quality which provides life-like conversations.

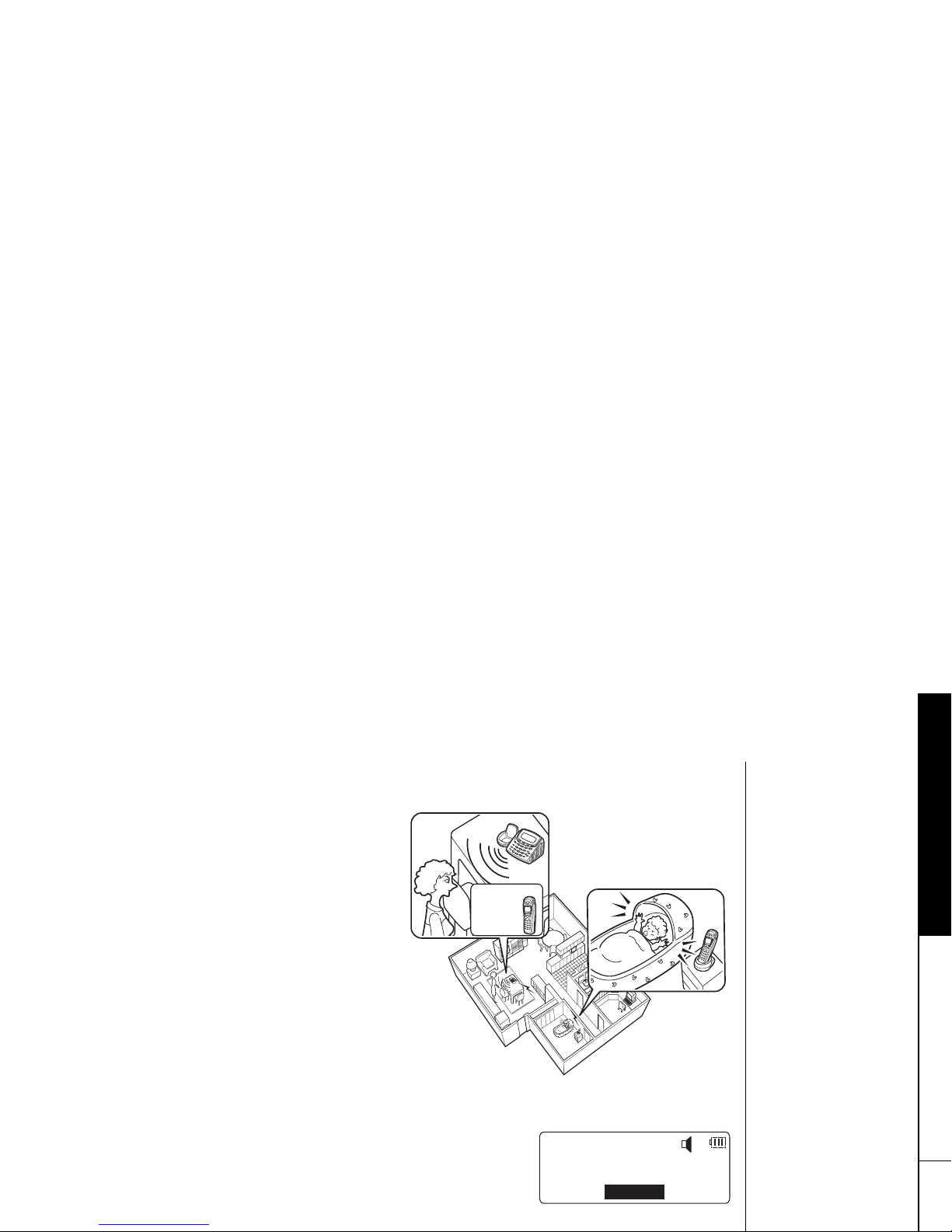

With DirectLink™mode, you can use 2 or more handsets as radio transceivers (walkie-talkies).
Be sure to visit our web site: www.uniden.com
Uniden®is a registered trademark of Uniden America Corporation.
AutoTalk, AutoStandby, DirectLink, IntegriSound and Random Code are trademarks of Uniden America.
Terminology
•Standby Mode - The handset is not in use, and talk/flash or speaker has not been pressed. No dial tone is
present.
•Talk Mode - The handset is not in the cradle, and talk/flash or speaker has been pressed, enabling a dial tone.
Talk appears on the display.
TERMINOLOGY

CONTROLS & FUNCTIONS [4] www.uniden.com
Controls & Functions
1. Handset Antenna
2. Beltclip Hole
3. Speakerphone Speaker and Ringer
4. Handset Battery Compartment
5. New Message LED
6. Handset Earpiece
7. LCD Display
8. soft Keys (P. 8)
9. cid/vol/ (volume up) (P. 37 & 16)
10.redial/p/vol/ (volume down) (P. 35, 33, 16 & 37)
11.
*
/tone/< (P. 39 & 44)
12.speaker (P. 33)
13.intcom/hold (P. 71 & 34)
14.Headset Jack Cover
15.talk/flash (P. 33 & 34)
16.end (P. 33)
17.phonebook (P. 42)
18.#/> (P. 44)
19. (Message) (P. 65)
20.Handset Microphone
21.Handset Charging Contacts
2
1
4
3
5
6
7
8
9
10
11
12
13
20
21
15
18
19
16
17
14
Play
Skip
Stop
Delete
Repeat
Retrieve TAD message
with Handset Remote keys
CONTROLS &
FUNCTIONS

[5] CONTROLS & FUNCTIONS www.uniden.com
25
26
24
33
34
3130292827
40 4122 23 32
36
37
38
39
35
22. In use LED
23. play/stop (P. 59)
24. cid/exit (P. 51)
25. Charge LED
26. Base Charging Contacts
27. delete message (P. 60)
28. mic (microphone)
29. answer on/off (P. 57)
30. do not disturb (P. 37)/DND LED
31. /tone (P. 39)
32. Message Counter Display
33. soft Keys (P. 8)
34. Base Speaker
35. speaker/speaker LED (P. 33)
36. phonebook (P. 42)
37.
intercom / hold (P. 71 & 34)
38. flash / find hs Key (P. 34 & 74)
39.
/volume/ / (volume up/down)
(P. 37 & 16)
40. DC IN 9V Jack
41. TEL LINE Jack
CONTROLS &
FUNCTIONS

DISPLAY AND ICONS [6] www.uniden.com
Display and Icons

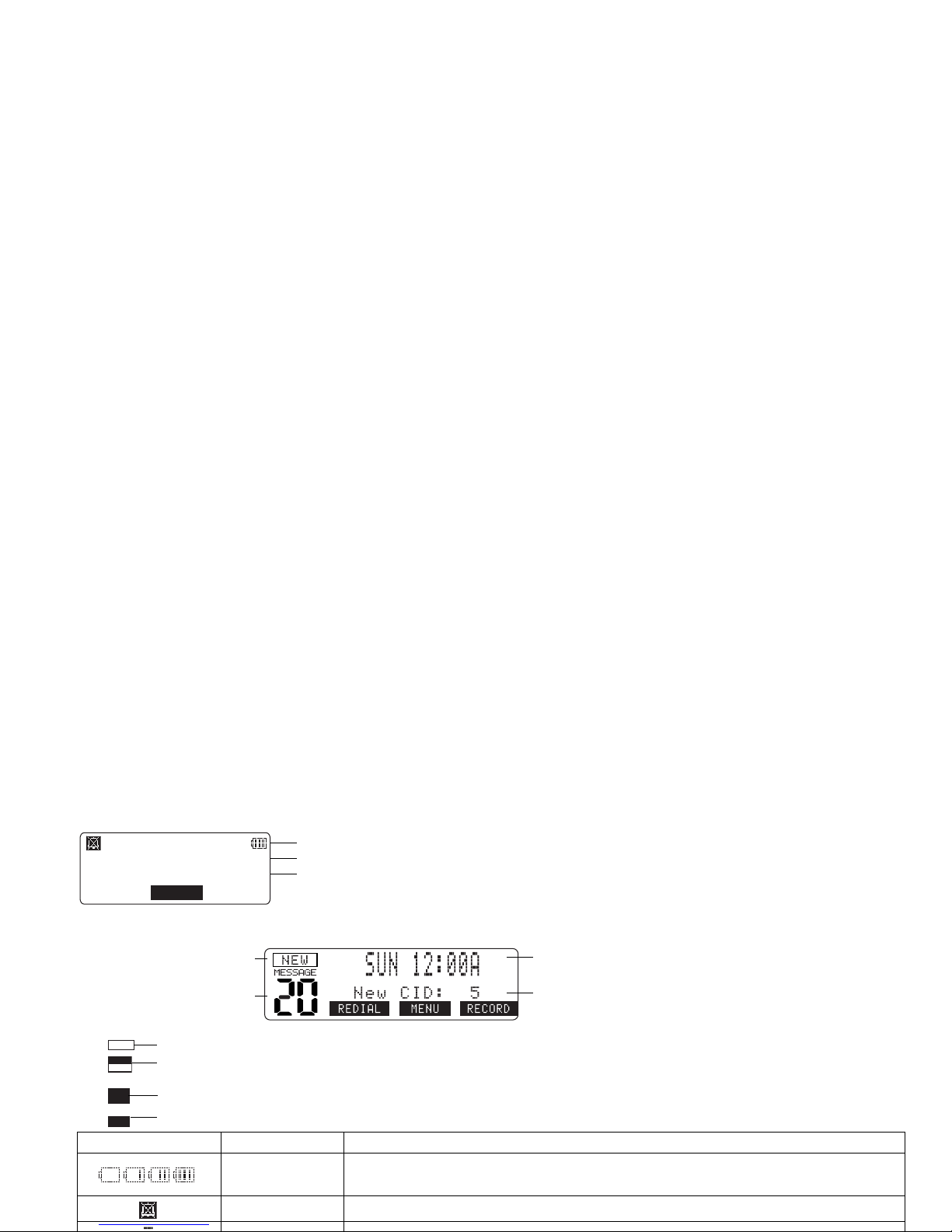

Example of the standby mode display
•Handset
•Base
* appears if you have a new message.
appears if you turn your answering system off.
** appears when the message storage is full.
appears if you set your answering system to announce only.
ICON Appears During DESCRIPTION
Standby/Talk Battery icons indicate the handset battery status. This icon changes depending on
the battery status (empty, low, medium and full).
Standby The Ringer off icon indicates that ringer is turned off.
Talk The Mute icon appears when you mute the handset or base.
Talk The Speaker icon appears when the handset speaker phone is used (handset only).
Talk The Privacy icon appears when the Privacy Mode is turned on.
Talk The Recording icon appears while recording a conversation.
570#
*CPFUGV
0GY%+&
/'07
Ringer off icon (when the ringer is off)/ day of the week and time / battery icon
Handset ID and Banner
Number of new Caller ID calls received (If there are no new Caller ID messages,
the Handset ID appears here.)
* Status of your
Answering machine
** Number of message
Day of the week and time
Number of new Caller ID calls received
0'9
1((
#059'4
(7..
#PPQWPEG
10.;
DISPLAY AND ICONS

[7] DISPLAY AND ICONS www.uniden.com
Animation Displays (Handset only)

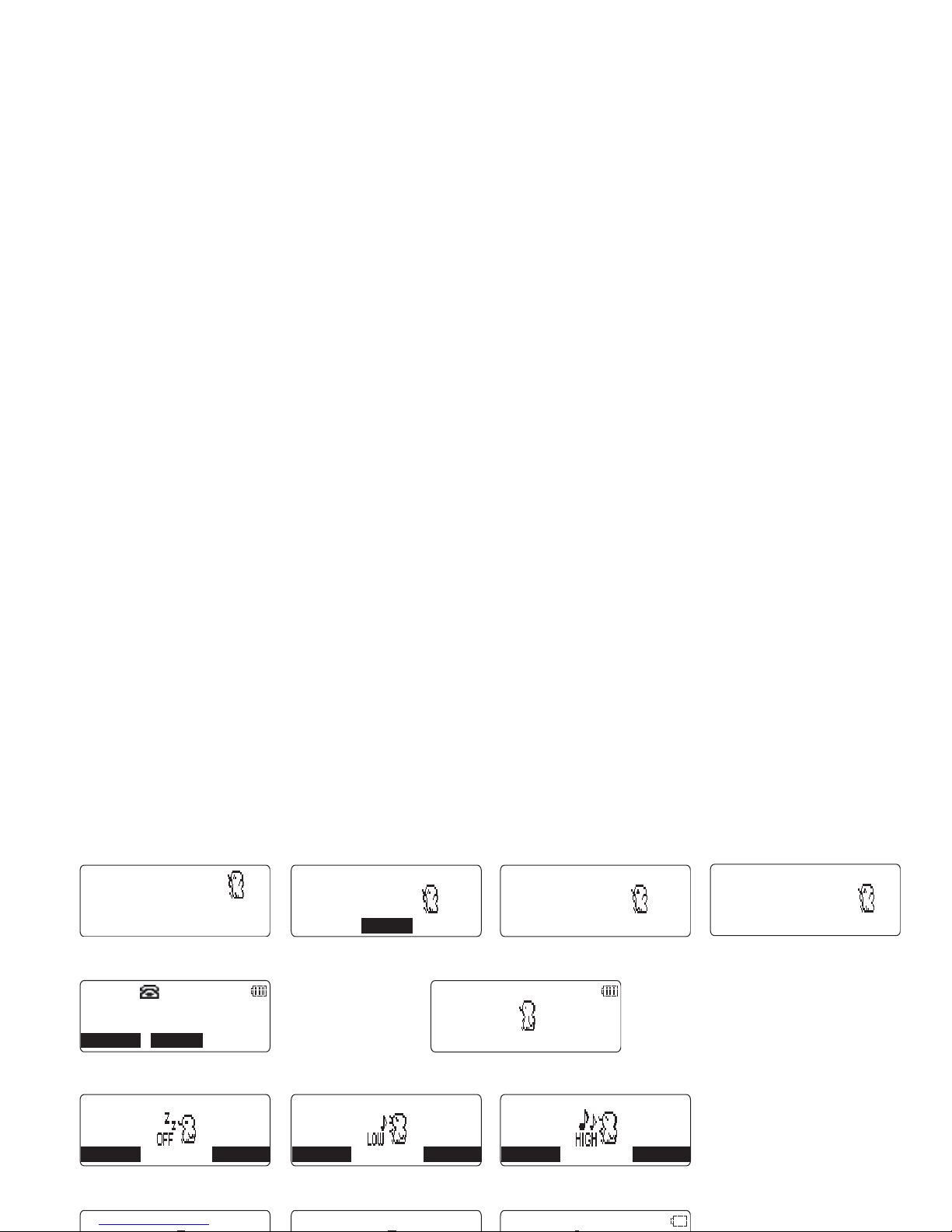

The handsets have a variety of animation displays. Below are examples of the animation screens and
what they mean:
Turning on the phone Hanging up the phone Confirmation (Done!) Deleting (Deleted!)
Making a call Find Handset/Paging the Handset
Also, the animation display changes depending on the ringer volume setting.
Out of Range Unavailable Low Battery
9GNEQOG
2NGCUG9CKV

'PF
/'07
&QPG &GNGVGF
6CNM

/76' /'07
2CIKPI
4KPIGT8QNWOG
$#%- 1- $#%- 1-
4KPIGT8QNWOG
?
$#%- 1-
4KPIGT8QNWOG
1WV1H4CPIG
/'07
7PCXCKNCDNG
/'07
.QY$CVVGT[
DISPLAY AND ICONS

SOFT KEY FUNCTION [8] www.uniden.com
Soft Key Function
"Soft" keys are keys that change function during the operation of the phone. There are three soft keys on
the base and three on each handset.
The function of each soft key is determined by the icon that appears directly above it. For example, when
the base is in standby mode, pressing soft key 1 will redial the last number. When the base is in talk
mode, pressing soft key 1 will mute the microphone.
Complete information on the features controlled by the soft keys can be found under each feature.

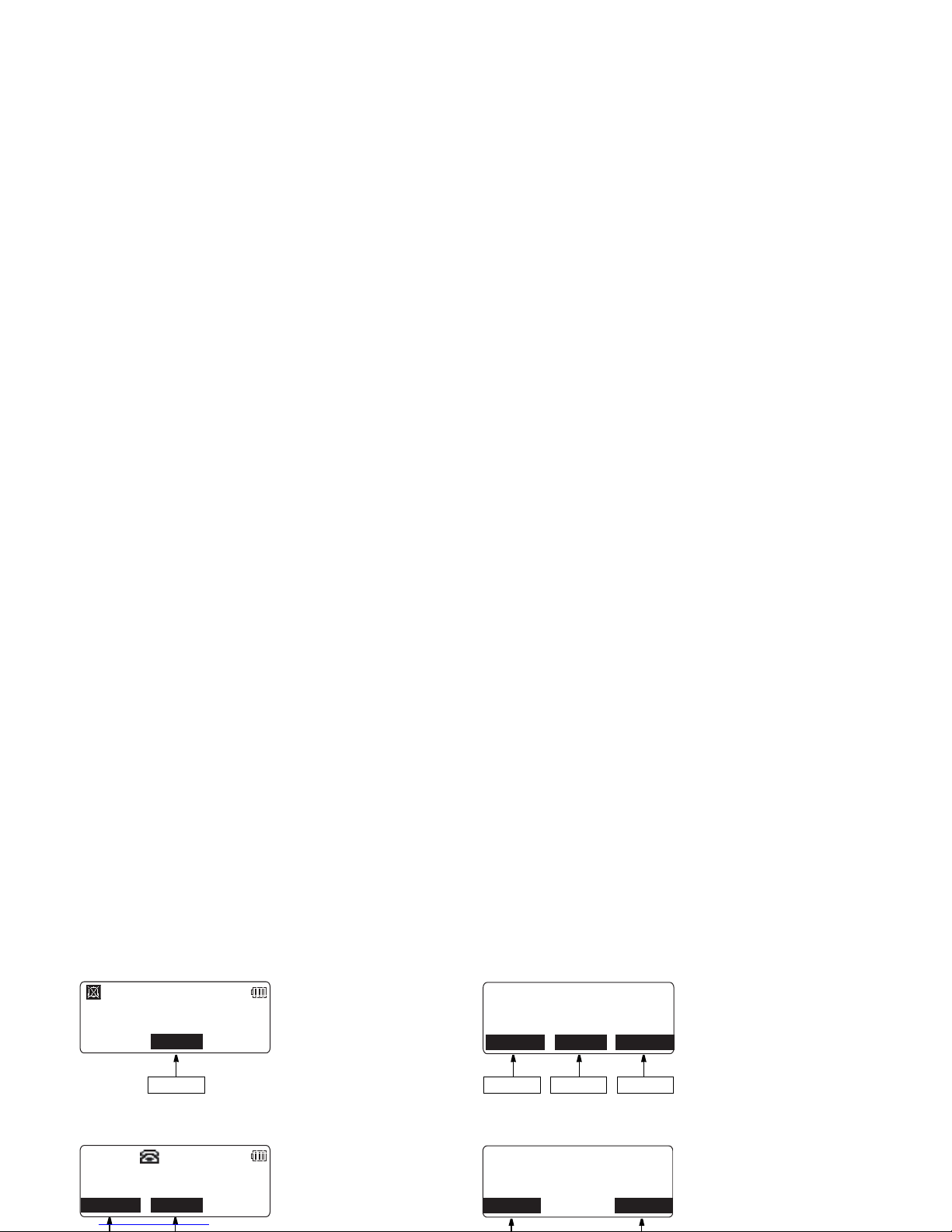

In standby mode
Handset Base
In talk mode
Handset Base
570#
*CPFUGV
0GY%+&
/'07
Soft key 2
570#
0GY%+&
4'&+#. /'07 4'%14&
Soft key 1 Soft key 2 Soft key 3
6CNM

/76' /'07
522JQPG
/76' /'07

Soft key 1 Soft key 3
Soft key 1 Soft key 2
SOFT KEY FUNCTION

[9] GETTING STARTED www.uniden.com
Setting up the Phone
A. Choose the best location
When choosing a location for your new phone, here are some important guidelines
you should consider:
• The location should be close to both a phone jack and a continuous power outlet (one
which is not connected to a switch).
• The base and handset should be kept away from sources of electrical noise such as motors,
microwave ovens, and fluorescent lighting.
• For better reception, place the base as high as possible.
• The base should be placed in an open area for optimum range and reception.
• If your home has specially wired alarm equipment connected to phone line, be sure that
installing the system does not disable your alarm equipment. If you have questions about
what will disable alarm equipment, contact your telephone company or a qualified
installer.
For maximum range:
•Keep the antenna free
of obstruction.
•When the handset is
not in use place the
handset in an upright
position.
•Do not hold the
handset where you
would block the signal.
•Metal and reinforced
concrete may affect
cordless telephone
performance.
note
Correct
Incorrect
GETTING STARTED

GETTING STARTED [10] www.uniden.com
B. Install the rechargeable battery pack into the handset, and
charge for at least 15-20 hours before using!
The handset is powered by a rechargeable battery pack. The battery recharges
automatically when the handset is placed in the base unit. To maximize the charge
capacity of your battery pack, DO NOT plug the telephone cord into the base unit
and wall jack until the battery is fully charged.
1) Press down on the handset battery case cover (use the
finger indention for a better grip) and slide the cover
downward to remove.
2) Turn the battery pack so that the connector with the red
and black wires is near the jack inside the battery
compartment. Match the connector's wire colors to the
polarity label in the battery compartment (the connector
notches fit into the grooves of the jack only one way).
Push the battery pack connector into the jack until it
clicks into place.
3) Make sure you have a good connection by gently pulling on
the battery wires. If the connection is secure, the battery
jack will remain in place.
4) Place the battery case cover back on the handset and slide
it upwards until it clicks into place.
5) Place the handset in the base unit for 15-20 hours without
interruption. The base unit's LED light (labeled charge)
illuminates once the handset is placed in the base. The
LED light will illuminate whether the battery pack is
connected or not.
The battery may be
purchased by calling
Uniden's Parts
Department (see back
cover page).
note
GETTING STARTED

[11] GETTING STARTED www.uniden.com
Low battery alert
When the battery pack is very low, the phone is programmed to eliminate functions
in order to save power.
The battery pack needs to be charged when:
- The empty battery icon appears.
-
Low Battery appears in the display.
If the phone is in standby mode, none of keys will
operate. If you are on a call, complete your conversation as quickly as possible, and
return the handset to the cradle.
Cleaning the battery charging contacts
To maintain a good charge, it is important to clean the
charging contacts on both the handset and the base
unit once a month. Using water only, dampen a cloth
to clean the charging contacts. Then make sure to go
back over the charging contacts with a dry cloth
before returning the handset to the base to charge.
Caution: Do not use paint thinner, benzene, alcohol,
or other chemical products. Doing so may discolor the
surface of the telephone and damage the finish.
.QY$CVVGT[
contacts
Even when the battery
pack is not being used,
it will gradually
discharge over a long
period of time.
For optimum performance,
be sure to return the
handset to the base unit
after each telephone call.
note
GETTING STARTED

GETTING STARTED [12] www.uniden.com
C. Connect the base unit
1) Connect the AC adapter to the DC IN 9V jack and to a
standard 120V AC wall outlet.
Connect the AC adapter to a continuous power supply
(i.e., an outlet that is not controlled by a switch).
2) Set the base on a desk or tabletop, and place the
handset in the base unit.
Place the base unit close to the AC outlet so that
you can unplug the AC adapter easily.
3) Make sure that the charge LED illuminates.
If the LED does not illuminate, check to see that the
AC adapter is plugged in and the handset makes
good contact with the base charging contacts.
After installing the battery pack in the handset,
charge your handset for at least 15-20 hours before
plugging into the phone line.
4) Once the handset battery pack is fully charged,
connect the telephone line cord to the TEL LINE jack
and to a telephone outlet.
If your telephone outlet isn't modular, contact
your telephone company for assistance.
•Use only the supplied
[AD-830] AC adapter.
Do not use any other
AC adapter.
•Place the power cord
so that it does not
create a trip hazard or
where it could become
chafed and create a
fire or electrical
hazard.
note
GETTING STARTED

[13] GETTING STARTED www.uniden.com
Mounting the Base Unit on a Wall
Standard wall plate mounting
This phone can be mounted on any standard wall plate.
1) Make the AC adapter and the telephone line cord
through the hole on the wall mount adapter.
2) Plug the AC adapter into the DC IN 9V jack.
3) Plug the telephone line cord into the TEL LINE
jack.
4) Slide the wall mount adapter into the notches on
the base.
5) Plug the AC adapter into a standard 120V AC wall
outlet. Hook the cord on the notch of the wall
mount adapter.
6) Plug the telephone line cord into the telephone
outlet. Hook the cord on the notch of the wall
mount adapter.
7) Align the mounting slots on the base with the
mounting posts on the wall. Then push in and
down until the phone is firmly seated.
To remove, push up
a tab on the wall
mount adapter as
shown.
DO NOT use an AC outlet
controlled by a wall
switch.
!
GETTING STARTED

GETTING STARTED [14] www.uniden.com
Direct wall mounting
If you don't have a standard wall plate, you can mount your phone directly to the
wall. Before doing this, consider the following:
• Avoid electrical cables, pipes, or other items behind the mounting location that could
cause a hazard when inserting screws into the wall.
• Try to mount your phone within 5 feet of a working phone jack to avoid excessive lengths.
• Make sure the wall material is capable of supporting the weight of the base and handset.
• Use #10 screws (minimum length of 1 & 3/8 inches) with anchoring devices suitable for
the wall material where the base unit will be placed.
1) Insert two mounting screws into the wall (with their
appropriate anchoring device), 3 & 15/16 inches
apart. Allow about 1/8 of an inch between the wall
and screw heads for mounting the phone.
2) Refer to steps 1 through 7 on page 13 to mount the
telephone.
GETTING STARTED

[15] GETTING STARTED www.uniden.com
Main Menu Options
Your phone has seven main menu options: DirectLink Mode, Room Monitor,
Handset Setup, Base Setup, Answ. Setup, Global Setup and Deregister HS. You
can change Room Monitor, Answering Setup, and Global Setup settings from the
base or from any handset. DirectLink Mode, Handset Setup, and Deregister HS are
only available from a handset. Base Setup is only available from the base.
Default Settings
The default settings set from the factory match the features that most people use.
You may not need to change them. However, there are a number of options you
must set and entries you must make in memory to take full advantage of all the
phone features. The table below lists the default settings.
Function Handset Base Function Handset Base
Ringer Tone Flicker Day & Time SUN 12:00 AM
Ringer Volume High CW / CWDX CW on/CWDX off
Distinctive Ring On - Dial Mode Tone
Auto Talk Off - Area Code None -
Anykey Answer Off - Security Code 80
Banner “ “ - Record Time 1 minute
Language English Ring Time Toll Saver
(LCD) Contrast Level 5 Message Alert Off
Key Touch Tone On - Call Screen On
Animation Screen On -
Room Monitor
(allow monitoring) On -
• For Global Setup,
Answ. Setup, and
Deregister HS menu
options, make sure
the line is not in use
and the handsets are
within range of the
base.
•Foraflowchartof
the main menu, see
page 90.
note
GETTING STARTED

GETTING STARTED [16] www.uniden.com
Setting Menu Options
Entering the Menu
1) In standby mode, press the MENU soft key.
2) Use volume up/down to move the pointer to a desired
main menu (DirectLink Mode, Room Monitor, Handset
Setup, Base Setup, Answ. Setup, Global Setup, and
Deregister HS).
3) Press the OK soft key to select the desired main menu.
To return to the previous screen, press the BACK soft
key.
4) Use volume up/down to select a desired submenu and
then press the OK soft key to enter.
5) In the submenu option, use volume up/down to select
an item. Press the OK soft key to confirm your
selection. For detailed instructions, see the following
sections for the desired submenu option. To return to
the previous screen, press the BACK soft key.
6) To exit the menu, press end on the handset or cid/exit on the base.
&KTGEV.KPM/QFG
4QQO/QPKVQT
*CPFUGV5GVWR
$#%- $#%- 1-
•Han
d
set
4QQO/QPKVQT
$CUG5GVWR
#PUY5GVWR
$#%- $#%- 1-
•Base
GETTING STARTED

[17] GETTING STARTED www.uniden.com
DirectLink Mode (Handset only)
In DirectLink mode, a pair of handsets can function as two-way radios. DirectLink
Mode allows two handsets to communicate with each other without the base unit or
a telephone line. Use them at sporting events or while shopping to stay in contact
with family members or friends. You must set both handsets to DirectLink Mode
activate this feature.
Using DirectLink Mode
1) Enter the DirectLink Mode menu.
To enter DirectLink
mode press [ENTER]
appears.
2) Press the ENTER soft key to enter the DirectLink Mode.
You will hear a confirmation tone, and
DirectLink Mode
Complete
appears.
3) To return back to the normal mode, press the CANCEL
soft key and then the OK soft key, or return the handset
to the cradle.
6QGPVGT
&KTGEV.KPMOQFG
RTGUU='06'4?
$#%- $#%- '06'4
You must have at least
two handsets to use
DirectLink Mode.
note
GETTING STARTED

GETTING STARTED [18] www.uniden.com
Room/Baby Monitor
This feature allows you to monitor
sounds in another room. Place the base
or a handset in the room you wish to
monitor; it will function as a
microphone. A second handset can be
set to function as a remote speaker,
allowing you to monitor sounds in the
room.
Using Room/Baby Monitor
1) Enter the Room Monitor menu (see
"Entering the Menu" on page 16).
Listen to; appears.
2) Select the handset or base you want
to monitor by using volume up/
down.
3) Press the OK soft key.
Monitoring appears, and you hear sounds in the room
where the handset or the base is installed.
4) To turn off the Room Monitor, press the END soft key,
or end.
If you want to prevent other handsets or the base from monitoring this handset,
press the MENU soft key. Select the Handset Setup menu, and then the Room
Monitor submenu. Select
Off and press the OK soft key.
Monitor using
handset or
base unit
/QPKVQTKPI
㨭㨭 *CPFUGV
'0&
GETTING STARTED

[19] GETTING STARTED www.uniden.com
Handset Setup / Base Setup
The following submenu options must be set separately for each handset and the
base.
Selecting a Ringer Volume
Ringer volume lets you choose from one of three ringer volumes.
From the handset
1) Press the MENU soft key. Select the Handset Setup menu, and then the Ringer
Volume submenu.
2) Press volume up/down to select
HIGH , LOW , or OFF .
3) Press the OK soft key. You will hear a confirmation tone.
From the base
In standby mode, press volume up/down to select one of three ringer volumes (Off,
Low, or High).
Selecting a Ringer Tone (Handset only)
Ringer tone lets you choose from 10 ringer tones or 10 melodies:
- Ringers (Flicker, Clatter, Soft Alert, Wake Up, Light Bug, Beep Boop, Tone Board,
Chip Chop, Party Clap, Reminder)
- Melodies (Beethoven's Symphony #9 [Beethoven9], For Elise [Elise], We Wish You A Merry
Christmas [Merry- Xmas], Home Sweet Home [Hm Swt Hm], Lorri Song #6 [Lorri Song],
When the Irish Eyes Are Smiling [Irish Eyes], Aura Lee, Let Me Call You Sweet Heart
[Sweetheart], Star Spangled Banner [Star Spngl], Old MacDonald [Old MacDld])
GETTING STARTED
