Uniden TRU 8865 Series User manual

TRU 8865
SERIES
OWNER'S
MANUAL

[1]
www.uniden.com
WELCOME/FEATURES/TERMINOLOGY 2
CONTROLS & FUNCTIONS 4
DISPLAY AND ICONS 6
SOFT KEY FUNCTION 8
GETTING STARTED 9
Setting up the Phone 9
Mounting the Base Unit on a Wall 12
Expanding Your Phone 14
Connecting the Charger 14
Register the Handset 15
Main Menu Options 16
Setting Menu Options 17
BASICS 31
Making and Receiving Calls 31
Call Waiting 32
Placing a Call on Hold 32
Redialing a Call 33
Adjusting the Ringer, and Earpiece and Speaker Volume 34
Muting the Ringer 35
Mute Microphone 35
Tone Dialing Switch-over 36
Traveling Out of Range 36
Privacy Mode 37
Conferencing 37
Using One Touch Voice Mail Access 39
PHONEBOOK 40
Phonebook (Storing Phone Numbers, Names,
Distinctive Rings and Speed Dial) 40
Chain Dialing 41
Steps for Entering Names and Special Characters 42
Viewing the Phonebook 44
Making Calls Using the Phonebook 45
Speed Dialing 45
Editing or Erasing a Stored Name, Phone Number,
Distinctive Ring and Speed Dial 46
Copying Phonebook Locations 47
CALLER ID 48
Caller ID and CIDCW (Caller ID on Call Waiting) 48
Deleting a Caller ID Message 50
Using the Caller ID Message List 51
Call Waiting Deluxe Features 53
MULTI-HANDSET FEATURES 54
Multi-Handset Features 54
Using the DirectLink Mode 54
Intercom/Call Transfer Feature 55
ADDITIONAL INFORMATION 58
Changing the Digital Security Code 58
Find Handset 58
Installing the Beltclip 59
Headset Installation 59
Note on Power Sources 60
General Information 62
TROUBLESHOOTING 63
Troubleshooting 63
Liquid Damage 65
PRECAUTIONS & WARRANTY 66
I.C. NOTICE 68
MEMORY LIST 69
INDEX 71
MAIN MENU FLOW CHART 72
Contents
TRU8865_1st.book 1 ページ ２００４年１月７日 水曜日 午後１２時１分

[2] WELCOME/FEATURES/TERMINOLOGY
www.uniden.com
Congratulations on your purchase of the Uniden Digital Expandable Cordless Telephone
System! This unit is different from conventional cordless telephones. When the base
unit is connected to AC power and a telephone line, it can support up to 10 handsets.
You can now place a fully-featured cordless handset anywhere in your home or office
where AC power is available to connect the handset chargers. Extra handsets also allow
you to establish a 4-way conference call among 2 handsets, the base speakerphone, and
an outside line.
Note: Some illustrations in this manual may differ from the actual unit for explanation
purposes.
As an Energy StarPartner, Uniden has determined that this product or product
models meets the Energy Starguidelines for energy efficiency.
Energy Staris a U.S. registered mark.
• 5.8GHz Digital Expandable
• Dual Keypad and LCD Screen at Base
• 10 Multi-Handset Expandability
• Hands-Free Duplex Speakerphone in the Handset and Base
• Caller ID/Call Waiting Deluxe (subscribe through local telephone company)
• 100 (handset) and 50 (base) Programmable CID or Memory Locations
• Trilingual Display Options (English, French alnd Spanish)
• Intercom/Call Transfer Between Handsets
• 20 Distinctive Ring Options (10 ringer tones and 10 melody ringers)
• Mute and Hold Features
• Do Not Disturb (DND) Feature
•DirectLinkMode
• Room/Baby Monitoring
• Battery Level Indicator
• Clock Display
•AnimationDisplays
WELCOME/
FEATURES/
Welcome
Features
TRU8865_1st.book 2 ページ ２００４年１月７日 水曜日 午後１２時１分

WELCOME/FEATURES/TERMINOLOGY [3]
www.uniden.com
This series features AutoTalkand AutoStandby. AutoTalk allows you to answer a call by just removing
the handset from the cradle so you don't have to waste time pushing buttons. AutoStandby allows you to
hang up by simply returning the handset to the cradle.
To protect you against mis-billed calls that might result from your phone being activated by other
equipment, this series has Random Codedigital security, which automatically selects one of more than
10,000,000 digital security codes for the handset and base.
Digital Spread Spectrum Technology uses a wider frequency band than standard digital transmissions. The
result is a more secure conversation with the clarity of digital sound, extended range, and minimal
interference from other cordless phones.
IntegriSoundBuilt in sound quality which provides life-like conversations.
With DirectLinkmode, you can use 2 or more handsets as radio tranceivers (walkie-talkies).
Be sure to visit our web site: www.uniden.com
Unidenis a registered trademark of Uniden America Corporation.
AutoTalk, AutoStandby, DirectLink, IntegriSound and Random Code are trademarks of Uniden America.
Terminology
•Standby Mode - The handset is not in use, and talk/flash or speaker has not been pressed. No dial tone is
present.
•Talk Mode - The handset is not in the cradle, and talk/flash or speaker has been pressed, enabling a dial tone.
Talk appears on the display.
WELCOME/
FEATURES/
TRU8865_1st.book 3 ページ ２００４年１月７日 水曜日 午後１２時１分

[4] CONTROLS & FUNCTIONS www.uniden.com
Controls & Functions
1. Handset Antenna
2. Beltclip Hole
3. Speakerphone Speaker and Ringer
4. Handset Battery Compartment
5. New Message LED
6. Handset Earpiece
7. LCD Display
8. soft Keys (P. 8)
9. /vol /(volume up/down) (P. 34 & 17)
10.
*
/tone/< (P. 36 & 42)
11.speaker (P. 31)
12.intcom/hold (P. 55 & 32)
13.Headset Jack Cover
14.talk/flash (P. 31 & 32)
15.end (P. 31)
16.cid (P. 49)
17.#/> (P. 42)
18.phonebook (P. 40)
19.Handset Microphone
20.Handset Charging Contacts
2
1
4
3
5
6
7
8
9
10
11
12
1
9
2
0
1
4
1
7
1
8
1
5
1
6
1
3
CONTROLS &
FUNCTIONS
TRU8865_1st.book 4 ページ ２００４年１月７日 水曜日 午後１２時１分

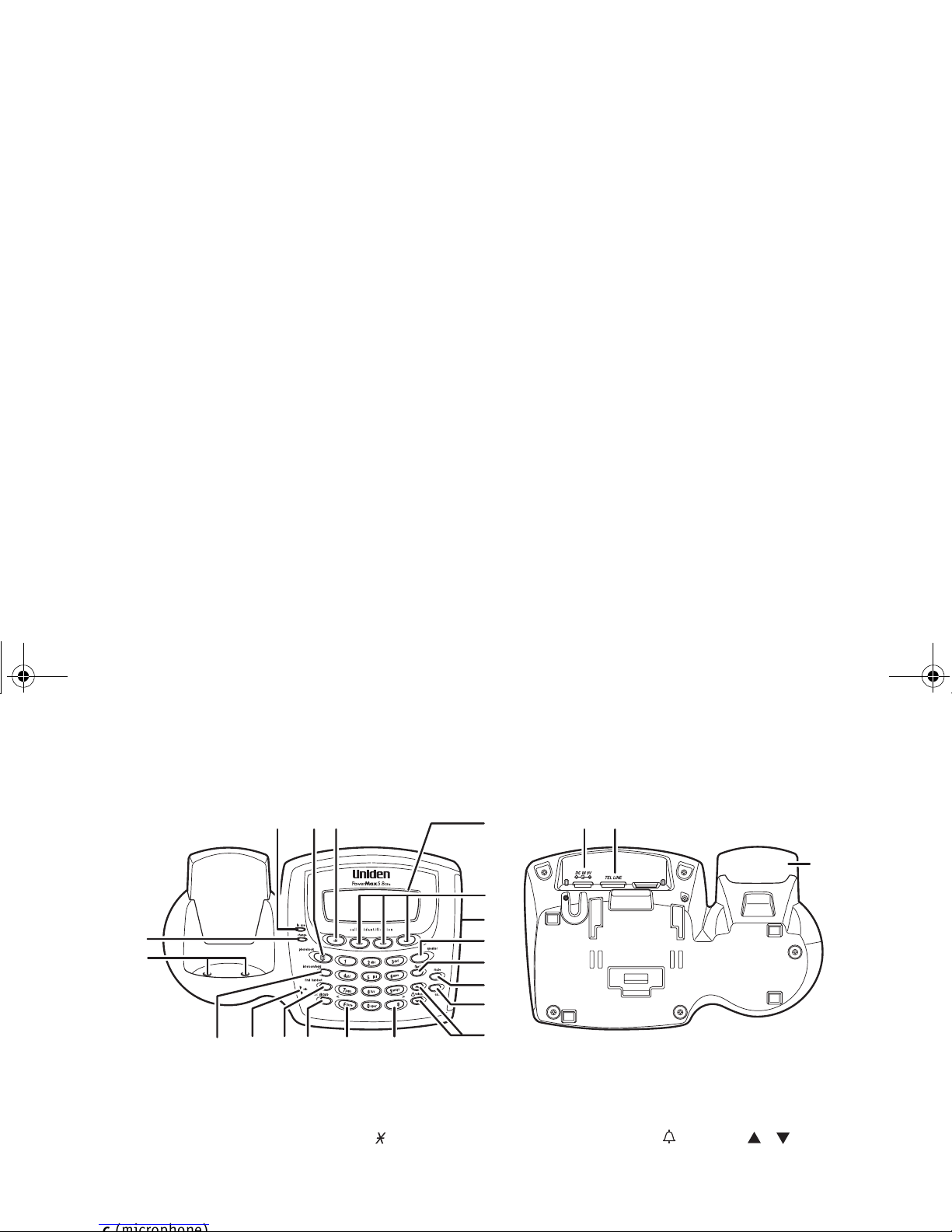

CONTROLS & FUNCTIONS [5] www.uniden.com
24
25
23
32
33
3029282726
40 4121 22 31
35
36
37
38
34
42
39
21. In use LED
22. phonebook (P. 40)
23. cid (P. 49)
24. Charge LED
25. Base Charging Contacts
26. intercom/hold (P. 55 & 34)
27. mic (microphone)
28. find handset (P. 58)
29. do not disturb (P. 35)/DND LED
30. tone <(P. 36)
31. LCD Display
32. soft Keys (P. 8)
33. Base Speaker
34. speaker/speaker LED (P. 31)
35. flash (P. 32)
36. mute (P. 35)
37.
exit (P. 44)
38. /volume / (volume up/down)
(P. 34 & 17)
39.
# > (P. 42)
40. DC IN 9V Jack
41. TEL LINE Jack
42. Base Antenna
CONTROLS &
FUNCTIONS
TRU8865_1st.book 5 ページ ２００４年１月７日 水曜日 午後１２時１分

[6] DISPLAY AND ICONS www.uniden.com
Display and Icons
Example of the standby mode display
•Handset
•Base
* This icon changes depending on ringer volume level (High, low and off)
ICON Appears During DESCRIPTION
Standby/Talk Battery icons indicate the handset battery status. This icon changes depending on
the battery status (empty, low, medium and full).
Standby The Ringer off icon indicates that ringer is turned off.
Talk The Mute icon appears when you mute the handset or base.
Talk The Speaker icon appears when the handset speaker phone is used (handset only).
Talk The Privacy icon appears when the Privacy Mode is turned on.
Standby When a new message is received, an envelope icon is displayed on the LCD screen
(base only).
570#
*CPFUGV
0GY%+&
4'&+#. /'07
Ringer off icon (when the ringer is off)/ day of the week and time / battery icon
Handset ID and Banner
Number of new Caller ID calls received (If there are no new Caller ID messages,
the Handset ID appears here.)
* Ringer Volume Level
Day of the week and time
envelope icon
Number of new Caller ID calls received
DISPLAY AND ICONS
TRU8865_1st.book 6 ページ ２００４年１月７日 水曜日 午後１２時１分

DISPLAY AND ICONS [7] www.uniden.com
Animation Displays (Handset only)
The handsets have a variety of animation displays. Below are examples of the animation screens and
what they mean:
Turning on the phone Hanging up the phone Confirmation (Done!) Deleting (Deleted!)
Making a call Find Handset/Paging the Handset
Also, the animation display changes depending on the ringer volume setting.
Out of Range Unavailable Low Battery
9GNEQOG
2NGCUG9CKV

'PF
&QPG &GNGVGF
6CNM

/76' %9&: 24+8#%;
2CIKPI
4KPIGT8QNWOG
4'&+#. /'07
4KPIGT8QNWOG
4'&+#. /'07
?
4KPIGT8QNWOG
4'&+#. /'07
1WV1H4CPIG
4'&+#. /'07
7PCXCKNCDNG
4'&+#. /'07
.QY$CVVGT[
DISPLAY AND ICONS
TRU8865_1st.book 7 ページ ２００４年１月７日 水曜日 午後１２時１分

[8] SOFT KEY FUNCTION www.uniden.com
Soft Key Function
"Soft" keys are keys that change function during the operation of the phone. There are three soft keys on
the base and three on each handset. Soft keys allow you to:
- Access the main menu - Access stored Caller ID messages
- Set up CIDCW options - Redial one of the last three numbers dialed from the handset
- Store or edit phone numbers
Note: The soft keys will not appear while the handset is charging.
The function of each soft key is determined by the icon that appears directly above it. For example, when
the handset is in standby mode, pressing soft key 1 will redial the last number. When the handset is in
talk mode, pressing soft key 1 will mute the microphone.
Complete information on the features controlled by the soft keys can be found under each feature.
In standby mode
Handset Base
In talk mode
Handset Base
570#
*CPFUGV
0GY%+&
4'&+#. /'07
Soft key 1 Soft key 2 Soft key 3
570#
0GY%+&
4'&+#. /'07
Soft key 1 Soft key 2 Soft key 3
6CNM

/76' 24+8#%;
%9&:
522JQPG
%9&: 24+8#%;

SOFT KEY FUNCTION
TRU8865_1st.book 8 ページ ２００４年１月７日 水曜日 午後１２時１分

GETTING STARTED [9] www.uniden.com
Setting up the Phone
Do the following steps:
A. Choose the best location
B. Install the rechargeable battery pack into the handset.
C. Connect the base unit.
A. Choose the best location
Before choosing a location for your new phone, read "Installation Considerations"
on page 67. Here are some important guidelines you should consider:
Avoid noise sources such as a window
by a street with heavy traffic
Avoid microwave ovens
Avoid excessive
moisture, extremely
low temperatures,
dust, mechanical
vibration, or shock
Avoid personal computers
Avoid other cordless telephones
Choose a central location
Avoid heat sources, such as
radiators, air ducts, and sunlight
Avoid television sets and
other electronic equipment
If your home has specially wired alarm equipment connected to phone line, be sure that installing the system does not
disableyour alarm equipment.
If you have questions about what will disable alarm equipment, contact your telephone company or a qualified installer.
note
For maximum range:
•Keep the antenna free
of obstruction.
•When the handset is
not in use place the
handset in an upright
position.
•Do not hold the
handset where you
would block the signal.
•Metal and reinforced
concrete may affect
cordless telephone
performance.
note
Correct
Incorrect
GETTING STARTED
TRU8865_1st.book 9 ページ ２００４年１月７日 水曜日 午後１２時１分

[10] GETTING STARTED www.uniden.com
B. Install the rechargeable battery pack into the handset
The handset is powered by a rechargeable battery pack. The battery recharges
automatically when the handset is placed in the base unit. To maximize the charge
capacity of your battery pack, DO NOT plug the telephone cord into the base unit
and wall jack until the battery is fully charged.
1) Press down on the handset battery case cover (use the
finger indention for a better grip) and slide the cover
downward to remove.
2) Turn the battery pack so that the connector with the red
and black wires is near the jack inside the battery
compartment. Match the connector's wire colors to the
polarity label in the battery compartment (the connector
notches fit into the grooves of the jack only one way).
Push the battery pack connector into the jack until it
clicks into place.
3) Make sure you have a good connection by gently pulling on
the battery wires. If the connection is secure, the battery
jack will remain in place.
4) Place the battery case cover back on the handset and slide
it upwards until it clicks into place.
• Use only the Uniden
(BT-446) rechargeable
battery pack supplied
with your cordless
telephone.
• Replacement battery
packs are also available
through the Uniden
Parts Department at
[phone],
Monday thru Friday from
8:00 a.m. to 5:00 p.m.
or online at
www.uniden.com
note
GETTING STARTED
TRU8865_1st.book 10 ページ ２００４年１月７日 水曜日 午後１２時１分

GETTING STARTED [11] www.uniden.com
C. Connect the base unit
1) Connect the AC adapter to the DC IN 9V jack and to
a standard 120V AC wall outlet.
Connect the AC adapter to a continuous power
supply (i.e., an outlet that is not controlled by a
switch).
2) Set the base on a desk or tabletop, and place the
handset in the base unit.
Place the base unit close to the AC outlet so that
you can unplug the AC adapter easily.
3) Make sure that the charge LED illuminates.
If the LED does not illuminate, check to see that the
AC adapter is plugged in and the handset makes
good contact with the base charging contacts.
4) After installing the battery pack in the handset,
charge your handset for at least 15-20 hours before
plugging into the phone line.
5) Once the handset battery pack is fully charged,
connect the telephone line cord to the TEL LINE jack
and to a telephone outlet.
If your telephone outlet isn't modular,
contact your telephone company for
assistance.
•Use only the supplied
[AD-830] AC adapter.
Do not use any other
AC adapter.
•Place the power cord
so that it does not
create a trip hazard or
where it could become
chafed and create a
fire or electrical
hazard.
note
GETTING STARTED
TRU8865_1st.book 11 ページ ２００４年１月７日 水曜日 午後１２時１分

[12] GETTING STARTED www.uniden.com
Mounting the Base Unit on a Wall
Standard wall plate mounting
This phone can be mounted on any standard wall plate.
1) Make the AC adapter and the telephone line cord
through the hole on the wall mount adapter.
2) Plug the AC adapter into the DC IN 9V jack.
3) Plug the telephone line cord into the TEL LINE
jack.
4) Slide the wall mount adapter into the notches on
the base.
5) Plug the AC adapter into a standard 120V AC wall
outlet. Hook the cord on the notch of the wall
mount adapter.
6) Plug the telephone line cord into the telephone
outlet. Hook the cord on the notch of the wall
mount adapter.
7) Align the mounting slots on the base with the
mounting posts on the wall. Then push in and
down until the phone is firmly seated.
To remove, push up
a tab on the wall
mount adapter as
shown.
DO NOT use an AC outlet
controlled by a wall
switch.
!
GETTING STARTED
TRU8865_1st.book 12 ページ ２００４年１月７日 水曜日 午後１２時１分

GETTING STARTED [13] www.uniden.com
Direct wall mounting
If you don't have a standard wall plate, you can mount your phone directly to the
wall. Before doing this, consider the following:
• Avoid electrical cables, pipes, or other items behind the mounting location that could
cause a hazard when inserting screws into the wall.
• Try to mount your phone within 5 feet of a working phone jack to avoid excessive lengths.
• Make sure the wall material is capable of supporting the weight of the base and handset.
• Use #10 screws (minimum length of 1 & 3/8 inches) with anchoring devices suitable for
the wall material where the base unit will be placed.
1) Insert two mounting screws into the wall
(with their appropriate anchoring device), 3
& 15/16 inches apart. Allow about 1/8 of an
inch between the wall and screw heads for
mounting the phone.
2) Refer to steps 1 through 7 on page 12 to
mount the telephone.
GETTING STARTED
TRU8865_1st.book 13 ページ ２００４年１月７日 水曜日 午後１２時１分

[14] GETTING STARTED www.uniden.com
Expanding Your Phone
10 Handset Expandability
Your phone supports up to 10 handsets,
including any handsets supplied with your
phone. You can now place a fully-featured
cordless handset anywhere AC power is
available to connect the handset charger.
Up to 2 handsets can be used in DirectLink
Mode or on an intercom call without interfering with incoming calls. It is possible
to have a 4-way conference among the base, 2 handsets, and one outside line.
All of the handsets ring when a call is received.
Connecting the Charger
1) Connect the AC adapter to the DC IN 9V jack
and to a standard 120V AC wall outlet.
2) Set the charger on a desk or tabletop, and
place the handset in the charger with the
keypad facing forward. (See "Install the
rechargeable battery pack into the handset"
on page 10.)
IMPORTANT:
If you purchase a TCX800 extra handset, please register the handset to the original/main
base before use. The TCX800 will not operate until it is registered.
If you change a global setting in one handset, you change that particular setting for all
registered handsets. All other settings (not included under Global Setup) must be set
separately through each handset.
Charge the handset
battery pack for at
least 15-20 hours
before using your new
cordless telephone for
the first time.
note
TRU8865_1st.book 14 ページ ２００４年１月７日 水曜日 午後１２時１分

GETTING STARTED [15] www.uniden.com

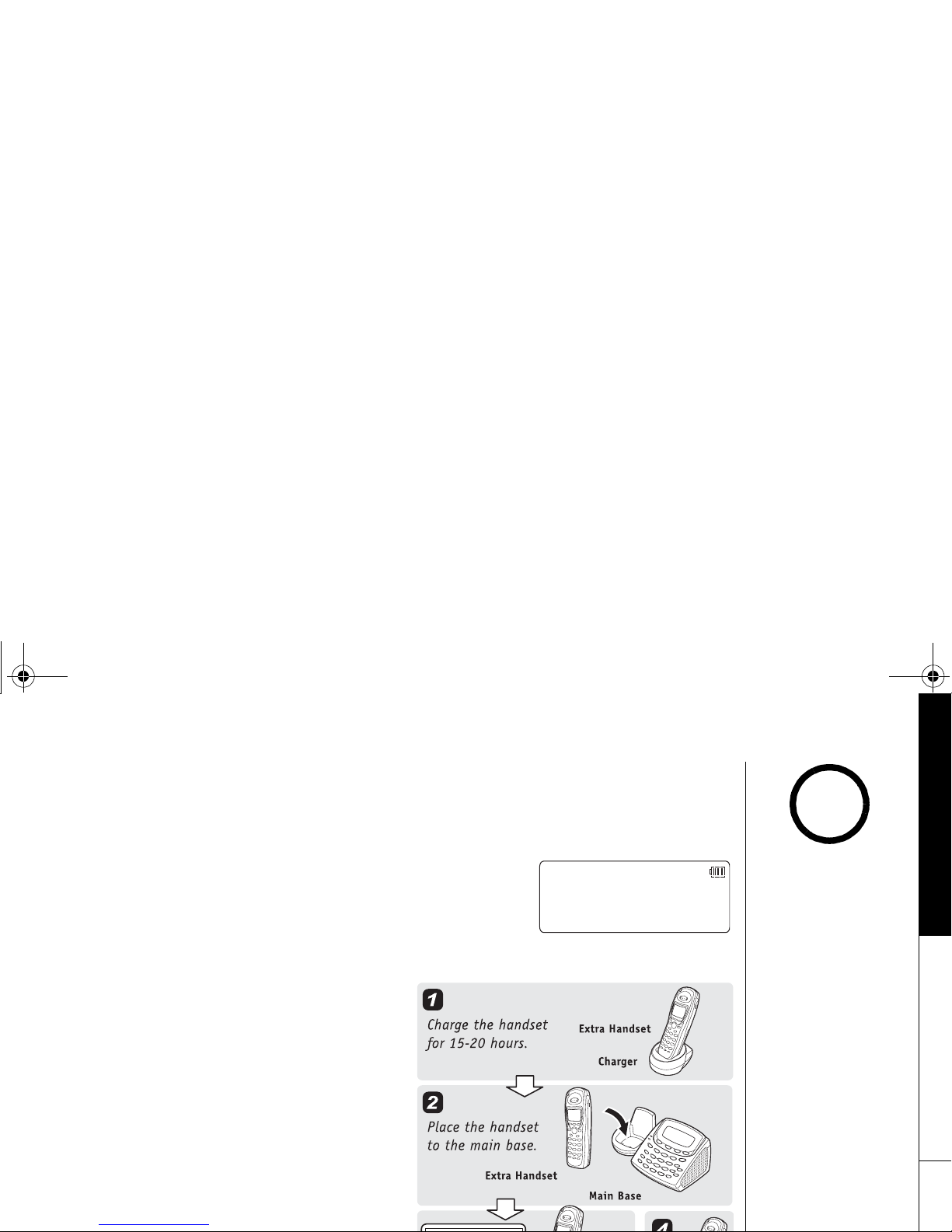

Register the Handset
If you purchase an extra handset, you need to register the handset before use. Only
one handset can be registered at a time.
Handsets supplied with the phone are registered to the
base by the factory. When charged, pre-registered
handsets display a handset ID number. Handsets that have
not been registered display
Place handset on main base to
register
. When you register an extra handset to the base, the handset ID will be
assigned.
1) Before registering the extra handset,
the battery pack MUST be charged for
15-20 hours.
2) Place the extra handset in the main
base unit to begin registration.
3) While the handset is registering,
Handset Registering will appear in the
LCD. When
Registration Complete is
displayed, the handset has been
registered to the base. If
Registration
Failed
appears, please try these steps
again.
2NCEGJCPFUGV
QPOCKPDCUG
VQTGIKUVGT
/76' %9&:
4GIKUVTCVKQP
%QORNGVG
An extra handset can
be registered when the
main base is in
standby mode.
note
GETTING STARTED
TRU8865_1st.book 15 ページ ２００４年１月７日 水曜日 午後１２時１分

[16] GETTING STARTED www.uniden.com
Main Menu Options
Your phone has six main menu options: DirectLink Mode, Room/Baby Monitor,
Handset Setup, Base Setup, Global Setup and Deregister HS. You can change
Room/Baby Monitor, and Global Setup settings from the base or from any
handset. DirectLink Mode, Handset Setup, and Deregister HS are only available
from a handset. Base Setup is only available from the base.
Default Settings
The default settings set from the factory match the features that most people use.
You may not need to change them. However, there are a number of options you
must set and entries you must make in memory to take full advantage of all the
phone features. The table below lists the default settings.
Function Handset Base Function Handset Base
Edit Voice Mail None Day & Time SUN 12:00 AM
Ringer Tone Flicker - CW / CWDX CW on/CWDX off
Distinctive Ring On - Area code None
Auto Talk Off - Dial Mode Tone
Anykey Answer Off - Voice Mail Tone On
Banner “ “ -
Language (LCD) English
Contrast Level 5
Key touch tone On -
Animation Screen On -
• For Global Setup,
and Deregister HS
menu options, make
sure the line is not
in use and the
handsets are within
range of the base.
•Mainmenuflow
chart is provided on
page 72.
note
GETTING STARTED
TRU8865_1st.book 16 ページ ２００４年１月７日 水曜日 午後１２時１分

GETTING STARTED [17] www.uniden.com
Setting Menu Options
Using the interface
Below are some tips for using the software interface on your phone.
•Press the MENU soft key to access the main menu.
•Use volume up/down to scroll through options.
•Press the OK soft key to make a selection.
• Press the BACK soft key to return to the previous
screen.
• Press end to exit the menu.
&KTGEV.KPM/QFG
4QQO/QPKVQT
*CPFUGV5GVWR
$#%- $#%- 1-
•Han
d
set
4QQO/QPKVQT
$CUG5GVWR
)NQDCN5GVWR
$#%- $#%- 1-
•Base
GETTING STARTED
TRU8865_1st.book 17 ページ ２００４年１月７日 水曜日 午後１２時１分

[18] GETTING STARTED www.uniden.com
DirectLink Mode (Handset only)
In DirectLink mode, a pair of handsets can function as two-way radios. DirectLink
Mode allows two handsets to communicate with each other without the base unit or
a telephone line. Use them at sporting events or while shopping to stay in contact
with family members or friends. You must set both handsets to DirectLink Mode to
activate this feature.
Using DirectLink Mode
1) Press the MENU soft key and select the DirectLink Mode
menu.
To enter DirectLink mode press [ENTER] appears.
2) Press the ENTER soft key to enter the DirectLink mode.
You will hear a confirmation tone, and
DirectLink Mode
Complete
appears.
3) To return back to the normal mode, press the CANCEL
soft key and then the OK soft key, or return the handset
to the cradle.
6QGPVGT
&KTGEV.KPMOQFG
RTGUU='06'4?
$#%- $#%- '06'4
You must have at least
two handsets to use
Direct Link Mode.
note
GETTING STARTED
TRU8865_1st.book 18 ページ ２００４年１月７日 水曜日 午後１２時１分
