The TRU3466 features include
AAuuttooTTaallkk
TT MMand
AAuuttooSSttaannddbbyy
TT MM. AutoTalk allows you to answer a call by just
removing the handset from the base so you don´t have to waste time pushing buttons or flipping switches.
AutoStandby allows you to hang up by simply returning the handset to the base.
To protect you against misbilled calls which might result from your phone being activated by other
equipment, the TRU3466 has
RRaannddoommCCooddee
TT MMdigital security which automatically selects one of over 65,000
digital security codes for the handset and base. Also, the
AAuuttooSSeeccuurree
TT MMfeature electronically locks your
phone when the handset is in the base.
BBeessuurreettoovviissiittoouurrwweebbssiittee::wwwwww..uunniiddeenn..ccoomm
Uniden®is a registered trademark of Uniden America Corporation.
AutoTalk, AutoStandby, Random Code, and AutoSecure are trademarks of Uniden America Corporation.
Welcome
Features
The Uniden TRU3466 2.4 GHz Cordless phones are designed and engineered to exacting
standards for reliability, longlife, and outstanding performance.
NNoottee::SSoommeeiilllluussttrraattiioonnssiinntthhiissmmaannuuaallmmaayyddiiffffeerrffrroommtthheeaaccttuuaalluunniittffoorr
eexxppllaannaattiioonnppuurrppoosseess..
• 2.4 GHz Extended Range
• 2-Line Operation with Intercom
• Caller ID and Call Waiting Caller ID
• 80 Number Caller ID Memory
(40 for each line)
• 30 Number Memory Dialing
• 32 Digit Redial
• Flash and Pause
• Tone/Pulse Dialing
• 10 Days Standby Battery Life
• 6 Hour Talk Time
• Handset Earpiece and Ringer Volume Control
• Speakerphone
• 3-Way and 4-Way Conference Operation
• 2-Way Page/Intercom
TRU3466 ENG 8/8/01 12:18 PM Page iv

Contents
Using your TRU3466 intercom 24
Call Transfer Feature 25
Using the speakerphone 25
Memory Features
Storing a phone numbers and names 26
Steps for Entering Names and Special Characters 28
Making calls with memory dialing 30
Chain dialing 31
Editing a stored name and/or phone number 31
Erasing a stored name and phone number 33
Caller ID Features
Caller ID 34
When the telephone rings 34
Viewing the Caller ID message list 35
Using the Caller ID list 36
Deleting information from the Caller ID list 38
Using CIDCW (Caller ID with Call Waiting) 39
Additional Information
Changing the digital security code 40
Installing the beltclip 41
Headset installation 41
Note on power sources 42
Maintenance 42
Troubleshooting 43
General information 44
Technical information 45
Index 47
Welcome/Features
Controls and Functions 2, 3
Getting Started
Read this first 4
Checking the package contents 5
Setting up the phone 6
Setting Caller ID options 11
Entering your Area Code 12
Basics
Making and receiving calls 13
Terminology 13
Adjusting the handset ringer and
earpiece volume 14
Redialing a call 15
Tone dialing switch-over 16
Traveling out-of-range 17
Selecting a different channel 17
Flash and call waiting 17
Answering a call from the base 18
Answering a call from the handset 18
Making a call from the base 19
Making a call from the handset 19
Placing a call on hold 20
Using the speakerphone mute feature 20
2-Line Features
2-Line operation 21
3-way conferencing 22
4-way conferencing 23
TRU3466 ENG 8/8/01 12:18 PM Page v

CONTROLS AND FUNCTIONS[ 2 ]
Controls and Functions

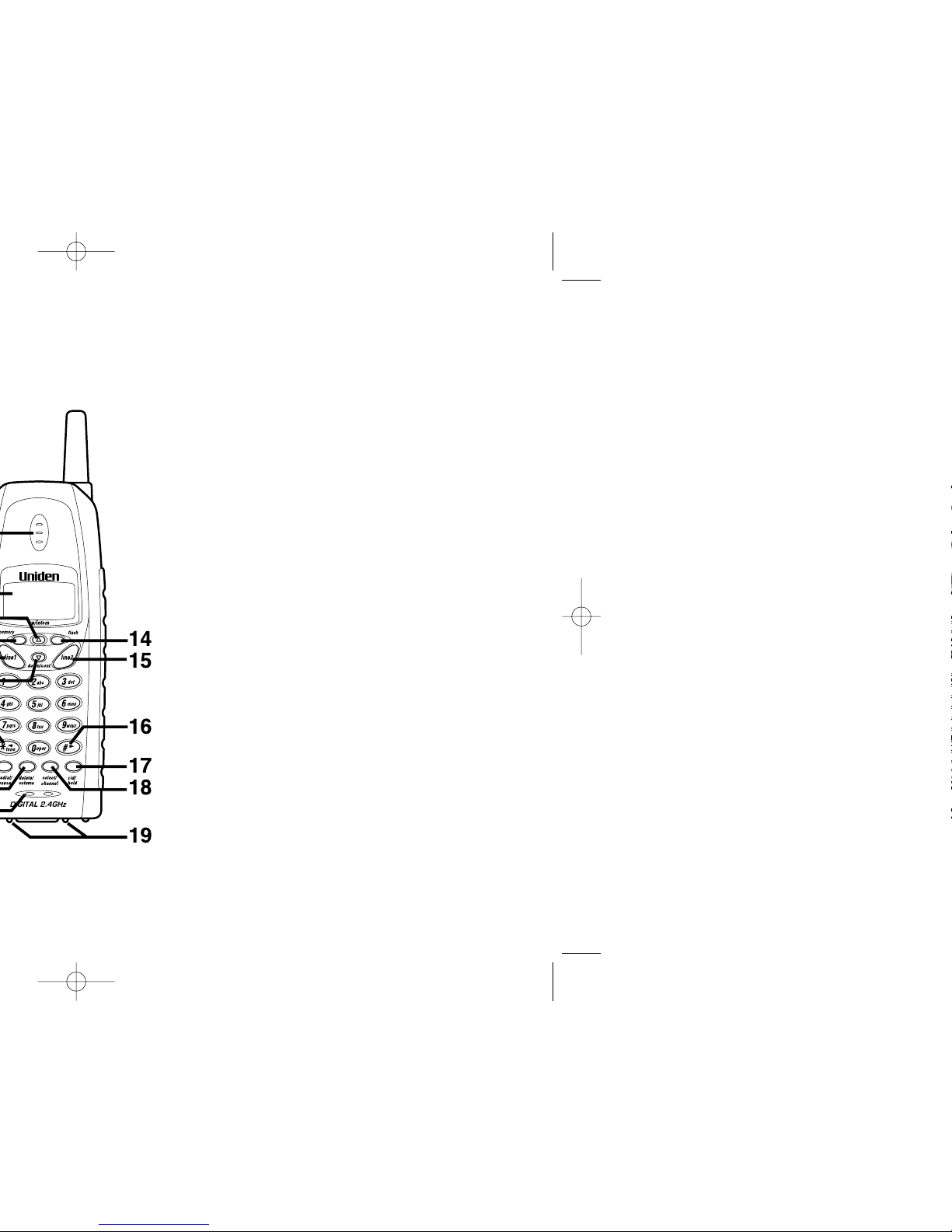

1. Handset Antenna
2. Optional Headset Jack
3. Handset Battery Compartment
4. Handset Earpiece
5. LCD Display
6. ▲ /Up/Intercom Key
7. Memory Key
8. Line 1 Key
9. ▼ / Down/Conference Key
10. */ t / Tone Key
11. Redial/Pause Key
12. Delete/Volume Key
13.Handset Microphone and Ringer Speaker
14. Flash Key
15. Line 2 Key
16. #/ s Key
17. Caller ID/Hold Key
18. Select/Channel Key
19. Handset Charging Contacts
TRU3466 ENG 8/8/01 12:18 PM Page 2

CONTROLS AND FUNCTIONS [3]
20. Base Charging Contacts
21. Hold Key
22. Mute Key
23. Memory Key
24. Page/Intercom Key
25. Base Speaker
26. */Tone Key
27. Line 1 Key
28. Line 1 LED
29. Status LED
30. Line 2 LED
31.Flash Key
32. Redial/Pause Key
33. Base Antenna
34. Line 2 Key
35. Conference Key
36. L2 Ring Volume Switch
37. L1 Ring Volume Switch
38. DC Power Input
39. Phone Jack (2nd Line)
40. Phone Jack (Line 1 and Line 2)
41. Base Speaker Volume Control
42. Base Microphone
TRU3466 ENG 8/8/01 12:18 PM Page 3

GETTING STARTED[ 4 ]
Read This First
This cordless telephone must be set up before use. Follow these steps:
AAbboouutttthheeddiiggiittaallsseeccuurriittyyccooddee
This cordless telephone uses a
digital security code to prevent
unauthorized access to your
base unit. This security code
prevents other cordless
handsets from making calls
through your base unit.
A random security code will be
assigned automatically between
your base unit and handset
when you charge the battery
pack for the first time.
If you want to reset the security
code, see page 40.
SStteepp11((ppaaggee55))
Unpack the telephone and accessories.
SStteepp22((ppaaggee66))
Next, choose the best location
to set up the base unit.
SStteepp33((ppaaggee77ttoo1100))
Then, insert the battery pack into
the handset. Connect the base unit.
You must charge the battery pack for
1155--2200hhoouurrssbbeeffoorreepplluuggggiinnggiinnttootthhee
tteelleepphhoonneelliinneeaanndduussiinnggtthheepphhoonnee..
SStteepp44((ppaaggee1111ttoo1122))
Finally, set the Caller ID options and store
your area code in the memory to use the
Caller ID service.
NNoottee::Skip the area code setting if your
calling area requires 10-digit dialing.
tip
To realize the full capabilities of
your two-line phone, contact
the phone company requesting a
two-line subscription.
TRU3466 ENG 8/8/01 12:18 PM Page 4

GETTING STARTED [5]
GETTING STARTED
Checking the Package Contents

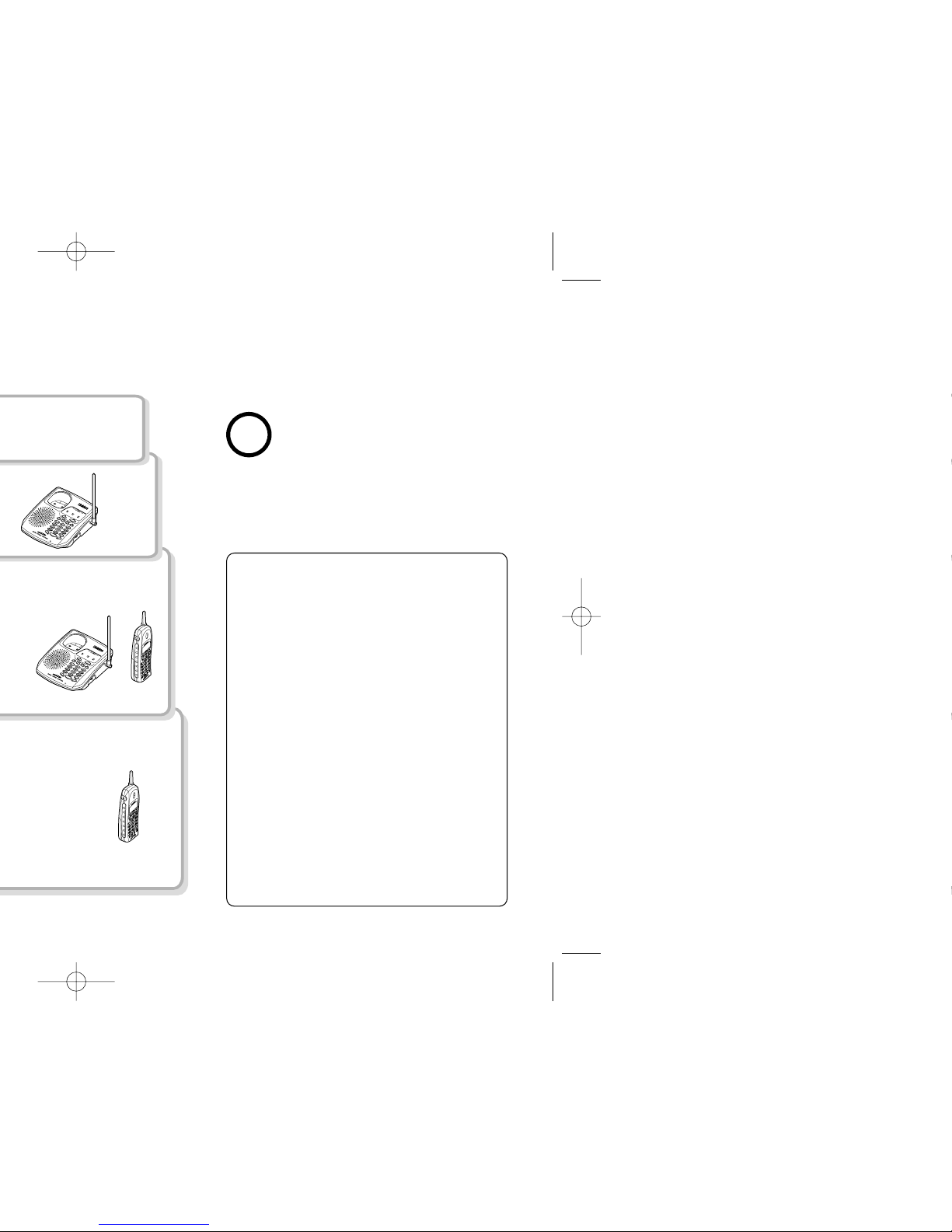

Make sure you have received the following items in the package. If any of these items are missing or
damaged, contact the Uniden Parts Department (see below).
Also included
••TThhiissOOwwnneerr´´ssMMaannuuaall
••QQuuiicckkRReeffeerreenncceeGGuuiiddee
••OOtthheerrPPrriinntteeddMMaatteerriiaall
••BBaasseeuunniitt••HHaannddsseett••AACCaaddaapptteerr((AADD--331133))••RReecchhaarrggeeaabblleebbaatttteerryyppaacckk
((BBTT--880000))
••TTeelleepphhoonneelliinneeccoorrdd••BBeellttcclliipp
Uniden Parts Department at [phone]
Hours: M-F 7:00 a.m. to 5:00 p.m. CST.
We can also be reached on the web at www.uniden.com
TRU3466 ENG 8/8/01 12:18 PM Page 5

GETTING STARTED[ 6 ]
Setting up the Phone
DDootthheeffoolllloowwiinnggsstteeppss::
A. Choose the best location C. Connect the base unit
B. Install the battery pack D. Choose the dialing mode
AA..CChhoooosseetthheebbeessttllooccaattiioonn
Before choosing a location for your new phone, read the INSTALLATION CONSIDERATIONS
included in the PRECAUTIONS AND IMPORTANT SAFETY INSTRUCTIONS brochure. Here are
some important guidelines you should consider:
•The location should be close to both a phone jack and a continuous power outlet
which is not switchable.
•Keep the base and handset away from sources of electrical noise such as motors,
microwave ovens, and fluorescent lighting.
•Be sure there is sufficient space to raise the base antenna to a vertical position.
•The base can be placed on a desk or tabletop.

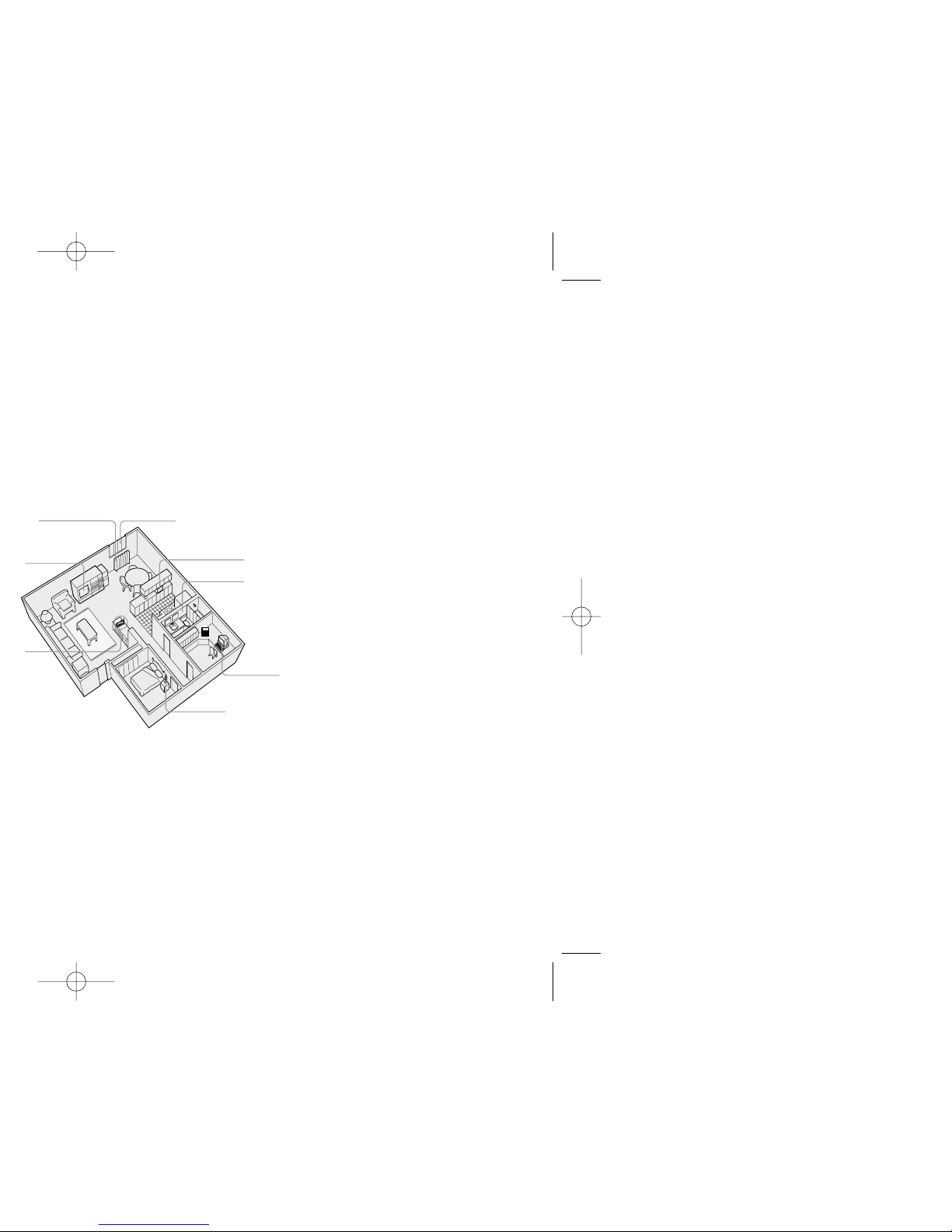

•If your second phone line has a separate modular jack, place your phone so you can
access both jacks.
AAvvooiiddeexxcceessssiivveemmooiissttuurree,,
eexxttrreemmeellyylloowwtteemmppeerraattuurreess,,
dduusstt,,mmeecchhaanniiccaallvviibbrraattiioonn,,oorrsshhoocckk
AAvvooiiddhheeaattssoouurrcceess,,ssuucchhaass
rraaddiiaattoorrss,,aaiirrdduuccttss,,aannddssuunnlliigghhtt
AAvvooiiddtteelleevviissiioonnsseettssaanndd
ootthheerreelleeccttrroonniicceeqquuiippmmeenntt
AAvvooiiddnnooiisseessoouurrcceessssuucchhaassaawwiinnddoowwbbyy
aassttrreeeettwwiitthhhheeaavvyyttrraaffffiicc
AAvvooiiddmmiiccrroowwaavveeoovveennss
AAvvooiiddppeerrssoonnaallccoommppuutteerrss
AAvvooiiddootthheerrccoorrddlleesssstteelleepphhoonneess
CChhoooosseeaacceennttrraallllooccaattiioonn
TRU3466 ENG 8/8/01 12:18 PM Page 6

[ 7 ]GETTING STARTED [7]
BB..IInnssttaalllltthheebbaatttteerryyppaacckk
CChhaarrggeetthheebbaatttteerryyppaacckkffoorraattlleeaasstt1155--2200hhoouurrssbbeeffoorreepplluuggggiinnggtthheepphhoonneelliinnee
iinnttooyyoouurrpphhoonnee..
1) Press in on the battery cover release and slide the cover
down until it comes off.
2) Connect the battery pack connector observing correct
polarity (black and red wires) to the jack inside the
battery compartment.
Do not exert any force on this connection. It could
cause damage to the battery or handset. The plastic
connector will fit together only one way. Once you are
certain that you have made a good connection, then
insert the battery pack into the battery compartment.
Do not pinch the wires.
3) Securely close the battery compartment cover by sliding
it up until it snaps into place.
4) Place the handset in the base unit.
GETTING STARTED
note
Use only the Uniden
Battery (BT-800)
supplied with your
phone. Replacement
batteries are also
available through
the Uniden Parts
Department (See
page 5).
TRU3466 ENG 8/8/01 12:18 PM Page 7

[ 8 ]
note
GETTING STARTED[ 8 ]
BBaatttteerryyuusseettiimmee((ppeerrcchhaarrggee))
From fully charged
• Six hours continuous use.
• Ten days when the handset is in the standby mode.
LLoowwbbaatttteerryyaalleerrtt
When the battery pack is very low and needs to be charged,
the phone is programmed to eliminate functions in order to
save power. If the phone is not in use, ”Low Battery”
flashes on the LCD and none of the keys will operate.
If the phone is in use, ”Low Battery” flashes and the
handset beeps. Complete your conversation as quickly as
possible and return the handset to the base unit for charging.
CClleeaanniinnggtthheecchhaarrggiinnggccoonnttaaccttss
TToommaaiinnttaaiinnaaggooooddcchhaarrggee,,iittiissiimmppoorrttaannttttoocclleeaanntthhee
bbaatttteerryyccoonnttaaccttssoonntthheehhaannddsseettaannddbbaasseeuunniittwwiitthhaa
ddrryyccllootthhoorraappeenncciilleerraasseerraabboouuttoonncceeaammoonntthh..
DDoonnoottuusseeaannyylliiqquuiiddssoorrssoollvveennttss..
• Even when the battery
pack is not being
used, it will gradually
discharge over a long
period of time. For
optimum performance,
be sure to return the
handset to the base
unit after each
telephone call.
• If you must replace
the battery pack
during a telephone
call, complete the
replacement of the
battery pack within
30 seconds, and you
can return to the
original call.
The last number dialed in the redial memory is retained for up to 2 minutes. The handset
memory backup can hold names and numbers stored in the memory locations even if the
battery pack is completely discharged.
note
TRU3466 ENG 8/8/01 12:18 PM Page 8

[ 9 ]
Place the power cord so
that it does not create a
trip hazard or where it
could become chafed
and create a fire or
electrical hazard.
!
GETTING STARTED [9]
GETTING STARTED
CC..CCoonnnneecctttthheebbaasseeuunniitt

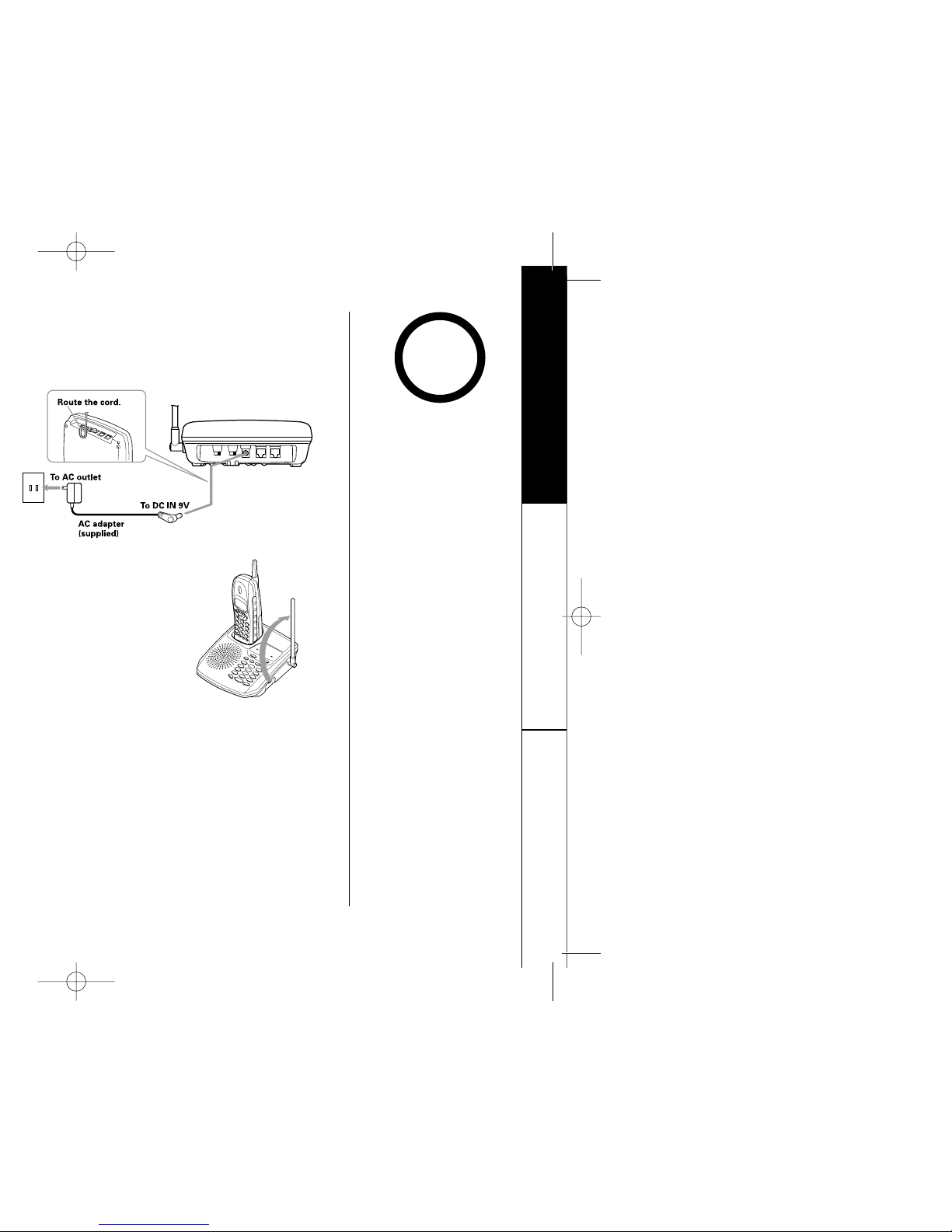

1) Connect the AC adapter to the DC IN 9V
jack and a standard 120V AC wall outlet.
2) Set the base on a desk or tabletop,
and place the handset in the base
unit as shown.
3) Raise the antenna to a vertical position.
4) Make sure the status LED lights. If the LED does not light,
check to see that the AC adapter is plugged in and the
handset makes good contact with the base charging contacts.
• Use only the supplied AD-313 AC adapter. Do not use any other AC adapter.
• Connect the AC adapter to a continuous power supply.
• Place the base unit close to the AC outlet so that you can unplug the AC adapter easily.
note
TRU3466 ENG 8/8/01 12:18 PM Page 9

[ 10 ]
After installing the battery pack in the handset, cchhaarrggeeyyoouurrhhaannddsseettaattlleeaasstt1155--2200
hhoouurrssbbeeffoorreepplluuggggiinnggiinnttootthheepphhoonneelliinnee. Once the handset battery pack is fully
charged, connect the telephone line cord to the base and telephone wall outlet.

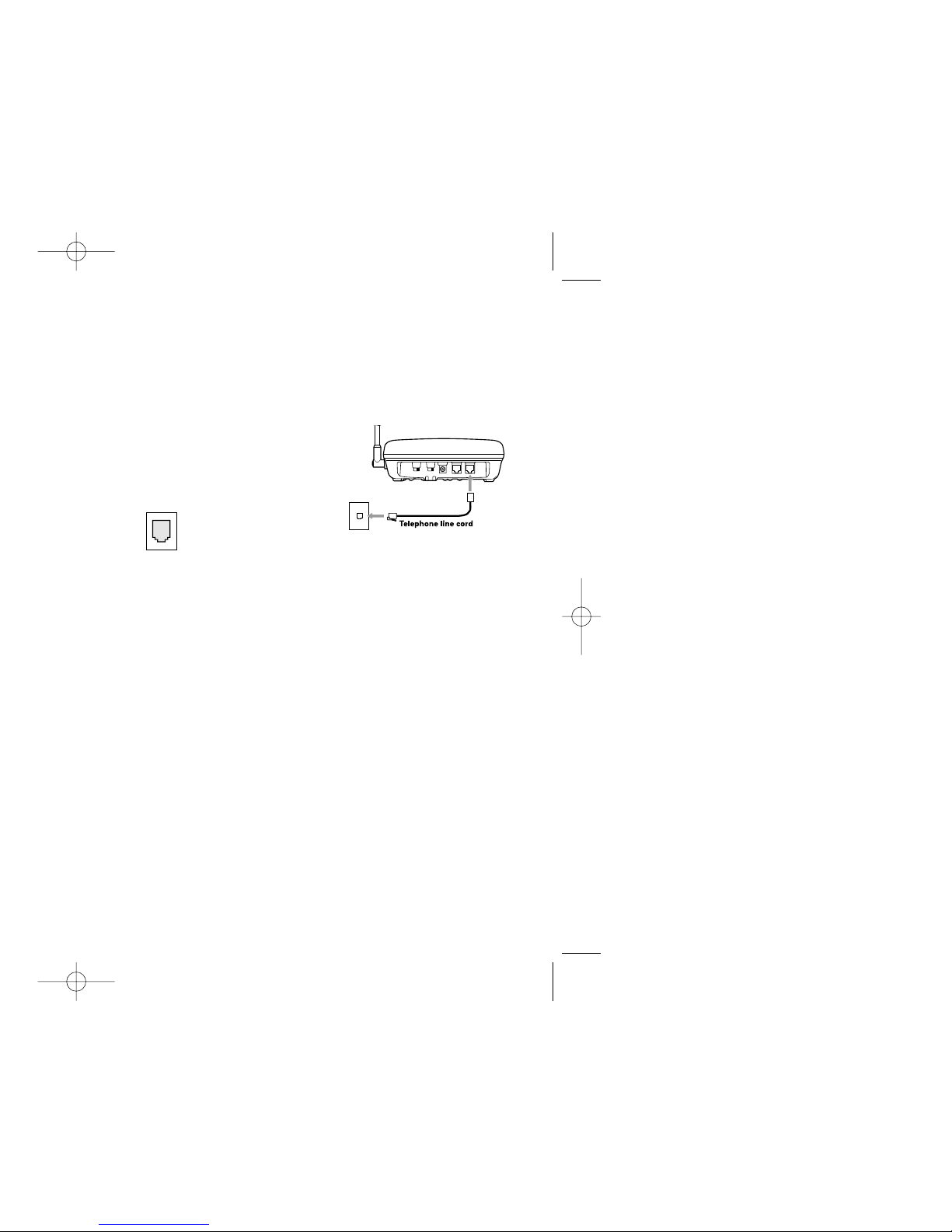

5) Connect the telephone line cord to the TEL LINE 1-2 or
TEL LINE 2 jack and a telephone outlet once the handset is
fully charged.
DD..CChhoooosseetthheeddiiaalliinnggmmooddee
Most phone systems use tone dialing which sends DTMF tones through the phone
lines. However some phone systems still use pulse dialing such as in rural areas.
The default setting is tone dialing. Depending on your dialing system, set the
mode as follows:
1) Press and hold flash on the base until you hear a confirmation tone.
2) To set the dial mode for pulse dialing, press #.
Or to set the dial mode for tone dialing, press */tone. A confirmation tone
sounds to indicate the setting is complete.
• If you aren´t sure of your dialing system, make a trial call.
If the call connects, leave the setting as is; otherwise, set for pulse dialing.
• If your phone system requires pulse dialing and you need to send DTMF tones for
certain situations during a call, you may ”switch-over” to tone dialing. (Refer to
” Tone Dialing Switch-over” on page 16.)
MMoodduullaarr
tip
If your telephone outlet isn´t
modular, contact your telephone
company for assistance.
note
For 2 line subscriptions,
• If the two phone lines
are in one modular
jack, connect using
TEL LINE 1-2 jack.
• If the two phone lines
are on two separate
modular jacks, connect
using both TEL LINE
1-2 and TEL LINE 2
jacks.
• Make sure your battery
pack is fully charged
before choosing the
dial mode.
GETTING STARTED
TRU3466 ENG 8/8/01 12:18 PM Page 10

1) When the phone is in the standby
mode, press and hold cid/hold until
the Caller ID setting screen appears.
2) Press */
tt
/tone or # / s to select ”Line1” or ”Line2”.
3) Press
▲ /up/intcm or ▼ /down/conf. .
The following screen appears.
4) Press
▲ /up/intcm or ▼ /down/conf. to move the cursor to the
selection that you would like to change. Press the
select/channel key to toggle between ”On”and ”Off”.
5) After you have made your selections, press cid/hold and
return the handset to the base.
[ 11 ]
GETTING STARTED
GETTING STARTED [11]
Setting Caller ID Options
There are three Caller ID setup options available; they are AutoTalk, CIDCW (Caller
ID on Call Waiting), and Area Code. See page 12 for Area Code setup instructions.
AutoTalk allows you to answer the phone without pressing line 1.
If the phone rings when AutoTalk is on, simply remove the handset from the base
and the phone automatically answers the call. Or if the handset is not on the
base, press any key to answer the call. If the phone rings when AutoTalk is off,
you must press line 1 to answer the call.
CCaalllleerrIIDDoonnCCaallllWWaaiittiinngg((CCIIDDCCWW))performs the same as regular Caller ID on a call
waiting number. YYoouummuussttssuubbssccrriibbeettooCCIIDDCCWWffrroommyyoouurrpphhoonneeccoommppaannyyiinnoorrddeerr
ttoouusseetthhiissffeeaattuurree..
To change your Caller ID options:
TRU3466 ENG 8/8/01 12:18 PM Page 11

1) When the phone is in the standby mode,
press and hold cid/hold until the Caller
ID setting screen appears.
2) Press */
tt
/tone or # / s to select ”Line1” or ”Line2”.
3) Press
▲ /up/intcm to select
”Area Code”.
4) Press select/channel.
5) Use the dial buttons (0to 9 ) to
enter the 3-digit area code.
6) Press select/channel. A tone sounds and the displayed area
code is entered.
7) Press cid/hold to complete the setting. Or return the handset
to the base unit. The handset returns to standby mode.
[ 12 ] GETTING STARTED[ 12 ]
note If you enter your 3-digit area code number in the ”Area Code” option, your
local area code does not appear in the Caller ID messages. Do not program this
option, if your calling area requires 10-digit dialing. When reviewing Caller ID
messages, you will see only the local seven digit number. For calls received from
outside your local area code, you will see a full 10-digit number.
Entering Your Area Code
If your calling area
requires 10-digit dialing,
do not program this
option.
When the area code has already been stored in memory, the stored area code will be displayed.
To change it, use the delete/volume and number keypad to enter
the new area code. Then press select/channel. To complete the
setting, press cid/hold or return the handset to the base unit.
note
TRU3466 ENG 8/8/01 12:18 PM Page 12

[ 13 ]
note
BASICS [13]
Making and Receiving Calls
BBaassiicc22--lliinneeooppeerraattiioonn
For clarity, the instructions in this owner´s manual designates line 1 unless the
procedure requires using line 2. The same instructions apply to line 2.
• You must have a 2-line
subscription from your
phone company to use
the 2-line features.
• Refer to page 11
”Setting Caller ID
Options” to turn on
the AutoTalk feature
if desired.
BASICS
To answer
a call
Pick up the handset (When
the AutoTalk is set to on)
or pick up the handset and
press line1.
1) Pick up the handset.
2) Press line1.
3) Listen for the dial tone.
4) Dial the number.
1) Press line1.
2) Listen for the dial tone.
3) Dial the number.
1) Press line 1.
2) Listen for the dial tone.
3) Dial the number.
Press line 1.
Press any key (When the
AutoTalk is set to on) or
press line1.
Press line 1 or line 2.
Press line1, or return the handset to the base
(Auto Standby).
HHaannddsseettOOnnBBaasseeHHaannddsseettOOffffBBaasseeBBaasseeOOnnllyy
To make
a call
To hang up
Terminology
Throughout this manual, terms such as Standby and Talk Mode are used. Below is
the terminology explanation.
•SSttaannddbbyyMMooddee- The handset is not in use, off the base and line 1 or line 2 has
not been pressed. A dial tone is not present.
•TTaallkkMMooddee- The handset is off the base and line 1 or line 2 has been pressed
enabling a dial tone.
TRU3466 ENG 8/8/01 12:18 PM Page 13

[ 14 ][14] BASICS

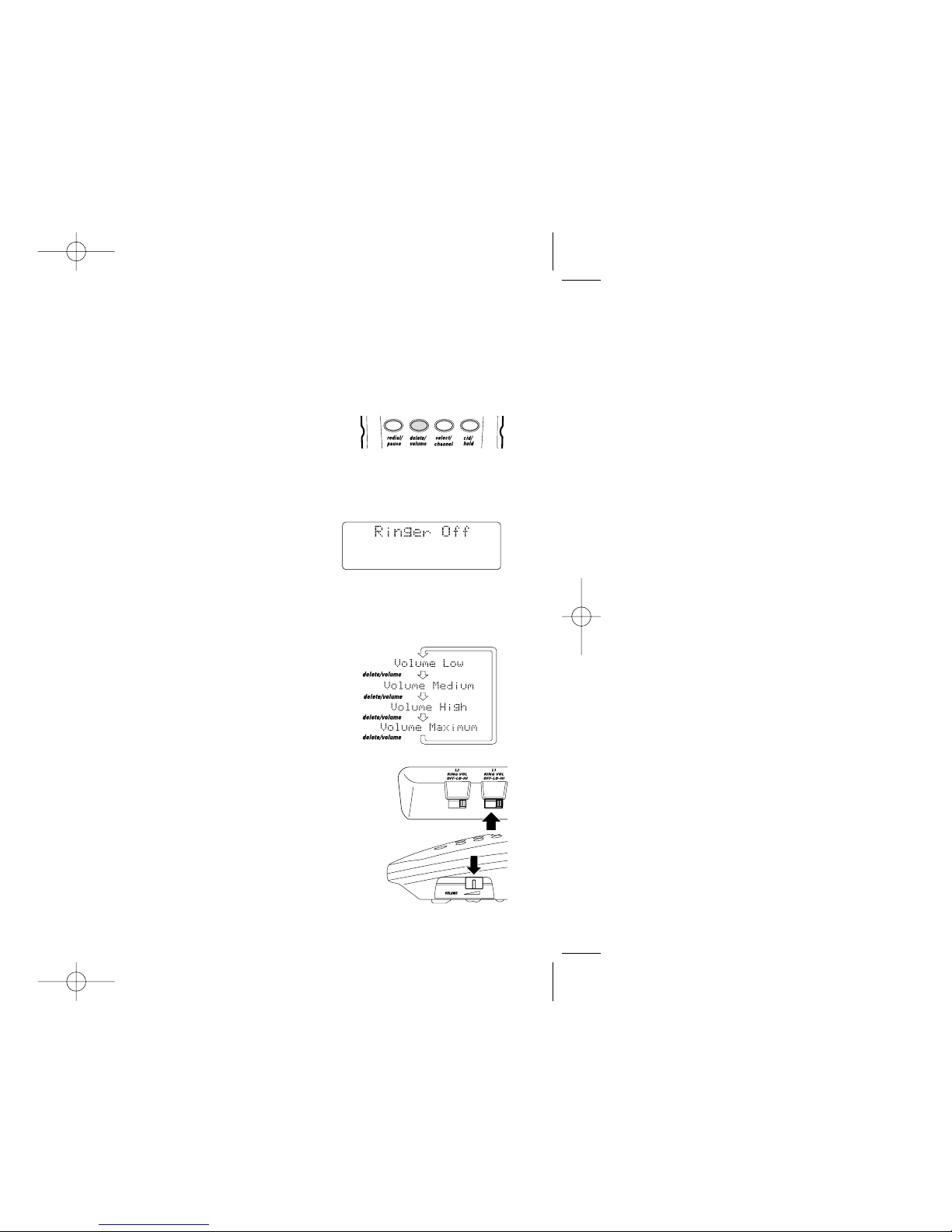

Adjusting the Handset Ringer and Earpiece Volume
RRiinnggeerrvvoolluummee
When the phone is in standby mode, pressing the delete/volume on the handset
selects the handset ringer volume. There are two ringer
volume levels. Press delete/volume key to listen to volume
levels. The phone keeps the last ringer volume setting
selected.
RRiinnggeerrooffff
During the standby mode or tone/volume setting, press
and hold delete/volume until the phone beeps and
”Ringer off” appears.
To turn the ringer back on, simply press delete/volume.
”Ringer High” appears.
EEaarrppiieecceevvoolluummee
The handset earpiece volume settings (Low, Medium, High
and Maximum) can only be adjusted during a call. Press
delete/volume repeatedly to select Low, Medium, High or
Maximum. When you hang up, the phone keeps the last
volume setting selected.
BBaasseerriinnggeerrvvoolluummee
The ringer control for the base of your TRU3466 allows you turn
the ringer OFF or to select LO/HI volume for each line.
BBaasseessppeeaakkeerrvvoolluummee
To control the speaker volume of the base, adjust the VOLUME
control switch as desired.
TRU3466 ENG 8/8/01 12:18 PM Page 14

1) Press redial/pause.
The phone number that was last dialed appears on the
display.
2) Press redial/pause again.
Each press of redial/pause will
display one of the last three
numbers dialed.
3) Press line1. The ”Line1” appears on
the display, then the volume setting
is displayed.
4) The selected number is dialed. After
about 5 seconds, the call-time
display appears.
5) To hang up, press the selected line key or place the
handset on the base. The call-time will be displayed for
about 5 seconds.
BASICS [ 15 ]
BASICS
Redialing a Call
The redial memory
function in the handset
and base are
independent from one
another.
tip
• Refer to terminology
explanation on Page
13, if necessary.
The last three phone numbers dialed can be quickly redialed.
RReeddiiaalliinnggffrroommSSttaannddbbyyMMooddee
FFrroommtthheeHHaannddsseett
• If the number exceeds
32 digits, only the
first 32 digits are
retained for redialing.
• Press and hold
delete/volume to
delete the displayed
redial number.
MMoosstt
rreecceennttnote
TRU3466 ENG 8/8/01 12:18 PM Page 15

[ 16 ] BASICS
Tone Dialing Switch-over
Some telephone companies use equipment that require pulse
dialing (sometimes referred to as rotary dialing). If you
need to enter tone dialing digits, you can switch-over to tone
dialing during the call. An example of this could be entering your bank account
number after you have called your bank. The digits of your bank account can be
entered using DTMF tones.
Initially make your call with the pulse dialing mode. Once your call connects,
press */
tt
/tone for the handset, or */tone for the base. Enter the desired number
(like in example above the bank account number). These digits will be sent as
tone dialing. This special number can be stored in a memory location. This is
referred to as Chain Dialing (See page 31). Once the call ends, the tone mode
is canceled and pulse dialing mode resumes.
RReeddiiaallffrroommTTaallkkMMooddee
1) Press line1.
2) Press redial/pause.
The last number dialed will be displayed and redialed.
3) To hang up, press the select line key or place the handset on the base. The
call-time will be displayed for about 5 seconds.
FFrroommtthheeBBaassee
1) To call the last number dialed from the base, press line 1.
2) Press redial/pause. The last number dialed from the base is redialed.
3) To hang up, press the selected line key.
Only the last number
dialed can be accessed
after the selected line
key has been pressed.
note
The tone feature only
applies when the dial
mode is set to pulse.
note
TRU3466 ENG 8/8/01 12:18 PM Page 16
