OWNER’S MANUAL TRU3465
2.4GHz Owners Manual TRU3465 8/2/00 11:35 AM Page 2

TRU3465 newstyle 8/2/00 11:23 AM Page ii

Contents
Telephone Features
3-way conferencing 29
Intercom Feature 30
Call Transfer Feature 31
Caller ID Features
Caller ID 32
When the telephone rings 32
Viewing the Caller ID Message list 33
Deleting information from the Caller ID list 34
Using the Caller ID list 36
Using “Caller ID on call waiting“ service 38
Call Waiting Features 39
Additional Information
Changing the digital security code 40
Installing the beltclip 41
Headset installation 41
Note on power sources 42
Maintenance 43
Troubleshooting 44
General Information 46
Index 49
Introduction / Features 2
Controls and Functions 4
Getting Started
Read this first 6
Step 1: Checking the package contents 7
Step 2: Setting up the base unit 8
Step 3: Installing the handset battery pack 10
Step 4: Setting Caller ID options 12
Entering your Area Code 13
Basics
Making a call 14
Receiving a call 16
Adjusting the volume 18
Redialing a call 19
Traveling out-of-range 20
Memory Dialing
Storing phone numbers and names 21
Making calls with memory dialing 24
Editing a stored name and/or phone number 26
Erasing a stored name and phone number 27
TRU3465 newstyle 8/2/00 11:23 AM Page iii

INTRODUCTION/FEATURES[ 2 ]
Welcome
Features
Congratulations on your purchase of the TRU 3465 cordless telephone. This
phone is designed for reliability, long life and outstanding performance
utilizing the latest in 2.4 GHz Spread Spectrum Technology.
NNoottee::SSoommeeiilllluussttrraattiioonnssiinntthhiissmmaannuuaallmmaayyddiiffffeerrffrroommtthheeaaccttuuaalluunniittffoorr
eexxppllaannaattiioonnppuurrppoosseess..
• 2.4 GHz Spread Spectrum Technology
• Secure Digital Transmission
• Caller ID and Call Waiting Caller ID
• Advanced Caller ID with Call Waiting Options
• 50 Number Caller ID Memory
• 30 Number Memory (20 on the handset and 10 on the base)
• 3 Line Backlit Display
• 3 Redial Memories (up to 32 digit)
• Flash and Pause
• Pulse / Tone Dialing
• 7 Day Standby Battery Life
• 6 Hour Talk Time
• Handset Earpiece and Ringer Volume Control
• Base Speakerphone with Keypad
• 3-Way Conference Operation
• Dual Keypad Operation
TRU3465 newstyle 8/2/00 11:23 AM Page 2

INTRODUCTION/FEATURES [ 3 ]
DDiiggiittaallSSpprreeaaddSSppeeccttrruummTTeecchhnnoollooggyyutilizes a “wider frequency band“ vs. a
“single narrow band“ used in standard digital transmissions. The 2.4 GHz
frequency range was recently released to commercial communications. The
result is a more secure conversation with the clarity of digital sound, extended
range, and minimal interference from other cordless phones.
RRaannddoommCCooddeeTM digital security automatically selects one of over 65,000 codes
for the handset and base.
These features enhance your phone´s security and also prevent unauthorized
calls as a result of your phone being activated by other equipment.
UnidenTM is a registered trademark of Uniden America Corporation.
AutoTalkTM and Random CodeTM are trademarks of Uniden America Corporation.
Throughout this manual, terms such as Standby and Talk Mode are used.
Below is the terminology explanation:
•SSttaannddbbyyMMooddee- The handset is not in use, off of the base and
has not been pressed. A dial tone is not present and the display
is blank.
•TTaallkkMMooddee- The handset is not on the base and has been pressed
enabling a dial tone. Talk appears on the display.
talk
talk
TRU3465 newstyle 8/2/00 11:23 AM Page 3

CONTROLS AND FUNCTIONS[ 4 ]
Controls and Functions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1. Handset Antenna
2. Headset Jack Cover
3. Handset Battery Compartment
4. Handset Earpiece
5. LCD Display
6. Volume Up Key
7. Memory Key
8. Talk Key
9. Volume Down Key
10. Tone/Left Cursor Key
11. Redial/Pause Key
12. Options Key
13. Handset Microphone
14. Flash Key
15. Caller ID Key
16. Right Cursor Key
17. Delete/Intercom Key
18. Select/Channel Key
19. Handset Charging Contacts
TRU3465 newstyle 8/2/00 11:23 AM Page 4

CONTROLS AND FUNCTIONS [ 5 ]
33
20
21
22
23
24
25
26
27
28
29
30
31
32
34 35 36 37
20. Base Charging Contacts
21. Base Speaker
22. Tone Key
23. Speaker LED
24. Status LED
25. Power LED
26. Intercom Key
27. Redial/Pause Key
28. Memory Key
29. Base Antenna
30. Flash Key
31. Speaker Key
32. Base Speaker Volume Adjust
33. Base Microphone
34. Base Ringer Switch
35. Pulse-Tone Switch
36. DC Power Input
37. Phone Jack
TRU3465 newstyle 8/2/00 11:23 AM Page 5

[6] GETTING STARTED
Read This First
This cordless telephone must be set up before use. Follow these steps;
AAbboouutttthheeddiiggiittaallsseeccuurriittyyccooddee
This cordless telephone uses a digital
security code to prevent unauthorized
access to your base unit. This
security code prevents other cordless
handsets from making calls through
your base unit.
A random security code will be
assigned automatically between your
base unit and handset when you
charge the battery pack for the
first time.
If you want to reset the security
code, see page 40.
SStteepp11((ppaaggee77))
Unpack the telephone and accessories.
SStteepp22((ppaaggee88ttoo99))
Next, choose the best location to
set up the base unit.
SStteepp33((ppaaggee1100ttoo1111))
Then, insert the battery pack into the
handset. You must charge the battery pack
for 1155hhoouurrssbbeeffoorreeuussiinnggtthheepphhoonnee.
SStteepp44((ppaaggee1122ttoo1133))
Finally, set the Caller ID options and
store your area code in the memory to
use the Caller ID service.
NNoottee::Skip the area code setting if your
calling area requires 10-digit dialing. HHaannddsseett
HHaannddsseett
BBaasseeuunniitt
TRU3465 newstyle 8/2/00 11:23 AM Page 6

[ 7 ]
GETTING STARTED
Checking the Package Contents
Make sure you have received the following items in the package.
If any of these items are missing or damaged, contact the Uniden Parts
Department (see below).
GETTING STARTED
••TThhiissOOwwnneerr ’ ssMMaannuuaall
••QQuuiicckkRReeffeerreenncceeGGuuiiddee
••PPrreeccaauuttiioonnssaannddIImmppoorrttaanntt
SSaaffeettyyIInnssttrruuccttiioonnss
••RReeggiissttrraattiioonnCCaarrdd
••BBaasseeuunniitt••HHaannddsseett••AACCaaddaapptteerr((AADD--331122))••RReecchhaarrggeeaabbllee
bbaatttteerryyppaacckk
((BBTT--990055))
••TTeelleepphhoonneelliinneeccoorrdd••BBeellttcclliipp
UUnniiddeennPPaarrttssDDeeppaarrttmmeenntt
[phone]
Hours: M-F 7:00 AM to 5:00 PM CST.
We can also be reached on the web at www.uniden.com.
TRU3465 newstyle 8/2/00 11:23 AM Page 7

[ 8 ]
Setting Up the Base Unit
Do the following steps.
• Choose the best location
• Connect the base unit
• Choose the dialing mode
CChhoooosseetthheebbeessttllooccaattiioonn
Before choosing a location for your new phone, read the INSTALLATION CONSIDERATIONS included
in the PRECAUTIONS AND IMPORTANT SAFETY INSTRUCTIONS brochure. Here are some important
guidelines you should consider:
• After installing the battery pack in the handset, you should charge your handset for 1155hhoouurrss
bbeeffoorreeuussiinnggtthheepphhoonnee. Once the handset battery pack is fully charged, you may connect the
telephone line cord to the base and telephone wall outlet.
• The location should be close to both a phone jack and a continuous power outlet which is
not switchable.
• Keep the base and handset away from sources of electrical noise such as motors and
fluorescent lighting.
• Be sure there is sufficient space to raise the base antenna to a vertical position.
AAvvooiiddhheeaattssoouurrcceess,,ssuucchhaass
rraaddiiaattoorrss,,aaiirrdduuccttss,,aannddssuunnlliigghhtt
AAvvooiiddtteelleevviissiioonnsseettssaanndd
ootthheerreelleeccttrroonniicceeqquuiippmmeenntt
AAvvooiiddnnooiisseessoouurrcceessssuucchhaassaawwiinnddooww
bbyyaassttrreeeettwwiitthhhheeaavvyyttrraaffffiicc
AAvvooiiddmmiiccrroowwaavveeoovveennss
AAvvooiiddeexxcceessssiivveemmooiissttuurree,,eexxttrreemmeellyyllooww
tteemmppeerraattuurreess,,dduusstt,,mmeecchhaanniiccaallvviibbrraattiioonn,,oorrsshhoocckk
AAvvooiiddppeerrssoonnaallccoommppuutteerrss
AAvvooiiddootthheerrccoorrddlleesssstteelleepphhoonneess
CChhoooosseeaacceennttrraallllooccaattiioonn
GETTING STARTED
TRU3465 newstyle 8/2/00 11:23 AM Page 8

[ 9 ]
• Connect the AC adapter
to a continuous power
supply.
• Place the base unit close
to the AC outlet so that
you can unplug the AC
adapter easily.

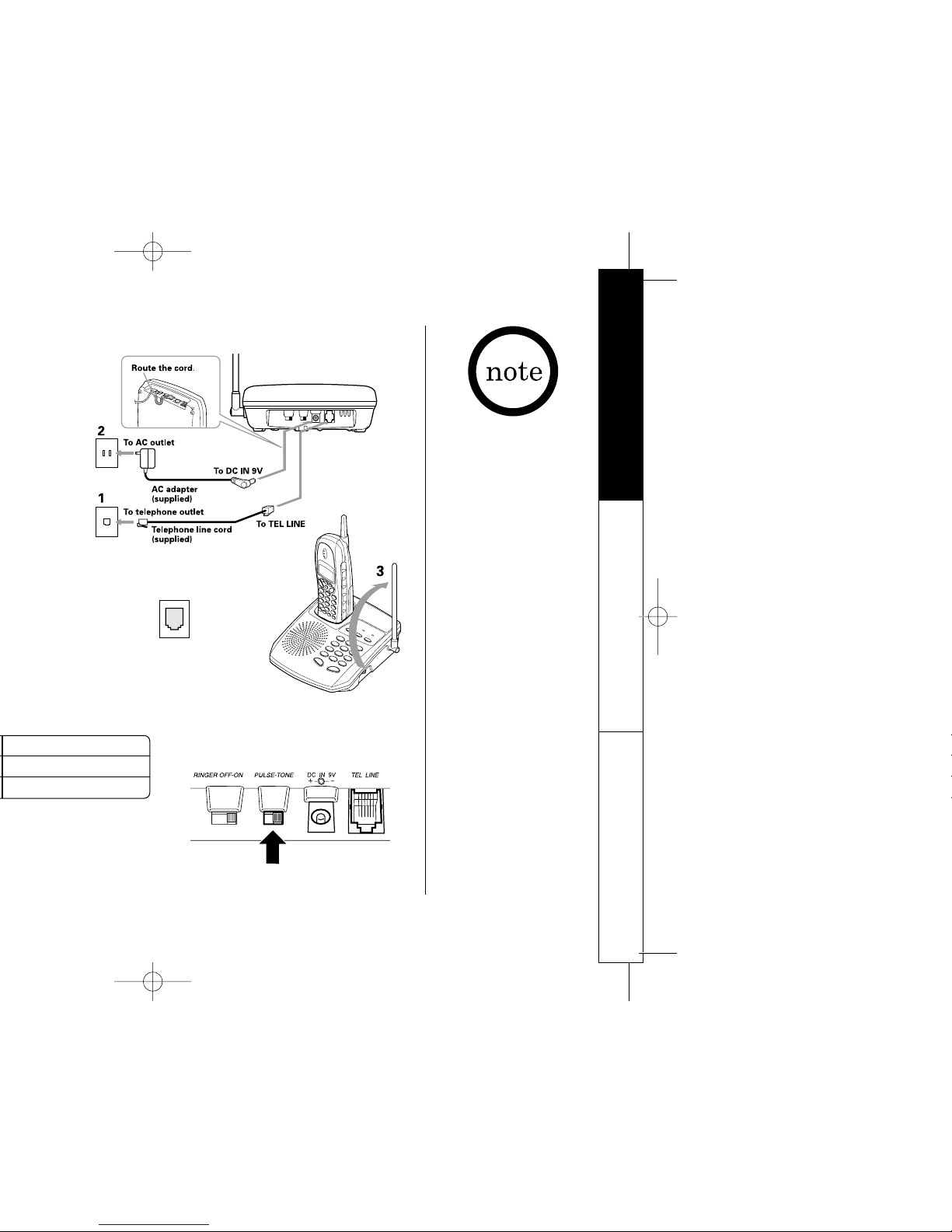

CCoonnnneecctttthheebbaasseeuunniitt
11Connect the telephone line cord to
the
TTEELLLLIINNEE
jack and to a
telephone outlet.
22Connect the AC adapter to the
DDCC
IINN99VV
jack and to a standard 120V
AC wall outlet.
33Set the base unit on a desk or
tabletop and place the handset on
the base unit as shown. Then raise
the antenna to a vertical position.
CChhoooosseetthheeddiiaalliinnggmmooddee
Depending on your dialing system, set the PPUULLSSEE--TTOONNEEswitch as follows:
If you aren´t sure of your dialing system,
make a trial call with the PPUULLSSEE--TTOONNEEswitch
set to
TTOONNEE
.
If the call connects, leave the switch as is;
otherwise, set to
PPUULLSSEE
.
• Place the power cord so
it does not create a trip
hazard or where it could
become chafed and
create a fire or electrical
hazard.
GETTING STARTED
MMoodduullaarr
If your telephone outlet isn´t modular, contact
your telephone company for assistance.
• Use only the supplied
AD-312 AC adapter. Do
not use any other AC
adapter.
GETTING STARTED
IIffyyoouurrddiiaalliinnggssyysstteemmiissSSeetttthheesswwiittcchhttoo
Tone
TTOONNEE
Pulse
PPUULLSSEE
TRU3465 newstyle 8/2/00 11:23 AM Page 9

[ 10 ] GETTING STARTED
Installing the Handset Battery Pack
CChhaarrggeetthheebbaatttteerryyppaacckkffoorr1155hhoouurrssbbeeffoorreeyyoouussttaarrttuussiinnggyyoouurrpphhoonnee..
11Press in on the battery cover release and slide the
cover down until it comes off.
22Connect the battery pack connector with the
correct polarity (black and red wires), then insert
the battery pack into the battery compartment.
33Slide the battery cover forward until it snaps
into place.
44Place the handset on the base.
55Make sure that the “
ssttaattuuss
“ LED lights. If the LED
doesn´t light, check to see that the AC adapter is
plugged in and that the handset makes good
contact with the base charging contacts.
Use only the Uniden Battery (BT-905) supplied with
your phone. Replacement batteries are also available
through the Uniden Parts Department (See page 7).
TRU3465 newstyle 8/2/00 11:23 AM Page 10

[ 11 ]
GETTING STARTED
BBaatttteerryyuusseettiimmee((ppeerrcchhaarrggee))
From fully charged
• 6 hours continuous use.
• 7 days when the handset is in the standby mode.
WWhheenntthheebbaatttteerryycchhaarrggeebbeeccoommeessllooww
When the voltage of battery pack in the handset is very
low and needs to be charged, the phone is programmed
to eliminate functions in order to save power. If the
battery charge becomes low, “Low Battery“ appears
on the LCD. If the phone is in use, the handset beeps.
Complete your conversation as quickly as possible and
return the handset to the base unit for charging.
CClleeaanniinnggtthheecchhaarrggiinnggccoonnttaaccttss
To maintain a good charge, it is important
to clean the battery contacts on the handset
and base unit with a dry cloth or a pencil
eraser about once a month.
DDoonnoottuusseeaannyylliiqquuiiddssoorrssoollvveennttss..
• Even when the battery
pack is not being used,
it will gradually
discharge over a long
period of time. For
optimum performance,
be sure to return the
handset to the base unit
after a telephone call for
charging the battery.
GETTING STARTED
• The built-in memory
backup can hold
numbers and names
stored in the memory
for up to 2 minutes,
while you replace the
battery pack.
• If you must replace the
battery pack during a
telephone call, complete
the replacement of the
battery pack within
30 seconds, and you
can return to the
original call.
TRU3465 newstyle 8/2/00 11:24 AM Page 11

[ 12 ] GETTING STARTED
Setting Caller ID Options
There are three Caller ID setup options available; they are AutoTalk, CIDCW (Caller
ID on Call Waiting), and Area Code. See page 13 for Area Code setup instructions.
AAuuttooTTaallkkTM allows you to answer the phone without pressing the button. If the
phone rings when AutoTalk is on, simply remove the handset from the base and the
phone automatically answers the call. Or if the handset is not on the base, press
any key to answer the call. If the phone rings when AutoTalk is off, you must
press to answer the call.
CCaalllleerrIIDDoonnCCaallllWWaaiittiinngg((CCIIDDCCWW))performs the same as regular Caller ID on a call
waiting number. Call waiting options allow you to handle call waiting calls in seven
different ways. (See page 39.)
YYoouummuussttssuubbssccrriibbeettooCCIIDDCCWWffrroommyyoouurrpphhoonneeccoommppaannyyiinnoorrddeerrttoouusseetthhiissffeeaattuurree..
To change your Caller ID options:
11Press . The following screen appears.
22Use and or a number key (1-3) to move the pointer to the selection that
you would like to change.
Press to toggle between “On“ and “Off“ for “Auto Talk“.
For “CIDCW“, choose “On“, “Off“, or “Opt“ depending upon the type of
service to which you subscribe.
33After you have made your Caller ID selections, press and return the
handset to the base.
ª
•
talk
talk
You must subscribe to
Caller ID on Call Waiting in
order to use this feature.
TRU3465 newstyle 8/2/00 11:24 AM Page 12

[ 13 ]
GETTING STARTED
Entering Your Area Code
If you enter a 3-digit area code number in the Area Code option, your local
area code does not appear in Caller ID messages. Do not program this option
if your calling area requires 10-digit dialing. When reviewing Caller ID
messages, you will see only the local seven digit number. For calls received
from outside your local area code, you will see a full 10-digit number.
11When the phone is in the standby mode, press .
The Caller ID setting screen appears.
22Press to select “Area Code“.
33Press .
44Use the number keypad ( to ) to enter the 3-digit area code.
55Press . A tone sounds and the displayed area code is entered.
66Press to complete the setting. Or return the handset to the base
unit to complete the setting. The handset returns to the standby mode.
90
3
If your calling area requires
10-digit dialing, do not
program this option.
GETTING STARTED
When the area code has already been stored in memory, the
stored area code will be displayed. To change it, use the
and number keypad to enter the new area
code. Then press .
To complete the setting, press or return the handset
to the base unit.
delete/int com
TRU3465 newstyle 8/2/00 11:24 AM Page 13

DDootthhiiss
Press during a call.
Press or during a call.
Press . The following numbers
will be sent as tone dialing.
Press . “P“ appears on the
display which represents a pause.
ª
•
[ 14 ]
• Refer to terminology
explanation on Page 3,
if necessary.
BASICS
Making a Call
DDiiaalliinnggffrroommSSttaannddbbyyMMooddee
11Enter the phone number and press . “Talk“
flashes on the display.
Then current volume setting is displayed.
22The number is dialed. After about 5 seconds, the
call-time display appears.
33To hang up, press or place the handset on the base.
The call-time will be displayed for about 5 seconds.
talk
talk
• Press if
you enter a wrong
number at the step 1. To
delete all the numbers
that you have entered,
press and hold until the
display clears.
delete/int com
delete/int com
• You must press a key
within 20 seconds or the
phone will return to
standby.
Talk
8178583300
Talk
High>
Talk 0:00
8178583300
TToo
To improve the reception
To adjust the earpiece volume
To temporarily switch to tone dial
(When the base is set to pulse mode)
To enter a pause within the dialing
sequence
OOtthheerrOOppeerraattiioonnss
TRU3465 newstyle 8/2/00 11:24 AM Page 14

[ 15 ]
BASICS
BASICS
DDiiaalliinnggffrroommTTaallkkMMooddee
11Press . “Talk“ flashes on the display.
Then current volume setting is displayed.
22Dial the phone number.
EExxaammppllee: Enter 8178583300
33To hang up, press or place the handset on the base.
The call-time will be displayed for about 5 seconds.
FFrroommtthheebbaassee11Press .
22Dial the number on the keypad.
33When you finish the call, press to hang up.
speaker
speaker
talk
talk
The base microphone is
located under the phone.
Position yourself as near to
the base as possible and
speak clearly.
Talk
Talk 0:17
8178583300
10:03
Microphone
TRU3465 newstyle 8/2/00 11:24 AM Page 15

[ 16 ] BASICS
Receiving a Call
FFrroommtthheehhaannddsseett
11The phone rings.
22Press . “Talk“ and volume setting appear
on the display.
33Talk with the caller.
44To hang up, press or place the handset on
the base. The call-time will be displayed for about
5 seconds.
AAuuttooTTaallkkwwhheennrriinnggiinngg
When the AutoTalk setting is on and there is an incoming call, simply lift the
handset from the base unit to answer the phone. See “Setting Caller ID options“
on page 12 for more details.
AAnnyykkeeyyaannsswweerrwwhheennrriinnggiinngg
When the AutoTalk setting is on and the handset is off the base, press any
handset key to answer the incoming call.
CCaallllWWaaiittiinngg
NNoottee::YYoouummuussttssuubbssccrriibbeettooCCaallllWWaaiittiinnggsseerrvviicceettoouusseetthhiissffeeaattuurree..
When a call is received during a telephone call already in progress, press to
switch to the new call. If you also subscribe to Call Waiting on Caller ID, you will
see the name and number of the caller in call waiting. (See page 38.)
flash
talk
talk
Talk 0:00
Normal>
Incoming Call
Talk 0:02
115:35
TRU3465 newstyle 8/2/00 11:24 AM Page 16

[ 17 ]
BASICS
BASICS
FFrroommtthheebbaassee11The phone rings. The
ssttaattuuss
LED on the
base flashes.
22Press and begin speaking.
33To hang up, press .
speaker
speaker
The base microphone is
located under the phone.
Position yourself as near to
the base as possible and
speak clearly.
Microphone
TRU3465 newstyle 8/2/00 11:24 AM Page 17

[ 18 ] BASICS
Adjusting the Volume
HHaannddsseettrriinnggeerrttoonneeaannddvvoolluummee
Press or in Standby mode to select one of
four ringer tone and volume combinations.
(Refer to terminology explanation on Page 3
if necessary.)
EEaarrppiieecceevvoolluummee
Pressing or during a call will change the earpiece volume of the
handset. This setting will remain in effect after the telephone call has ended.
When you press in Loud mode or in Normal mode, an error tone sounds.
BBaasseerriinnggeerrsswwiittcchh
This switch turns the base ringer on or off.
BBaasseessppeeaakkeerrvvoolluummee
To control the speaker volume of the base, adjust
the volume slide control as desired.
ª
•
ª
•
ª
•
Ringer A High
•
ª
Ringer A Low
•
ª
Ringer B High
•
ª
Ringer B Low
High> Medium>Loud>
ª
•
ª
•
ª
•
Normal>
TRU3465 newstyle 8/2/00 11:24 AM Page 18
