2
XDECT R006 Accessory Handset
Owner's Manual
XDECT R006
accessory
handset and
charger

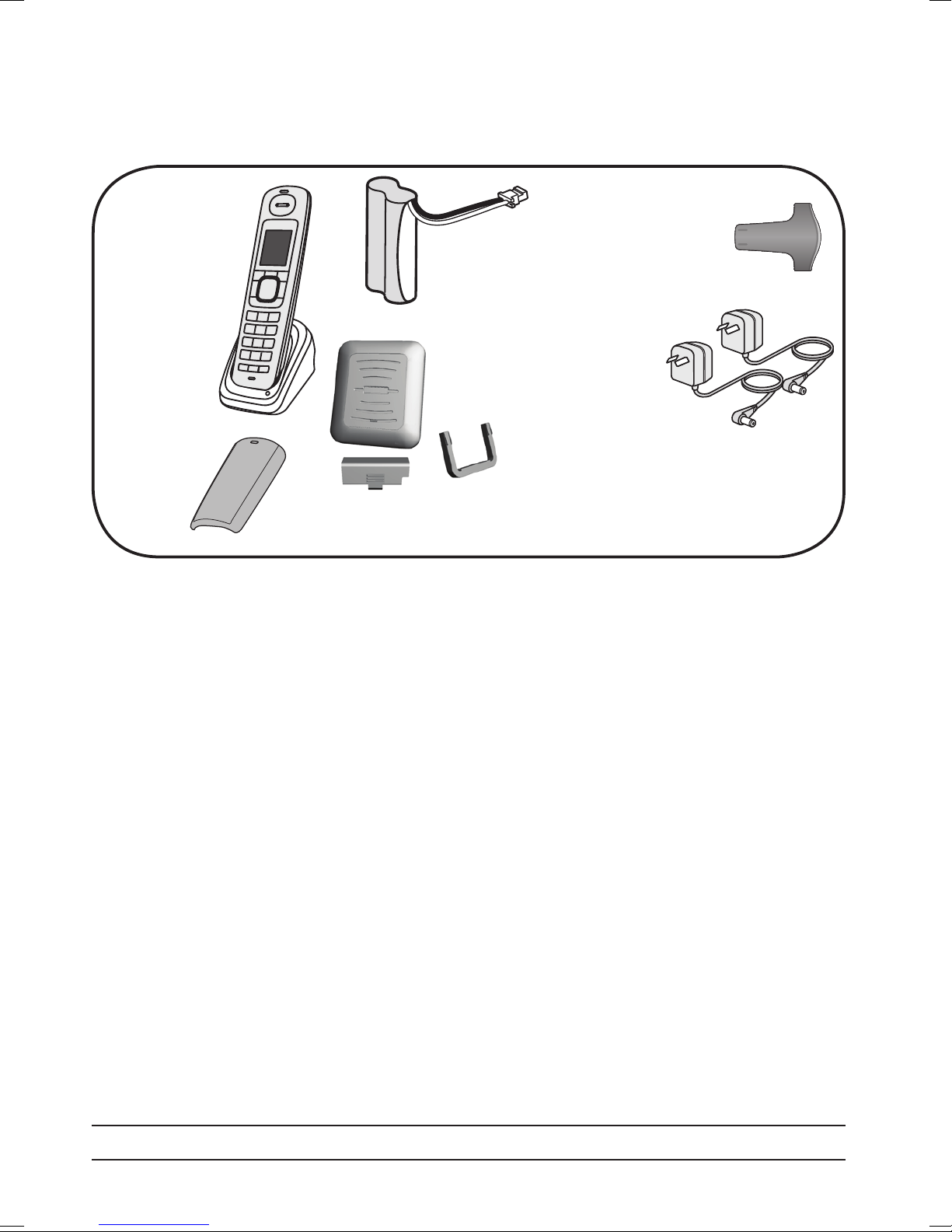

What's in the box?
Belt
clip
Battery
cover
Rechargeable
battery pack (BT-694 or
BT-694s)
AC adapters for
Repeater (AAD-
041S(M))and Charger
(AAD-600S(M))
If any items are missing or damaged, contact your place of
purchase. Never use damaged products!
Need Help? Get answers at our website:
www.uniden.com.au for Australian model or www.uniden.co.nz
for New Zealand model.
Important Safety Instructions!
When using your telephone equipment, basic safety precautions should always be
followed to reduce the risk of re, electric shock and injury to persons, including the
following:
This unit is NOT waterproof.
DO NOT expose this unit to rain or moisture.
Do not use this product near water, for example, near a bath tub, wash bowl, kitchen

sink or laundry tub, in a wet basement or near a swimming pool.
Avoid using a telephone (other than a cordless type) during an electrical storm. There

may be a remote risk of electric shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak.

Use only the power cord and batteries indicated in this manual. Do not dispose of

batteries in a re. They may explode. Check with local codes for possible special
disposal instructions.
Do not place the handset in any charging cradle without the battery installed and the

battery cover securely in place.
SAVE THESE INSTRUCTIONS!
Repeater, desk-stand
and plug cover
Wallmount
XDECT R006 OM.indd 2 22/9/11 11:46:17 AM

3
Setting Up Your Handset

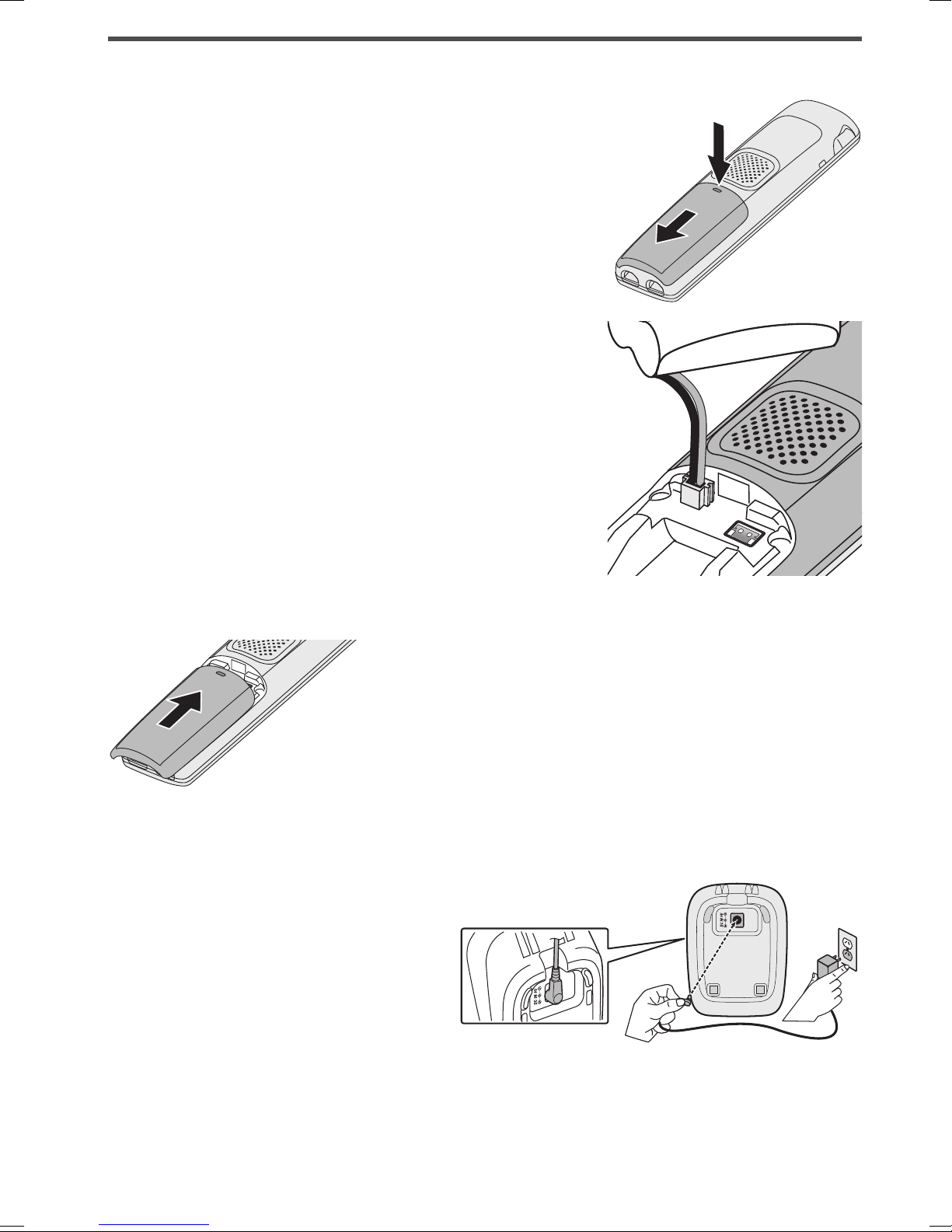

Install the Battery
1. Unpack the handset, battery pack, and
battery cover. If the battery cover is
already on the handset, press in on the
notch and slide the cover down and off.
2. Line up the battery pack
connector with the jack inside the
handset. (The battery connector only fits
one way.)
Push the battery pack connector in until it3.
clicks into place. Tug gently on the wires
to make sure the battery pack is securely
connected.
Place the cover over the battery4.
compartment and slide it up into
place.
Connect the Charger
Connect the AC adapter1.
to the charger's
DC IN 9V
jack and route the cord as
shown. (This adapter might
already be connected.)
Plug the other end of the2.
adapter into a standard
240V AC power outlet.
Make sure that the charge
LED illuminates when the
handset is seated.
XDECT R006 OM.indd 3 22/9/11 11:46:18 AM

4

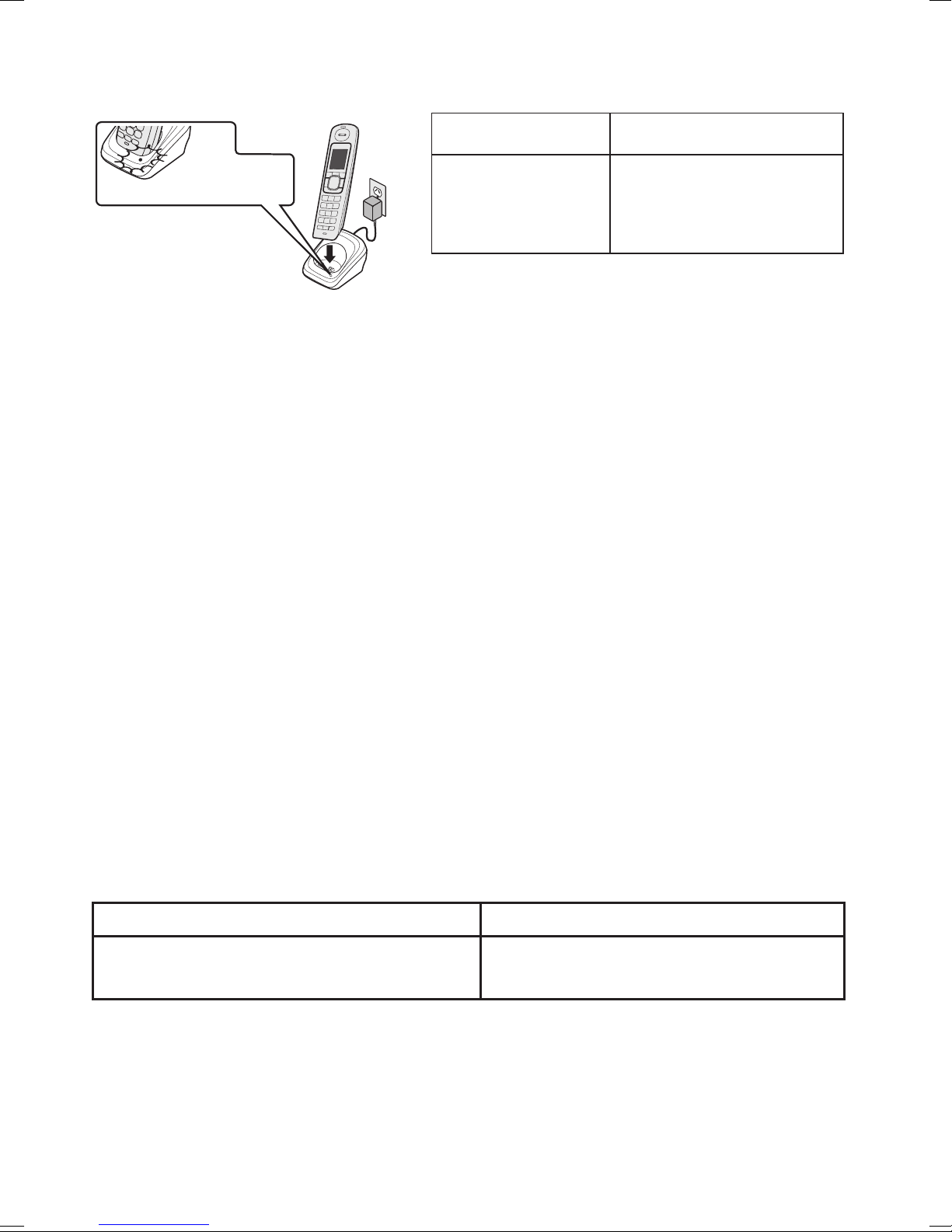

Place the handset in the charger with the display facing forward.3.
The
CHARGE
light should turn on.
If... Try...
the
CHARGE
light
does not turn on
reseating the handset.-
checking the AC adapter-
connection.
Charge the handset completely
(about 15 hours) before using it.
Registering the Handset
The accessory handset will not work until you register it to
a base! Registering the handset is a separate process from
registering the Repeater. You can use the handset normally
even if the repeater is not registered.
Compatible bases
This handset is designed for use with Uniden's XDECT R055 base.
For the most up-to-date list of compatible bases for this handset, see
our website.
Register the handset
Place the handset in the base. The display should say
Handset
Registering
.
After about 30 seconds, the handset display should say
Registration Complete .
Test the connection
Pick up the handset and press
TALK
. Make sure you get a dial tone.
(Press
END
to hang up.)
If... Try...
you don't hear a dial tone-
the display says-
Registration Failed
Making sure the handset is fully charged,
then trying again.
Attaching the Belt Clip
Line up the holes on each side of the handset. Insert the belt clip
into the holes on each side of the handset. Press down until it clicks.
To remove the belt clip, pull either side of the belt clip to release the
tabs from the holes.
Make sure that the charge
LED illuminates when the
handset is seated.
XDECT R006 OM.indd 4 22/9/11 11:46:18 AM

5
Using the Repeater
How it Works
The XDECT R006 repeater works to extend the range of the XDECT
R055 base in just the same way as the repeater/charger unit. The
only difference is the XDECT R006 repeater and handset-charger
are separate units. Refer to your XDECT R055 owner's manual page
8 for more information on how repeaters work.
To use the repeater function, you must register the repeater to

an XDECT R055 base. (Any repeaters that came packaged with
the base are already registered to that base for you.)
An XDECT R055 base can support up to six XDECT R006

repeaters, including any that were supplied with your phone.
Usually, you can't tell when a handset switches between the

base and the repeater in the middle of a call, but sometimes, you
might notice a brief pause in your conversation.
Connect the Repeater
Connect the AC adapter to the repeater's
DC IN 9V jack
and route the cord as shown (This adapter might already be
connected).
Place the repeater Plug Cover over the plug section and slide

into place. Plug the other end of the adapter into a standard
240V AC power outlet.
XDECT R006 OM.indd 5 22/9/11 11:46:20 AM

6
Registering the Repeater
Registering the Repeater is a separate process from registering
the handset.
On the base, open the menu and select1.
Register Handset
.

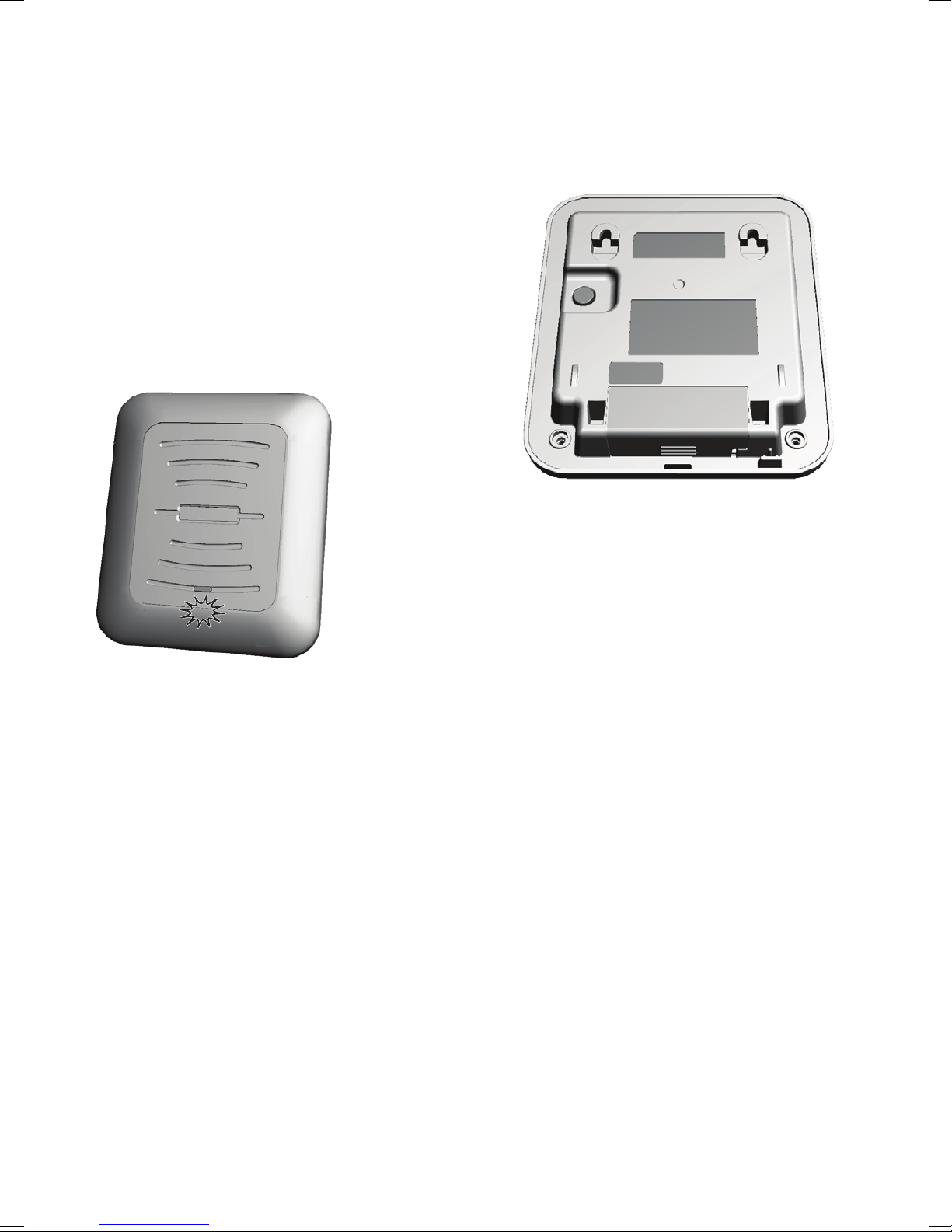

2. On the bottom of the repeater,
press and hold the registration
button until the
LINK
light starts to
blink (about 2 seconds).
Release the button and wait for3.
the
LINK
light to turn on and steady
(this can take about 90 seconds).
If the
LINK
light doesn't
turn on,
disconnect
the repeater's AC adapter. Wait about ten
seconds, then try these steps again.
Some important things to remember:
Only register one repeater at a time.

If more than one repeater is in registration
mode at the same time, they can interfere
with each other.
If you want to use the repeater with a different base, just register

the repeater to the new base. The repeater automatically erases
the link to the old base when it registers to the new one.
Only register repeaters to one base at a time. If more than one

base is in registration mode at the same time, you can't control
which base the repeater registers to.
Placing the Repeater
Here are a few tips for placing your repeater so that you get the
clearest signal and the maximum range:
Make sure you have good reception from the base.

Put the repeater
at least 10m away from the base or any other
repeater. (If you put the repeater on a different floor from the
base, don't forget to allow 10m vertically, also.)
If possible, mount the repeater on the wall.

XDECT R006 OM.indd 6 22/9/11 11:46:21 AM

7

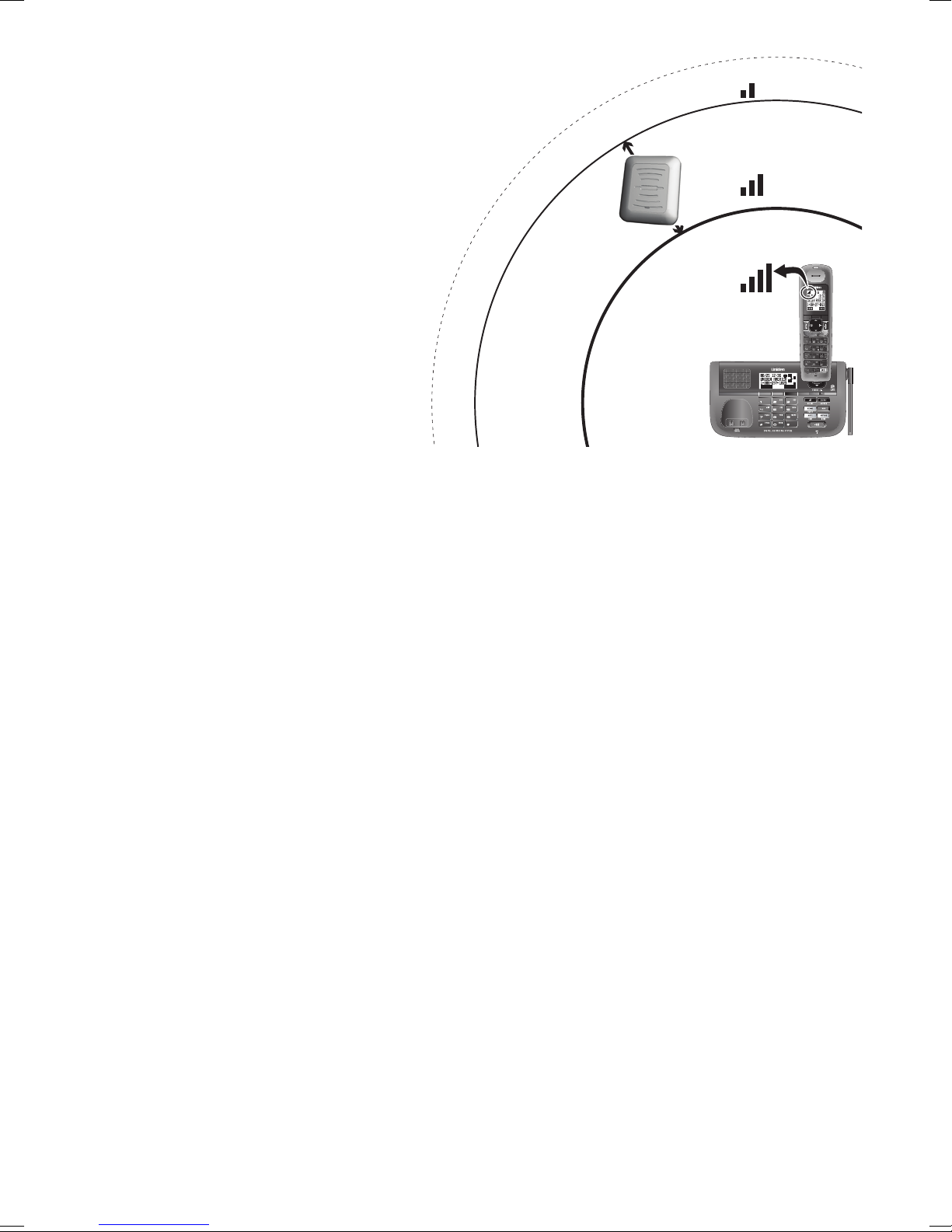

Picking the best spot
The best spot for the repeater
is as far from the base as
possible while still
maintaining a good signal,
or near the edge of the
base’s coverage area. To
find the edge of the
coverage area:
Stand near the base1.
and make a call on the
handset.
While on the call, carry2.
the handset away
from the base towards the general area where you want to put the
repeater.
Watch the signal strength icon on the handset. Make a note where3.
the icon drops from 4 bars to 3 bars.
Continue walking away from the base. Make a note where the signal4.
strength icon drops from 3 bars to 2 or if you start to hear noise on
the line (which indicates the signal is getting weaker).
Place the repeater anywhere inside the range where the signal5.
strength icon showed 3 bars and the handset had a clear signal with
no noise.
Testing the location
Connect the repeater's AC adapter and make sure the
LINK
light
comes on steadily. If the light flashes, the repeater is not getting a
good signal from the base. The repeater may be too far away from
the base, there may be interference from electronic devices, or the
signal might be blocked by thick walls or metal objects. Try moving
the repeater to another location.
XDECT R006 OM.indd 7 22/9/11 11:46:22 AM

8
Wall Mounting the Repeater
You can mount the repeater directly to a wall using the horizontally
aligned mounting slots at the back of the repeater unit. Before doing
this consider the following:
Avoid electrical cables, pipes, or other items behind the mounting

location that could cause a hazard when inserting screws into
the wall.
Mount the repeater within distance of a working 240V AC power

outlet.
If mounting onto an outside wall, note that the repeater is

splashproof ONLY from the front side.
DO NOT expose the back of the repeater to outside weather
conditions.
Insert supplied two screws1.
into the wall, 60 mm apart.
(For best results, use a level
to ensure the screws are
even.) Remember to use
appropriate anchors for the
wall material.
Keeping the AC adapter2.
cord out of the way, place
the repeater over the screw
heads and slide it down into
place.
Desk Mount the Repeater
You can also desk mount the repeater by
inserting the desk mount stand into the slots
at the back of the unit.
3mm 60mm
27.5mm
XDECT R006 OM.indd 8 22/9/11 11:46:25 AM

9
Important Information
Handling Liquid Damage
Moisture and liquid can damage your cordless phone.
If the handset, repeater, or charger is exposed to moisture or

liquid, but only the exterior plastic housing is affected, wipe off
the liquid, and use as normal.
If moisture or liquid has entered the plastic housing (i.e. liquid

can be heard in the phone or liquid has entered the handset
battery compartment or vent openings on the base), follow these
steps:
Handset Repeater or charger
Remove the battery cover and disconnect1.
the battery.
Let dry for at least 3 days with the battery2.
disconnected and the cover off for
ventilation.
After the handset dries, reconnect the battery3.
pack and replace the cover. Recharge the
battery fully (15-20 hours) before using.
Disconnect the AC adapter to cut off1.
the power.
Let dry for at least 3 days before2.
reconnecting.
IMPORTANT: You must unplug the telephone line while recharging
the battery pack to avoid charge interruption.
CAUTION! DO NOT use a microwave oven to speed up
the drying process. This will cause permanent damage
to the handset, base and the microwave oven.
Specications
Use only the supplied AC adapters.

Be sure to use the proper adapter for

the base and any repeater or charger.
Do not place the power cord where it

creates a trip hazard or where it could
become chafed and create a re or
electrical hazard.
Do not place the unit in direct sunlight

or subject it to high temperatures.
AC
adapter
Part number AAD-041S(M) /
AAD-600S(M)
Input voltage 240V AC, 50Hz
Output voltage 9V DC@ 350mA / 9V
DC@210mA
Battery
pack
Part number BT-694 or BT-694s
Capacity 650mAh (BT-694) or
500mAh (BT-694s)
XDECT R006 OM.indd 9 22/9/11 11:46:25 AM

10
One-year Limited Warranty
IMPORTANT Satisfactory evidence of the original purchase is required for warranty
service
Please refer to our Uniden website for any details or warranty durations offered in addition to
those contained below.
Warrantor
The warrantor is either Uniden Australia Pty Limited ABN 58 001 865 498 (“Uniden Aust”) or
Uniden New Zealand Limited (“Uniden NZ”) as the case may be.
Battery Information
Fully charged, the battery should provide about 8 hours of talk time and about 7 days

of standby time. For best results, return the handset to the cradle after each call to
keep it fully charged.
Keep an eye on the battery status icon. When the battery gets too low, the handset

shows a low battery alert. If you hear a strange beep during a call, check the display:
if you see the low battery alert, nish your conversation as quickly as possible and
return the handset to the cradle. If the handset is in standby, none of the keys will
operate.
With normal use, the battery should last about one year. Replace the battery when

the talk time becomes short even when the battery is charged. To buy a replacement
battery, visit the website; www.uniden.com.au for Australian model or www.uniden.
co.nz for New Zealand model.
Rechargeable Nickel-Metal-Hydride Battery Warning
CAUTION! Risk of explosion if battery is replaced by an
incorrect type! Dispose of used batteries according to
the instructions. Do not open or mutilate the battery.
Disconnect the battery before shipping this product.
This equipment contains a rechargeable Nickel-Metal-Hydride battery.

The rechargeable batteries contained in this equipment may explode if disposed of in

a re.
Do not short-circuit the battery.

Do not charge the rechargeable battery pack used in this equipment with in any

charger other than the one designed to charge this battery pack as specied in the
owner's manual. Using another charger may damage the battery pack or cause the
battery pack to explode.
Rechargeable Batteries Must Be Recycled or Disposed of Properly.
Uniden works to reduce lead content in PVC coated cords in our products &
accessories.
XDECT R006 OM.indd 10 22/9/11 11:46:25 AM

11
Terms of Warranty
Uniden Aust/NZ warrants to the original retail purchaser only that the XDECT R006 (“the
Product”), will be free from defects in materials and craftsmanship for the duration of the warranty
period, subject to the limitations and exclusions set out below.
Warranty Period
This warranty to the original retail purchaser is only valid in the original country of purchase for a
Product first purchased either in Australia or New Zealand and will expire one (1) year from the
date of the original retail sale.
If a warranty claim is made, this warranty will not apply if the Product is found by Uniden to be:
(A) Damaged or not maintained in a reasonable manner or as recommended in the relevant
Uniden Owner’s Manual;
(B) Modified, altered or used as part of any conversion kits, subassemblies or any
configurations not sold by Uniden Aust or Uniden NZ;
(C) Improperly installed contrary to instructions contained in the relevant Owner’s Manual
(D) Repaired by someone other than an authorized Uniden Repair Agent in relation to a defect
or malfunction covered by this warranty; or
(E) Used in conjunction with any equipment, parts or a system not manufactured by Uniden.
Parts Covered
This warranty covers the Product and included accessories.
User-generated Data
This warranty does not cover any claimed loss of or damage to user-generated data (including
but without limitation phone numbers, addresses and images) that may be stored on your
Product.
Statement of Remedy
If the Product is found not to conform to this warranty as stated above, the Warrantor, at its
discretion, will either repair the defect or replace the Product without any charge for parts or
service. This warranty does not include any reimbursement or payment of any consequential
damages claimed to arise from a Product’s failure to comply with the warranty.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
This warranty is in addition to and sits alongside your rights under either the COMPETITION
AND CONSUMER ACT 2010 (Australia) or the CONSUMER GUARANTEES ACT (New
Zealand) as the case may be, none of which can be excluded.
Procedure for Obtaining Warranty Service
Depending on the country in which the Product was first purchased, if you believe that your
Product does not conform with this warranty, you should deliver the Product, together with
satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to
Uniden at the addresses shown below. You should contact Uniden regarding any compensation
that may be payable for your expenses incurred in making a warranty claim. Prior to delivery, we
recommend that you make a backup copy of any phone numbers, images or other data stored on
your Product, in case it is lost or damaged during warranty service.
UNIDEN AUSTRALIA PTY LTD
Service Division
345 Princes Highway,
Rockdale, NSW 2216
Phone number: 1300 366 895
Email address: [email protected]
UNIDEN NEW ZEALAND LTD
Service Division
150 Harris Road, East Tamaki
Auckland 2013
Phone number: [phone]
Email address: [email protected]
XDECT R006 OM.indd 11 22/9/11 11:46:25 AM

© 2011 Uniden Australia Pty Ltd/Uniden New Zealand Limited
Printed in Vietnam UUZZ01229BA(0)
XDECT R006 OM.indd 12 22/9/11 11:46:25 AM
