Uniden UBC3000XLT User manual

..... UBC3000XL T
400 Channel, 20-Bank
Scanning Radio with
25MHz to 1.3GHz
Scanning Range
OPERATING GUIDE
,
,
j----
-......
I
,

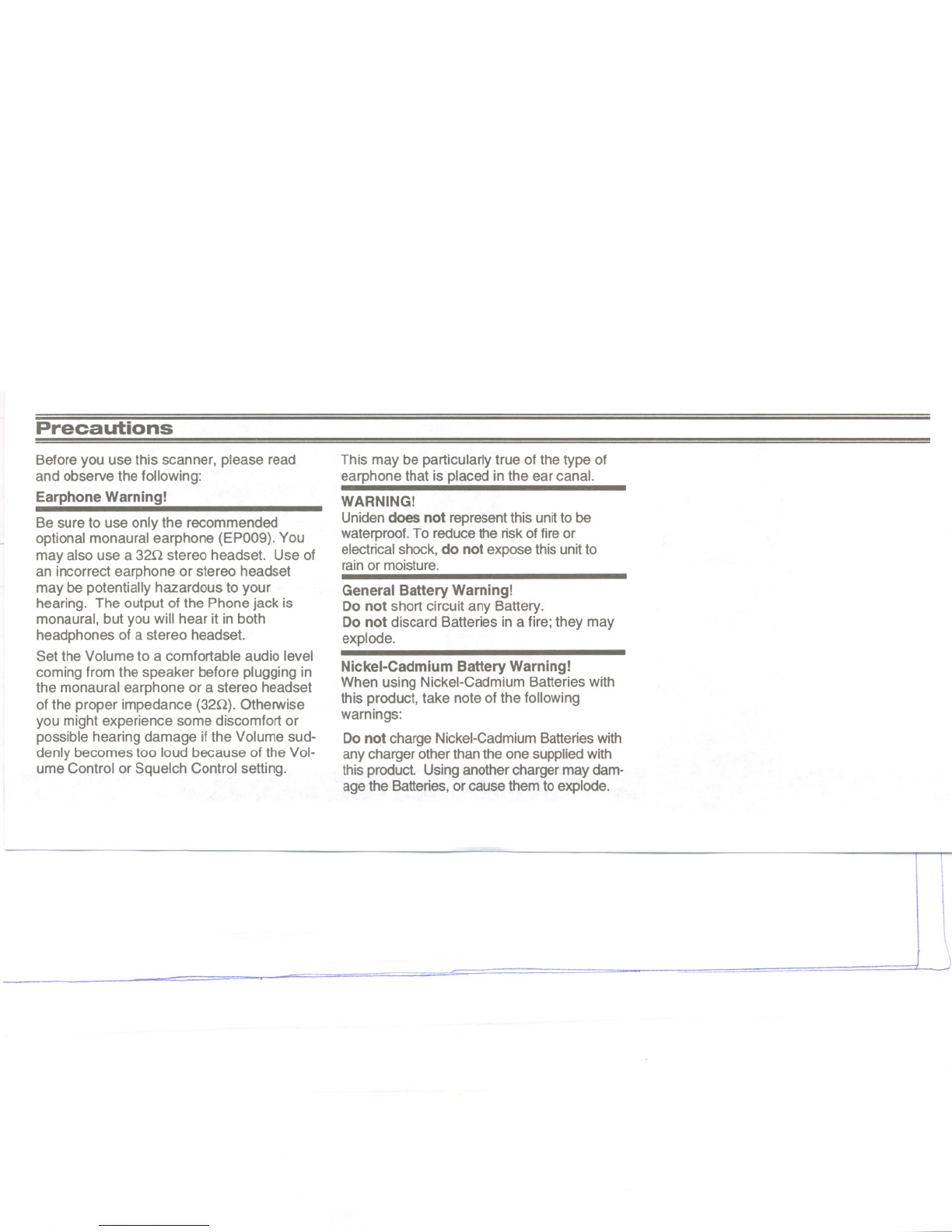

Precautions
Before you use this scanner, please read
and observe the following:
Earphone Warning!
Be sure to use only the recommended
optional monaural earphone (EPOO9). You
may also use a 320 stereo headset. Use of
an incorrect earphone or stereo headset
may be potentially hazardous to your
hearing. The output of the Phone jack is
monaural, but you will hear it in both
headphones of a stereo headset.
Set the Volume to a comfortable audio level
coming from the speaker before plugging in
the monaural earphone or a stereo headset
of the proper impedance (320). Otherwise
you might experience some discomfort or
possible hearing damage if the Volume sud-
denly becomes too loud because of the Vol-
ume Control or Squelch Control setting.
This may be particularly true of the type of
earphone that is placed in the ear canal.
WARNING!
Uniden does not represent this unit to be
waterproof. To reduce the risk of fire or
electrical shock, do not expose this unit to
rain or moisture.
General Battery Warning!
Do not short circuit any Battery.
Do not discard Batteries in a fire; they may
explode.
Nickel-Cadmium Battery Warning!
When using Nickel-Cadmium Batteries with
this product, take note of the following
warnings:
Do not charge Nickel-Cadmium Batteries with
any charger other than the one supplied with
this product. Using another charger may dam-
age the Batteries, or cause them to explode.

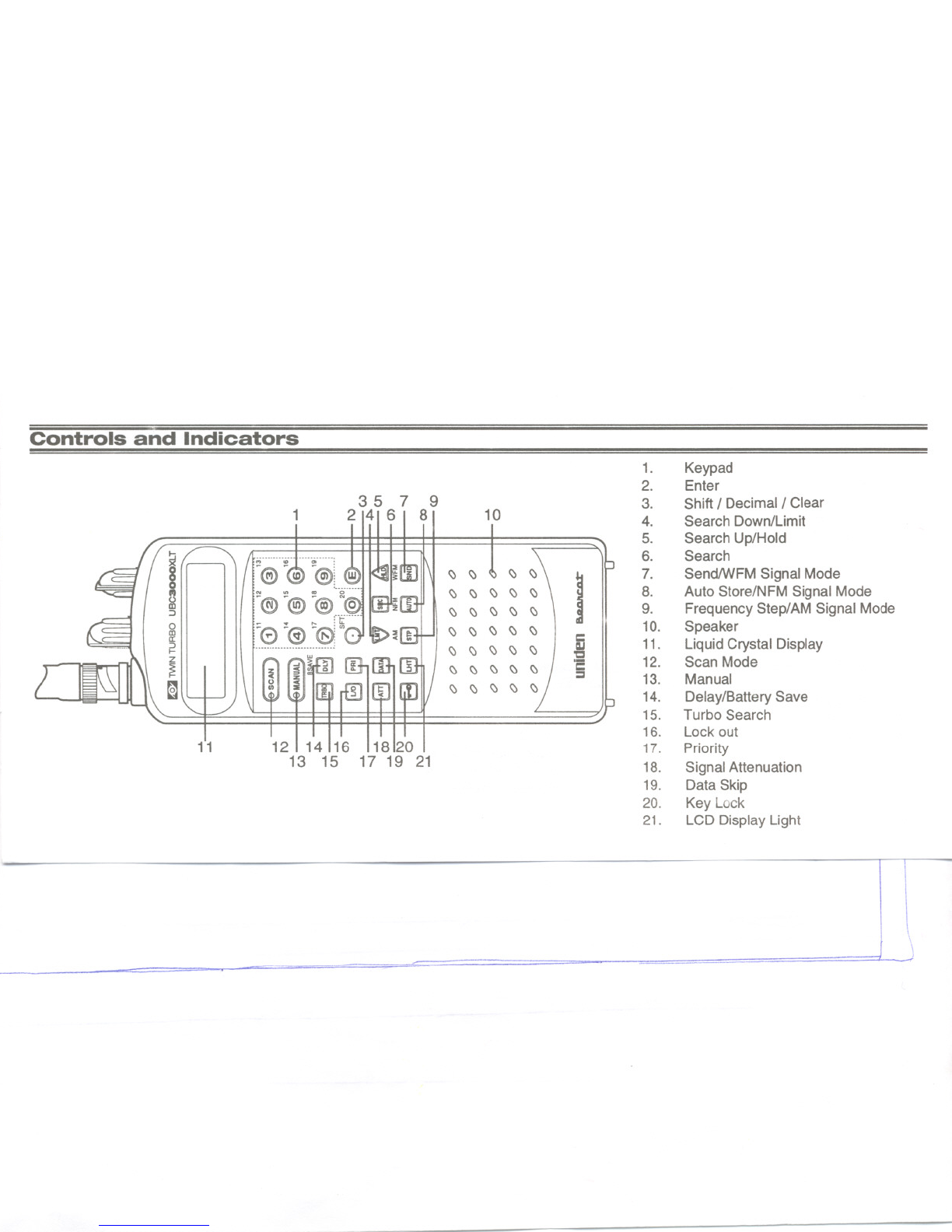

Controls and Indicators
135 7 9
214161 8
f1
;';---"'.."i"I.."'..."':
-@-~ -@)iQ!9
N "' ... '.0"'"
-@) -@) -@) N@
- ~ ... n~:"'"
~~...~~..~~ 0r.
12 114116 118120
13 15 17 19 21
10
~~~~~
~ ~ ~ ~ ~
~~~~~
~~~~~
~ ~ ~ ~ ~
~~~~~
~~~~~
)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
Keypad
Enter
ShiftIDecimalIClear
Search Down/Limit
Search Up/Hold
Search
Send/WFMSignalMode
AutoStore/NFMSignal Mode
Frequency Step/AMSignalMode
Speaker
LiquidCrystal Display
Scan Mode
Manual
Delay/Battery Save
Turbo Search
Lock out
Priority
SignalAttenuation
Data Skip
Key Lock
LCD Display Light
C
aJ
'C
C
=
\\\

'":":---

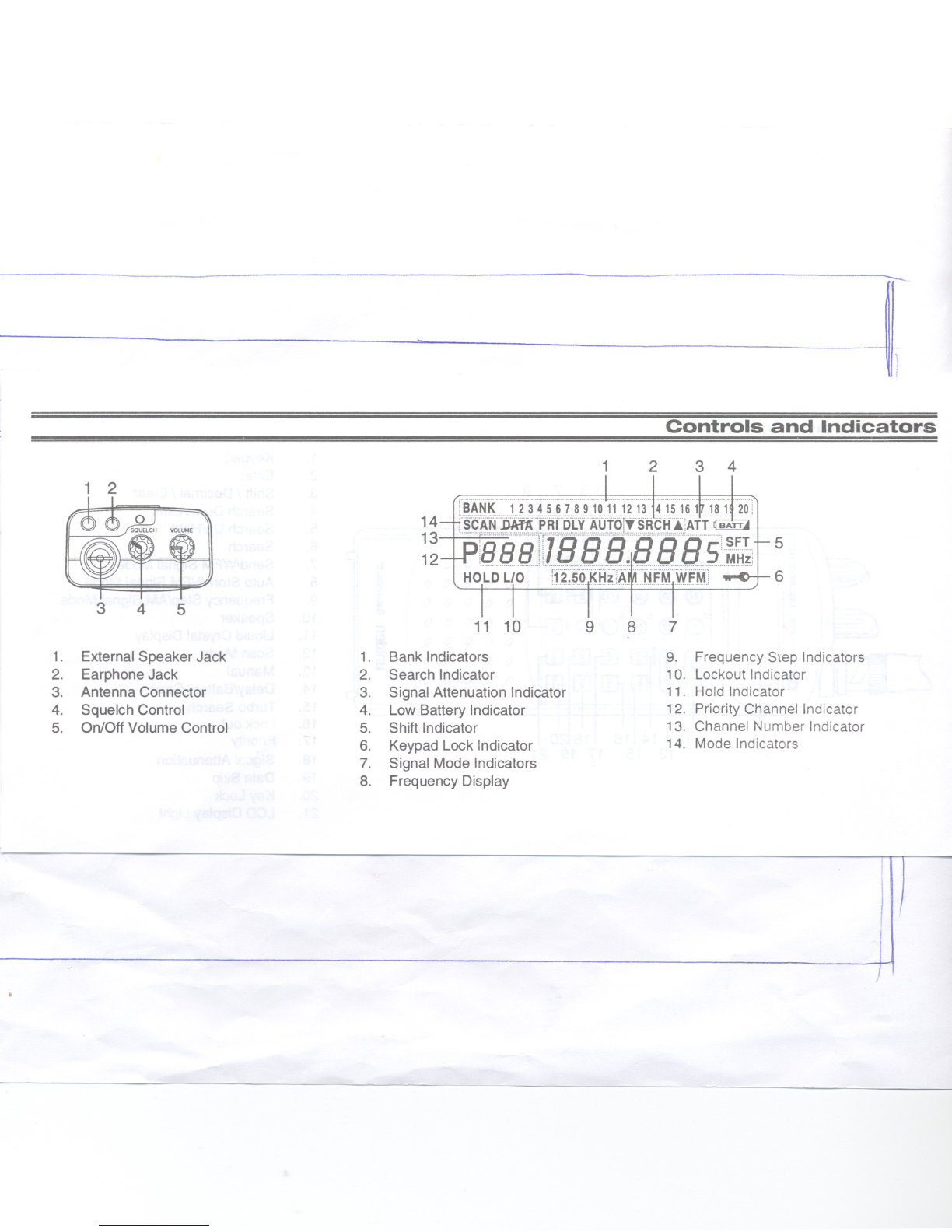

Controls and Indicators
~
12 3 4
1 2
14
13
12
r~~~~: :~:: ~~:t::t:lt~ ti£~1i'~~ ~,~,~, ~v~ j~ i]
= 1'-
'888 888:8FT !8881! . Si--M-ii-z]
"-'--" " 00_00_"~ n n n_-.J n..n n_n_nhn 00 0000_0000_'
HOLD LIO [i::2~§ij: ~KB ii AM_: :N:f=.:M~W :f=.:MJ
5
6
3 4 511 10 9 8 7
1. ExternalSpeaker Jack
2. Earphone Jack
3. Antenna Connector
4. Squelch Control
5. On/OffVolumeControl
1.
2.
3.
4.
5.
6.
7.
8.
Bank Indicators
Search Indicator
Signal Attenuation Indicator
Low Battery Indicator
Shift Indicator
Keypad Lock Indicator
Signal Mode Indicators
Frequency Display
9. Frequency Step Indicators
10. Lockout Indicator
11. Hold Indicator
12. Priority Channel Indicator
13. Channel Number Indicator
14. Mode Indicators
-'--
r
,

~
Contents I
Introduction.. . . . . . . . . . . . . . 2
IncludedwithyourScanner.. . . . . . 4
GettingStarted.. . . . . . . . . . . . . 5
Power 5
Installing/Removingthe Battery. . . 5
Chargingthe Battery. . . . . . . . . 6
Attachingthe Antenna. . . . . . . . . 6
Installingthe BeltClip. . . . . . . . . . 6
ScannerBasics. . . . . . . . . . . . . 7
Banks and Channels. . . . . . . . . . 7
Scanning Versus Searching. . . . . . 7
HowSquelch Works. . . . . . . . . . 8
Settingthe Squelch. . . . . . . . . 8

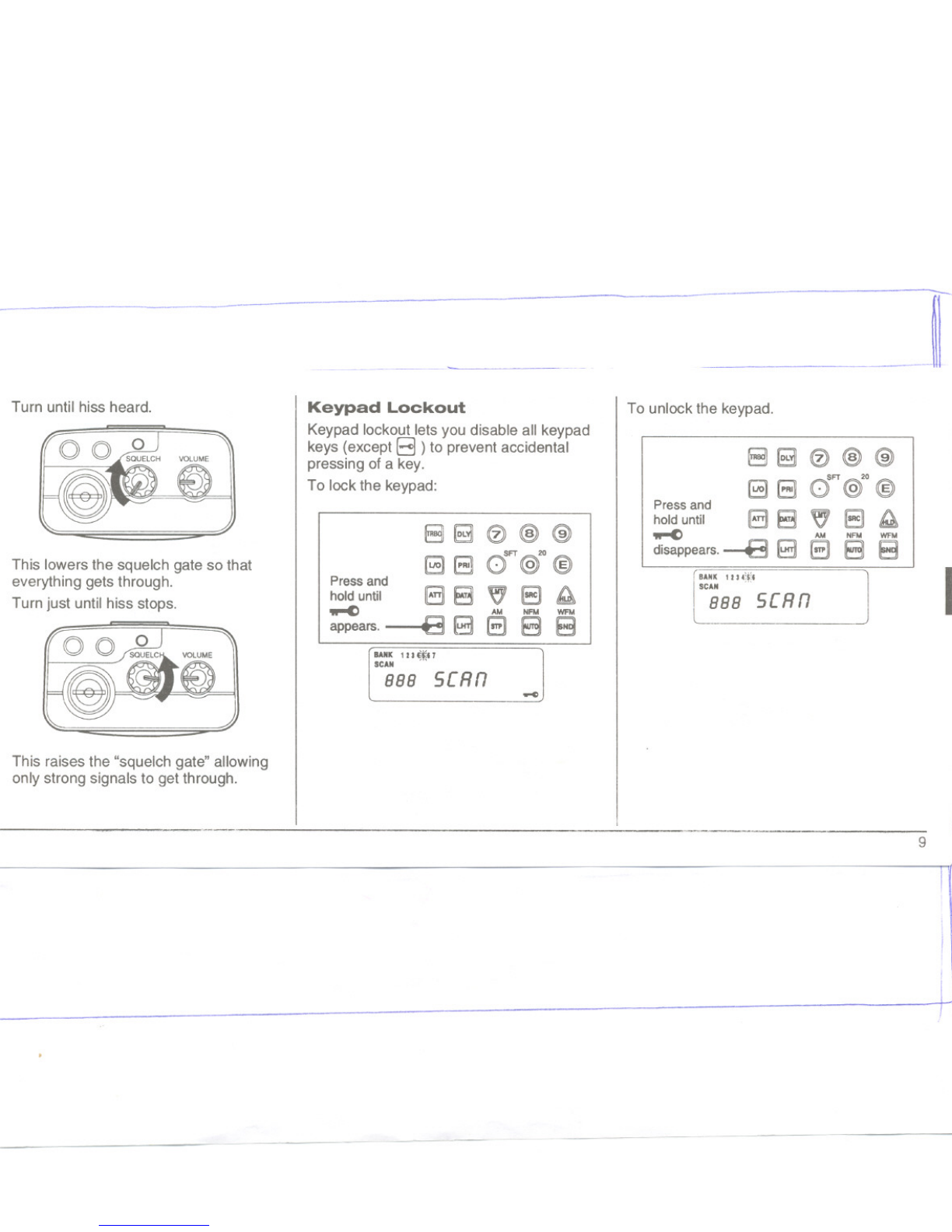

KeypadLockout 9
ProgrammingChannels. . . . . . .. 10

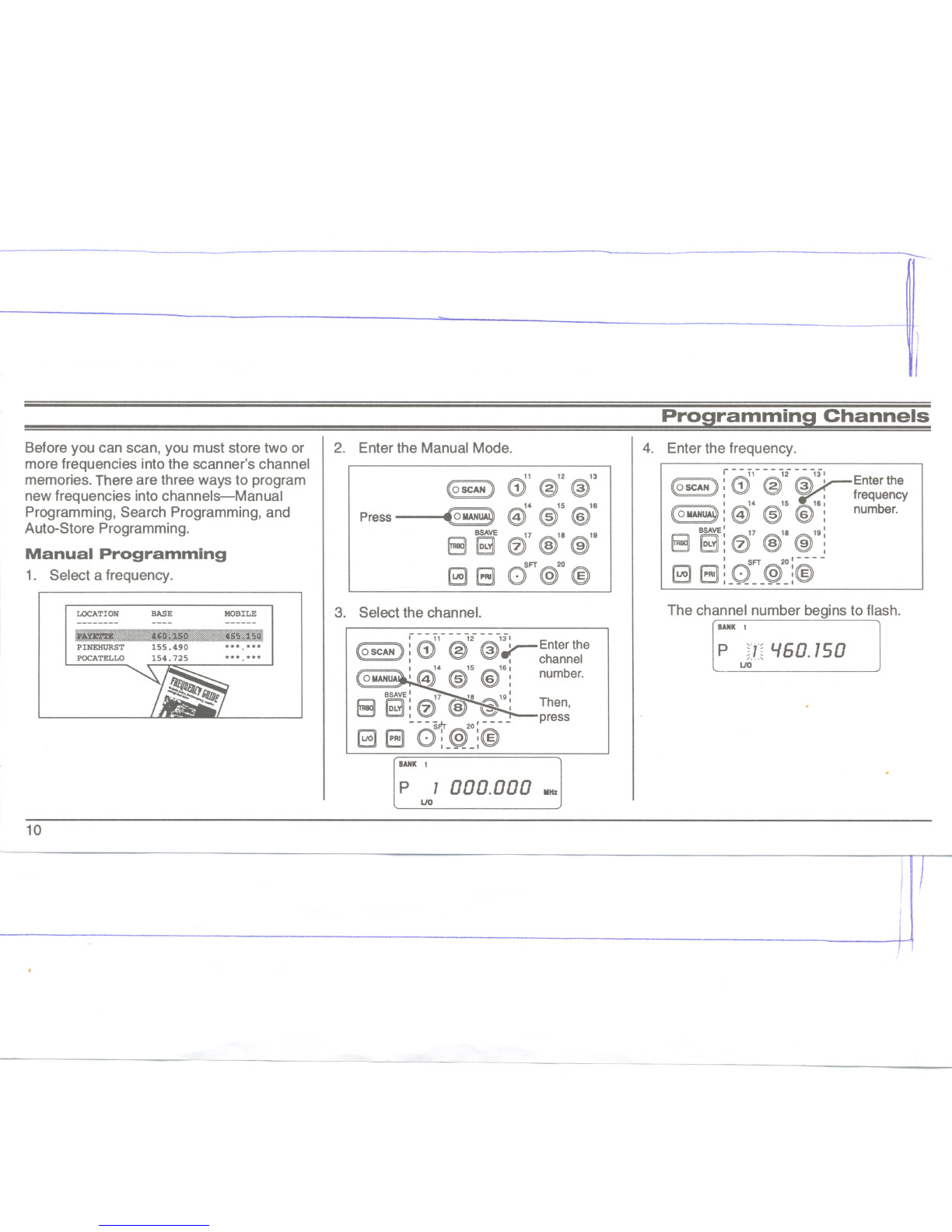

ManualProgramming.. . . . . . .. 10
AutomaticBatterySave. . . . . .. 11

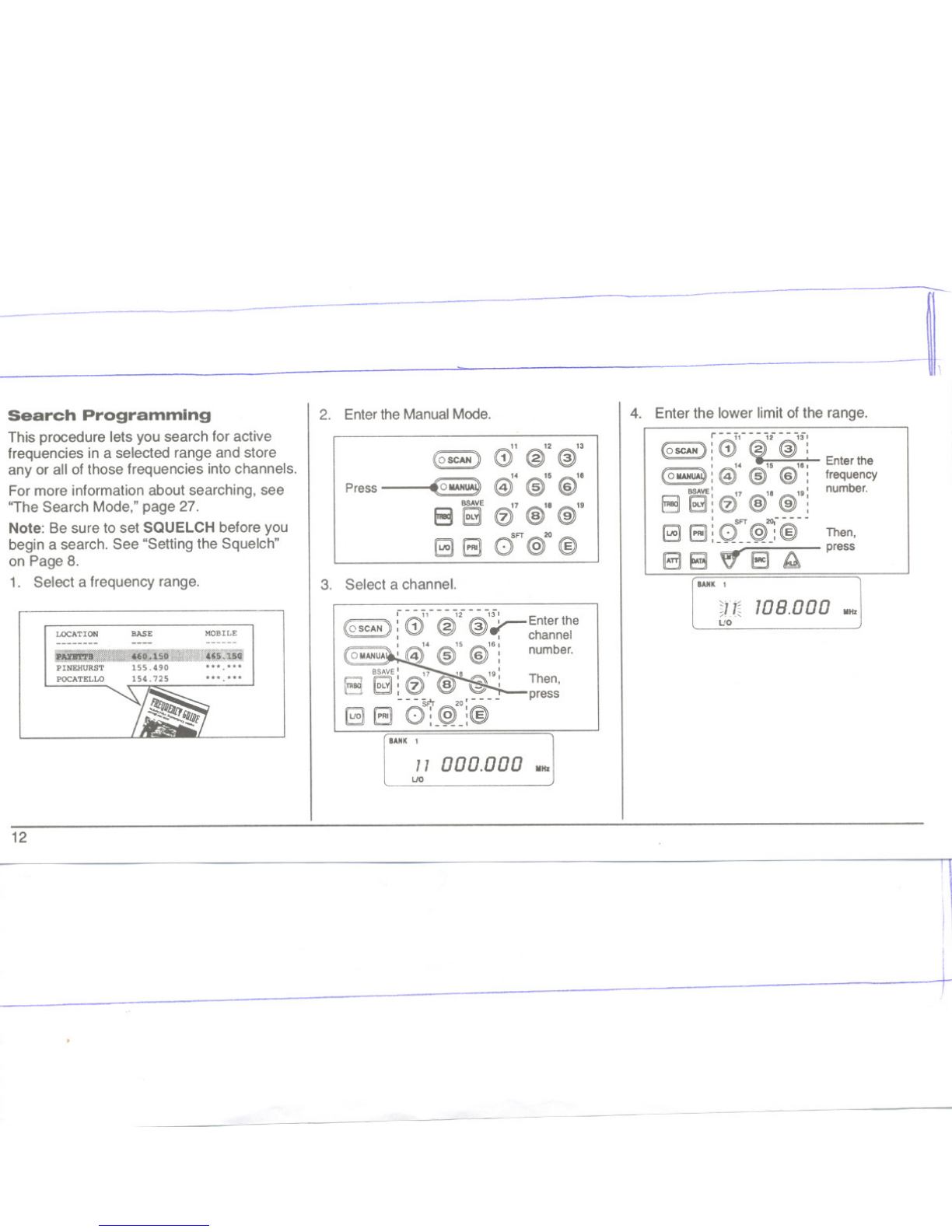

SearchProgramming.. . . . . . .. 12
Auto-StoreProgramming. . . . . .. 15
TransferringAChannel Frequency. . 17
DeletingA Stored Channel Frequency 18
TheScanMode. . . . . . . . . . . . . 20
BeginScanning 20
TurningBanksOn or Off . . . . . . . 20
LockingOutChannels. . . . . . . . . 21
LockoutinManualMode. . . . . . 21
Lockinga Channel WhileScanning 22
Unlockinga Channel. . . . . . . . 22
UnlockingAllChannels. . . . . . . 23
UsingPriorityScan. . . . . . . . . . 24
SelectingA NewPriorityChannel. 24
UsingScan Delay 25
TheSearchMode. . . . . . . . . . . . 27
BeginningASearch. . . . . . . . . . 27
ScrollingFrequencies. . . . . . . . 28
UsingTurboSearch. . . . . . . . . . 29
UsingSearchDelay. . . . . . . . . . 30
LockingOutFrequencies. . . . . . . 30
LockingOuta Frequency. . . . . . 30
Unlockinga Frequency. . . . . . . 31
TheManualMode. . . . . . . . . . . . 32
ScrollingChannels. . . . . . . . . . . 32
SelectingA SpecificChannel. . . . . 33
Additional Scanner Features. . . . . 34
UsingData Skip 34
Changingthe Frequency Step. . . . . 35
Settingthe Signal Mode. . . . . . . . 36
UsingSignalAttenuation. . . . . . . 37
~isplayLight 37
Optional Accessories &Replacement
Parts. . . . . . . . . . . . . . . . . . . 39
Care&Maintenance. . . . . . . . . . 40
.Troubleshooting.. . . . . . . . . . . 41
Technicallnformation 42
Specifications.. . . . . . . . . . . . . 44
1

-:--
Introduction
Your UBC3000XLT Scanner is a
sophisticated information radio that allows
you to monitor 16 different frequency bands.
These bands include radio information
sources such as
.Police and Fire Departments
.Aircraft
.Business and Industrial
.Utility
.Trucks, Buses, Taxis, and Trains
.Marine and Amateur (ham) radio
.Motion Picture and Press Relays
. Public Service
. Analogue Cellular Telephone Band
.And Many More
You can program the UBC3000XL T with up
to 400 channels that are divided into 20
banks.
This arrangement of banks and channels
allows you to easily select which
frequencies you want to scan at any time.
See "Scanner Basics" on Page 7.
You can also contact a local scanning club
or go to your local library for more
information about interesting frequencies in
your area.
UnidedEiand Bearcat@ are registered
trademarks of Uniden Corporation.
Twin Turbo TMis atrademark of
Uniden Corporation.
Additional Features
The UBC3000XL T has so many features, it
might take you a while to become familiar
with them all. But the following summary lets
you know what's available and directs you
to the appropriate section of this Operating
Guide for more detailed information.
Twin TurboH.1ScanlSearch-Delivers a
maximum scan rate of 100 channels-par-second,
and lets you increase the search rate from the
normal 100 frequencies-par-second to 300
frequencies-par-second when searching by 5
kHz steps. See "Using Turbo Search" on Page
29.
25 MHz - 1.3 GHz Rang~Provides you
with almost limitless scanning possibilities.
Note: This range is not continuous. See
"Frequency Bands and Steps" on Page 42.
Automatic Battery Save -Switches the unit
to standby to conserve battery life.
2

~.
1'-
1--

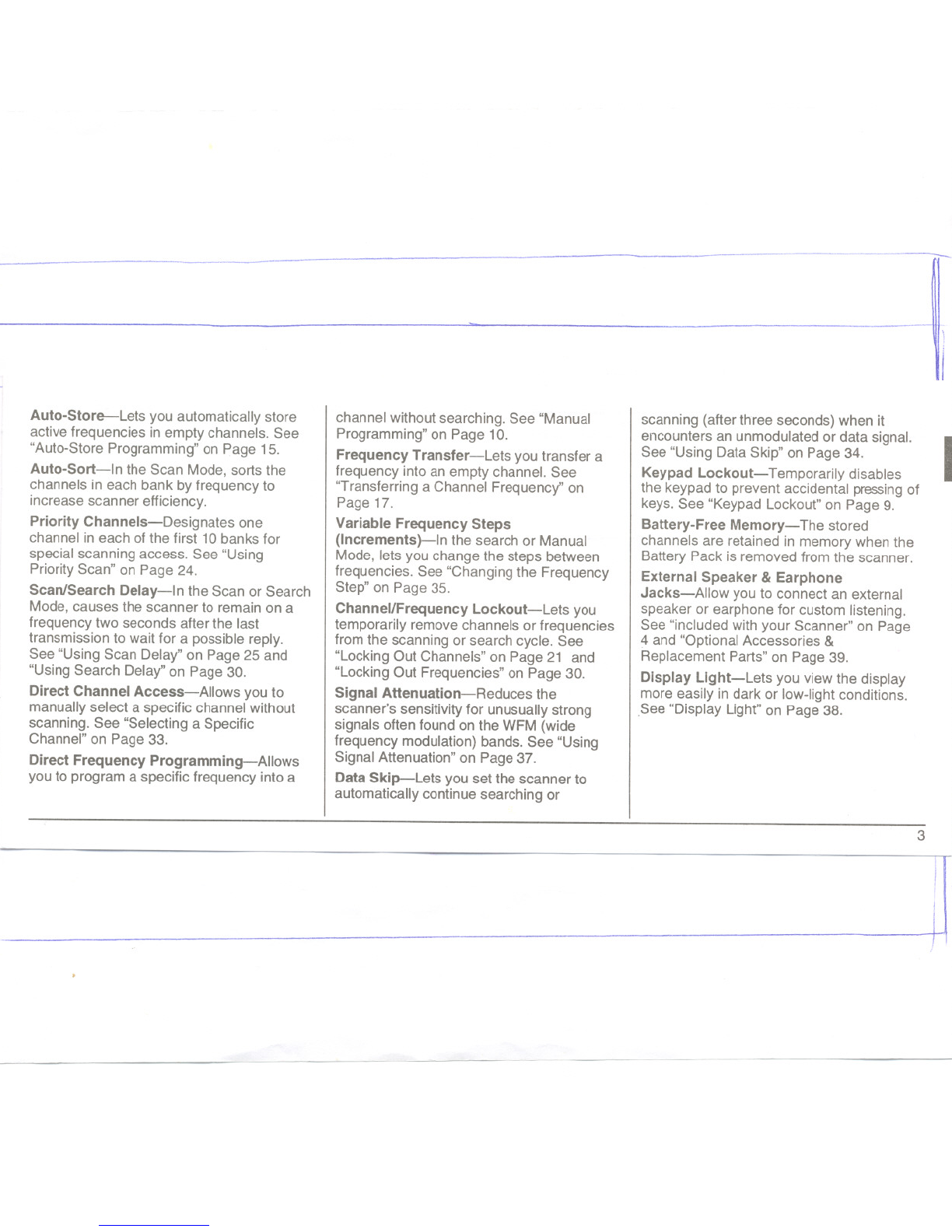

Auto-Store-Lets you automatically store
active frequencies in empty channels. See
"Auto-Store Programming" on Page 15.
Auto-Sort-In the Scan Mode, sorts the
channels in each bank by frequency to
increase scanner efficiency.
Priority Channels-Designates one
channel in each of the first 10 banks for
special scanning access. See "Using
Priority Scan" on Page 24.
Scan/Search Delay-In the Scan or Search
Mode, causes the scanner to remain on a
frequency two seconds after the last
transmission to wait for a possible reply.
See "Using Scan Delay" on Page 25 and
"Using Search Delay" on Page 30.
Direct Channel Access-Allows you to
manually select a specific channel without
scanning. See "Selecting a Specific
Channel" on Page 33.
Direct Frequency Programming-Allows
you to program a specific frequency into a
channel withoutsearching. See "Manual
Programming"on Page 10.
Frequency Transfer-Lets youtransfer a
frequency intoan emptychannel. See
"Transferringa Channel Frequency"on
Page 17.
Variable Frequency Steps
(Increments)-In the search or Manual
Mode,lets you change the steps between
frequencies. See "Changingthe Frequency
Step" on Page 35.
Channel/Frequency Lockout-Lets you
temporarilyremove channels orfrequencies
fromthe scanning or search cycle. See
"LockingOut Channels" on Page 21 and
"LockingOut Frequencies" on Page 30.
Signal Attenuation-Reduces the
scanner's sensitivityfor unusuallystrong
signals often foundon the WFM(wide
frequency modulation)bands. See "Using
SignalAttenuation"on Page 37.
Data Skip-Lets you set the scanner to
automaticallycontinuesearching or
scanning (after three seconds) when it
encounters an unmodulated or data signal.
See "Using Data Skip" on Page 34.
Keypad Lockout-Temporarily disables
the keypad to prevent accidental pressing of
keys. See "Keypad Lockout" on Page 9.
Battery-Free Memory-The stored
channels are retained in memory when the
Battery Pack is removed from the scanner.
External Speaker & Earphone
Jacks-Allow you to connect an external
speaker or earphone for custom listening.
See "included with your Scanner" on Page
4 and "Optional Accessories &
Replacement Parts" on Page 39.
Display LIght-Lets you view the display
more easily in dark or Iow-lightconditions.
.See"Display Light"on Page 38.
I
3

-r
It

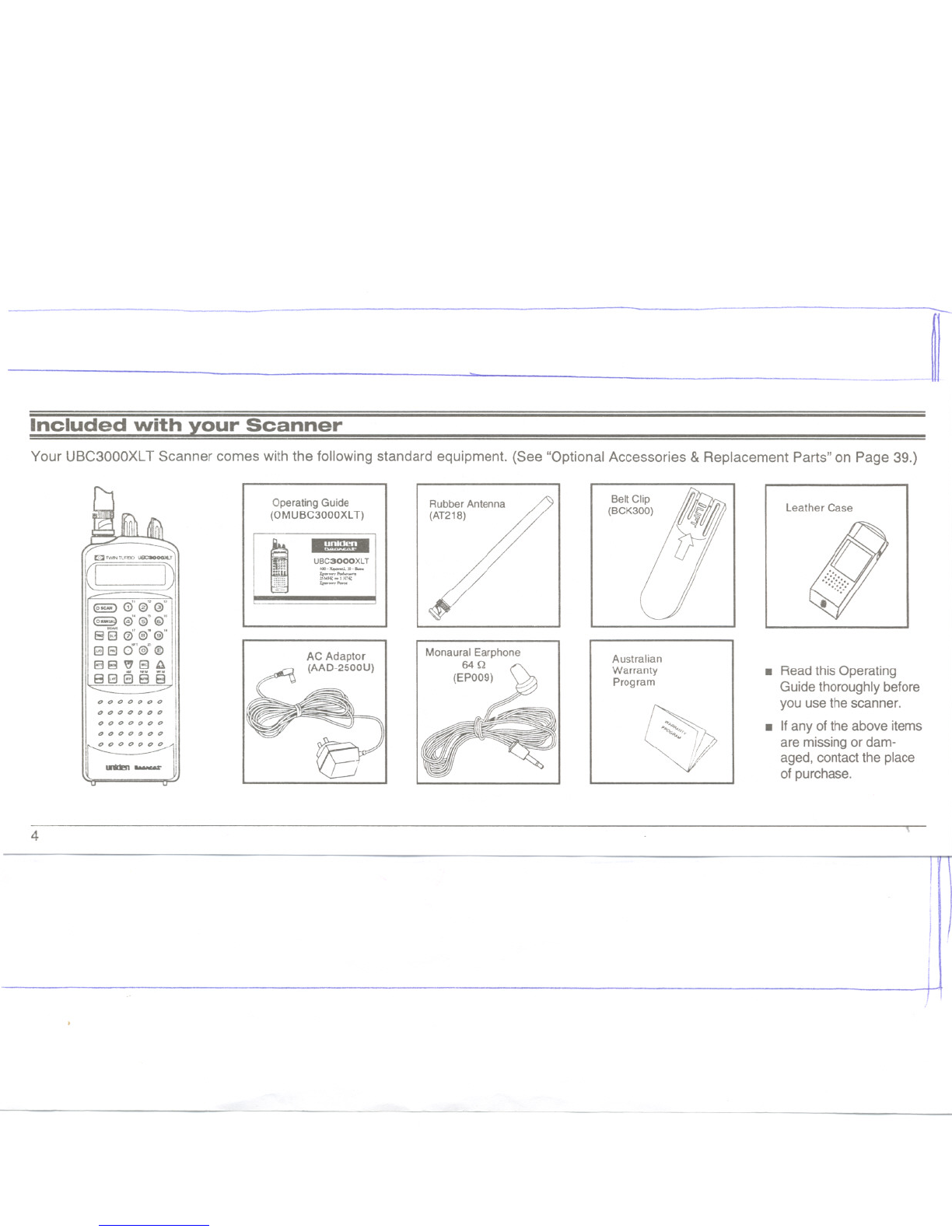

Included with your Scanner
Your UBC3000XL T Scanner comes with the following standard equipment. (See "Optional Accessories & Replacement Parts" on Page 39.)
Operating Guide
(OMUBC3000XL T)
;
11 ...
t£:I """ """" UBC8C>-.T'
(I D
UBC3000XL T
"-_m--
, ....
~MH(~"""
,.....
(0"") 0' (f/ @"
(o...,,~@' @"@/
880' @J°@"
El8 cr@/ @
El8"EI~
88888
AC Adaptor
(AAD-2500U)
t> t> t> t> t> t> t>
t>t>t>t>t>t>t> I
t>t>t>t>t>t>t> '
t> t> t> t> t> t> t>
t>t>t>t>t>t>t>
I8'MI!n ---
Rubber Antenna
(AT218)
Monaural Earphone
64Q
(EPOO9)
Belt Clip
(BCK300)
Australian
Warranty
Prog ram
Leather Case
. Read this Operating
Guide thoroughly before
you use the scanner.
. If any of the above items
are missing or dam-
aged, contact the place
of purchase.
4't

1r
Power
Your scanner's nickel-cadmium battery can
power the scanner for up to 5 hours on a full
charge.
Before you use the scanner the first time,
and whenever the [BA TT] indicator appears,
you should fully charge the battery.
Notes:
. Install the battery before you charge it.
.When the [BATT] indicator appears,
there is about 10 minutes of power left.
If you don't turn off the scanner within 10
minutes, it automatically turns off to
prevent the battery from fully
discharging.
Getting Started
Installing/Removing the Battery
1. Turn off the scanner.
2. Slidethebatteryon.
To remove the..battery, press the release
button and slide the battery off.
I
~
~
.
5

~
Chargingthe Battery
Use the AC Adaptor/Charger to power the
UBC3000XLT from an AC outlet.
AC 240V
Outlet
8t:J 8
CJ AAD-2500U
AC Adaptor
Warning! Use only the supplied AC
adaptor/charger. Other external power
sources could cause overheating or
damage the scanner circuits.
Notes:
. It takes 14- 16 hoursto fully charge
the battery.
.You can operate the scanner while
the battery charges.
. Disconnect the adaptor/charger
during a power failure.
See also, "Battery Maintenance" on
Page 40.
Attaching the Antenna
m~1U8) ~T
D:
Installing the Belt Clip
[Z]
To remove, lift where marked. Push in
direction of arrow.
6

'":":--.
To use your scanner with confidence, it's
extremely helpful to understand the
following scanner basics.
Banks and Channels
Banks and channels are the way stored
frequencies are organized in your scanner.
.Achannel is a memory location where
you store a frequency. The channels in
the UBC3000XL T are numbered 1 - 400.
. A bank is a group of channels. The
UBC3000XL T has 20 banks with 20
channels in each.
You can turn each bank on or off to control
whether its channels are included during
scanning. When you turn off a bank, its
channels are not erased, but are only
temporarily excluded from scanning. This
allows you to customise your scanning
without constantly deleting and
re-programming the channel frequencies.
You can also temporarily lock out
individual channels within a bank during
scanning. This lets you further
customise your scanning without
deleting channel frequencies. See
"Locking Out Channels" on Page 21.
Scanning Versus
Searching
Scanning and searching are similar in
that they both involve finding active
frequencies within a group of
frequencies. The difference isScanning
looks only at a group of programmed
frequencies that are stored in the scanner's
channels and grouped into banks.
Scanner Basics
....
- - - - - -S"CAN- - - - - -.. "'...
1,
I'
------
v..r-0.~0.~
~HANNELS12 345678910
I"---y-"
Frequency Frequency
Locked Out Not
(UO) Entered
I
Searching looks at all the frequencies within
a pre-selected range of frequencies.
If you find an interesting frequency while
searching, you can store it in a channel for
easier access later. See "Search
Pr<;>gramming"on Page 12.
7

How Squelch Works
The squelch circuit in your scanner is like a
gate. If it is too Iow, everything gets through
... noise, weak signals, and strong signals.
Strong Signals
MediumSignals .
.
WeakSignais::::::::: u u :
........................................................................
......--........-....--..--..
Noise-...........-..---..--..
-......-..-..............--..
......
If the gate is set too high, nothing gets
through ...not even the strong signals.
When the gate is correctly set, strong
signals get through, but weaker signals and
noise are blocked. .
StrongSignals- ..
..
MediumSignals- .
.
WeakSignals +
.
---..---....-.......
Noise. -- . . -- - . .--...
-.....--..--........
Strong Signals
Medium Signals---': .
WeakSignals :
m ,..
---..---..-.....-...
Noise. - - . . - - - .. - . ...
---..---..--....-...
r
Setting the Squelch
Adjust VOLUME to a comfortable listening
level.
To set the Squelch, you must be in the
Manual Mode. No signal should be present
when adjusting Squelch.
1. Press (.MANUA~untilyou do not hear a
signal.
?ress
11 12 13
(OSCAN') 0 @ @
14 15 18
(OIlANUA~ @ @ @
BSAVE 17 18 19
880@@
SFT 20
880@@
8
l-VI
I

r
Turn until hiss heard.
This lowers the squelch gate so that
everything gets through.
Turn just until hiss stops.
This raises the "squelch gate" allowing
only strong signals to get through.
Keypad Lockout
Keypad lockout lets you disable all keypad
keys (except B) to prevent accidental
pressing of a key.
To lock the keypad:
Pressand
holduntil
w-C
appears.
88
B8
BANK 1U ~~f7
SCAN
888 SCAn t)
To unlock the keypad.
880@@
8FT 20
880@@
Pressand
holduntil B8]" 81~
w-C AM NFM WFM
disappears.---a 01 (3 [8 18
E
ANK
.
1I14;~'f
SCAN
888 SCR n I
9

'""::--. .
'!I
Before you can scan, you must store two or
more frequencies into the scanner's channel
memories. There are three ways to program
new frequencies into channels-Manual
Programming, Search Programming, and
Auto-Store Programming.
Manual Programming
1. Select a frequency.
-L
2. Enter the Manual Mode.
~1 ~'2 ~13
@~~
€f @15 @18
Programming Channels
4. Enter the frequency.
r - - 1'- - -12 - - -'31
(OSCAN):@ @ @
~I Enter the
I I frequency
I 14 15 18I b
~:@) @ @: nurn er.
~wl I
[3(3I017 @18@191
oc I 789I
I I
:SFT 20:-- --
13 (3 :_Q--€)_:@
The channel number begins to flash.
BANK 1
p n~ '-160.150
/...,
uo
10
Press
(0SCAN)
.0IIAN~
Q5~7 ~18~19
OJ~0~~ SFT 20
B[30@@
3. Select the channel.
i--11-- -12- - -'31
(OSCAN): @ @ @~Enterthe
:14 15 16:channel
0 MANUA I (@) @ @: number.
BSAVEI 17 18 191
(38: 0 @ @: Then,
-- --~ r- -- - press
B (3 d:@f:@
1- - __I
BANK I
p1000.000 M/II
uo
LOCATION BASE MOBILE
-------- ---- ------
H.:: . :'::g
PINEHURST 155.490 ***.***
POCATELLO 154.725 *** ***

--:--..
5. Store the frequency.
BANK 1
p 1 lf50.150 11Hz
12.5 IOta NFII
The channel number stops flashing and
a beep sounds.
If the frequency is stored in another
channel, you hear a beep and the other
channel appears in the display.
BANK 1
p~.n CH 3lf
12.5 IOta NFM
Further press @to store the frequency in
the selected channel, or press <!) twice to
cancel.
Repeat these steps to program more
channels.
Use the banks to store similar frequencies
(e.g., local police frequencies) together.
This helps the UBC3000XL T scan faster.
Notes:
.If you make a mistake, press <!)
twice and start over.
.If you enter an invalid frequency, a
beep sounds and ERROR appears.
Repeat Step 4.
Automatic Battery Save
If you let the UBC3000XL T sit idle while you
are programming channels (as you look up
more frequencies, for example), the scanner
may switch to the Battery Save Mode. The
display does not change.
To conserve batteries, the UBC3000XL T
switches to Battery Save when:
.In Manual Mode
. Delay is OFF
. No signal is received for 60 seconds
11
11 12 13
(OSCAN) 6) @ @
14 15 18
@@@
8 BE 07 @18@19
8FT 20
B80@@ Press

-:--
Search Programming
This procedure lets you search for active
frequencies in a selected range and store
any or all of those frequencies into channels.
For more information about searching, see
"The Search Mode," page 27.
Note: Be sure to set SQUELCH before you
begin a search. See "Setting the Squelch"
on Page 8.
1. Select a frequency range.
LOCATION BASE MOBILE
--------
""""~~lm,iiii\.)
PINEHURST 155.490 ***.***
POCATELLO 154.725 ***.***
12
2. Enter the Manual Mode.
3. Select a channel.
j"- - 1'-- - ir - -'31
(OSCAN): @ @ @~Enterthe
1 1 channel
1 14 15 18)
OMANUA I@ @ @: number.
BSAVE I 17 18 19'
88:€)@@:
----~ r----
Ba d:@f:@
1-- __I
Then,
press
BANK 1
11 000.000 11Hz
UO
4. Enterthe lower limit ofthe range.
r- -11-- - if - -131
(OSCAN]: 0~@;
1~4 ~'5 fI'::'t.'81
(OIlAH~:~ ~ ~ :
BSAVE1 1
E3 [3 1017 @'8 @19)
oc 1 7 a 9 1
I 1
1 8FT 2Ot-----
(38]:0 @:@
1______--
BE3~B~
Enterthe
frequency
number.
Then,
press
BANNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
11 12 13
(OSCAN) @ @ @
14 15 18
Press OMANUA @) @ @
BSAVE
13 [3 (eJ @18@19
8FT 20
r380@@

-:--.
5. Enterthe upper limit of the range.
r- - 1'- - - 12-- - ;31
~:0 ~@):
:14 15 16; Enter the
(OIlANUA~ :@J@ @: frequency
BSAVE 1 17 18 19' number.
E3r3:€))@@:
:SFT 20,-----
B 8JI0 @: @ Then,
,-------- press
BB ~[3 ~
BANK 1I
U1~ 135.987SMHzI
uo )
6. Startthe search.
88(7)@@
9FT 20
r380@@
[E]8"~
AM NFM WFM
88888
Press
The scanner stops on the first active
frequency it finds.
BANK' J
DLY SRCU.
~rn 120.500 MHz
12.5 KHz AM
.To store the frequency, stop searching.
Then, proceed to Step 6A, 68, or 6C.
.If you do not want to store the frequency,
press EJ to continue searching.
6A.Store the frequency in the currently
displayed channel.
11 12 13
~0@@ 14 15 16
(OMAN~ @) @ @
BSAVE 17 18 19
88€)@@
9FT 20
B80@@ Press
68. To store the search frequency in
another selected channel:
1.
8(3(7)@@
9FT 20
880@@
E]8"8~
AM NFM WFM
8 B 8J8 le-- Presstwice.
,-- - 11-- - 12-- - ;3'
(0 SCAN) :6) @ @2
~'Enterthe
~, ,channel
,14 15 16, b
~:@@@: numer.
BSAVE' 17 18 19'
E3 8: €) @ @ :
---SFl 20:----
8 (3 O:-@-:@ I
BANK 1
I11 12~~H~~50 O~
(BANK 1'I
' DlY
I~[~ 120.500 MHzj
I 12.5 KHzAM
'--
13

-'

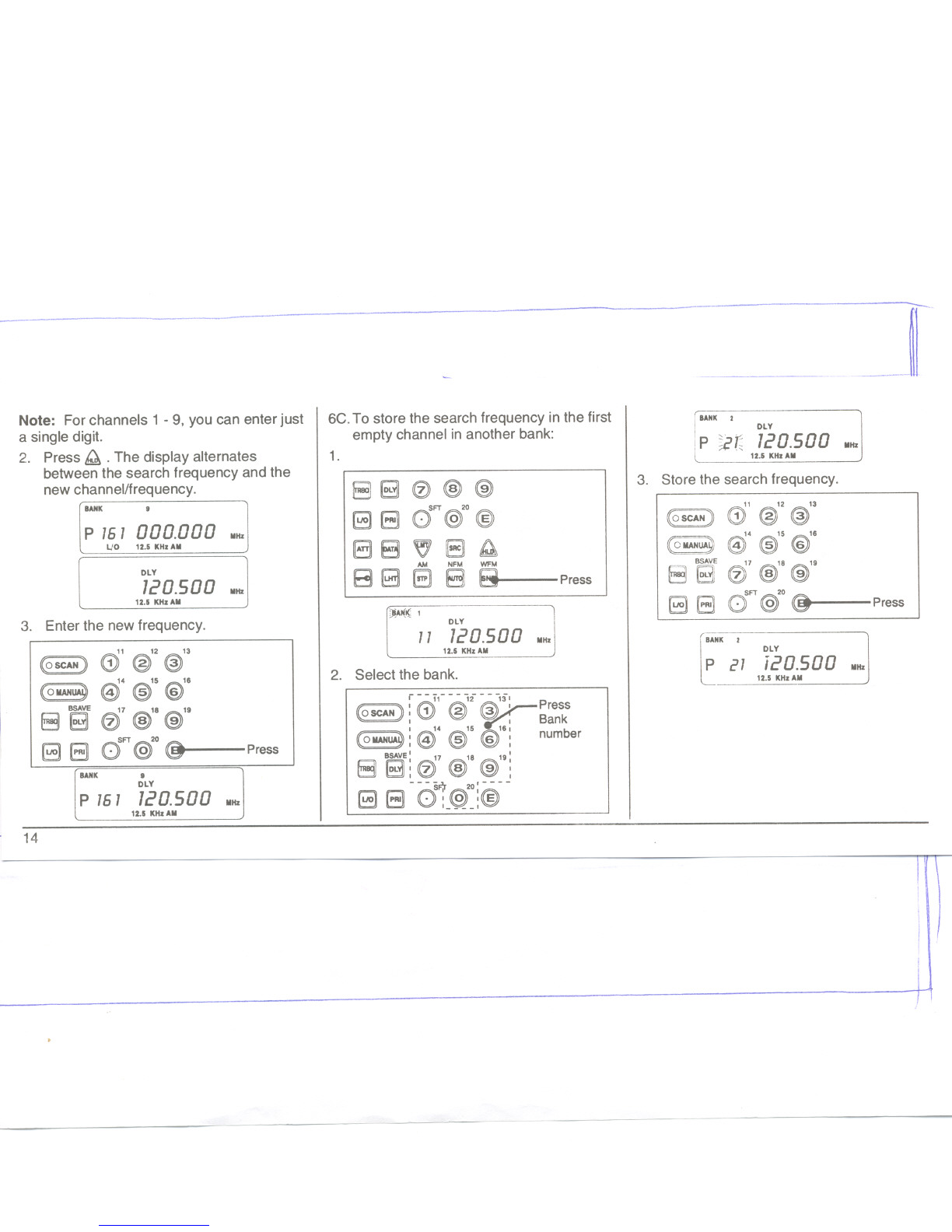

Note: For channels 1 -9, you can enter just
a single digit.
2. Press ~ .The display alternates
between the search frequency and the
new channel/frequency.
3. Enter the newfrequency.
14
6C. To store the search frequency in the first
empty channel in another bank:
1.
88€)@@
8FT 20
8E30@@
BE3 ~ E] ~
AM NFM WFM
88 (3 8 B Press
_J-
)AN){ 1 DLY
11 120.500 MHz
12.5 KHz All
2. Select the bank.
r - -11- - -1£ - -131
~SC
..
AN»:6) @ @
~IPress
1 1 Bank
1 14 1S 161
(0 IlANUA~:@ @ @: number
&SAVE' 17 16 19'
8l3:€)@@:
F7 r----
13l3 d:@2O:@
- - __I
IBANK I DLY
iP ~~ 120.500 MHz
12.5 KHz AM
3. Store the search frequency.
r
~
BANK I DLY
P 21 12~~H~~500 MHz
T
BANK 9
P 151 000.000 MHz
wo 12.5KHzAM
DLY
120.500 MHz
12.5 KHz AM
11 12 13
(OSCAN) 6) @ @
14 1S 16
@@@
E3 130/ @16 @19
8FT 20
880@@ Press
BANK 9
DLY
P 151 120.500 MHz
12.5 KHzAM
11 12 13
((oscAN) 6) @ @
14 1S 16
(@)@@
BSAVE 17 18 19
88)@@8FT 20
B80@@ Press

---- ~---"-'- " "--..
Auto-Store Programming
This procedure searches a frequency range
and automatically stores active frequencies
into empty channels of the selected bank(s).
Note: Be sure to set SQUELCH before you
begin a search. See "Setting the Squelch"
onPage8.
1. Selectthefrequencyrange.
LOCATION BASE MOBILE
f!WWfik'~~.'\~
PINEHURST 155,490 "','"
POCATELLO 154,725 "','"
2. Enter the Manual Mode.
3. Enterthe lower limit of the range.
r - -,,- - -'2- - - -'3'
(OSCAN): 0~@ :
:14 15 18 ;Enterthe
<23 :@ @ @: frequency
IlSAVEI 17 18 ,9' number.
813:0@@:
1 8FT 20,-- - - -
13El:0 @:@ Then,
a 8 '-~-8- ~ press
BANK 2
p~nLfOO.OOO11Hz
12.5 KHz All
4. Enter the upper limit of the range.
r--"---'2 '31
(OSCAN):{D ~@:
:14 15 18 ;Enterthe
<23 :@ @ @: frequency
IlSAVE1 17 18 19 I number.
813:0 @ @:
1 8FT 20,-- - - -
13 13: 0 @: @ Then,
,______-- press
B8 ~EJ ~
BANK 2
p~n 5 11.98 7511Hz
12.5 KHzAll
5. Enter the Auto-Store Programming Mode.
0@@
8FT 20
O@)@
BB" [3~
B88~
88
(3[3
Press
BANKWI4sl7',,',o'i1'\i'1s'14isli17'liiiF.
DMA-"""')~'(Qj"""'."" .,.""
P 21 120.500 11Hz
12.5 KHz All
15
--
11 12 13
(OSCAN) 0 @ @
14 15 16
Press (OIlAN @@@
BSAVE 17 18 19
880@@8FT 20
(380@)@

-
6. Select the bank(s).
r- - 11-- -12- - -'31
(OSCAN):@ @ @
~'Press
1 I Bank
1 14 15 181
(OIlAN~ :@ @ @: number
~~I 1
E3 (3 1€)17 @18 @1111
DC 1 7 S 9 1
1 1
----"., ,-- --
[3 (3 d,@)20:@
,--__I
BANKH€2ifii'iii'iiiiim'I"'iii"I'r'iiiiIE
," """""I.~'~"""'ii..""""'"
DIr?JI( ~'~
P 21 120.500 11Hz
12.5 KHz All
If "FULL" appears, all 20 channels of
the bank are full. Select another bank.
Note: For banks 11 -20, press SFT then
the appropriate number. (Example - SFT-1
for Bank 11.)
16
-~---
7. Begin searching.
f3130@@
8FT 20
(3(30@@
B8~~
AM NFU WFM
88888
Press
BANK~s
Di.K )~ SRCH'"
~~ 888.888 11Hz
12.5ItHz NRI
Active frequency stored.
BAtIK 2
DAM AUTO SRCH'"
22 '108.33 7511Hz
12.5KHz NFII
Search continues.
BAtIK ;i(s
~)~ SRCH'"
~31 888.888 11Hz
12.5 KHz NRI
When all empty channels in the bank(s)
have been programmed, FULL appears
along with the last channeVfrequency
programmed.
BAtIK
60 FULL
12.5 KHz NFII
BANK
60 '153.025 11Hz
12.5 KHz NFII
If there are not enough active frequencies
fol,Jndto fill the available empty channels,
the scanner continue:..ssearching until you
press ~,or E3 to manually stop
Auto-Store.
During Auto Store, you don't hear audio
from the signals received and stored.
Auto Store will store every received
transmission. Be sure to review the
channels and delete any unwanted
frequencies.
i 11
,
