Unilevel UNG6701 User manual

Green 3 Dot Point Laser Instruction Manual

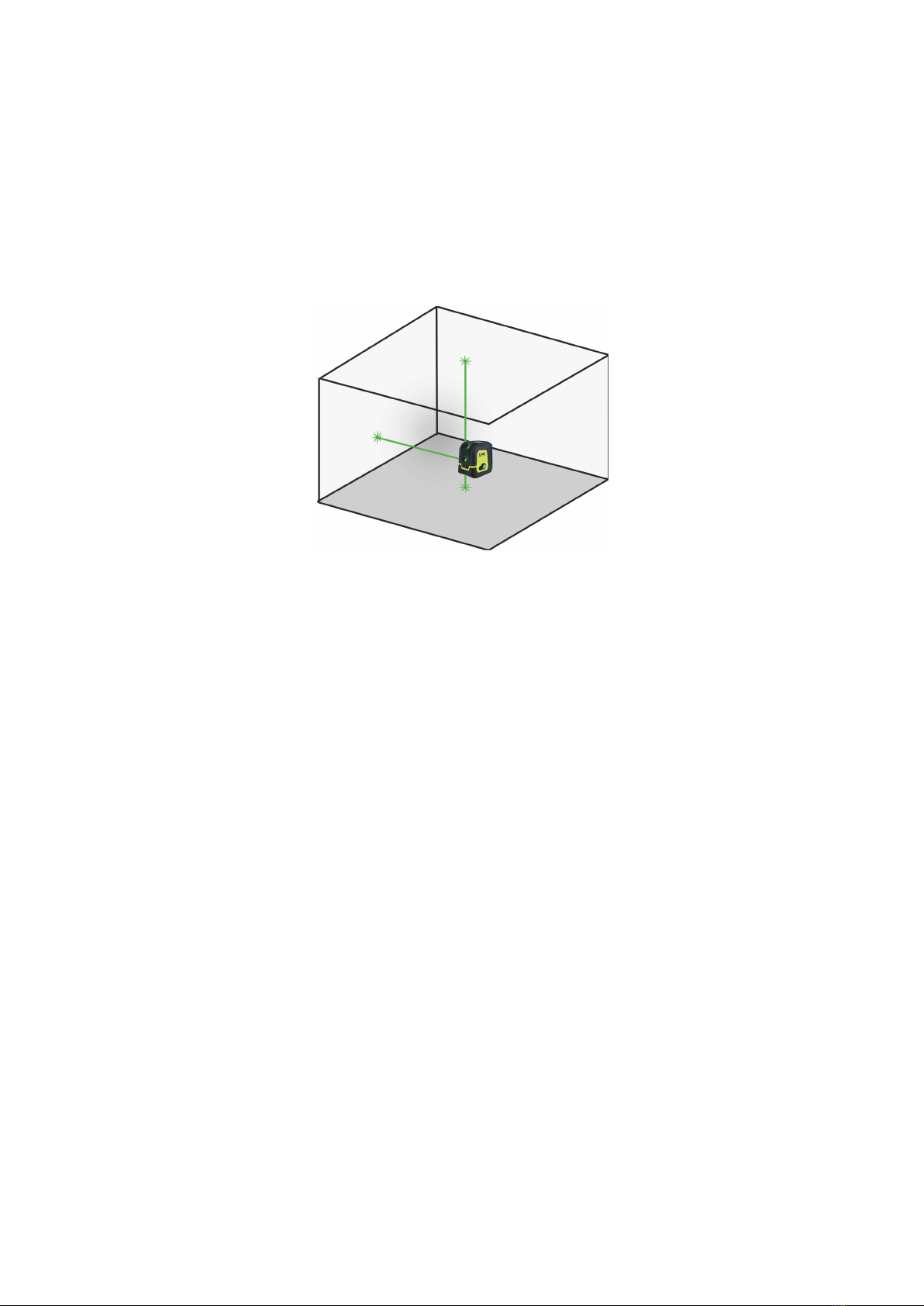

The UNG6701 is an auto levelling 3 dot green laser with a class 3r <5mW output. The laser pro-
duces an ultra bright plumb dot up and down, plus a horizontal level dot. The UNG6701 is ideal
for all manner of internal t out applications as well as visible outdoor work. The laser comes with
a magnetic mounting base which also allows the laser to mount on to either a survey or camera
style tripod if required. The laser is powered by 4x “AA” batteries.
Soft Carry Bag
Laser Output Horizontal Level
Magnetic Mount with
5/8” and 1/4” Tripod Mounts
Locking Switch
Operation
First insert batteries in to the battery holder located in the battery compartment. The battery holder takes 4 “AA”
batteries (preferably Alkaline) take care to insert in the correct direction as indicated. Insert the holder back into the
battery compartment making sure the three round terminals are inserted rst to contact the three internal spings in
the battery compartment. Note you will need to remove the laser from the bracket to do this.
The UNG6701 can be operated with or without the mounting bracket. To power up the laser simply ick the locking
switch to the on position. All three laser dots will illuminate at the same time.
www.redbacklasers.com.au
UNG6701
Green 3 Dot Laser
Laser Output Plumb Up
Laser Output Plumb Down

The UNG6701 has an out of level alarm which comprises of a loud beeping sound and the lasers ashing. This indi-
cates the laser is outside of self levelling range. To get into range place the laser on a more level surface. Once in
self leveling range the beeping and ashing will stop and the laser dots will be solid. The UNG6701 is auto levelling
so as long as the unit is within self leveling range then the laser will accurately level, there is no need to make sure
the surface the laser is on is perfectly level.
The laser can be adjusted on its mounting bracket so as to allow the plumb dot down laser to shine down. It can also
be rotated on the bracket to help locate the plumb dot in the correct position. The bracket features strong magnets
which allows attachment to any steel surface.
The UNG6701 is ideal for steel framework errection both inside and outside, range depending on ambient lighting
conditions. The UNG6701 is also ideal for interior t out, particularly, electrical installation downlights etc.
Warranty Information – CMI Industries Pty Ltd
The Principles behind our warranty.
• Duration of warranty is xed and automatic, when we advertise 1 year on a particular model, its two years. No drop down to a lesser time if you forget to register, registration is NOT
required just proof of purchase showing date. Please check your specic model for duration of warranty, see the end of this document.
• Although the duration of our warranties are for a particular period it does not mean we will charge you for a genuine warranty failure a month or two outside that warranty period, we
believe in a fair go.
• Even though a product shows signs of accidental damage, scratches and the like, we will not automatically fail the warranty claim, if the fault is NOT caused by a drop or misuse and is
a genuine warranty failure then we will cover it.
• Our aim is to return repaired or replaced products as soon as possible as we know that being without your tool can be inconvenient. Our goal is a 72 hour turnaround (3 working
days) after receiving it. Sometimes, however, a product with an intermittent fault may need extended testing to make sure we have made a full repair.
• Calibration is not covered by warranty much the same as the wheel balance on your car is not covered by warranty.
Now The Details and Legals
CMI Industries Pty Ltd provides consumers with a warranty to our products, this is in addition to the requirements of any relevant legislation such as the Competition and Consumer Act 2010.
Denitions:
“CMI”, “We” or “Our” refers to CMI Industries Pty Ltd (ABN 29 102 713 922) of Unit 2 181-183 Thompson Rd, Bell Park, Victoria 3215 ph 1800 769 858
“You” or “Consumer” refers to the initial purchaser of the product.
“Product” refers to goods manufactured by or for CMI Industries Pty Ltd under the brands of RedBack Lasers, Level1Laser and UniLevel and include Laser and Optical Levels, Measuring tools and
accessories.
“Material” refers to material or component used in the construction and manufacture of the product.
“Workmanship” refers to handling, assembly and manufacturing processes done by or for CMI Industries Pty Ltd in order to manufacture the products.
“Warranty Period” varies depending on brand and model sold by CMI please see table at end for your products warranty period. Warranty period is from original purchase date only, no extension is
made in the event of warranty replacement products being supplied or time spent being repaired.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
CMI warrants that our products will be free from defects in material and workmanship for the stated period for the product supplied (see “warranty period” following)
CMI promises to repair or replace, free of charge, the product or part of product if found to be faulty due to defective workmanship or materials within the duration of the warranty stated as long as
the following terms and conditions are met;
• Product must not have been misused or abused, must not have incurred accidental damage or had un-authorised repair or tampering that has caused or contributed to its fault or
failure.
• You must contact CMI by phone, mail or email immediately when a fault or defect has become apparent and within the warranty period.
• Product must be returned to store of purchase or directly to CMI, we will cover cost of postage only when sent by our reply paid Australia Post service (Australian Mainland and
Tasmania only) details provided upon phone, post or email with us.
• CMI will cover cost of freight back of repaired or replaced product to original purchase store or you directly (depending on how it was sent Australian Mainland and Tasmania only).
• CMI will determine whether repair or replacement of product or part of product will be made on the merits of each case.
• Further exclusions in this warranty include damage or defect caused by use of non-original accessories or parts, damage in transportation, normal wear and tear, damage through
moisture, damage due to electric surge, failure due to neglect or damaged caused by adjustments not outlined in CMI’s instructions.
Subject to the requirements of all applicable Australian Acts or legislation and to the extent permitted by law, CMI accepts no liability (whether expressed or implied) of any nature whatsoever for
any loss of earnings, hiring of replacement equipment, Inaccurate work carried out by the consumer or agent, damage or injury arising as a result of any fault in the product. It is the consumer’s
responsibility to maintain good working practices and regularly test their tools for accuracy and serviceability.
Calibration of the product is not covered by warranty subject to the requirement of all applicable Australian Acts or legislation and to the extent permitted by law.
Any product returned to CMI that fails to fall within the terms and conditions of this warranty will be quoted for repair.
All correspondence through the following channels; CMI Industries Pty Ltd, P.O. Box 7324 Geelong West, Vic 3218. Ph: 1800 769 858 email:via
www.redbacklasers.com.au/contacts.html
Specications
Laser Output (H/V): Green Class 3r 500nm - 550nm <5mW
Accuracy: +/- 2mm/10m
Range: Visible up to 50m (Dependent on Ambient Light)
Warranty: 12 Months
