Unilux Ulx110 User manual

Universal Laundry Pedestal

with Locking Drawer

UNIVERSAL ACCESSORY

MODEL: ULX110

Installation instructions

INSTALL

Important Information that may

impact your Manufacturer’s

Warranty.

Adherence to the directions for

use in this manual is extremely

important for health and safety.

Failure to strictly adhere to the

requirements in this manual

may result in personal injury,

property damage and affect your

ability to make a claim under the

Unilux manufacturer’s warranty

provided with your product.

Products must be used, installed

and operated in accordance

with this manual. You may not

be able to claim on the Unilux

manufacturer’s warranty in the

event that your product fault

is due to failure to adhere this

manual.

Safety Information

WARNING

Do not stack a dryer on top of

washing machine if using a

pedestal.

WARNING

Do not install it alone.

WARNING

Before proceeding with

installation, make sure there is

enough room.

Product & Accessories

Information

Dimension

Accessories

A 4 x locking brackets

B 4 x adjustable feet

with lock nuts

C 4 x bolts

D 4 x spring washers

E 4 x flat washers

F 2 x keys

Universal Laundry Pedestal

with Locking Drawer

Installation Procedure

1. Remove the pedestal and all

accessories from the box.

2. Fit the four (4) feet to the

pedestal and adjust to make

it stable.

3. If you install the pedestal

under a brand new

appliance, unpack the

appliance as indicated in the

instructions supplied with it

then proceed with step 5.

4. If the appliance is already

connected:

- Disconnect the mains plug

from the mains socket.

- For washing machine.

Close the water tap.

595

320

1050

- For washing machine.

Disconnect the inlet hose(s)

from the water tap and let

the water ﬂow out from the

inlet hose(s) and the drain

hose and collect it in a

shallow basin.

- For tumble dryer. Empty

the water container in a

wash basin or, if available,

activate the direct drain

system to let the water

ﬂow out.

5. Fit the locking brackets.

a. Assemble the bolt C, spring

washer D and ﬂat washer E

for each bracket.

b. Fit each of the four (4) locking

brackets A with the pointed

section facing inwards.

c. Screw in the assembled bolt

only until ﬁnger-tight, loose

enough to adjust later.

6. Adjust the appliance feet at a

suitable height to allow them

to slide under the foot locking

brackets.

7. Lift the appliance onto the

pedestal so that the appliance

front feet slide under the foot

locking brackets.

Tighten the bolts securing the

fast locking brackets, ensuring

the bracket is ﬁrmly against each

feet of the appliance.

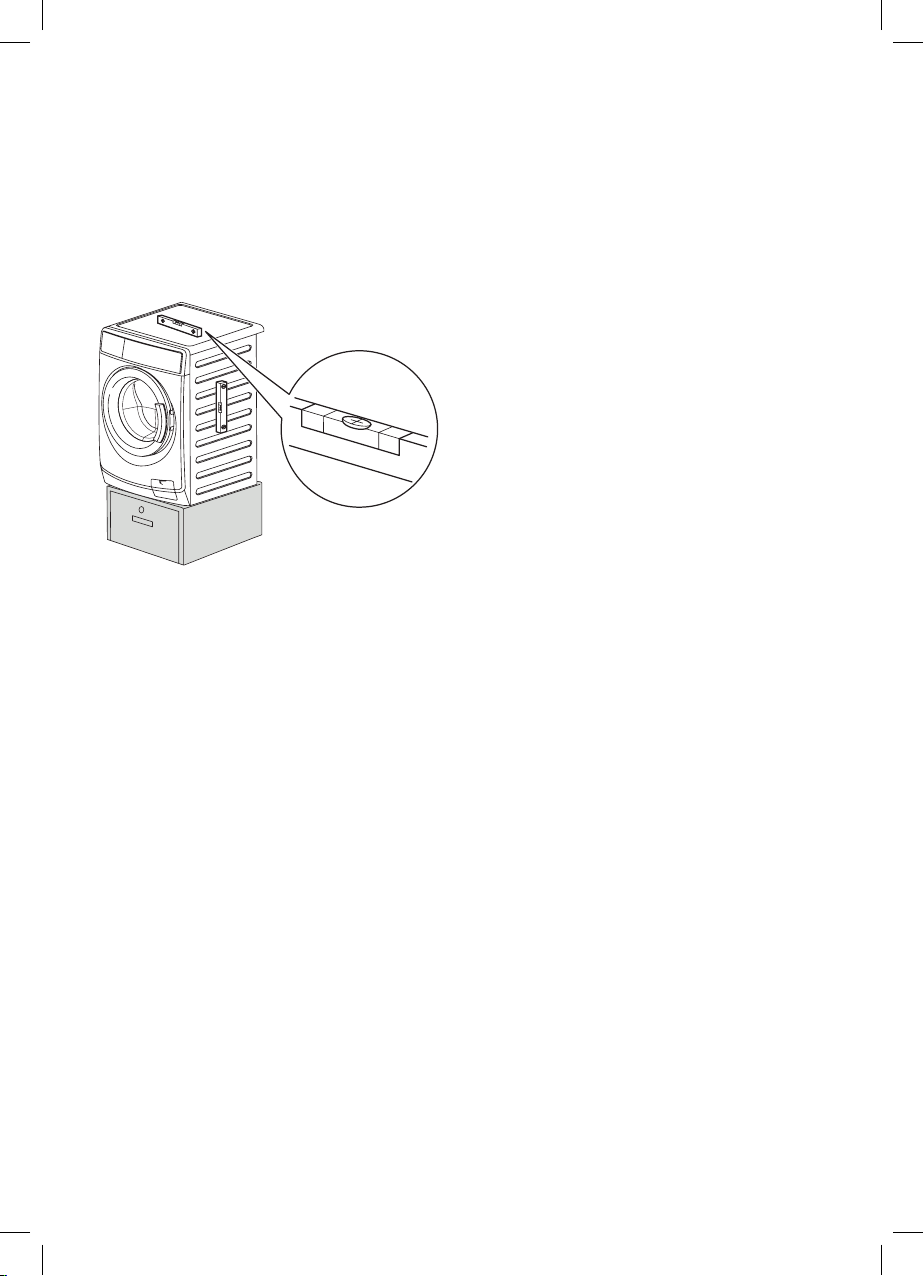

8. Move the Pedestal/Appliance

assembly to its permanent

location. Use a spirit level to

check if the assembly is properly

leveled. If not leveled, adjust feet

to level properly.

9. Connect the appliance as

indicated in the instructions

supplied with the appliance.

Notes

This document sets out the terms and conditions of the product

warranties for Unilux Accessories. It is an important document.

Please keep it with your proof of purchase documents in a safe place

for future reference should there be a manufacturing defect in your

Product. This warranty is in addition to other rights you may have

under the Australian Consumer Law.

1. In this warranty:

(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the

Competition and Consumer Act 2010;

(b) ‘Product’ means any Electrolux spare part and accessory product

purchased by you and accompanied by this document;

(d) ‘Electrolux’ is the brand controlled by Electrolux Home Products Pty

Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762

341 in respect of Products purchased in Australia and Electrolux (NZ)

Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount

Wellington, in respect of Products purchased in New Zealand;

 (e) ‘WarrantyPeriod’meanstheperiodspeciedinclause3ofthis

warranty;

(f) ‘you’ means the purchaser of the Product not having purchased the

Product for re-sale, and ‘your’ has a corresponding meaning.

2. Application: This warranty only applies to new Products, purchased

and used in Australia or New Zealand and is in addition to (and does

not exclude, restrict, or modify in any way) other rights and remedies

under a law to which the Products or services relate, including any non-

excludable statutory guarantees in Australia and New Zealand.

3. Warranty Period: Subject to these terms and conditions, this warranty

continues for a period of 12 months in Australia and New Zealand,

following the date of original purchase of the Product.

4. Repair or replace warranty: During the Warranty Period, Electrolux or

its ASPD will, at no extra charge, subject to these terms and conditions,

repair or replace any Product or parts which it considers to be defective.

Electrolux may, in its absolute discretion, choose whether the remedy

oeredforavalidwarrantyclaimisrepairorreplacement.Electroluxorits

ASPD may use refurbished parts to repair your Product. You agree that

any replaced Products or parts become the property of Electrolux.

5. Travel and transportation costs: Subject to clause 7, Electrolux will

bear the reasonable cost of transportation, travel and delivery of the

Product to and from Electrolux or its ASPD. Travel and transportation

will be arranged by Electrolux as part of any valid warranty claim.

6. Proof of purchaseis required before you can make a claim under this

warranty.

7. Exclusions: You may not make a claim under this warranty unless

the defect claimed is due to faulty or defective parts or workmanship.

This warranty does not cover:

 (a) lightglobes,batteries,ltersorsimilarperishableparts;

(b) parts and Products not supplied by Electrolux;

 (c) cosmeticdamagewhichdoesnotaecttheoperationofthe

Product;

(d) damage to the Product caused by:

(i) negligence or accident;

(ii) misuse or abuse, including failure to properly maintain or service;

(iii) improper, negligent or faulty servicing or repair works done by

anyone other than an Electrolux authorised repairer or ASPD;

(iv) normal wear and tear;

(v) power surges, electrical storm damage or incorrect power supply;

(vi) incomplete or improper installation;

(vii) incorrect, improper or inappropriate operation;

(viii) insect or vermin infestation;

(ix) failure to comply with any additional instructions supplied with

the Product;

In addition, Electrolux is not liable under this warranty if:

(a) the Product has been, or Electrolux reasonably believes that the

Product has been, used for purposes other than those for which the

Product was intended, including where the Product has been used

for any non-domestic purpose;

 (b) theProductismodiedwithoutauthorityfromElectroluxinwriting;

or defaced.

8. How to claim under this warranty: To enquire about claiming under

this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the

terms of this warranty;

(b) have the model and serial number of the Product available;

(d) telephone the numbers shown below.

9. Australia: For Products and services provided by Electrolux in Australia:

Electrolux goods come with guarantees that cannot be excluded under

the Australian Consumer Law. You are entitled to a replacement or

refund for a major failure and for compensation for any other reasonably

foreseeable loss or damage. You are also entitled to have the Product

repaired or replaced if the Product fails to be of acceptable quality and

the failure does not amount to a major failure. ‘Acceptable quality’ and

‘major failure’ have the same meaning as referred to in the ACL.

10. New Zealand: For Products and services provided by Electrolux in New

Zealand, the Products come with a guarantee by Electrolux pursuant

to the provisions of the Consumer Guarantees Act, the Sale of Goods

Act and the Fair Trading Act. Where the Product was purchased in New

Zealand for commercial purposes the Consumer Guarantee Act does

not apply.

11.Condentiality: You accept that if you make a warranty claim, Electrolux

and its agents including ASPD may exchange information in relation to

you to enable Electrolux to meet its obligations under this warranty.

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: UNILUX ACCESSORIES

UAccessories_Warr_May17

Important Notice

Before calling for service, please ensure that the steps listed in clause 8 above have been followed.

FOR SERVICE

ortondtheaddressofyournearest

customer care centre in Australia

PLEASE CALL 1300 363 640

For the cost of a local call (Australia only)

AUSTRALIA

ELECTROLUX HOME PRODUCTS

163 O’Riordan Street, Mascot NSW 2020

electrolux.com.au

FOR SPARE PARTS

ortondtheaddressofyournearest

spare parts distributor in Australia

PLEASE 13 13 50

For the cost of a local call (Australia only)

FOR SERVICE

ortondtheaddressofyournearest

authorised service centre in New Zealand

PLEASE CALL 0800 10 66 10

(New Zealand only)

NEW ZEALAND

ELECTROLUX (NZ) Limited

3-5 Niall Burgess Road, Mount Wellington

electrolux.co.nz

FOR SPARE PARTS

ortondtheaddressofyournearest

spare parts centre in New Zealand

PLEASE 0800 10 66 20
