Unior 1693.2S-US User manual

Tehni č ki podaci
uniortools.com
Podesivi drža č za fiksiranje na pult ili zid
Profili
Atributi proizvoda
Mogu ć nost montiranja na pult ili zid
●
Namjenjeno upotrebi u profesionalnim ili ku ć nim radionicama.
●
Pogodno za cijevi promjera od min Ø24 mm do max. Ø40 mm.
●
1693.2S-US

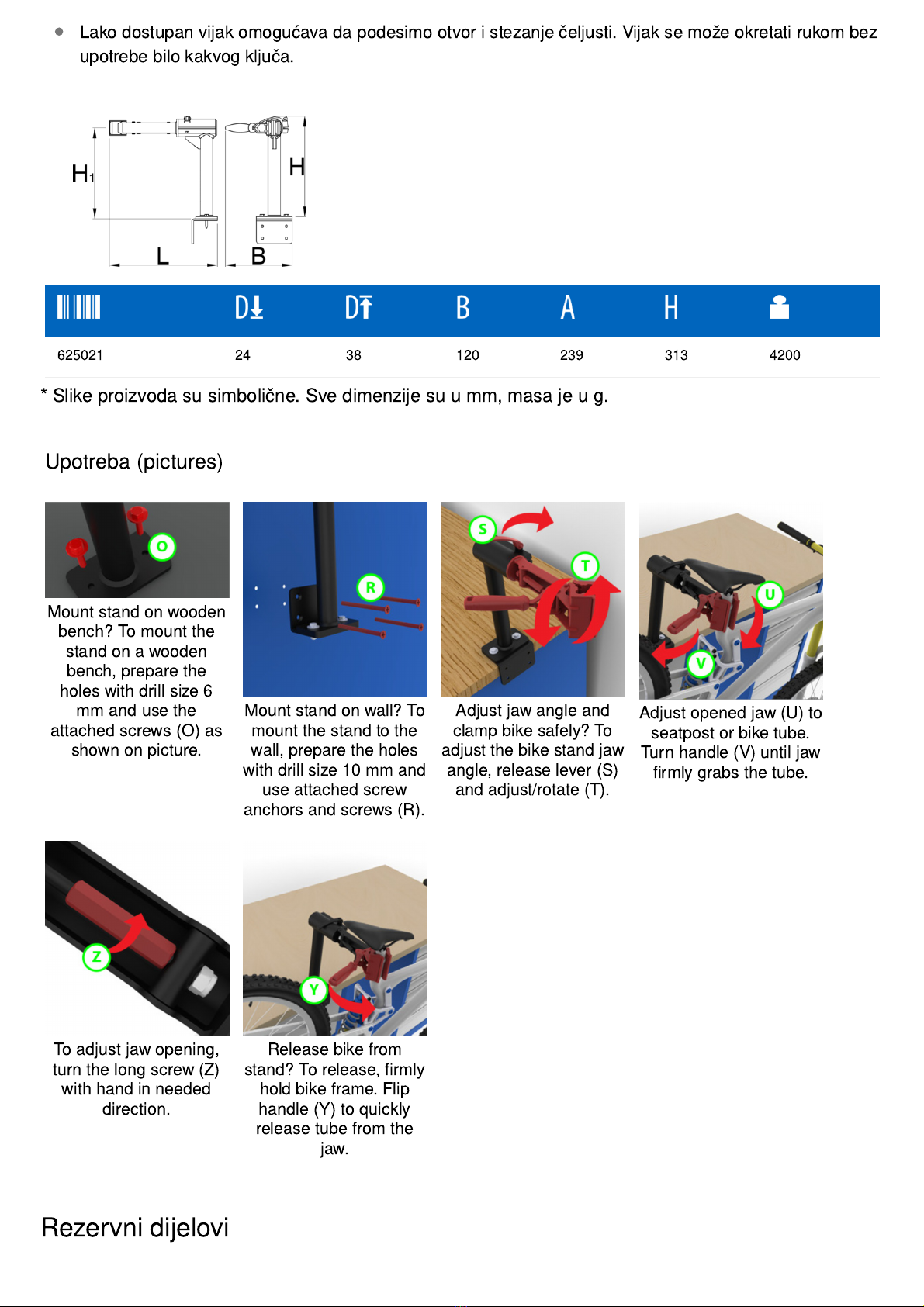

Upotreba (pictures)
Mount stand on wooden
bench To mount the
stand on a wooden
bench, prepare the
holes with drill size 6
mm and use the
attached screws (O) as
shown on picture.
Mount stand on wall To
mount the stand to the
wall, prepare the holes
with drill size 10 mm and
use attached screw
anchors and screws (R).
Adjust jaw angle and
clamp bike safely To
adjust the bike stand jaw
angle, release lever (S)
and adjust/rotate (T).
Adjust opened jaw (U) to
seatpost or bike tube.
Turn handle (V) until jaw
firmly grabs the tube.
To adjust jaw opening,
turn the long screw (Z)
with hand in needed
direction.
Release bike from
stand To release, firmly
hold bike frame. Flip
handle (Y) to quickly
release tube from the
jaw.
* Slike proizvoda su simboli č ne. Sve dimenzije su u mm, masa je u g.
Rezervni dijelovi
Lako dostupan vijak omogu ć ava da podesimo otvor i stezanje č eljusti. Vijak se može okretati rukom bez
upotrebe bilo kakvog klju č a.
●
625021 24 38 120 239 313 4200

Replaceable rubber covers for clamp, round, 2 pcs set
Related products
Stezne č eljusti za montažu na pult ili zid
