Unisen KP-810-18BV User manual

User
User
User
User Manual
Manual
Manual
Manual
The Commander
Mini
Mini
Mini
Mini Bluetooth
Bluetooth
Bluetooth
Bluetooth Keyboard
Keyboard
Keyboard
Keyboard with
with
with
with IR
IR
IR
IR Remote
Remote
Remote
Remote
Fearturing
Fearturing
Fearturing
Fearturing interactive
interactive
interactive
interactive voice
voice
voice
voice Technology
Technology
Technology
Technology
Model:
Model:
Model:
Model: KP-810-18BV
KP-810-18BV
KP-810-18BV
KP-810-18BV R
R
R
R
Rev.1.0
Rev.1.0
Rev.1.0
Rev.1.0

1.
1.
1.
1. Introduction
Introduction
Introduction
Introduction :
Android computing devices, such as an Android Cell Phone, can support
home theater environments by becoming the source for content and
entertainment. Android device normally support all of the critical
components to drive your home entertainment system such as:
⑴1080P large screen compatibility
⑵HDMI, MHL or HD output port
There are various benefits of connecting your Android device to
your Home Theater, but when connected to the Home Theater as
the user there are small inconveniences that Unisen has
recognized and resolved.
⑴When the Android computing device is connected and next to
your Home Theater. Yor are sit on the sofa watching TV and when
the phone rings, then the user must get up and answer the call, the
user may disconnect his Android device for the normal handset
convianence, disconnets all the cables. But with the Unisen
Commander connected to his Android computing device via
Bluetooth. The user can and not walk to the TV disconnect his
Android device.
⑵The user can remotely control his Android computing device

⑶Using the Commander, the user can originate or receive
telephone calls while your smart cell stays your Home
Entertainment center.
⑷The user can control Android Audio remotely from the
Commander
⑸while watching TV and using the Commander with ear phones
the Commander can provide audio privacy in the home and not
annoy nearby people in the home
Unisen, the First designer and manufacturer of mini wireless keyboard,
that provide computer remote control and smart TV remote control, has
the solution for this application and has released a new innovat ive
product - iPazzPort Bluetooth
Bluetooth
Bluetooth
Bluetooth Commander
Commander
Commander
Commander (KP-810 -18BV).
KP-810-18BV uses Bluetooth 3.0 technology, includes QWERTY
keyboard and mouse touchpad, integrated Bluetooth headset, microphone,
headphone and learning infrared remote control.
The Commander can control Android 4.0 HDMI / MHL HD output of
smart phone / tablet
①
. using the Commander to operate the smart phones / tablet to watch
Internet movie or send/receive emails is very convenient and
comfortable.
② . With the Bluetooth headset and the MIC configuration, when
connect ed to smart phone /table t to a large TV screen, you can take

incoming calls or make out going calls thru the Commander
remotely.
③
. With The integarted VOICE technology feature, voice search on
Google web and skype chat is very useful. Always trasnitting
voice at high quality and always clear.
④
. Connecting the commander headset, switching the voice of smart
phone / tablet to commander Remote Control headphone output,
which does not affect other family member s when watching the
Internet TV movie.
5. T he learning infrared remote control also provid es
convenience for the direct control of the TV and other IR compatible
devices
2.
2.
2.
2. More
More
More
More applications
applications
applications
applications
The Commander has IR Remote, and it can control other appliances by
learning the original code from the other applicance remote, other
applications:
■ Android 4.0 mobile phone/tablet, when connecting Android 4.0
mobile phone to HDTV , Large Monitor or Projector
■ P eople who need to be apart from their personal computer and yet
control it for their training, teaching, presentation, lecturing.
■ Multi media home theater, people can sit in their easy chair or sofa

even in bed and enjoy film, music, surf the internet using the
Commander from where they are sitting .
■ External keyboard and voice remote for Android 4.0 mobile phone/
Tablet , Car PC, PC Remote of other home electric appliance, such as
DVD PLAYER, CD
，
PLAYER, TV, Air Conditioner, with the feature
of IR learning, can quickly learn the original code from other home
electric appliance remote s .
3
3
3
3 .
.
.
. Package:
Package:
Package:
Package:
Mini Bluetooth Keyboard with IR Remote
USB cable for recharg ing the unit * 1
Headset *1
User manual *1
4
4
4
4 .
.
.
. Feature
Feature
Feature
Feature and
and
and
and specifications:
specifications:
specifications:
specifications:
■ 6 in 1: Wireless stereo speaker, microphone,Keyboard, mouse
touchpad and 2 mode IR remote 6 in 1.
■ Bluetooth wireless Stereo speaker and microphone for use with
S kype, G oogle talk, MSN, etc VoIP application
■ Remote Handset
■ Full QWERTY keyboard, Full Function keys.
■ 2 mode IR learning remote, can be paired with any home IR device.
■ Rechargeable batter y : up to two weeks between charges. Standard
packed, it is easy to replace

■ Short recharge time: Around two hours can fully charge the battery.
■ Bluetooth wireless: Enjoy long-range wireless control from up to 10
metre (33 feet) away.
■ Multi-Touch Pad: Use as point and click no mouse is required for
simple portable operation.
■ Backlighting: Makes text entry effortless even in low light.
■ Compact: Perfect size for portable(163 X 60 X 12 mm).
■ Light weight: Only with 100 g.
■ Battery capacity: 800mA
■ Charge voltage/current : 5V/300mA
■ Size : (163 X 60 X 12 mm) mm pocket size.
■ Weight: 107g
5
5
5
5 .
.
.
. System
System
System
System requirement:
requirement:
requirement:
requirement:
- - Windows 7
-- Mac OS , iOS
- - Android 4.0 Smart Phone with HDMI/MHL HD out put port
6.
6.
6.
6. How
How
How
How to
to
to
to use
use
use
use
Function
Function
Function
Function description
description
description
description of
of
of
of keyboard
keyboard
keyboard
keyboard

9. Front view
Item Function Operation
Mouse left Press to operate like left mouse key
Mouse right Press to operate like right mouse key
BT Bluetooth reset Press to pair keyboard and USB receiver
Cursorup,down
left, right
Press the four keys to move cursor up,
down, left,and right
Page up Press to scroll page up
Page down Press to scroll page down
Touch
PAD
Mouse touch
pad
Slide your finger on touch pad to move
mouse cursor
Indicator
recharge indicator and go out when fully
recharged
Light up when fully recharged
Flash when signal transited
Light up when switch to Caps lock input
Binds
Binds
Binds
Binds keys
keys
keys
keys description
description
description
description

all binds key must work with Fn, for example: if you want to operate
key “ Home ” , you have to press key “ Fn ” and key “ 9 ” together
10. Front view
Item Function Operation
Fn Work with other binds keys Press this key and other binds
key together
Change operation directions Press “ Esc ” and “ Fn ” together
Press to turn backlit on/off Press “ F1 ” and “ Fn ” together
V olume down Press “ F2 ” and “ Fn ” together
V olume up Press “ F3 ” and “ Fn ” together
Mute Press “ F 4 ” and “ Fn ” together
Previous Press “ F 5 ” and “ Fn ” together
Stop Press “ F 6 ” and “ Fn ” together
Next Press “ F 7 ” and “ Fn ” together
Return to main page Press “ F 8 ” and “ Fn ” together
Back to previous page Press “ F 9 ” and “ Fn ” together
Prtsc Print screen Press “ F 10 ” and “ Fn ” together
Del Delete
Press
“ ”
and
“
Fn
”

together
Home Home Press “9”and “Fn ”together
F12 F12 Press “=”and “Fn ”together
F11 F11 Press “-”and “Fn ”together
End End Press “0”and “Fn ”together
Ins Insert Press
“
8
”
and
“
Fn
”
together
Ctrl+Alt+Del Ctrl+Alt+Del Press Fn+Enter together
6 . 1 . Turn unit on by switching power switch to on
6 . 2 . charge your keyboard: Fist, when your keyboard backlit flash es that
means your keyboard is in low charge, and you need to recharge by
connect ing your keyboard to your computer with mini end of USB
cable to your keyboard and the other end to computer usb port , then
led will light up with steady on, and go out when it is fully charged.
7
7
7
7 .
.
.
. IR
IR
IR
IR learning:
learning:
learning:
learning:
The Commander Keyboard can be used as remote for other home electric
appliance s , such as DVD/CD player, TV, air conditioner, refrigerator , plus
many other types of appliance . In order to be a compatible remote for

other electric appliance, the Commander must learn the original code
from the other electric appliance, take the TV remote as an example:
7 .1. S et the device to be learned by pressing key “ AV ” or “ TV ” on the
Commander , if you want to learn the TV Remote , please press the TV key ,
The LED blue light will flash, if AV, the LED orange light will flash
7 .2. Press key “ set ” for about 2 seconds un til LED is on steady and then
the Commander enter s learning mode . T hen tap the key you want
to copy and LED will flash one time , When the light is on steady
that means keyboard is waiting for signal from original remote to
begin learning.
7 .3. Approach the TV remote about 10mm in front of the Commander ,
aim both IR Emitters at each other, then press the KEY on the TV
remote for about 1 seconds, then release this key and you will see
LED on the Commander flash 3 time . When the light is on steady
that means your Commander has learned the original code of the
TV Remote successfully.
7 .4. Repeat step 7 .2 and 7 .3 to complete other syncing of the original
remote . (LED will go out and quit learning mode if no operation within
10 seconds)
7 .5. Press the “ set ” key to save and quit the learning mode when all key s
are finish ed original code learning mode

8
8
8
8 .
.
.
. Change
Change
Change
Change operation
operation
operation
operation directions:
directions:
directions:
directions:
As we know, some times, we want to operate the wirelss keyboard
vertically, and some times horizontally, when operation direction is
changed from vertical to horizontal, the touchpad will not automatically
change direction, for example, supposed you operate the unit vertically,
and you slide your finger on the touchpad vertically, the mouse cursor on
the screen of the computor will move vertically but when operation
direction is changed from vertical to horizontal, when you slide your
finger vertically and move mouse cursor the cursor will move
horizontally . To change mouse cursor direction, please press the key Fn
together with the key Esc to change its operation of direction, and teh
mouse cursor will move with your finger direction.
9
9
9
9 .
.
.
. V
V
V
V oice
oice
oice
oice :
:
:
:
The Commander integarted interactive voice technology which enhances
application such as: skype, QQ chatting, MSN real timetalking, Google
Talking, wireless music and so many other applications .
9 .1. The commander KP-8101-8BVR is intended for Android 4.0
Operating systems and no the Windows environment, if you desire
integrated interactive voice technology of a windows based PC,

please purchase the KP-810-18VR. The device will support
Windows operating system.
9 .2. if you must use the Commander KP-810-18BVR on your PC as
well as your Android 4.0 System, then you must have Bluetooth
capabity in your window PC/laptop and then you must purchase a
bluetooth driver such as Bluesoleil, please note your keyboard
operational distance is based on your Bluetooth technology. The
UnisenGroup iPazzPort only guarantees 33 ” distance with our
proprietary RF using the KP-810-18VR.
10
10
10
10 .Pair
.Pair
.Pair
.Pair Android4.
Android4.
Android4.
Android4. 0
0
0
0 smart
smart
smart
smart phone/tablet
phone/tablet
phone/tablet
phone/tablet
First
First
First
First pairing
pairing
pairing
pairing
10. 1. Turn on the Bluetooth voice keyboard, Hold BT button till the
second LED flash.
10.2. Select setting from smart phone/tablet, turn on Bluetooth (Figure
7), Smart phone/Tablet will be the searching status, when
“ bluetooth
iPazzPort ” icon appears ( Figure 8 ), click the “ bluetooth
iPazzPort ” icon for connection, when the requested passcode is
shown ( such as 3849) you need to type the passcode on the
commander keyboard ( Figure 9), then the keyboard and touchpad
mouse can used on the smart phone ( Figure 10).

10.3.Hold the voice button on the Commander keyboard for about 5
S econds, until the LED and orange LED flash alternately, then
release the button. When “ iPazzPortvoice ” icon appears on Smart
phone/tablet , click thr “ iPazzPortvoice ” icon for connection. At
first, thefourth LED flashes quickly, after about 3 seconds, the LED
flashes
slowly, this means the connecting is successful.
Second connection
10.4.Turn on the Commander keyboard, hold voice button for 3 seconds
on the keyboard until the fourth LED lights, then release it, the
fourth LED flashes quickly, after about 3 seconds, the LED flash
slowly, and that means the connecting is successful.

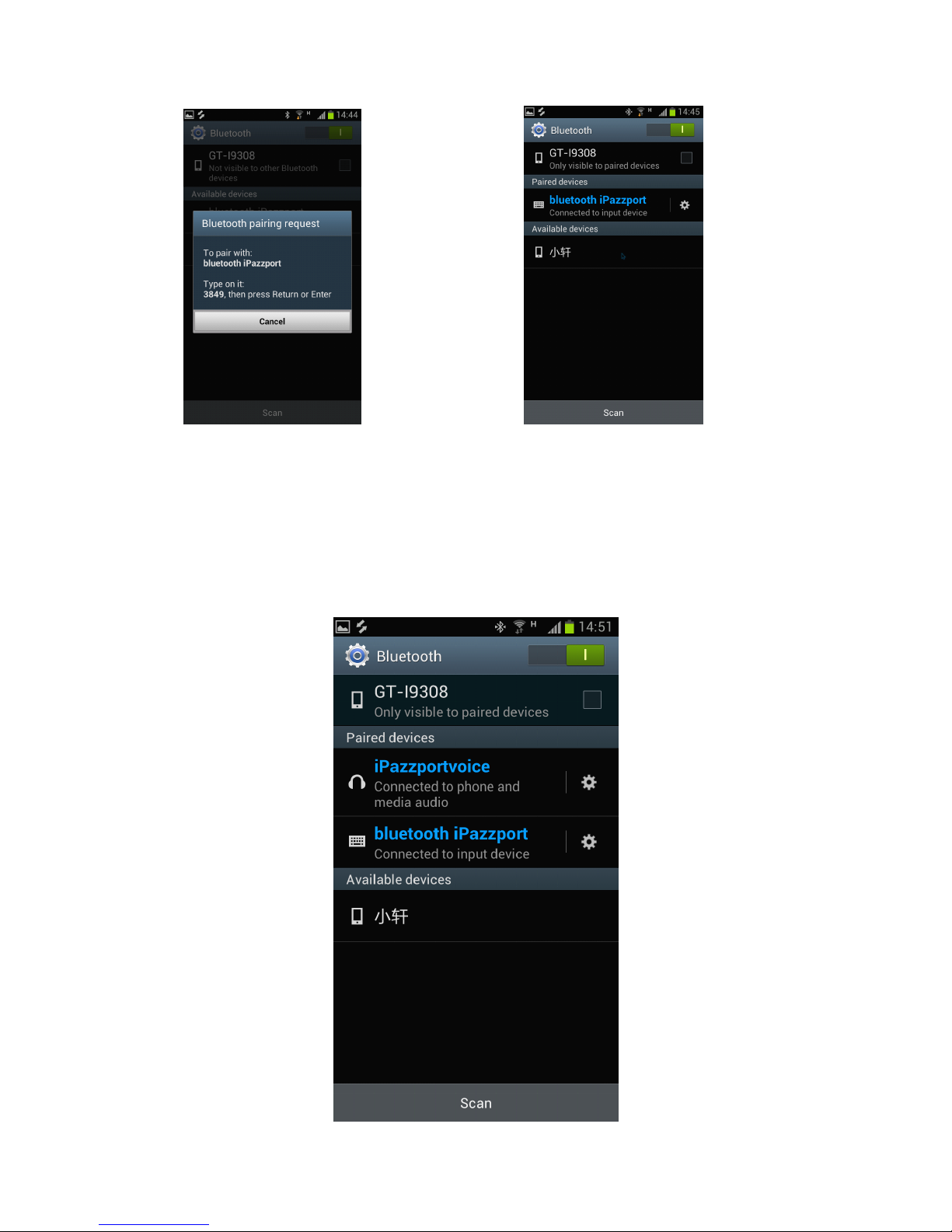

Figure 7 Figure 8

Figure 9 Figure 10
10.5.T urn off the Bluetooth voice function: hold the voice button
( Figure 1 1 ) three seconds until the fourth LED lights, then release
the button

11.
11.
11.
11. Connect
Connect
Connect
Connect your
your
your
your keyboard
keyboard
keyboard
keyboard with
with
with
with non
non
non
non Android
Android
Android
Android Computer
Computer
Computer
Computer
11 .1 . Insert Bluetooth USB doogle into computer USB port, and double
click BlueSolei icon on the desktop to enter device management
interface
11 .2 . T urn on keyboard and press key Bluetooth Reset till LED
flash es .
11 .3 . D ouble click orange ball to search for an other enabled bluetooth
device. Icon of bluetooth iPazzPort will appear, then double click
this icon to pair your keyboard with your PC
11 .4. Right click icon of Bluetooth iPazzPort and select Build
Connection, please input the same passcode as requested when you
are asked for passcode with bluetooth keyboard

11 .5 . N ow you can use your bluetooth keyboard as a PC remote
12.
12.
12.
12. CONNECT
CONNECT
CONNECT
CONNECT MacBook
MacBook
MacBook
MacBook or
or
or
or Windows
Windows
Windows
Windows 7
7
7
7 or
or
or
or higher
higher
higher
higher
12. 1. Pairing the keyboard and mouse touchpad follow computer rules
for selecting Bluetooth device. When searching for Bluetooth
connection to the Commander, press BT key, the fourth LED will
flash Blue then Orange. When the flashing stops, the keyboard is
pairing. After the keyboard is paired, the fourth LED will stay on
steady.
12 .2. Pairing the voice feature
Hold the voice button on the Commander keyboard for about 5
S econds, until the LED and orange LED flash alternately, then
release the button. When “ iPazzPortvoice ” icon appears on Smart
phone/tablet , click thr “ iPazzPortvoice ” icon for connection. At
first, thefourth LED flashes quickly, after about 3 seconds, the LED
flashes
The Commander KP-810-18VBR does not work with Android 2.3 OS or
lower
WEEE
WEEE
WEEE
WEEE Directive
Directive
Directive
Directive &
&
&
& Product
Product
Product
Product Disposal
Disposal
Disposal
Disposal
At the end of its serviceable life, this product should not be treated as
household or general waste. It should be handed over to the applicable
collection point for the recycling of electrical and electronic equipment,
or returned to the supplier for disposal

Notice
Notice
Notice
Notice to
to
to
to customers
customers
customers
customers
This symbol on the battery indicates that the battery is to be collected
separately.
The following applies only to users in European countries.
This battery is designed for scperate collection at an appropriate
collection point.
Do not diapose of as household waste.
For more information,contact the retailer or local authorities in charge
of waste,management.
Caution
Caution
Caution
Caution :
:
:
:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Compliance statement:
1: This device is verified to comply with Part 15 of the FCC Rules.
Operation subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
2: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and,
if installed And used in accordance with the instructions, may cause
harmful interference to radio communications. However,there is no
guarantee that interference will not occur in a particular installation.If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help

蓝牙语音智能手机遥控器
1.
1.
1.
1.
介绍
联力胜
iPazzPort
iPazzPort
iPazzPort
iPazzPort
艾拍宝蓝牙语音智能手机
/
/
/
/
平板遥控器
（
KP-810-18BV
KP-810-18BV
KP-810-18BV
KP-810-18BV
）支持
Android
Android
Android
Android 4.0
4.0
4.0
4.0 HDMI/MHL
HDMI/MHL
HDMI/MHL
HDMI/MHL
高清输出的智能手
机
/
/
/
/
平板 .
安卓
4.0
4.0
4.0
4.0 Android
Android
Android
Android
智能手机
/
/
/
/
平板如火如荼，一夜间将所有的智能手
机
/
/
/
/
平板全变成安卓
4.0
4.0
4.0
4.0
系统 。 智能手机
/
/
/
/
平板除了成为通讯工具之外 ，
娱乐及网络化的性能更甚于通讯的应用，无可非议智能手机
/
/
/
/
平板成
为娱乐中心的概念已经形成，但不管是智能手机
3.2-5.3
3.2-5.3
3.2-5.3
3.2-5.3
寸，还是平
板的
7-13.3
7-13.3
7-13.3
7-13.3
寸屏，做为网页浏览和影音播放还是太小，众所周知智
能手机
/
/
/
/
平板硬软配置完全支持
1080P
1080P
1080P
1080P
的大屏显示 ， 智能手机
/
/
/
/
平板厂
商都察觉这两点，所以大部分的智能手机
/
/
/
/
平板都配有
HDMI
HDMI
HDMI
HDMI
或
MHL
MHL
MHL
MHL
的高清大屏输出端口 ， 用来连接的家庭高清大屏或液晶显示器
或投影机 ， 以此来平衡这两点 。 当用户回到家中将智能手机连接到大
屏幕上来上网看电影，将是超前的体验感，但是手机摆放在电视旁 ，
由于人坐在沙发上进行操作很不方便，如果此时你想拨打或接听电
话，又不得不断开手机
/
/
/
/
平板与电视的连接，不便之处可想而知。联
力胜公司做为一家迷你无线键盘 ， 电脑遥控器 ， 智能电视遥控器的先
行与开拓者 ， 已体察到此应用 ， 发布了一款最新的蓝牙语音智能手机

/
/
/
/
平板遥控器 （
KP-810-18BV
KP-810-18BV
KP-810-18BV
KP-810-18BV
） 完美支持此类应用 。 18BV 运用
Bluetooth
Bluetooth
Bluetooth
Bluetooth
3.0
3.0
3.0
3.0
技术，配备
QWERTYW
QWERTYW
QWERTYW
QWERTYW
全键盘及触摸板鼠标，集成蓝牙耳机，
麦克风，还配有一条耳机线和学习型红外遥控器，此时在智能手机
/
/
/
/
平板连接大屏时以下的应用功能将是多姿多彩：
①
.
.
.
.
键盘触摸板鼠标远距离操作智能手机
/
/
/
/
平板上网 ， 看电影 ， 即方便
又舒适。
②
.
.
.
.
它的无蓝牙耳机和
MIC
MIC
MIC
MIC
的配置，在智能手机连上大屏后，来电
话时，可以完全用
18BV
18BV
18BV
18BV
来操作，接听和拨打电话也相当方便 ，
再也不会为了接听 / 拨打电话而断开智能手机所带来的痛苦。
③
.
.
.
.
配合语音控件，可以实现远距离语音控制，输入，搜索和聊天
④
.
.
.
.
连接
18BV
18BV
18BV
18BV
和配套的耳机 ， 当一个人看电影时 ， 将声音传到语音
智能手机
/
/
/
/
平板遥控器
18BV
18BV
18BV
18BV
并由耳机输出 ， 此时完全不影响家人
休息
⑤ . 当然学习型的红外遥控器也为直接控制电视机提供了方便。
2.
2.
2.
2.
更多应用：
蓝牙语音键盘 + 红外遥控器 （ 或者叫智能手机遥控器 ） , 组合有无线
键盘 , 鼠标触摸板和学习红外遥控，广泛应用于：



Android
Android
Android
Android 4.0
4.0
4.0
4.0
手机
/
/
/
/
平板电脑
,
,
,
,
作为
Android
Android
Android
Android 4.0
4.0
4.0
4.0
手机 连接高清电视 、 大
显示器或投影仪
②
人们需要的是除了 控制 他们的个人电脑，并 能 控制他们的培训，
教学，演示，演讲。
