Unitech DNYS-2C User manual
DocumentCategory:R&DDocConfidentiality:■Oopen
DocumentNumber:UM‐DNYS2C‐002□SConfidential
Version:V1.00□TSConfidential
DNYS‐2Csmartkey
OperatingManual
Tota l 30pages
Zhuhai Unitech Power Technology Co., Ltd.
OCT 20, 2014
ApprovalforDocuments:
Department/PositionSignatureDate
PreparedbyProductdevelopment/softwareengineerLuHaijiang,Tan
Yi2014.10.20
CheckedbyR&DManagementDepartment/RQAXuLan2014.10.20
VerifiedbyStructureDepartment/ProjectManagerYinXuewen2014.10.20
CountersignedbyHardwareDepartment/hardware
representativeChenPengzhi2014.10.20
CountersignedbyStructureDepartment/Structure
RepresentativeLiQiping2014.10.20
CountersignedbyProductDevelopmentDepartment/
SoftwareRepresentative
TanYi2014.10.20
ApprovedbyProductPlanningDepartment/product
managerXiuHongjiang2014.10.20
DocumentRevisionHistory:
VersionSummaryofmodification Modifiedby Approvedby Effectivedate
1.00InitialversionLuHaijiang XiuHongjiang 2014.10.20
Copyright
The copyright of the DNYS‐2C MiniSmart Key Operating Manual is owned by Zhuhai Unitech
Power Technology Co., Ltd. No part of the Manual shall be copied or disseminated in any form by
any means, electronically or mechanically, including photocopying or recording, or for any
purpose, without written permission of Zhuhai Unitech Power Technology Co., Ltd.
(c)Copyright 2014 Zhuhai Unitech Power Technology Co., Ltd. All rights reserved.
is a registered trademark of Zhuhai Unitech Power Technology Co., Ltd.
Guide
READING GUIDE
Manual Objective:
The Manual mainly provides operating instructions on DNYS‐2C Smart Keys and auxiliary
iAdapterE-1 transmission adapter and iCDZE-1 recharge stand products supplied by Zhuhai
Unitech Power Technology Co., Ltd. To enable product users to have a basic understanding
of product functions, performance and characteristics and grasp product operating and
maintenance methods.
Audience:
The Manual, prepared for DNYS‐2C Smart Key users, mainly includes contents such as
operation, parameter settings and production maintenance, and is mainly to provide the
operating method of this product for operators.
Structure:
ThisManualcontainsthefollowingcontents:generalinformationandfeaturesareintroducedin
thefirstchapter.Productinstallationandprecautionsaredescribedinthesecondchapter.The
appearanceandbasicoperations,aswellaseachmenutobeoperatedbyusersaredescribedin
thethirdchapter.Thedefaultingparametersettingsareintroducedinthefourthchapter.Display
informationanddataduringusingprocessaredescribedinthefifthchapter.Thesixthchapter
describestheproductmaintenanceandtroubleshootingmethods.
Conventions:
Themanualcomplieswiththefollowingconventions:
1Allthemenuscomewith“”;
2AllreferencesadoptItalic;
“NOTE”meansthemattersrequiringreaderstopayattention.
“WARNING”meansthemattersthatmaycauseseriouserrorsandmustbeattended.
Foreword
Theproductsaremainlyusedinpowerindustryinterlockbyforeignterminals,suchas
substations,powerplants,etc.ItiscapabletoreceiveoperatingordersfromSmartinterlockhosts,
andthentooperateallkindsoflocksinstrictoperatingorders.InSmartinterlocksystem,the
smartkeyisusedasahandhelddevicebetweenthehostanddeviceonsite,andregardedasone
ofthemostcriticalsystemcomponents.Thisproductisdevelopedbaseonthecompany'sexisting
key,whichintegratescurrentnewtechnologiesonthemarket,andsatisfiestheneedsofusers,
thustohavepowerfulcompetitivenessoftheSmartinterlocksystemmarket.
Warning:Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsible
forcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.
Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital
device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable
protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,
usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe
instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno
guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause
harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningthe
equipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormore
ofthefollowingmeasures:
●Reorientorrelocatethereceivingantenna.
●Increasetheseparationbetweentheequipmentandreceiver.
●Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
●Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
TableofContents
CHAPTER1OVERVIEW.........................................................................1
1.1INTRODUCTION ............................................................................. 1
1.2SCOPEOFAPPLICATION .................................................................... 1
1.3FUNCTIONSANDFEATURES ................................................................ 1
1.4MODELANDCONFIGURATION ............................................................ 2
CHAPTER2INSTALLATION....................................................................2
2.1INSTALLATIONSTEPS ....................................................................... 2
2.2INSTALLATIONCAUTIONS .................................................................. 2
CHAPTER3OPERATION........................................................................3
3.1DISPLAYPANEL.............................................................................. 3
3.2OPERATIONS ................................................................................ 4
3.2.1Basicoperations .................................................................. 4
3.2.2Synchronization................................................................... 5
3.2.3ReceiveOperationOrders..................................................... 6
3.2.4Unlock ................................................................................ 7
3.2.5PostBack .......................................................................... 15
3.2.6Browseorders ................................................................... 16
3.2.7Function ........................................................................... 17
3.2.8Settings ............................................................................ 19
3.2.9About ............................................................................... 26
CHAPTER4:PARAMETERSETTINGS.....................................................27
4.1AUTOPOWER‐OFF ....................................................................... 27
4.2AUTOSLEEPMODE ....................................................................... 27
4.3INTERFACEBRIGHTNESS ................................................................. 27
4.4DISPLAYLANGUAGE ...................................................................... 27
4.5.INTERFACETHEMES ...................................................................... 27
4.6SPEAKERSTATUS .......................................................................... 27
4.7.RECORDINGFUNCTION.................................................................. 27
4.8AUDIOCOMPRESSION.................................................................... 27
CHAPTER5DISPLAYDESCRIPTIONS....................................................28
CHAPTER6PRODUCTSMAINTENANCE...............................................29
6.1UPGRADEMAINTENANCE................................................................ 29
6.2ROUTINEMAINTENANCE................................................................. 29
6.3TROUBLESHOOTING ...................................................................... 29
1
Chapter1Overview
1.1Introduction
DNYS‐2CsmartkeyisanewtypeofOLEDcolor‐screensmartkeybasedonthe“Double‐less”technologyofthe
company,basedonourapplicationanddevelopmentexperienceovertheyears,whichcanbeoperatedin
conjunctionwithJOYOseriesofmicrocomputersafetyinterlocksystems.The“Double‐less”technologyisanew
acquiringandcodingtechniquedevelopedbythecompanyunderhugeinvestments,whichhasgainedmany
patentsandisespeciallyapplicabletotheSmartinterlockfield,characterizedbylimitlesscodingandwireless
acquiring.
TheDNYS‐2Csmartkeyhasbeenessentiallyupgradedandimproved,nomatterintechnology,performance,and
manufactureprocess,comparedwiththeprevioustypeofsmartkeys,anditiscapableofmeetingthecustomer’s
newrequirementsoninterlockdevicessuchastheapplicationsincentralizedcontrolstation.
1.2Scopeofapplication
Applicabletointetlockofsubstations,powerplants,etc.
1.3Functionsandfeatures
Theproducthasthefollowingfunctionsandfeatures:
9Limitlesscoding;andthecodingsystemadoptstheGUID;
9Wirelesscodeacquiring;thesmartkeyadoptsthenon‐contactacquisitionmode.
9“BlackBox”function:Recordingandbrowsingtheoperationordersandtheoperationinformation;thedata
canbewellsavedwithin10yearsafterpower‐off;
9Thesmartkeyfunctionsasorderclearance,synchronization,memory,lockcodechecking,terminationofthe
currentoperationorder,step‐skipping,real‐timeclock,batteryelectricquantitydetection,self‐diagnosis,etc.
9Itcanreleaseanddetectvariouslocksasfollows:
Mechanicalcodinglock
fixedprogramlock
Electriccordinglock
Lockingbox
Electroscope
Statedetector
High‐voltagepresenceindicatingsystems
9Thesystemisprovidedhigh‐speeddatatransmissionmodulesuchashigh‐speedinfraredIRDAmodule.
9VoicepromptinEnglish;
2
9Availableinrecordingfunction,equippedwithlarge‐capacityrecording&storagedevice,availabletobe
selectedaccordingtoneeds.
9OLEDcolorscreentoenhancethevisualeffects.
9High‐contrast,multi‐lineChinesecharacterdisplay.
9OLEDscreen,adjustabledisplaybrightness,thustomeettheneedsofdifferentusers.
9Friendlyinterface,easytouse,simple.
9Intelligentpowermanagementtechnology,automaticdetectionofbatteryfailure,thustoensurethe
systemisrunningatlowpowerconsumptionandextendsbatterylife.
9Lithium‐ionbattery,withbuilt‐indesign.
9CompatiblewithChinesecharacters&EnglishcharactersunderGBKencodingstandards
9Supercapacitymemory;expandableasneeded;
9DevelopedbasedontheReal‐TimeOperatingSystem(RTOS);highstability;convenientextension;
9Integratedmechanismandoverallmetalframedesigntoenhanceitsfallresistanceandimpact
resistance;
9Brandnewstructureintegratingfunctionssuchascodeacquisition,detection,andreleasingmechanical
lock,forasimpleandconvenientoperationandtheimprovementonthestability,reliability,and
productbility.
1.4Modelandconfiguration
ProductName:smartKey
Model:DNYS‐2C
Chapter2Installation
2.1InstallationSteps
Handheldstandaloneproduct,noneedsinon‐siteinstallation;availabletobeplaceddirectlyontheadapter
2.2Installationcautions
1.Whenitisbeingplacedontheadapter,pleaseensuretheadapterneedlesareproperlycontactedwithcharging
contacts.
2.Placement:whenthesmartkeyisnotinservice,pleaseplacethesmartkeyinafixedplace,ratherthanrandom
places.
3.Donotplacethesmartkeyinanyspeciallywetenvironmentinalongterm,toextendtheservicelifeofthe
smartkey.
3
4.Thesmartkeyisproductintegratingmachinery,optic,andelectrictechnologies,withacomplexinternal
structure,exceptasauthorizedbyitsmanufacturer,pleasedonotdisassembletoavoidanydamagetointernal
components.
5.Pleasekeepitsdatatransmissionportsclean,toavoidanydamagetodatatransmissionperformance.
6.Smartkeyisaprecisionpowerhandhelddevices;pleaseavoiddamageandabnormalityresultingfromstrong
shockorfalling.
Chapter3Operation
3.1DisplayPanel
1‐‐‐‐‐‐‐Releaserod:releasethemechanicalcodinglock,orotherlocks;
2‐‐‐‐‐‐‐Disk,determiningtherotatingdirectionofreleaserodinunlocking.
3‐‐‐‐‐‐‐Conductiveelectrode,poweringonlocksneedingexternalpowersupply.
4‐‐‐‐‐‐‐OLEDcolorscreen:displayingtheoperationinformationbycharactersandgraphicsinformation;
5‐‐‐‐‐‐‐Keys,includingtheReturnkey(theSwitchon/offkey),theUpkey,theDownkey,andtheEnterkey
6‐‐‐‐‐‐‐Speakerandphonichole;
7‐‐‐‐‐‐‐MiCmicrophoneforrecording.
8‐‐‐‐‐‐‐Infraredtubecommunicationinterface.
9‐‐‐‐‐‐‐USBdatalineinterface.
10‐‐‐‐‐‐Chargingelectrodecontactingwiththechargingmount.
4
11‐‐‐‐‐‐HighspeedinfraredIRDAtransmissiondeviceforexchangingdatawithmis‐operationpreventionhosts.
3.2Operations
3.2.1Basicoperations
¾Power‐on
(1)Ensurethatthesmartkeyisavailabletobepowered.Ifthebatteryrunslow,thesmartkeycan’tstart,please
operateinaccordancewiththesecondstep.Whenthepowerisenough,pleaseoperateinaccordancewiththe
thirdstep.
(2)Placethesmartkeyonthechargerandcheckifitisproperlyplacedandisstablyconnectedtothecharger.
(3)Presstheon/offkeyonthepanel,andthenreleaseit,thesmartkeyproduces“Beep”soundanddisplaysthe
dynamicLOGOontheinterface,andshowsthefollowingstandbyinterfacelater:
Thereinto:
z“ “isasymbolofbattery,indicatingthecurrentrunninglevelofthebattery,thefull‐greencolorindicates
thatthebatteryrunsinfulllevel;thefull‐blackcolorindicatesthatthebatteryrunsout.Whenthebatterysymbol
isempty,indicatesthebatteryrunsout,pleasechargethebatteryimmediately.““iconindicatessmartkey’s
currentcommunicationmode,theaboveiconmeansIRDAcommunicationmode.“ ”iconindicatesthecurrent
voicestate,andavailabilityinplayingvoice.Theabovefigureshowsenablementstateofthefunction,and“”
showsdisablementstate.Seespecificsettingmethodinthe“Settings”‐>“VoiceFunc”‐>“SetVoice”asdescribed
in3.2.8VoiceSettings.
¾Power‐off
Itisavailabletoclosethesmartkeyatanystateafterstarting.AusercanpressandholddowntheOn/Offkeyon
thepanelforabout2seconds,thesmartkeyproducesthesound“beep…beep…”,thentheusercanreleasethekey,
thekeycanswitchoffthepowersupplyautomatically.
¾PreparationbeforeOperation
Thesmartkeyisageneral‐purposesmartkey,whichcanbeappliedtoanystation,anditisrequiredtoenablethe
“Sync”functionbeforeoperation,thustotransmitthestation'sdeviceinformationtothesmartkey.Ifthedevice
informationisnotmodifiedinastation,thesmartkeycanbeusedforeveraslongasenabled“Sync”.
5
¾MenuOperation
Inthestandbyinterface,pressthe“Menu”keytoentermainmenu:ThenpresstheUPorDownkeystobrowsethe
wholemainmenu,asshownbelow:
Thereinto:
zThe“Receive”isthedefaultoptiononthemenu,indicatingtheoptionisselected.NowauserpressestheDown
keytoselectthenextoptiononthemenu,similarly,itisavailabletopresstheUpkeytoselectthepreviousoption.
zWhenselectinganoptiononthemenu,presstheEnterkeytoenterthefunctionmenuinterfaceorthe
submenuinterface;presstheCancelkeytothestandbyinterfaceortheoption'sparentmenu.
zWhenauseroperatesonasubmenu,itcandisplaythescrollbariconontherightsideofthescreen,toshow
thecurrentpositionoftheselectedsubmenu.
3.2.2Synchronization
Thesmartkeyfeaturesgoodinterchangeabilityandversatility,itcanbeapplicabletodifferentsubstationsor
powerplantsoncesuccessfullysynchronized beforethefirstoperation.
Itisavailabletoreceivesynchronousdatadirectlyinthestandbyinterface,orselect“Function”onthemainmenu,
andthenselectthe“Sync”optiontodirectlyenterthesynchronousinterface;thesmartkeycanreceivethe
synchronousdataatomically.
6
Thereinto:
zPresstheReturnkeytothepreviousmenu。
Whenthekeyisbeingchargedonthetransmissionadapter,thekeycanreceivesynchronousdataiftheusersets
hostsystemtothesynchronousstate,andthesmartkeyentersthesynchronousinterface.

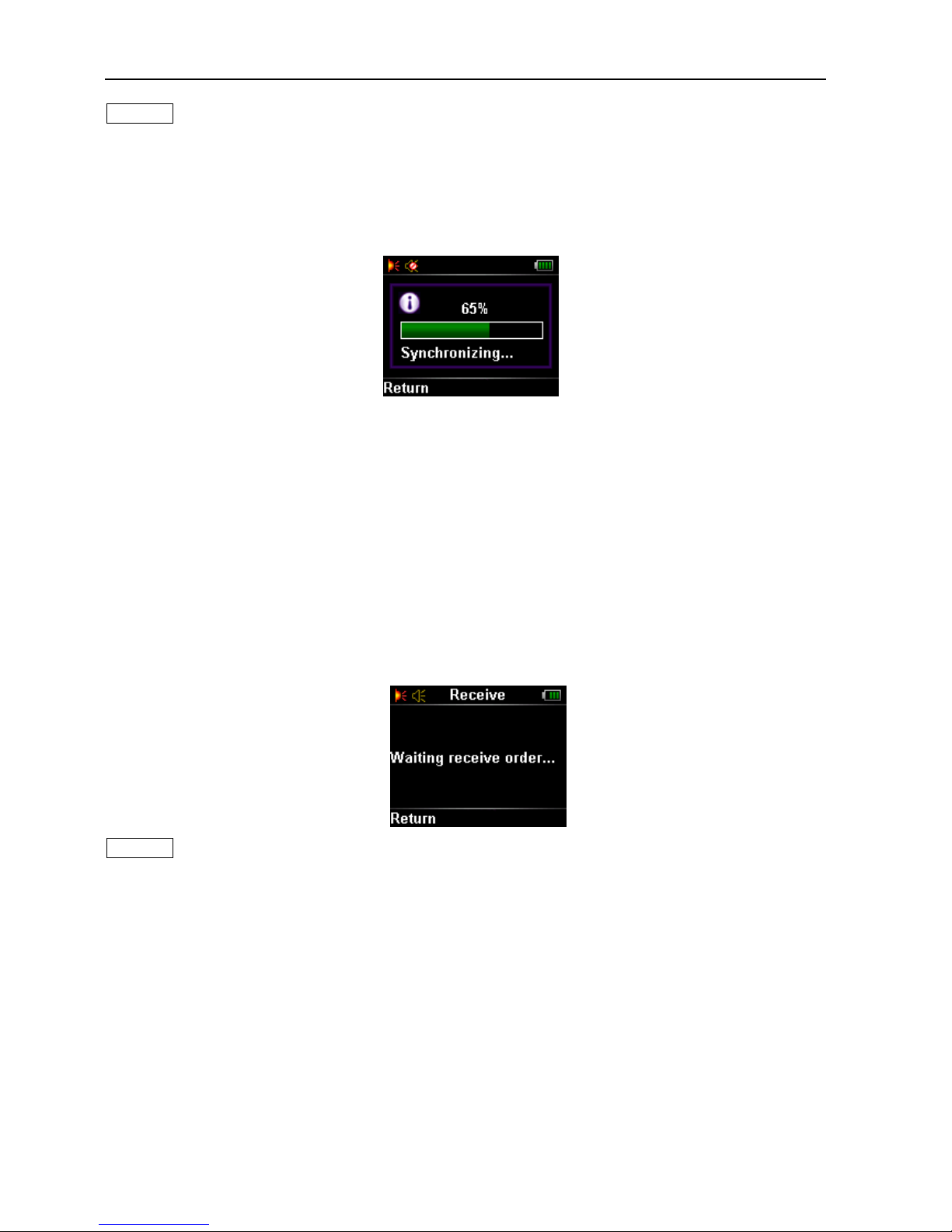

Whenthekeystartsreceivingsynchronousdata,itcandisplaythefollowinginterface,theprogressbarshowsthe
receivingprogressofsynchronousdata.
Whenthesynchronousdatahavebeenreceived,thesmartkeyiscapableofprocessingandsavingthereceived
data.
3.2.3ReceiveOperationOrders
AusercanpresstheUpwardorDownwardkeytoselecttheoption“Receive”onthemainmenu,andpressEnter;
itcanentertheorder‐receivinginterface.ThenSmartKeycanenterorder‐receivinginterfacedirectly.
Thereinto:
zIfthekeyhasn’tsynchronized,itcannotentertheorder‐receivinginterface,thescreendisplaystheinformation
“Withoutsync,cannotreceiveorder”,andausermustconductsynchronizationbeforereceivingorders.
zPresstheOn/Offkeytothemainmenu.
Whenthekeyisbeingchargedonthetransmissionadapter,thekeycanreceiveordersiftheusersetshostsystem
totheorder‐sendingstate,andthesmartkeyenterstheorder‐receivinginterface.

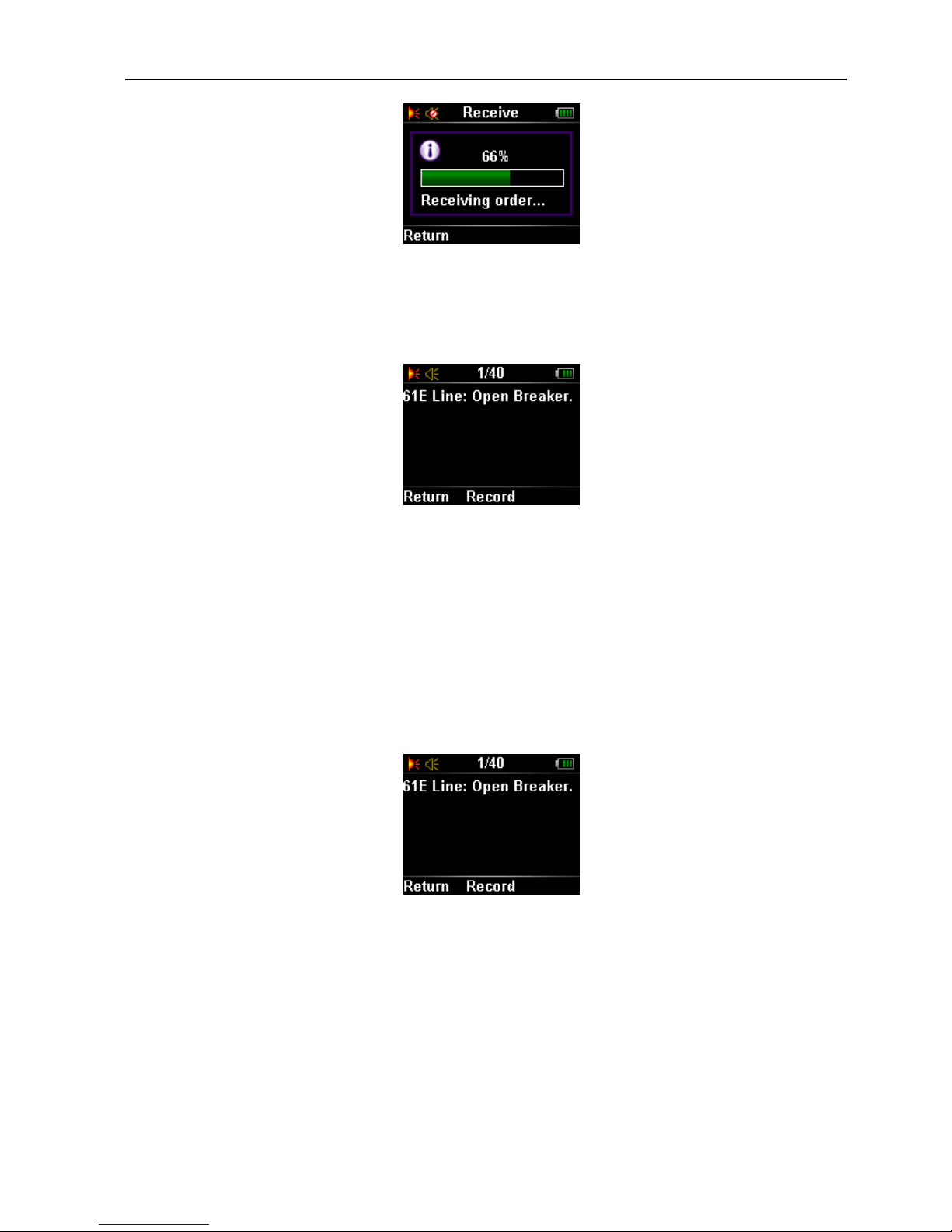

Whenthekeystartsreceivingorderdata,itcandisplaythefollowinginterface,theprogressbarshowsthe
receivingprogressoforderdata.
7
Whenthesmartkeyhasprocessedandsavedthereceiveddata,thekeycanswitchtothefollowingoperating
interfaceautomatically.
Ausercanoperateonsitenowinaccordancewiththedisplayedcontent.
3.2.4Unlock
zUnlocktheDevicesLockedbyMechanicalCodingLocksSuchasManualDisconnector,Grounding‐switch,and
Temporar yGroundingConnectorLockingBox
Thesmartkeycandisplaythespecificdeviceinformationunderoperatingwhileunlockingthemechanicalcoding
lockssuchasmanualdisconnector,grounding‐switch,andtemporarygroundingconnector,webdoor,etc.For
example,ifauserwantsto“61Eline:OpenBreaker”,thekeycandisplaythefollowinginformationatthismoment:
Findthecorrespondingdevicematchedwiththedisplayedbythekeyonsite,andinsertthesmartkeyintothe

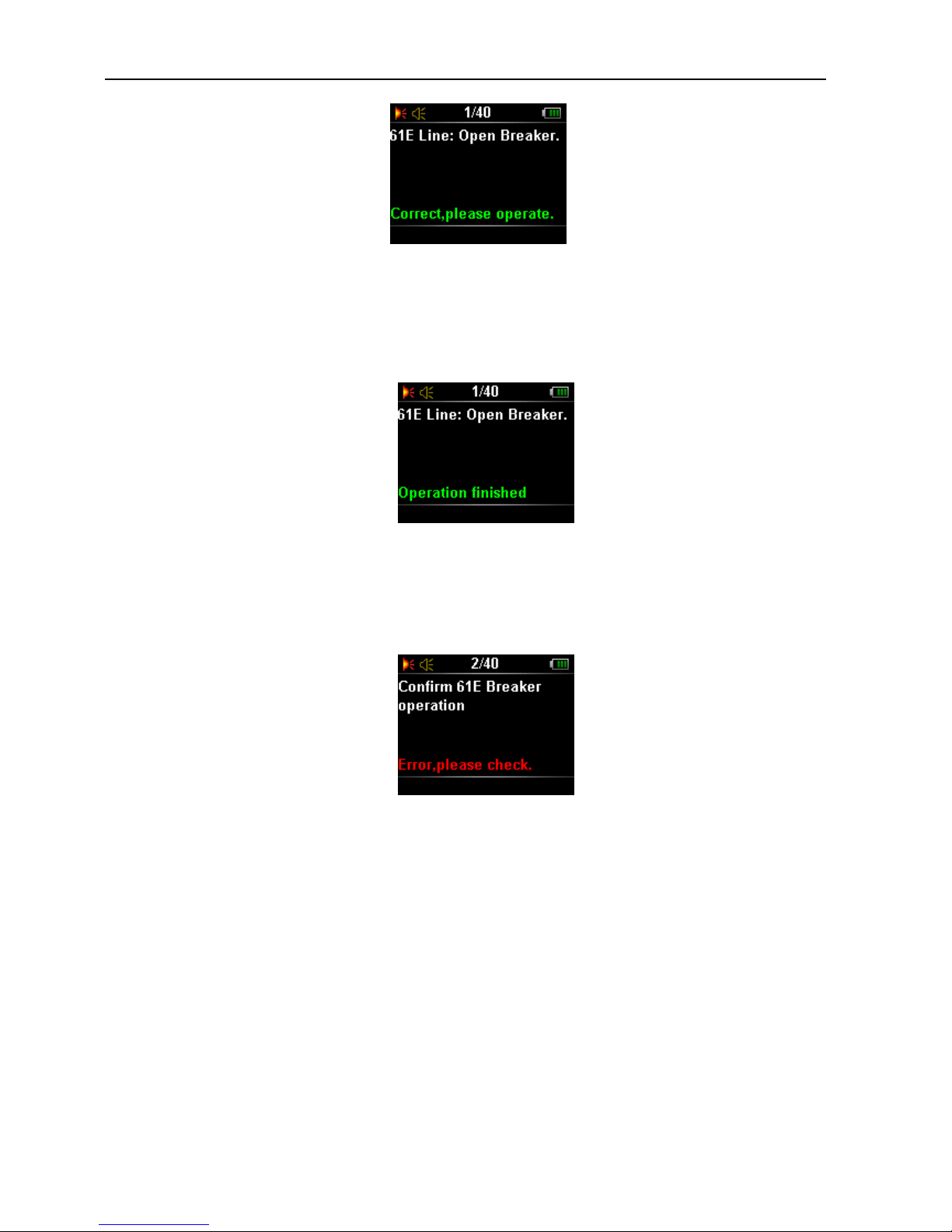

keyhole,ifthecodeiscorrect,thesmartkeycanring“beep”ormakeavoiceprompt“Correct,PleaseOperate.”
(Availabletosetinthesystem)anddisplayasfollows:
8
Rotatethesmartkeytoopenthemechanicalcodinglockatthismomentandthenswitch.
Whenthecorrectoperationiscompleted,thesmartkeycanring“beep”andprompt“Operationfinished”
Thentheoperatorcancontinuethenextoperation.
Note:forexmaple,in“Confirm61EBreakeroperation”,iftheinsertedlock’codeisnotconsistentwiththe
displayedinthekey,thekeycanring“beep”threetimesormakeavoiceprompt“Error,PleaseCheck.”(Available
tosetinthesystem)anddisplaybelow,theaboveisthesametoothertypesoflocks.
Atthismoment,theoperatorcan’tunlockbecausetheinterlockinggearislocked.Pleasepulloutthekeyandfind
thecorrectcodebeforecontinuing.
zUnlocktheDevicesInterlockedbyElectricCodingLocksSuchasCircuitBreaker,ElectricDisconnector,etc.
Whenthesmartkeydisplaysthedeviceinformationofcircuitbreakerorelectricdisconnector,suchas“74Eline:
OpenBreaker”,pleaseinsertthesmartkeyintotheelectriccodinglockofcorrespondingdevice,itcanring“beep
“orpromptbyvoice“Correct,PleaseOperate.”(Availabletosetinthesystem)anddisplay“CorrectCode,Please
Operate!”
9

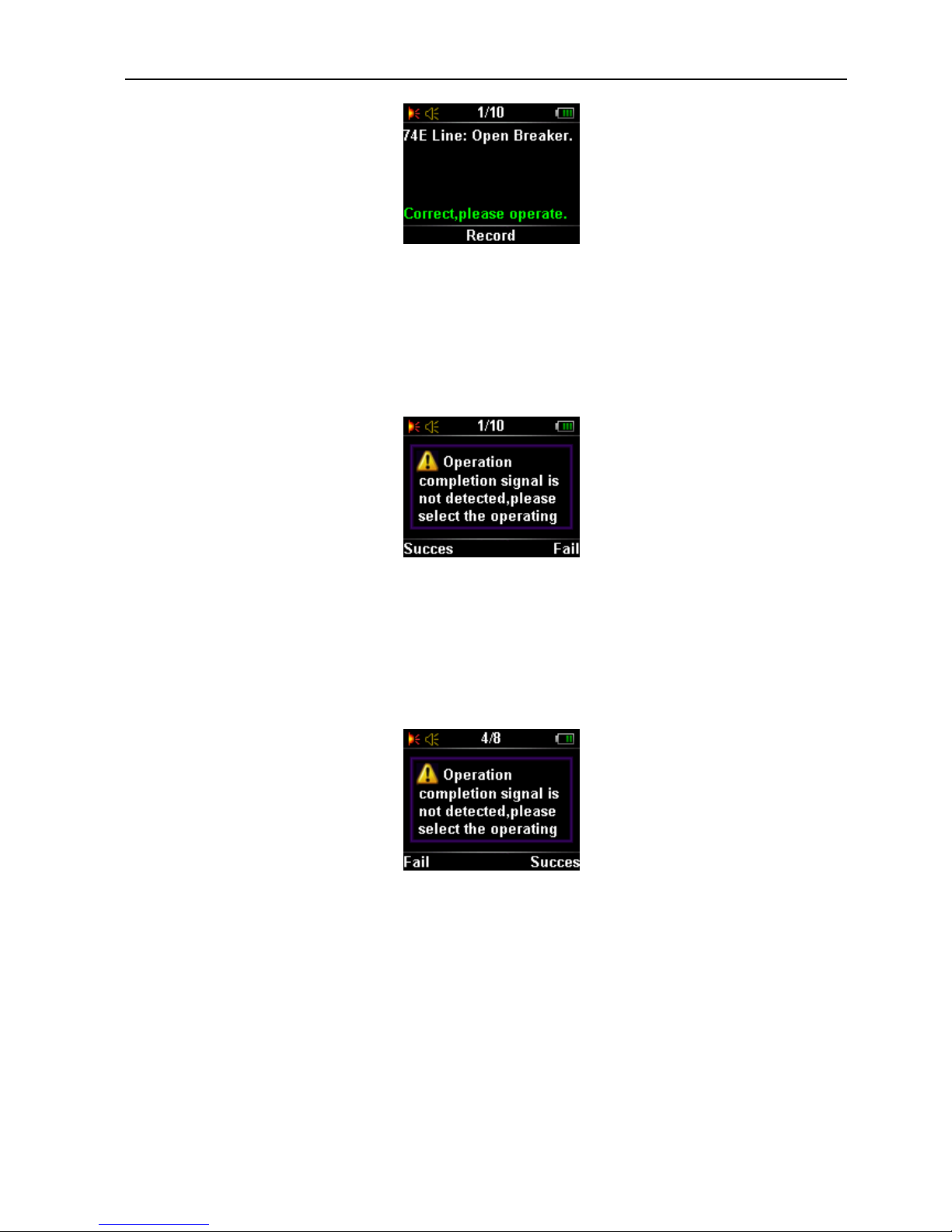

Switchthebreakeratthismoment,thekeyrings“Beep”anddisplays“theoperationiscompleted,please
continue!”indicatingthatthekeyhasdetectedthecompletionsignal.Itisavailabletounplugthesmartkeyand
continue.
Ifthekeyisunpluggedwhenithasnotdetectedthecompleteoperationsignalwithin2secondsunderthe
operationofelectriccodinglock,itcanshowasbelow:
Pressandholddownthe“success”or“failure”key(for2seconds)toselecttheoperatingresults,“success”
indicatesthatthisstepiscomplete,thekeycanenterthenextstep;“failure”indicatesthatthisstepisnot
completedandwillberestarted.
Ifthekeyisunpluggedwhenithasnotdetectedthecompleteoperationsignalover2secondsundertheoperation
ofelectriccodinglock,itcanshowasbelow:
Pressandholddownthe“success”or“failure”key(for2seconds)toselecttheoperatingresults,“success”
indicatesthatthisstepiscomplete,thekeycanenterthenextstep;“failure”indicatesthatthisstepisnot
completedandwillberestarted.
zUnlocktheDevicesInterlockedbyElectricCodingLockandMechanicalCodingLockSuchasElectric
Disconnector.
Whenthesmartkeydisplaystheinformationofthedevicestobeoperated,pleaseinsertthesmartkeyintothe
electriccodinglockormechanicalcodinglockofcorrespondingdevice,itcanring“beep…”orpromptbyvoice
“Correct,PleaseOperate!”(Availabletosetinthesystem)anddisplay“CorrectCode,PleaseOperate.”
10
Ausercanoperateelectriccodinglockormechanicallockasneeded,thentheuserchosetoinsertthemechanical
locksandRotatethesmartkeytounlock,thesmartkeyrings“beep”anddisplaysthefollowinginformation:
Itindicatesthatthesmartkeyhascompleteditsworking;theusercanremovethesmartkeyandcontinuethenext
operation.
Whileinsertingthecorrespondingelectriccodinglock,itisavailabletooperateinaccordancewiththesteps
describedin“3.4.2UnlocktheDevicesInterlockedbyElectricCodingLocksSuchasCircuitBreaker,Electric
Disconnector,etc.”
zStateDetection
Thesmartkeyshowsthestateofthedevicetobedetected,pleasefindthecorrespondingconnectionor
disconnectionstatedetectors,electricalswitchingstatedetectorsinaccordancewiththedevicenumbershownon
thesmartkey,andinsertthesmartkey;thesmartkeycancontinueitsworkingonlyafterdetectingthecorrect
state.TakeConfirm81EBreakerinclosepositionasanexample.
Insertthekeyintocorrespondinglocks,ifcodevalueiswrong,thesmartkeywillbeepforcontinuousthreetimes,
orevenpromptavoice“Error,pleasecheck.”Ifthecodevalueiscorrect,thesmartkeywillfurtherdeterminethe
statusoflocksandpromptdetectingstatus:
11
zElectriferousDetection(electroscope,high‐voltagelivelockingdevice)
Insertthesmartkeyintothecorrespondingelectroscopeforfurtherelectriferousdetection,whenthesmartkey
displayselectriferousdetectionandthenextoption.iftheelectriferousdetectioniscorrect,andtheoperationis
successful,itisavailabletoenterthenextstep.
Taking“Verifiedthat73EBreakerhasnovoltage”asanexample:
Whenthesmartkeydisplaysthefollowinginformationinthedetectingprocess:
12
Andproducesrapidalarmsound“Beep…Beep…Beep…”indicatingthecircuitsareelectriferous,andcan’tenterthe
nextoperation.
Whenthesmartkeydisplaysthefollowinginformation,andrings“Beep,”itindicatesthatthecircuitsaren’t
electriferous,removethesmartkeyfromtheelectroscopeandenterthenextoperation.
zLockdisconnectorsandrelatedequipmentswithfixedprogramlock
Lockingdisconnectorsandrelatedequipmentswithfixedprogramismainlydividedintothreecasesaccordingto
fixedprogramlockspecifictypes.Firstly,thefixedprogramlockscanbedividedintothreetypes:thefirsttypeis
fixedprogramlock(one‐waylock),unlockandthenlock;thesecondtypeisone‐wayfixedprogramlock(one‐way
lock),unlockorlock;thethirdtypeisfixedprogramlock(two‐waylock).
Asforthefirsttype,fixedprogramlock(one‐waylock),taking“62ELine:OpenBreaker”asanexample.Insertthe
keyintothefixedprogramlock,untilthesmartkeybeepsandprompts“Correct,pleaseoperate”(availablein
systemsettings);anditdisplaysasfollows:
Rotatethesmartkeytounlock;thesmartkeypromptsthefollowinginterfaceafterunlockingissuccessful;thenit
isavailabletooperaterelateddevices:
13
Afteroperationiscompleted,pleaselockaspromptedbythesmartkey;insertthesmartkey.Whenitpromptsthe
lockcodeiscorrect,rotatethesmartkeytolock:
Theaboveisoperationstepsforthefirsttypeoffixedprogramlock.
Secondly,asforone‐wayfixedprogramlock(one‐waylock),taking“62ELine:OpenBreaker”asanexample.Insert
thekeyintothefixedprogramlock,untilthesmartkeybeepsandprompts“Correct,pleaseoperate”(availablein
systemsettings);anditdisplaysasfollows:
Rotatethesmartkeytounlock;thesmartkeypromptsthefollowinginterfaceafterunlockingissuccessful;thenit
isavailabletooperaterelateddevices:
Theaboveisoperationstepsforthesecondtypeoffixedprogramlock.
Table of contents
