Universal EXPLORE HOME 941320 User manual

INSTRUCTION SHEET
941320/94132FR/941340/94134FR
941310/94131FR Upholstered Bed
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
parts that may have come loose inside the carton during shipment.
Caution: (1) These parts are cumbersome and heavy. This product can best be assembled with the
assistance of one or more persons in order to prevent personal injury and to insure parts are not damaged
during the assembly process. If dirty, clean finished parts with mild dishwashing liquid and water solution
applied on damp cloth. Cloth should not be excessively wet. Polish finish with soft cloth and an industry
recognized furniture polish.
(2) To prevent damage to your floor or carpet, please check the bottom of each piece of furniture for
stain residue and rough surfaces and also check for staples or nails left after removing the packaging material.
The manufacturer will not be held responsible if preventative steps are not taken prior to installation.
(3) Unpack and dispose of all packing material but be careful not to throw away any assembly parts or
hardware. Read the instruction sheet and parts list carefully. Remove all staples and screws used for
packaging carefully using pliers and or screwdrivers to prevent injury and scratching or damaging flooring.
(4) During normal use everyday, screws, bolts, nuts and wooden plugs may loosen up. They should be
periodically inspected and re-tightened to prevent damage to the furniture and (or) personal property or cause
injury. Always check to be sure all hardware on this list and the above mentioned components is attached to
the furniture properly and kept tightened at all times.

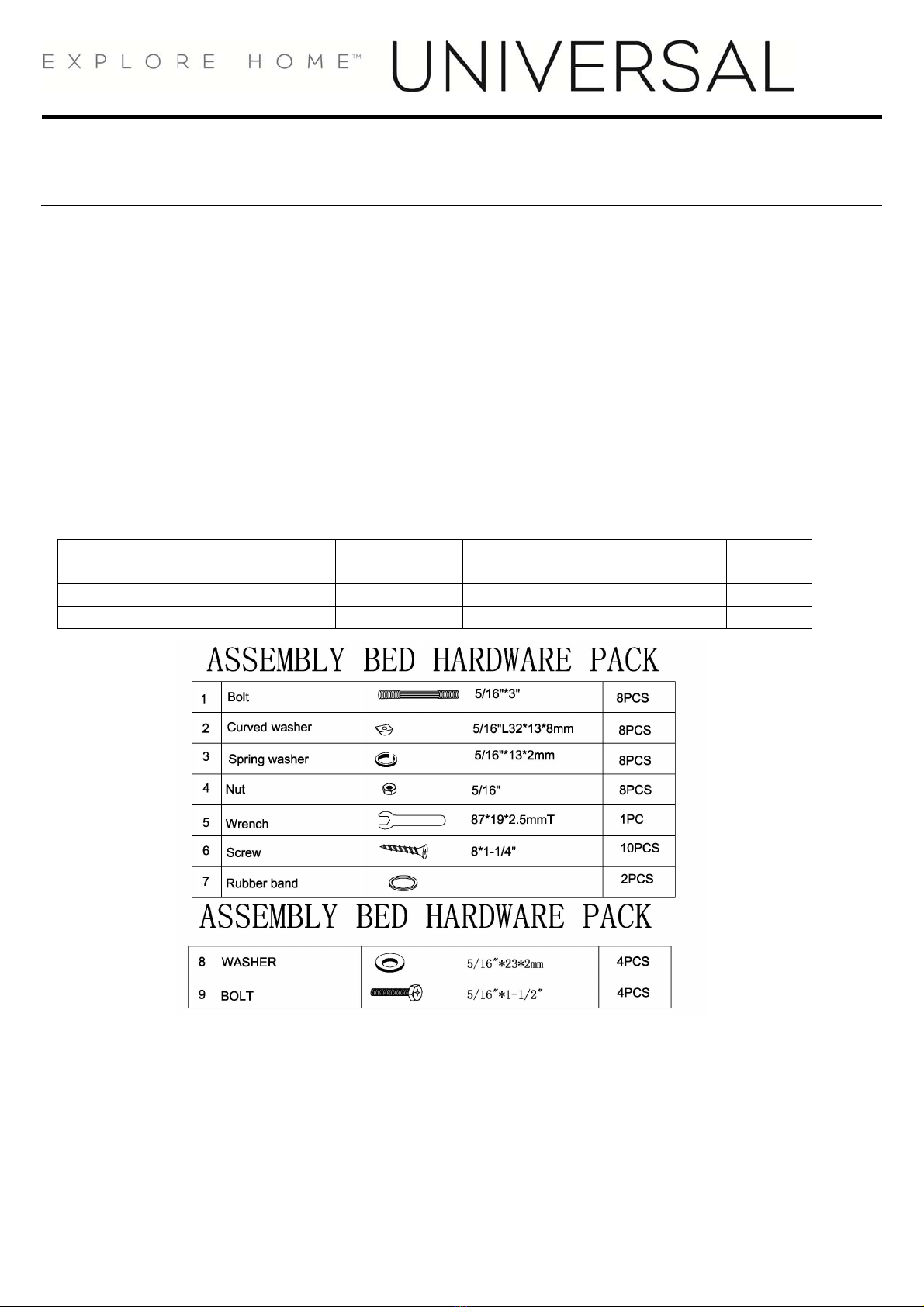

PARTS LIST:
# Description Qty. # Description Qty.
A Headboard 1 pc B Side Rail 2 pcs
C Footboard 1pc D Slat Panel 3pcs
E Center Support legs 6pcs F Footboard Legs 2pcs
Assembly Procedure: (Please follow the sketches below.)
Step 1: Unpack, inspect, and read assembly instruction carefully. Lay out the parts and hardware.
Make sure the quantity of each is correct.
Step 2: Install the footboard legs (F) to the footboard (C) using flat washer (7) and bolt (8), Tighten
them by wrench (9).
Step 3: Assemble side rails (B) with headboard (A) and footboard (C) using bolts (1), curved washer
(2), spring washers (3) and nut (4). Tighten them by wrench (5).
Step 4: Next, drive 6pcs screw(6)from footboard legs (F) holes to siderails(B) by screwdriver(not
provided).
Step 5: put slat panels (D) onto the inside notches of side rails (B), tighten them with the rest 4 pcs
screws (6) by screwdriver (not provided). Screw center supports legs (E) into slat panels (D).
Assembly is now complete.

\
INSTRUCTION SHEET
941320/94132FR/941340/94134FR
941310/94131FR Upholstered Bed
\
C
C
A
B
B

\
INSTRUCTION SHEET
941320/94132FR/941340/94134FR
941310/94131FR Upholstered Bed
A
B
B
C
6
