UNV DC4304 User manual

Video Decoders
Quick Guide
Manual Version: V1.00

Thank you for purchasing our product. If there are any questions, or
requests, please do not hesitate to contact the dealer.
Copyright
Copyright 2014-2015 Zhejiang Uniview Technologies Co., Ltd. All rights
reserved. No part of this manual may be copied, reproduced, translated,
or distributed in any form or by any means without prior consent in
writing from our company.
Trademark Acknowledgement
and other Uniview’s trademarks and logos are the property of
Zhejiang Uniview Technologies Co., Ltd. Other trademarks, company
names and product names contained in this manual are the property of
their respective owners.
Disclaimer
CAUTION!
The default password is used for your first login. To ensure account
security, please change the password after your first login. You are
recommended to set a strong password (no less than eight characters).
To the maximum extent permitted by applicable law, the product
described, with its hardware, software, firmware and documents, is
provided on an "as is" basis.
Best effort has been made to verify the integrity and correctness of
the contents in this manual, but no statement, information, or
recommendation in this manual shall constitute formal guarantee
of any kind, expressed or implied. We shall not be held responsible
for any technical or typographical errors in this manual. The

contents of this manual are subject to change without prior notice.
Update will be added to the new version of this manual.
Use of this manual and the product and the subsequent result shall
be entirely on the user's own responsibility. In no event shall we be
reliable to you for any special, consequential, incidental, or indirect
damages, including, among others, damages for loss of business
profits, business interruption, or loss of data or documentation, or
product malfunction or information leakage caused by cyber attack,
hacking or virus in connection with the use of this product.
Video and audio surveillance can be regulated by laws that vary
from country to country. Check the law in your local region before
using this product for surveillance purposes. We shall not be held
responsible for any consequences resulting from illegal operations
of the device.
 The illustrations in this manual are for reference only and may vary
depending on the version or model. The screenshots in this manual
may have been customized to meet specific requirements and user
preferences. As a result, some of the examples and functions
featured may differ from those displayed on your monitor.
 This manual is a guide for multiple product models and so it is not
intended for any specific product.
 Due to uncertainties such as physical environment, discrepancy
may exist between the actual values and reference values provided
in this manual. The ultimate right to interpretation resides in our
company.
Environmental Protection
This product has been designed to comply with the requirements on
environmental protection. For the proper storage, use and disposal of
this product, national laws and regulations must be observed.

Safety and Compliance Information
Safety Symbols
The symbols in the following table may be found on installation-related
equipment. Be aware of the situations indicated and take necessary
safety precautions during equipment installation and maintenance.
Symbol
Description
Generic alarm symbol: To suggest a general safety
concern.
ESD protection symbol: To suggest
electrostatic-sensitive equipment.
Electric shock symbol: To suggest a danger of high
voltage.
The symbols in the following table may be found in this manual.
Carefully follow the instructions indicated by the symbols to avoid
hazardous situations and use the product properly.
Symbol
Description
WARNING!
Indicates a hazardous situation which, if not
avoided, could result in bodily injury or death.
CAUTION!
Indicates a situation which, if not avoided, could
result in damage, data loss or malfunction to
product.
NOTE!
Indicates useful or supplemental information
about the use of product.
Safety Information
Installation and removal of the unit and its accessories must be carried
out by qualified personnel. Please read all of the safety instructions
below before installation and operation.

This device is a class A product and may cause radio interference.
Take measures if necessary.
While shipping, the device should be packed in its original packing.
Verify that installation is correct. Incorrect cable connection may
cause personal injury or device damage.
The installation must be made by qualified personnel and should
conform to all the local codes.
If the product does not work properly, please contact your dealer.
Never attempt to disassemble the device yourself. We shall not
assume any responsibility for problems caused by unauthorized
repair or maintenance.
Ensure a proper operating environment, including temperature,
humidity, ventilation and power supply. Make sure the device is
properly grounded and the lightning protection meets
requirements. Keep the device from moisture, dust, strong
electromagnetic radiation and vibration.
Power down the device before connecting and disconnecting
accessories and peripherals.
Protect the power cable from being stepped on or pressed,
particularly at the plug, receptacle, and the part leading out of the
device.
Strictly follow the procedure to shut down the device. Sudden
power failures can cause disk damage and functional abnormalities.
In an environment where power supply is frequently interrupted,
use an Uninterrupted Power Supply (UPS).
Improper use or replacement of the battery may result in hazard of
explosion. Use the manufacturer recommended battery.
Take necessary measures to ensure data security and protect the
device from network attack and hacking (when connected to
Internet). Possible risks and consequences are at user's sole
discretion.

WARNING!
Never look at the transmit laser while the power is on. Never look
directly at the fiber ports and the fiber cable ends when they are
powered on.
Use of controls or adjustments to the performance or procedures
other than those specified herein may result in hazardous laser
emissions.
Regulatory Compliance
FCC Part 15
This equipment has been tested and found to comply with the limits for
digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his
own expense.
This product complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.

LVD/EMC Directive
This product complies with the European Low Voltage Directive
2006/95/EC and EMC Directive 2004/108/EC.
WEEE Directive–2002/96/EC
The product this manual refers to is covered by the Waste Electrical &
Electronic Equipment (WEEE) Directive and must be disposed of in a
responsible manner.

i
Contents
1 Overview..............................................................................................1
Appearance ...................................................................................................1
LEDs...............................................................................................................2
Main Ports.....................................................................................................3
2 Installing the Device .............................................................................5
Preparation ...................................................................................................5
Checking the Device Package ...............................................................5
Checking the Installation Environment.................................................5
Cable Requirements .............................................................................6
Installation Flow Chart ..................................................................................8
Installing the Device in a Rack.....................................................................10
Preparing for the Installation..............................................................10
Installing the Mounting Brackets........................................................10
Installing the Device in the Rack.........................................................11
Verifying the Installation ....................................................................12
Installing the Device on a Workbench ........................................................13
Preparation for the Installation ..........................................................13
Installation Procedure ........................................................................13
Connecting Cables.......................................................................................13
Cabling Requirements ........................................................................13
Example for Connecting Cables ..........................................................14
Connecting the Ground Wire..............................................................15
Connecting the Audio Cables and Alarm Cables.................................17
Connecting video cables .....................................................................19
Connecting Network Cables ...............................................................19
Connecting the AC Power Cord ..........................................................19

ii
Connecting RS-232 Serial Cables ........................................................21
Connecting a Third-Party Device ........................................................21
Verifying the Installation.............................................................................21
Starting Up the Device ................................................................................21
3 Logging In to and Out of the Device .....................................................22
4 Technical Specifications ......................................................................22

1
1 Overview
NOTE!
This manual describes the device hardware information and installation
procedure, and guides you through logging into the Web interface.
This series video decoders (referred to as device in this manual) are new
generation HD network video decoder terminals. The device is designed
for remote video surveillance and can be widely applied in various
real-time surveillance applications for monitoring audios and videos
remotely in real time.
For information about the technical specifications of the device, see
Technical Specifications.
Appearance
Figure 1-1 Front view
1: RUN LED
2: NET1
LED
3: DEC
LED
4: Alarm
LED
5: NET2 LED
123
45

2
Figure 1-2 Rear view
1: VGA IN port
2: DVI-I OUT port
3: RS-485 port (RJ-45)
4: ACT LED
5: LINK LED
6: AUDIO OUT port
7: ALM IN port
8: DVI IN port
9: RS-232 port (RJ-45)
10: Two Ethernet
copper ports
11: LINE port
12: ALM OUT port
13: Grounding screw
14: AC power input
15: Power switch
LEDs
Table 1-1 LED description
LED
Status
Description
Running LED
Flashing green
The device is starting up.
On (Green)
The device is operating.
Off
The device is shut down.
Alarm LED
On (Red)
At least one alarm, for
example, temperature alarm,
is present.
Off
No alarm is present.
LINK LED for
Ethernet copper
port 1 (NET1)
On (Green)
A link to the Ethernet copper
port 1 is present.
Off
No link to the Ethernet
copper port 1 is present.
LINK LED for
Ethernet copper
port 2 (NET2)
On (Green)
A link to the Ethernet copper
port 2 is present.
Off
No link to the Ethernet
copper port 2 is present.
2 7
811
1 5 6
9
3 4
13
10 12 14 15

3
LED
Status
Description
Decoding LED (DEC)
Flashing green
The device is displaying
video.
Off
The device stops displaying
video.
Active LED (ACT)
Flashing yellow
Data is being transmitted or
received.
Off
No data is being transmitted
or received.
Link LED
On (Green)
A link is present.
Off
No link is present.
Main Ports
Table 1-2 Port description
Port
Quantity
Description
VGA IN
1
VGA video input port, used for receiving
analog video signals from the VGA output
port of a video source.
Note:Make sure the connected video
source supports the following resolutions:
1024*768/60HZ, 1280*720/60HZ,
1280*1024/60HZ, 1920*1080/60HZ,
1920*1080/50HZ.
DVI IN
1
DVI-D video input port, used for receiving
digital video signals from DVI-D output
port and HDMI output port of the video
source.
Note:Make sure the connected video
source supports the following resolutions:
1024*768/60HZ, 1280*720/60HZ,
1280*1024/60HZ, 1920*1080/60HZ,
1920*1080/50HZ.

4
Port
Quantity
Description
DVI-I OUT
4 or 8,
depending
on model
DVI-I video output port, used for
outputting video signals to a display
output device with HDMI port, DVI-D port,
VGA port (5-wire), or YPbPr port.
Note:Make sure the connected display
output device supports the following
resolutions: 1024*768/60HZ,
1280*720/60HZ, 1280*1024/60HZ,
1360*768/60HZ, 1600*1200/60HZ,
1920*1080/60HZ, 1920*1080/50HZ.
AUDIO OUT
4 or 8,
depending
on model
Used to output audio signals.
Phoenix connector. For more information,
see Table 2-3.
Electrical level: 2.0V to 2.4V (P-P);
Impedance: 5 Kohm
LINE
1 input
1 output
Used to input and output audio signals.
Phoenix connector. For more information,
see Table 2-3.
LINE I: 2V (P-P), 10 Kohm; LINE O: 2V (P-P),
600 ohm
ALM IN
8
Used to input Boolean alarm signals.
Phoenix connector. For more information,
see Table 2-3.
ALM OUT
6
Used to output alarm signals through
relay.
Phoenix connector. For more information,
see Table 2-3.
RS485
1
Serial port, used to interoperate with the
connected device, for example, to
transmit transparent channel data.
RJ-45 connector, four wires, supporting
full duplex and half duplex.
RS232
1
Serial port, used to debug and maintain
the device.
RJ-45 connector.

5
Port
Quantity
Description
Ethernet
copper port
2
Used to connect to Ethernet to
communicate with the devices on the
network, to receive IP camera streams,
and to be configured by the client through
Web interface.
10M/100M/1000M/auto-sensing, half
duplex/full duplex/auto-sensing, RJ-45
connector.
2 Installing the Device
Preparation
Checking the Device Package
Before you install the device, verify the device model and check the
components and their quantity against the packing list to make sure all
items listed are included in the package.
WARNING!
Do not remove the dismantlement-preventive seal from the device
chassis cover without permission. To open the chassis, contact your
dealer. Otherwise, we shall not be held liable for any consequence
caused thereby.
Checking the Installation Environment
The device can be installed indoors only, and must meet the following
requirements:
Use correct lightning protection devices for the device power
source, audio/video signals, and RS-485 ports.

6
Ground the device correctly through the grounding screw. For
more information, see the Encoder and Decoder Cable Connection
Guide.
Cable Requirements
NOTE!
For information about how to select the common cables, contact your
dealer.
VGA cables
Use UL-certified VGA cables with shielding rings and gold-plated
connectors.
Use cables with pure copper or oxygen-free copper shielded with
tinplated layer. The wire gage of the core conductor should be in
the range of 24 AWG to 28 AWG. A smaller gage means a thicker
wire diameter and a better transmission effect.
The transmission distance of an ordinary cable is 15 meters (49.21
ft), and that of a better project-level cable can be 50 meters
(164.04 ft).
HDMI cables
Use HDMI Association-certified HDMI cables with shielding rings
and gold-plated connectors.
Use cables with pure copper with 96 copper braiding or more. The
wire gage of the core conductor should be in the range of 24 AWG
to 28 AWG.
If you use an HDMI cable longer than 10 meters (32.81 ft) to
transmit 1080P signals, you are recommended to use 24 AWG. If
you want to transmit signals for 20 meters (65.62 ft) or longer, you

7
are recommended to use an HDMI signal amplifier or HDMI
extension cord.
DVI cables
A DVI connector can transmit multiple types of video signals, and
different cables are used for different signals. If the DVI connector is not
connected to an adapter, the requirements for DVI cables are similar
with those for HDMI cables.
Audio cables
Use 4-wire shielded cables (RVVP) or unshielded digital communication
cables (UTP). The sectional area of the cable conductor should be large,
for example, 0.5 mm2. You are recommended to use dedicated shielded
audio cables, and the cable length is 100 meters (328.08 ft). Commonly
used audio cables include RCA audio cables and ordinary coaxial cables.
Alarm cables
Twisted pair cables are recommended. The wire gage of the insulated
core conductor should be in the range of 22 AWG to 28 AWG (24 and 26
AWG are recommended). The maximum DC impedance must not be
more than 100 ohm.
The following table shows the maximum length of alarm cables for wire
gages, taking 100 ohm as the benchmark.
Table 2-1 Maximum alarm cable length for different wire gages
Wire gage (AWG)
Maximum cable length
22
1453 m (4767.06 ft)
24
914 m (2998.69 ft)
26
570 m (1870.08 ft)
28
360 (1181.10 ft)

8
Network cables
Use twisted-pair cables. Currently, twisted pair cables include
unshielded twisted pair (UTP) and shielded twisted pair (STP). STP cables
are shielded with aluminum foil for radiation reduction purpose. STP
cables are more expensive than UTP cables, and they are harder to
install.
Ground wire
The length of the ground wire should be no more than 30 meters (98.43
ft), and its impedance must be less than 5 ohm. For more information,
see Standard YD5098.
Installation Flow Chart
Make sure the device is disconnected from the power source when you
install the device.

9
Figure 2-1 Installation flow chart
Check before installation
Ensure installation position
meets requirements
Install device in indoor rack
or indoor workbench
Connect cables
Verify that installation is ok
Finish
Begin

10
Installing the Device in a Rack
NOTE!
You can install your device in a standard 19-inch rack. The rack
should meet the requirement on bearing the weight of the device
and its accessories. The following section uses a standard 19-inch
rack as an example.
Before the installation, make sure the rack is stable and correctly
grounded, and make sure there are no obstacles that might hamper
the installation inside or near the rack.
You can front-mount or rear-mount your device in a standard 19-inch
rack with mounting brackets.
Installing the device to a rack does not require sliding rails or a tray. The
mounting brackets can bear the weight of the device.
The following describes how to front-mount the device. The
rear-mounting method is similar, and thus not provided in this manual.
Preparing for the Installation
Examine the grounding and stability of the rack, determine the
device installation position in the rack, and make sure there are no
obstacles that might hamper the installation inside or near the
rack.
Move your device to a place near the rack.
Installing the Mounting Brackets
Checking before the installation
Mounting brackets are placed in the accessory package with screws.
Each device is shipped with two identical mounting brackets.

11
Installation procedure
1. As shown in Figure 2-2, put the screw-hole side of the bracket
against the chassis tightly, align the screw holes on the bracket
with those on the chassis, and then fix the bracket to the chassis
tightly with two M4*8 screws.
2. Use the same method to install the other mounting bracket.

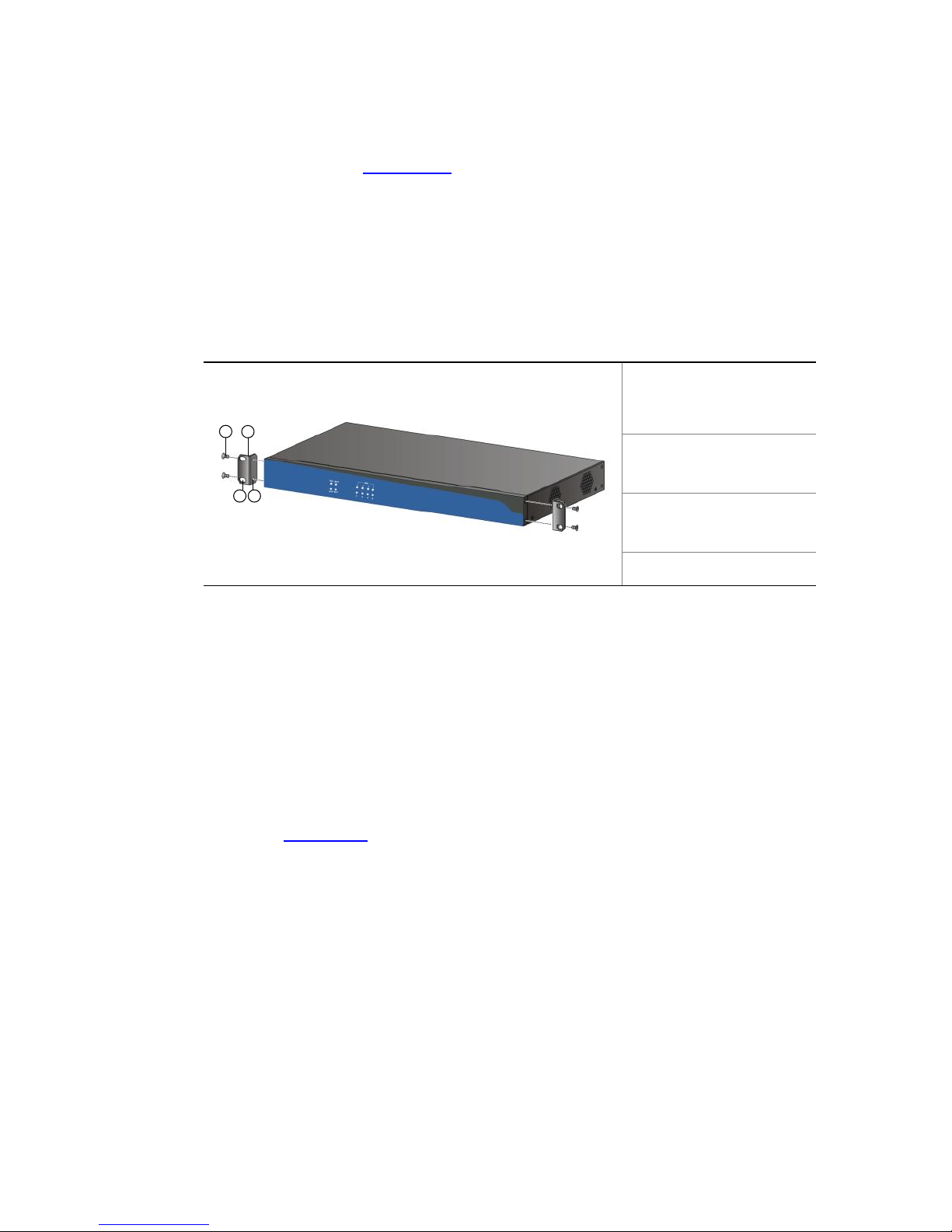

Figure 2-2 Installing the mounting brackets
1: Screws (four)
2: Mounting bracket
3: Waist-shaped hole
4: Screw hole
Installing the Device in the Rack
Place your device horizontally to a proper position in the rack, and align
the mounting brackets along the front posts of the rack. Put the screws
through the waist-shaped holes to contact the floating nuts on the front
posts, and fix the mounting brackets to the front posts of the rack, as
shown in Figure 2-3.
12
43
