Product Profile
This section introduces the main features of the UPAIR 2 4k/3D Drone, the method for
assembling the Aircraft, and the lists of the components of the Aircraft and the Remote Control.
Introduction
The UPAIR 2 4K/3D Drone consists of the Aircraft, a Remote Control, a Gimbal Camera, a
Light Stream, and a matching UPAIR APP. The flight control system is integrated within the
aircraft's fuselage, and the visual positioning module / light stream and the removable gimbal are

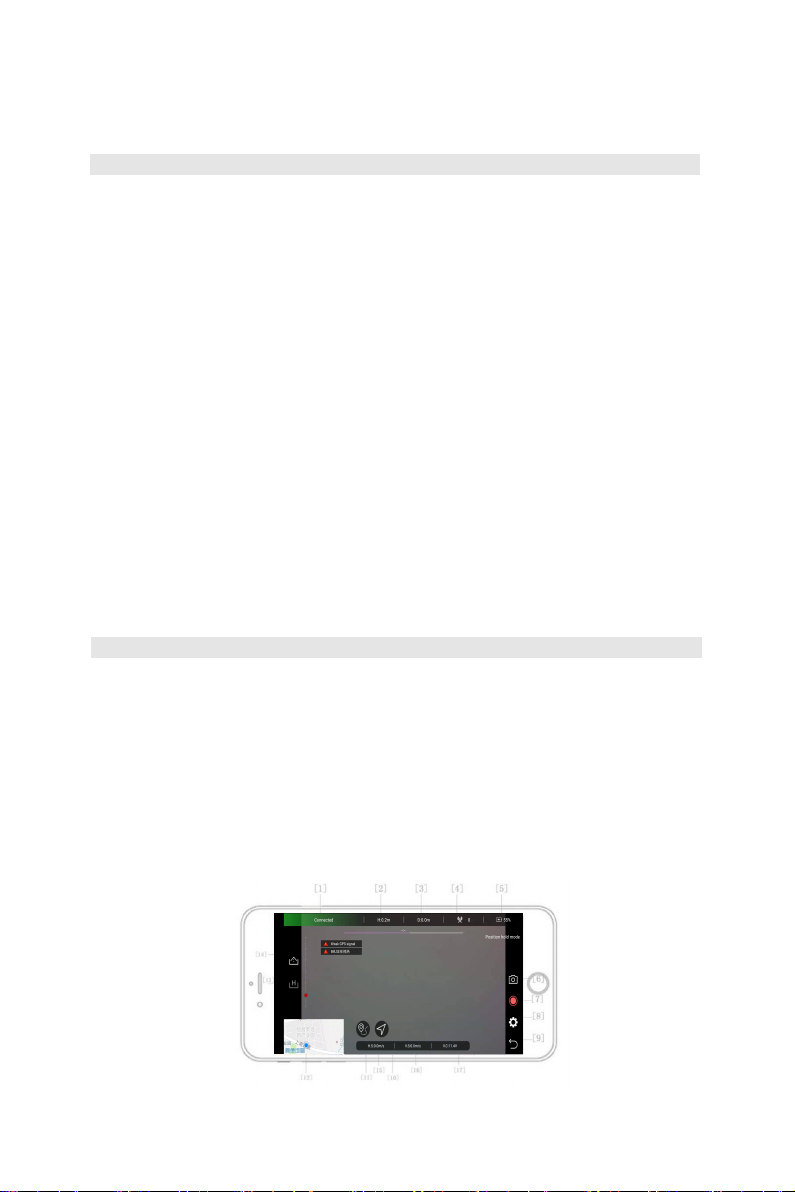

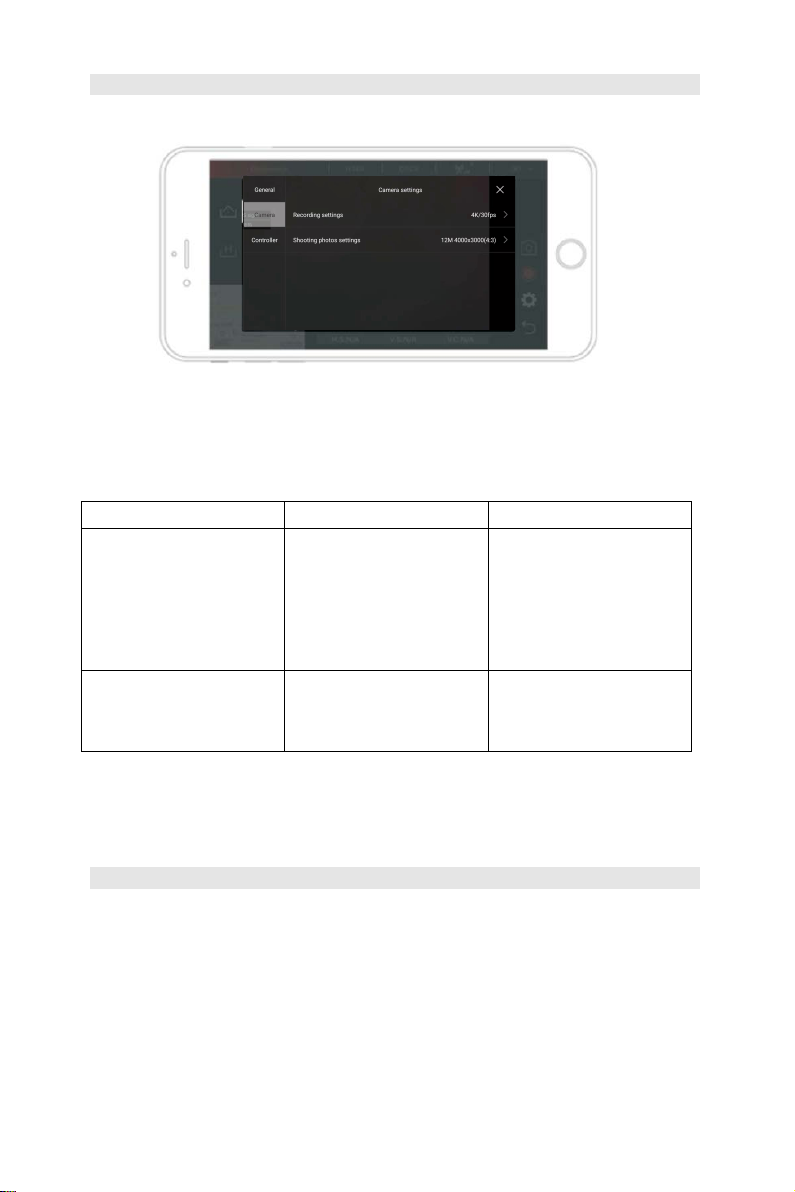

placed on the lower part of the fuselage. You can control the camera's pitch by using the UPAIR App on
the mobile device, and the low-latency HD digital images transmission component is designed to
transmit real-time images over long distances.
Main Features

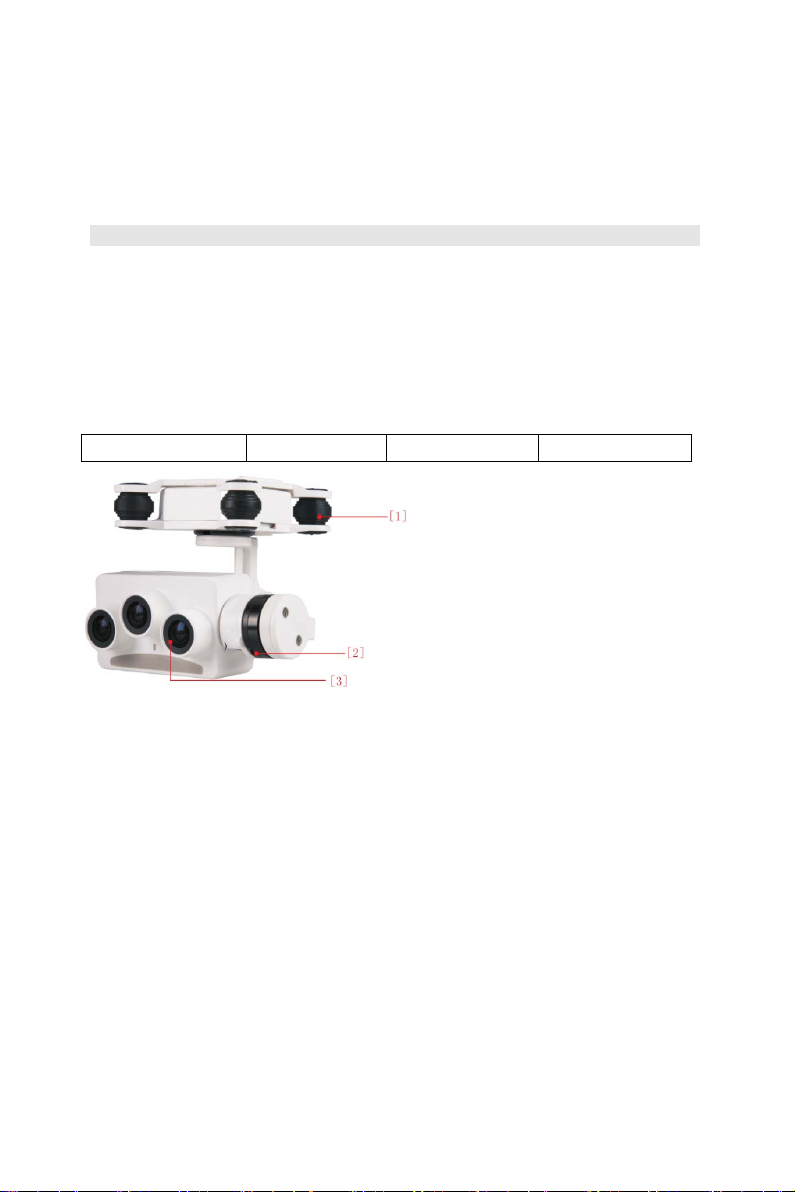

The 4K/3D drone is equipped with a 3-axis stabilization gimbal, a 7 Bohr 110-degree micro-
distortion camera, an MN34120 main image sensor, a 16-megapixel camera capable of capturing
25-frame 4k HD video, and two 3D cameras for capturing images with 3D effects. Insert the
memory card with its 3D images into VR glasses to experience 3D images. The model uses the
newly-developed flight control system, and the new optical flow module and ultrasound
module have been added, which allows the aircraft to precisely hover indoors and brings a
much better flight experience. About 1km Wi-Fi image transmission and about 1km
remote control distance，Real-time high-definition images and up-link and down-link data can
be displayed on the UPAIR2 APP device.
The UPAIR 2 4K/3D Drone is installed with a high-capacity lithium battery. Combined with its
highly efficient power system, its maximum flight duration is 20 minutes.
3

Aircraft
This chapter will describe the make up of the aircraft, as well as the features.
Aircraft Profile
The main components of the UPAIR 4k/3D Drone are the flight controller, the image transmission
system, the positioning and navigation system, the visual positioning system, the power system, and the
battery.
The aircraft's main functions will be introduced in detail as follows:
Aircraft Diagram
[1]Propellers
[2]Motors
[3]Red LED Indicator (head of the aircraft)
[4]Landing Gear
[5]Damping Ball
[6]Gimbal
[7]Camera
[8]Green LED Indicator (Rear of the Aircraft)
[9]Battery Power Button
[10]Antennas（Built-in）
[11]Battery Power Level Indicator
[12]Image Transmission Antenna (Built in)
4

* Aircraft indicators: The red indicators indicate the front of the aircraft. The green indicators indicate the
tail of the aircraft.
Parameters
Weight(including the
Battery, Gimbal,
Camera)
1450g
Max. Ascending
Velocity
3.5m/s
Max. Descending
Velocity
2.2m/s Max. Tilt Angle 28°
Max. Flight Time 20 Min.
Max. Horizontal
Velocity
8m/s
Propellers 9450 Operating Temperature 0℃ to 40℃
Motors 2212 GPS Module GPS/GLONASS
Auto Return Home (RTH)
The UPAIR 4K/3D aircraft features the Auto Return Home (RTH) function. When the controller
loses communication with the aircraft or the aircraft is at low power, the aircraft will automatically
initiate the Auto Return Home (RTH) function and fly back to its home point with an automatic
landing. There are three ways of it returning: One-key RTH, Low-voltage RTH, Unsafe RTH.

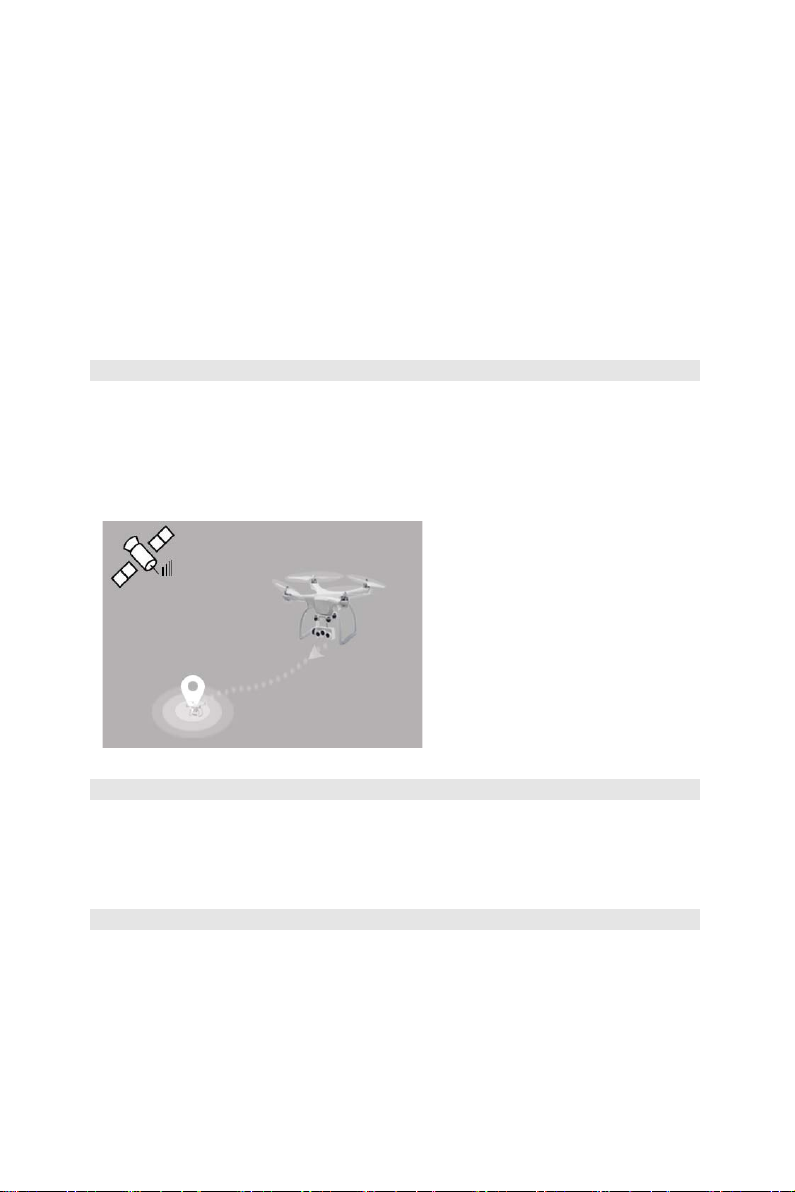

GPS Description
Home
Point
more
than 11
Stars
Before takeoff, when the GPS signal reaches more than 11 stars for the
first time, it will be recorded as the return point of the aircraft's current
flight.
* The RTH system does not support obstacle recognition, and you should try your best to operate the
aircraft in an open field.
* There is a time difference when searching for GPS signals according to the user's location. A cold boot
will take 2 minutes or so, and a warm boot about 30 seconds.
* During an auto-flight, using auto-return, auto-landing, or follow-up mode, etc., you can activate the
flight mode by using the flight mode toggle switch on the left of the remote control to avoid bad
situations like crashing into barriers, or falling into a river, etc.
One-Key RTH
5

By pushing the one-key RTH toggle switch on the controller backwards, or starting it
manually through the UPAIR APP to trigger the one-key return, the aircraft will come back to you. If you
want to regain control during RTH, you can do so by just switching the mode.
Description of the RTH Methodology:
When the aircraft's current flight height is lower than 15m, it will firstly ascend to the height of
15m, and then horizontally return to the home point, and descend. When the aircraft's current height is
higher than 15m, it will directly and horizontally return to the home point and descend.
Smart low-battery RTH：
The UPAIR 2 uses a smart battery, when the battery power is too low it will return to the home point.
Losing communication RTH
When the GPS signal is normal, and the aircraft has automatically recorded the home point, if the
radio signal (the remote control's signal) is interrupted for more than 3 seconds, the flight control system
will take control over the aircraft and make it return to the home point. If the radio signal recovers during
the RTH process, the aircraft will stop and hover. Then, you can take control over the aircraft again by
using the remote control.
Flight Data
The 4K/3DDrone is equipped with a “Black Box”, and all relevant flight data will be recorded in
the SD card within the flight control system.
Flight Mode
Position Hold: Use the GPS module or the Optical Flow Module to set up the aircraft's
precise hovering. Altitude Hold: When the GPS signal is invalid, or the signal is lost, the altitude hold
mode can be enabled to make the aircraft fly at a fixed altitude. Headless Mode: The aircraft
will record the direction of its head when it takes off, and after it enters this mode, no matter
6

where the head points to, the forward direction is still the direction of the head when it took off.
Propellers
The 4K/3D aircraft use 9450 propellers，the propellers feature black or silver-colored caps,
each representing a different direction of rotation.
1. Attaching the Propellers: Find the motors that have a hole, attach the propellers with a
black cap onto them and rotate them tightly counter-clockwise. Attach the propellers with the silver cap
onto the motors without a hole and rotate them tightly clockwise.
2. Detaching the Propellers: Please hold the motor on one hand, then rotate the propeller in the
unlock direction to loosen it.
*Make sure that the black and silver propellers are installed on the right motors; otherwise,
the aircraft cannot take off normally. Please manually tighten the propellers, and ensure you
tighten them firmly, otherwise an accident may happen. Since the blades are thin, be careful not to
hurt yourself with them.
*Please use the original UPAIR propellers, the propellers must correspond to the exact
aircraft model.
* Propellers are easily consumed, if necessary, please purchase an additional one.
* Maintain a safe distance once the motors and propellers start spinning in order to avoid any
injury.
* Ensure the propellers are in good shape and tightly attached before flight. Deformed or broken
propellers should be replaced.
Battery [1]Charging Interface
[2]Box Clip
[3]Power Switch
[4]Battery Level Indicator
7

Introduction
The UPAIR2 smart battery has been upgraded to a capacity of 5100mAh, it is a large capacity battery
with a voltage of 15.2V, and has a memory function. The battery uses a new high-voltage board
battery cell and uses a power core management system to provide abundant power for the aircraft.
The smart battery must be charged with the UPAIR official charger.
Parameters
Basic Features And Charging
Turning on the battery: When the battery is off, first press the power button once, then press and hold the
power button for more than 2 seconds to turn on the battery. When the battery is turned on, the battery
indicator (green) shows the current battery level.
Turning off the battery: When the battery is on, short press the power button once, then press and
hold the power button for more than 2 seconds to switch off the battery. When the battery is turned
off, the battery indicator goes off.
Check the battery level: In the battery off state, short press the battery switch once to view the current
battery power.
Charging The Battery:
Type Lithium BatteryCharging Time 2.5 to 3Hours
Capacity 5100mAh Charging
Environment
Temperature
0℃ to 40℃
Nominal Voltage 15.2V Discharging
Environment
Temperature
-10℃ to 40℃
8

1. The battery charger must be connected to an AC power supply (100 to 240V, 50/60Hz)
first. If necessary, please use the power adapter.
2. When the battery is turned off, connect the battery to the UPAIR charger.
3. The battery level indicators will show the status level as the battery is charging.
4. When fully charged, the battery level indicators will go off, remove the battery from the
charger after that.
5. The battery will become hot after a flight, do not charge it immediately, wait until it cools
down before charging it.
6. The optimal charging temperature range of the battery is from 0℃ to 40℃. If it is beyond this
temperature range, please do not charge the battery.
7. The intelligent aircraft's battery and the remote control's battery can be charged simultaneously,
but their charging times are different.
Tips:
* Before you attach or detach the battery from the aircraft, please make sure the battery is
turned off. Please do not attach and detach the battery when the battery is turned on.
*Charge the Intelligent aircraft's battery only with the original UPAIR charger, other chargers may
cause damage to the UPAIR Drone, such damage will not be covered by the UPAIR after-sale
service.

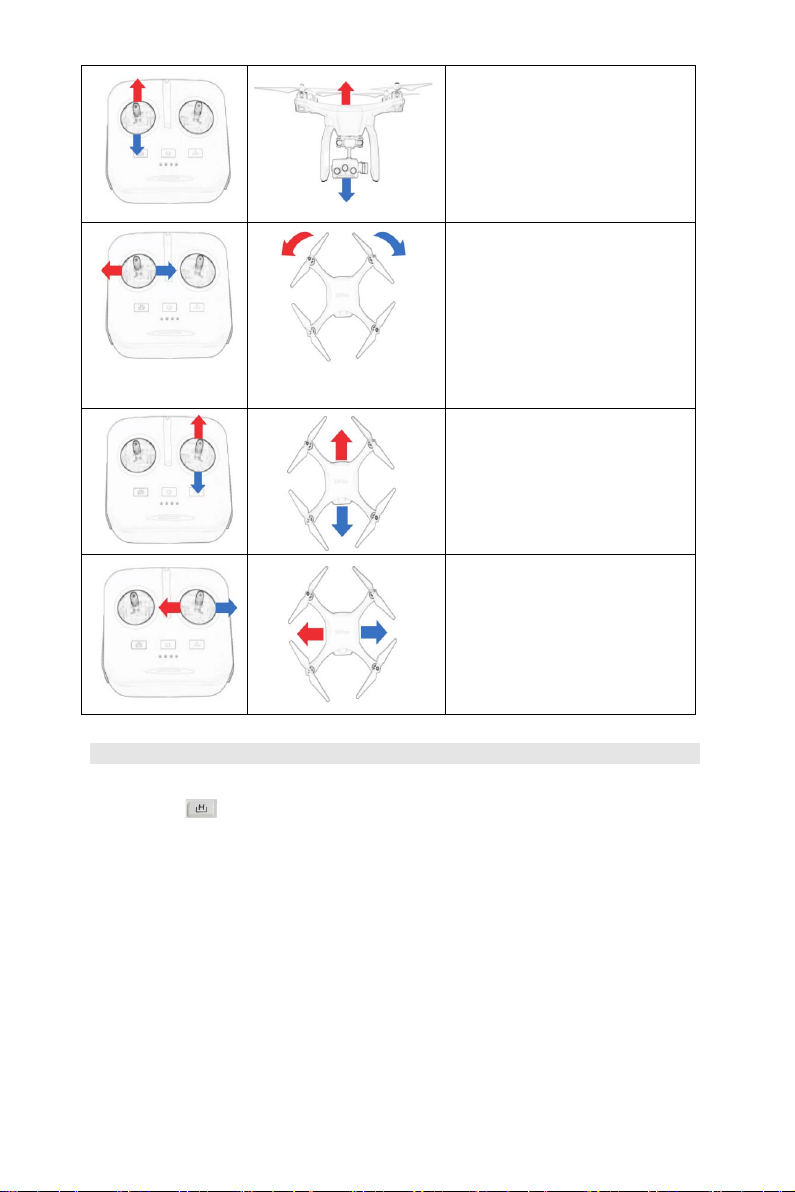

Remote Controller
This section describes the remote controller and how to operate it.
Remote Controller Profile

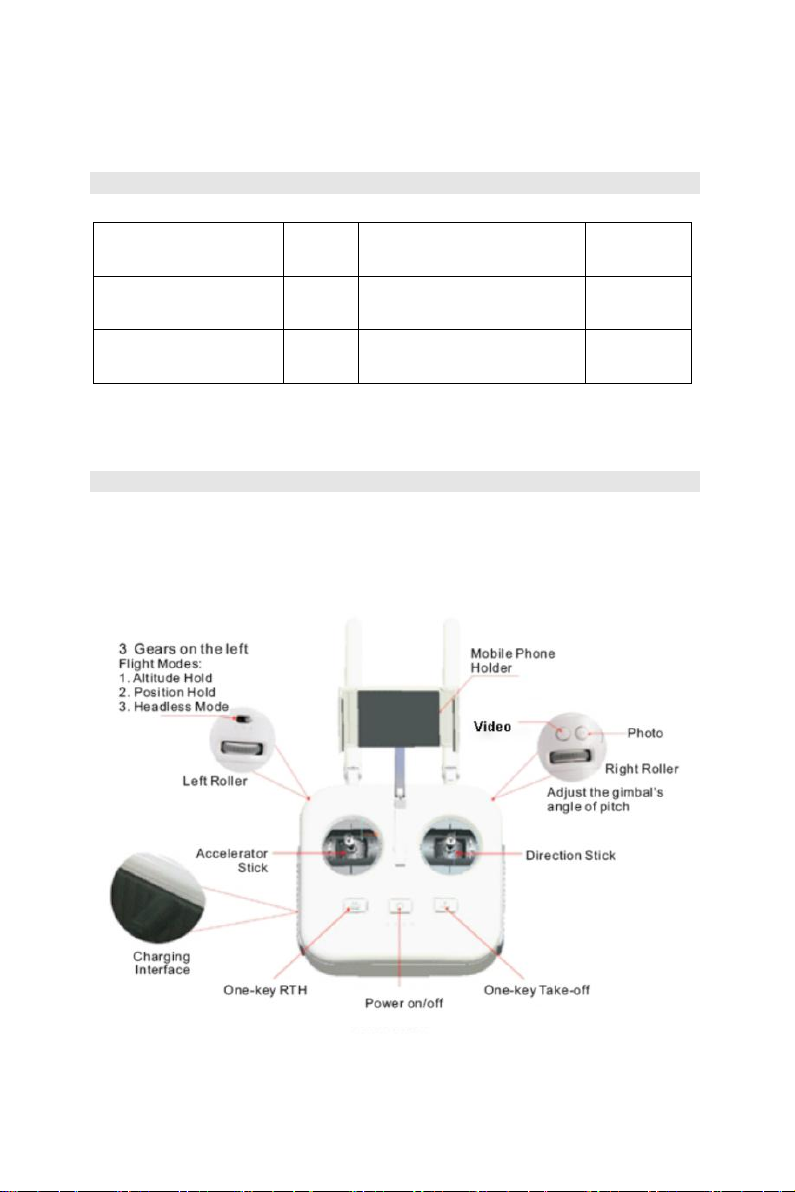

The 4K/3D controller uses Digital Command Transmission and Image Transmission. The digital
transmission part works in the 2.4Ghz frequency band and realizes full-band random frequency
hopping communication with strong anti-interference. The integrated camera function, Gimbal operation
function button, the controller and aircraft built-in 2.4G controller receiver have been successfully
matched. The image graphics transmission part works in the 5.8Ghz frequency band to receive
image signals from the aircraft and outputs to the terminal display device.
9
