Uplift Desk UDA100-freestand User manual

Part E
M6*10 bolts Qty. 2
Part F
bolt covers Qty. 2
Part D
Allen wrench (small)
Part C
Allen wrench (large)
© UPLIFT Desk • 1-800-349-3839 • [email protected] • www.upliftdesk.com
®
UPLIFT Adapt Freestand™Instructions
UDA100~freestand
Step 2
Line up the holes on the plate of the keyboard tray (Part B) with the
holes on the vertical connector under the main assembly’s work sur-
face.
Attach keyboard tray to the main assembly using two M6*10 bolts
(Part E) and tighten using the small Allen wrench (Part D).
Cover the bolts with the adhesive bolt covers (Part F) by centering
the sticky side on the heads of the exposed bolts as shown in diagram.
Adhere the pad around the bolt by pressing all around the bolt.
Step 1
Press and hold the release paddle in the up position on the UPLIFT
Adapt main assembly (Part A) to raise the worksurface to the highest
position. Release the paddle to lock in place.
Part B
keyboard tray
Part A
Adapt Freestand
main assembly
Step 3
Adjust the height of the unit by squeezing the release paddle
and moving to desired position.

© UPLIFT Desk • 1-800-349-3839 • [email protected] • www.upliftdesk.com
Step 4 (Optional)
This step is optional. We have pre-adjusted the tension for you.
However, you may need to make adjustments once equipment,
such as monitors and keyboards, are placed on the unit.
To adjust the lift to the exact amount of weight you place on it;
squeeze the paddle then lower the unit until the main support
column is at a 45° angle. Using the larger Allen wrench (Part C)
and the tension adjustment bolt on the rear of the unit, adjust the
tension for smooth operation. Turn clockwise to lessen the tension
or counterclockwise to increase it.
•
•
•
•
The maximum load capacity of the UPLIFT Adapt Freestand
is 28.6 lbs. Do not overload.

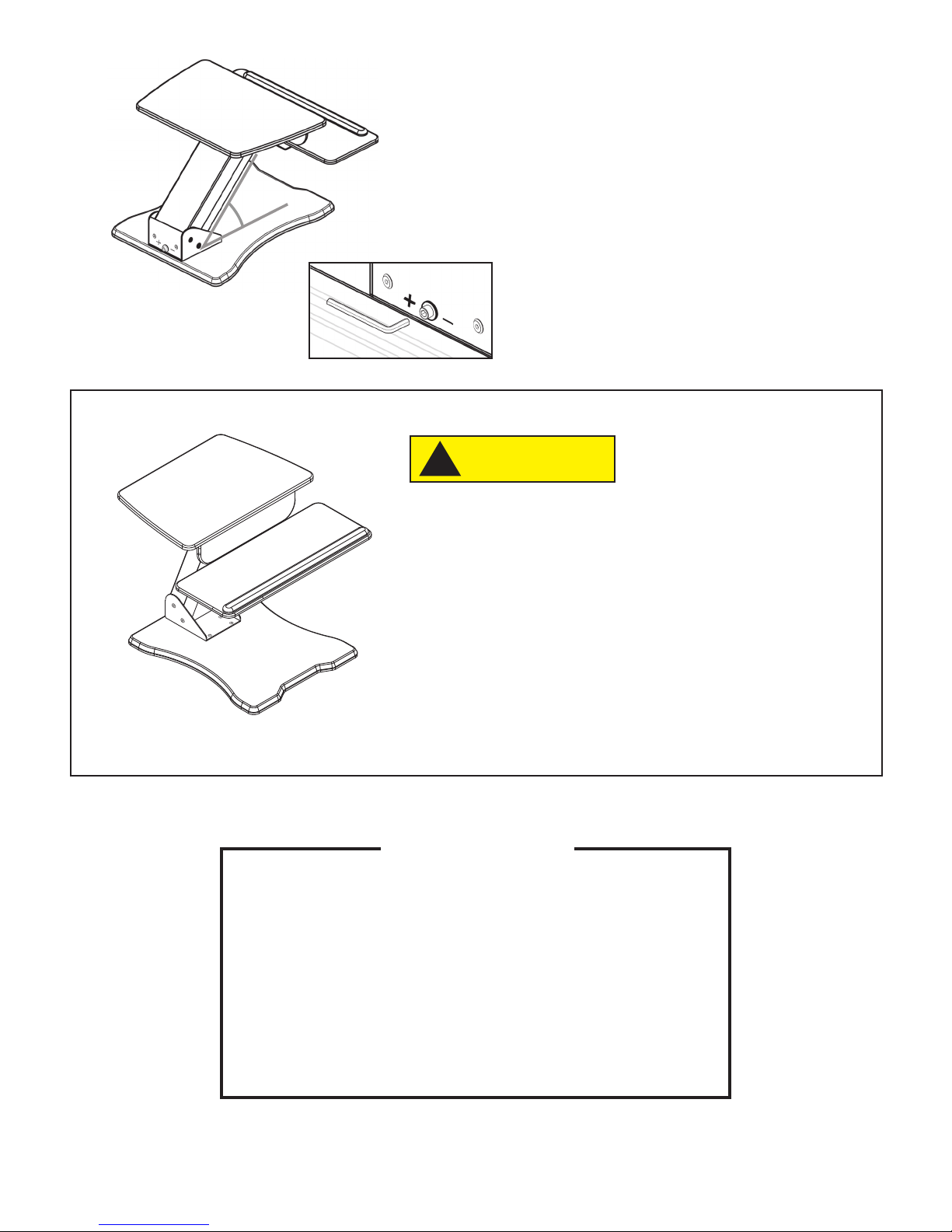

Do not position the keyboard tray to hang over the edge
of your desktop when in the lowest position. The keyboard
tray is designed to rest ON the desktop to prevent tipping.
Failing to follow these assembly instructions and safety
precautions may result in personal injury.
Failing to follow these assembly instructions and safety
precautions voids your warranty and may result in property
damage.
© Copyright Notice
These instructions are a component of the UPLIFT Adapt Freestand™.
These instructions are part of the scope of delivery, even if the item
is resold.
These instructions are also available on the UPLIFT Desk website:
upliftdesk.com
Excerpts or copies may not be forwarded to third parties
or used in any other published form without the prior written consent
of UPLIFT Desk.
These instructions are subject to United States copyright law.
