Uplus Lighting IP 300Z SPOT PENTA User manual

User manual
IP 300Z SPOT PENTA
Please read the instructions carefully before use

2
TABLE OF CONTENTS
1. Safety Instructions……………………………………………………………………………3
2.Technical Specifications………………………………………………………………………4
3.Descriptions………………………………………………………………………………………5
4.Unpacking…………………………………………………………………………………………5
5.Control Menu ……………………………………………………………………………………6-7
6.DMX Channels ……………………………………………………………………………………7
7.Dimension …………………………………………………………………………………………8
8.Trouble Shooting…………………………………………………………………………………9
9.Fixture Cleaning………………………………………………………… ………………………9
STATEMENT
The product has well capability and intact packing when leave factory. All of the user should
comply with warning item and manual, any misuse cause of the damages are not included in our
guarantee, and also can not be responsible for any malfunction & problem owing to ignore the
manual.

3
1.Safety Instructions
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also
receive this instruction booklet.
•Unpack and check carefully there is no transportation damage before using the unit.
•Before operating, ensure that the voltage and frequency of power supply match the power requirements of the
unit.
•It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
•The unit is for indoor use only. Use only in a dry location.
•The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces. Be sure
that no ventilation slots are blocked.
•Disconnect main power before replacement or servicing.
•Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
•Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always by taking its
base.
•Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher than this Unit
surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand during its operation. Turn off
the power and allow about 15 minutes for the unit to cool down before replacing or serving.
•the event of serious operating problem, stop using the unit immediately.Never try to repair the unit by yourself.
Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest
authorized technical assistance center. Always use the same type spare parts.
•DO NOT touch any wire during operation as high voltage might be causing electric shock.
Warning:
•To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
•The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution:
•There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any repairs yourself.
In the unlikely event your unit may require service, please contact your nearest dealer.
Installation:
•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to
avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit
is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can
hold 12 times of the weight of the unit when installing the fixture.
•The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch of
people.

4
2.Technical Specifications
Light Source:
LED POWER: 300W
LED Color: RGBAL 5IN1
Color Rendering Index(CRI): Ra≥90
LED Life Time: over 50,000 hours
Power supply:
Voltage: AC100-240V
Max.power: 300W
Optics:
Beam Angle: 15°-30°
Zoom Function: Auto zoom
Features:
Dimming Curve: 4 kinds dimming curve
PWM: 500HZ - 25000HZ optional
Strobe :1-25times/sec
Light body feature:
Light body: Die casting Aluminum
Touch screen: LCD with touch screen
Feature of housing: High quality fireproof ,corrosion-resistance, Oxidation resistance
Control:
Control Protocol: RDM / DMX
Control System: DMX, Auto run and Master/Slave
DMX Channels: 6/13CH (Two kinds of channel modes optional
Working Environment :
Working Temperature: -30~40℃
Cooling system: Fan-less no noise
IP Grade: IP65
Package :
Dimensions: 520.1(D)*306.7(W)*473.9(H)mm
Net Weight: 13kgs
Gross Weight: 16kgs
Packing size: 67*38.5*39cm(1pc/carton)

5
3.Descriptions
·Warm or cool white fresnel light fixture for theatre, film and production
·Fully IP65 rated for seasonal use indoors or out
·Electronic auto zoom from 15°-30°
·Ultra smooth 16-bit dimming of master dimmer and individual colors
·Soft and even field of light
·High brightness with high CRI
·RDM (Remote Device Management) for added flexibility
·Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
·Selectable dimming curve: Standard mode, Incandescent mode, quick mode and linear mode
·Fanless(no any noise) operation for use in studio and theatre applications
4.Unpacking
Thank you for choosing our IP 300Z SPOT PENTA. For your own safety, please read this manual before installing
the device. This manual covers the important information on installation and applications. Please install and
operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs.
The IP 300Z SPOT PENTA is made of a new type of high temperature strength of cast aluminum casing with nice
outlook. The fixture is designed and manufactured strictly following CE&RoHS standards, complying with
international standard DMX512 protocol. It's available independently controlled and linkable with each other for
operation. And it is applicable for large-scale live performances, theater, studio, nightclubs and discos.
The IP 300Z SPOT PENTA adopts 1PCS 300W COB LED (5IN1) which features high brightness and stability.
Please carefully unpack it when you receive the fixture and check whether it is damaged during the transportation.
And please check whether the following items are included inside the box:

6

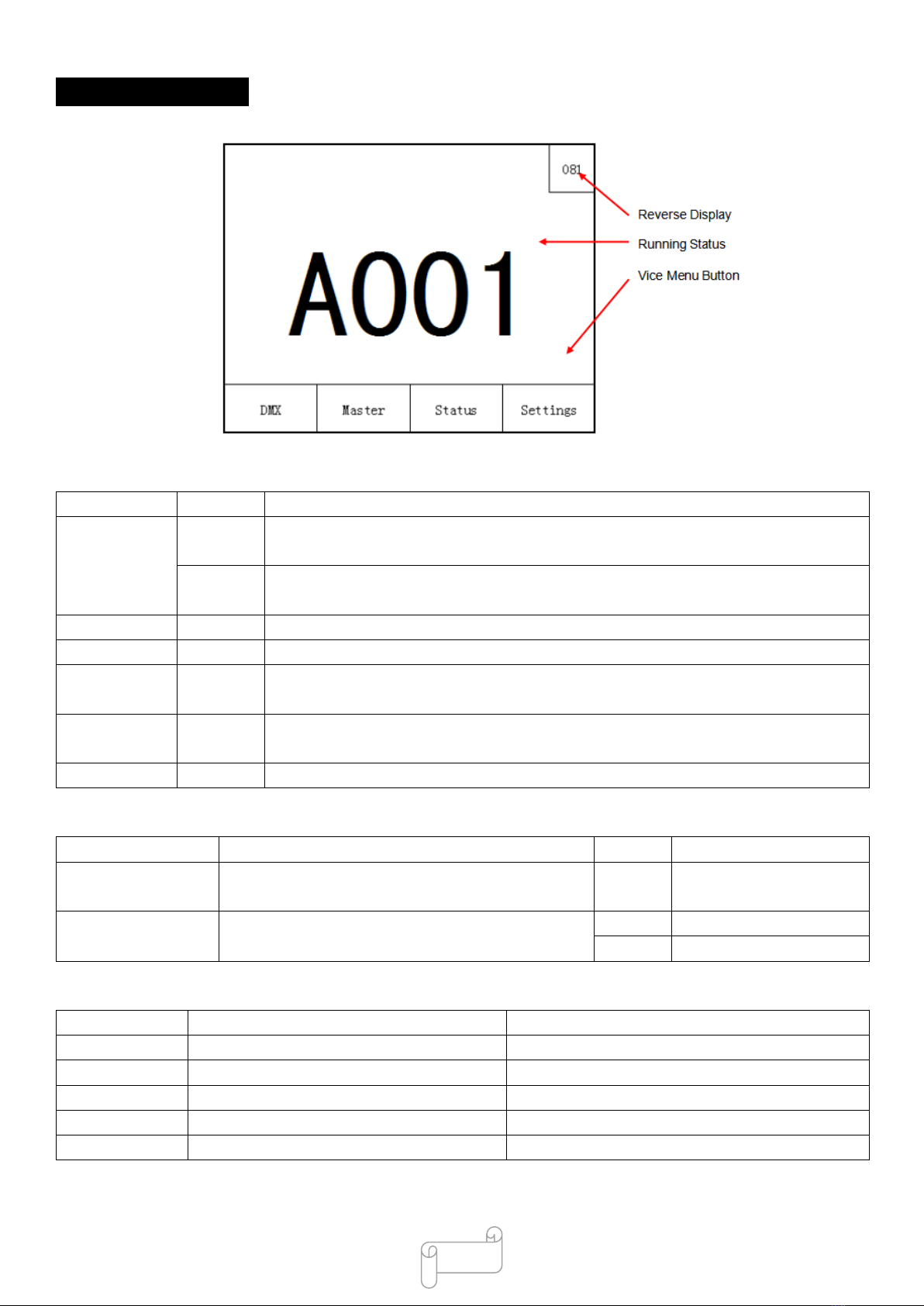

5.Control Menu
Operation Status
Mode
Display
Description
DMX Mode
Master-slave
Axxx
“A”stand for standard channel mode, “xxx”stand for ID address, Auto identify
controller signals or host signals
Dxxx
“D”stand for basic channel mode, “xxx”stand for ID address, Auto identify controller
signals or master signals
Manual
M-MC
“M”stand for Master mode，“MC”stand for “Mixed Colort”
Auto run
M-Ax
“M”stand for Master mode，“A”stand for “Auto”, “x” is Auto program number(1~8)
Sound
activated
M-Sx
“M”stand for Master mode，“S”stand for “Sound”, “x” is Sound activated (1 or 2)
Color
Temperature
M-WP
“M”stand for Master mode，“WP”stand for“White Point”
Select Color
M-QC
“M”stand for Master mode，“QC”stand for“Quick Color”
DMX Settings status
Menu
Operation
Option
Description
DMX Start Address
Press key of “OK” enter to edit mode, press “UP”
and ”down” to edit the DMX address
1~512
DMX Profile
Press key of “OK” change the DMX channel mode
13CH
Standard Channel Mode
6CH
Basic Channel Mode
Master Mode Choice
Menu
Operation
Vice Menu description
Mixed Color
Press Key of “OK” to choose mode
Choose the color and strobe setting
Auto Mode
Same as above
Choose the Auto and Speed setting
Sound Mode
Same as above
Choose the Sound and Mode setting
White Point
Same as above
Choose the color temperature
Quick Color
Same as above
Choose the built-in color

7
Status
Menu
Description
Software
Name of software
Version
Version
Temperature
Show the temperature of lighting fixture
DMX Status
With“OK”（Slavemode，withsignal），“NONE”（Slavemode，no signal）、 “Master”（Master）
Settings
Menu
Operation
Option
Description
Touch Screen
Calibration
Touch screen adjust
White Point Edit
Color temperature adjust
Dimmer Frequency
Change the dimmer
frequency
500Hz
......
25KHz
Dimmer Curve
Change dimmer curve
Standard
Incandescent
Linear
Quick
Over Temperature
Temperature setting
80~100
Each 5 for increase or decrease
Backlight
Adjust the display brightness
10%~100%
Each 5% for increase or decrease
Backlight Timeout
Screen protect setting
No screen
protect or black
screen from 0~
60 second
Each 5 for increase or decrease
Load Factory Settings
Reset
6.DMX Channels
Model – CH13
Channel
Data
Function
Remark
1
0~255
Dimmer
2
0~255
Color 1
3
0~255
Color 2
4
0~255
Color 3
5
0~255
Color 4
6
0~255
Color 5
0~9
No function
10~19
Color Temperature 2700K
20~29
Color Temperature 3000K
Each 10 data for each color temperature
30~39
Color Temperature 3200K
40~49
Color Temperature 3600K
50~59
Color Temperature 4000K
60~69
Color Temperature 4200K

8
7
70~79
Color Temperature 4500K
80~89
Color Temperature 5600K
90~99
Color Temperature 6000K
100~109
Color Temperature 6500K
110~119
Color Temperature 7200K
120~129
Color Temperature 8000K
130~139
Color Temperature 9000K
140~149
Color Temperature 10000K
150~159
Color Temperature 12000K
160~169
Custom color temperature one
170~179
Custom color temperature two
180~255
Custom color temperature three
8
0~9
Null
10~19
built-in color 1
……
built-in color n
Each 10 data for each built-in color
9
0~10
No function
11~255
Strobe speed（255 is the
fastest）
10
0~9
Null
10~19
Auto 1
......
Auto 2~7
Each 10 data for one auto
80~89
Auto 8
90~199
Null
200~219
Sound 1
220~255
Sound 2
11
0~255
Zoom
12
0~255
Speed of zoom
0 is the fastest, 255 is the slowest
13
0~255
Reset of zoom
Pushrod will back to the top(255) and stay for 5
seconds
Model – CH6
Channel
Data
Function
1
0~255
Color 1
2
0~255
Color 2
3
0~255
Color 3
4
0~255
Color 4
5
0~255
Color 5
6
0~255
Zoom

9
7.Dimension
Size of the fixture: 520.1(D)*306.7(W)*473.9(H)mm

10
8.Trouble Shooting
F ollo w ing a r e a few c o mm on p r oble m s th a t m a y occu r d uring ope r a tion . He r e a r e s o m e s ug g es tion s fo r
ea s y tr ou b leshooting :
A. The un it does no t work , no li ght a n d t he f a n d o es no t w o r k
1. Check th e c on nect ion of p owe r a nd m a in fu s e .
2. M eas ure th e m a ins volt a ge on th e m a i n co nn e ct o r .
3. Check th e pow er on LED .
B. N o t responding t o D MX c on t ro ll er
1. D M X LED s h ou ld b e on. If no t, che ck D M X co n nectors, ca b l es to s ee if link p r ope r ly .
2. If th e D M X LE D i s on a nd no r espons e t o th e c h a nn el, che ck th e a dd r ess s etti ng s a nd D M X
p ol a r ity .
3. If y ou h a ve i nter m ittent D M X s ig n a l p r oble m s , che ck th e p ins on c onn ecto r s or on
PCB of th e u nit or the p r ev iou s on e.
4. Tr y to us e a no th er D M X co ntroller .
5. Check if th e D M X ca b le s r un ne a r or run a lon g s id e t o h ig h volta ge c a b les th a t m a y c a us e d a m a ge or
in terfer ence to D M X inter face circui t.
C . One of the cha nn el s is no t w o r k ing w el l
1. Th e s tep p er moto r m ig h t b e dam a g ed or the c a b le c on nect ed to th e PCB is b r oken.
2. Th e m oto r ’ s d r ive IC on th e PCB m ig h t b e o ut of co ndition
9.Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates:
damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
