Uplus Lighting LED PROFILE AZ User manual

User manual
LED PROFILE AZ
Please read the instructions carefully before use

2
TABLE OF CONTENTS
1. Safety Instructions……………………………………………………………………………3
2.Technical Specifications………………………………………………………………………4
3.Unpacking…………………………………………………………………………………………5
4.Control Menu ……………………………………………………………………………………6
5.DMX Channels ……………………………………………………………………………………7
6.Dimension …………………………………………………………………………………………8
7.Trouble Shooting…………………………………………………………………………………9
8.Fixture Cleaning………………………………………………………… ………………………9
STATEMENT
The product has well capability and intact packing when leave factory. All of the user should
comply with warning item and manual, any misuse cause of the damages are not included in our
guarantee, and also can not be responsible for any malfunction & problem owing to ignore the
manual.
1.Safety Instructions

3
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also
receive this instruction booklet.
•Unpack and check carefully there is no transportation damage before using the unit.
•Before operating, ensure that the voltage and frequency of power supply match the power requirements of the
unit.
•It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
•The unit is for indoor use only. Use only in a dry location.
•The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces. Be sure
that no ventilation slots are blocked.
•Disconnect main power before replacement or servicing.
•Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
•Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always by taking its
base.
•Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher than this Unit
surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand during its operation. Turn off
the power and allow about 15 minutes for the unit to cool down before replacing or serving.
•the event of serious operating problem, stop using the unit immediately.Never try to repair the unit by yourself.
Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest
authorized technical assistance center. Always use the same type spare parts.
•DO NOT touch any wire during operation as high voltage might be causing electric shock.
Warning:
•To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
•The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution:
•There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any repairs yourself.
In the unlikely event your unit may require service, please contact your nearest dealer.
Installation:
•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to
avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit
is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can
hold 12 times of the weight of the unit when installing the fixture.
•The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch of
people.

4
2.Technical Specifications
Feature：
1*200W COB LED (available for RGBW 4in1)
50,000 hours life time and low power consumption
Color Rendering Index(CRI): Ra≥90
High quality optical system and field uniformity
High contrast aspheric lens
Auto zoom system(Motorized zoom) from 15°-38°
Beam edge continually adjustable hard-to-soft
Aluminum alloy housing
Thermally insulated rear handle
High-strength single handle design
4 Metal spot cutting
Ultra smooth 16-bit dimming
Strobe :1-25times/sec
6/12 DMX channels
DMX512, Master/Slave mode, static mode
4-Button LCD display
POWRECON connector IN/OUT,3-Pin and 5-pin XLR connectors IN/OUT
Low noise fan with copper liquid cooling system
Working Temperature: -10℃~40℃
IP20 protection rating
Specifications：
Input Voltage:AC100-240V 50/60Hz
Max. Power:200W
Dimensions: 195(D)*720(W)*415(H)mm
Packing Size: 332(D)*832(W)*345(H)mm
Net Weight: 10.5kg
Gross Weight: 13kg

5
3.Unpacking
Thank you for choosing our LED PROFILE AZ. For your own safety, please read this manual before installing the
device. This manual covers the important information on installation and applications. Please install and operate
the fixture with following instructions. Meanwhile, please keep this manual well for future needs.
The LED PROFILE AZ is made of a high strength of aluminum alloy casing with nice outlook. The fixture is
designed and manufactured strictly following CE standards, complying with international standard DMX512
protocol. It's available independently controlled and linkable with each other for operation. And it is applicable for
large-scale live performances, theater, studio, nightclubs and discos.

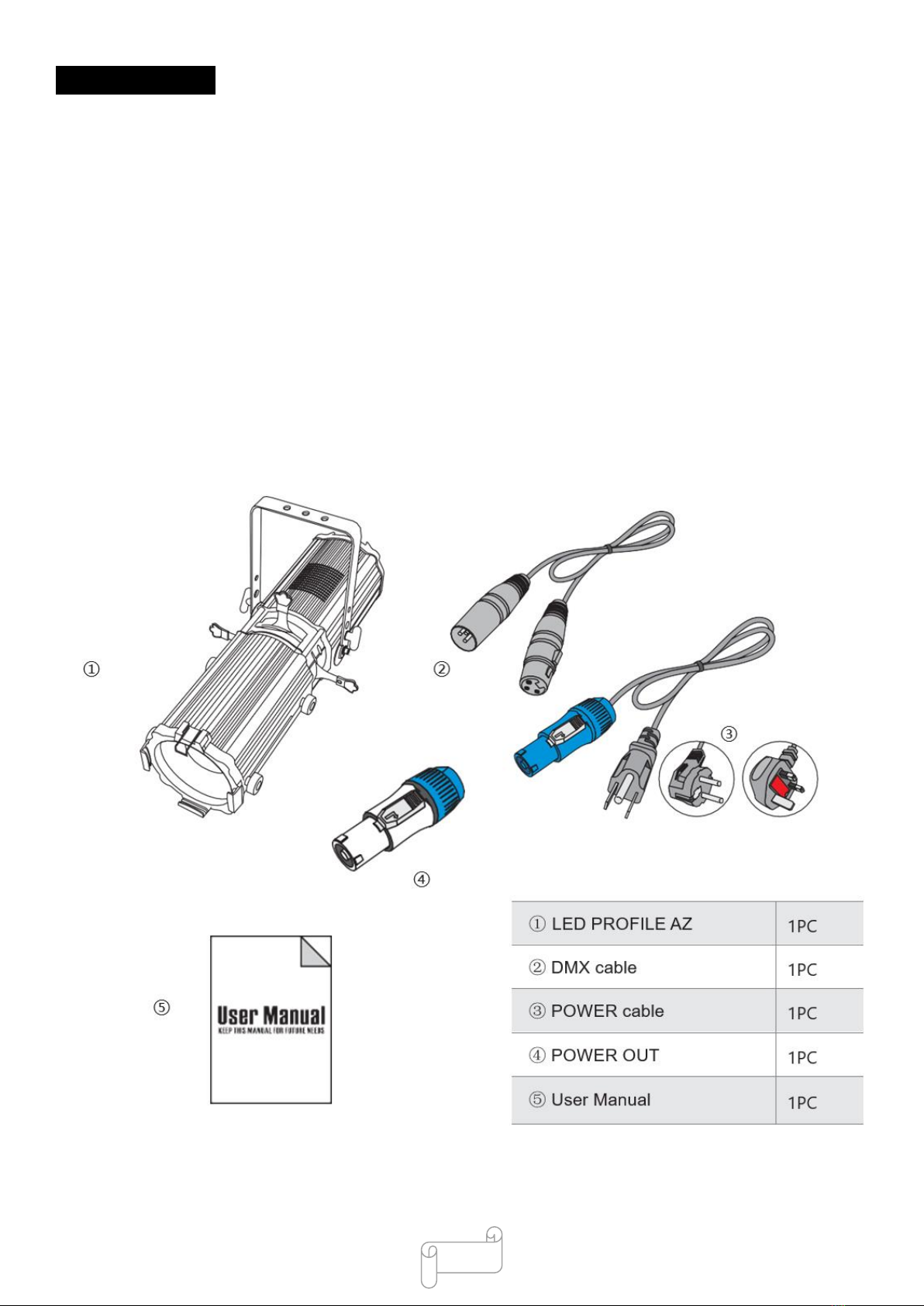

The LED PROFILE AZ adopts 1PCS 200W COB LED (available for RGBW) which features high brightness and
stability. Please carefully unpack it when you receive the fixture and check whether it is damaged during the
transportation. And please check whether the following items are included inside the box:

6
4.Control Menu
MENU key: Change to the main menu (no more details in below sheet).
UP/DOWN key: Change the value of the current menu (see below sheet for details).
ENTER key: If there is a submenu, change the submenu (see below sheet for details).
Remark：
1、If the “>” symbol is displayed at the end of the first line of the menu, it means that there are
submenus that can be changed by pressing the ENTER key.
2、Password is“UP、DOWN、UP、DOWN”
Menu
Vice Menu
Display
•Keys Operation
Standard Channel
Mode（12 CH）
DMX
(12 CH)
Addr:001
UP/DOWN: Change the ID address
Basic channel
Mode （6 CH）
DMX
(6 CH)
Addr:001
UP/DOWN: Change the ID address
Static Model
Dimmer
Color 1 (Red)
Static >
R:000
UP/DOWN: Dimmer
ENTER: Change the vice menu
Dimmer
Color 2 (Green)
Static >
G:000
UP/DOWN: Dimmer
ENTER: Change the vice menu
Dimmer
Color 3 (Blue)
Static >
B:000
UP/DOWN: Dimmer
ENTER: Change the vice menu
Dimmer
Color 4 (White)
Static >
W:000
UP/DOWN: Dimmer
ENTER: Change the vice menu
Strobe
Static >
Strob:00
UP/DOWN: Strobe
ENTER: Change the vice menu
Zoom
Static >
Focu:000
UP/DOWN: Zoom Changing
ENTER: Change the vice menu
Control
Temperature
Current
temperature
Temp >
Curr: 0
ENTER: Change the vice menu
Set the
temperature
protection data
Temp >
Top :080
UP/DOWN: Set temperature data
ENTER: Change the vice menu
Restore the
default settings
Reset
Press “ENTER” key, type your password, as follows:
Reset
Pwd:
Press “ UP / DOWN” keys to enter a password, enter a
password will display a "*" sign. as follows:
Reset
Pwd:****
Press “ENTER” to confirm the password. The correct
password will restore the default settings. Otherwise,
clear all "*" in order to re-enter the password.

7
5.DMX Channels
Model – CH12
Channel
Data
Function
Notes
1
0~255
Dimmer
2
0~255
Color 1 (red)
3
0~255
Color 2 (green)
4
0~255
Color 3 (blue)
5
0~255
Color 4 (white)
6
0~30
No effect
31~200
Multi-color change
201~205
Color temperature 1
(default 3200K)
……
Color temperature 2~10（each 5 data
is a color temperature）
250~255
Color temperature 11
(default 10000K)
7
0~10
No Strobe
When you run the built-in program, this channel
control speed
11~255
Speed of strobe (data 255 is the
fastest)
8
0~20
Speed of dimmer 4
(the slowest and softest）
21~40
Speed of dimmer 3
41~60
Speed of dimmer 2
61~80
Speed of dimmer 1
81~99
Speed of dimmer OFF
(the fastest and no delay)
100~109
Built-in program 1
……
……（Each 10 data is a program)
190~199
Built-in program 10
200~240
Sound Model
241~255
Strobe by sound model
9
0~255
Focus 1
10
0~255
Focus 2
11
0~255
Speed of Focus 1
Data 0 is the fastest ，Data 255 is the Slowest.
12
0~255
Speed of Focus 2
Data 0 is the fastest ，Data 255 is the Slowest.
Model – CH6
Channel
Data
Function
1
0~255
Color 1（red）
2
0~255
Color 2（green）
3
0~255
Color 3（blue）
4
0~255
Color 4（white）
5
0~255
Focus 1
5
0~255
Focus 2

8
6.Dimension
Size of the fixture: 195(D)*720(W)*415(H)mm

9
8.Trouble Shooting
F ollo w ing a r e a few c o mm on p r oble m s th a t m a y occu r d uring ope r a tion . He r e a r e s o m e s ug g es tion s fo r
ea s y tr ou b leshooting :
A. The un it does no t work , no li ght a n d t he f a n d o es no t w o r k
1. Check th e c on nect ion of p owe r a nd m a in fu s e .
2. M eas ure th e m a ins volt a ge on th e m a i n co nn e ct o r .
3. Check th e pow er on LED .
B. N o t responding t o D MX c on t ro ll er
1. D M X LED s h ou ld b e on. If no t, che ck D M X co n nectors, ca b l es to s ee if link p r ope r ly .
2. If th e D M X LE D i s on a nd no r espons e t o th e c h a nn el, che ck th e a dd r ess s etti ng s a nd D M X
p ol a r ity .
3. If y ou h a ve i nter m ittent D M X s ig n a l p r oble m s , che ck th e p ins on c onn ecto r s or on
PCB of th e u nit or the p r ev iou s on e.
4. Tr y to us e a no th er D M X co ntroller .
5. Check if th e D M X ca b le s r un ne a r or run a lon g s id e t o h ig h volta ge c a b les th a t m a y c a us e d a m a ge or
in terfer ence to D M X inter face circui t.
C . One of the cha nn el s is no t w o r k ing w el l
1. Th e s tep p er moto r m ig h t b e dam a g ed or the c a b le c on nect ed to th e PCB is b r oken.
2. Th e m oto r ’ s d r ive IC on th e PCB m ig h t b e o ut of co ndition
9.Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates:
damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
