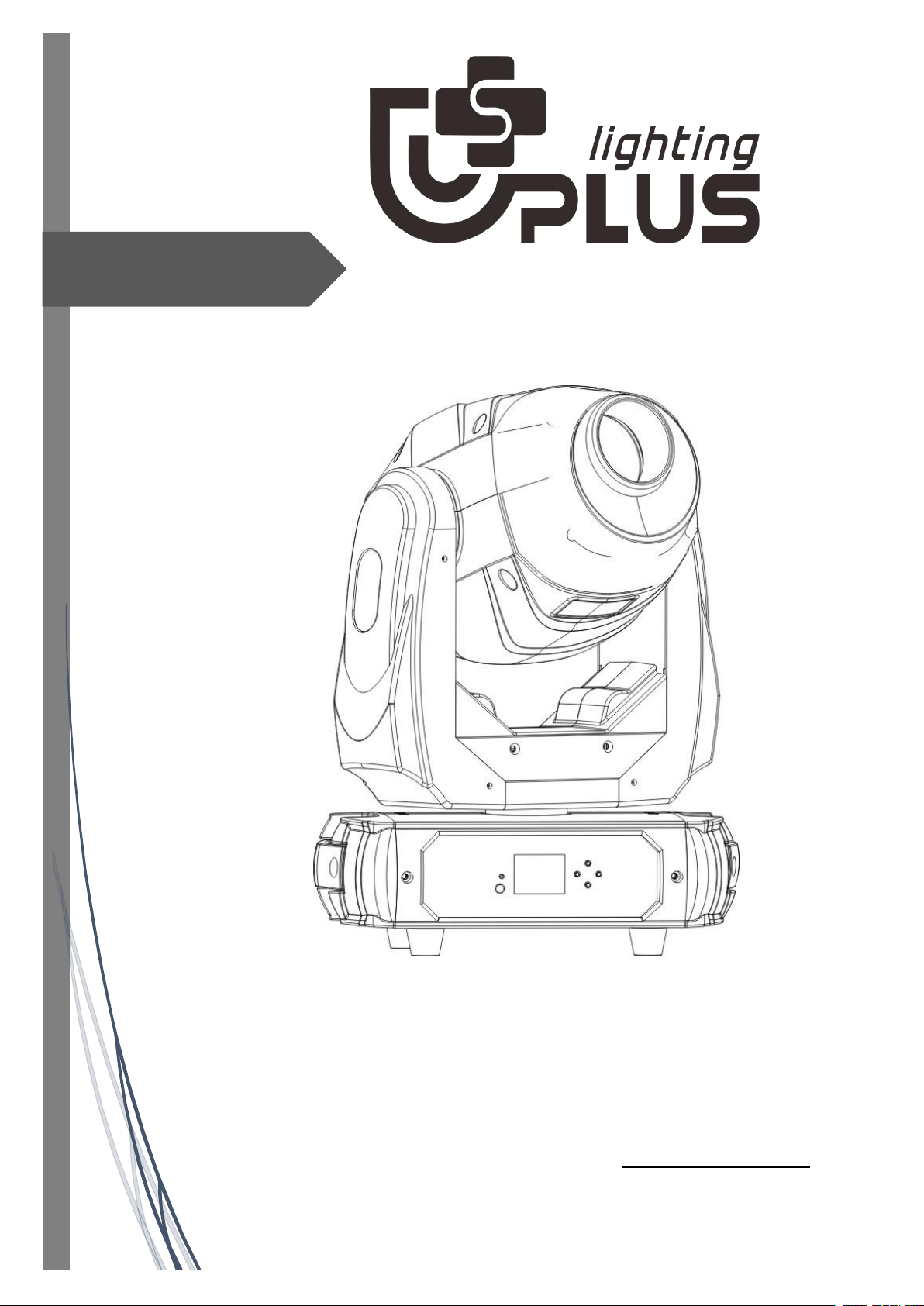

Uplus Lighting 230 SPOT User manual

User manual
230 SPOT
Please read the instructions carefully before use

2
TABLE OF CONTENTS
1. Safety Instructions……………………………………………………………………………3-4
Technical Specifications…………………………………………………………………………4
Control Menu ……………………………………………………………………………………5
DMX Channels …………………………………………………………………………………6-7
Dimension…………………………………………………………………………………………8
Trouble Shooting…………………………………………………………………………………9
Fixture Cleaning………………………………………………………… ………………………9
STATEMENT
The product has well capability and intact packing when leave factory. All of the user should
comply with warning item and manual, any misuse cause of the damages are not included in our
guarantee, and also can not be responsible for any malfunction & problem owing to ignore the
manual.

3
1.Safety Instructions
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
•Unpack and check carefully there is no transportation damage before using the unit.
•Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
•It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
•The unit is for indoor use only. Use only in a dry location.
•The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
•Disconnect main power before replacement or servicing.
•Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
•Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always
by taking its base.
•Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher
than this Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand
during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before
replacing or serving.
•the event of serious operating problem, stop using the unit immediately.Never try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.
•DO NOT touch any wire during operation as high voltage might be causing electric shock.
Warning:
•To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
•The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution:
•There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation:

4
•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly
fixed to avoid vibration and slipping while operating. And make sure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also
always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.
•The equipment must be fixed by professionals. And it must be fixed at a place where is out of the
touch of people.
2.Technical Specifications
Input Voltage: 100-240V, 50/60Hz
Power consumption: 250W
Beam angle:15°,8°,3°in optional
Light source: Advanced 230w white led
Led life: 60.000 hours
Luminous Flux: 16200 lumen .
Pan: 540°(16bit) Electric correction
Tilt：270° (16bit) Electric correction
Gobos:
Outside ￠25.8mm, inside ￠21.5mm
6+ open custom interchangeable rotating gobo. indexable and gobo
Shaking
8+ open fixed gobos·
Prism: 6-faced linear 、8-facet prism 、frost
Motorized auto focus
Full range 0-100% dimmer
Frost effect
Dimming:0-100% linear adjustment
DMX Channels:16 channels
Control mode:DMX512,Auto, Sound active, Master/slave
Dimension:275*245*353 mm; NW: 12KGS;GW:14KGS

5
3.Control Menu
[BACK] menu selection or return to previous menu.
[UP] press [UP] through the menu list to increase/change the value of the current function.
[DOWN] press [DOWN] through the menu list to decrease/change the value of the current function.
[RIGHT] press [RIGHT] to return to previous menu.
[OK] confirm & quit out current function setting.
set up
function
Address
1 - 512
Set address code
Channel
16CH
Set channel
Run Mode
DMX, Sound,
Master/Slave,
Auto
Set Run mode
Address Auto
ON/OFF
The address code is automatically calculated. For example, the current
address code is 1 and the channel mode is 16CH. After the address code is
turned on automatically, press the set address code to automatically add 16,
that is, the address code becomes 17
Signal hold
ON/OFF
After opening, the original action will be maintained if there is no signal
Pan Tilt Swap
ON/OFF
X and Y channel exchange
PanREV
ON/OFF
X-axis reversal
TiltREV
ON/OFF
Y-axis reversal
Encoder
ON/OFF
Encoder error correction
Hall
ON/OFF
Hall error correction
Restore settings
Yes / no
Restore factory settings (but do not restore trim data)

6
4.DMX Channels
CH16
Channel
Function
Value
Description
CH1
Pan
0-255
0-540 degree
CH2
Pan Fine
0-255
0-2 degree
CH3
Tilt
0-255
0-270 degree
CH4
Tilt Fine
0-255
0-2 degree
CH5
Pan/Tilt
speed
0-255
From fast to slow
CH6
Dimmer
0-255
Dimmer 0-100%
CH7
Strobe
0-3
No function
4-100
Strobe at linearly variable frequency from slow to fast
101-150
Pulsation at linearly variable speed
151-200
Pulsation at linearly variable speed
201-250
Random strobe
251-255
No function
CH8
Color
0-9
Open/White
10-19
Half color White + Red
20-29
Color 1 Red
30-39
Half color Red + Green
40-49
Color 2 Green
50-59
Half color Green + Blue
60-69
Color 3 Blue
70-79
Half color Blue + yellow
80-89
Color 4 Yellow
90-99
Half color Yellow + Orange
100-109
Color 5 Orange
110-119
Half color Orange + Magenta
120-129
Color 6 Magenta
130-139
Half color Magenta + Warm White
140-149
Color 7 Warm White
150-159
Half color Warm White + White
160-204
Forwards rainbow effect from fast to slow
205-210
Stop
211-255
Backwards rainbow effect from slow to fast
CH9
Focus
0-255
CH10
Gobo 1
0-9
Open
10-19
Gobo 1
20-29
Gobo 2
30-39
Gobo 3
40-49
Gobo 4
50-59
Gobo 5
60-69
Gobo 6
70-79
Gobo 1 shake from slow to fast

7
CH10
Gobo 1
80-89
Gobo 2 shake from slow to fast
90-99
Gobo 3 shake from slow to fast
100-109
Gobo 4 shake from slow to fast
110-119
Gobo 5 shake from slow to fast
120-129
Gobo 6 shake from slow to fast
130-190
forwards gobo rotation from slow to fast
191-194
Stop
195-255
Backwards gobo rotation from slow to fast
CH11
Gobo 1
Rot
0-127
Index
128-189
Forwards gobo rotation from fast to slow
190-193
Stop
194-255
Backwards gobo rotation from slow to fast
CH12
Indexing
fine
0-255
CH13
Gobo 2
0-9
Open
10-19
Gobo 1
20-29
Gobo 2
30-39
Gobo 3
40-49
Gobo 4
50-59
Gobo 5
60-69
Gobo 6
70-79
Gobo 7
80-89
Gobo 8
90-99
Gobo 1 shake from slow to fast
100-109
Gobo 2 shake from slow to fast
110-119
Gobo 3 shake from slow to fast
120-129
Gobo 4 shake from slow to fast
130-139
Gobo 5 shake from slow to fast
140-149
Gobo 6 shake from slow to fast
150-159
Gobo 7 shake from slow to fast
160-169
Gobo 8 shake from slow to fast
170-210
forwards gobo rotation from slow to fast
211-214
Stop
215-255
Backwards gobo rotation from slow to fast
CH14
prism
0-66
No function
67-128
Prism 1
129-191
Prism 2
192-255
Frost
CH15
Prism rot
0-127
Index
128-188
Forwards rotation from fast to slow
189-194
Stop
196-255
Backwards rotation from slow to fast
CH16
reset
0-25
No function
26-76
Reset Small motors
77-127
Reset Pan/Tilt
128-255
Reset all motors

8
5.Dimension

9
6.Trouble Shooting
F ollo w ing a r e a few c o mm on p r oble m s th a t m a y occu r d uring ope r a tion . He r e a r e s o m e s ug g es tion s fo r
ea s y tr ou b leshooting :
A. The un it does no t work , no li ght a n d t he f a n d o es no t w o r k
1. Check th e c on nect ion of p owe r a nd m a in fu s e .
2. M eas ure th e m a ins volt a ge on th e m a i n co nn e ct o r .
3. Check th e pow er on LED .
B. N o t responding t o D MX c on t ro ll er
1. D M X LED s h ou ld b e on. If no t, che ck D M X co n nectors, ca b l es to s ee if link p r ope r ly .
2. If th e D M X LE D i s on a nd no r espons e t o th e c h a nn el, che ck th e a dd r ess s etti ng s a nd D M X p ol a r ity .
3. If y ou h a ve i nter m ittent D M X s ig n a l p r oble m s , che ck th e p ins on c onn ecto r s or on
PCB of th e u nit or the p r ev iou s on e.
4. Tr y to us e a no th er D M X co ntroller .
5. Check if th e D M X ca b le s r un ne a r or run a lon g s id e t o h ig h volta ge c a b les th a t m a y c a us e d a m a ge or
in terfer ence to D M X inter face circui t.
C . One of the cha nn el s is no t w o r k ing w el l
1. Th e s tep p er moto r m ig h t b e dam a g ed or the c a b le c on nect ed to th e PCB is b r oken.
2. Th e m oto r ’ s d r ive IC on th e PCB m ig h t b e o ut of co ndition
7.Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp,
smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
