Uplus Lighting SLM-BAR24 User manual

User manual
SLM-BAR24
Please read the instructions carefully before use

2
TABLE OF CONTENTS
1. Safety Instructions……………………………………………………………………………3-4
Technical Specifications…………………………………………………………………………4
Control Menu ………………………………………………………………………………………5
DMX Channels ……………………………………………………………………………………6
Trouble Shooting………………………………………………………………………………….7
Fixture Cleaning………………………………………………………… ………………………7
STATEMENT
The product has well capability and intact packing when leave factory. All of the user should
comply with warning item and manual, any misuse cause of the damages are not included in our
guarantee, and also can not be responsible for any malfunction & problem owing to ignore the
manual.

3
1.Safety Instructions
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
•Unpack and check carefully there is no transportation damage before using the unit.
•Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
•It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
•The unit is for indoor use only. Use only in a dry location.
•The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
•Disconnect main power before replacement or servicing.
•Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
•Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always
by taking its base.
•Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher
than this Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand
during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before
replacing or serving.
•the event of serious operating problem, stop using the unit immediately.Never try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.
•DO NOT touch any wire during operation as high voltage might be causing electric shock.
Warning:
•To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
•The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution:
•There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation:
•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly

4
fixed to avoid vibration and slipping while operating. And make sure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also
always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.
•The equipment must be fixed by professionals. And it must be fixed at a place where is out of the
touch of people.
2.Technical Specifications
Light source: 24 x 8W RGBW 4in1 led
Input Voltage : AC100-240V 50-60Hz
Beam angle:25degree
Control Model: DMX512/Auto Run/Slave-Master/Sound
DMX Channel: 12/32 ch
IP Rate: IP20
Dimensions : L1000* W65* H140 mm
NW:3 KGS

5

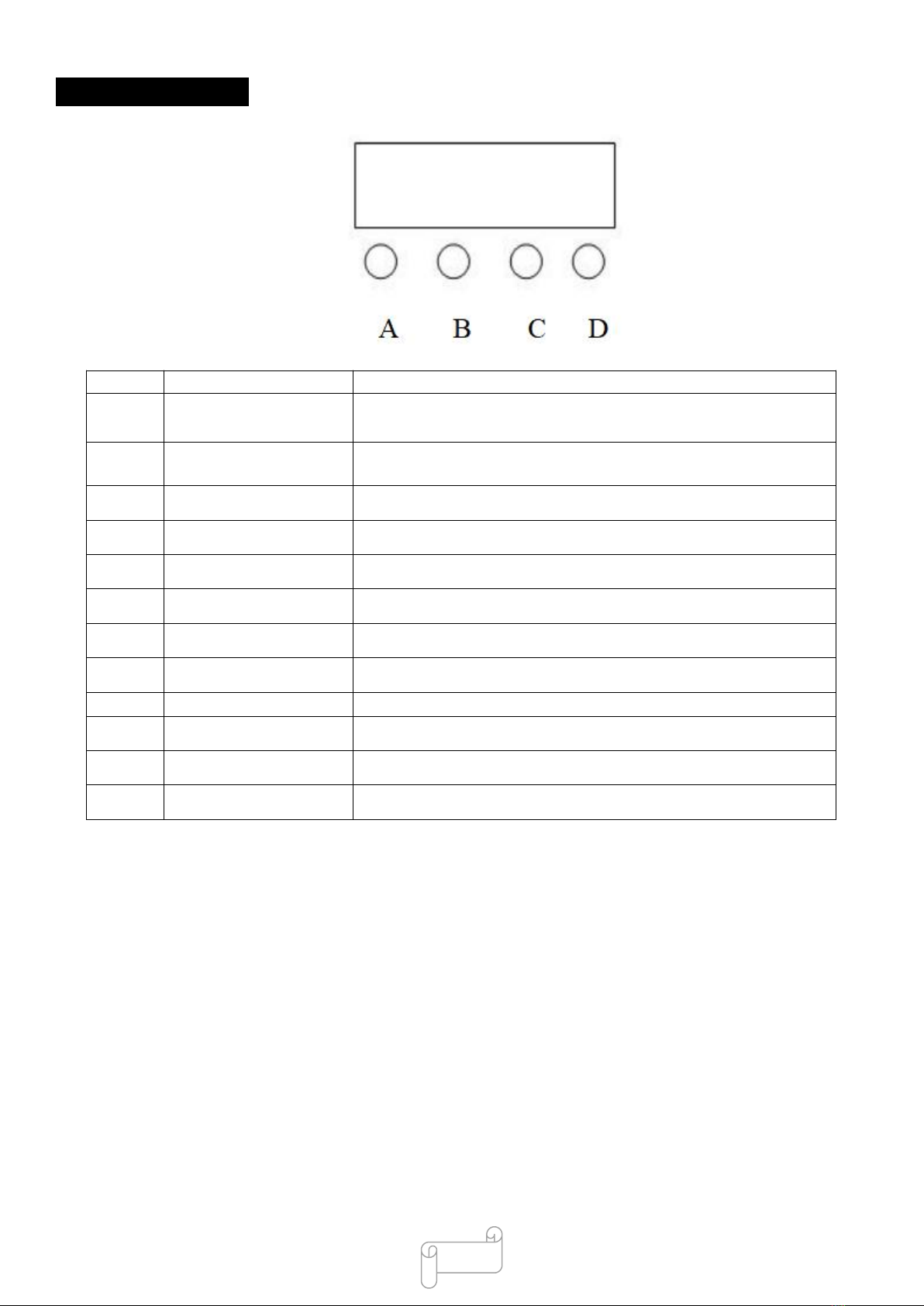

3.Control Menu
No
Show
Function Instruction
1
d001
DMX Address（001—512）
32 Channels mode
2
A001
DMX Address（001—512）
12 Channels mode
3
R255
Red Dimming, From dark to light
4
G255
Green Dimming, From dark to light
5
B255
Blue Dimming, From dark to light
6
U255
White Dimming, From dark to light
7
FH01
(01-08) 8Color output
8
CL01
(01-50) 50 effects, speed from slow to fast
9
SP99
(01-99) Function speed, from slow to fast
10
DE99
(01-99) Gradient speed from slow to fast
11
CC99
(01-99) Jump speed from slow to fast
12
SU09
(01-09) Sound control

6
4.DMX Channels
12 Channels Mode:
Channel
DMX Value
Function
CH1
000-255
Dimmer
RGBW Total Dimming, From dark to light
CH2
000-255
Red
Red dimming,From dark to light
CH3
000-255
Green
Green dimming,From dark to light
000-255
Blue
Blue dimming,From dark to light
CH5
000-255
White
White dimming,From dark to light
CH6
000-255
Strobe
RGBW Strobe,SPEED FROM SLOW TO FAST
CH7
000-009
Feature selection
Dmx Dimming
010-255
effect
CH8
000-255
Feature speed
From slow to fast
CH9
000-255
Red1
Red background Dimming, From dark to light
CH10
000-255
Green1
Green background Dimming, From dark to light
CH11
000-255
Blue1
Blue background Dimming, From dark to light
CH12
000-255
White1
White background Dimming, From dark to light
32 Channels Mode:
Channel
DMX Value
Function
CH1
000-255
R1
Red 1 Dimming, From dark to light
CH2
000-255
G1
Green 1 Dimming, From dark to light
CH3
000-255
B1
Blue 1 Dimming, From dark to light
CH4
000-255
W1
White 1 Dimming, From dark to light
CH5
000-255
R2
Red 2 Dimming, From dark to light
CH6
000-255
G2
Green 2 Dimming, From dark to light
CH7
000-255
B2
Blue 2 Dimming, From dark to light
CH8
000-255
W2
White 2 Dimming, From dark to light
CH9
000-255
R3
Red 3 Dimming, From dark to light
CH10
000-255
G3
Green 3 Dimming, From dark to light
CH11
000-255
B3
Blue 3 Dimming, From dark to light
CH12
000-255
W3
White 3 Dimming, From dark to light
CH13
000-255
R4
Red 4 Dimming, From dark to light
CH14
000-255
G4
Green 4 Dimming, From dark to light
CH15
000-255
B4
Blue 4 Dimming, From dark to light
CH16
000-255
W4
White 4 Dimming, From dark to light
CH17
000-255
R5
Red 5 Dimming, From dark to light
CH18
000-255
G5
Green 5 Dimming, From dark to light
CH19
000-255
B5
Blue 5 Dimming, From dark to light
CH20
000-255
W5
White 5 Dimming, From dark to light
CH21
000-255
R6
Red 6 Dimming, From dark to light
CH22
000-255
G6
Green 6 Dimming, From dark to light
CH23
000-255
B6
Blue 6 Dimming, From dark to light
CH24
000-255
W6
White 6 Dimming, From dark to light
CH25
000-255
R7
Red 7 Dimming, From dark to light
CH26
000-255
G7
Green 7 Dimming, From dark to light
CH27
000-255
B7
Blue 7 Dimming, From dark to light
CH28
000-255
W7
White 7 Dimming, From dark to light
CH29
000-255
R8
Red 8 Dimming, From dark to light
CH30
000-255
G8
Green 8 Dimming, From dark to light
CH31
000-255
B8
Blue 8 Dimming, From dark to light
CH32
000-255
W8
White 8 Dimming, From dark to light

7
5.Trouble Shooting
F ollo w ing a r e a few c o mm on p r oble m s th a t m a y occu r d uring ope r a tion . He r e a r e s o m e s ug g es tion s fo r
ea s y tr ou b leshooting :
A. The un it does no t work , no li ght a n d t he f a n d o es no t w o r k
1. Check th e c on nect ion of p owe r a nd m a in fu s e .
2. M eas ure th e m a ins volt a ge on th e m a i n co nn e ct o r .
3. Check th e pow er on LED .
B. N o t responding t o D MX c on t ro ll er
1. D M X LED s h ou ld b e on. If no t, che ck D M X co n nectors, ca b l es to s ee if link p r ope r ly .
2. If th e D M X LE D i s on a nd no r espons e t o th e c h a nn el, che ck th e a dd r ess s etti ng s a nd D M X p ol a r ity .
3. If y ou h a ve i nter m ittent D M X s ig n a l p r oble m s , che ck th e p ins on c onn ecto r s or on
PCB of th e u nit or the p r ev iou s on e.
4. Tr y to us e a no th er D M X co ntroller .
5. Check if th e D M X ca b le s r un ne a r or run a lon g s id e t o h ig h volta ge c a b les th a t m a y c a us e d a m a ge or
in terfer ence to D M X inter face circui t.
C . One of the cha nn el s is no t w o r k ing w el l
1. Th e s tep p er moto r m ig h t b e dam a g ed or the c a b le c on nect ed to th e PCB is b r oken.
2. Th e m oto r ’ s d r ive IC on th e PCB m ig h t b e o ut of co ndition
6.Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp,
smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
