Uraku SP1505-SS User manual

HD DVB-T2 SET TOP BOX
USER GUIDE
SP1505-SS

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 1
V1.2–May 8 2014
IMPORTANT SAFETY INSTRUCTIONS
-The ventilation should not be impeded by covering the ventilation with items, such as
newspapers, table-cloths, curtains, etc.;
-No naked flame sources, such as lighted candles, should be placed on the apparatus;
-Attention should be drawn to the environment aspects battery disposal. Don’t throw used
batteries in dustbin. Please contact your retailer in order to protect the environment;
-Don’t use the apparatus in tropical climates;
-The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus;
-Where the mains plug is used to as the disconnect device, the disconnect device shall
remain readily operable. The main plug shall remain readily operable;
- Keep minimum distance (5cm) around the apparatus for sufficient ventilation. (Minimum
distance around the apparatus for sufficient ventilation).
- If the electric cable is damaged, it must be replaced by the manufacturer, or by the
qualification persons, in order to avoid a danger.

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 2
V1.2–May 8 2014
Contents
IMPORTANT SAFETY INSTRUCTIONS................................................................................................ 1
1 Introduction......................................................................................................................................... 4
2 Remote Control................................................................................................................................... 5
2.1 Appearance of Remote Control..................................................................................................... 5
3 Basic functions................................................................................................................................... 7
3.1 First Installation ............................................................................................................................. 7
3.2 TV/RADIO Programs Switch ......................................................................................................... 7
3.3 Channel Switch.............................................................................................................................. 7
3.4 TV & Radio Channel List / FAV List............................................................................................... 7
3.5 Display Information of Programs................................................................................................... 8
3.6 Program Recall.............................................................................................................................. 8
3.7 Multi Audio Language Switch and L/R Channel Switch ................................................................ 8
3.8 Electronic Programs Guide (EPG) ................................................................................................ 9
3.9 Teletext ........................................................................................................................................ 10
3.10 Subtitle........................................................................................................................................11
3.11 REC & Time shift functions.........................................................................................................11
3.11.1 REC (Instant Recording) .................................................................................................................11
3.11.2 Time shift........................................................................................................................................ 12
4 Installation......................................................................................................................................... 13
4.1 Auto Search................................................................................................................................. 14
4.2 Manual Search ............................................................................................................................ 14
4.3 Channel Filter .............................................................................................................................. 15
4.4 Country........................................................................................................................................ 15
4.5 LCN (Logical Channel Numbering) ............................................................................................. 15
4.6 Active Antenna............................................................................................................................. 15
5 Channel.............................................................................................................................................. 16
5.1 Channel Manager........................................................................................................................ 16
5.2 Favorite List................................................................................................................................. 17
6 Preference Setting............................................................................................................................ 19
6.1 OSD Language............................................................................................................................ 19
6.2 OSD Timeout............................................................................................................................... 19
6.3 OSD Transparency...................................................................................................................... 19
6.4 Preferred Subtitle......................................................................................................................... 19
6.5 Hard Hearing............................................................................................................................... 20

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 3
V1.2–May 8 2014
6.6 Preferred Audio............................................................................................................................ 20
6.7 PVR Configuration....................................................................................................................... 20
7 System Setting.................................................................................................................................. 22
7.1 Timers.......................................................................................................................................... 22
7.2 Child Lock.................................................................................................................................... 24
7.3 Date Time.................................................................................................................................... 24
7.4 Factory Reset .............................................................................................................................. 25
7.5 Upgrade....................................................................................................................................... 25
7.5.1 USB/Card Upgrade.......................................................................................................................... 25
7.5.2 OTA Upgrade ................................................................................................................................... 25
7.6 Version......................................................................................................................................... 25
7.7 Auto Standby ............................................................................................................................... 25
8 Audio / Video Setting........................................................................................................................ 26
8.1 SPDIF.......................................................................................................................................... 26
8.2 Aspect Ratio ................................................................................................................................ 26
8.3 Video Output................................................................................................................................ 26
8.4 Video Resolution ......................................................................................................................... 27
8.5 HDMI Audio ................................................................................................................................. 27
9 Multi-Media........................................................................................................................................ 27
9.1 Media Selection Mode................................................................................................................. 27
9.2 Movie........................................................................................................................................... 27
9.2.1 Movie File Browser........................................................................................................................... 28
9.2.2 Movie Playback................................................................................................................................ 28
9.3 Music ........................................................................................................................................... 28
9.4 Photo ........................................................................................................................................... 29
9.5 Record Manager.......................................................................................................................... 30
9.5.1 Recorder Manager Browser............................................................................................................. 30
9.5.2 Rename ........................................................................................................................................... 30
9.6 Disk Manager .............................................................................................................................. 31
9.6.1 Disk Manager Browser..................................................................................................................... 31
10 Software Upgrade........................................................................................................................... 31
10.1 USB Upgrade ............................................................................................................................ 32
11 Specifications ................................................................................................................................. 33

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 4
V1.2–May 8 2014
1 Introduction
Front Panel
Rear Panel
USB Host
Remote Sensor
Display
Left Button
Power Button
Right Button
Power Indicator
DC 12V Input Jack
Down Mix Audio L & R
Coaxial Digital Audio
HDMI Video
TV Aerial Input
RF Loop out
Composite Video

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 5
V1.2–May 8 2014
2 Remote Control
2.1 Appearance of Remote Control
Photograph
Key
Function
POWER
Switch On/Off power supply
MUTE
Mute control
RED
Depend on OSD Hints
GREEN
Depend on OSD Hints
YELLOW
Depend on OSD Hints
BLUE
Depend on OSD Hints
REPEAT
Set repeat mode
SUB
Switch the different language of subtitle
TTX
Teletext
AD
Switch the audio description on / off
FR
Fast play backward while media playing
FF
Fast forward while media playing
PREV / NEXT
Play previous/next of Media in USB storage
PLAY / PAUSE
Play/ Replay/ Pause media
STOP
Stop playing media
1)Return to upper menu
2)Press “recall” while watching TV to recall previously
viewed channel
AUDIO
Press to set audio mode / press to select Language
EPG
Go to TV Program Guide
INFO
1)Display information of programs
2)Display corresponding extended information at
TV Guide state
PAGE +/ -
Page Up/Down in Teletext
OK
OK key to confirm one setting

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 6
V1.2–May 8 2014
Navigation keys: UP
/DOWN/ LEFT / RIGHT
Navigation keys to move up, down, left & right &
press
MENU
To display main menu, press again to exit current
menu
EXIT
Exit from current Menu, Back to previous menu
without saving. During multimedia playback, go back
to previous TV program.
VOL + / -
Volume adjusting
USB
Go to USB Media
REC
Enter REC menu
CH+ / -
Select previous / next channel
NUMBER 0 - 9
Numeric keys: for inputs of numbers or selecting a
TV channel
FAV
Go to Favorite List
TV/RADIO
Press to switch between TV & Radio program

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 7
V1.2–May 8 2014
3 Basic functions

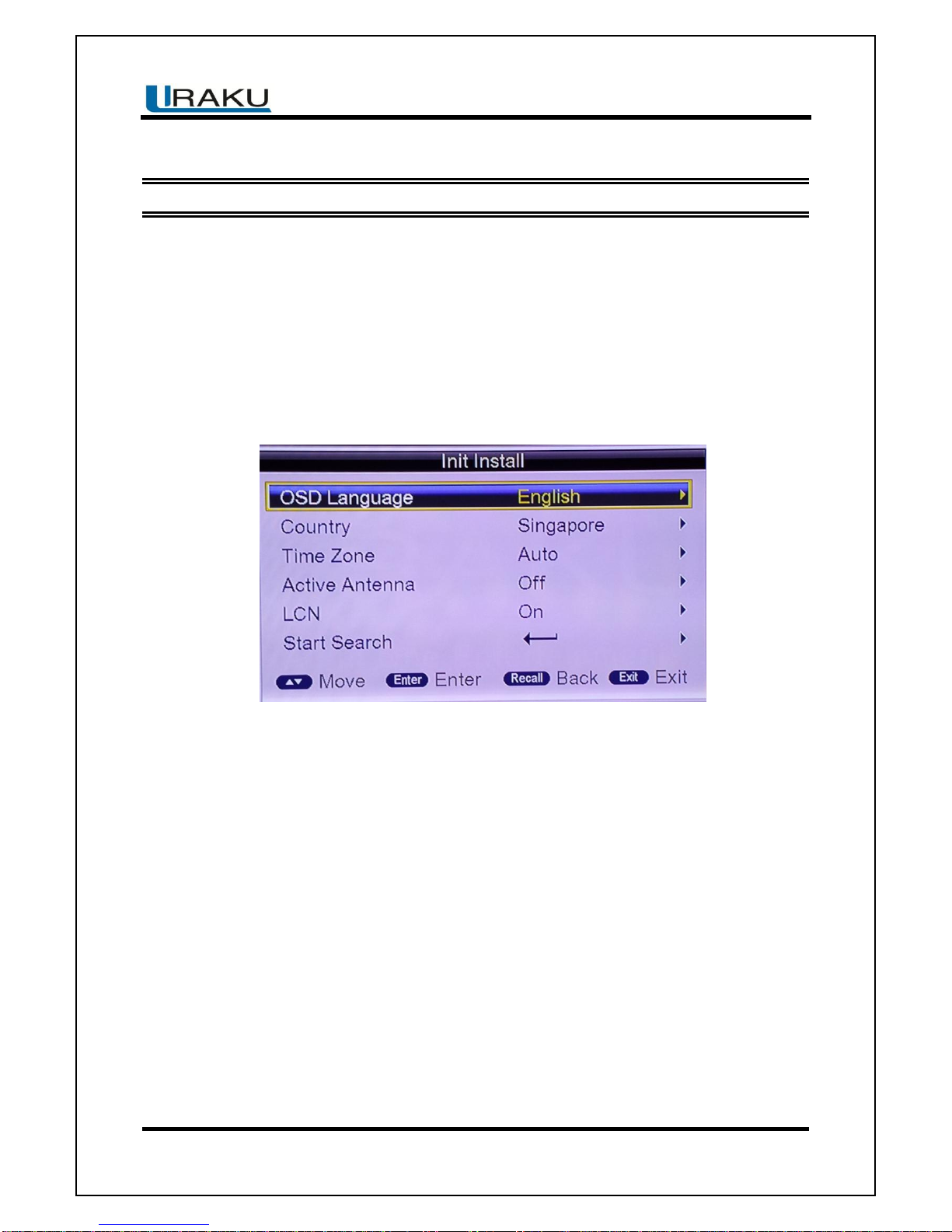

3.1 First Installation
If you are using the unit for the first time or have restored the unit to Factory Default, the
installation Guide Menu will appear on your TV screen. Follow each of the option of the
Installation Menu to setup your preferred menu languages and suitable country (Region) etc.
First installation shall setup some important settings.
Use the arrow keys on the remote control to select your preferred Language, Country, Time
Zone, LCN, then select Start Search.
3.2 TV/RADIO Programs Switch
Press “TV/RADIO” to switch between Digital TV programs and Digital Radio programs when
watching TV.
3.3 Channel Switch
Press CH+/CH- to switch to the previous or next program.
Press number keys to input program number.
3.4 TV & Radio Channel List / FAV List
Press “OK” to switch to the channel program list, press “LEFT/RIGHT” to select different
program column (All Channels, Fav1, Fav2, Fav3 & Fav4), press “UP/DOWN” to select
program item.

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 8
V1.2–May 8 2014
Press “OK” to confirm program selection, press “EXIT” to exit the program list.
If there are some favorite programs that been set up, just press “LEFT/RIGHT” key to enter
into the favorite program list:
Press “UP/DOWN” to select favorite program, press “OK” to confirm the selection, press
“RECALL” to return to previous menu.
3.5 Display Information of Programs
Press “INFO” to show the information of current programs when it is in normal playing state.
Press again “INFO” to show more detail of the TV program information.
3.6 Program Recall
Press “RECALL” under state of full-screen to return to the previous played program.
3.7 Multi Audio Language Switch and L/R Channel Switch
The program might have multilingual audio languages and the audio broadcast on different
audio mode such as Stereo, left or Right. All the available audio languages will be displayed
while you press “AUDIO” key.

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 9
V1.2–May 8 2014
The screenshot is illustrated as below. If there is no audio output after you select the audio
language, it indicates that there is no audio on the current audio mode, so you have to select
preferable audio mode.
1. Press “AUDIO” to switch the language of sound of current programs and switch among
“Stereo”“Left”“Right” (StereoLeft channelRight channel).
2. Press “LEFT/RIGHT” to switch among “stereo”“left”“right”(stereoleft channelright
channel), press “UP/DOWN” to switch the language of sound.
3. Press “OK” to confirm the selection and press “EXIT” to return to full-screen play mode
and save the setting.

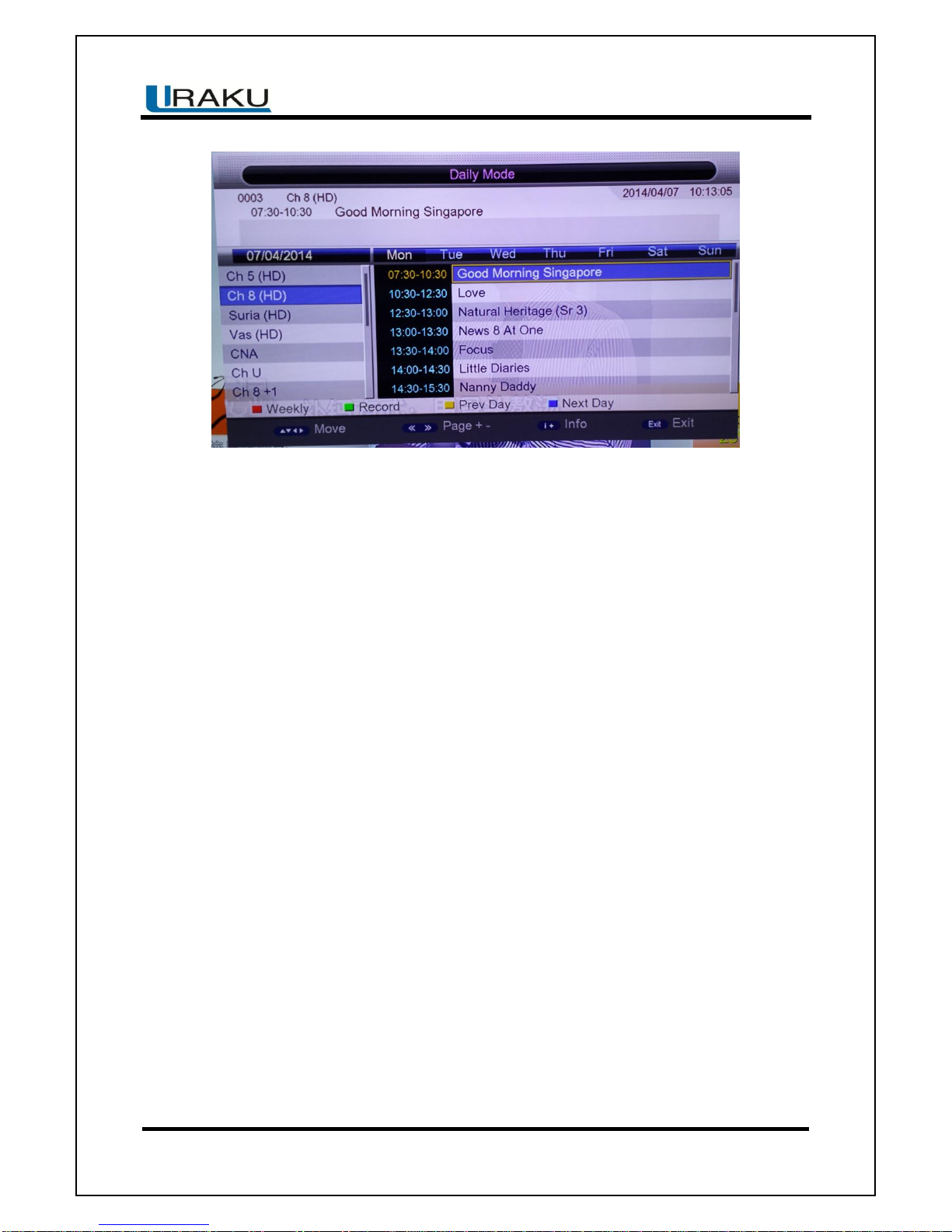

3.8 Electronic Programs Guide (EPG)
1. You can press “EPG” on the remote control to enter into the EPG page to know more
about the programs to be played.
Enter into EPG mode menu default enter is Daily Mode, menu under this mode contain 7
parts:

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 10
V1.2–May 8 2014
(1) Tab 1 shows the Title.
(2) Tab 2 shows time and date list.
(3) Tab 3 shows particular date list.
(4) Tab 4 shows program list, press “UP/DOWN” to switch between programs.
(5) Tab 5 shows the time range and program information.
(6) Tab 6 shows the detailed program information in Tab 5.
(7) Press “LEFT/RIGHT” to switch between channel list and program information.
2. Press “RED” key to enter into Weekly/Now and Next Mode to display the programs and
program information in different time ranges of the current program list within one week.
(1) Press “BLUE” key to go to Next Day when in Daily Mode.
(2) Press UP/DOWN key to move upward and downward to switch between the different
programs.
(3) Press LEFT/RIGHT key to choose to view the program information in different time
ranges.
3. Press the “INFO” key to choose the detailed information corresponding to the current
program.
4. Press the “Green” key to set Timer to book programs.
5. Press “EXIT” to exit from EPG.
3.9 Teletext
1. If you want to watch teletext, please press “TEXT” on the remote controller to enter into
EPG page.

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 11
V1.2–May 8 2014
2. Input three digits to go to corresponding page you want to reach.
3. Press “UP” to go to the previous page, while press “DOWN” to go to the next page.
4. Press “OK” to adjust the transparence of the Teletext page.
5. Press “TEXT” or “EXIT” to exit from teletext menu.
3.10 Subtitle
1. Subtitle is defaulted to be off. The programs might have multilingual subtitle information.
Press “SUB” key on the remote controller to enter the Subtitle menu of the current programs.
All available subtitle languages will be displayed.
2. Press UP/DOWN key move upward and downward to select language.
3.11 REC & Time shift functions
3.11.1 REC (Instant Recording)

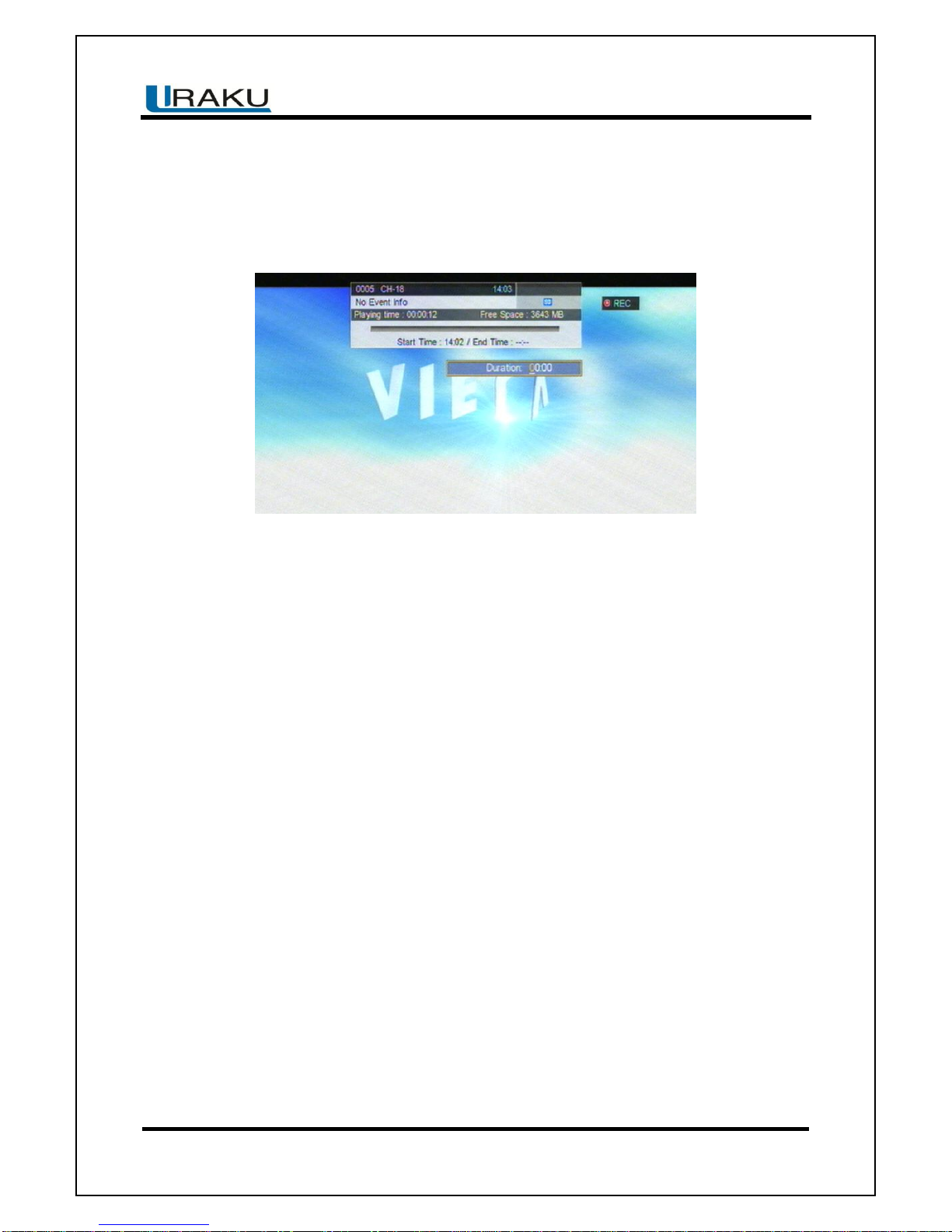

During TV watching press “REC” to start recording, system has 3 seconds for initialization.
When initialization is finished, the screen left top will show “REC” icon, then it’s recording and
playing current program. You can press “Info” to watch current recorded information.

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 12
V1.2–May 8 2014
Press “Stop” key while recording, will stop recording and resume normal play mode.
In recording mode, you can also use “Rec” key to set timer for subscribe stop record, besides
you can reset the time optionally. (Can set the time length as cancel (00:00), or user define
length). When the space is insufficient while recording, system will show “ Storage Device
Disk is Full” then stop recording and resume normal playback mode.
During recording mode, you also can operate “Menu”, EPG, TTX, SUB, and so on functions
like normal playback mode.
3.11.2 Time shift
1. In Time Shift mode, you can watch the program meanwhile record the program.
2) In the below case press “PAUSE” key can into time shift mode, then the “TIMESHIFT” icon
will be shown on left top side of the screen, and record program play will begin at recording
start time.
a) In normal playback mode, and Timeshift set as Auto or Pause within PVR Config menu.
b) In recording mode.
3) In the below case press “<<” key also can into time shift mode, and playing program will
fast rewind.
a) In normal playback mode, and time shift set as Auto or Pause within PVR Config
menu.
b) In recording mode.
4) In time shift mode, when press “STOP” key will exit Timeshift mode and other functions
will be continued.
5) In time shift mode, when operate fast forward, the recording is still going on.

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 13
V1.2–May 8 2014
4 Installation
There are two kinds of Installation mode as follow:
1. Auto Search
2. Manual Search
You can enter into parameter “installation page” via input password digitals (default password
is “0000”),.

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 14
V1.2–May 8 2014
4.1 Auto Search
Auto search is a kind of intelligent and convenient mode of programs searching, which
covers programs of all frequent points of target countries or regions.
At present, this system covers many targets countries and regions.
You can move the cursor to “Auto Search” via press “UP/DOWN” key under “Installation
Menu”, then press “OK” to enter into Auto Searching page.
1．After entering into auto search page, system will scan all programs one by one under
frequency points of current countries or regions selected automatically.
2．During scanning, press “EXIT” key to stop and exit scanning.
3．When all channels are detected and the scanning process is finished, press ‘Exit” to quite
the “Main Menu/ Installation” page and display the channel to play.
4.2 Manual Search
If you understand much about digital TV and know the frequency of the program or if you
want to scan the program at any frequency required, you can select manual search, which
will allow you to save much time.
1. You can move the cursor to “Manual Search” via press “UP/DOWN” key under “installation
menu”, then press “OK” to enter into manual search page.
2. Prior manual search, you need to setup relevant parameters including:
(1).Frequency (KHz): the default frequency is settled by different country, you can input
relevant digitals to modify it.
(2).Bandwidth: the default value of bandwidth is settled by different country, while you can
set it to 6MHz, 7MHz or, 8MHz.
3. Press “OK” key after setting all parameters to start manual scan.

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 15
V1.2–May 8 2014

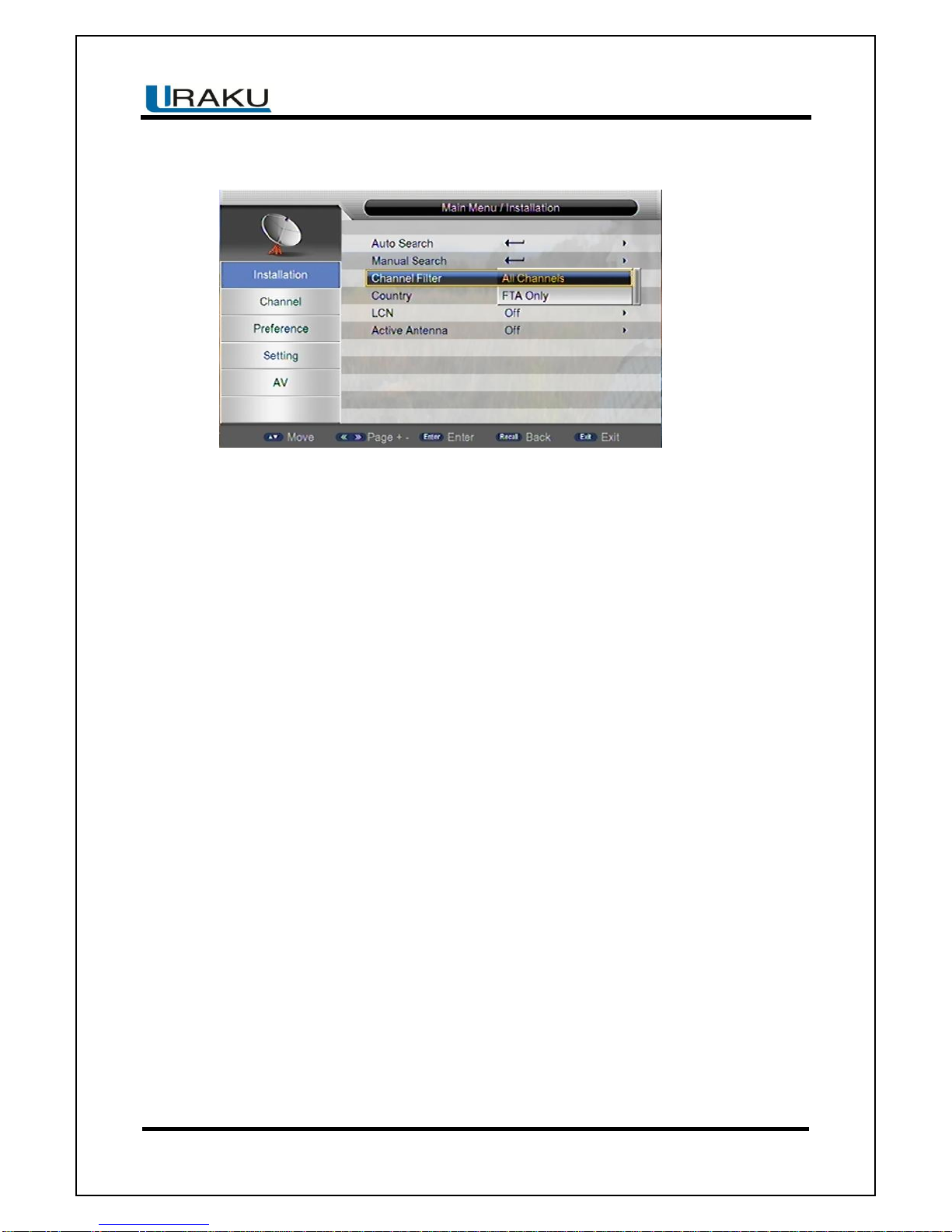

4.3 Channel Filter
All of channels or only unencrypted channels are set to be searched by selective settings.
4.4 Country
Choose your country to be searched by selective settings.
4.5 LCN (Logical Channel Numbering)
Enables/Disables LCN.
4.6 Active Antenna
STB will provide 5V power to your active antenna if you turn on the active antenna.

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 16
V1.2–May 8 2014
5 Channel
System offer an efficient function of channel management such as channel deleting, marking,
moving, locking, rename and grouping.,
There are two independent pages for channel management, TV and RADIO，as shown in the
figure below.
5.1 Channel Manager
Channel manager page includes channel deleting, moving, locking and rename.
1. You can enter the page as shown in the figure below via “MENU > Channel > Channel
Manager”.
2. It will pop up and dialogue box prompting that “Channel not available” when there are no
channels in database to enter into, and it will not enter into channel organizer page.
3. Channel Organizer menu includes: Delete Channel, Skip Channel, Lock Channel and

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 17
V1.2–May 8 2014
channel rename. Press “UP/DOWN”key to choose the line where Channel is, then press the
4-color key on the remote controller:
Press the “Red” key to set and cancel lock Channel
Press the “Green” key to set or cancel Delete Channel
Press the “Yellow”key to set or cancel Skip Channel
Press the “Blue”key to set or cancel Rename Channel. After setting, corresponding
figure will appear;

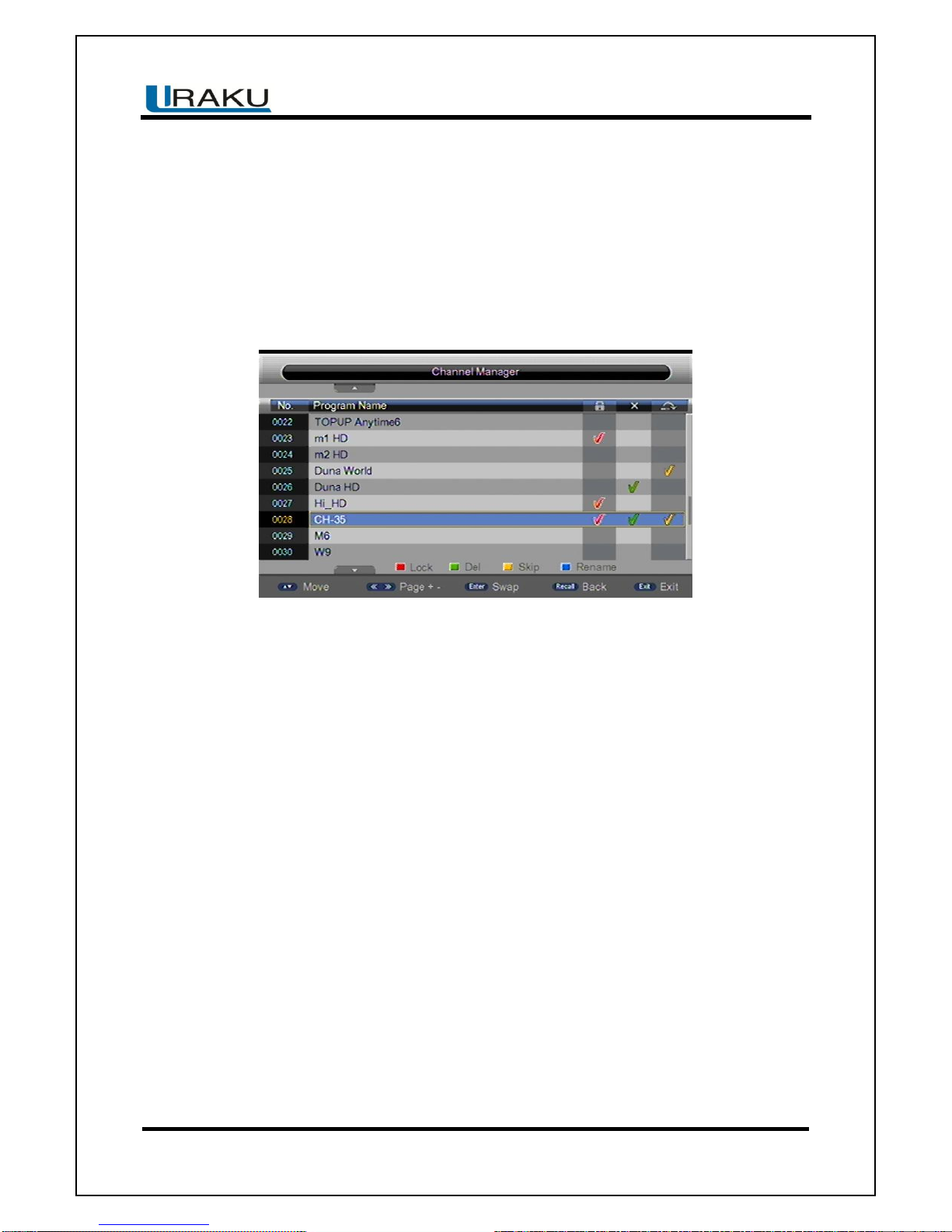

Figure 4.3 Channel manager edit page
4. To rename channel, press UP/DOWN key to choose the line where the channel to be
renamed, press the “Blue” key to enter the page to rename the channel.
5. Press the “Blue” key to exit Channel rename page.
6. To set or cancel Lock Program, the system will hint to input “0000”. To set Delete Program,
the system will hint to choose dialogue box “Delete selected Channels?”, Press LEFT/RIGHT
key to choose, choose “Yes” to delete the program or chosen, “No” to cancel.
7. To swap/renumbering channel, press “OK” key to choose the channel where the channel
to be swap/renumbering.
8. Press “EXIT”key to exit Channel manager page and saving the edit result.
5.2 Favorite List
1. You can enter the page in the figure below via “Main Menu > Channel > Favorite list”.

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 18
V1.2–May 8 2014
2. It will pop up a dialogue box prompting that “Channel not available” when there are no
programs in database to enter into, and it will not enter into channel grouping page.
3. Press “UP/DOWN”key to choose the line where the channel to be grouped is in, then
press the color keys on the remote controller to set different channel grouping.
4. When changing favorite channel is finished, press “EXIT”key and then saving the
selection and indicating with the hint of “ Data Saving …”

SP1505-SS User Guide
FD Digital Pte Ltd
PAGE 19
V1.2–May 8 2014
6 Preference Setting
6.1 OSD Language
OSD Language option: The system has the user interface supporting a couple of languages,
you can set language via OSD Language option:
(1) Move the cursor onto OSD Language option, press “RIGHT” key to enter OSD Language
List.
(2) Press UP/DOWN key choose language
(3) Press “OK” key to confirm system interface language selection, then the setting is
effective, and then the interface language turns into the currently chosen language, the
cursor can move onto OSD Language option on the left.
6.2 OSD Timeout
To set the automatic exit time from Menu: 1S-6S
6.3 OSD Transparency
To set the transparency of Menu: from 0% to 60%.
6.4 Preferred Subtitle
(1) Sets the subtitle to your preferable languages.
Figure 5.3 Preferred subtitle page
