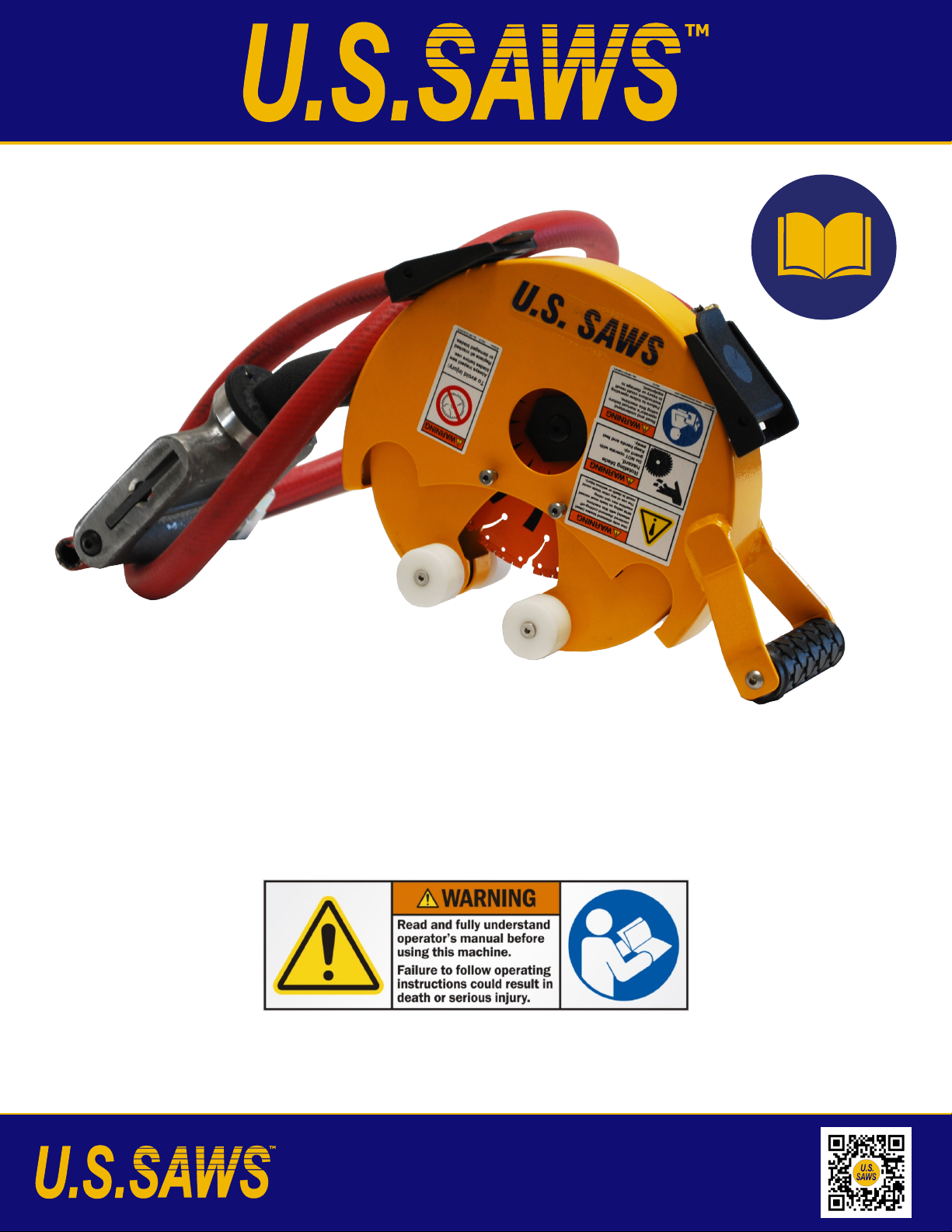

US SAWS Belly Saw User manual

U.S.SAWS BELLY SAW
OPERATING MANUAL
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111
U.S. English
4-26-2021
Notice of Copyright Protection
Copyright 2020, by U.S.SAWS . All rights reserved. This work may not be reproduced or disseminated in whole or in part by any
means without the prior written permission of U.S.SAWS
Waterworks
Division
P: 866- 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]

INTRODUCTION & SPECIFICATIONS
Read this entire operations and maintenance manual before using your new
tool. Pay close attention to the Rules for safer operation,
Dangers, Warnings and Cautions.
The purpose of safety symbols and explanations are to attract your atten-
tion to possible hazards and how to avoid them. The safety symbols and
explanations do not by themselves eliminate any danger. The instructions
or warnings they give are not substitutes for proper accident prevention
measures.
Table of Contents & Introduction ..................................................... 2
Symbols & Decals ................................................................... 3
Safety Instruction ................................................................... 4 - 5
Pre-Operation Checklist ........................................................... 6
Operation ..................................................................... 7

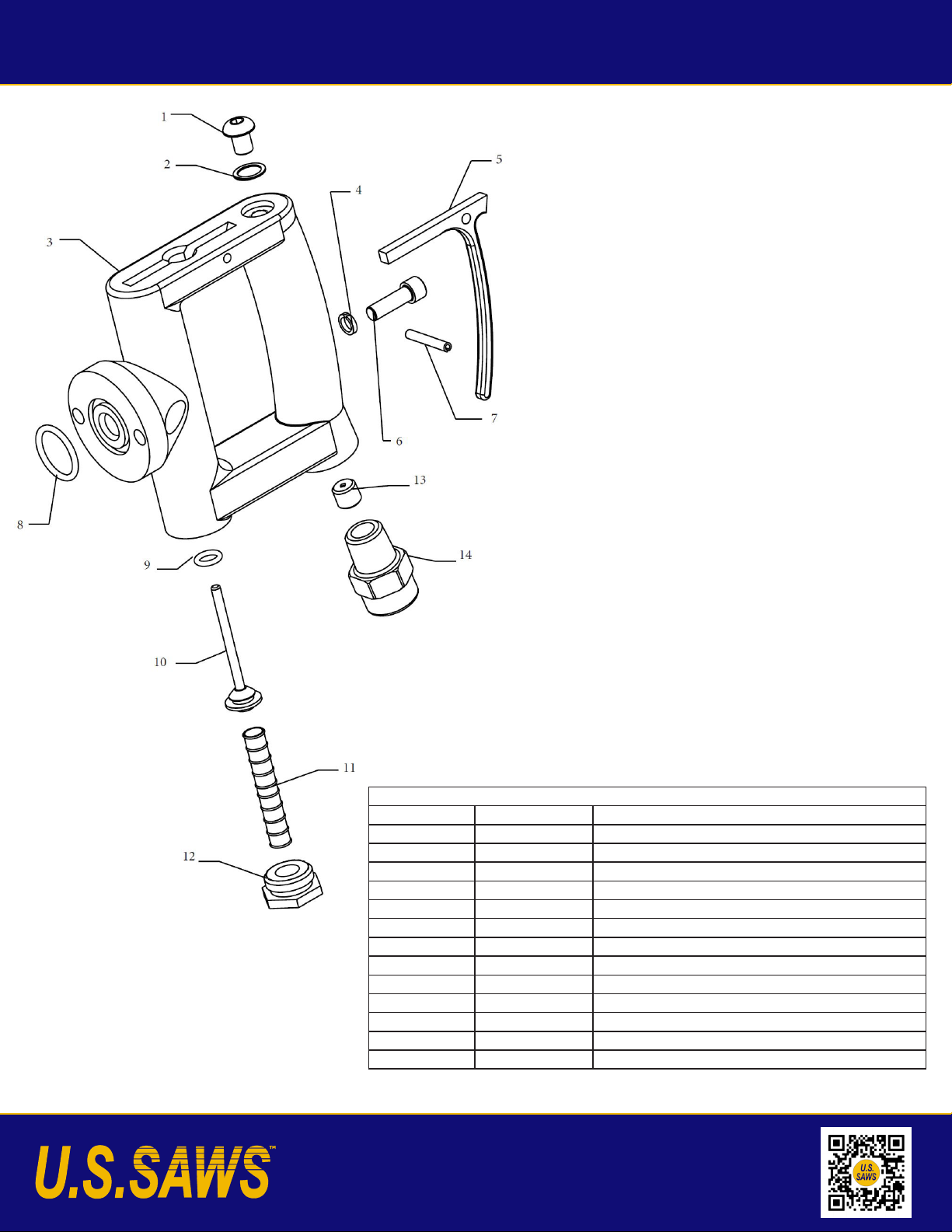

Parts Breakdown ...................................................................... 8 - 9
Warranty & Service ............................................................. 10 - 11
1.0 INSTRUCTIONS FOR USE OF MANUAL SECTIONS
Section Page
2.0 SPECIFICATIONS
Foreword/Introduction
DANGER: Indicates an imminently hazardous situation that if not
avoided, will result in death or serious injury. This signal word is lim-
ited to the most extreme situations.
WARNING: Indicates a potentially hazardous situation that, if not
avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation that, if not
avoided may result in minor or moderate injury. It may also be used to
alert against unsafe practices that may cause property damage.
2
The owner’s manual is intended to point out some of the basic safety situa-
tions that maybe encountered during the normal operation & maintenance
of the U.S.SAWS belly saws & to instruct you in safety practices for dealing
with these conditions. Keep all manuals provided with your
machine in a safe place at all times.
The information and specications included in this publication were
in effect at the time of approval for printing. U.S.SAWS reserves the right,
however, to discontinue or change specications or design at any time with-
out notice and without incurring any obligation.
U.S.SAWS Belly Saw is designed to provide a safe alternative to other cut-
ting methods that can be difcult and dangerous because of the subgrade
location of pipes. The key factor that provides ease and safer operation is
that the tool is strapped to the pipe and is simply drawn around the pipe
creating a straight and efcient cutting process. Other Key factors are that
because of the use of air or hydraulic power sources the tools can run in
the wet conditions without failure. READ, AND CAREFULLY FOLLOW, THE
OPERATING AND SAFETY INSTRUCTIONS OF THIS OPERATING AND SAFETY
INSTRUCTION MANUAL BEFORE USING THIS PRODUCT. Since safety regula-
tions can vary between different countries and states, you must contact
proper authorities and follow all appropriate regulations
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111
Waterworks
Division
P: 866-987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
Model 8” to 24” Belly Saw Big Belly Saw
Power Source Direct Drive Air Motor
RPM 6,000 5,250
Max Pipe Diameter 24” 48” or 72”
Diameter Blades Used 8” 12”
Max Blade Width .125”
Strap Assembly 8” - 24” Up to 48” or 72”
Dimensions (LxWxH) 8.5” x 21” x 10.5” 10.5” x 24” x 12”
Weight 18 lbs 28 lbs
Part Number US60278 US60280 (48”) or US60290 (72”)

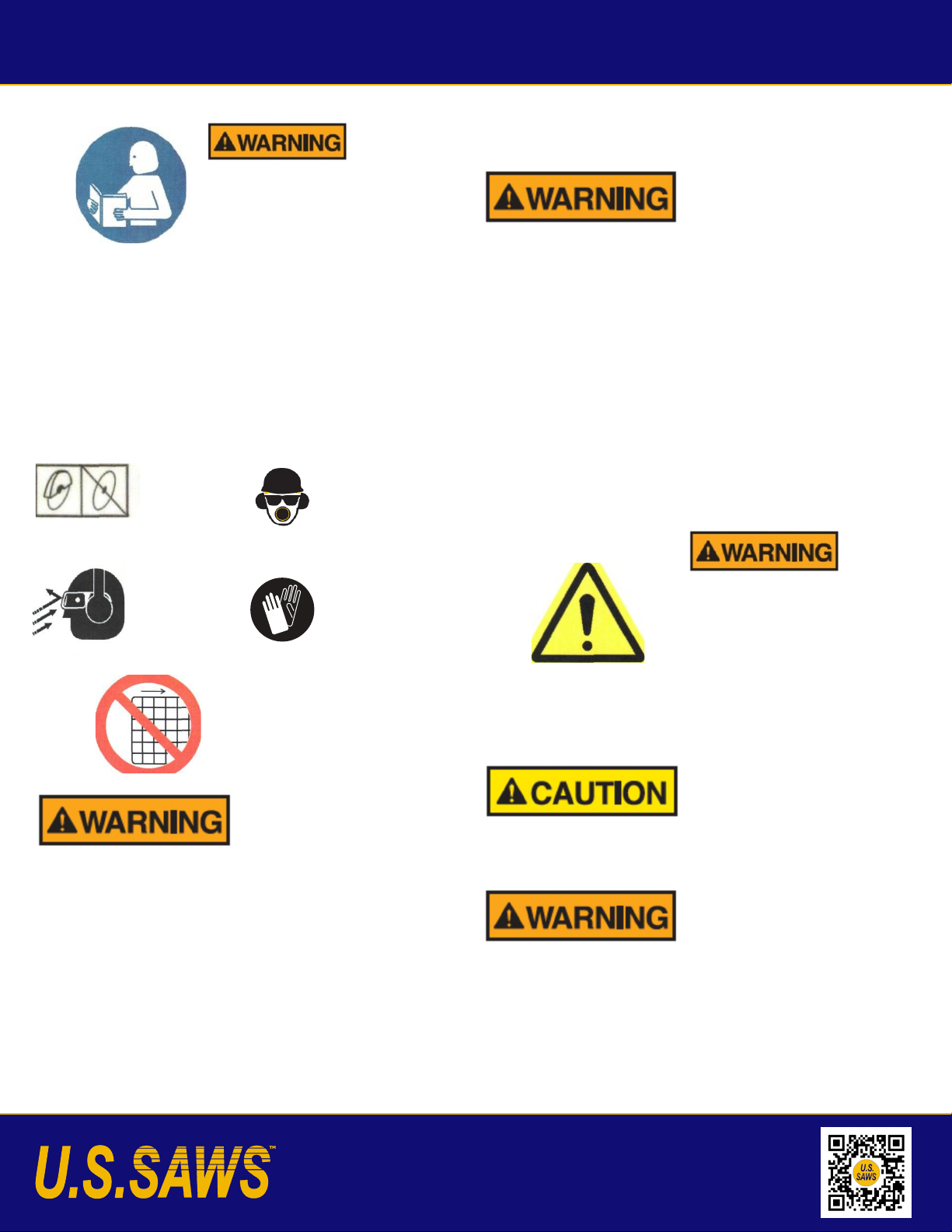

SYMBOLS & DECALS
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1h azard Comm unication Syw ems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1h azard Commu nication Syw ems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1h azard Commu nication Syw ems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1h azard Comm unication Syw ems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1hazard Communication S ywems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1h azard Comm unication Syw ems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1h azard Comm unication Syw ems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation
3
Read and understand operator’s
manual before using this machine.
Failure to follow operating Instruc-
tions could result in injury or dam-
age to equipment.
Flying debris and loud noise
hazards. Wear ear and eye
protection
Wear safety boots when
operating this machine
Wear appropriate clothing
Wear hand protection
Keep all guards in place
Rotating blade hazard.
Keep hands and feet away.
Exhaust contains poisonous
carbon monoxide gas. Breath-
ing it could cause death.
Operate machine in well venti-
lated area.
AVOID INJURY.
Do NOT operate with guard re-
moved. Replace guard before
operating machine.
TO AVOID INJURY.
Always inspect saw blades be-
fore use. Replace all cracked
or damaged blades.
Wear Head Protection, breath-
ing protection, and the use of
hearing protection is manda-
tory
Use only diamond blades (steel cen-
tered diamond cutting-off wheels) with
this machine. RPM rating on blade must
exceed machine max rpm rating. The
use of any other blade could result in
death or serious injury.
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111
For Safe Operation
You must be qualied for safe operation of the U.S.SAWS Belly Saw. You
must clearly understand the written instructions supplied by U.S.SAWS,
be trained - including actual operation - & know the safety rules & regula-
tions for the job site. It is a safety practice to point out & explain safety
signs & practices to others & to make sure they understand the impor-
tance of following these instructions.
Be Safe
Human error is the result of many factors: carelessness, fatigue, sensory
overload, preoccupation, unfamiliarity with the machine or attachments,
or drugs or alcohol, to name a few. You can avoid serious injury or death
caused by these & other unsafe work practices. Be safe and never as-
sume accidents cannot happen to you.
For your safety and the safety of others, act safely and encourage your
fellow workers to act safely as well.
Wear proper electrostatic
grounding equipment at all
times. Static discharge during
fueling can cause explosion
3.0 SYMBOLS & DECALS
Waterworks
Division
P: 866-987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]

SAFETY INSTRUCTIONS
4
4.1 KNOW THE RULES & YOUR EQUIPMENT.
Most job sites have rules governing equipment use & maintenance.
Before starting at a new work location, check with the supervisor or
safety coordinator. Ask about any rules or regulations you need to
abide.
OSHA enforces federal laws within the United States that apply to the
safe operation, application, & maintenance of equipment on job sites.
It is the employer’s responsibility to comply with these laws.
Do not operate this machine unless you have read the operations and
maintenance manual carefully.
4.2 RECEIVE PROPER TRAINING.
Do not operate this machine unless you have received operational and
maintenance training from a U.S.SAWS representative or from an autho-
rized distributor for U.S.SAWS.
4.3 PROTECT YOUR FEET.
Observe all applicable local, state and federal safety regulations. Wear
OSHA approved foot protection.
4.4 PROTECT YOUR EYES.
Observe all applicable local, state and federal safety regulations. Wear
OSHA approved safety glasses.
4.5 PROTECT YOUR LUNGS.
Breathable silica may be generated by use of this product. Silica can
cause severe and permanent lung damage, cancer, and other serious
diseases. Do not breath the dust. Do not rely on your sight or smell to
determine if the dust is in the air. Silica may be in the air without a vis-
ible dust cloud. If air monitoring equipment for silica is not provided by
your employer at your work site, you MUST wear appropriate respiratory
protection when using or servicing the machine. Consult your employer
and OSHA regarding the appropriate respiratory protection.
4.6 PROTECT YOUR HEARING.
Observe all applicable local, state and federal safety regulations. Wear
OSHA approved hearing protection.
4.7 DRESS PROPERLY.
Do not wear loose clothing or jewelry that can be caught in moving parts.
Wear protective hair covering to contain long hair. Keep hair away from
motor air vent. Rubber gloves and non-skid footwear are recommended
when working outdoors.
4.8 AVOID A DANGEROUS ENVIRONMENT.
Do not expose machine to rain. Do not use machine in wet conditions.
Water entering a power tool will increase the risk of electric shock. Keep
work area well lit. When working at an elevated location, pay attention to
articles and persons below. If operating the power tool in damp locations
is unavoidable, use a Ground Fault Circuit Interrupter (GFCI) protected
supply. Use of an GFCI reduce the risk of electric shock.
4.9 AVOID ANY AREAS OR ACTIONS THAT EXPOSE YOU TO CARBON
MONOXIDE.
Do not operate in areas where exhaust fumes could accumulate without
wearing appropriate respiratory protection. Consult your employer and
OSHA regarding use of appropriate respirator for dangerous carbon monox-
ide gases.
4.10 KEEP WORK AREA CLEAN. DO NOT RUN OVER ANYTHING.
Loose objects could be thrown from crack. Make sure area to be cut is
clear from people and any loose objects, nuts, bolts, etc. Never run over
any loose objects.
4.11 KEEP CHILDREN AND VISITORS AWAY.
Do not allow anyone to stand in line with the blade path. Do not let children
or visitors contact machine or extension cord. Keep children and visitors
away from the work area.
4.12 KEEP FIRM GRIP ON MACHINE.
During normal operation as instructed in Section 6.0, keep a rm hold
on the handle grips and maintain control of the machine until the blade
completely stops.
4.13 SHUT OFF MACHINE.
When not in use, before servicing and when changing accessories shut
off motor. Release the lever switch and move the on/off switch to the OFF
position. Move the fuel valve lever to the OFF position.
4.14 STORE IDLE EQUIPMENT.
The machine and tools should be stored in a dry and secure location when
not in use. Keep equipment out of reach of children.
4.15 OBTAIN SAFETY DATA SHEET (MSDS) FOR ALL
WORK SURFACE MATERIALS.
This includes primers, all coatings, adhesives, tile and crack lling materi-
als, etc. Do not attempt to cut, clean out or remove material without SDS
information. Consult SDS sheet for hazards information. Be aware that
some materials are explosive as a dust.
4.16 DO NOT OVERREACH.
Keep proper footing and balance at all times.
4.17 MAINTAIN MACHINE WITH CARE.
Keep machine clean and follow maintenance procedures for better and
safer performance. Keep handles dry, clean, and free from oil and grease.
Follow instructions for lubricating and changing accessories.
4.18 REMOVE ADJUSTING TOOLS.
Form a habit of checking to see that tools such as adjusting wrenches are
removed from the machine and properly stored before starting the motor.
4.19 STAY ALERT.
Watch what you are doing. Use common sense. Do not operate machine
when you are tired or fatigued.
4.0 SAFETY INSTRUCTIONS
Waterworks
Division
P: 866-987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]

SAFETY INSTRUCTIONS
5
Waterworks
Division
P: 866-987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
4.20 DO NOT USE DRUGS, ALCOHOL, MEDICATION.
Do not operate machine while under the inuence of drugs, alcohol,
or any medication.
4.21 KEEP THE RIGHT PARTS IN THE RIGHT POSITIONS.
Do not operate machine with parts missing or improperly mounted.
4.22 CHECK DAMAGED PARTS.
Verify all partsare in good condition and will function properly before us-
ing the machine. Check for alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any other conditions that may
affect machine operation. Do not operate machine if lever or motor on/off
switch does not function properly.
4.23 SECURELY MOUNT ACCESSORIES TO THE MACHINE.
Extra care must be taken an elevated location to prevent injury to some-
one on a lower level in the event the tool or accessory should drop. Do
not operate without fall protection for operator and debris protection for
public.
4.24 NEVER TOUCH THE MOVING PARTS.
Never touch moving parts such as blades, belts and others.
4.25 STOP OPERATION IMMEDIATELY IF ANY ABNORMALITY IS
DETECTED.
Stop using machine immediately if any abnormalities are observed during
operation. Examples of abnormalities include unusual noise and vibration.
4.26 WHEN REPLACING A PART, USE THE SAME TYPE
AND QUALITY.
When replacing a component part with a new one, use only the same
type and quality of new part. Never attempt to repair a machine if you are
unfamiliar with proper procedures and techniques required.
4.27 LOAD AND UNLOAD SAFELY.
Use proper heavy lifting procedures. Read & understand manuals before
loading & unloading.
4.28 SAVE THESE INSTRUCTIONS.
Refer to this operations and maintenance manual as well as any addition-
al instructions included from other manufacturers and organizations such
as the Masonry and Concrete Saw Manufacturers Institute®. Never permit
anyone to operate the machine without proper instructions.
DUST WARNING
Cutting, especially when DRY cutting, generates dust that comes
from the material being cut, which frequently contains silica.
Silica is a basic component of sand, quartz, brick clay, granite and
numerous other minerals and rocks. Exposure to excessive amount of
such dust can cause:
• Respiratory diseases (affecting your ability to breath), including
chronic bronchitis, silicosis and pulmonary brosis from exposure
to silica. These diseases may be fatal;
• Skin irritation and rash; and
• Cancer according to NTP* and IARC*
* National Toxicology Program, International Agency for Research
on Cancer
Take precautionary steps
• Avoid inhalation of and skin contact with dust, mist and fumes;
• Wet cut when feasible, to minimize dust;
• Wear and ensure that all bystanders wear appropriate respiratory
protection such as dust masks designed to lter out microscopic
particles. (See OSHA 29 CFR Part 1910.1200)
California Prop 65 Warning: Use of this product can cause exposure to
materials known to the State of California to cause cancer and/or birth
defects or other reproductive harm.
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111

55..33 Observe the condition of your work environment. Walk over area work area and look for hazards. Make
sure the work environment is safe and meets all safe-working conditions discussed in section 4, Rules
for saferoperation.
55..44 Obtain MATERIAL SAFETY DATA SHEET (MSDS) for all work surface materials. This includes primers,
all coatings, adhesives, tile and crack filling materials, etc. Do not attempt to cut, clean out, or remove
material without MSDS information. Consult MSDS sheet for health hazards information. Be aware that
some materials are explosive as a dust
WARNING: The JS SERIES SAWS maximum blade operating speed is 5400 rpm as labeled on the blade guard.
Use only dry cut diamond blades rated higher than 5400 rpm safe operating speed. Do not use a blade rated
for less than 5400 rpm. Do not use a blade that is not a dry cut diamond blade. Using a non dry cut diamond blade
or a blade rated below 5400 rpm could result in severe blade failure, personal injury or death. See Figure 8 and
Figure 9. Never cut material for which the blade was not designed. Check blade manufacturer's guidelines on
material to be cut. Never operate a blade in the wrong rotation direction. Verify blade direction when changing
blades. The JS is designed to cut in a straight line. Never attempt to cut any pattern or follow any joint that is not a
straight line.
55440000MMAAXX..RRPPMM
FFiigguurree88--MMaaxxrrppmmllaabbeell--mmaaxxiimmuummbbllaaddeessppeeeedd
5.5
Choose the proper dry cut diamond blade for the application, speed and material to be cut. See
Figure 9.
U
U
s
s
e
e
o
o
n
n
l
l
y
y
d
d
i
i
a
a
m
m
o
o
n
n
d
d
b
b
l
l
a
a
d
d
e
e
s
s
(
(
s
s
t
t
e
e
e
e
l
l
c
c
e
e
n
n
t
t
e
e
r
r
e
e
d
d
d
d
i
i
a
a
m
m
o
o
n
n
d
d
c
c
u
u
t
t
t
t
i
i
n
n
g
g
-
-
o
o
f
f
f
f
w
w
h
h
e
e
e
e
l
l
s
s
)
)
w
w
i
i
t
t
h
h
t
t
h
h
i
i
s
s
m
m
a
a
c
c
h
h
i
i
n
n
e
e
.
.
R
R
P
P
M
M
r
r
a
a
t
t
i
i
n
n
g
g
o
o
n
n
b
b
l
l
a
a
d
d
e
e
m
m
u
u
s
s
t
t
e
e
x
x
c
c
e
e
e
e
d
d
m
m
a
a
c
c
h
h
i
i
n
n
e
e
m
m
a
a
x
x
r
r
p
p
m
m
r
r
a
a
t
t
i
i
n
n
g
g
.
.
T
T
h
h
e
e
u
u
s
s
e
e
o
o
f
f
a
a
n
n
y
y
o
o
t
t
h
h
e
e
r
r
b
b
l
l
a
a
d
d
e
e
c
c
o
o
u
u
l
l
d
d
r
r
e
e
s
s
u
u
l
l
t
t
i
i
n
n
d
d
e
e
a
a
t
t
h
h
o
o
r
r
s
s
e
e
r
r
i
i
o
o
u
u
s
s
i
i
n
n
j
j
u
u
r
r
y
y
.
.
FFiigguurree99--WWaarrnniinnggllaabbeell--uusseeoonnllyyddiiaammoonnddbbllaaddeess
55..55 Clearly mark all intended cut areas with straight paint or chalk lines.
55..66 Verify that the lever is disengaged or released, and the Honda engine switch and fuel valve lever are
in the OFF position. Make sure blade is completely stopped.
CAUTION: Running the JS generates heat in the engine, blade and blade guard. Do not touch these
components without wearing proper heat protecting work gloves.
12
5.0 Pre-operation checklist
44..3344CCHHEECCKKDDAAMMAAGGEEDDPPAARRTTSS..
Verify all machine guards are in good condition and will function properly before using the machine.
Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any
other conditions that may affect machine operation. A guard, power switch or other part that is damaged
should be properly repaired or replaced by an authorized service center unless indicated elsewhere in
this instruction manual. Do not operate machine if lever or engine on/off switch does not function
properly.
44..3355SSEECCUURREELLYYMMOOUUNNTTAACCCCEESSSSOORRIIEESSAANNDDBBLLAADDEESSTTOOTTHHEEMMAACCHHIINNEE..
Extra care must be taken when using saws on an elevated location to prevent injury to someone on a lower
level in the event the tool or accessory should drop. Do not operate without fall protection for operator
and debris protection forpublic.
44..3366 NNEEVVEERRTTOOUUCCHHTTHHEEMMOOVVIINNGGPPAARRTTSS..
Never touch moving parts such as blades, belts and others.
44..3377SSTTOOPPOOPPEERRAATTIIOONNIIMMMMEEDDIIAATTEELLYYIIFFAANNYYAABBNNOORRMMAALLIITTYYIISSDDEETTEECCTTEEDD..
Stop using machine immediately if any abnormalities are observed during operation. Examples of
abnormalities include unusual noise and vibration.
44..3388WWHHEENNRREEPPLLAACCIINNGGAAPPAARRTT,,UUSSEETTHHEESSAAMMEETTYYPPEEAANNDDQQUUAALLIITTYY..
When replacing a component part with a new one, use only the same type and quality of new part.
Never attempt to repair a machine if you are unfamiliar with proper procedures and techniques
required.
44..3399DDOONNOOTTMMOODDIIFFYYMMAACCHHIINNEE..
Do not modify machine from its original design without written permission from the manufacturer. Non-
authorized modifications could lead to serious injury or death and void warranty.
44..4400NNEEVVEERRDDIISSAABBLLEETTHHEELLEEVVEERR..
Do not modify, disable, or attempt to permanently engage the lever. Do not operate a machine if lever
is not functioning. This could lead to serious injury or death.
44..4411SSAAVVEETTHHEESSEEIINNSSTTRRUUCCTTIIOONNSS..
Refer to this operations and maintenance manual as well as any additional instructions included from
other manufacturers and organizations such as Honda® and the Masonry and Concrete Saw
Manufacturers Institute®. Never permit anyone to operate the machine without proper instructions.
R
R
e
e
a
a
d
d
a
a
n
n
d
d
u
u
n
n
d
d
e
e
r
r
s
s
t
t
a
a
n
n
d
d
o
o
p
p
e
e
r
r
a
a
t
t
o
o
r
r
'
'
s
s
m
m
a
a
n
n
u
u
a
a
l
l
b
b
e
e
f
f
o
o
r
r
e
e
u
u
s
s
i
i
n
n
g
g
t
t
h
h
i
i
s
s
m
m
a
a
c
c
h
h
i
i
n
n
e
e
.
.
F
F
a
a
i
i
l
l
u
u
r
r
e
e
t
t
o
o
f
f
o
o
l
l
l
l
o
o
w
w
o
o
p
p
e
e
r
r
a
a
t
t
i
i
n
n
g
g
i
i
n
n
s
s
t
t
r
r
u
u
c
c
t
t
i
i
o
o
n
n
s
s
c
c
o
o
u
u
l
l
d
d
r
r
e
e
s
s
u
u
l
l
t
t
i
i
n
n
i
i
n
n
j
j
u
u
r
r
y
y
o
o
r
r
d
d
a
a
m
m
a
a
g
g
e
e
t
t
o
o
e
e
q
q
u
u
i
i
p
p
m
m
e
e
n
n
t
t
.
.
FFiigguurree33--WWaarrnniinnggllaabbeell--rreeaaddaanndduunnddeerrssttaannddmmaannuuaall
5.1 Start by reading the entire Honda Engines Owner's Manual, Rx for Diamond Blade Safety, and Rx for Concrete
Saws by the Masonry and Concrete Saw Manufacturers Institute. Then, read the entire JS operations and
maintenance manual. Get familiar with the machine's parts. See Figure 1 through Figure 32.
PRE-OPERATION CHECKLIST
Figure 1 - Warning label - read and understand manual
5.1 Start by reading the entire Owner’s Manual, Rx for Diamond
Blade Safety, and Rx for Concrete Saws by the Masonry and Con-
crete Saw Manufacturers Institute. Then, read the entire Belly Saw
operations and maintenance manual. Get familiar with the machine’s
parts.
WARNING: Improperly maintaining the Belly Saw failing to correct
a problem before operation could cause a malfunction resulting in
a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem.
5.2 Observe the condition of your work environment. Walk over
area work area and look for hazards. Make sure the work environ-
ment is safe and meets all safe-working conditions discussed in
section 4, Rules for safer operation.
5.3 Check for missing or loose bolts. Tighten loose bolts and
replace missing bolts before operating machine.
5.4 Dress properly. Wear ear and eye protection.
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUT PROPER
TRAINING AND. UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
6
Keep all guards
in place
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111
Wear Head Protec-
tion, breathing pro-
tection, and the use
of hearing protection
is mandatory
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1h azard Commu nication Syw ems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation
Flying debris
and loud noise
hazards. Wear
ear and eye
protection
Wear hand
protection
5.5 Obtain SAFETY DATA SHEET (SDS) for all work surface materi-
als. This includes primers, all coatings, adhesives, tile and crack lling
materials, etc. Do not attempt to cut, clean out, or remove material with-
out SDS information. Consult SDS sheet for health hazards information.
WARNING: The U.S.SAWS Belly Saw maximum blade operating speed
is 5250-6000 rpm. Do not use a blade that is not a dry cut diamond
blade. Using a non dry cut diamond blade or a blade rated below
5250-6000 rpm could result in severe blade failure, personal injury
or death. Never cut material for which the blade was not designed.
Check blade manufacturer’s guidelines on material to be cut. Never
operate a blade in the wrong rotation direction. Verify blade direction
when changing blades. The U.S.SAWS Belly Saw is designed to cut in a
straight line. Never attempt to cut any pattern or follow any joint that is
not a straight line.
5.0 PRE-OPERATION CHECKLIST
5250 - 6000 MAX. RPM
Figure 2 - Max rpm label - maximum blade speed
5.6 Choose the proper dry cut diamond blade for the application,
speed and material to be cut.
Figure 3 - Warning label - use only diamond blades
5.7 Clearly mark all intended cut areas with straight paint or
chalk lines.
CAUTION: Running the Belly Saw generates heat in the motor, blade.
Do not touch these components without wearing proper heat protect-
ing work gloves.
WARNING: Breathable silica may be generated by use of this product.
Silica can cause severe and permanent lung damage, cancer, and other
serious diseases. Do not breath the dust. Do not rely on your sight
or smell to determine if the dust is in the air. Silica may be in the air
without a visible dust cloud. If air monitoring equipment for silica is not
provided by your employer at your work site, you MUST wear appropriate
respiratory protection when using or servicing the machine. Consult your
employer and OSHA regarding the appropriate respiratory protection.
Waterworks
Division
P: 866-987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
Rotating blade hazard.
Do NOT operate with guard up.
Keep hands and feet away.
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1h azard Commu nication Syw ems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation

OPERATION
7
6.1 SAFE ALTERNATIVE TO OTHER CUTTING METHODS
6.1.1 The U.S.SAWS Belly Saw is designed to provide a safe alterna-
tive to other cutting methods that can be difcult and dangerous because
of the subgrade location of pipes. The key factor that provides ease and
safer operation is that the tool is strapped to the pipe and is simply drawn
around the pipe creating a straight and efcient cutting process. Other
Key factors are that because of the use of air or hydraulic power sources
the tools can run in the wet conditions without failure. To provide the most
accurate and time efcient cutting follow the procedures below.
6.2 ENSURE AN ACCURATE CUT
6.2.1 The belly saw was originally designed to cut the bottom ¾ of a
pipe. Many operators have determined that the belly saw provides simple
and easy cutting of the entire pipe. In order to ensure an accurate cut
that nishes where the cut begins several procedures must be taken.
Once all job site safety conditions have been met pressurize the tools
lines. Ensure safety clips are used where required so lines do not discon-
nect accidentally. One should take care to make sure proper clearance
has been provided on all sides of the line being cut. If an object creates
interference during the cutting process there will be difculty completing
the cut accurately. The pipe must also be cleaned of rust, dirt, and unusu-
ally rough surface obstructions.
6.3 WHILE OPERATING THE SAW
6.3.1 With the roller strap removed from the belly saw plunge cut the
tool in a free hand method. The tool will be pulled in the direction of the
handle that has the throttle/ control valve. For that reason we recom-
mend that the tool be plunged slightly off the 12 o’clock mark toward the
throttle handle side. This will help to ensure good visibility of the saw as
you complete the cut, near the 12 o’clock position of the pipe. It is also
should be noted that a line should be made from 10 to 2 O’clock over the
top of the pipe. While plunging the tool into the pipe reference this line
with the edge of the cutting guard- do not line up with the blade. Once the
strap is installed you will not be able to see anything directly in the path
of the blade or under the blade guard. As the cut is completed you will be
able to see the reference mark at the 10 o’clock position and can make
adjustments to the cut if you have tracked off course during the cut.
6.3.2 Once the plunge cut has been made and the tools alignment
is satisfactory the strap must be installed. It will also be time to add any
additional reference marks to the cutting surface to help aid in alignment
start/ stop locations, etc..
6.3.3 Pull belly saw in the direction of the throttle handle. This will
provide the straightest cut. If the tool is pushed from this handle the saw
will track of course even if light pressure is applied. Once you reach the
termination of the cut you can release the strap and remove the saw. If
the cut has not completed in perfect alignment this would be the opportu-
nity to adjust the cut in a freehand method. If the cut does align perfectly
use caution as pressure from ground shifting can cause the pipe to shift
without notice and with tremendous force. The weight of the cut pipe can
pull the saw out of an operator’s hands when the tool is strapped to that
pipe. This is why we recommend not completing the cut until the saw is
removed/ unstrapped from the pipe and a more visible nish cut is made.
6.3.4 In certain situations the rollers may interfere with the saw or on
thick types of pipe the saws strap may contact the pipe. This will hinder a
free moving tool during the cut. In these cases you may spread the roller
trucks apart for better coverage around the pipe.
6.0 OPERATIONS
Waterworks
Division
P: 866 987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
Pipe Size Depth of Cut* Number of Links
8 2.09 2 Long 1 Short
10 1.71 2 Long 1 Short
12 1.48 3 Long 1 Short
14 1.32 3 Long 1 Short
16 1.2 4 Long 1 Short
18 1.11 4 Long 1 Short
20 1.04 4 Long 1 Short
24 0.93 4 Long 1 Short
* Measured from outside diameter of pipe to tip of blade.

PARTS BREAKDOWN
7.0 Parts Breakdown
8
Waterworks
Division
P: 866-987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
Number Part Number Description
Motor Breakdown
1 02-55012B Flange Nut
2 02-55021 Retainer Clip
3 02-55025 Bearing Spacer
4 02-70070 Output Bearing
5 02-7047A Cover Bolt
6 02-70046 Cover Bolt Lock Washer (1/4)
7 02-5501BTB Bearing Cover
8 02-55010 Spindle Key
9 02-55580 Spindle Shaft
10 02-55070 Thrust Plate
11 02-55050 Rotor
12 02-55060 Vane
13 02-70037 Roll Pin (Long)
14 02-55020 Cylinder (Right Rotation)
15 02-40044 Roll Pin (Short)
16 02-55030 Inner Thrust Plate
17 02-70090 Bearing (Gov)
18 02-10005 Retainer Clip-Spacer
19 02-AA55085 Governor Assembly
20 02-55013 Gasket
21 02-AUSS5551V Motor Housing

PARTS BREAKDOWN
9
Waterworks
Division
P: 866-987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
Handle Breakdown
1 02-70023 Trigger Stop Bolt
2 02-832636 Washer Gasket
3 02-550H3 Trigger Body
4 02-70054 Lock Washer (5/16 High Collar)
5 02-700S20 Trigger
6 02-70048 Cap Screw
7 02-60055 Trigger Retainer - Roll Pin
8 02-70030 O-Ring (Flange)
9 02-20090 O-Ring (Valve)
10 02-56019 Valve Pin
11 02-60052A Valve Spring
12 02-700S26 Valve Retaining Cover
13 02-56016 Inlet Screen
14 02-841555 Inlet Bushing

WARRANTY AND SERVICE
8.1.1 Warranty
This document is to be used as a guide in determining warranty policies and procedures for U.S.SAWS and its U.S.SAWS products. It is to be used
in determining whether a warranty is justied and as a procedural guide in completing a U.S.SAWS warranty claim form.
8.1.2 Warranty Responsibility
The distributor or the end user must prepare a Machine Warranty Information Card when the machine is delivered. Failure to comply will make
any and all warranties on this equipment null and void. Credit for warranty repairs will be given only after receipt of the WARRANTY CLAIM FORM,
properly completed with all the required details. Submittal details are described later in this document.
8.1.3 Warranty Policy
8.1.3.1 U.S.SAWS warrants its U.S.SAWS products against defects in material and workmanship under normal and proper use for a period
of one year (365) days from the date of delivery; in the case of Rental Fleet Machines, date of assignment to Rental Fleet. Such warranty is
extended only to the buyer who purchases the equipment directly from U.S.SAWS or its authorized distributor. This warranty does not include
expendable parts such as, but not limited to, plugs, cutters, blades, blast wheel, wear parts, liners and seals.
8.1.3.2 The obligation under this warranty is strictly limited to the replacement or repair, at US SAWS’s option, of machines and does not in-
clude the cost of transportation, loss of operating time, or normal maintenance services.
8.1.3.3 This warranty does not apply to failure occurring as a result of abuse, misuse, negligence, corrosion, erosion, normal wear and tear,
alterations or modications made to the machine without express written consent of U.S.SAWS .
8.1.3.4 Warranty request must be submitted in writing within thirty (30) days after failure.
8.1.3.5 Written authorization to return merchandise under warranty must rst be obtained from U.S.SAWS .
8.1.3.6 U.S.SAWS reserves the right to inspect and make the nal decision on any merchandise returned under warranty.
8.1.3.7 U.S.SAWS offers no warranty with respect to accessories, including but not limited to, engines, motors, batteries, electrical boards, tires
and any other parts not manufactured by us but which the original manufacturer warrants.
8.1.3.8 U.S.SAWS reserves the right to make product changes or improvements without prior notice and without imposing any obligation upon
itself to install the same on its products previously sold.
8.1.3.9 The above warranty conditions can only be altered by US SAWS. US SAWS must conrm alterations in writing for each specic transac-
tion.
8.1.3.10 U.S.SAWS reserves the right to establish specic warranty terms for used or demo machines on an individual transaction basis.
Invoices covering such merchandise will clearly state the provisions of the applicable warranty for each specic transaction.
8.1.3.11 WE DO NOT AUTHORIZE ANY PERSON, REPRESENTATIVE OR SERVICE OR SALES ORGANIZATION TO MAKE ANY OTHER WARRANTY OR TO
ASSUME FOR US ANY LIABILITY IN CONNECTION WITH THE SALE OF OUR PRODUCTS OTHER THAN THOSE CONTAINED HEREIN.
8.1.3.12 UNDER NO CIRCUMSTANCES SHALL US SAWS BE LIABLE TO CUSTOMER OR ANY OTHER PERSON FOR ANY DIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF ANY WARRANTY OR FOR ANY
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER, INCLUDING WITHOUT LIMITATIONS, DAMAGES FOR ANY LOSS OF GOODWILL,
WORK STOPPAGE, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES.
8.1.3.13 U.S.SAWS MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO THE US SAWS PRODUCTS SOLD PURSUANT THERETO.
10
8.0 WARRANTY AND SERVICE
Waterworks
Division
P: 866-987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]

MACHINE WARRANTY INFORMATION CARD
11
Waterworks
Division
P: 866-987-7297 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
TO ENSURE THE PROPER WARRANTY COVERAGE IS EXTENDED TO THE OWNER OF THIS MACHINE,
FILL OUT THE ATTACHED CARD COMPLETELY AND ACCURATELY.
WARRANTY REGISTRATION CARD
IMPORTANT! To ensure that your U.S.SAWS machine is covered under warranty, please ll in the following information and mail or
fax it to U.S.SAWS, 8004B E. Broadway Ave. Tampa, FL 33619, Fax No. 714-434-7299
If you are not the owner of record as shown on the manual copy of the warranty registration card, do not operate this
machine before contacting U.S.SAWS at 1-866-987-7297 Verify the following before operating the equipment:
CHANGE OF OWNER OR NEW ADDRESS REGISTRATION CARD
IMPORTANT! To ensure that your U.S.SAWS machine is covered under warranty, please ll in the following information and mail or
fax it to U.S. SAWS, 8004B E. Broadway Ave. Tampa, FL 33619, Fax No. 714-434-7299
COMPANY
COMPANY
NAME
NAME
ADDRESS
ADDRESS
INTENDED USE
INTENDED USE
DATE OF PURCHASE
DATE OF PURCHASE
INTENDED USE
INTENDED USE
SERIAL NUMBER
SERIAL NUMBER
