US Steam EAGLE PLUS User manual

US STEAM®
2440 Chamber Street, Ste A
Ve nus, TX 76083
www.ussteam.net
[phone]
EAGLE PLUS™STEAM VACUUM

!
Steam Fill Tank
Extraction /Detergent
Fill Tank
Steam Pressure
Control Knob
Va c u u m
Extraction
Steam Trigger
Trigger Lock
Power ON/OFF
ON/OFF VACUUM EXTRACTION
Hose Connection
2
Console
Master Power Switch
EAGLE PLUS™STEAM VACUUM
EAGLE PLUS™STEAM VACUUM

3
Assembly _______________________________________________________________
4
Quick Start _____________________________________________________________
6
Troubleshooting _________
_______________________________________________ 8
Extraction _______________________________________________________________
9
Accessories _____________________________________________________________
10
Indicators / Warnings ______________________________________________________
11
Maintenance ____________________________________________________________
12
De
-scaling ______________________________________________________________
12
Specifications ____________________________________________________________
19
Notices ________________________________________________________________
20
Warranty
& Repair _______________________________________________________
21
ØD0 NOT leave the steam cleaner unattended while plugged in
ØTurn off all controls and unplug the electrical cord when not in use
ØDO NOT use with a damaged cord or plug
ØIf the steam cleaner is not working as it should, has been dropped, damaged, left outdoors or dropped
into water, call for service before using
ØNEVER attempt to disassemble this steamer
ØDO NOT handle the electrical plug with wet hands
ØDO NOT use near children
ØDO NOT pull or carry by power cord
ØKeep cord away from heated surfaces
ØALWAYS set safety switch on hose handle into the locked position when not in use
ØNot setting safety switch to locked position could result in an injury
ØKeep body, hands, and feet away from accessories or nozzle when steam is in active use
ØALWAYS test a small area before cleaning a large area on any type of surface to make sure no damage
will occur
ØThe steam cleaner should be the only appliance plugged into an outlet
ØUse only a 12 gauge / 15 AMP rated or higher rated extension cord with max length of 25ft
ØAny alteration of electrical cord supply on this steam cleaner will void all warranties
EAGLE PLUS™STEAM VACUUM

10 mm
(Included)
(4 each) (2 each) (2 each) 4mm
(Included)
1) Remove Handle Assembly
from shipping box
3) Remove 4screws from
back.
2) Un-latch collection tank
from motor and remove
tank and motor
4) Attach handle and re-insert 4
screws (hand tighten only). 5) Re-attach collection tank
4
Assembly
EAGLE PLUS™STEAM VACUUM

6) Attach brackets
9) Remove allen head bolts
from handle
10) Insert reservoir bar holder
and replace allen head bolts
12) Attach tank hoses
7) Using 10mm wrench attach hex
head bolt to bracket
8) Tighten until snug
11) Tighten using allen wrench
EAGLE PLUS™STEAM VACUUM

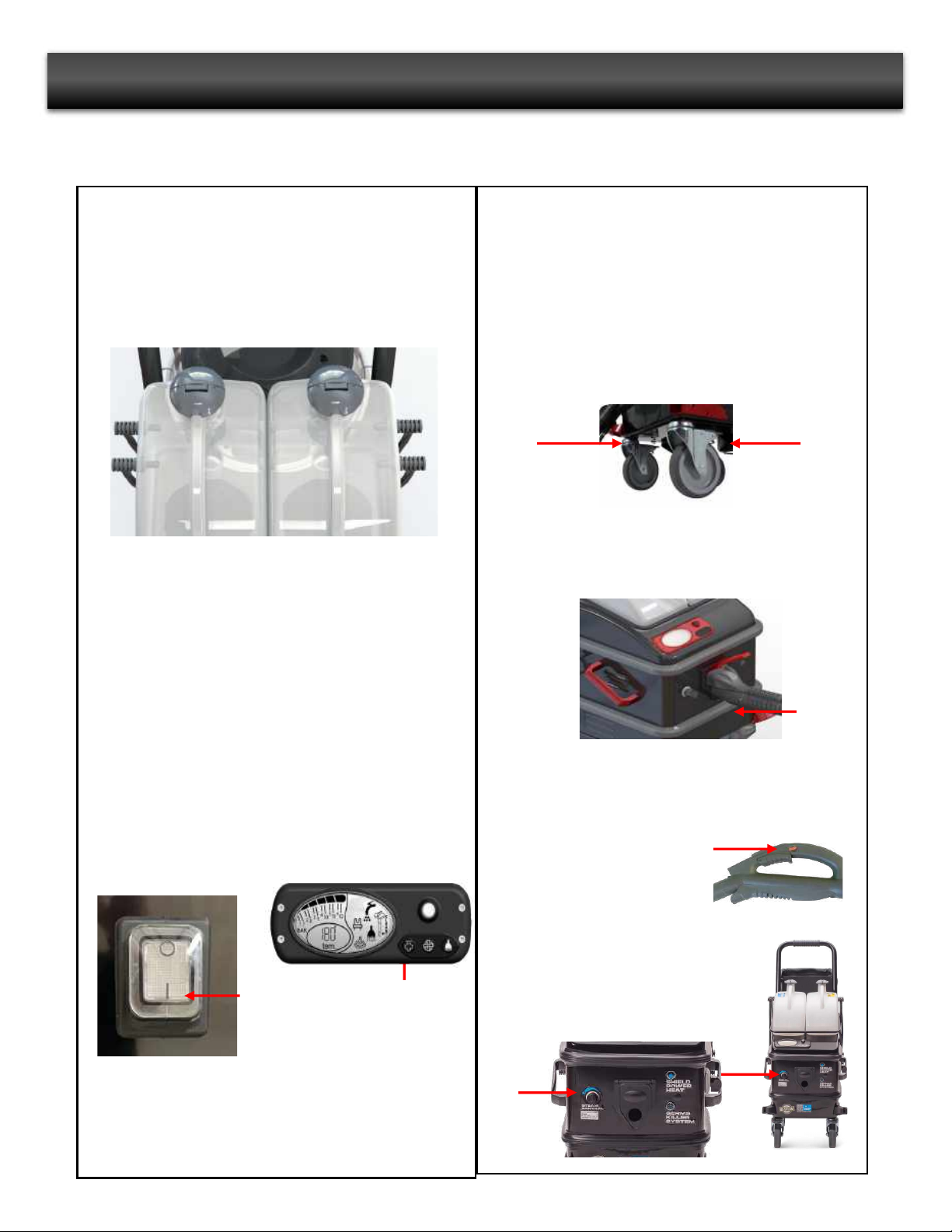

1) Add Water
ØRemove grey cap and add tap
water to both tanks
ØEach tank holds one gallon
2) Plug into Electrical Outlet
ØThe EAGLE PLUS™should be
the only appliance plugged into
the electrical outlet
Extension Cord
ØUse only a 12-gauge / 15AMP
rated or higher rated extension
cord
ØMax length: 25ft
3) Power
It will take 10 minutes for the
EAGLE PLUS™to heat up and
reach working temperature
3) Connect the Hose
ØSecure the EAGLE PLUS™
by pushing down the front
brake locks; locking the
wheels will make it easier to
push the hose into the steamer
4) Insert the hose
ØPush until you hear a “click”
5) Steam Control
ØUnlock by pressing RED
button on hose handle
ØSqueeze trigger
6) Adjust Steam Pressure
ØTurn the knob to
Increase or decrease
steam pressure
Quick Start
6
ON/OFF
Master Power Switch
Quick Start
EAGLE PLUS™STEAM VACUUM
ON

Vacuum
ON/OFF
Activate the VACUUM:
ØPushing the button on the
console OR
ØPushing the button on the
hose handle
ØIncrease / Decrease suction
by holding the button
on the hose handle.
The indicator light will change
colors depending on the level of
suction.
Green = Low Suction
Orange = Medium Suction
Red = High Suction
Hot Water Injection / Extraction
The Extraction function will
inject water into the steam.
This function is valuable when
using the extraction nozzles and
floor brushes. The EAGLE
PLUS™becomes an extractor
when combining this function
with the vacuum.
Activate by pushing and
holding the button on
the hose handle, until the
light turns on.
Increase / Decrease water
injection by pushing and holding
the button on the console.
Settings: High / Med / Low 7
Extraction
EAGLE PLUS™STEAM VACUUM
Warning:
To use the vacuum to
soak up water, the
polyester filter must
be removed first.

PROBLEM SOLUTION
Does not turn on when the power
button is pushed
Check the Master Power Switch on the side of the EAGLE PLUS™.
The EAGLE PLUS™should be the ONLY appliance plugged into the
electrical outlet:
ØCheck the fuse box for tripped circuit breaker
ØExtension cord must meet the following requirements:
Ø12-gauge 15AMP rated or higher
Ø25 ft. max length
Alarm is activated
during warm-up
Refill the steam reservoir tank.
ØPush the ON/OFF button on the console to restart the pump
ØIf reservoir tank is full, remove black hose on the side of the reservoir
tank. Water should be dripping from the hose. Replace hose and push
ON/OFF button on the console to restart the pump
Alarm sounds
during use
The EAGLE PLUS™is out of water:
ØRefill both the steam and extraction reservoir tanks
ØPush the ON/OFF button to reset
No vacuum suction
The collection tank is dirty or full.
ØCheck hose for foreign objects
ØCheck and replace filter
No steam when squeezing trigger:
Check the hose connection
ØIs the “lock” activated on the hose handle?
ØAdjust Steam Pressure Knob on front of EAGLE PLUS™
No water is released during extraction
Check the spray nozzle for mineral build up
ØDescale as needed to remove (see manual for instructions)
Error Codes:
Will show on console screen
01 –Refill Steam tank
02 –Refill Extraction tank
03 –Boiler did not refill
05 -Descale boiler
08 -Replace anti-scaling filter
10 –Service required
8
EAGLE PLUS™STEAM VACUUM

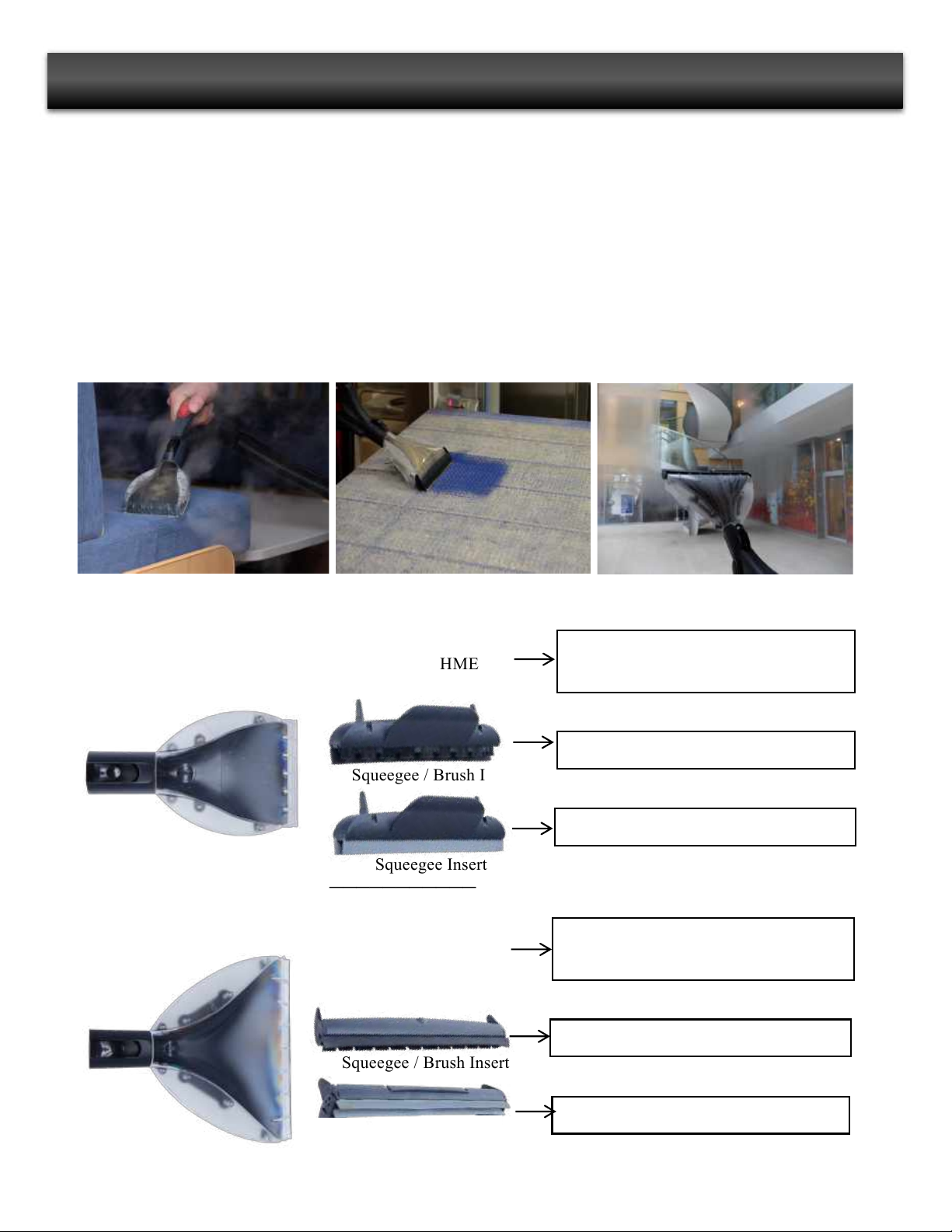

NO ATTACHMENT Carpet / Curtains / Furniture
Mattresses / Soft Surfaces
Windows / Mirrors / Walls
All hard surfaces
Squeegee / Brush Insert
Squeegee Insert
Carpet / Curtains / Furniture
Mattresses / Soft Surfaces
NO ATTACHMENT
Squeegee / Brush Insert
Windows / Mirrors / Walls
All hard surfaces
Small Extraction Nozzle
Large Extraction Nozzle
9
___________________________________________________________
The EAGLE PLUS™uses a separate reservoir tank to inject water into the steam
when released from the extraction nozzle. Use the extraction function in
combination with the vacuum for deeper cleaning of soft and hard surfaces.
ØUse the extraction nozzle for cleaning furniture, curtains, mattress, windows,
walls, and floors.
ØAfter cleaning, use the vacuum to remove excess water for faster drying.
Squeegee Insert
EAGLE PLUS™STEAM VACUUM

Hose
(Part # SV7778)
Extension Wands –Set of 2
(Part # SV1594) Floor Brush (# SV5672)
Floor Brush Adaptor (SV#1835)
Squeegee Insert (SV#1530)
Small Extraction Nozzle
(Part # SV7314)
Large Extraction Nozzle
(Part # SV8011)
10
Long Jet Nozzle
(Part # SV5439)
Short Jet Nozzle
(Part # SV7302)
Vacuum Attachment
(Part # SV5645)
Brushes
1” Round Nylon
1” Round Brass
3” Round Nylon
3” Round Brass
Squeegee / Brush Insert
(SV#8012)
Squeegee Insert
(SV#8015)
Squeegee Insert / (SV#7329)
Squeegee / Brush Insert (SV7326)
Accessories
EAGLE PLUS™STEAM VACUUM

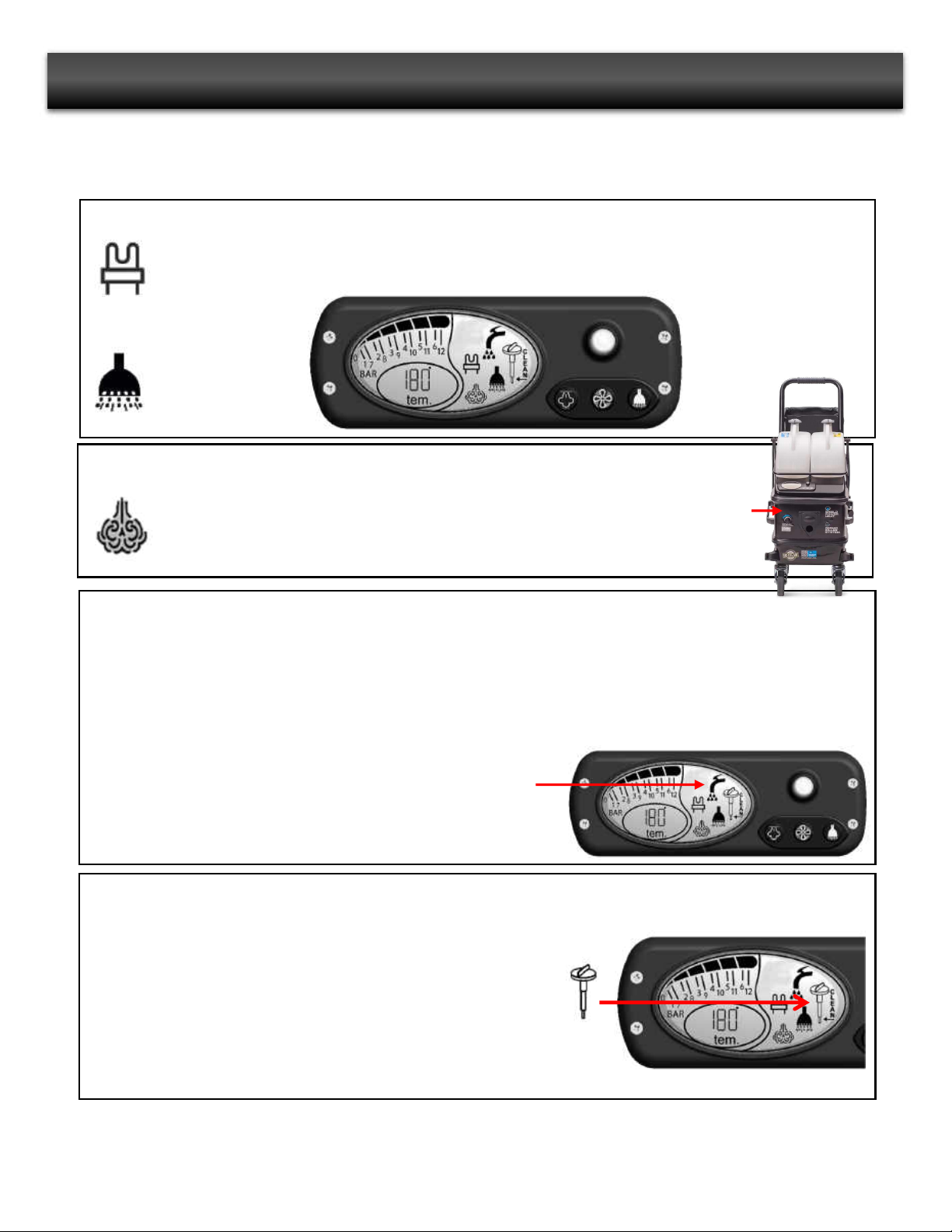

Low Water Indicator
The EAGLE PLUS™will let you know when it is low on water. It will stop
producing steam you will hear a beep, and the Low Water Symbol will flash
indicating one or both of the reservoir tanks are empty.
ØRefill both the steam and extraction tanks with tap water
ØEmpty and drain vacuum collection tank
Boiler Activation
ØWill flash during warm-up and during use
ØWill stop flashing when the EAGLE PLUS™is ready for use
Extraction
De-scale Warning
Steam Pressure
Increase (+) or decrease (-) steam pressure by turning
the black steam control knob on the front of the SH.
11
Indicators

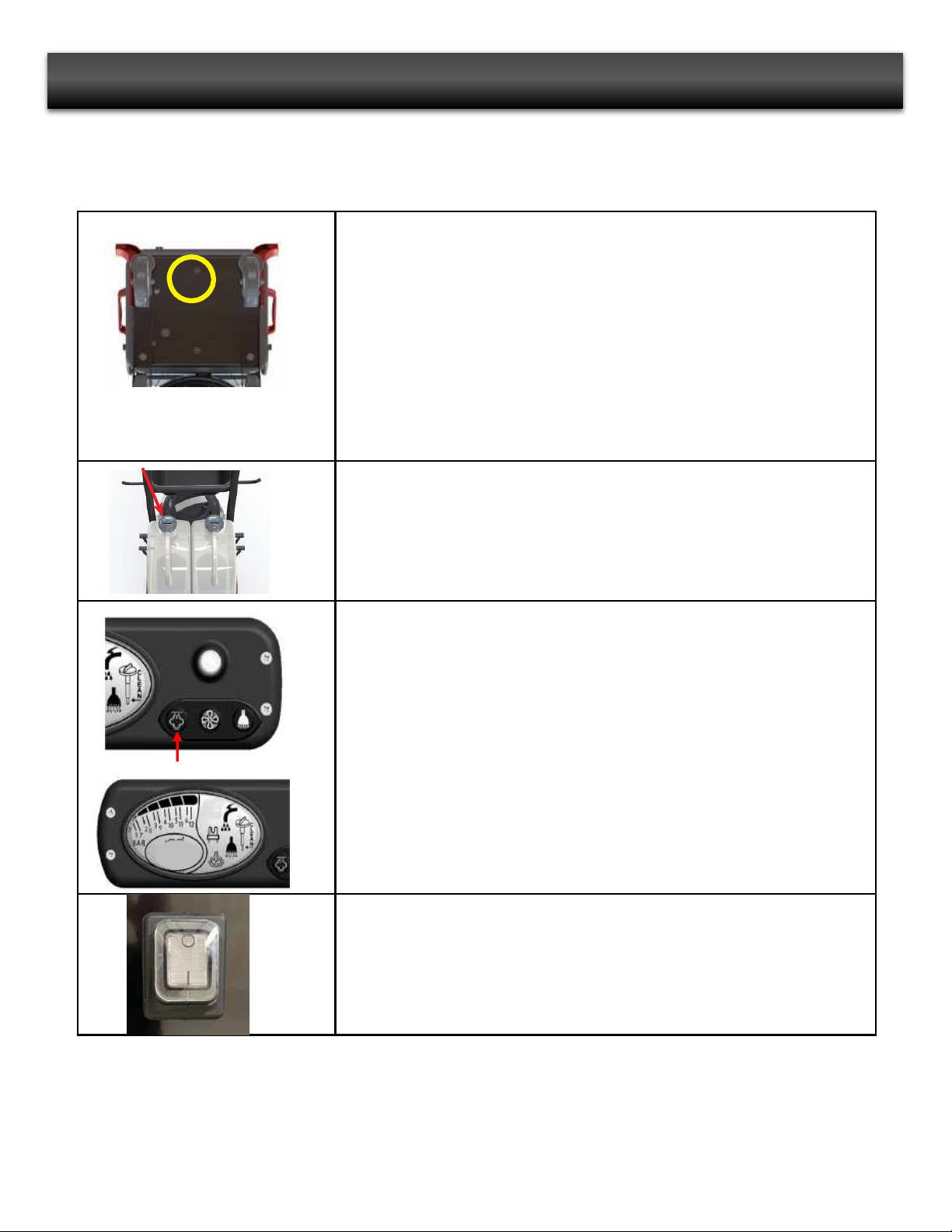

Hard water will cause lime mineral deposits to build
up in the boiler. This can damage the boiler if the
lime scale is not removed by descaling. We
recommend descaling the EAGLE PLUS™every 6
months or earlier if the warning indicator light starts
flashing and the display shows the word: CLEAN
EAGLE PLUS™STEAM VACUUM

12
20
Service/Maintenance Part 1
Hot water module descaling

13
22
2. Descaling
Completely empty the contents of the Washing
module extraction tank.
Mix 0.4 liters of vinegar and 0.6 liters of tap
water in a dosing bottle.
Open the washing-extraction cap(P) and pour
the vinegar mixture.
Insert the steam-suction tube into the ap-
pliance.
WARNING: Descaler residue can be harmful to health and damage surfaces. Wipe
up drops immediately.
Descaling Module Washing Extraction
Cap (P)
b)
a)
Now connect the appliance to the mains and
press the button (C) on the display.
The appliance will turn on and the display will
show "COL".
Press the steam trigger on the handle and pour
the contents onto a basin.
Repeat the descaling procedure two to three
times if you notice any residual limescale.
Button (C)
23
Mescolare 0,2 litri di essenza di aceto e 0,3 litri
di acqua di rubinetto in una caraffa dosatrice.
Aprire il tappo per il Lavaggio-Estrazione "Hot
Water Extraction" e versare la miscela di aceto.
Inserire il tubo vapore-aspirazione nell'appa-
recchio.
3. Rinsing
Pour 1 liter of tap water into the tank washing
extraction. Connect the appliance to the mains
and press button (C) on the display.
The unit will turn on and the display will show
"COL".
Press the steam trigger on the handle.
and pour the contents on a basin.
Repeat the procedure to rinse any residual li-
mestone and vinegar.
The appliance is now ready for use again.
1) Completely empty the water from the
Extraction / Hot Water Tank.
2) Remove cap and pour in descaling
mixture of 1/4 gallon vinegar + ¼
gallon water.
3) Attach hose. Decaling will NOT work
unless the hose is attached.
4) To start, simultaneously push the “ON”
button and Extraction button ”C”.
5) When the display reads “COL” press
the Extraction button on the hose.
6) Press the steam trigger on the hose and
spray the descaling solution into the
basin.
1) Turn off the EAGLE PLUS™.
2) Empty the reservoir tank and fill with
tap water.
3) Repeat steps for descaling using tap
water to rinse the Extraction Tank.
4) Press and hold the steam trigger to rinse
any residual descaling solution.
Rinse
Descaling the Extraction Tank
ON
EAGLE PLUS™STEAM VACUUM
COL

14
24
Service/Maintenance Part 2
Boiler descaling

1) Identify drain cap on bottom of EAGLE PLUS™.
2) Turn the cap counter-clockwise.
3) Place container under the drain cap to catch the water.
4) Remove cap and drain boiler completely.
5) Replace drain cap and hand tighten.
6) Completely empty the steam reservoir tank.
7)
Mix ¼ gallon vinegar + ¼ gallon water and pour into steam
reservoir tank.
8) Attach hose. Descaling will NOT work unless
hose is attached.
9) The EAGLE PLUS™’s master switch must be
“OFF” before starting the descale procedure.
10) The EAGLE PLUS™
must be cooled to room temperature
before starting.
11) Press and hold the A B C buttons on the control panel and
turn ON the master switch to start the descaling process.
12) The display will show CLn during cleaning.
13) After 20 minutes, the machine will emit a beep and show
E13 on the display.
WAR N ING: T he EAG L E PLU S™MUST be cool and at room temperature before descaling.
15
26
1. Preparation
- Warning: Before starting, disconnect from the main power by pulling out oft he
plug.
Identify the boiler draining cap (C) positioned
under the appliance (wrench CH20).
Put a basin in place and open the draining cap
by turning it anti-clockwise.
Drain the boiler completely and screw the drai-
ning cap back on.
Tighten without forcing.
b) Carry out the same procedure to empty the
relling tank (unscrewing plastic cap O).
Boiler descaling / step 1
a)
b) Cap (O)
C
Descaling Procedure
E12 error code means the boiler is not at room temperature.
27
2. Descaling
WARNING: Descaler residue can be harmful to health and damage surfaces. Wipe
up drops immediately. Read the information on the descaler packaging and follow the
safety instructions.
Boiler descaling / step 2
AVVERTENZA: Tempo di lavoro ca. 20 minuti
Cap (O)a)
b)
c)
Remove the cap (O) of the water tank and pour
in 0.4 litre of descaling solution and about 1
litre of tap water.
When the machine is switched OFF, press and
hold down the A-B-C buttons on the control
panel and switch the appliance on by turning
the main switch ON.
If the boiler temperature is above 50°C, the
CLN wash will not start, and an E12 error
message will appear on the display.
Se la macchina è fredda il sistema inizierà il
primo lavaggio che dura 20 minuti e a display
comparirà la scritta CLN.
Trascorsi i 20 minuti la macchina emetterà un
doppio bip con segnalazione avvertenza E13 a
display e a questo punto è necessario scaricare
la caldaia (svitare il tappo di drenaggio posto
sotto la macchina) ed il serbatoio (O) prece-
dentemente caricato.
C
AF B C
Tappo (O)
Maintenance
If the low water alarm activates, add more water and push the
ON button.
EAGLE PLUS™STEAM VACUUM
CLn
OFF

1) Remove cap and drain boiler completely.
2) Replace drain cap and hand tighten.
3) Refill the steam reservoir tank with clean water.
4) Press the ON button to start the rinse cycle.
5) The display will show FLu during the rinse cycle.
6) The rinse cycle take 9 minutes.
7) The display with read E13 when finished.
8) Drain the boiler.
9) We recommend repeating the rinse cycle 2-3 times
until all the water draining from the boiler is clean.
10) To finish, turn master switch to OFF then ON
position.
16
26
1. Preparation
- Warning: Before starting, disconnect from the main power by pulling out oft he
plug.
Identify the boiler draining cap (C) positioned
under the appliance (wrench CH20).
Put a basin in place and open the draining cap
by turning it anti-clockwise.
Drain the boiler completely and screw the drai-
ning cap back on.
Tighten without forcing.
b) Carry out the same procedure to empty the
relling tank (unscrewing plastic cap O).
Boiler descaling / step 1
a)
b) Cap (O)
C
Rinse Procedure
ON
EAGLE PLUS™STEAM VACUUM
FLu

17
30
Pos.(3)
Entkalkungsanleitung B
Care of accessories
It is essential to clean accessory parts after use to maintain the performance and functionality of the
appliance. Te connections on the extension pipes and the safety handle can be sprayed with a
suitable lubricant or silicone spray as required. This will make it easier to change accessory parts.
Checking the O-rings
To avoid damage to the appliance or accessories, the O-rings on the safety handle and the extension
pipes must be checked regularly for damage. The O-rings will last longer if they are coated regularly
with a lubricant/ silicone spray or a non-acidic grease.
Checking the O-rings
Check the O-rings on the safety handle for damage:
Pos.(1): 1 O-ring on the suction pipe
Pos.(2): 2 O-rings on the steam spout
Check the O-rings on the connector for damage:
Pos(3): 2 O-rings on the brass spout
Checking O-rings on the extension pipes
Check the O-rings on all extension pipes for damage:
Pos.(4): 1: O-ring on the suction pipe
Pos.(5): 2 O-rings on the steam spout
Cleaning, care and maintenance of accessories
Pos.(1) Pos.(2)
Pos.(4) Pos.(5)
You can order a suitable set of O-rings from our online shop at
www.beam.de or by telephone on [phone].
Item no.: 96300
Service/Maintenance Part 3
Accessories and O-ring

You r EAGLE PLUS™will require minimal maintenance,
IF you use it regularly or
IF you drain water from the boiler when not in use.
After Each Use
ØClean all accessories with hot soapy water
ØClean hose
ØEmpty vacuum bucket
ØCheck and clean vacuum filter
ØRefill Steam and Extraction Reservoir tanks
Every 4-6 Months
ØDescale the boiler
ØCheck and replace vacuum filter as needed
Once per Year
ØCheck O-rings on hose and extension wands for wear or damage
ØReplace O-rings if needed (you received an O-ring kit with your purchase)
18
EAGLE PLUS™STEAM VACUUM

19
POWER SUPPLY
120 V. 60Hz
READY TIME
10 MINUTES
BOILER REFILL SYSTEM
AUTOMATIC REFILL
STEAM FLOW ADJUSTMENT
TURN DIAL CONTROLER
PRESSURE
10 BAR / 145 PSI
MAX TEMPERATURE
356
°F
BOILER VOLUME
1/2 GALLON
BOILER MATERIAL
AISI 304
WATER TANK CAPACITY
1 GALLON
–EXTERNAL TANK
DETERGENT/ TANK CAPACITY
1 GALLON
–EXTERNAL TANK
VACUUM RECOVERY CAPACITY
2.2 GALLON WET/DRY WITH WASHABLE
FILTER
VACUUM POWER ADJUSTMENT
YES, 3 LEVELS
BOILER POWER
1700 W
VACUUM POWER
1200 W
AIR FLOW
95 m3/h
-56 CFM
MAX DEPRESSION
2.100 mm H2O
-82.6 in H2O
DIMENSIONS L x W x H
29.3
“ x18.4“ x36.6“
HOSE LENGTH
10 FT
NET WEIGHT
61.7 lbs
Specifications
EAGLE PLUS™STEAM VACUUM

20
Read all instructions before using this steam cleaner.
WARNING: STEAM GENERATED BY THE STEAM CLEANER IS EXTREMELY HOT AND
WILL CAUSE INJURY IF IT COMES IN CONTACT WITH THE SKIN OR EYES. USE AS
DIRECTED BY THE MANUAL AND ONLY AIM THE STEAM HANDLE AT THE CLEANING
AREA.
ØDO NOT leave the steam cleaner plugged in while unattended
ØTurn off all controls and unplug the electrical cord when not in use
ØDO NOT use with a damaged cord or plug
ØNEVER attempt to disassemble this product in a way not instructed in this manual
ØDO NOT handle the electrical plug with wet hands
ØDO NOT use near children
ØDO NOT pull or carry by cord
ØKeep body, hands, and feet away from nozzle or brush steam / Steam can cause burns
ØALWAYS set safety switch on hose handle into the locked position when not in use
ØNot setting safety switch to locked position could result in an injury
ØALWAYS test a small area before cleaning a large area on any type of surface to make sure no damage
will occur
ØDO NOT expose machine to freezing temperatures while not in use
ØDO NOT store gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance
ELECTRICAL CONNECTIONS
The steam cleaner uses 110 Volts and will pull 13.1 Amps. It should be the only appliance plugged into an
outlet.
ØUse only a 12 gauge / 15AMP rated or higher extension cord
ØAny alteration of electrical cord supply on this steam cleaner will void all warranties
ØMake sure all switches on front of unit are in the off position before plugging unit into electrical outlet
ØFor circuit breaker protection, plug the unit into an outlet isolated from other equipment or turn the other
equipment off while using the steam cleaner
ØThe combined electrical amperage of other equipment and the steam cleaner together may cause a circuit
breaker to trip.
ØAlways press the power button to OFF before you unplug the unit
ØRemoving the ground prongs from the power cord will void any and all warranties and can cause risk of
shock or injury
In order to reduce the risk of fire, electric shock, personal injury or damage to property, follow these
instructions carefully. When using electrical appliances, basic safety precautions should be followed.
KEEP FOR YOUR RECORDS. THIS MANUAL MUST BE RETAINED FOR FUTURE
REFERENCE. PLEASE READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL BEFORE USING THIS VAPOR STEAM
CLEANER.
Notices
EAGLE PLUS™STEAM VACUUM
