USA Measurements US-1011 User manual

USA Measurements
US-1011 Indicator
User Manual
R1.1
____________________________________________________________________

1
Warning
Ask professional personnel to debug, detect and repair
controller.
Warning
Please keep good grounding of controller.
Warning
In electrical connection of controller, please cut off the power
supply in advance. Wait for 30 seconds between power-on of the
controller for 2 times.
Pay Attention to Static Electricity

2
Contents
I TECHNICAL INDICATORS ....................................................................................................... 3
II MAIN FUNCTION ...................................................................................................................... 3
III BOUNDARY DIMENSION ...................................................................................................... 4
IV INTRODUCTION TO PANEL ................................ ERROR! BOOKMARK NOT DEFINED.
V SETTING OF PARAMETERS .................................. ERROR! BOOKMARK NOT DEFINED.
ENTRY SETTING .................................................................................................................................... 6
F1 SETTING OF SCALE ............................................................... ERROR! BOOKMARK NOT DEFINED.
F2 SETTING OF APPLICATION FUNCTION ......................................................................................... 6
F3 SETTING OF ENERGY SAV I N G PARAMETERS ................................................................................ 9
F4 SETTING OF SERIAL PORT ............................................................................................................ 9
F5 MAINTENANCE AND SERVICE ..................................................................................................... 11
VI FUNCTION DESCRIPTION .................................................................................................. 11
APPENDIX 1. CONTINUOUS OUTPUT FORMAT SPECIFICATION ..................... ERROR!
BOOKMARK NOT DEFINED.
APPENDIX 2. PRINTING FORMAT SPECIFICATION ......................................................... 18

3
I Technical Indicators
● 6-digit 1.2-inch LED display, 7 state indicator lamps. Long service life and
shock resistance
● 7 function keys. Operation is simple and convenient
● Protection level: IP5X
● Excitation voltage: +5VDC
● Load capacity of sensor: at most 4 350Ω simulation sensors
● Input signal range of null point: 0-5mV
● Input signal range of full scale: 1-10 mV
● Inner resolution: 1 million
● Weight upgrading rate: 40 times per second
● Power supply mode
Battery: Lithium battery 7.4V4Ah
Adapter: voltage 100-240VAC Current 0.1A Frequency 50-60Hz.
● 2 RS232 ports
● Operating temperature: -10℃-40℃, relative humidity is below 85 %
● Storage temperature: -20℃-60℃, relative humidity is below 85 %
● Conforming to standard :GB/T 7724-1999
II Main Function
● Basic weighing function: resetting, removing the peel and clearing the peel
● Weight detection function, counting function, animal scale function
● Weight keeping function, weight accumulation function, percentage display
● Set redundant backup function of parameters
● Automatic screen protection and automatic shutdown energy-saving
function
● Rich printing formats and communication protocol

4
III Boundary Dimension

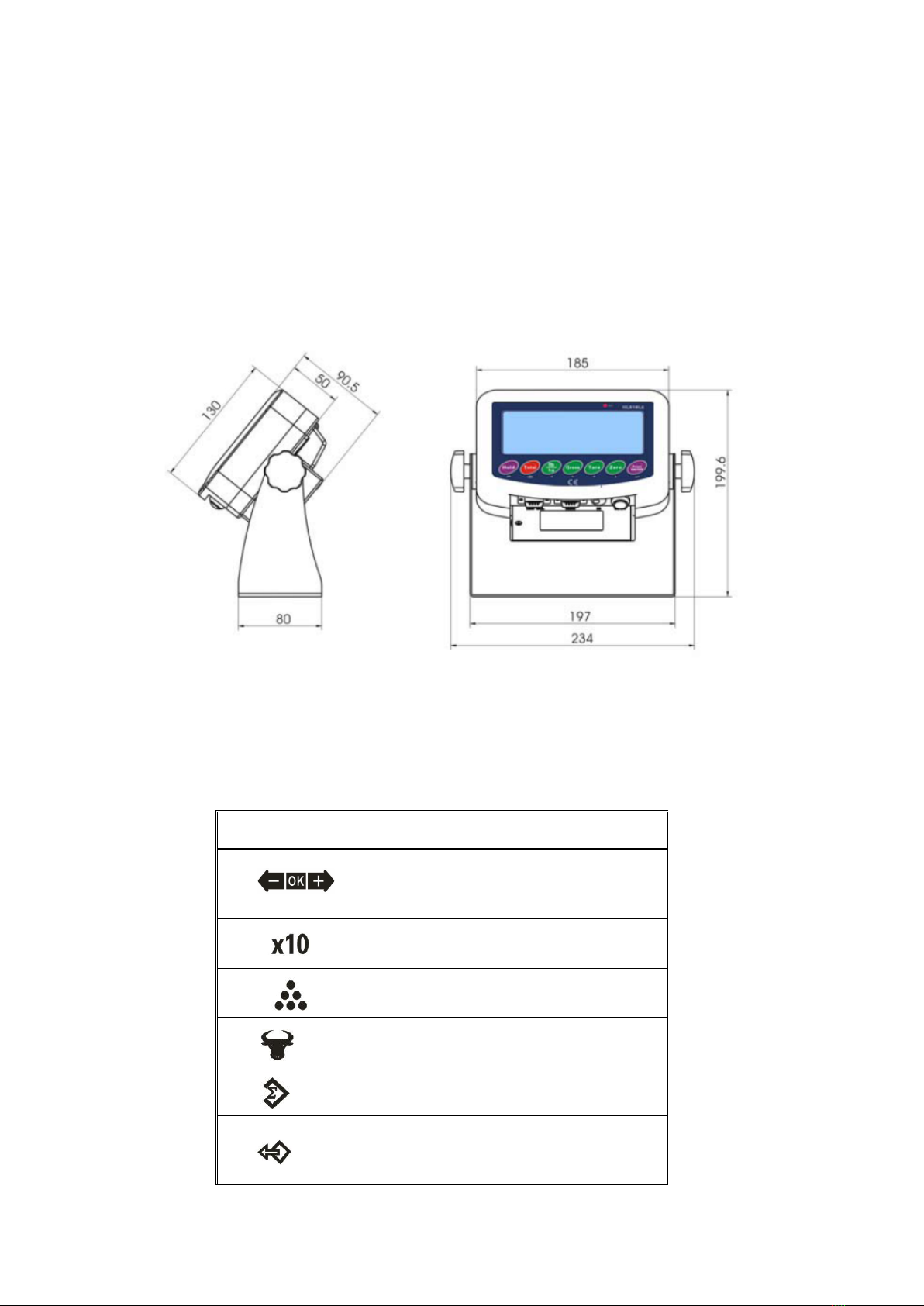

Instrument size: detailed in the following figure (mm); instrument weight:
1.5kg
IV Introduction to Panel

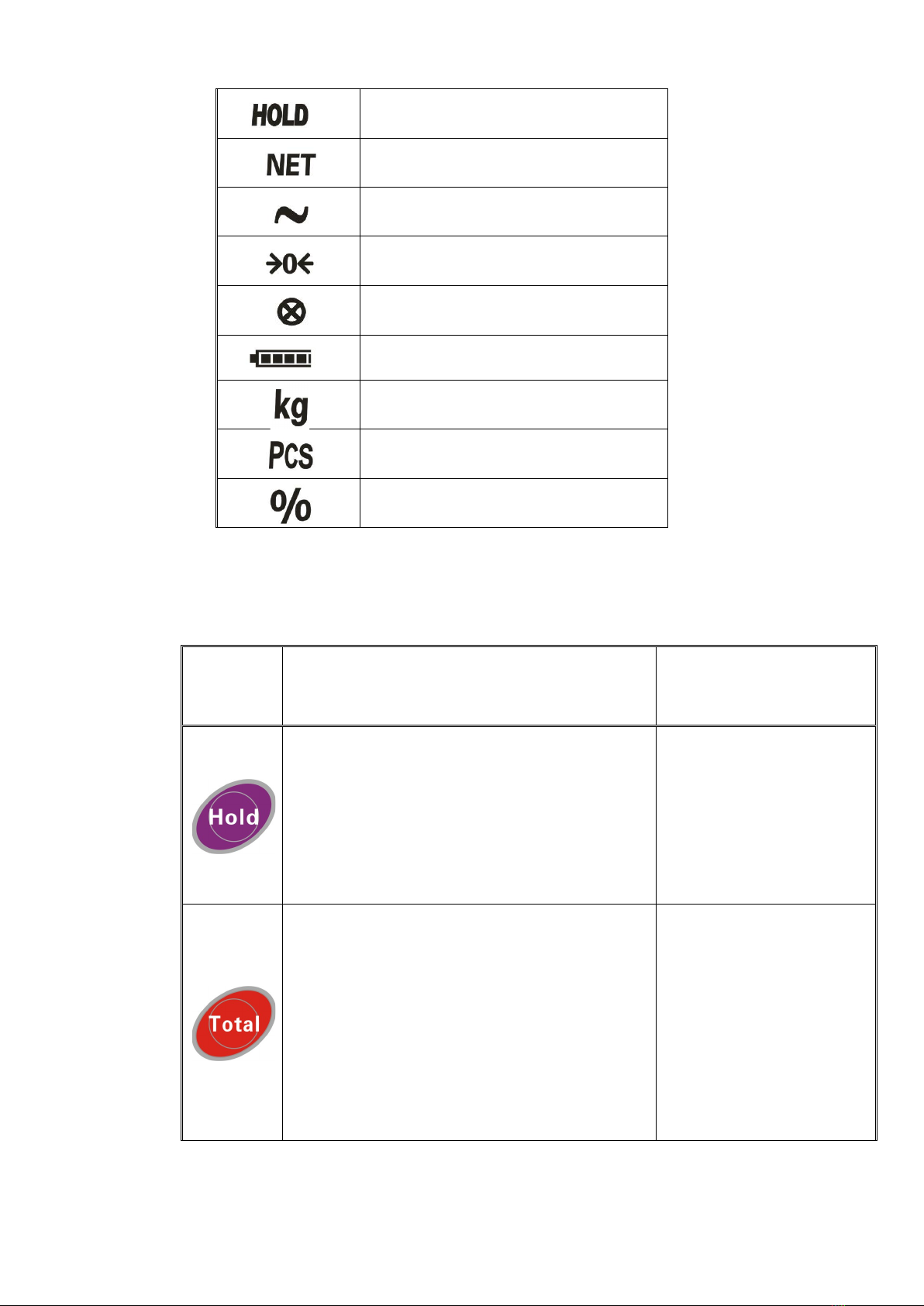

● Introduction to indicator lamps
Identification
Analysis
Sorting and weight check status
indicator
Extension indicator
Counting scale indicator
Animal scale indicator
Accumulating scale indicator
Accumulating scale adjustment
display indicator

5
Weight hold indicator
Net weight indicator
Scale in dynamic status
Scale at zero indicator
Key pressed indicator
Battery indicator
Weight unit
Counting scale unit
Weight % indicator
● Introduction to operation keys
Operation without special specification refers to short press on keys.
Key
symbol
Normal weighing state
Set stage
Weight maintenance key->『Hold』
Short press→ F2.1 = 1, keep/cancel.
F2.1 = 2, switch between percentage and
weight.
F2.1 = 5, switch between quantity and weight.
Long key→ enter setting menu.
Return to the last menu.
Accumulation key->『Total』
Short key → F2.1 = 4, include display weight
in accumulation value.。
Long key → F2.1 = 3, select scale to sample
target weight.
F2.1 = 4, accumulate weight of scale
display.
F2.1 = 5, count sampling of scale.
No definition.

6
Unit conversion key->『lb/kg』
Short key → in weighing state, switch weight
unit. The corresponding unit
indication lamp is on.
Flicker bit is on the left.
Skin removal key->『Gross』
Short key → net weight turns to gross weight;
induction lamp of net weight “Net” is off.
Flicker bit is on the right.
Skin removal key->『Tare』
Short key →gross weight turns to net weight.
Indication lamp of net weight “Net” is on.
Conduct skin removal operation for multiple
times.
Digit flicker position
reduces.
Zero clearing key ->『Zero』
Gross weight state resets weight. When the
scale is in net weight, dynamic state, saving
state and out of resetting range, zero clearing
operation is invalid.
In setting, digit of flicker
position increases. In
adjustment of display,
accumulation is cleared.
Printing key->『Print』
Short key → start up or print.
Printing format refers to Appendix1.
Long key → shut down.
Confirm operation, to save
setting data.
V. Parameter Setting
Setting entry:
Press the [Hold] button on the operating panel in the state of normal
weighing.
If F1.14 = 0, you can set all the parameters within F1~F5.
If F1.14 = 1, you can only set all parameters within F2~F5.
If F1.14 = 1 and you need to set the parameters within F1 menu, you
can press the calibration switch button until the F1 menu is entered.
Parameter Setting of F1 Scale
F1.1 Measuring Range
Selectable Capacity parameters: 3~10,0000 lbs
F1.2 Decimal Places
Selectable parameters: 0 ---- no decimal point

7
0.0 ---- 1 decimal place
0.00 ---- 2 decimal places
0.000 ---- 3 decimal places
0.0000 ---- 4 decimal places
F1.3 Number of Divisions
Selectable parameters: 1 (default value), 2, 5, 10, 20,
50
F1.4 Calibration Unit
Selectable parameters: 0 = kg
1= lb
F1.5 Gravitational Acceleration
Selectable parameters: 9.70000~9.99999. Default value =
9.79455.
F1.6 Null-point Calibration
【 】 Empty Scale Value
Remove the weights on the weighing platform to
guarantee the scale is in the empty state. Press
the [Print] key and the meter will display
[ ]. The displayed digits will reduce
slowly until the meter displays [ ]. In the
end it will display [ ] for one second,
which indicates the end of null-point calibration.
F1.7 Load-point Calibration
【 】 Load Calibration Weights on Scale
Load weights on the weighing platform, no less
than 10% of Full Capacity, then press the
[Print] key to start the next step.
【 】 Enter the value of weight set onto the scale
Enter the same weight value as that of the loaded
weights, press the [Print] key after the scale becomes
stable, and the meter will display [ ]. After that,
the displayed digits will reduce slowly until the meter
displays [ ]. In the end it will display [ ]
for one second, which indicates the end of calibration.
F1.8 Automatic Null Tracking
Selectable parameters: OFF, 1 d, 2 d, 3 d (default value)

8
F1.9 Automatic Reset Range at Startup
Selectable parameters: OFF, 2 %, 10 %, 20 % (default value)
F1.10 Button Reset Range
Selectable parameters: OFF, 2 %, 10 % (default value),
20 %
F1.11 Digital Filter
Selectable parameters: 0 ---- Mild Filtering
1 ---- Moderate Filtering (default
value)
2 ---- Severe Filtering
F1.12 Steady Range
Selectable parameters: 1 d, 2 d, 3 d (default value)
F1.13 Overload Display Range
Selectable Parameters: 9d, 5% (default value), 10%, 20%
F1.14 F1 Menu Protection
Selectable Parameters: 0 ---- Enter F1 menu by keyboard
operation
1 ---- Enter F1 menu by pressing
the calibration button
F1.15 Restoring Factory Default
Set the parameters within F1~F4 as the defaults, which can’t
impact the parameters of standard scale.
F2 Application Function Setting
F2.1 Function Selection
Selectable Parameters: 0 ---- ×10 functions
1 ---- Weight keeping function
2 ---- Percentage display function
3 ---- Weight checking and sorting function
(default value)
4 ---- Accumulative scale function
5 ---- Counting scale function
6 ---- Animal scale function

9
F2.2 Empty-scale threshold value
Selectable Parameters: 0~ full range (default value: 0.001)
F2.3 Target Weight for Weight Checking and Sorting
Selectable Parameters: 0~ full range (default value: 2.000)
F2.4 Positive Error for Weight Checking and Sorting
Selectable Parameters: 0~ full range (default value: 0.100)
F2.5 Negative Error for Weight Checking and Sorting
Selectable Parameters: 0~ full range (default value: 0.100)
F2.6 Access to Target Weight for Weight Checking and Sorting, and
Counting Sample Weight
Selectable Parameters: 0 ---- Access to Platform Weighing
(default value)
1 ---- Manual Input Access
F3 Energy-saving Parameter Setting
F3.1 Automatic backlight energy-saving time setting
Parameters selectable: 0 ~ 999。
0: Backlight NC;
1: Backlight NO;
2~999: 2~999s automatic backlight (default 10s)
F3.2 Automatic OFF energy-saving time setting
Parameters settable: 0 ~ 60min. (default 5 minutes)
“0” stands for deactivation of this function.
F4 Serial-port Setting
F4.1 Setting of UART0 Communication Interface Parameter
F4.1.1 Communication Mode
Selectable Parameters:
0 ---- no output (default value)
1 ---- continuous output protocol A
2 ---- continuous output protocol B
3 ---- continuous output MT
4 ---- firm output protocol A
5 ---- firm output protocol B

10
6 ---- key dispatch protocol A
7 ---- key dispatch protocol B
8 ---- key dispatch protocol A
9 ---- key dispatch protocol B
10 ---- key dispatch protocol C
11 ---- key dispatch protocol D
F4.1.2 Setting of Data and Check Pit
Selectable Parameters: 8_N_1---- 8-pit no parity check (default
value)
7_E_1 ---- 7-pit odd parity check
7_O_1 ---- 7-pit even parity check
8_E_1 ---- 8-pit odd parity check
8_O_1 ---- 8-pit even parity check
F4.1.3 Baud Rate
Selectable Parameters: 1200, 2400, 4800, 9600 (default
value)
F4.1.4 Continuous Output & Delivery Parity Check and Character
(only for F4.1=3)
Selectable Parameters: 0 ---- no delivery (default value)
1 ---- delivery
F4.1.5 Bluetooth Node Setting (effective only when Bluetooth
module option is configured)
Selectable Parameters: HoLi01~HoLi99 (default value:
HoLi01)
F4.2 Parameter Setting of UART1 Printing Interface
F4.2.1 Whether to connect the printer
Selectable Parameters: 0 ---- not connected to the
miniprinter (default)
1 ---- connected to the miniprinter
F4.2.2 Printing Carriage Return Character
Selectable Parameters: 0~9 carriage return characters
(default value: 3)

11
F4.2.3 Printing Setting of Accumulative Scale
Selectable Parameters: 0 ---- total accumulative data for
printing (default value)
1 ---- printing detail + total
accumulative data
F4.2.4 Print language setting
Parameters selectable: 0 ---- in Chinese (default)
1 ---- in English
F5 Maintenance and Service
F5.1 Key test
Instrument display 【 】, press『Print』, 『Zero』, 『Tare』,
『Gross』, 『lb/kg』 and 『Total』 in order, and the instrument
displays 【 】, 【 】, 【 】, 【 】, 【 】
and 【 】, press 『Hold』 to quit key test.
F5.2 Display screen test
All strokes of meter display will have self-inspection, to observe
whether there is lacks of strokes.
Press 『Hold』 or 『Print』 to quit test of display screen.
F5.3 Display current internal code
The display will show internal code of current instrument after
smoothing. Press 『Hold』 or 『Print』 to quit the interface.
VI Function Description
● ×10 function F2.1 = 0
How to operate
In normal weighing mode, press 『Total』 on the operation panel once,
the display accuracy will display 10 times and icon ×10 appears at the
same time; press the key again and it returns to normal weighing mode
and the icon of ×10 dissapears.
Note:
1. In net weight status, it’s forbidden to change over to ×10
function status;

12
2. If there have been 4 decimal places, it’s forbidden to change
over to ×10 function status;
3. Under ×10 function status, both serial output and printing output
are forbidden.
4. Under ×10 function status, it’s forbidden to tare.
● Weight hold function F2.1 = 1
How to operate
In normal weighing mode, press 『Hold』 on the operation panel once, the
weight presently displayed can be locked and “Hold” will be highlighted on
indicator. Weight Hold operation is valid only when the displayed weight is
≥F2.2 set value; otherwise, it displays invalid operation with 【 】 for
one second and the scale goes back to normal weighing mode.
If the weight is locked, press 『Hold』 again to unlock and it goes back to
normal weighing mode and “Hold” indicator goes off.
In weight locked status, you will be unable to tare, clear tare and zero.
● Percentage display F2.1 = 2
Display introduction
Displaying 【 】 indicates 20.5 %.
Pr = present actual weight / measuring range ×100%
Pressing 『Hold』 key to change over between percentage and weight.
● Weight check, sorting scale function F2.1 = 3
Function description:
Parameters as F2.2 = A, F2.3 = B, F2.4 = C, F2.5 = D etc shall be set.
Presently displayed weight is X.
If X ≤ A, no weight check or sorting will be performed.
If X ＜ (B – D), it stands for short weight; the short-weight icon
goes on.
If (B – D) ≤ X ≤ (B – C), it stands for PASS; PASS icon goes on.
If X ＞ (B – C). It stands for overweight; overweight icon goes on.

13
Target value acquisition
Hold 『Total』 until 【TARGET】 is displayed, and then press『Print』;
the present target value goes on and flashes.
If F2.6 = 0, press 『Print』, the present weight on the scale will be taken
as new target value and it exits setting interface.
If F2.6 = 1, it displays 【 】, requiring modifying the target value
manually. After the modification, press『Print』 to save the data and
exit the setting interface.
Press 『Hold』 to exit target value acquisition.
● Accumulating scale function F2.1 = 4
How to operate
In normal weighing state, the scale is at zero; load weight onto the
scale and press 『Total』 on the operation panel; if it displays
【 】, it means that the present weight has been counted in the
accumulated value; then it goes back to normal weighing status. If it
displays 【 】 for one second and then goes back to normal
weighing mode, it means invalid operation! Causes: 1. The scale must
be zeroed between two successive accumulation operations, otherwise,
accumulation will be refused. 2. Accumulation is valid only when the
displayed weight is ≥F2.2 setting. 3. The scale is in dynamic status.
Adjusted display, clearing, and printing of accumulated value
In normal weighing mode, hold 『Total』 on the operation panel for
over two seconds, it displays 【 】 for one second; then the
monitor shows the present accumulated value 【 】 or times of
accumulation 【 】; press 『Gross』 and 『Ib/kg』 to change
over; now the adjustment display icon goes on. Now if it’s necessary
to clear the accumulated value, press 『Zero』 to get back to normal
weighing mode. If F4.2.1=1, pressing 『Print 』 can print the
accumulated data. To exit the interface, press 『Hold』.

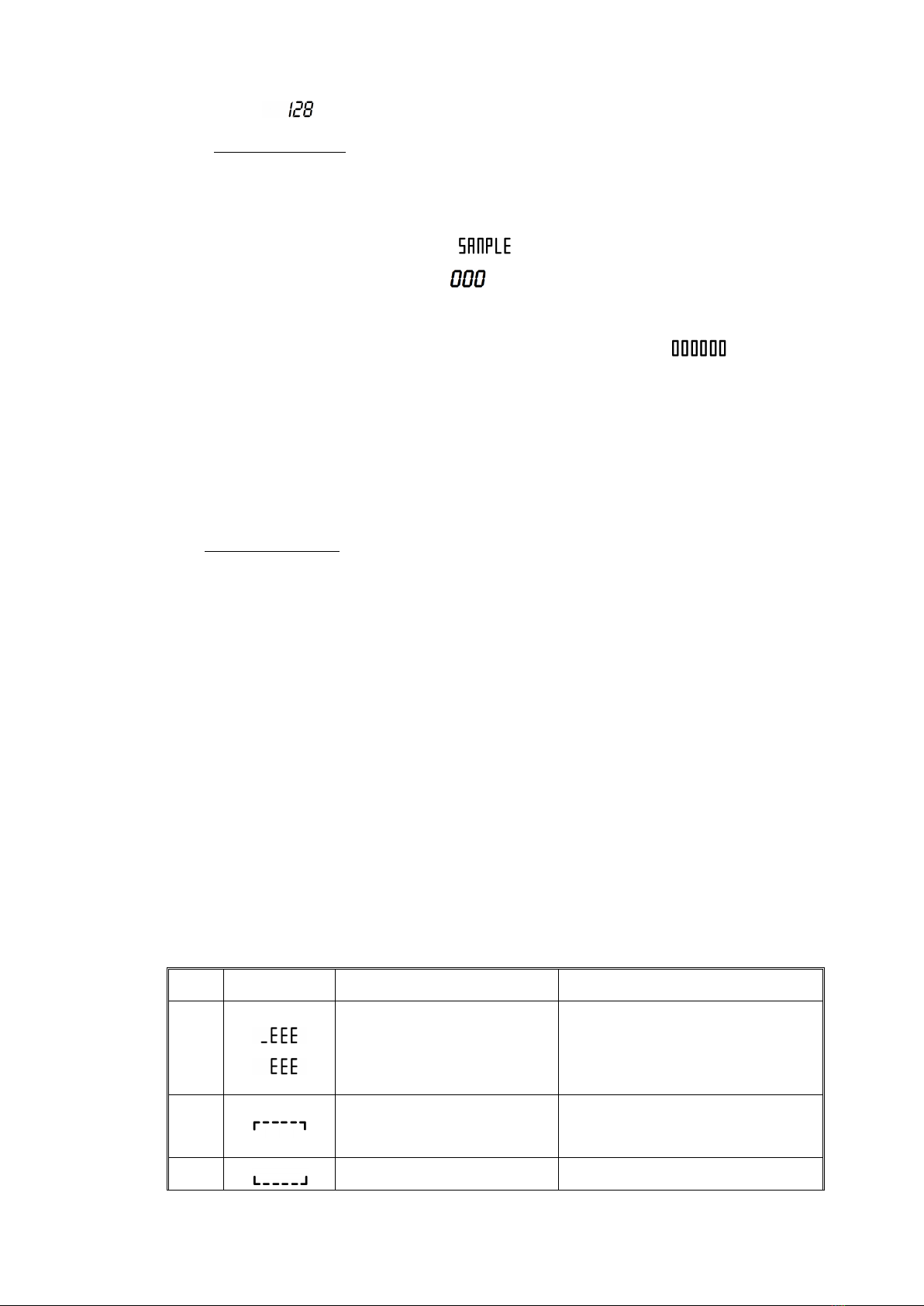

● Counting Scale Function F2.1 = 5
Instrument display

14
【 】displays the present counts
Sampling method
1. Check whether the scale is at Zero, otherwise, press 『Zero』.
2. Put the counted material onto the scale platform.
3. Hold 『Total』 until 【 】 is displayed; then press『Print』.
If F2.6 = 0, it displays【 】. Enter the value just counted and then
press 『Print』 to confirm, the sampled data will be saved and the
system exits sampling interface. If F2.6 = 1, it displays【 】; enter
the sample weight and press 『Print』; the system saves the setting data
and exits sampling setting interface.
4. In this function, press『Hold』 to switch between counts and weight.
● Animal Scale Functions F2.1 = 6
Operation method
In normal weighing state, place the animal on the weighing platform and its
weight must be ≥threshold value set in F2.2. Press 『Total』, instrument will
collect data sampling. After sampling, the average value of sampling data
will be locked, showing X.XXX lb; animal state indicator flashes. Press
『Print』 to print; press 『Hold』 or 『Total』 to quit the interface.

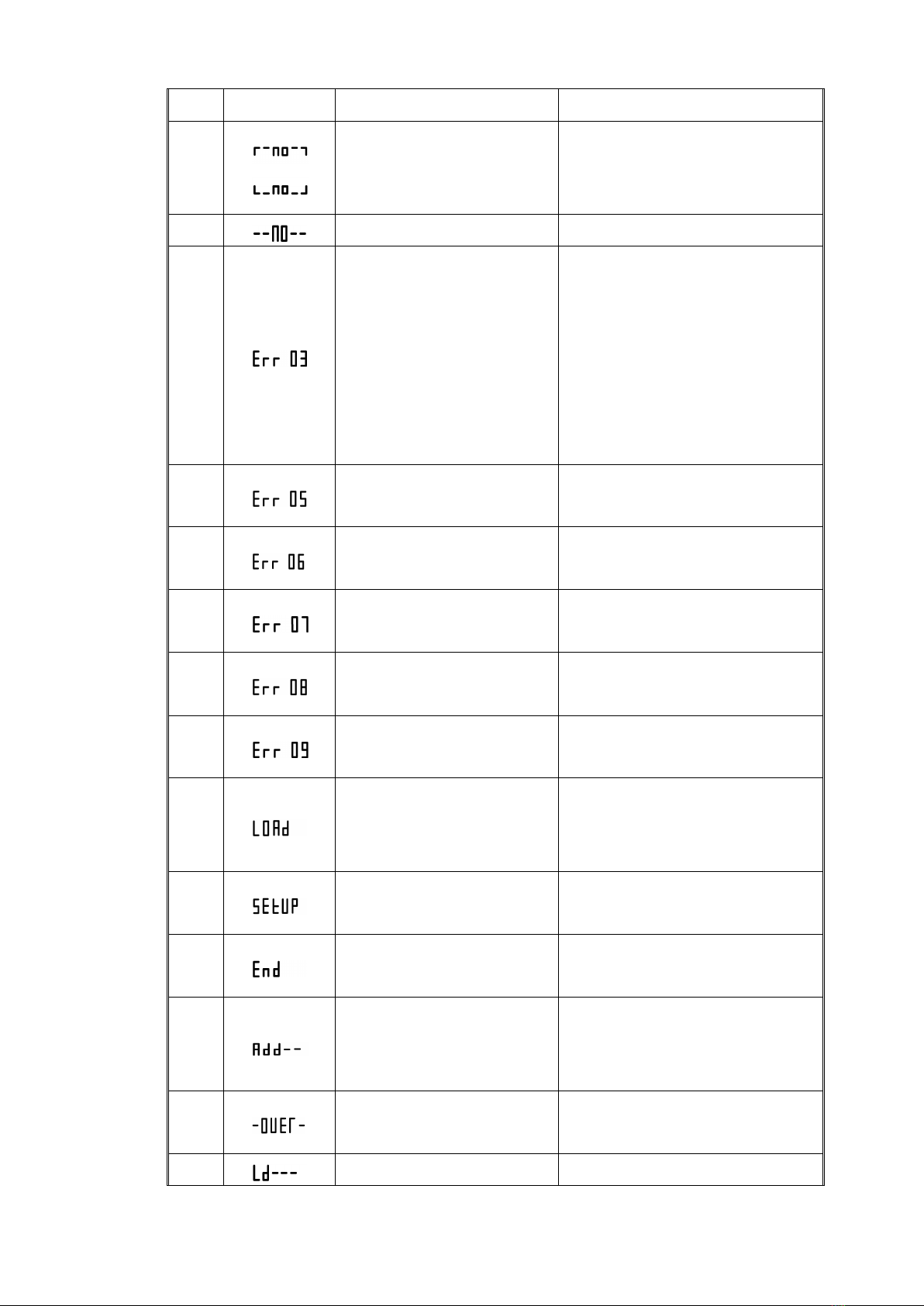

● VII Prompt Message of Instrument
The US-1011 indicator has extremely high stability and reliability, thus it is not easy
to have errors in a normal situation. However once an error does occur, first identify
what the error is and then make sure the idicator still has an error after turning off
and then turning on again before proceeding to troubleshoot. Repair the error
according to the error code as listed below:
No.
Symbol
Analysis
Treatment Method
1
【 】
【 】
Unable to reset after
startup
1、Determine it is no-load state
in startup;
2、Calibration needed
2
【 】
The weighed object is over
full range for 9 days
Reduce weight on weighing
platform
3
【 】
The weighed object is
Press 『Zero』 to reset

15
below 0 for 5 days
4
【 】
【 】
Out of zero clearing range
Check whether the weighing
platform has weight.
Remove weight.
5
【 】
Invalid operation
6
【 】
EEPROM checksum and
error
Press 『Print』 reprint factory
value. Start up again. If the
information occurs again,
return to factory for repair.
Please calibrate the scale again
if the situation does not occur;
7
【 】
The calibration input
weight is too small
Input≥10 % weight of full
capacity
8
【 】
The weight in calibration is
too light
Load≥10% weight of full
capacity
9
【 】
The scale is in dynamic
state
Inspect the scale body
10
【 】
Setting error of date and
time
Set according to specification of
date and time
11
【 】
Error of AD initialization
If the error occurs after
restarting, call manufacturer
12
【 】
In loading scale, it
indicates to loading
weight;
Load weight according to
requirements;
13
【 】
It has enters menu setting
Press 『Print 』 to continue
setting.
14
【 】
End of zero point and
loading point calibration
15
【 】
Including current display
weight in accumulated
value
16
【 】
Accumulated weight
overflows
Clear accumulated weight in
time
17
【 】
Loading default value

16
18
【 】
Printing
Appendix 1. Continuous Output Format Specification
1. Continuous output MT format
Continuous output MT format has 18 digits.
Continuous output format
ST
X
A
B
C
X
X
X
X
X
X
X
X
X
X
X
X
C
R
CK
S
1
3
6
6
1
1
Where:
1. <STX> ASCII start characters (02H)
2. Status word: A, B, C
3. Display weight, possibly gross weight or net weight, 6 digits without
symbol or decimal point.
4. Tare weight, 6 digits without symbol or decimal point
5. <CR> ASCII carriage return (ODH)
6, <CKS> optional checksum and (no output in F4.2.3 = 0)
Status word: A, B, C.
Status word A
Bit 0
Bit 1
Bit 2
Position of decimal
point
0
1
0
1
0
1
1
0
0
1
0
0
1
1
1
XXXXXX
XXXXX.X
XXXX.XX
XXX.XXX
XX.XXXX
Bit 3
Constant 0
Bit 4
Constant 1
Bit 5
Constant 0
Bit 6
Constant 1
Bit 7
Constant 0/check bit

17
Status word B
Bits
Function
Bit 0
Gross weight = 0, net weight = 1
Bit 1
Symbol: positive = 0, negative = 1
Bit 2
Overload (upper and lower overload) = 1
Bit 3
Static = 0, dynamic = 1
Bit 4
Constant 1
Bit 5
Constant 1
Bit 6
Constant 0
Bit 7
Constant 0/check bit
Status word C
Bits
Function
Bit 0
Unit: kg = 0, lb = 1
Bit 1
Constant 0
Bit 2
Constant 0
Bit 3
Constant 0
Bit 4
Constant 1
Bit 5
Constant 1
Bit 6
Constant 0
Bit 7
Constant 0/check bit
2. Continuous output A format
The data transmitted by continuous output protocol A is present display weight.
Gross weight format: ww0000.000kg or ww0000.000lb
Net weight format: wn0000.000kg or wn0000.000lb
Example: gross weight of 15.000kg
w
w
0
0
0
1
5
.
0
0
0
k
g
0d
0a
Net weight of 15.000kg
w
n
0
0
0
1
5
.
0
0
0
k
g
0d
0a
Gross weight-15.000kg
w
w
-
0
0
1
5
.
0
0
0
k
g
0d
0a
Note: the above position of the decimal point is determined according to that
in the instrument.

18
3、
Continuous output B format
Continuous output agreement B format:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
HEAD1 , HEAD2 , DATA UNIT CR/LF
HEAD1: OL Upper overload or lower overload, or no zero clearing in
startup;
ST the scale is in stable state;
US the scale is in unstable state;
HEAD2: GS gross weight；
NT net weight；
DATA: instrument display data；
UNIT: kg or lb；
CR/LF: new line.
Example 1: in stale state, gross weight is 18.000kg. sp = space.
S
T
,
G
S
,
sp
sp
1
8
.
0
0
0
k
g
0d
0a
Example 2: in unstable state, net weight is -0.200kg. sp = space.
4. Continuous output format C
Data format: = <weight data (including decimal point)>; all the data are ASCII codes.
Note:‘ =’ is data format head, ASCII code.
< weight data (including decimal point)> : Six bits including decimal points
have sign weight data and ASCII code.
For weight data, the lowest bit is in the front; high bits and signs are in the back; negative
sign bit is sent as “-”. For positive number, the sign bit is set as “0”.
For example: present displayed weight -500.00kg, the serial output data is: = 00.005-
。
present displayed weight 500.00kg, the serial output data is: = 00.0050
。
5, Continuous output format D
All the data transmitted is the present weight (gross weight or net weight) displayed; each
frame of data is composed of 12 groups of data.
Byte X
Contents and Explanation
U
S
,
N
T
,
-
sp
sp
0
.
2
0
0
k
g
0d
0a

19
1
02(\STX) start character
2
＋ or ! sign bit
3
weighing data highest bit of weight data
-
weighing data -
-
weighing data -
8
weighing data lowest bit of weight data
9
Decimal places Right to left (0~4)
10
xor checkout Four high bits
11
xor checkout Four low bits
12
03(\ETX) End character
xor"2⊕3⊕……8⊕9
Appendix 2. Printing Format Specification
F2.1 = 0, 1, 4, 6，print current resetting, press『Print』.
F2.1 = 1 weight maintenance function:
Weight is not in maintenance state: Weight is in maintenance state:
or
F2.1 = 3 selection, check weight, press 『Print』:
REPORT
-----------------------
Gross 1.980kg
State Less
REPORT
-----------------------
Gross 2.000kg
State OK
REPORT
-----------------------
Gross 2.020kg
State Over
REPORT
------------------------
Gross 0.200kg
Tare 0.000kg
Net 0.200kg
REPORT
----------------------
Gross 25.000kg
Status Hold
REPORT
------------------------
Gross 0.200kg
Tare 0.000kg
Net 0.200kg
REPORT
----------------------
Net 25.000kg
Status Hold
