USAVision UA-XVL810 User manual

Before attempting to connect or operate this product,
please read these instructions carefully and save this manual forfuture use. UVSUAV102-QG-A
Quick Start Guide
UA-XVL810, UA-XVL1610, UA-XVR810

© 2022 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows is the registered
trademark of Microsoft Corporation.
July 2022
Scan the following QR codes for product warranty and technical support
policy:
[Warranty] [Technical Support Policy]

Contents
1. Introduction.........................................................................................................1
1.1 Packing List............................................................................................................1
1.2 Overview ................................................................................................................2
1.2.1 UA-XVL810 Font Panel ............................................................................................ 2
1.2.2 UA-XVL810 Rear Panel............................................................................................ 3
1.2.3 UA-XVL1610 Front View........................................................................................... 4
1.2.4 UA-XVL1610 Rear View ........................................................................................... 5
1.2.5 UA-XVR810 Front View............................................................................................ 6
1.2.6 UA-XVR810 Rear View............................................................................................. 7
2. Installation...........................................................................................................8
2.1 HDD Installation......................................................................................................8
2.2 Connection Diagram...............................................................................................9
2.3 Power Supply Connection.......................................................................................9
3. Getting Started..................................................................................................10
3.1 Start Wizard..........................................................................................................10
3.1.1 Start Wizard ............................................................................................................ 10
3.1.2 Connecting IP Cameras..........................................................................................10
3.2 Live View Overview ..............................................................................................12
3.2.1 Main Window ..........................................................................................................12
3.2.2 Task Menu Bar........................................................................................................14
3.2.3 Camera Quick Toolbar............................................................................................14
4. Remote Access via Web Client........................................................................16
4.1 Basic System Requirements.................................................................................16
4.2 Looking Up the Dynamic IPAddress.....................................................................17
4.3 Web Client Manager Live Interface.......................................................................18
5. Upgrading Firmware.........................................................................................20

1
1. Introduction
Welcome to the UA-XVL1610, UA-XVR810 Quick Start Guide. In the following sections, you
will learn about the basic installations and configurations. For more details, see UA-XVL1610,
UA-XVR810 User’s Manual.
1.1Packing List
UA-XVL810 / UA-XVL1610 /
UA-XVR810
USB mouse
3.5”HDD screw Kit
Power adapter (DC 12V, 2A, 24W)
2.5”HDD screw kit
Download guide

2
1.2Overview
1.2.1 UA-XVL810 Font Panel
Item
Description
Power LED
Show constant green when power is supplied.
HDD LED
Blink red when the HDD is writing or reading data.
No LED when no HDD is installed.
USB port
Connect the supplied mouse or USB flash memory.

3
1.2.2 UA-XVL810 Rear Panel
Item
Description
Audio Input
Connect with audio input signals, RCAport.
CVBS
Connect with video input signals, BNC port.
Audio Output
Audio signal output, RCA port.
Video Input
Connect with video input devices, BNC port.
HDMI
Connect to your digital TV or monitor with HDMI input.
VGA
Connect to your TV or a monitor with VGA input.
LAN
Connect to your home network.
USB port
Connect the supplied mouse or USB flash memory.
Reset
Load default settings of the DVR.
Note: The Reset button is below the USB port. Poke the Reset button
to load default settings.
RS-485
Connect to PTZ devices.
Power
Connect to the supplied power adaptor.

4
1.2.3 UA-XVL1610 Front View
Item
Description
Power LED
Show constant green when power is supplied.
HDD LED
Blink red when the HDD is writing or reading data.
Show no LED when no HDD is installed.
USB port
Connect the supplied mouse or USB flash memory.

5
1.2.4 UA-XVL1610 Rear View
Item
Description
Video Input
Connect with video input devices, BNC port.
Audio Input
Connect with audio input signals, RCAport.
Audio Output
Audio signal output, RCA port.
VGA
Connect to your TV or a monitor with VGA input.
HDMI
Connect to your digital TV or monitor with HDMI input.
LAN
Connect to your home network.
USB port
Connect the supplied mouse or USB flash memory.
Reset
Load default settings of the DVR.
Note: The Reset button is below the USB port. Poke the Reset button
to load default settings.
Power
Connect to the supplied power adaptor.
RS-485
Connect to PTZ devices.
Sensor & Alarm
Optional. Connect to external sensor & alarm devices.
Power Switch
Turn on / off power supply.

6
1.2.5 UA-XVR810 Front View
Item
Description
Power LED
Show constant green when power is supplied.
HDD LED
Blink red when the HDD is writing or reading data.
No LED when no HDD is installed.
USB port
Connect the supplied mouse or USB flash memory.

7
1.2.6 UA-XVR810 Rear View
Item
Description
CVBS
Connect with video input signals, BNC port.
Audio Output
Audio signal output, RCA port.
Video Input
Connect with video input devices, standard BNC port.
Audio Input
Connect with audio input signals, RCAport.
Reset
Load default settings of the DVR.
Note: The Reset button is next to the HDMI port. Poke the Reset
button to load default settings.
VGA
Connect to your TV or a monitor with VGA input.
HDMI
Connect to your digital TV or monitor with HDMI input.
LAN
Connect to your home network.
USB port
Connect the supplied mouse or USB flash memory.
Power
Connect to the supplied power adaptor.
RS-485
Connect to PTZ devices.
Sensor & Alarm
Optional. Connect to external sensor & alarm devices.
Power Switch
Turn on / off power supply.

8
2. Installation
2.1 HDD Installation
Follow the instructions below to install the HDD in the DVR for video data storage.
Caution: DO NOT install or remove the hard drive while the power is turned ON.
Note:
1. The DVR supports 3.5” and 2.5” SATA HDD of up to 8 TB only.
2. The following procedures are for reference only. The practical operation may be
different depending on the model you purchased.
HDD Installation:
(1) Cut power firstly. Unscrew both sides and rear panel to open the upper cover.
(2) Connect the data and power cables to the HDD and place the HDD on the DVR case.
Carefully flip the DVR case and secure the HDD to the DVR with screws.

9

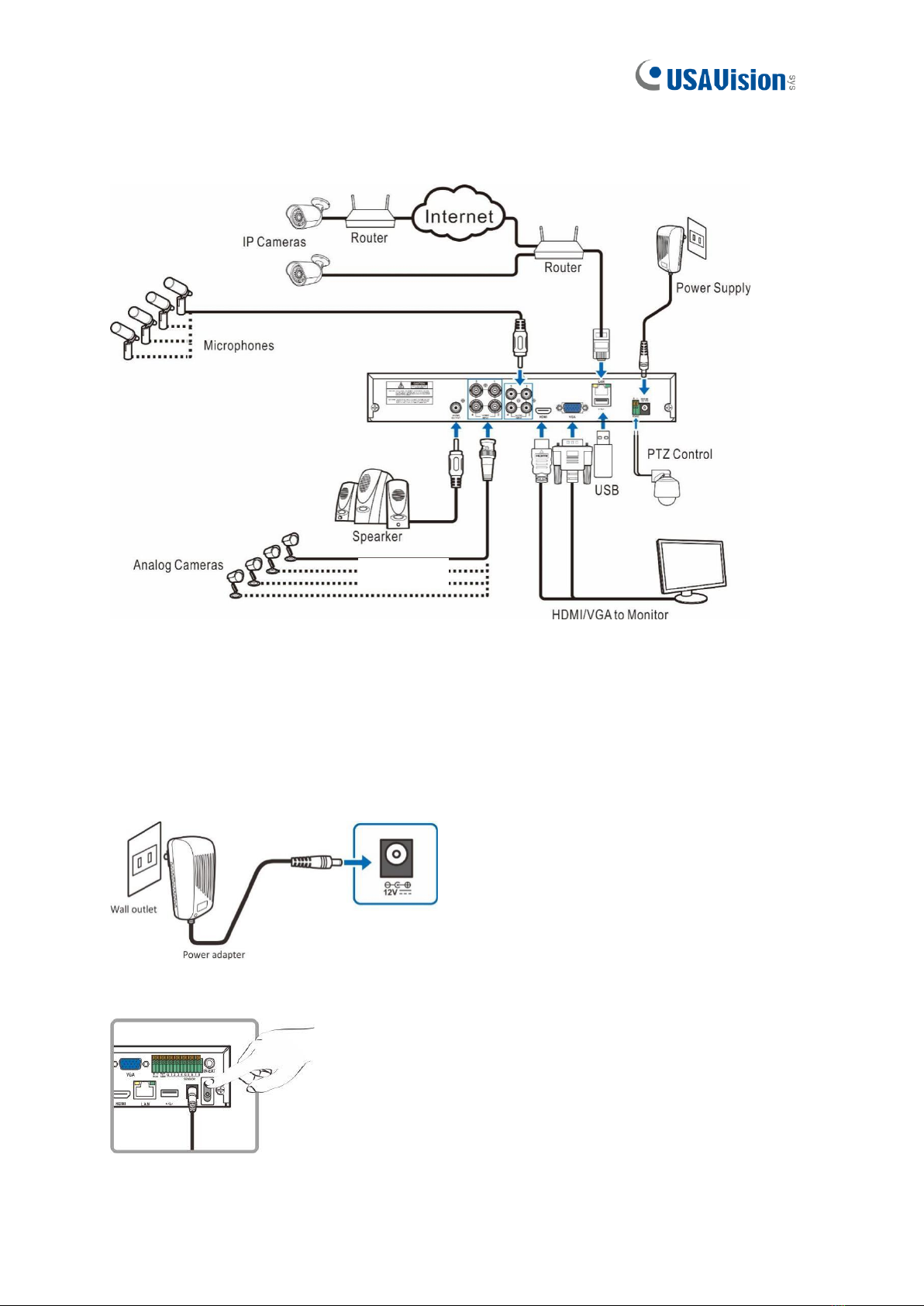

2.2 Connection Diagram
2.3Power Supply Connection
Caution: Use only the supplied power adapter of the DVR.
Connect one end of the power adapter to the power connector on the back of the DVR. Plug the
other end of the power adapter into the wall outlet.
For specific models, press the Power Switch to turn on the power.
Speaker

10
3. Getting Started
3.1 Start Wizard
3.1.1 Start Wizard
Click Start Wizard to proceed to the next step.
3.1.2 Connecting IP Cameras
After finishing setting Network Configuration and Date and Time, this page appears.

11
Click Search to search IP cameras in the same network. Choose the IP camera(s) you want
to add, and then click icon to add to the DVR. Or, click button to manually add
individual IP camera to a single channel.
◼IP Address/Domain: IP address or domain name of the IP camera.
◼Alias: Name of the IP camera.
◼Port: Port of the IP camera.
⚫Type 80 for UA-B20004F / UA-B40004F / UA-B4000VF-S / UA-D20004F / UA-D40002F
/ UA-D4000VF-S / UA-R40002F-SA / GV-IP cameras
⚫Type 9000 for UA-B580F3 / UA-R500F2 / UA-R560F2 / UA-R580F2 / UA-R800F2
◼Protocol: Choose the protocol of the IP camera from the dropdown menu.
⚫Select Onvif for UA-B20004F / UA-B40004F / UA-B4000VF-S / UA-D20002F /
UA-D40002F / UA-D4000VF-S / UA-R40002F-SA / GV-IP cameras
⚫Select Private for UA-B580F3 / UA-R500F2 / UA-R560F2 / UA-R580F2 / UA-R800F2
◼User Name: User Name of the IP camera.
◼Password: Password of the IP camera.
Note:
1. The system fills in the ID and password using admin/admin by default. Make sure to
enter the correct ID and password of the IP cameras when adding them to the DVR.
2. The default password is 123456 for the following IP camera models: UA-B20004F /
UA-B40004F / UA-B4000VF-S / UA-D20002F / UA-D40002F / UA-D4000VF-S /
UA-R40002F-SA. To modify the password on the camera’s Web interface, refer to
Network Cameras User Manual for details.

12
3.2 Live View Overview
3.2.1 Main Window
12
5
3
4
6
7
No.
Name
Description
1
Camera Title
A-: This indicates that the camera connected is an AHD camera.
T-: This indicates that the camera connected is a TVI camera.
C-: This indicates that the camera connected is a CVI camera.
IP: This indicates that the camera connected is an IP camera.
2
Status Icon
This indicates that the DVR is currently recording.
This icon appears when the camera has detected motion.
The icon indicates that the external I/O alarm device is
triggered.
This icon indicates that the HDD is in error to work.
This icon indicates the HDD is unformatted.
This icon indicates the HDD is full.
This icon indicates the HDD is read-only.

13
3
Camera Quick
Toolbar
Left-click on the screen to quickly access the camera’s toolbar.
Refer to 3.2.3 Camera Quick Toolbar in the Quick Start Guide for
details.
4
Start Menu
admin: To switch user.
Search: Search & Playback.
Setup: DVR System Setup.
Lock Screen: Lock and unlock screen.
Shutdown: Shutdown, reboot, and log out the system.
5
Task Menu Bar
Locates at the bottom of the live view screen. Refer to 3.2.2
Task Menu Bar in the Quick Start Guide for details.
6
System Date and
Time
Displays the system’s date and time.
7
OSD
VIDEO LOSS: The analog camera is disconnected.
No Camera: IP camera is disconnected.
Decoding Failed: The DVR doesn’t support the current IP
camera compression standard. Change the compression
standard to H.264.
Click to open Quick Add menu to add IP camera.
Click to edit the current IP camera.
For more details, see 4.2 Live View Screen Overview in UA-XVL1610, UA-XVR810 User’s
Manual.

14
3.2.2 Task Menu Bar
Click to open the Start Menu.
Click to choose different layouts for live view.
More Layout: Click to choose more layouts for live view.
Auto SEQ: Click to start viewing channels in a sequence.
Playback: You can choose to play the latest recording for all channels from the
beginning of the day, or you can choose the playback from the latest 5s, 10s, 30s, 1Min,
5Min.
Audio: Click to adjust audio volume.
Preview Policy: Click to switch among real-time, balanced, or smooth view. This
function only effects the live view video quality by bitrate and frame rate without
impacting the recording quality.
Manual: To start or stop Manual Record and Manual Alarm.
System: To view system information, channel information, record info, and network
state.
This icon appears if the network is disconnected.
3.2.3 Camera Quick Toolbar
Click to manually record the channel. If the manual recording is in process, the icon will
be in red color. Click one more time to stop manual record.
Click to save a snapshot of the current camera image. Manual Capture must be enabled
to use this feature.

15
Click to play the last 5 minutes of recording of this channel.
Click to enter PTZ control panel.
Click to zoom-in the channel. When the icon appears, press and hold the left button
of your mouse to drag the area you want to zoom in.
Click to adjust the image color of the channel. You can adjust the HUE, BRIGHT,
CONTRAST & SATURATION of the image.
Click to switch main/sub stream
Click to enable/disable white light alarm. Note that this menu won’t change the white light
setting parameter.
Click to manually record the channel. If the manual recording is in process, the icon will
be in red color. Click one more time to stop manual record.
Click to save a snapshot of the current camera image. Manual Capture must be enabled
to use this feature.
Click to play the last 5 minutes of recording of this channel.
Click to enter PTZ control panel.
Click to zoom-in the channel. When the icon appears, press and hold the left button
of your mouse to drag the area you want to zoom in.
Click to adjust the image color of the channel. You can adjust the HUE, BRIGHT,
CONTRAST & SATURATION of the image.
Click to switch main/sub stream
Click to enable/disable white light alarm. Note that this menu won’t change the white light
setting parameter.

16
4. Remote Access via Web Client
Use the Web Client to remotely access your DVR at any time via a PC. Before you access
the Web Client, ensure that your PC’s system meets the basic requirements and that the
network settings of the DVR are configured properly.
4.1 Basic System Requirements
Item
Minimum
Recommended
CPU
Intel® Core™ i5 CPU
Intel® Core™ i5 CPU or higher
RAM
4G or more
8G or more
Hard Drive
500G or more
1000G or more
Display RAM
2G or more
4G or more
Display
Resolution
1280*1024
1920*1080
OS
Windows 7 or above
Mac OS X® 10.9 or above
DirectX
DirectX 11
Direct3D
Acceleration Function
Ethernet Adapter
10/100/1000M Ethernet Adapter
IE
10/11
Mozilla Firefox
V52 or later
Google Chrome
V57 or later
Mac Safari
V12.1 or later
Edge
V79 or later

17
4.2 Looking Up the Dynamic IP Address
By default, when the DVR is connected LAN with DHCP server, it is automatically assigned
with a dynamic IP address. Follow the steps below to look up its IP address.
1. Download and install the UVS Device Utility program here.
2. On the UVS Device Utility window, click Search to search for the devices connected in
the same LAN.
3. Find the device with its Mac Address and click on its IP address.
4. The login web page appears.
