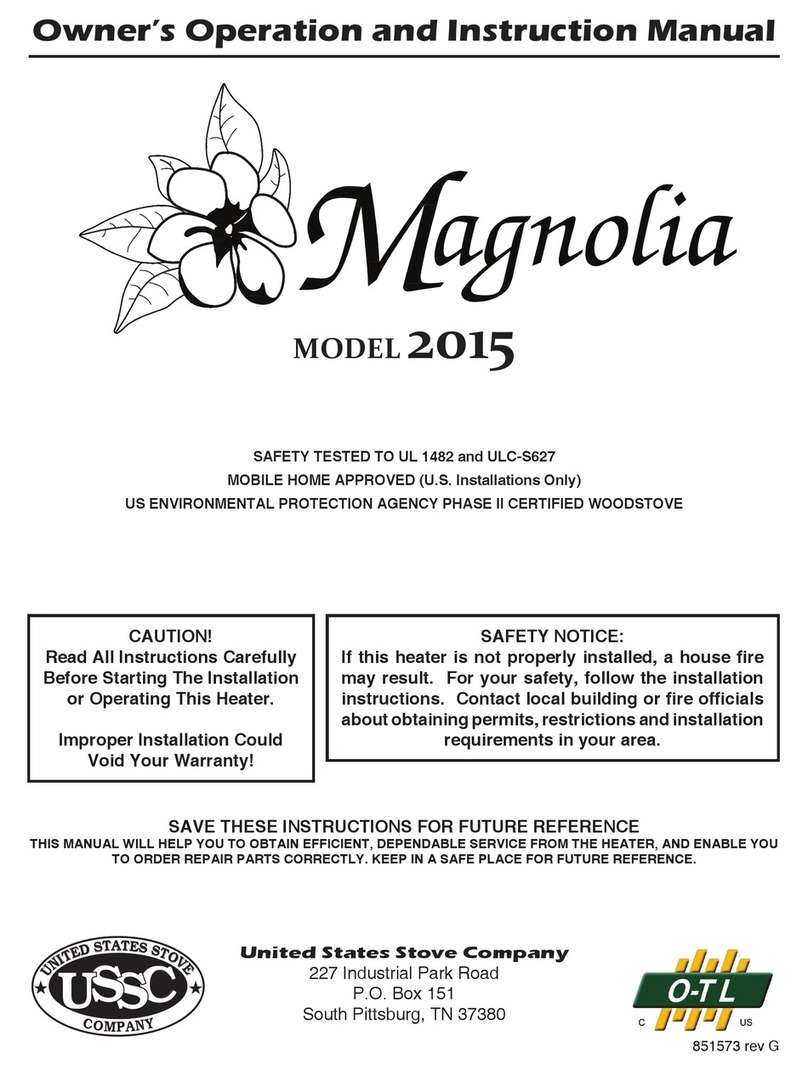

Owner’s Operation and Instruction Manual
Model 2015
CRUS
SAFETY NOTICE:
If this heater is not properly installed, a house fire may
result. For your safety, follow the installation instruc-
tions. Contact local building or fire officials about
restrictionsandinstallationrequirementsinyourarea.
CAUTION!
Read All Instructions Carefully
Before Starting The Installation
or Operating This Heater.
Improper Installation Could Void
Your Warranty!
US ENVIRONMENTAL PROTECTION
AGENCY PHASE II CERTIFIED
WOODSTOVE
TESTED TO
UL 1482
&
ULC - S627
Manufactured by:
United States Stove Company
227 Industrial Park Road
P.O.Box151
South Pittsburg, TN 37380
Licensed by: Drolet Stoves and Fireplaces Inc.
SAVE THIS MANUAL FOR FUTURE REFERENCE
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU
TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.E
851573A

2Ussc
OPTIONS PARTNUMBER
Thermodisc AC05530
Outside Air Intake Kit AC02080
CONGRATULATIONS!
You've purchased a heater from North America's oldest manufacturer of wood burning products.
By heating with wood you're helping to CONSERVE ENERGY!
Wood is our only Renewable Energy Resource. Please do your part to preserve our wood supply. Plant at least one
tree each year. Future generations will thank you.
The instructions pertainning to the installation of your wood stove comply ULC-S627 and UL-1482 standards.
Combustible : Wood
Recommended Surface : 500 to 1,800 ft²
(46 to 167m²)
Heating Capacity : E.P.A: 30,800 BTU/hr
(9.02 kW)
Efficiency : 65 %
Emissions : 5.7 g/h
Colors : Flat Black
Flue Pipe Diameter : 6”(152mm)
Chimney type : 2 100°F (650°C)
Minimum Chimney Hieght : 12’(3.66m)
Maximum Log Length : 19 1/2” (495mm)
Dimensions
Overall : L x W x H
28 ¼ x 25 3/8x 33
(718 x 645 x 838mm)
Combustion Chamber : W x D
Width x Depth : 18 ¼ x 20 ¼
(464 x 514mm)
Volume: 3.228 pi³ (0.092m³)
Door Opening : W x H
9 5/16 x 13 3/8
(237 x 340mm)
Pyroceram Glass Door : W x H
12 3/8 x 18 5/8”
(314 x 473mm)
Weight : 342 lbs (116 Kg)
CAUTIONS:
• HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS.
• DO NOT USE CHEMICALS OR FLUIDS TO IGNITE THE FIRE.
• DONOTLEAVETHE STOVE UNATTENDED WHEN THE DOOR IS SLIGHTLYOPENED.
• DO NOT BURN WASTES, FLAMMABLE FLUID SUCH AS GASOLINE, NAPHTHA OR
MOTOR OIL.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
• ALWAYS CLOSE THE DOOR AFTER THE IGNITION.

Ussc 3
ASSEMBLY
Leg Assembly:
1. Remove the firebrick form the unit. Tilt the unit on its side. DO NOT tilt the unit on its back, this could
possibly bend or distort the blower chute on the back of the unit.
2. Remove the four(4) Lag Screws holding the two boards to the unit.
3. Mount the legs to the bottom of the unit using the eight bolts, nuts, and washers provided in the parts bag.
4. Carefully stand the unit up onto the legs.
Flue Collar Assembly:
1. Mount the flue collar to the top of the unit as shown using the (3) 5/16-18 x 1-1/2 bolts, (3) washers, and (3) weld
tabs provided in the parts box.
Blower Chute Assembly:
1. Locate the Heat Shield Deflector. Using the three(3) 1/2 Tek Screws provided, mount the deflector to the unit as
shown in the diagram.
Ash Pan Assembly:
1. Locate the two(2) Ash Pan Supports welded under the unit, then simply slide the ash pan into place under the unit.
Replace the Fire Brick as shown in the illustration below.
Side view of flue collar
mount to heater top
Ash PLug
Brick Placement

4Ussc
BLOWERASSEMBLY
ASSEMBLY INSTRUCTIONS
THE BLOWER ASSEMBLY MUST BE DISCONNECTED FROM THE SOURCE OF ELECTRI-
CAL SUPPLY BEFORE ATTEMPTING THE INSTALLATION.
Step 1.
Fix the assembly to the back of the stove with the four screws provided.
THE BLOWER ASSEMBLY IS INTENDED FOR USE ONLY WITH A STOVE THAT IS MARKED
TO INDICATE SUCH USE.
DO NOT ROUTE THE SUPPLY CORD NEAR OR ACROSS HOT SURFACES!

Ussc 5
INSTALLATION
SAFETY NOTICE
• IFTHIS STOVEISNOT PROPERLYINSTALLED,A HOUSEFIREMAY RESULT.TO
REDUCETHE RISKOF FIRE,FOLLOW THEINSTALLATION INSTRUCTIONS.FAILURE
TOFOLLOW INSTRUCTIONSMAYRESULT INPROPERTYDAMAGE, BODILYINJURY,
OR EVEN DEATH.
• CONSULTYOUR MUNICIPALBUILDING DEPARTMENTORFIRE OFFICIALSABOUT
RESTRICTIONSAND INSTALLATIONSREQUIREMENTS INYOUR AREA.
• USE SMOKE DETECTORS IN THE ROOM WHERE YOUR STOVE IS INSTALLED.
• KEEP FURNITURE AND DRAPES WELL AWAY FROM THE STOVE.
• NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL
LIGHTER FLUID, OR SIMILAR LIQUIDS TO START OR “FRESHEN UP” A FIRE. KEEP
ALL SUCH LIQUIDS WELL AWAY FROM THE STOVE.
• IN THE EVENT OF A CHIMNEY FIRE, PUSH THE AIR CONTROL FULL CLOSED TO
DEPRIVE THE FIRE OF OXYGEN. CALL THE FIRE DEPARTMENT.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
• ASOURCEOF FRESHAIRINTOTHE ROOMORSPACEHEATED SHALLBEPROVIDED
WHENREQUIRED.
POSITIONING THE STOVE
Itis veryimportant toposition thewood stoveas closeas possibleto thechimney, andinan areathat
willfavor themost efficientheatdistribution possiblethroughout thehouse. Thestove musttherefore
be installed in the room where the most time is spent, and in the most spacious room possible.
Recall that wood stoves produce radiating heat, the heat we feel when we are close to a wood stove.
A wood stove also functions by convection, that is through the displacement of hot air accelerated
upwards and its replacement with cooler air. If necessary, the hot air distribution from the stove may
be facilitated by the installation of a blower.
The wood stove must not be hooked up to a hot air distribution system since an excessive
accumulation of heat may occur.
A wood stove must never be installed in a hallway or near a staircase, since it may block the
way in case of fire or fail to respect required clearances.

6Ussc
FLOOR PROTECTOR
Your wood stove should be placed on a non-combustible surface with a R value of 1.0. For multiple
layers, add R-values of each layer to determine the overall R-value. The floor protector should be
under the stove, eighteen inches beyond the front and eight inches beyond each side of the fuel
loading and ash removal opening. If there is a horizontal section of chimney connector, the floor
protector should go under it and two inches beyond each side
Convert specification to R-value:
k-factor is given with a required thickness (T) in inches: R=1/k x T
C-factor is given: R=1/C
Example:
If the floor protector is 4" brick with a C-factor of 1.25 over 1/8" mineral board with a “k” factor
of 0.29 the total R-value of the system is:
4" brick C=1.25, R=1/1.25=0.8
1/8" mineral board K=0.29, R=1/0.29 x 0.125=0.431
Total R = Rbrick + Rmineral = 0.8 + 0.431 = 1.231
Total R is greater than 1.0, the system is acceptable.
The floor protector should exceed the stove as follows:
FRONT SIDES REAR
18” 8” 8”
(460 mm) (200 mm) (200 mm)

Ussc 7
CLEARANCES TO COMBUSTIBLES
It is of utmost importance that the clearances to combustible materials be strictly adhered to during
installation of the stove. Refer to the tables below :
Floor to ceiling height must be at least 7’ (84”) in all cases.
The clearance between the flue pipe and a wall are valid only for verticle walls and for verticle flue
pipe.
The flue pipe must not go through roof trussing, an attic, a closet, a floor, a combustible partition,
or similar spaces.
A flue pipe crossing a combustible wall must have a minimum clearance of 18”.
To reduce flue clearances from combustible materials, contact your local safety department.
•
•
•
•
•
Single pipe / Double pipe
ABCDEF
7/6 23/24 16/17 13.7/12.7 34.9/35.9 37.9/28.9

8Ussc
REDUCED CLEARANCES (CANADA ONLY)
You may decrease the clearances by installing heat radiation shields between the walls or the ceiling
and the stove. These heat radiation shields must be installed permanently, and can include sheet
metal, a rigid non-combustible sheet or a masonry wall. Clearances of not less than 1" (25 mm) and
not more than 3" (76 mm) between the bottom of the shield and the floor and not less than 3" (76
mm) between the top of the shield and the ceiling must be respected to allow vertical air circulation
behind the shield. The shield must extend 20" (500 mm) above the stove top and 18" (450mm) to
each side of the stove. Following the installation of such a heat radiation shield, the clearances
mentioned on the stove certification plate may be reduced as stated in the following table.
TYPE OF PROTECTION Reducing Clearnaces With
Shielding
Sides and Top
Rear/Back
67% 50%
50% 33%
67% 50%
50% N/A
67% N/A
Sheet metal, a minimum of 0.013" (0.33 mm) spaced out at
least 7/8" (21 mm) by non-combustible spacers.
Ceramic tiles, or an equivalent non-combustible material on
fire-proof supports spaced out at least 7/8" (21 mm) by non-
combustible spacers.
Ceramic tiles, or an equivalent non-combustible material on
fire-proofsupportswitha minimumof 0.013"(0.33 mm)sheet
metal backing spaced out at least 7/8" (21 mm) by non-
combustible spacers.
Brick spaced out at least 7/8" (21 mm) by noncombustible
spacers.
Brick with a minimum of 0,013" (0,33 mm) sheet metal
backingspaced outatleast 7/8"(21mm) bynoncombustible
spacers.

Ussc 9
CHIMNEY
Yourwood stovemay behookedup withafactory builtor masonrychimney.If youare usingafactory
built chimney, it must comply with UL 103 or ULC S629 standards; therefore it must be a Type HT
(2100°F). It is extremely important that it be installed according to the manufacturer's specifications.
If you are using a masonry chimney, it is important that it be built in compliance with the specifica-
tions of the National Building Code. It must be lined with fire clay bricks, metal or clay tiles sealed
together with fire cement. (Round flues are the most efficient).
The interior diameter of the chimney flue must be identical to the stove smoke exhaust. A flue which
is too small may cause draft problems, while a large flue favours rapid cooling of the gas, and hence
the build-up of creosote and the risk of chimney fires. Note that it is the chimney and not the stove
which creates the draft effect; your stove's performance is directly dependent on an adequate draft
from your chimney.
The following recommendations may be useful for the installation of your chimney:
1. Do not connect this unit to a chimney flue serving another appliance.
2. It must rise above the roof at least 3' (0.9 mm) from the uppermost point of contact.
3. The chimney must exceed any part of the building or other obstruction within a 10' (3.04m)
distance by a height of 2' (0.6 m).
4. Installation of an interior chimney is always preferable to an exterior chimney. Indeed, the
interior chimney will, by definition, be hotter than an exterior chimney, being heated up by
the ambient air in the house. Therefore the gas which circulates will cool more slowly,
thus reducing the build-up of creosote and the risk of chimney fires.
5. The draft caused by the tendency for hot air to rise will be increased with an interior
chimney.
6. Using a fire screen at the extremity of the chimney requires regular inspection in order to
insure that it is not obstructed thus blocking the draft, and it should be cleaned when
regularly.

10 Ussc
CHIMNEY CONNECTOR (STOVE PIPE)
Your chimney connector and chimney must have the same diameter as the stove outlet. If this is not
the case, we recommend you contact your dealer in order to insure there will be no problem with the
draft.
The stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021" or
0.53 mm. It is strictly forbidden to use galvanized steel.
Your smoke pipe should be assembled in such a way that the male section of the pipe faces down.
Attach each of the sections to one another with three equidistant metal screws.
The pipe must be short and straight. All sections installed horizontally must slope at least 1/4 inch
per foot, with the upper end of the section toward the chimney.
To insure a good draft, the total length of the coupling pipe should never exceed 8' to 10' (24 to 3.04
m). (Except for cases of vertical installation, cathedral-roof style where the smoke exhaust system
can be much longer and connected without problem to the chimney at the ceiling of the room).
There should never be more than two 90 degrees elbows in the smoke exhaust system.
Installationofa“barometricdraft stabilizer”(fireplaceregister) onasmoke exhaustsystemis prohibited.
Furthermore,installation ofadraft damperisnot recommended.Indeed,with acontrolledcombustion
wood stove, the draft is regulated upon intake of the combustion air in the stove and not at the
exhaust.
