USX STAR SFL006 User manual

SFL006
INSTRUCTION MANUAL
USA-C0
For 37-90" TV
If you have any questions along the way, just message
to us. We’re ready to help!
TM

Before getting started, let’s check below lists to make sure it is just right for you!
2
Check your TV
VESA is within
Min and Max size
1
2
3
4
5
Does your TV
(including accessories)
weigh MORE than
132 lbs. (60 kg)?
What is your
wall made of?
Do you have
all the tools
needed?
(Not included)
Caution
MAX:600mm/23.6"
(MIN:150mm/5.9")
MAX:400mm/15.7"
(MIN:150mm/5.9")
No? This mount is NOT compatible.
Yes? Perfect !
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
Socket
Wrench
1/2"(13mm)
Stud
Finder
7/32"(5.5mm)
Wood Drill Bit
3/8"(10mm)
Masonry Drill Bit Hammer
● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone
● The wall must be capable of supporting five times the weight of the TV and mount itself
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Awl
Drywall with
wood studs? CAUTION: Solid concrete ?Unsure?
Mail to us via Amazon.
Tape
Measure Pencil Screw driver
Electric
Drill
Max:
132 LBS
(60 kg)
Concrete Install
Per fect !Per fect !
DO NOT
install into
drywall alone
Wood Stud Install
CAUTION: PLEASE READ ENTIRE MANUAL PRIOR TO USE AND SAVE THESE INSTRUCTIONS
!
!
!

3
TV INTERFACE WALL PLATE
SIDE VIEW
MAX:600mm/23.6"
MIN:150mm/5.9"
MAX:400mm/15.7"
MIN:150mm/5.9" 424mm/16.7"
102mm/4"
203.5mm/8"
305.5mm/12"
407.5mm/16"
509.5mm/20"
598mm/23.5"
16mm/0.6" 30mm/1.2"
158mm/6.2" 222mm/8.7"
650.5mm/25.6"
28mm/1.10"
Product dimensions

TV Brackets
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.

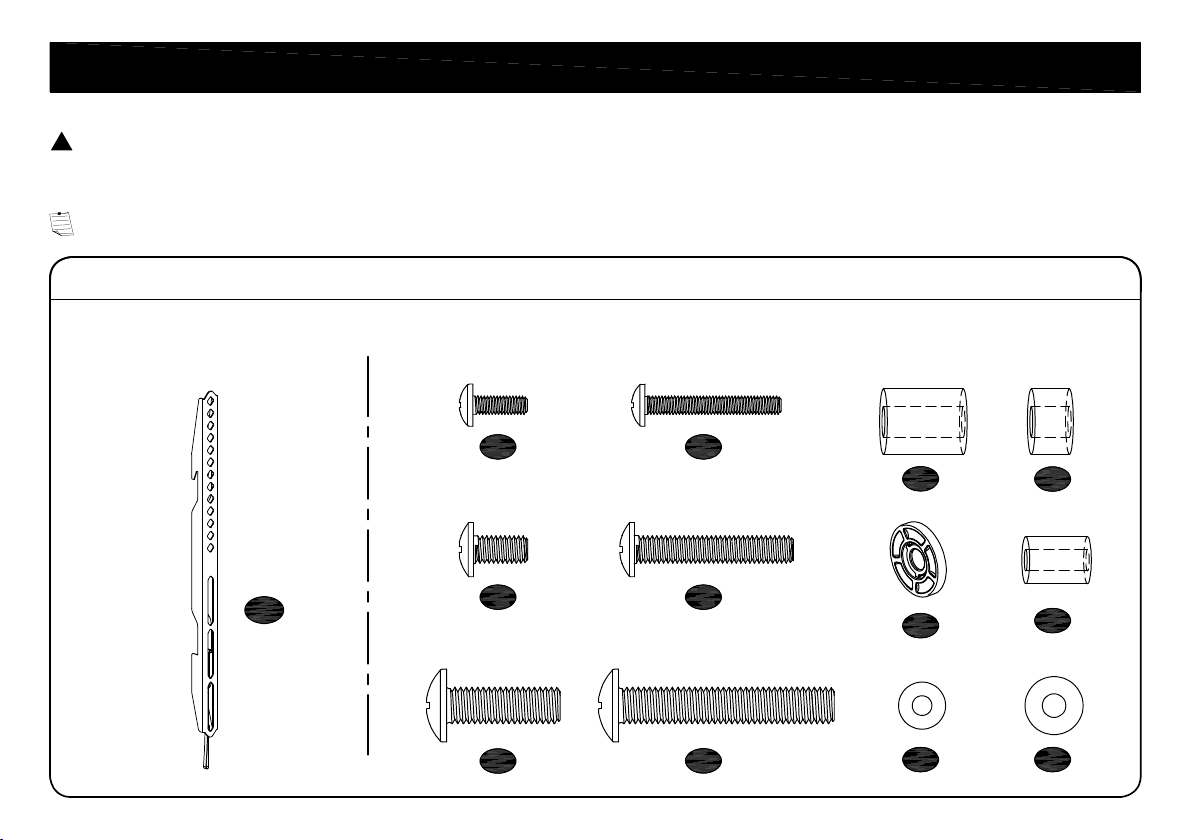

Parts and Hardware for STEP 1
4
Spacers
TV Screws
M4x12mm
M6x12mm
M8x25mm
M4x30mm
M6x35mm
M8x45mm
M6x17mm
M8x22mm
M4 M6
10mm
2.5mm
Washers
Parts and Hardware
!
x2
06
x4 x4
x4 x4
x4 x4
x4
x4 x4
x8 x4
x4
ad
b
c
e
f
gh
ij
k l

5
Lag Bolt M8x60mm
Allen Key
M5x8mm Bolt
Wall plate(Left) Wall plate(Right)
203.2mm(8")
406.4mm(1 6")
609.6mm(2 4")
Mounting template
Parts and Hardware for STEP 2
Level
04 x1 05 x1
01 x4
02 x4 03 x1
Contact us and message to us to have these
additional pieces shipped directly to you.
Concrete Wall Anchor
Ø10x50mm 4pcs
Concrete wall anchor (NOT INCLUDED)
TM

M8
M6
M4

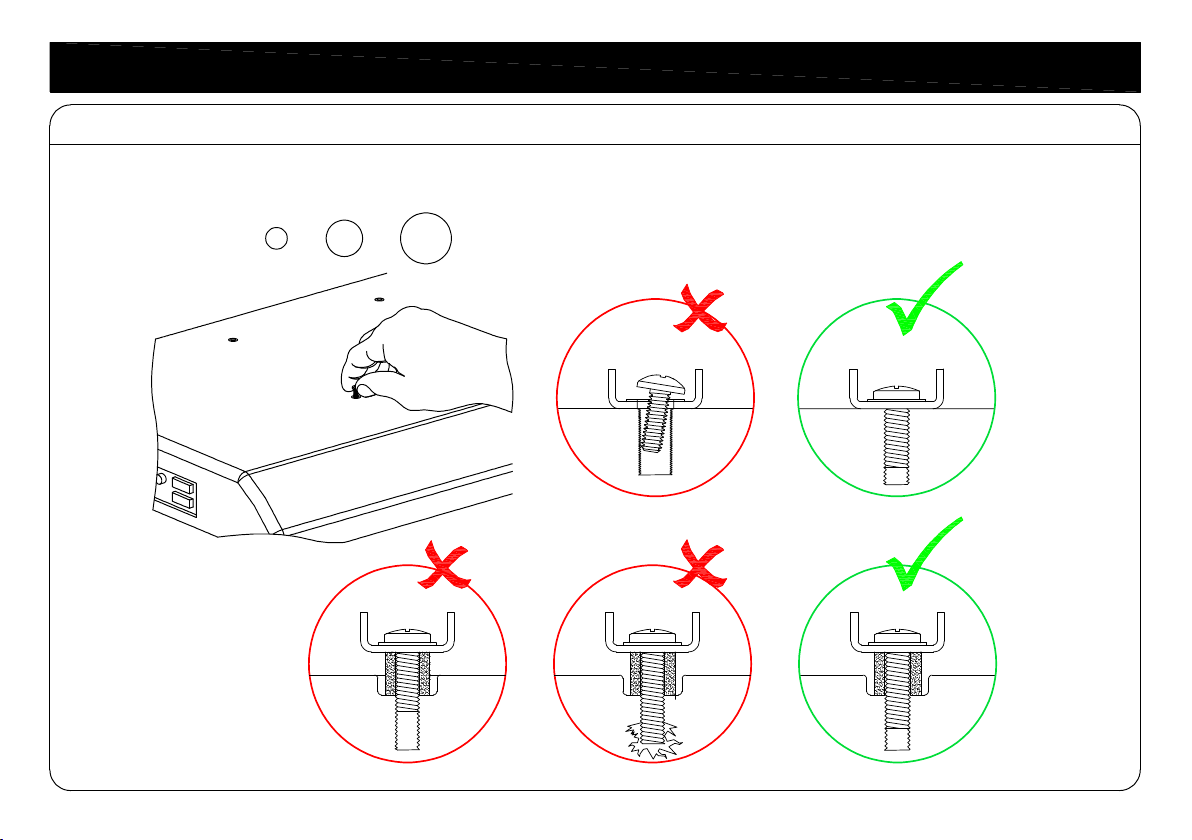

1-1 Select TV Screws
6
STEP 1 Attach Brackets to TV

1-2 Figure out the suitable position of brackets
INSTALL UP/DOWN IF NEEDED TV BRACKETS MUST BE LEVEL
LOW MOUNTING HOLES HIGH MOUNTING HOLES
7
!
!

Tips: If you need to combine M6/M8(c/e/f) screws with
2.5mm spacers( i ), you have to remove the inner circle.
Yes, choose suitable screws, washers and spacers.
1-4 Attach the TV Plate
No!
No, choose suitable screws and washers.
1-3 Need Spacer?
8
abc
lk
def
k l
gh i j
06
06

Assemble Wall plate
Wall plate unit
9
02
03
07
05
04

Centre line
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
● Maximum horizontal space between fasteners: 24 in. (609.6 mm)
● Stud center must be verified
1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,
or an edge to edge stud finder.
2. Position the wall plate unit at your desired height and line up the holes with your stud center line.
Level the wall plate and mark the hole locations.
Again, find another wood stud
16"/24"
Wall
10
1
STEP 2A Attach Wall Plate to Wall Wood Stud Option
!
2Wall
Mounting template
Level

2.5"(64mm)
3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm). Be sure to drill into the center
of the studs.
CAUTION: Improper use could reduce the holding power of the lag bolt.
DO NOT over-tighten the lag bolts.
Go to STEP 3 on PAGE 14.
7/32"
(5.5mm)
No!
4. Install wall plate using lag bolts . Tighten the lag bolts only until they are pulled firmly
against the wall plate.
Wall
Wall
11
3 4
07
01
07
!
!
01

3/8"
(10mm) 2.5"(64mm)
CAUTION: Avoid potential personal injury or property damage!
● Mount the wall plate assembly unit directly onto the concrete surface
● Minimum solid concrete thickness: 8 in. (203 mm)

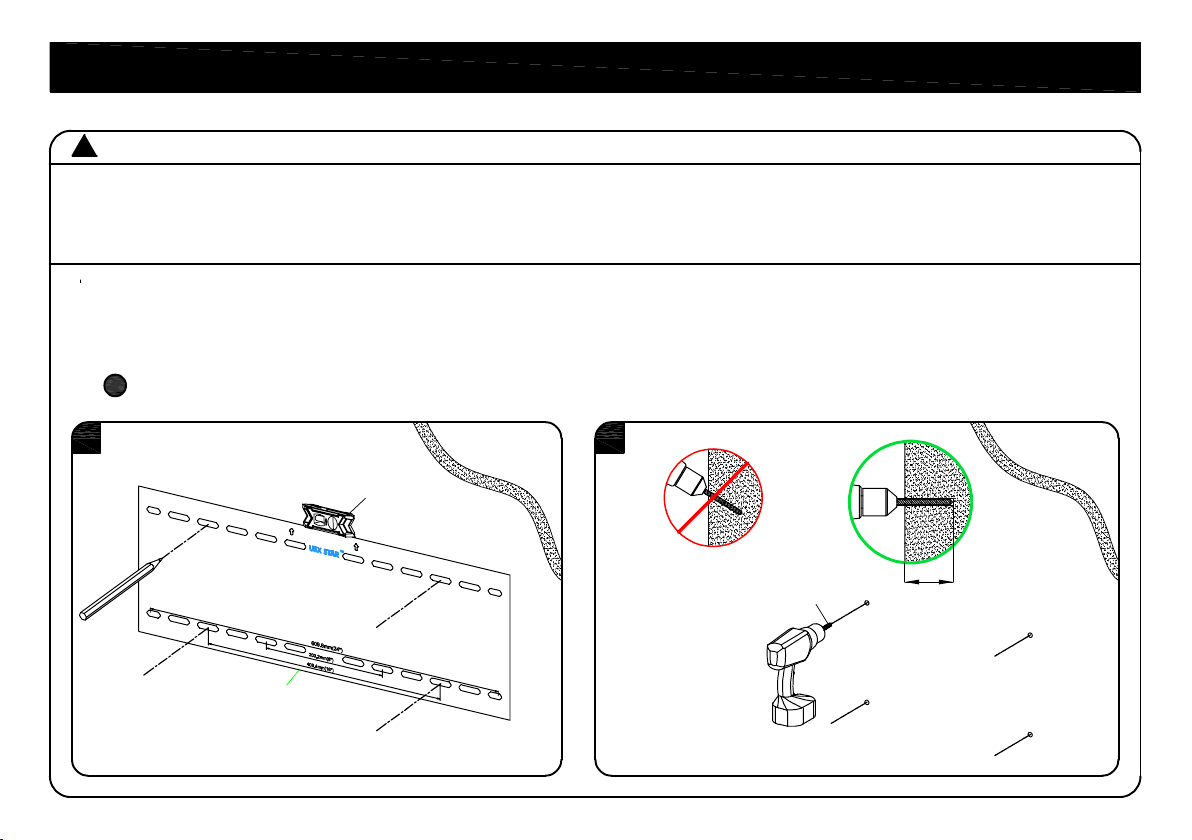

1. Position the wall plate unit on the wall at your desired height. Level the wall plate and mark the hole
locations.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm).
Wall
12
1 2
!
!
STEP 2B Attach Wall Plate to Solid Concrete Wall
Wall
Mounting template
Level

3. Insert anchors.
CAUTION: Be sure the anchors are seated flush with the concrete surface.
CAUTION: Improper use could reduce the holding power of the lag bolt.
DO NOT over-tighten the lag bolts.
Please contact us and message to us to have these
additional pieces shipped directly to you.
Concrete Wall Anchor
(Not included)
No!
4. Insert wall plate using lag bolts . Tighten the lag bolts only until they are pulled firmly
against the wall plate.
Wall Wall
13
3 4
07
01
!
!
07 01

Before hanging TV, please conduct "wall plate installation integrity test" first.
14
STEP 3 Wall Plate Installation Integrity Test

TV
1 2
Pull down
15

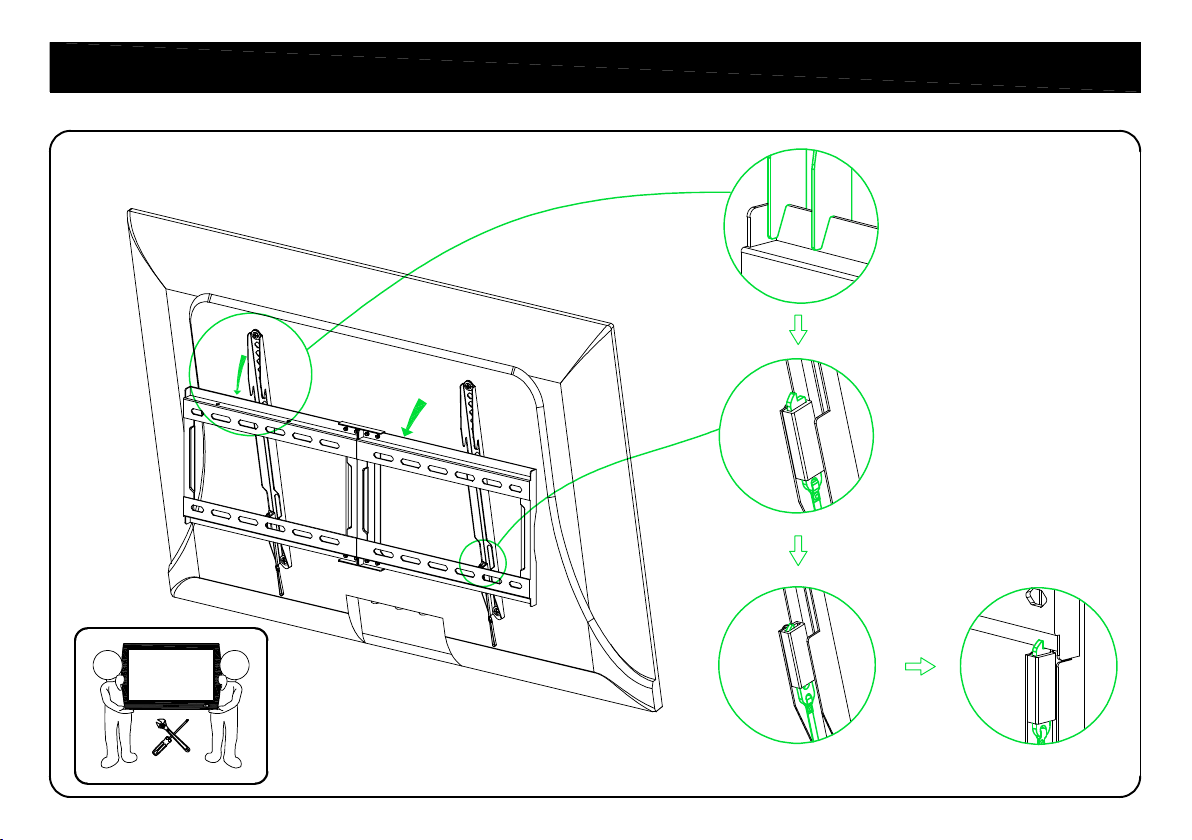

STEP 5 Hang and Secure TV to Wall Plate

Pull down
the straps
16

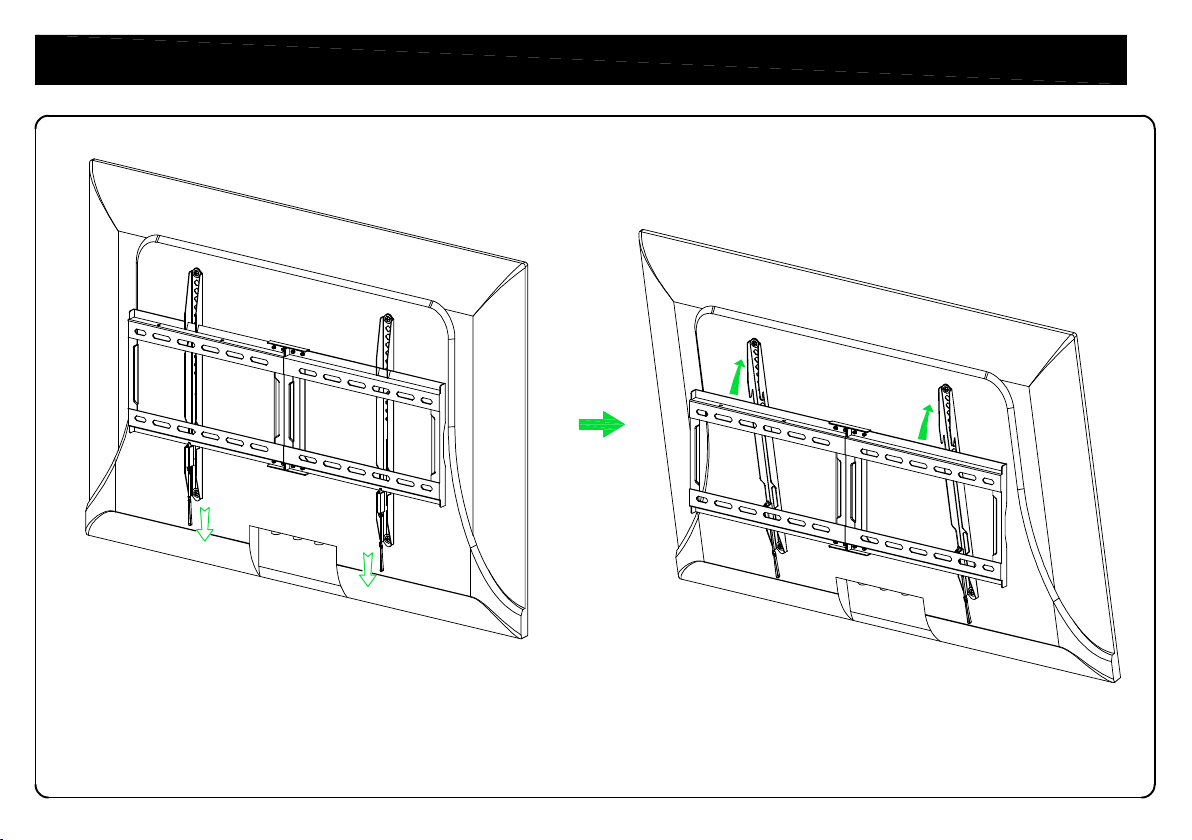

Take Down the TV from the Mount
