UTP BALUN P12DC10A User manual

P-73_P-74_P-75
R201208-V21
16 Port 12V DC Rackmount Power Supply
Model:P12DC10A 10Amps, 100~240V AC, U.S.A. & Europe
P12DC20A-110
20Amps, 110V AC, U.S.A.
P12DC20A-220 20Amps, 220V AC, Europe
Features:
•16-port 10Amps / 20Amps 12V DC Regulated Power Supply in 19” 1.5U
Rack Mounting Panel
•Output current 1.1Amps (max.) for each port
•Built-in PTC (positive temperature coefficient) for short protection and
auto rework on each port
•110V AC or 220V AC input
Application Diagram:
Note: The total current output of the power supply is 10Amps. With 16 cameras connected, 625mAwill be allocated per channel. With 10 cameras
connected, the supplied Amp per channel will be 1Amp. The power supply is set to a maximum of 1.1Amps per channel and will not allocate more
Amp if only a few cameras are connected. Connect only one device to one port. Never connect one device to two different ports, or it will lose
protection. (See drawings on the right).
Max. mA per Port Information Chart
12V DC Use for all
16 ports Use for 10 ports Use for 9 ports
10Amps 625mA 1000mA 1100mA
20Amps 1125mA 1800mA 2000mA
Specification:
Model P12DC10A P12DC20A-110 P12DC20A-220
Outlet Plug Type U.S.A. & Europe Type Plug U.S.A. Type Plug Europe Type Plug
Port 16 ports
Power Properties
Output Voltage 12V DC (Regulated)
Output Current 10Amps 20Amps 20Amps
Input Voltage 100V~240V AC 110V AC 220V AC
Input Voltage Frequency 60Hz / 50Hz
Max Amp Per Channel 1.1Amp / Channel
Fuse Type PTC (Resettable)
Physical Properties Dimensions L x W x H 515 x 260 x 128 mm / 20.3 x 10.2 x 5.0 inches
Weight 3.27 kg / 7.2 lbs
Environment Storage Temperature -30ºC ~ 70ºC / -22ºF ~ 158ºF
Operation Temperature -10ºC ~ 45ºC / 14ºF ~ 113ºF
*Specifications are subject to change without notice.
Package Contents:
•One (1) Rackmount Power Supply
•One (1) Power Cord
•One (1) Pair of Rackmount Ears
•One (1) User Manual
Fr
o
nt
R
ea
r
Caution :
•Do not connect this device to any power source other than the specified power.
•Do not handle the unit with wet hands.
•The unit is not waterproof and should not be used outdoors.
USER MANUAL
LIMITED ONE (1) YEAR WARRANTY AND EXCLUSIONS
Manufacturer warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Manufacturer is free of
defects in materials and workmanship under normal and proper use for one (1) year from the purchase date. Manufacturer's only obligation is to correct such
defects by repair or replacement, at its option, if within such one (1) year period the product is returned prepaid, with proof of purchase date, and a description of
the problem. This warrant excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is voided if this product
is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal
operating conditions or not in accordance with any labels or instructions. There are no other implied warranties of any kind, including merchantability
and fitness or a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warrant, including
merchantability and fitness of or a particular purpose, is limited to one (1) year. Manufacturer is not liable for incidental, indirect, special, or consequential
damages, including without limitation, damage to, or loss of use of, any equipment, loss sales or profits or delay or failure to perform this warranty
obli
g
ation. The remedies,
p
rovided therein are the exclusive remedies under this warrant
y
, whether based on contract, tort or otherwise.

P-76 / P-77 / P-78 / P-79
R062011-V22

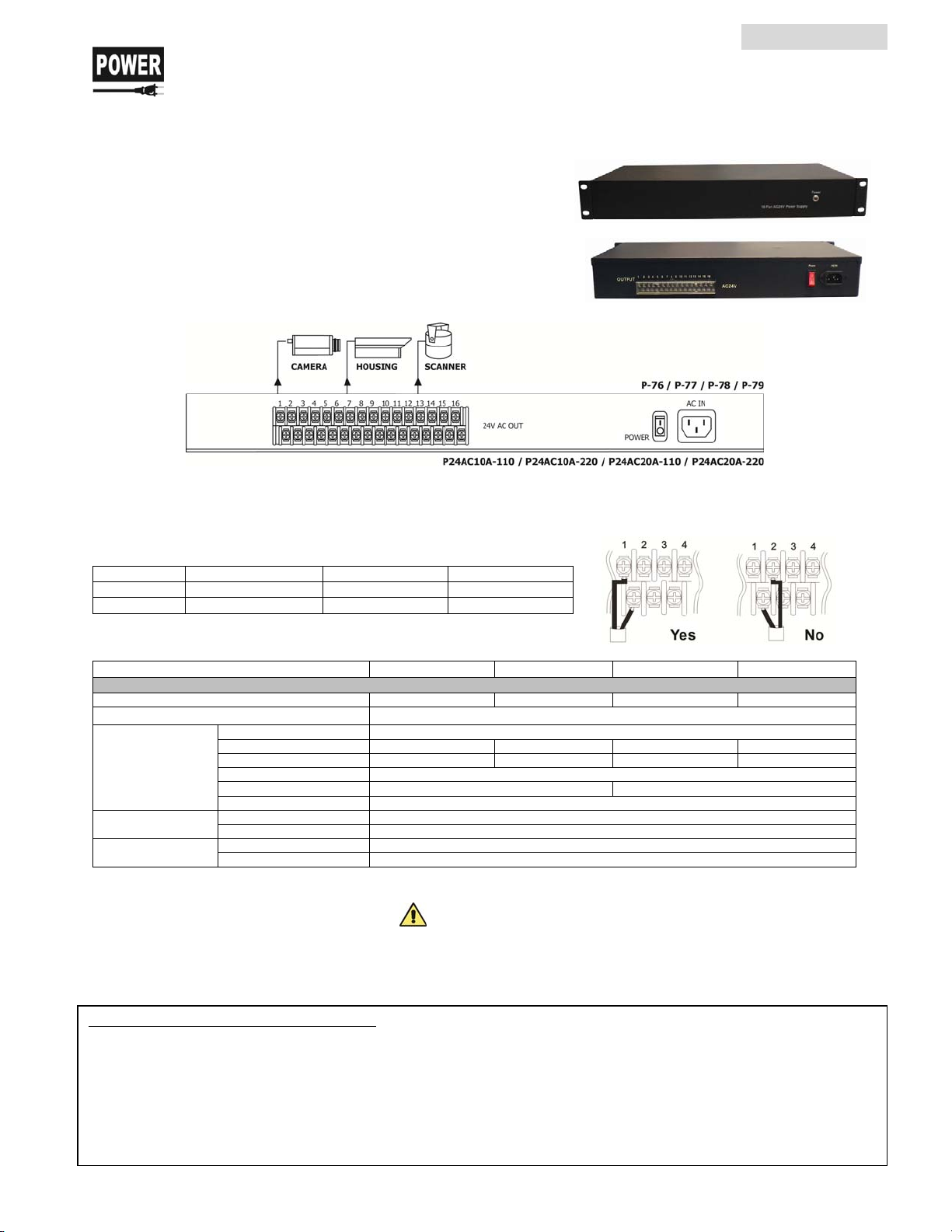

16 Port 24V AC Rackmount Power Supply
Model: P24AC10A-110 10Amps, 110V AC, U.S.A.
P24AC10A-220 10Amps, 220V AC, Europe
P24AC20A-110
20Amps, 110V AC, U.S.A.
P24AC20A-220 20Amps, 220V AC, Europe
Features:
•16-port 10Amps / 20Amps 24VAC Regulated Power Supply in 19” 1.5U
Rack Mounting Panel
•Built-in PTC (positive temperature coefficient) for short protection and auto
rework on each port
Application Diagram:
Note: The total current output of the power supply is 10Amps. With 16 cameras connected, 625mAwill be allocated per channel. With 10 cameras
connected, the supplied Amp per channel will be 1Amp. The power supply is set to a maximum of 1.1Amps per channel and will not allocate more
Amp if only a few cameras are connected. Connect only one device to one port. Never connect one device to two different ports, or it will lose
protection. (See drawings on the right).
Max. Amps/VA per Port Information Chart
24V AC Use for all 16 ports Use for 10 ports Use for 9 ports
10Amps 0.625Amp / 15VA 1Amp / 24VA 1.1Amps / 26.4VA
20Amps 1.2Amps / 28.80VA 1.8Amps / 43.2VA 2Amps / 48VA
Output current 1.1Amps (max.) for each port in 10Amps & 2Amps (max.) for each port in 20Amps
Specification:
Model P24AC10A-110 P24AC10A-220 P24AC20A-110 P24AC20A-220
Outlet Plug Type U.S.A. Plug Type Europe Plug Type U.S.A. Plug Type Europe Plug Type
Port 16 ports
Power Properties
Output Voltage 24V AC (Regulated)
Output Current 10Amps 10Amps 20Amps 20Amps
Input Voltage 110V AC 220V AC 110V AC 220V AC
Input Voltage Frequency 60Hz / 50Hz
Max Amp Per Channel 1.1Amps / Channel 2Amps / Channel
Fuse Type PTC (Resettable)
Physical Properties Dimensions L x W x H 515 x 260 x 128 mm / 20.3 x 10.2 x 5.0 inches
Weight 4.61 kg / 10.2 lbs
Environment Storage Temperature -30ºC ~ 70ºC / -22ºF ~ 158ºF
Operation Temperature -10ºC ~ 45ºC / 14ºF ~ 113ºF
*Specifications are subject to change without notice.
Package Contents:
•One (1) Rackmount Power Supply
•One (1) Power Cord
•One (1) Pair of Rackmount Ears
•One (1) User Manual
Caution :
•Do not connect this device to any power source other than the specified power.
•Do not handle the unit with wet hands.
•
The unit is not waterproof and should not be used outdoors.
USER MANUAL
Fr
o
n
t
R
ea
r
LIMITED ONE (1) YEAR WARRANTY AND EXCLUSIONS
Manufacturer warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Manufacturer is free of
defects in materials and workmanship under normal and proper use for one (1) year from the purchase date. Manufacturer's only obligation is to correct such
defects by repair or replacement, at its option, if within such one (1) year period the product is returned prepaid, with proof of purchase date, and a description of
the problem. This warrant excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is voided if this product
is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal
operating conditions or not in accordance with any labels or instructions. There are no other implied warranties of any kind, including merchantability
and fitness or a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warrant, including
merchantability and fitness of or a particular purpose, is limited to one (1) year. Manufacturer is not liable for incidental, indirect, special, or consequential
damages, including without limitation, damage to, or loss of use of, any equipment, loss sales or profits or delay or failure to perform this warranty
obli
g
ation. The remedies,
p
rovided therein are the exclusive remedies under this warrant
y
, whether based on contract, tort or otherwise.
