UTP BALUN VPB800TRJ User manual

A-6
UTP = Unshielded Twisted Pair R062011-V13
8 Channel Passive Video Balun / Transceiver
Model: VPB800TRJ
Features:
•Transmit a color video signal up to 400 m /1200 ft and B/W video signal up to 600 m / 2000 ft.
•Passive; No power required.
•Eliminate coaxial cable.
•Built-in Filter: 0~6MHz
•Use RJ45 Jack or 8 screw type terminal to connect between units.
RJ45 Jack Removable Terminal Block
Application Diagram:
A)
B)

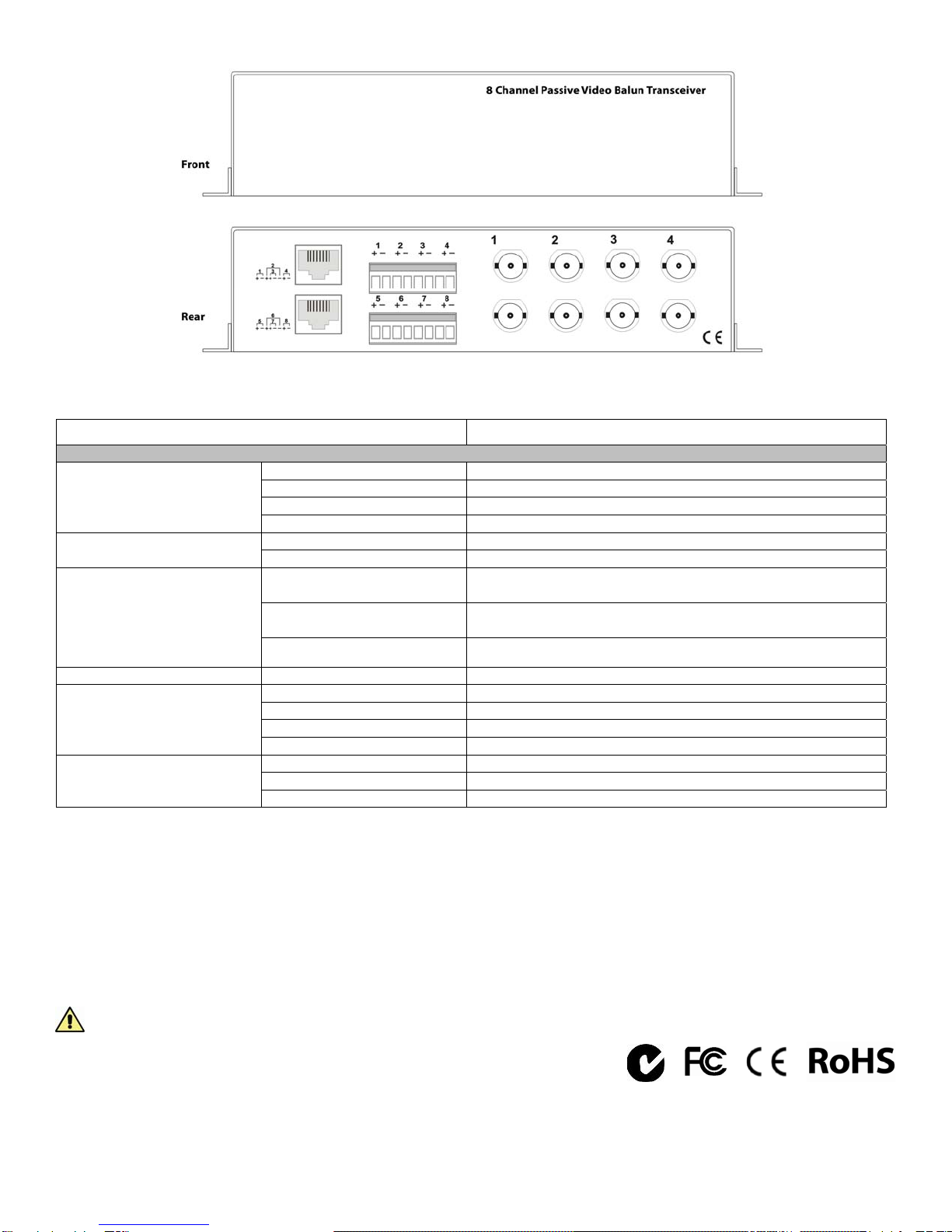

Panel View:
o
r
USER MANUAL
Rear
Front

A-6
UTP = Unshielded Twisted Pair R062011-V13
Specification:
Model VPB800TRJ
Video Transmitting Properties
Supporting Video Mode All Baseband Signals including PAL, NTSC, SECAM
Balance Band 0~6MHz
Maximum Transmission Distance Color 400 m / 1200 ft ; B /W 600m / 2000 ft
Interference Rejection >60dB
Connection Properties Video Output Connectors 8 Female BNC, Resistance 75 Ohms
Connector for UTP Transmission Screw Terminal Set and RJ45, Resistance 50 Ohms
Surge Protections
Video Output Protection 2kV (common mode), 10/700µs
Standard: IEC61000-4-2
Video Input Protection 2kV (different mode), 2kV (common mode)
Standard: IEC61000-4-2
Video Input Protection for Over
Current 100mA
Stability MTBF >30,000 hours
Physical Properties
Dimensions L x W x H 180 x 105 x 44 mm / 7.09 x 4.13 x 1.73 inches
Housing Material Metal
Color Black
Weight 580 g / 1.28 lbs
Environment Operating Temperature 0°C ~ 50°C / 32°F ~ 122°F Relative Humidity 0~95%
Storage Temperature -40°C ~ 150°C / -40°F ~ 302°F
*Specifications are subject to change without notice
List of Components:
•One (1) 8-CH Passive Video Balun/Transceiver
•Two (2) Mounting Brackets
•Five (5) Mounting Screws
•Four (4) Rubber Feet
•One (1) User Manual
Caution :
•Do not connect this device to any power source.
•Do not handle the unit with wet hands.
•The unit is not waterproof and should not be used outdoors.
5 6 7 8
C-TICK
