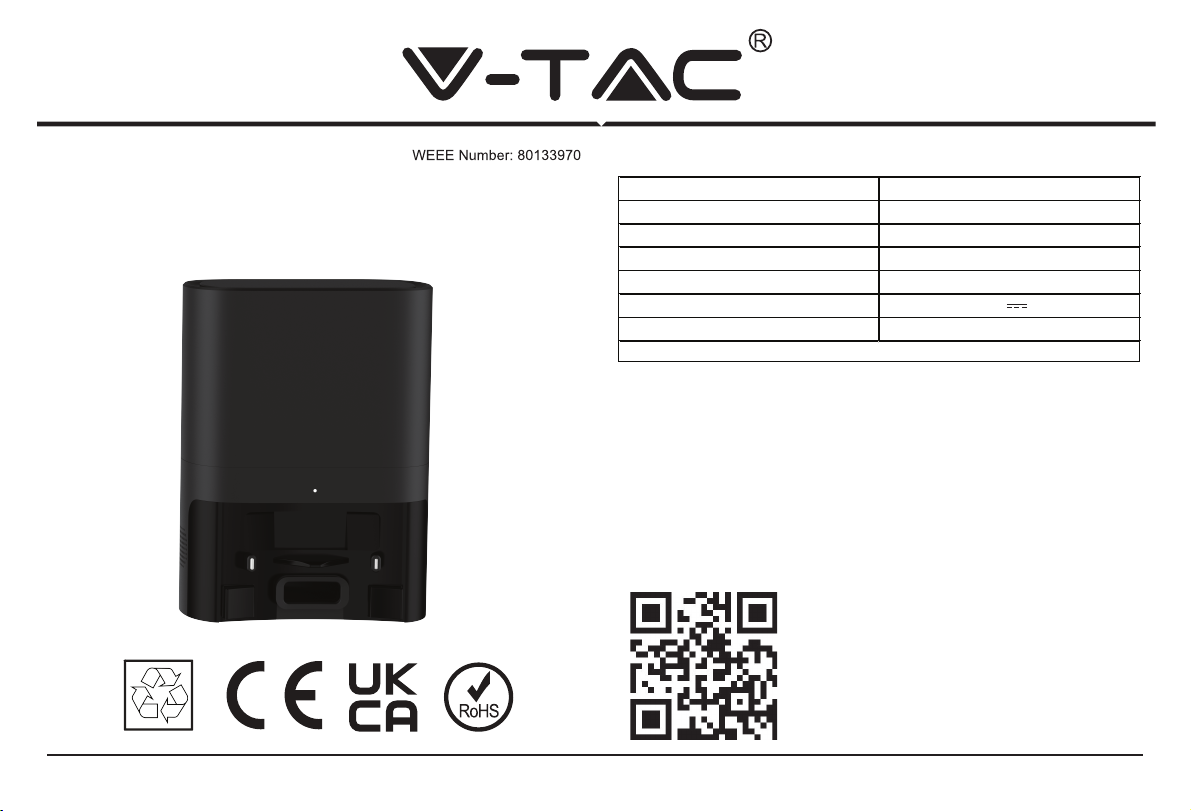

V-TAC 7751 User manual

INSTRUCTION MANUAL
AUTO DUST CLEANER
TECHNICAL DATA
INTRODUCTION
Thank you for selecting and buying V-TAC product. V-TAC
will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual
handy for future reference. If you have any another query
please contact our dealer or local vendor from whom you
have purchased the product. They are trained and ready to
serve you at the best.
MULTI-LANGUAGE MANUAL
QR CODE
Please scan the QR code to access
the manual in multiple languages.
SKU 7751 / 7752
UNIT COLOR BLACK / WHITE
DIMENSION 320x240x165mm
NET WEGHT (Kgs) 2.7kg
RATED INPUT 220-240V~50/60Hz
RATED OUTPUT 19V 1A
RATED POWER 680W
COMPATIBLE WITH V-TAC ROBOTIC VACUUM CLEANER [VT-5557]

Use Restictions
• Do not allow persons or children with physical, mental or sensory disabilities to use or operate this product.
• Do not let human or pet hair, fingers, etc. come close to the vacuum port of the machine when the dust collector is working.
• Do not sweep any burning objects (such as unextinguished cigarette butts) with the device.
• Please clean the dust collector when it is turned off or powered off.
• Do not wipe any part of this product with a damp cloth or any liquid.
• Please use this product in accordance with the instructions in the manual. Any loss and injury caused by improper use shall be borne by the user.
Warning
• This product is not to be used as a toy. Children and pets should be well supervised during use of the product.
• Do not sit or stand on this device.
• This product comes with a regionally approved power cord for use only with a standard household AC outlet. Do not use any other power cords. If
you need to replace the power cord, please contact the Customer Service Center to ensure that the correct country-specific power cord is selected.
source line.
• Do not open or disassemble the inside of this device except as permitted in these instructions. There are no parts inside the device that can be used
by users. If you need to disassemble it, please consult professional maintenance personnel.
• There is a risk of electric shock, use only in a dry indoor location.
• Do not operate this device with wet hands.
• Please store or operate this equipment at room temperature.
• To reduce the risk of electric shock, unplug the device surge cord before cleaning.
• Do not pour any liquid into the device and do not immerse the device in water.
• Do not use outdoors or in damp locations.
• Do not use if the cord or plug is damaged. If the device does not work properly, please return it to a service center.
• Do not put any debris. Do not use with the opening blocked and away from dust, lint, hair and anything that might reduce air flow.
• To avoid the danger of inadvertent resetting of the thermal cutout, this equipment must not be used with external switching devices (such as timers)
or external circuits.
• This product cannot be used with any type of power adapter, use of the power adapter will immediately void the warranty.
• Do not use without a dust bag or filter.
• Please maintain the equipment reasonably, do not put foreign objects into the equipment, and ensure that there are no sundries in the equipment.
• Before cleaning or maintenance, please separate the robot vacuum from the dust collector.

Auto empty-dock
Product Composition / Part Name
Cover
Dust bag
Lift position
Indicator
Infrared sensor
Dust collecting
Fan filter
Charging shrapnel

Auto-empty dock Accessories
Tip: The auto empty-dock has a dust bag installed at the factory
Product Composition / Part Name
Dust bag handle
Dust bag

1. Take out and place the Auto-empty dock on a flat
floor against the wall and tidy up the redundant wires
2. Clean up the sun dries around the dock and connect the
power supply that meets the requirement of electricity
consumption
Note:
Ensure space more than 0.5m from the left and righ to the
charging base and 1.5min front of the charging base
Installation
50cm
150cm
50cm

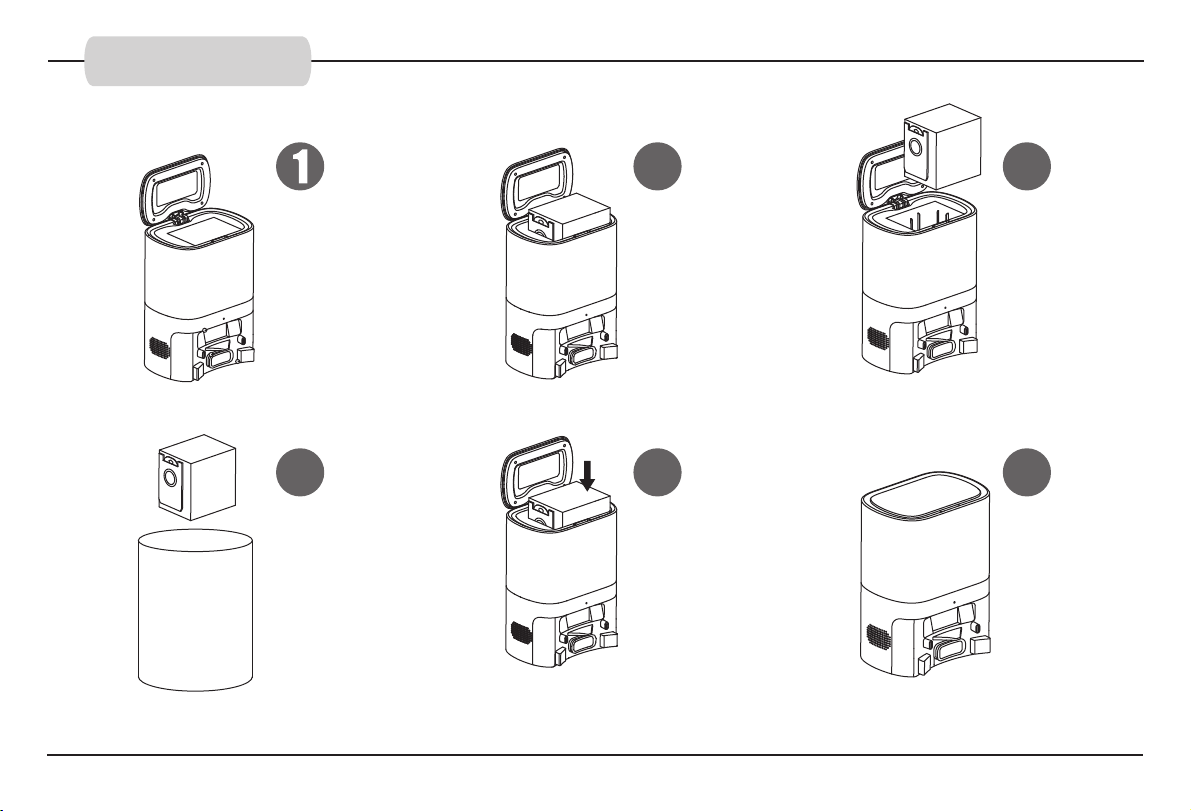

How to change the dust bag
1. Unplug the power and open
the Auto-empty dock cover
2. Pull up dust bag handle 3. Remove the dust bag from
the dock
4. Throw the used dust
bag into the trash can
5. Install the new dust bag into the
dock and ensure that the dust bag
handle is not pulled out.
6. After covering the
Auto-empty dock, switch on
the power supply.
Installation
2 3
4 5 6

Clean the Auto-empty dock dust channel
If the dock indicator blinks red after replacing the dust bag, please
unplug it Reverse the dock, through the dust channel perspective
window, check whether the dust channel of the dock is blocked If
the dust channel is blocked, remove the dust channel perspective
window with a screwdriver according to the following figure.
Clean the Auto-empty dock infrared sensor /
Charging contact shrapnel
Gently wipe the two areas regularly with a clean, soft, dry cloth.
It is recommended to clean them once a month.
Routine Maintenance
Infrared sensor
Charging contact
shrapnel
Cover of dust channel
Dust channel
Charging contact
shrapnel
Caution:
Violent disassembly is strictly prohibited. Please reinstall it after cleaning.

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [e-mail] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE
CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
Troubleshooting
Light status Common error
Solution
The dust bag is missing, the
dust bag is not installed in
place, the fan does not start, or
other faults
1. Check whether the dust bag is missing, if it is missing, please
install the dust bag
2. Check that the dust bag is installed correctly and in place.
3. Frequent dust collection may cause overheating protection
of the fan or failure of the fan. It is recommended that User
The dust bag is full or the dust
duct is blocked
1. The dust bag is full, replace with a new one.
2. Turn the dust collection station upside down, and check
whether the dust channel of the base station is If the dust duct
is blocked, remove the dust duct see-through window with a
screwdriver for cleaning.
No lights No power supply or damaged
plug
1. Please check whether the power is connected
2. If the plug is damaged, please contact a professional for
repair or replacement.
Flashing red
