V-tech VM352-2 User manual

VM352-2
Quick start guide
What’s in the box
If you are viewing baby unit , the ON/OFF LED light of baby unit turns on. As baby unit is not being viewed,
its ON/OFF LED light flashes.
Status check
VM352-2 baby monitor system
Baby’s room Living room
Connect and power on - Baby unit Install the battery Connect and power on - Parent unit
THIS SIDE UP
63ē
Change different views - Patrol
Change different views - Split
Change different views - Single CAM Change different views Dim mode
Install the lens (optional)
The wide-angle lens (VM101) provided allows you to view
more of your baby’s room from the parent unit screen.
If you do not use the lens at the moment, cover both
sides of the lens with the lens covers provided to avoid
scratches.
Select Single CAM as your monitoring mode to view a
single baby unit in full screen.
Monitoring Mode
Single CAM
Patrol
Split
Select Split as your monitoring mode to view the images
from both baby units at once.
Monitoring Mode
Single CAM
Patrol
Split
Select Patrol as your monitoring mode to alternately view the
image from baby units and every 10 seconds.
Monitoring Mode
Single CAM
Patrol
Split
In Single CAM or Patrol mode, press VIEW to switch between the image of baby units and .
Press VIEW
Positioning - Baby unit
5
With dim mode preset to on, your
parent unit display will dim to
conserve energy after 10 minutes
of inactivity, in which there is
neither key pressed nor alert
received from the baby unit.
If you do not want LCD to dim automatically, turn off the Dim Mode. •
NOTES
LCD
Brightness
Dim Mode
Dim Mode
On
10 min inactivity
Press any buttons
Once you power on both your baby units and parent unit, your parent unit displays image from the baby unit, and
the LINK LED light turns on.
10s
CAUTION
The default volume of your parent unit is
level 4, and the maximum volume is level 7.
If you experience high-pitched screeching
noise from your baby monitor while
positioning:
Make sure your baby unit and parent unit are
more than 3 feet (1 meter) apart, OR
Turn down the volume of your parent unit.
•
-
-
6U]KXOTMUT
6U]KXOTMUT
Long press
Strangulation
Hazard
Keepthis cord outof reach of children.
Thecord needs tobe at least three feet
awayfrom the child at all times.Do not
usewith an extension cord. Do not
removethis tag.
Éloignezcecordondes enfants.Le
cordondoitse trouver à au moinstrois
piedsd’unenfantetce,en touttemps.
N’utilisezpasde rallonge.Ne retirez pas
cetteétiquette.
Mantengaeste cable fuera de laalcance
delos niños. Este cable debe estar por
lomenos tres piesfuera de la alcance
delniño en todo momento. No louse
conuna extensión inalámbrica. No quite
estaetiqueta.
Risque
d’étranglement
Riesgode
estrangulación
Strangulation
Hazard
Keepthiscord outofreach of children.
Thecordneeds to be at least three feet
awayfromthe child at all times. Do not
usewithanextensioncord. Do not
removethistag.
Éloignezcecordondes enfants. Le
cordondoitse trouverà au moins trois
piedsd’unenfantetce, en tout temps.
N’utilisezpasderallonge. Ne retirezpas
cetteétiquette.
Mantengaestecable fuerade la alcance
delosniños. Este cable debe estar por
lomenostres pies fuera de la alcance
delniñoen todo momento. No lo use
conunaextensióninalámbrica. No quite
estaetiqueta.
Risque
d’étranglement
Riesgode
estrangulación
Strangulation
Hazard
Keepthis cord outof reach of children.
Thecord needs tobe at least three feet
awayfrom the child at all times.Do not
usewith an extension cord. Do not
removethis tag.
Éloignezcecordondes enfants.Le
cordondoitse trouver à au moinstrois
piedsd’unenfantetce,en touttemps.
N’utilisezpasde rallonge.Ne retirez pas
cetteétiquette.
Mantengaeste cable fuera de laalcance
delos niños. Este cable debe estar por
lomenos tres piesfuera de la alcance
delniño en todo momento. No louse
conuna extensión inalámbrica. No quite
estaetiqueta.
Risque
d’étranglement
Riesgode
estrangulación
Strangulation
Hazard
Keepthiscord outof reachof children.
Thecord needs tobe atleastthreefeet
awayfromthechild atalltimes.Do not
usewithan extension cord.Donot
removethistag.
Éloignezcecordon desenfants.Le
cordondoitsetrouveràaumoinstrois
piedsd’unenfant etce,en touttemps.
N’utilisezpasderallonge.Neretirezpas
cetteétiquette.
Mantengaestecablefueradelaalcance
delosniños.Estecabledebeestarpor
lomenostrespiesfueradelaalcance
delniñoen todomomento.Nolouse
conuna extensiónina lámbrica.Noquite
estaetiqueta.
Risque
d’étranglement
Riesgode
estrangulación
Go to www.vtechphones.com
to register your product for
enhanced warranty support and
latest VTech product news.
Strangulation
Hazard
Keepthiscordoutof reach of children.
Thecordneedstobeatleastthreefeet
awayfromthechildatalltimes.Donot
usewithanextensioncord.Donot
removethistag.
Éloignezcecordondesenfants.Le
cordondoitsetrouverà au moinstrois
piedsd’unenfantetce,entouttemps.
N’utilisezpasderallonge.Neretirezpas
cetteétiquette.
Mantengaestecablefuera delaalcance
delosniños.Estecabledebeestarpor
lomenostrespiesfueradelaalcance
delniñoentodomomento.Nolouse
conunaextensióninalámbrica.Noquite
estaetiqueta.
Risque
d’étranglement
Riesgode
estrangulación
W
I
D
E
A
N
G
L
E
L
E
N
S
W
I
D
E
A
N
G
L
E
L
E
N
S
W
I
D
E
A
N
G
L
E
L
E
N
S
W
I
D
E
A
N
G
L
E
L
E
N
S
W
I
D
E
A
N
G
L
E
L
E
N
S
W
I
D
E
A
N
G
L
E
L
E
N
S
> 3ft (1m)
>
<3ft (1m)
3ft (1m)
63ē
63ē
> 3ft (1m)
< 3ft (1m)

Specifications are subject to change without notice.
© 2018 VTech Communications, Inc. All rights reserved.
02/18. VM352-2_QSG_V2.
Document order number: 96-011935-020-100
Basic operation - Parent unit
Adjust speaker volume
Press or to adjust your parent unit
speaker volume. It determines the volume of sound
transmitted from your baby units.
Zoom
Press to zoom in or out.
Talk to your baby unit
Press and hold TALK and speak to your parent unit.
Your voice is transmitted to the baby unit.
Turn off the parent unit
Press and hold POWER to power off your parent unit.
Basic operation - Baby unit
Adjust speaker volume
Press + VOLUME - to adjust your baby unit
speaker volume. It determines the lullaby volume
and talkback volume transmitted from your parent
unit.
Turn off the baby unit
Slide the ON/OFF switch to OFF to power off
your baby unit.
Lullaby
Press / to play lullaby on the baby units.
Press to play the next lullaby.
Press / again to stop the lullaby.
•
•

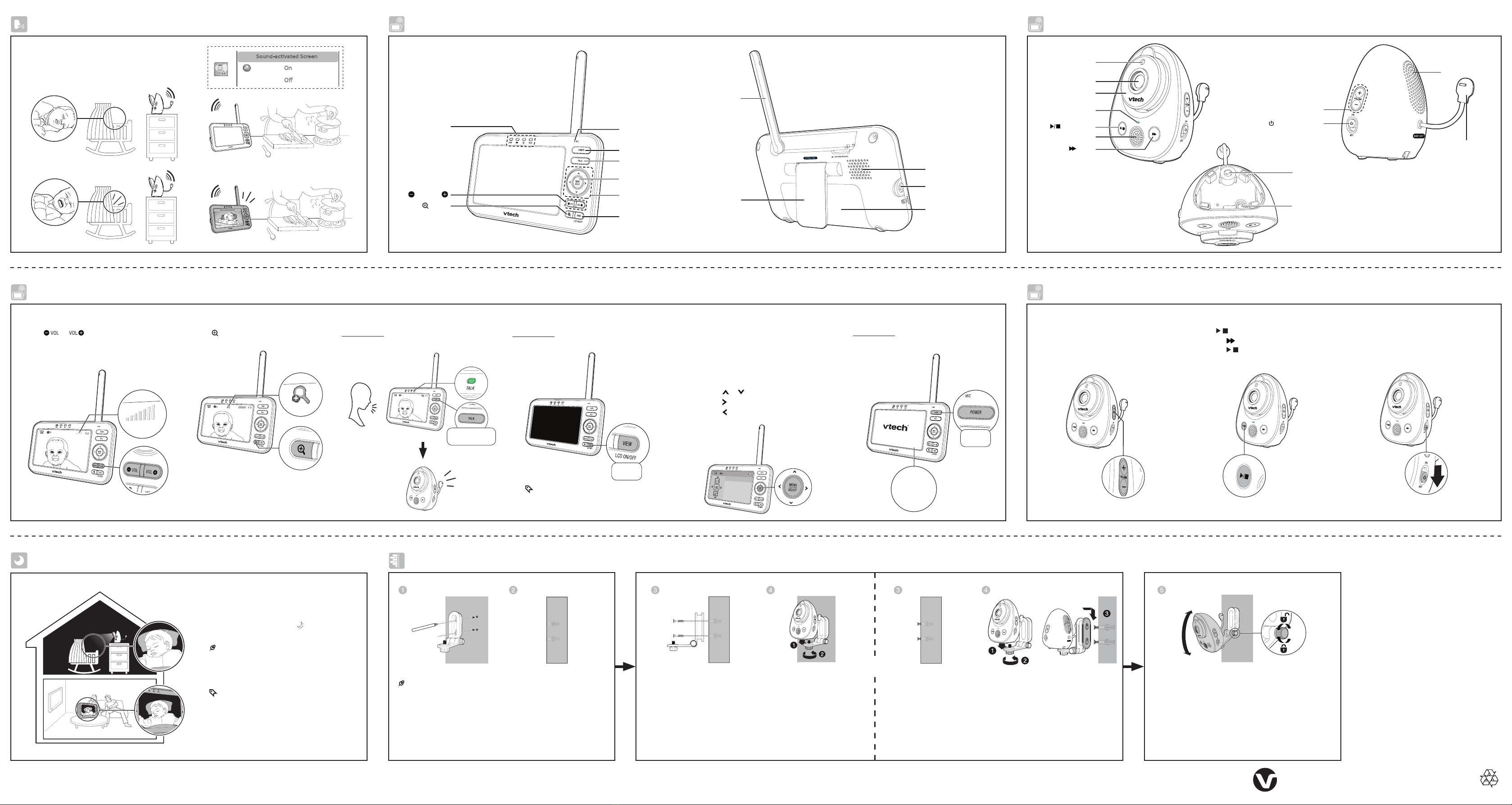

Overview - Parent unit Overview - Baby unit
Night vision
Insert the screws into the
holes and tighten the screws
until only 1/4 inch of the
screws are exposed.
If you drill the holes into a stud,
go to step 3.
-OR-
If you drill the holes into an object
other than a stud, insert the wall
anchors into the holes. Tap gently
on the ends with a hammer until
the wall anchors are flush with
the wall.
Mount the baby unit (optional)
OR
Place the wall mount bracket on a
wall and then use a pencil to mark
the top and the bottom holes as
shown. Remove the wall mount
bracket and drill two holes in the
wall (7/32 inch drill bit).
NOTES
Check for reception strength and
camera angle before drilling the holes.
•
Align the wall mount bracket and
screws with the holes in the wall
as shown. Tighten the screw in the
middle hole first, so that the wall
mount bracket position is fixed.
You can tighten the other screw in
the top hole.
Place the baby unit on the wall
mount bracket. Tighten the screw
into the threaded socket at the
bottom to secure the baby unit.
You can maximize your baby unit’s viewing angles by tilting the
wall mount bracket.
Hold the baby unit, and then rotate the knob in anticlockwise
direction. This will loosen the joint of the wall mount bracket.
Tilt your baby unit up or down to adjust to your preferred angle.
Then, rotate the knob in clockwise direction to tighten the joint
and secure the angle.
Place the baby unit on the wall mount
bracket. Tighten the screw into the
threaded socket at the bottom to secure the
baby unit. Align the holes on the wall mount
bracket with the screws on the wall, and
slide the wall mount bracket down until it
locks into place.
Sound activation
When the baby unit detects no sound, the parent unit screen
stays off to save power. Once a sound is detected, the
parent unit screen turns on automatically. It will then turn off
again after 50 seconds of no sound detection.
Sound-activated Screen
On
O
ē
63ē
ē
63ē
63ē
Press and hold
63ē
POWER
TALK
Zoom
Microphone
LED lights
Arrow keys
MENU
/ SELECT
VIEW / LCD ON/OFF
Volume Stand
Power jack
Speaker
Battery compartment
cover
Antenna
63ē
Turn off the screen
Press and hold LCD ON/OFF to switch off the screen.
You can still hear sound from the selected baby unit.
LCD is turning off...
Press any keys on the parent unit to turn on the
screen again.
•
TIP
Long press
Use the menu
Press MENU/SELECT to enter the menu, choose
a menu item, or save a setting. You can use
the parent unit menu for the advanced settings
or operations, such as to play or stop the baby
unit lullaby, or to adjust the baby unit sound
sensitivity.
While in the menu:
Press or to scroll up or down.
Press to select an item.
Press to return to the main menu or idle
screen.
•
•
•
Alert Tone
Low Battery Tone
No Link Alert
Sound alert in split-view
6U]KXOTMULL
6U]KXOTMULL
Long press
The baby unit has infrared LEDs that allow you to
see your baby at night or in a dark room. When the
baby unit detects low light levels, the infrared LEDs
turn on automatically. The images from this baby
unit are in black and white, and appears on
screen.
NOTES
It is normal if you see a short white glare on your parent
unit screen as the baby unit is adapting to the dark
environment.
When the infrared LEDs are on, the images are in black
and white. This is normal.
TIP
Depending on the surroundings and other interfering
factors, like lightings, objects, colors and backgrounds,
the display resolution may vary. Adjust the baby unit’s
angle, or place the baby unit at a higher level to prevent
glare and blurry display.
•
•
•
Infrared LEDs
Light sensor
Camera
ON/OFF LED Light
Play/Stop
Microphone
Skip Temperature
sensor
ON/OFF switch
+
VOLUME
-
Speaker
Threaded socket
Power Jack
